Alfa Romeo 4C Spider 2017 Owner's Manual

Under any of the above circumstances, the following
checks need to be performed more frequently than
indicated in the Maintenance Schedule:
•Check front and rear disc brake pad condition and
wear.
• Check cleanliness of tailgate locks.
• Check cleanliness and lubrication of chassis and
steering linkage.
• Visually inspect condition of: engine, gearbox, trans-
mission, pipes and hoses (exhaust - fuel system -
brakes) and rubber elements (gaiters - sleeves -
bushes - etc.).
• Check battery charge and battery fluid level (electro-
lyte).
• Visually inspect condition of the auxiliary drive belts.
• Check and, if necessary, change engine oil and re-
place oil filter.
• Check and, if necessary, replace air cleaner filter. Using the vehicle on a track should be regarded as an
exception. The vehicle has been designed and manufac-
tured for road use.
Change Engine Oil at 4,000 miles (6,500 km) if the
vehicle is operated in a dusty and off road environment.
This type of vehicle use is considered Severe Duty.
If the vehicle is operated in a dusty or dirty environ-
ment the engine air filter has to be changed every
6,500 miles (10,000 km).
Once A Month Or Before A Long Trip/Periodic Checks
Every 600 miles (1,000 km) or before long trips, check
and, if necessary, top off the following:
•
Check engine oil level.
• Check brake fluid level.
• Check windshield washer fluid level.
• Check the tire inflation pressures and look for un-
usual wear or damage.
• Check the fluid levels of the coolant reservoir and
brake master cylinder reservoir, and add as needed
• Check function of all interior and exterior lights.8
MAINTENANCE SCHEDULES 269

•Check screen wash/wipe system and positioning/
wear of windshield.
Every 2,000 miles (3,000 km) check and, if necessary, top
up: engine oil level.
Maintenance Chart
Required Maintenance Intervals
Refer to the maintenance schedules on the following
page for the required maintenance intervals.
At Every Oil Change Interval As Indicated By Oil Change Indicator System:
Change oil and filter.
Inspect battery and clean and tighten terminals as required.
Inspect brake pads, shoes, rotors, drums, and hoses. Inspect engine cooling system protection and hoses. Check and adjust hand brake.Inspect exhaust system.
Inspect engine air cleaner filter if using in dusty or off-road conditions.
270 MAINTENANCE SCHEDULES

Mileage or time passed
(whichever comes first)
12,000
24,000
36,000
48,000
60,000
72,000
84,000
96,000
108,000
120,000
132,000
144,000
156,000
Or Months: 12 24 36 48 60 72 84 96 108 120 132 144 156
Or Kilometers:
20,000
40,000
60,000
80,000
100,000
120,000
140,000
160,000
180,000
200,000
220,000
240,000
260,000
Check battery charge
status and possibly re-
charge # XXXXXXXXXXXXX
Check tire condition/wear
and adjust pressure if
required XXXXXXXXXXXXX
Check lighting system
operation (headlights, di-
rection indicators, hazard
lights, passenger compart-
ment lights, boot lights,
instrument panel warning
lights, etc.) XXXXXXXXXXXXX
Check vehicle fasteners X X X X X X X
Check mechanical
components fasteners XXXXXXXXXXXXX
Check windscreen wiper/
washer operation, adjust
nozzles XXXXXXXXXXXXX
8
MAINTENANCE SCHEDULES 271

Mileage or time passed
(whichever comes first)
12,000
24,000
36,000
48,000
60,000
72,000
84,000
96,000
108,000
120,000
132,000
144,000
156,000
Or Months: 12 24 36 48 60 72 84 96 108 120 132 144 156
Or Kilometers:
20,000
40,000
60,000
80,000
100,000
120,000
140,000
160,000
180,000
200,000
220,000
240,000
260,000
Check position/wear of
windscreen wiper blade XXXXXXXXXXXXX
Check cleanliness of hood
and deck lid locks, as well
as cleanliness and lubrica-
tion of associated linkages XXXXXXXXXXXXX
Visually inspect condition
of: exterior bodywork, car-
bon monocoque, aerody-
namic bottom, pipes and
hoses (exhaust, fuel sup-
ply system, brakes), rub-
ber elements (boots, drive-
shaft boots, sleeves,
bushes, etc.) XXXXXXXXXXXXX
Check condition and wear
of front brake pads and
discs, and operation of
pad wear indicator XXXXXXXXXXXXX
272 MAINTENANCE SCHEDULES

Mileage or time passed
(whichever comes first)
12,000
24,000
36,000
48,000
60,000
72,000
84,000
96,000
108,000
120,000
132,000
144,000
156,000
Or Months: 12 24 36 48 60 72 84 96 108 120 132 144 156
Or Kilometers:
20,000
40,000
60,000
80,000
100,000
120,000
140,000
160,000
180,000
200,000
220,000
240,000
260,000
Check condition and wear
of rear brake pads and
discs, and operation of
pad wear indicator XXXXXXXXXXXXX
Check and top off, if re-
quired, fluid levels (engine
coolant, brake/hydraulic
clutch fluid, windscreen
washer fluid, battery fluid,
etc) XXXXXXXXXXXXX
Visually inspect the condi-
tion of accessory drive
belt(s) XX X X
Check condition of timing
belt XX X
Check handbrake lever
travel and adjust, if neces-
sary (or every 12 months) XXXXXXXXXXXXX
8
MAINTENANCE SCHEDULES 273

Mileage or time passed
(whichever comes first)
12,000
24,000
36,000
48,000
60,000
72,000
84,000
96,000
108,000
120,000
132,000
144,000
156,000
Or Months: 12 24 36 48 60 72 84 96 108 120 132 144 156
Or Kilometers:
20,000
40,000
60,000
80,000
100,000
120,000
140,000
160,000
180,000
200,000
220,000
240,000
260,000
Check engine control
system operation
(via diagnostic tool) XXXXXXXXXXXXX
Check and, if necessary,
top off oil level of twin
clutch transmission XX
Replace accessory drive
belt(s) XX
Replace spark plugs * X X X X
Replace toothed timing
drive belt ** XX
Change engine oil and oil
filter ***
Change brake fluid every
24 months***** XXX X X X
Replace air filter
cartridge**** XXXXXXXXXXXXX
274 MAINTENANCE SCHEDULES

# Recommend using Midtronics tester to check charge
status and, if necessary, recharge battery.
* The spark plug change interval is mileage based only,
yearly intervals do not apply. The following are essen-
tial to ensure correct operation and prevent serious
damage to the engine:
•Only use spark plugs of the same make and type
which are specially certified for such engines (refer to
“Fluids, Lubricants, and Genuine Parts” in “Main-
taining Your Vehicle” for further information).
• Strictly comply with the spark plug replacement
interval given in the maintenance schedule for spark
plug replacement.
• C
ontact your Alfa Romeo Dealer if you have questions.
** Regardless of the distance covered, the timing belt
must be changed every 4 years for particularly demand-
ing use (cold climates, city driving, long periods of
idling) or at least every 5 years. *** The actual interval for changing the oil and replac-
ing the engine oil filter depends on the vehicle usage
conditions and is signalled by the warning light or
message (if present) on the instrument panel or every 12
months.
**** If the vehicle is operated in a dusty or dirty
environment the engine air filter has to be changed
every 6,500 miles (10,000 km).
***** DOT 4 brake fluid must be changed every two
years regardless of mileage.
WARNING!
•
You can be badly injured working on or around a
motor vehicle. Do only service work for which
you have the knowledge and the right equipment.
If you have any doubt about your ability to
perform a service job, take your vehicle to a
competent mechanic.
• Failure to properly inspect and maintain your
vehicle could result in a component malfunction
and effect vehicle handling and performance.
This could cause an accident.
8
MAINTENANCE SCHEDULES 275

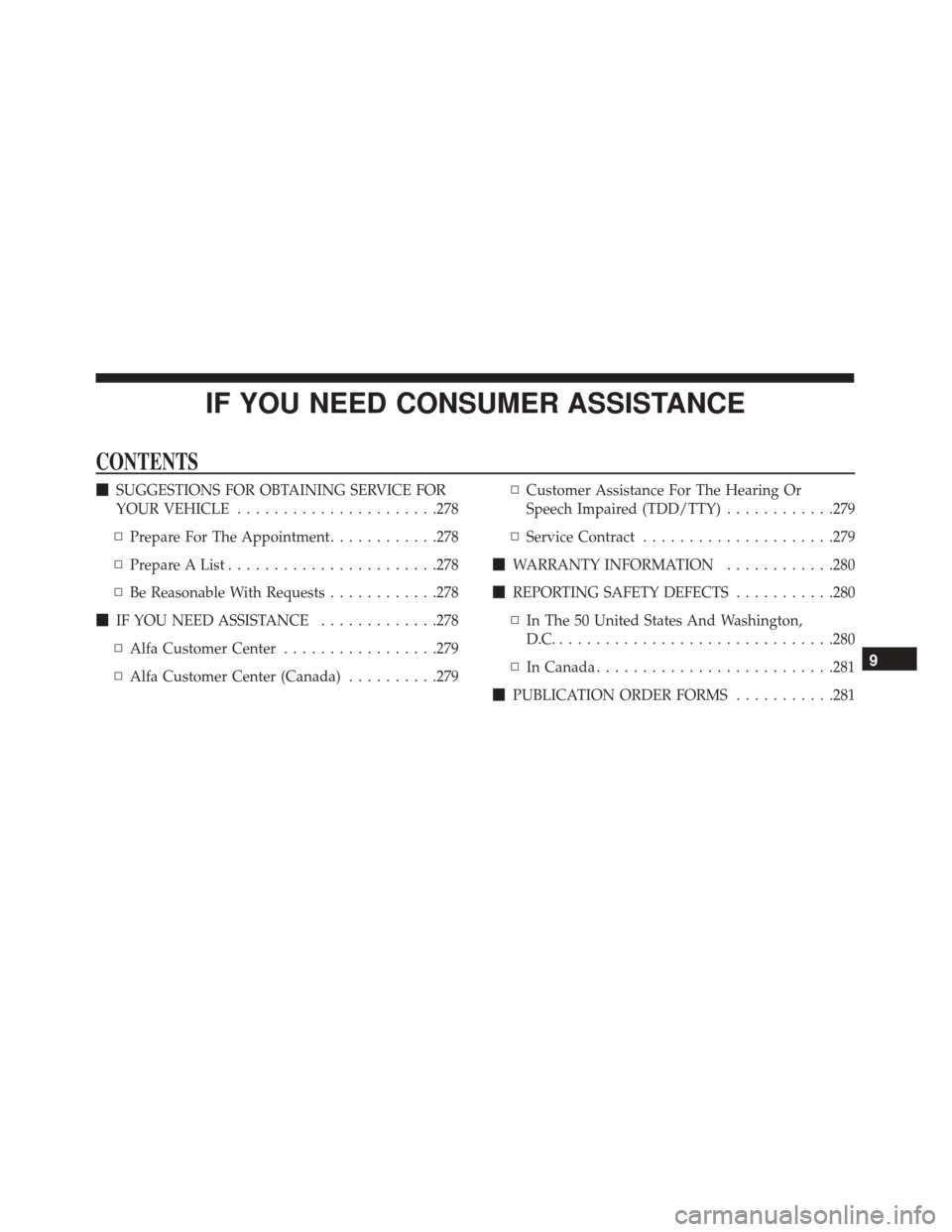

IF YOU NEED CONSUMER ASSISTANCE
CONTENTS
SUGGESTIONS FOR OBTAINING SERVICE FOR
YOUR VEHICLE ..................... .278
▫ Prepare For The Appointment ............278
▫ Prepare A List .......................278
▫ Be Reasonable With Requests ............278
 IF YOU NEED ASSISTANCE .............278
▫ Alfa Customer Center .................279
▫ Alfa Customer Center (Canada) ..........279▫
Customer Assistance For The Hearing Or
Speech Impaired (TDD/TTY) ............279
▫ Service Contract .....................279
 WARRANTY INFORMATION ............280
 REPORTING SAFETY DEFECTS ...........280
▫ In The 50 United States And Washington,
D.C. ............................. .280
▫ In Canada ..........................281
 PUBLICATION ORDER FORMS ...........281
9

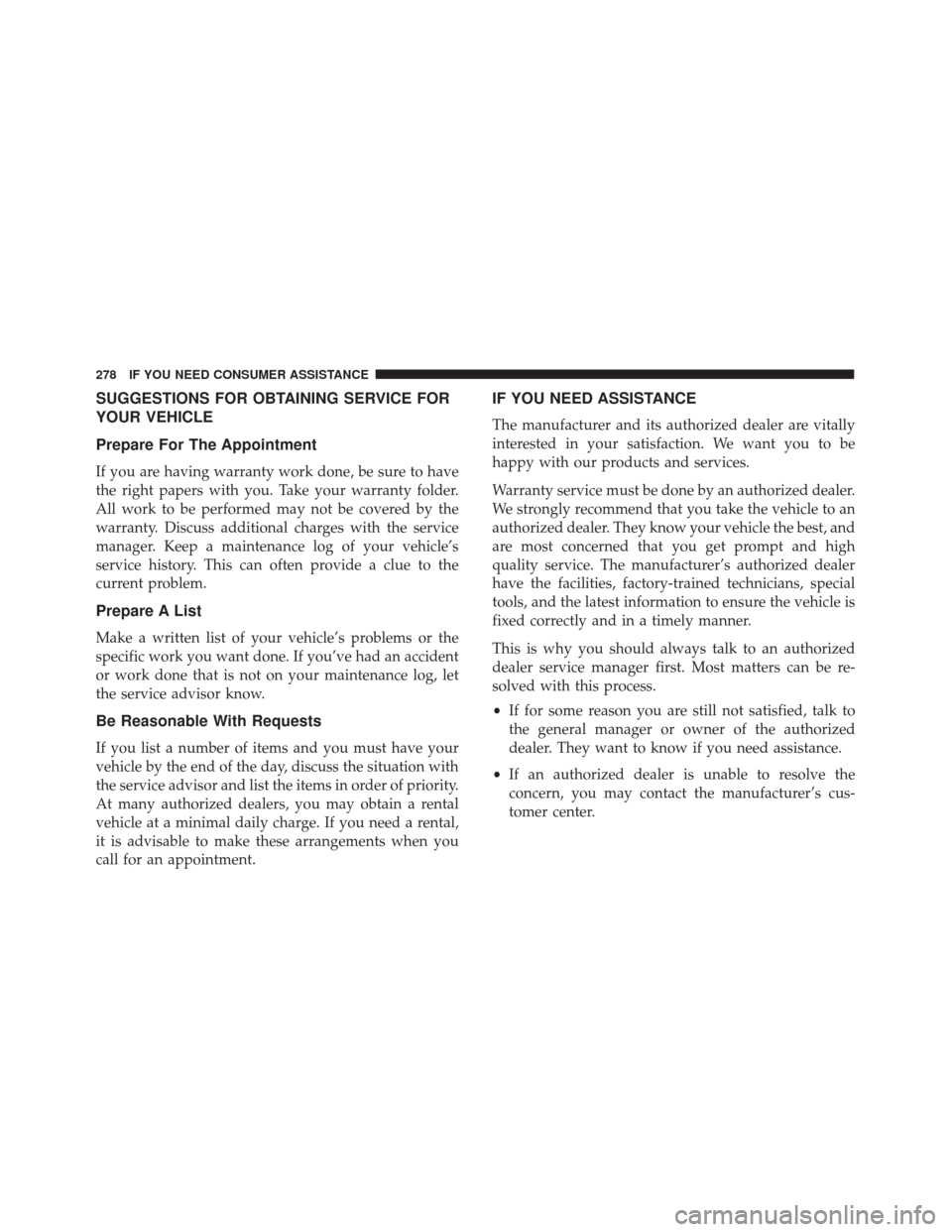

SUGGESTIONS FOR OBTAINING SERVICE FOR
YOUR VEHICLE
Prepare For The Appointment
If you are having warranty work done, be sure to have
the right papers with you. Take your warranty folder.
All work to be performed may not be covered by the
warranty. Discuss additional charges with the service
manager. Keep a maintenance log of your vehicle’s
service history. This can often provide a clue to the
current problem.
Prepare A List
Make a written list of your vehicle’s problems or the
specific work you want done. If you’ve had an accident
or work done that is not on your maintenance log, let
the service advisor know.
Be Reasonable With Requests
If you list a number of items and you must have your
vehicle by the end of the day, discuss the situation with
the service advisor and list the items in order of priority.
At many authorized dealers, you may obtain a rental
vehicle at a minimal daily charge. If you need a rental,
it is advisable to make these arrangements when you
call for an appointment.
IF YOU NEED ASSISTANCE
The manufacturer and its authorized dealer are vitally
interested in your satisfaction. We want you to be
happy with our products and services.
Warranty service must be done by an authorized dealer.
We strongly recommend that you take the vehicle to an
authorized dealer. They know your vehicle the best, and
are most concerned that you get prompt and high
quality service. The manufacturer’s authorized dealer
have the facilities, factory-trained technicians, special
tools, and the latest information to ensure the vehicle is
fixed correctly and in a timely manner.
This is why you should always talk to an authorized
dealer service manager first. Most matters can be re-
solved with this process.
•If for some reason you are still not satisfied, talk to
the general manager or owner of the authorized
dealer. They want to know if you need assistance.
• If an authorized dealer is unable to resolve the
concern, you may contact the manufacturer’s cus-
tomer center.
278 IF YOU NEED CONSUMER ASSISTANCE
