Alfa Romeo 4C Spider 2019 Owner's Manual

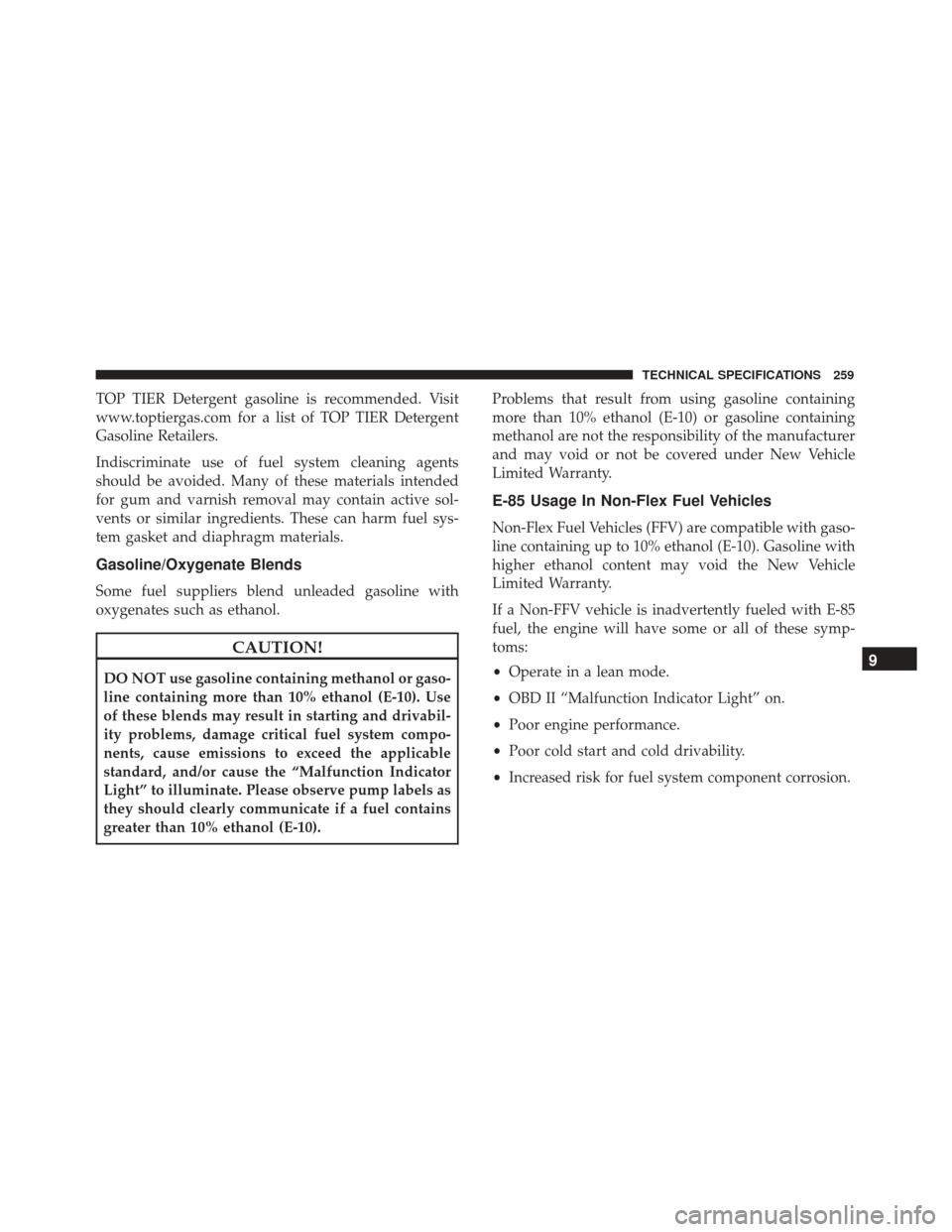

TOP TIER Detergent gasoline is recommended. Visit
www.toptiergas.com for a list of TOP TIER Detergent
Gasoline Retailers.
Indiscriminate use of fuel system cleaning agents
should be avoided. Many of these materials intended
for gum and varnish removal may contain active sol-
vents or similar ingredients. These can harm fuel sys-
tem gasket and diaphragm materials.
Gasoline/Oxygenate Blends
Some fuel suppliers blend unleaded gasoline with
oxygenates such as ethanol.
CAUTION!
DO NOT use gasoline containing methanol or gaso-
line containing more than 10% ethanol (E-10). Use
of these blends may result in starting and drivabil-
ity problems, damage critical fuel system compo-
nents, cause emissions to exceed the applicable
standard, and/or cause the “Malfunction Indicator
Light” to illuminate. Please observe pump labels as
they should clearly communicate if a fuel contains
greater than 10% ethanol (E-10).Problems that result from using gasoline containing
more than 10% ethanol (E-10) or gasoline containing
methanol are not the responsibility of the manufacturer
and may void or not be covered under New Vehicle
Limited Warranty.
E-85 Usage In Non-Flex Fuel Vehicles
Non-Flex Fuel Vehicles (FFV) are compatible with gaso-
line containing up to 10% ethanol (E-10). Gasoline with
higher ethanol content may void the New Vehicle
Limited Warranty.
If a Non-FFV vehicle is inadvertently fueled with E-85
fuel, the engine will have some or all of these symp-
toms:
•
Operate in a lean mode.
• OBD II “Malfunction Indicator Light” on.
• Poor engine performance.
• Poor cold start and cold drivability.
• Increased risk for fuel system component corrosion.
9
TECHNICAL SPECIFICATIONS 259

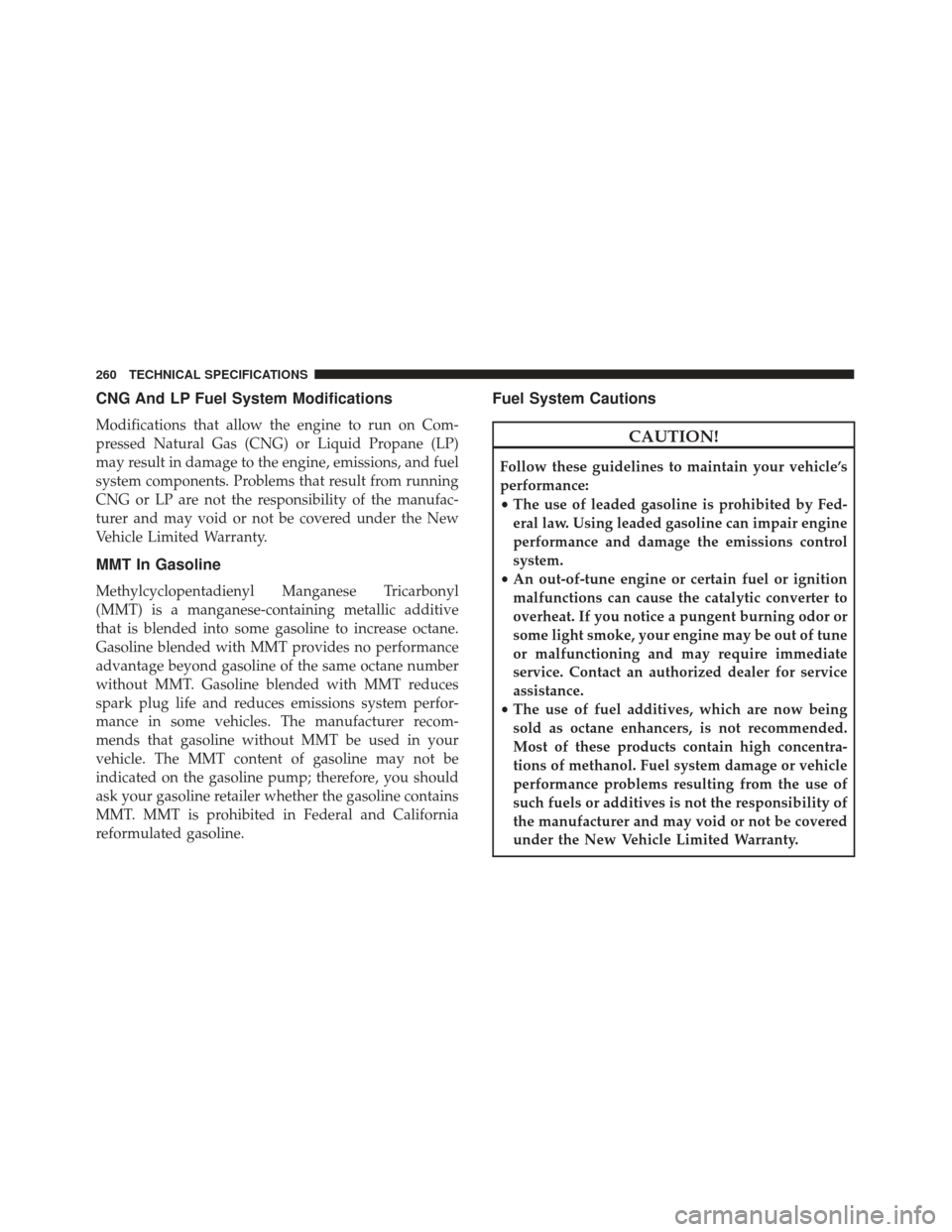

CNG And LP Fuel System Modifications
Modifications that allow the engine to run on Com-
pressed Natural Gas (CNG) or Liquid Propane (LP)
may result in damage to the engine, emissions, and fuel
system components. Problems that result from running
CNG or LP are not the responsibility of the manufac-
turer and may void or not be covered under the New
Vehicle Limited Warranty.
MMT In Gasoline
Methylcyclopentadienyl Manganese Tricarbonyl
(MMT) is a manganese-containing metallic additive
that is blended into some gasoline to increase octane.
Gasoline blended with MMT provides no performance
advantage beyond gasoline of the same octane number
without MMT. Gasoline blended with MMT reduces
spark plug life and reduces emissions system perfor-
mance in some vehicles. The manufacturer recom-
mends that gasoline without MMT be used in your
vehicle. The MMT content of gasoline may not be
indicated on the gasoline pump; therefore, you should
ask your gasoline retailer whether the gasoline contains
MMT. MMT is prohibited in Federal and California
reformulated gasoline.
Fuel System Cautions
CAUTION!
Follow these guidelines to maintain your vehicle’s
performance:
•The use of leaded gasoline is prohibited by Fed-
eral law. Using leaded gasoline can impair engine
performance and damage the emissions control
system.
• An out-of-tune engine or certain fuel or ignition
malfunctions can cause the catalytic converter to
overheat. If you notice a pungent burning odor or
some light smoke, your engine may be out of tune
or malfunctioning and may require immediate
service. Contact an authorized dealer for service
assistance.
• The use of fuel additives, which are now being
sold as octane enhancers, is not recommended.
Most of these products contain high concentra-
tions of methanol. Fuel system damage or vehicle
performance problems resulting from the use of
such fuels or additives is not the responsibility of
the manufacturer and may void or not be covered
under the New Vehicle Limited Warranty.
260 TECHNICAL SPECIFICATIONS

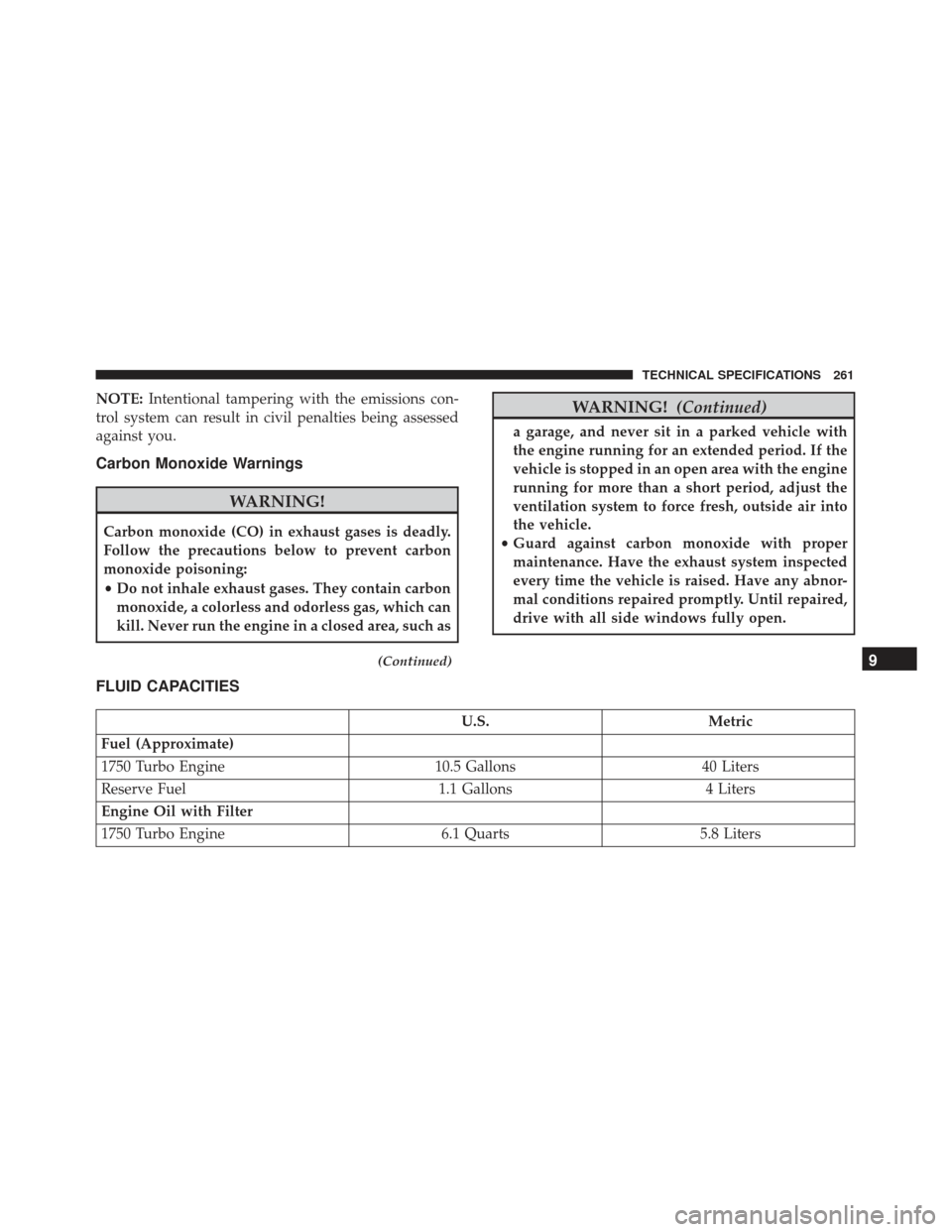

NOTE:Intentional tampering with the emissions con-
trol system can result in civil penalties being assessed
against you.
Carbon Monoxide Warnings
WARNING!
Carbon monoxide (CO) in exhaust gases is deadly.
Follow the precautions below to prevent carbon
monoxide poisoning:
• Do not inhale exhaust gases. They contain carbon
monoxide, a colorless and odorless gas, which can
kill. Never run the engine in a closed area, such as
(Continued)
WARNING! (Continued)
a garage, and never sit in a parked vehicle with
the engine running for an extended period. If the
vehicle is stopped in an open area with the engine
running for more than a short period, adjust the
ventilation system to force fresh, outside air into
the vehicle.
• Guard against carbon monoxide with proper
maintenance. Have the exhaust system inspected
every time the vehicle is raised. Have any abnor-
mal conditions repaired promptly. Until repaired,
drive with all side windows fully open.
FLUID CAPACITIES
U.S. Metric
Fuel (Approximate)
1750 Turbo Engine 10.5 Gallons40 Liters
Reserve Fuel 1.1 Gallons4 Liters
Engine Oil with Filter
1750 Turbo Engine 6.1 Quarts5.8 Liters
9
TECHNICAL SPECIFICATIONS 261

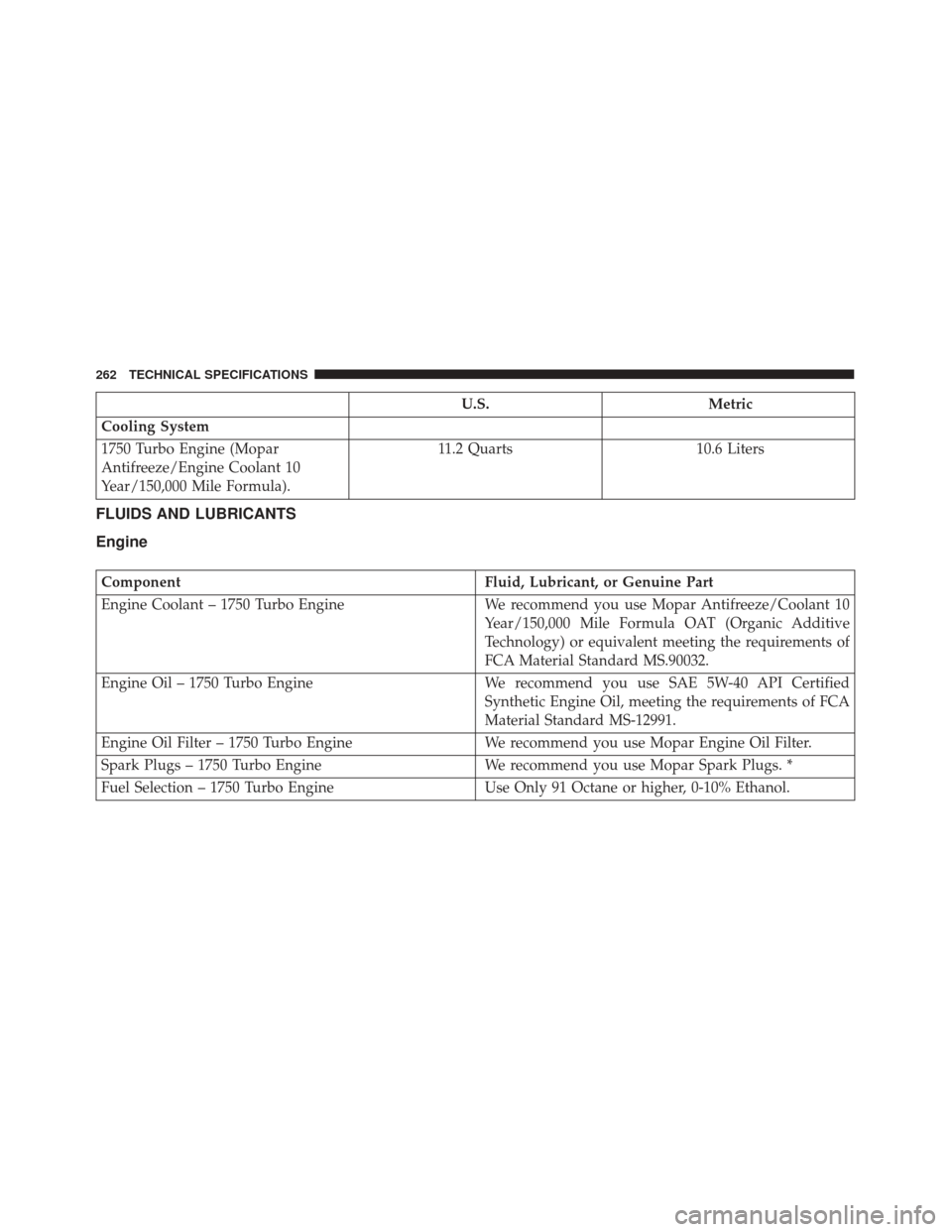

U.S.Metric
Cooling System
1750 Turbo Engine (Mopar
Antifreeze/Engine Coolant 10
Year/150,000 Mile Formula). 11.2 Quarts
10.6 Liters
FLUIDS AND LUBRICANTS
Engine
Component Fluid, Lubricant, or Genuine Part
Engine Coolant – 1750 Turbo Engine We recommend you use Mopar Antifreeze/Coolant 10
Year/150,000 Mile Formula OAT (Organic Additive
Technology) or equivalent meeting the requirements of
FCA Material Standard MS.90032.
Engine Oil – 1750 Turbo Engine We recommend you use SAE 5W-40 API Certified
Synthetic Engine Oil, meeting the requirements of FCA
Material Standard MS-12991.
Engine Oil Filter – 1750 Turbo Engine We recommend you use Mopar Engine Oil Filter.
Spark Plugs – 1750 Turbo Engine We recommend you use Mopar Spark Plugs. *
Fuel Selection – 1750 Turbo Engine Use Only 91 Octane or higher, 0-10% Ethanol.
262 TECHNICAL SPECIFICATIONS

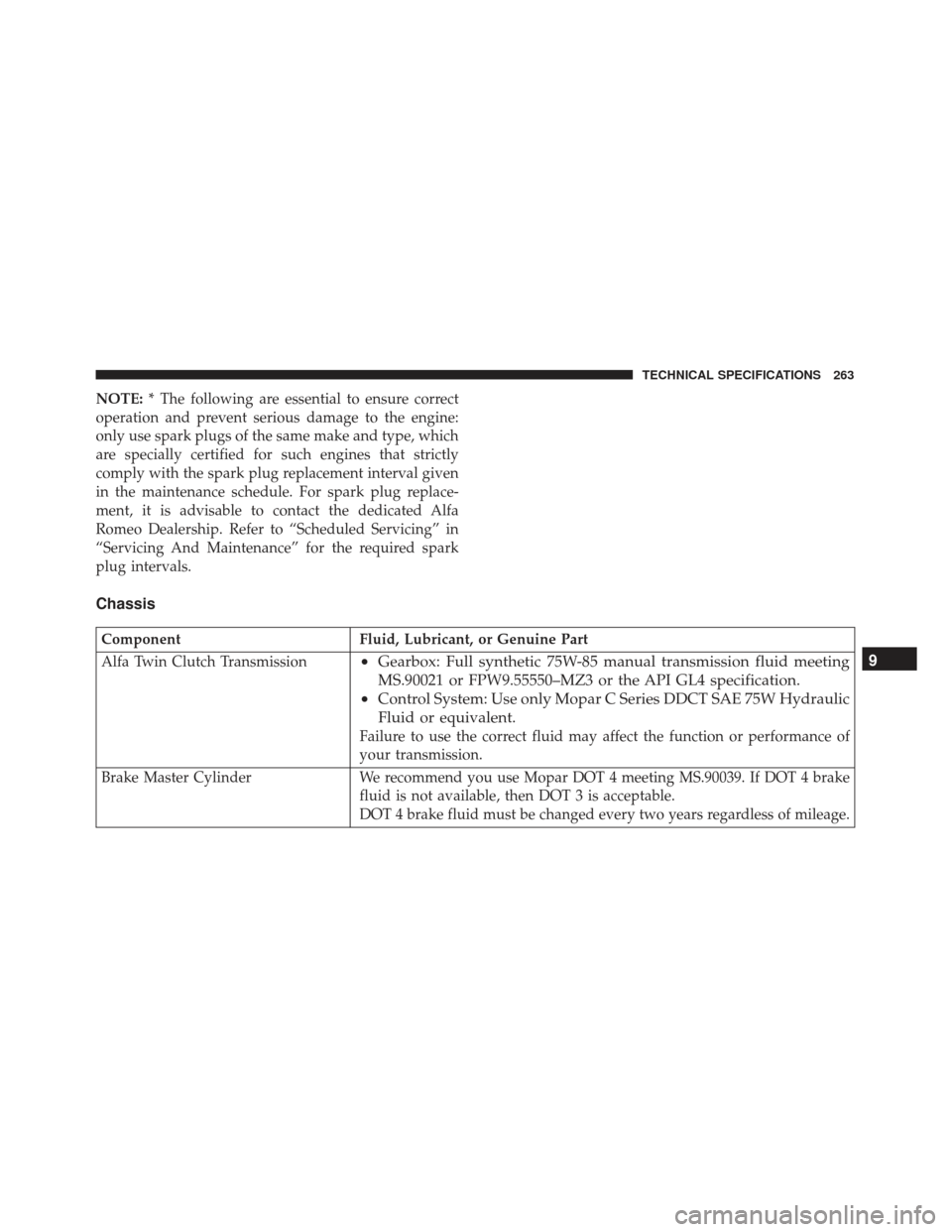

NOTE:* The following are essential to ensure correct
operation and prevent serious damage to the engine:
only use spark plugs of the same make and type, which
are specially certified for such engines that strictly
comply with the spark plug replacement interval given
in the maintenance schedule. For spark plug replace-
ment, it is advisable to contact the dedicated Alfa
Romeo Dealership. Refer to “Scheduled Servicing” in
“Servicing And Maintenance” for the required spark
plug intervals.
Chassis
Component Fluid, Lubricant, or Genuine Part
Alfa Twin Clutch Transmission
• Gearbox: Full synthetic 75W-85 manual transmission fluid meeting
MS.90021 or FPW9.55550–MZ3 or the API GL4 specification.
• Control System: Use only Mopar C Series DDCT SAE 75W Hydraulic
Fluid or equivalent.
Failure to use the correct fluid may affect the function or performance of
your transmission.
Brake Master Cylinder We recommend you use Mopar DOT 4 meeting MS.90039. If DOT 4 brake
fluid is not available, then DOT 3 is acceptable.
DOT 4 brake fluid must be changed every two years regardless of mileage.
9
TECHNICAL SPECIFICATIONS 263

MULTIMEDIA
CONTENTS
CYBERSECURITY .....................266
 RADIO SYSTEM ...................... .267RADIO OPERATION AND MOBILE PHONES . .268
▫
General Information ..................268
10

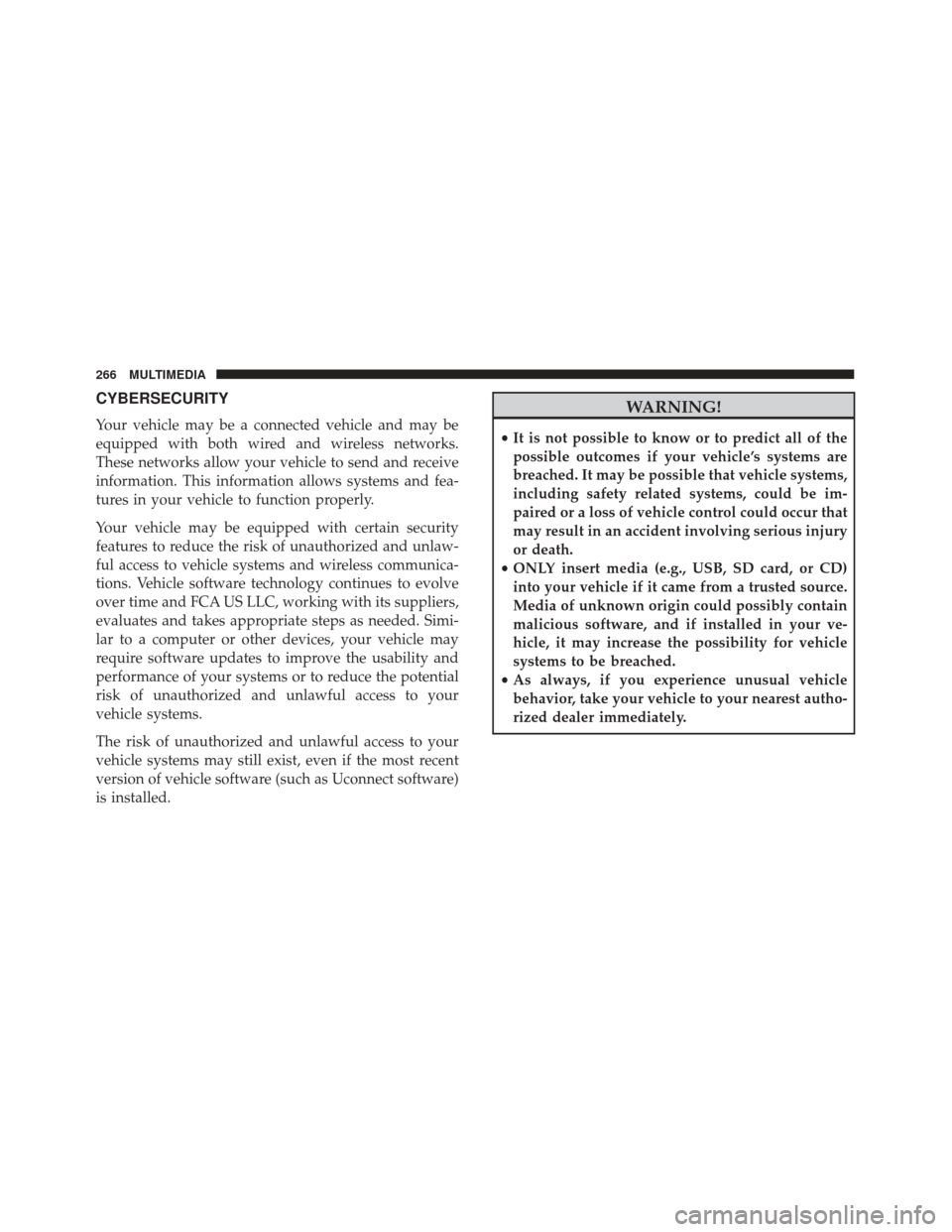

CYBERSECURITY
Your vehicle may be a connected vehicle and may be
equipped with both wired and wireless networks.
These networks allow your vehicle to send and receive
information. This information allows systems and fea-
tures in your vehicle to function properly.
Your vehicle may be equipped with certain security
features to reduce the risk of unauthorized and unlaw-
ful access to vehicle systems and wireless communica-
tions. Vehicle software technology continues to evolve
over time and FCA US LLC, working with its suppliers,
evaluates and takes appropriate steps as needed. Simi-
lar to a computer or other devices, your vehicle may
require software updates to improve the usability and
performance of your systems or to reduce the potential
risk of unauthorized and unlawful access to your
vehicle systems.
The risk of unauthorized and unlawful access to your
vehicle systems may still exist, even if the most recent
version of vehicle software (such as Uconnect software)
is installed.
WARNING!
•It is not possible to know or to predict all of the
possible outcomes if your vehicle’s systems are
breached. It may be possible that vehicle systems,
including safety related systems, could be im-
paired or a loss of vehicle control could occur that
may result in an accident involving serious injury
or death.
• ONLY insert media (e.g., USB, SD card, or CD)
into your vehicle if it came from a trusted source.
Media of unknown origin could possibly contain
malicious software, and if installed in your ve-
hicle, it may increase the possibility for vehicle
systems to be breached.
• As always, if you experience unusual vehicle
behavior, take your vehicle to your nearest autho-
rized dealer immediately.
266 MULTIMEDIA

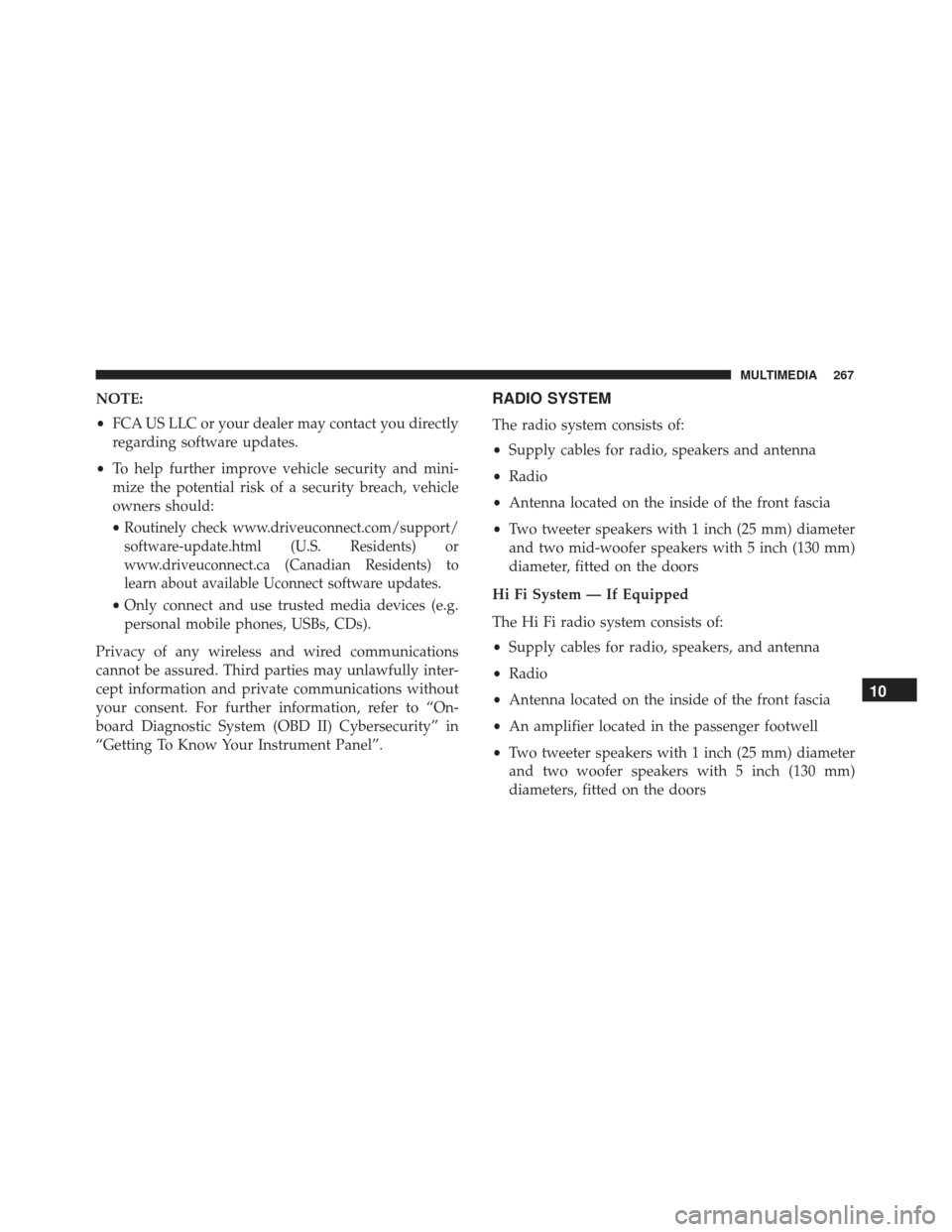

NOTE:
•FCA US LLC or your dealer may contact you directly
regarding software updates.
• To help further improve vehicle security and mini-
mize the potential risk of a security breach, vehicle
owners should:
•
Routinely check www.driveuconnect.com/support/
software-update.html (U.S. Residents) or
www.driveuconnect.ca (Canadian Residents) to
learn about available Uconnect software updates.
• Only connect and use trusted media devices (e.g.
personal mobile phones, USBs, CDs).
Privacy of any wireless and wired communications
cannot be assured. Third parties may unlawfully inter-
cept information and private communications without
your consent. For further information, refer to “On-
board Diagnostic System (OBD II) Cybersecurity” in
“Getting To Know Your Instrument Panel”.
RADIO SYSTEM
The radio system consists of:
• Supply cables for radio, speakers and antenna
• Radio
• Antenna located on the inside of the front fascia
• Two tweeter speakers with 1 inch (25 mm) diameter
and two mid-woofer speakers with 5 inch (130 mm)
diameter, fitted on the doors
Hi Fi System — If Equipped
The Hi Fi radio system consists of:
• Supply cables for radio, speakers, and antenna
• Radio
• Antenna located on the inside of the front fascia
• An amplifier located in the passenger footwell
• Two tweeter speakers with 1 inch (25 mm) diameter
and two woofer speakers with 5 inch (130 mm)
diameters, fitted on the doors
10
MULTIMEDIA 267

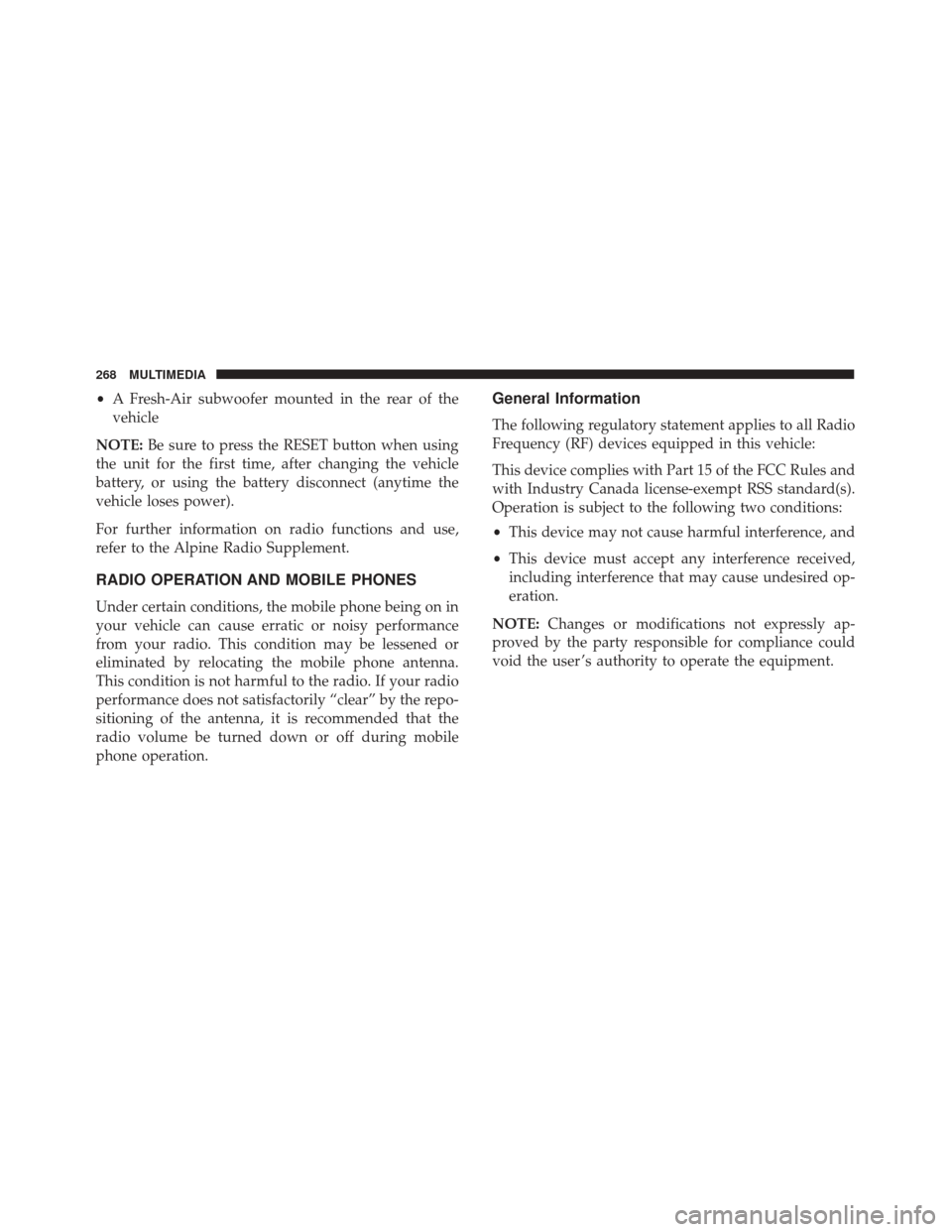

•A Fresh-Air subwoofer mounted in the rear of the
vehicle
NOTE: Be sure to press the RESET button when using
the unit for the first time, after changing the vehicle
battery, or using the battery disconnect (anytime the
vehicle loses power).
For further information on radio functions and use,
refer to the Alpine Radio Supplement.
RADIO OPERATION AND MOBILE PHONES
Under certain conditions, the mobile phone being on in
your vehicle can cause erratic or noisy performance
from your radio. This condition may be lessened or
eliminated by relocating the mobile phone antenna.
This condition is not harmful to the radio. If your radio
performance does not satisfactorily “clear” by the repo-
sitioning of the antenna, it is recommended that the
radio volume be turned down or off during mobile
phone operation.
General Information
The following regulatory statement applies to all Radio
Frequency (RF) devices equipped in this vehicle:
This device complies with Part 15 of the FCC Rules and
with Industry Canada license-exempt RSS standard(s).
Operation is subject to the following two conditions:
• This device may not cause harmful interference, and
• This device must accept any interference received,
including interference that may cause undesired op-
eration.
NOTE: Changes or modifications not expressly ap-
proved by the party responsible for compliance could
void the user ’s authority to operate the equipment.
268 MULTIMEDIA
