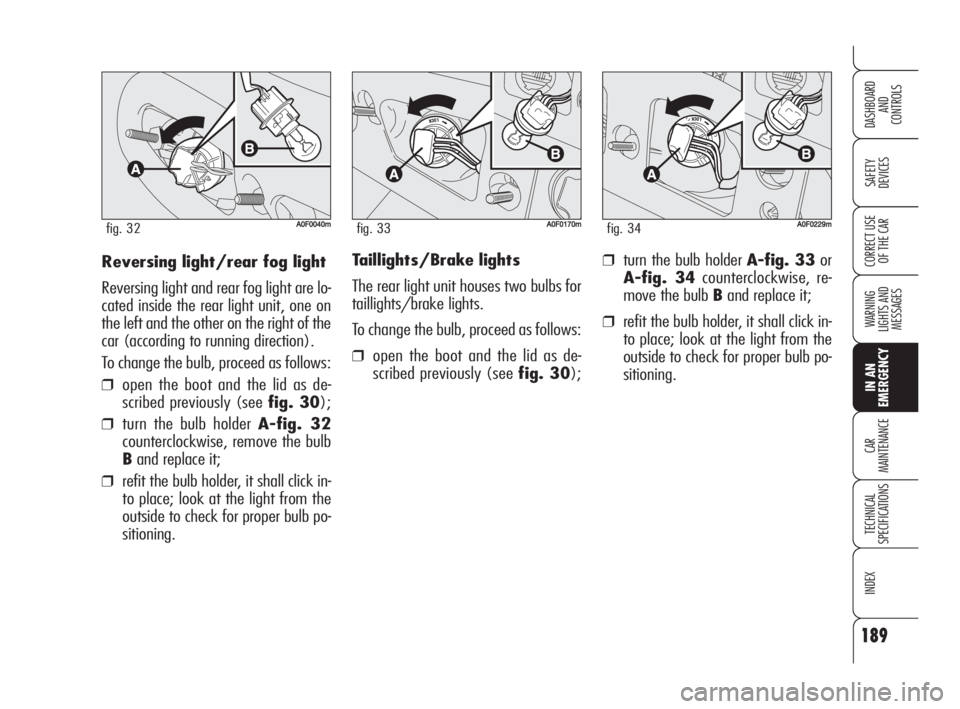

OF THE CARReversing light/rear fog light
Reversing light and rear fog light are lo-
cated inside the rear light unit, one on
the left and the other on the right of the
car (according to running direction).
To change the bulb, proceed as follows:
❒open the boot and the lid as de-
scribed previously (see fig. 30);
❒turn the bulb holder A-fig. 32
counterclockwise, remove the bulb
Band replace it;
❒refit the bulb holder, it shall click in-
to place; look at the light from the
outside to check for proper bulb po-
sitioning.
A0F0040mfig. 32A0F0229mfig. 34
Taillights/Brake lights
The rear light unit houses two bulbs for
taillights/brake lights.
To change the bulb, proceed as follows:
❒open the boot and the lid as de-
scribed previously (see fig. 30);
A0F0170mfig. 33
❒turn the bulb holder A-fig. 33or
A-fig. 34counterclockwise, re-
move the bulb Band replace it;
❒refit the bulb holder, it shall click in-
to place; look at the light from the
outside to check for proper bulb po-
sitioning.
169-208 Alfa BRERA gb 28-08-2008 11:38 Pagina 189

190
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND
CONTROLS
CORRECT USE

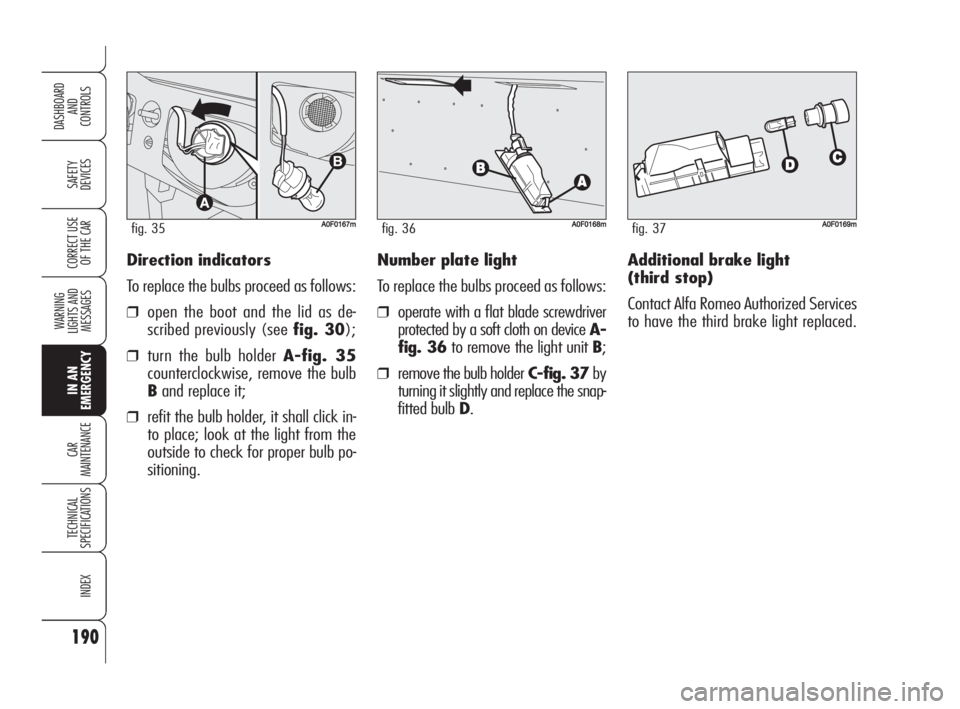

OF THE CARDirection indicators
To replace the bulbs proceed as follows:
❒open the boot and the lid as de-
scribed previously (see fig. 30);
❒turn the bulb holder A-fig. 35
counterclockwise, remove the bulb
Band replace it;
❒refit the bulb holder, it shall click in-
to place; look at the light from the
outside to check for proper bulb po-
sitioning.
A0F0167mfig. 35
Additional brake light
(third stop)
Contact Alfa Romeo Authorized Services
to have the third brake light replaced. Number plate light
To replace the bulbs proceed as follows:
❒operate with a flat blade screwdriver
protected by a soft cloth on device A-
fig. 36to remove the light unit B;
❒remove the bulb holderC-fig. 37 by
turning it slightly and replace the snap-
fitted bulb D.
A0F0168mfig. 36A0F0169mfig. 37
169-208 Alfa BRERA gb 28-08-2008 11:38 Pagina 190

191
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND
CONTROLS
CORRECT USE
OF THE CAR

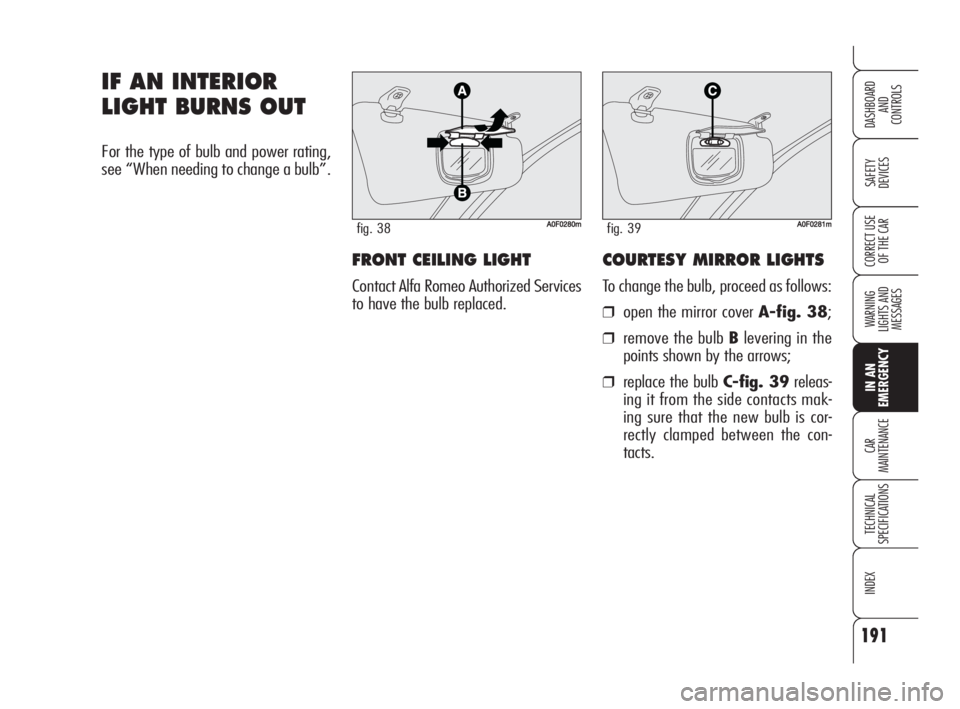

IF AN INTERIOR
LIGHT BURNS OUT
For the type of bulb and power rating,
see “When needing to change a bulb”.
FRONT CEILING LIGHT
Contact Alfa Romeo Authorized Services
to have the bulb replaced.
COURTESY MIRROR LIGHTS
To change the bulb, proceed as follows:
❒open the mirror cover A-fig. 38;
❒remove the bulb Blevering in the
points shown by the arrows;
❒replace the bulb C-fig. 39releas-
ing it from the side contacts mak-
ing sure that the new bulb is cor-
rectly clamped between the con-
tacts.
A0F0280mfig. 38A0F0281mfig. 39
169-208 Alfa BRERA gb 28-08-2008 11:38 Pagina 191

192
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND
CONTROLS
CORRECT USE
OF THE CARGLOVEBOX LIGHT
To change the bulb, proceed as follows:
❒open the glovebox;
❒remove the light unit A-fig. 40lev-
ering in the point shown by the ar-
row;
❒raise protectionB-fig. 41and re-
place the snap-fitted bulb;
❒close protection B-fig. 41on light
unitA-fig. 40;
❒refit the light unit inserting first one
side and then the other one until
hearing the locking click.
A0F0172mfig. 40A0F0173mfig. 41
BOOT LIGHT
To change the bulb, proceed as follows:
❒open the tailgate;
❒remove the light unit A-fig. 42lev-
ering in the point shown by the ar-
row;
A0F0205mfig. 42
169-208 Alfa BRERA gb 28-08-2008 11:38 Pagina 192

193
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND
CONTROLS
CORRECT USE
OF THE CAR
AA0F0204mfig. 43
❒open the protection cover B-fig.
43and replace the bulb releasing it
from the side contacts making sure
that the new bulb is correctly
clamped between the contacts;
❒re-close the protective cover B;
❒refit the light unit inserting first one
side and then the other one until
hearing the locking click.

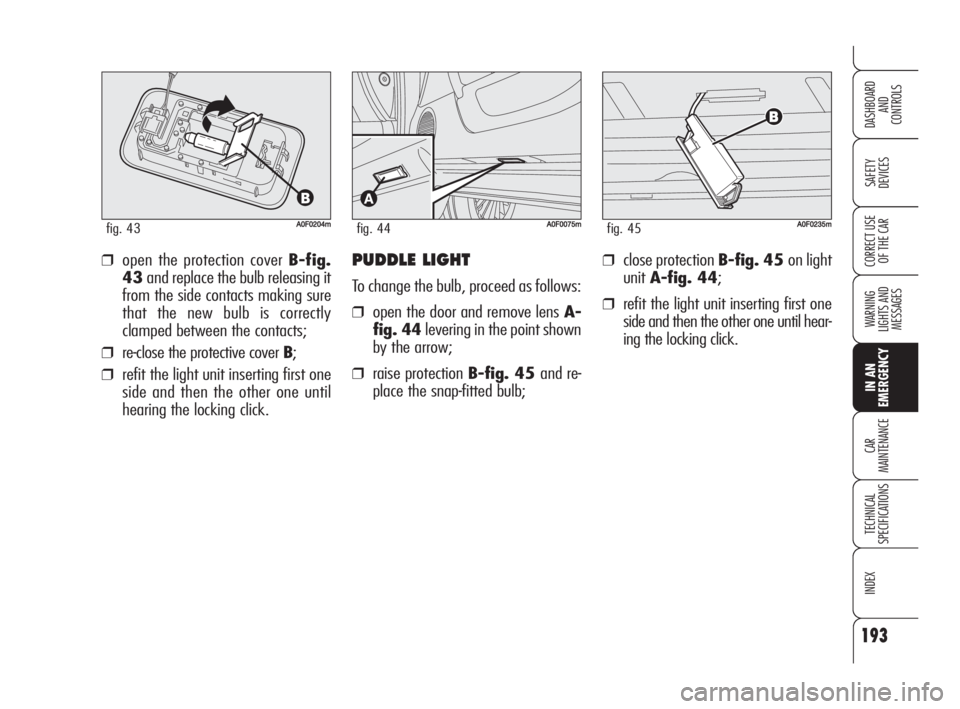

PUDDLE LIGHT
To change the bulb, proceed as follows:
❒open the door and remove lens A-
fig. 44levering in the point shown
by the arrow;
❒raise protection B-fig. 45 and re-
place the snap-fitted bulb;
A0F0075mfig. 44
❒close protection B-fig. 45 on light
unitA-fig. 44;
❒refit the light unit inserting first one
side and then the other one until hear-
ing the locking click.
A0F0235mfig. 45
169-208 Alfa BRERA gb 28-08-2008 11:38 Pagina 193

194
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND
CONTROLS
CORRECT USE
OF THE CAR
AA0F0119mfig. 46
Never replace a broken
fuse with anything oth-
er than a new fuse.
Never change a fuse
with another with a
higher amp rating, danger of
fire.
WARNING
If a general fuse
(MEGA-FUSE, MAXI-
FUSE) cuts in, do not attempt
any repair and contact Alfa
Romeo Authorized Services.
Before changing a fuse, check
the ignition key has been re-
moved and that all the other
electric devices have been
turned off/disabled.
WARNING
If the fuse blows again,
contact Alfa Romeo Au-
thorized Services.
WARNING

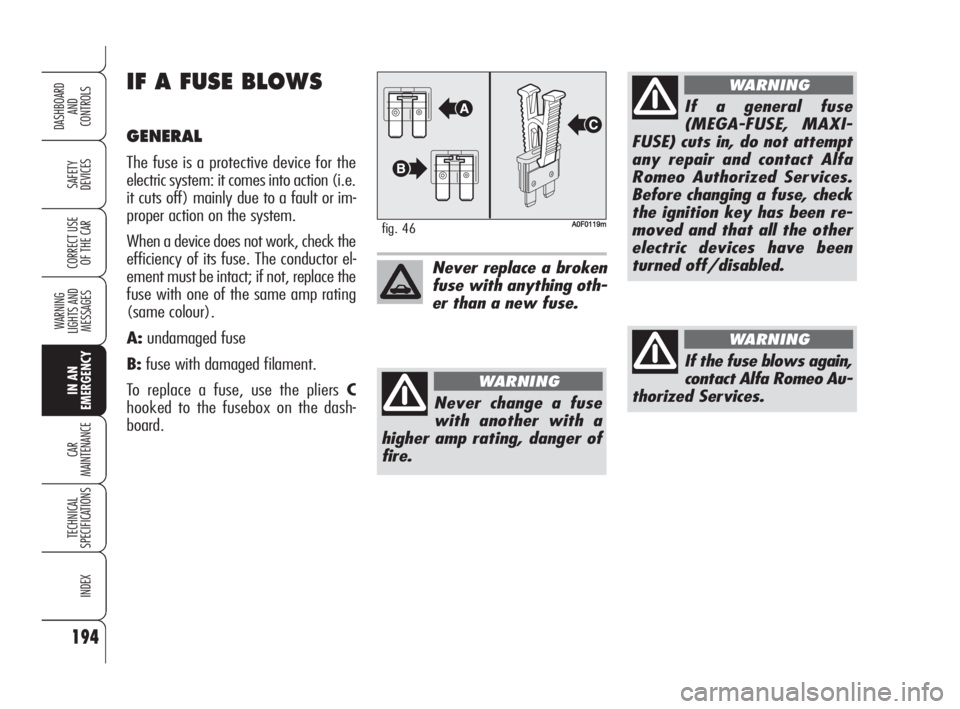

IF A FUSE BLOWS
GENERAL
The fuse is a protective device for the
electric system: it comes into action (i.e.
it cuts off) mainly due to a fault or im-
proper action on the system.
When a device does not work, check the
efficiency of its fuse. The conductor el-
ement must be intact; if not, replace the
fuse with one of the same amp rating
(same colour).
A:undamaged fuse
B:fuse with damaged filament.
To replace a fuse, use the pliers C
hooked to the fusebox on the dash-
board.
169-208 Alfa BRERA gb 28-08-2008 11:38 Pagina 194

195
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND
CONTROLS
CORRECT USE

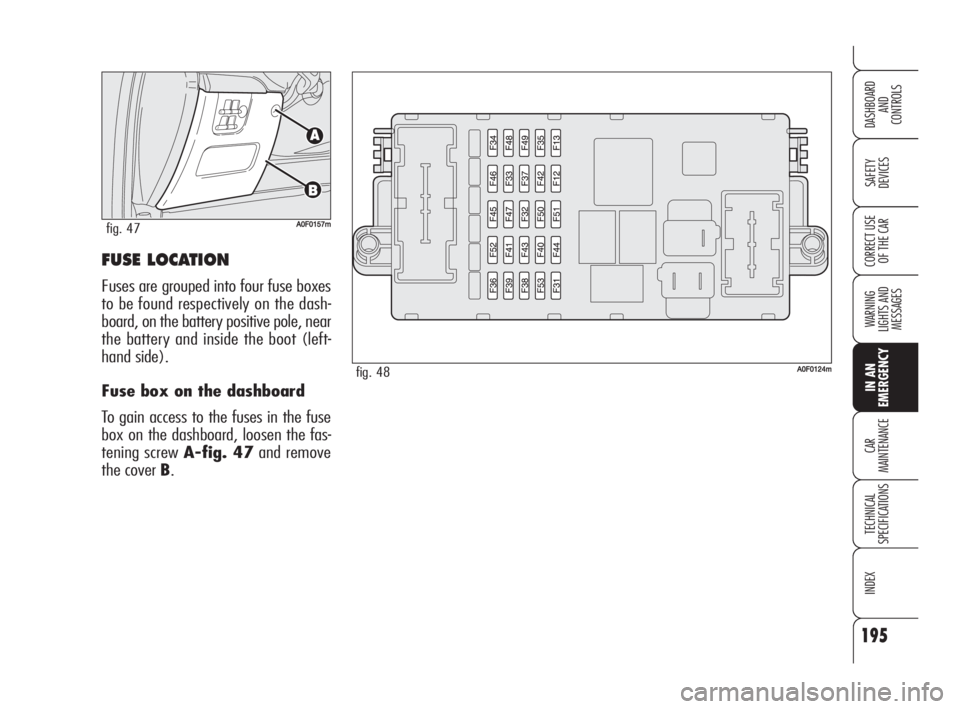

OF THE CARFUSE LOCATION
Fuses are grouped into four fuse boxes
to be found respectively on the dash-
board, on the battery positive pole, near
the battery and inside the boot (left-
hand side).
Fuse box on the dashboard
To gain access to the fuses in the fuse
box on the dashboard, loosen the fas-
tening screw A-fig. 47and remove
the cover B.
A0F0157mfig. 47
A0F0124mfig. 48
169-208 Alfa BRERA gb 28-08-2008 11:38 Pagina 195

196
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND
CONTROLS
CORRECT USE

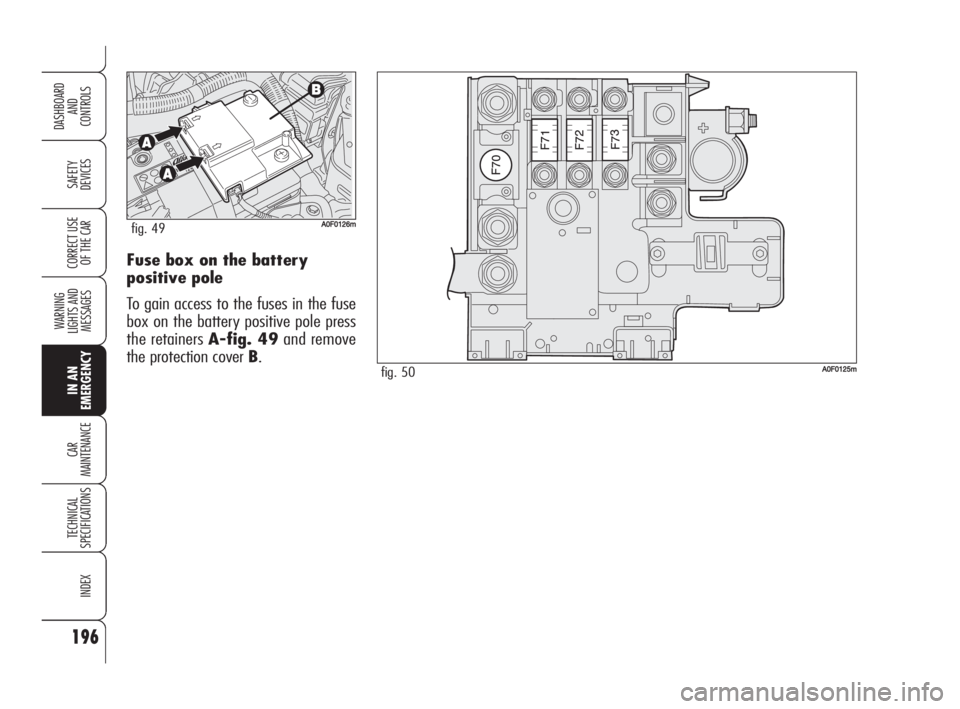

OF THE CARFuse box on the battery
positive pole
To gain access to the fuses in the fuse
box on the battery positive pole press
the retainers A-fig. 49and remove
the protection cover B.
A0F0126mfig. 49
A0F0125mfig. 50
169-208 Alfa BRERA gb 28-08-2008 11:38 Pagina 196

197
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND
CONTROLS
CORRECT USE

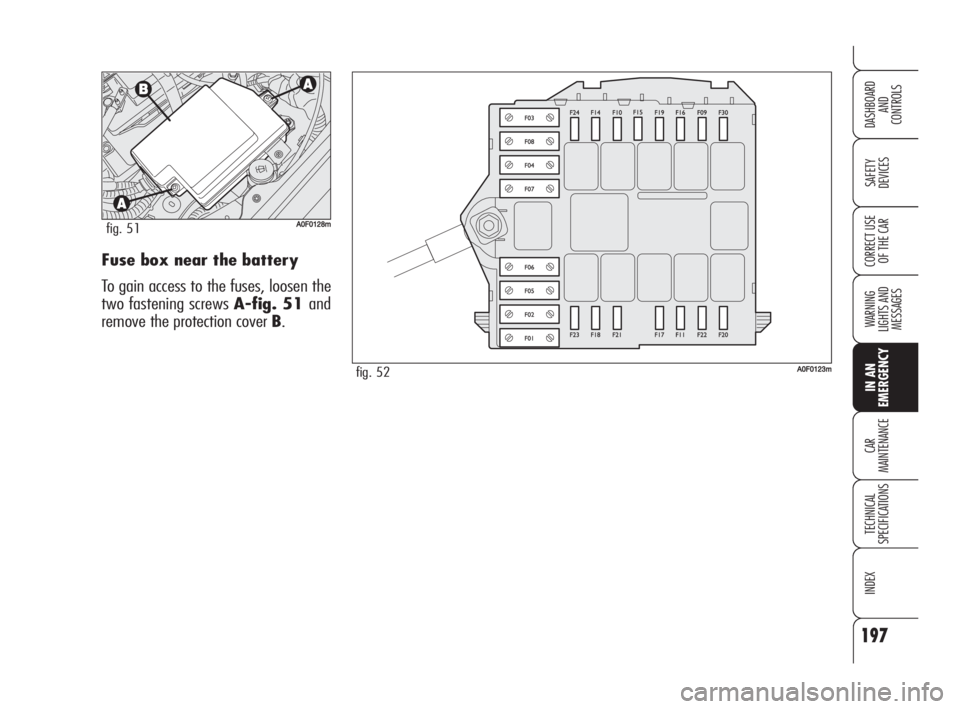

OF THE CARFuse box near the battery
To gain access to the fuses, loosen the
two fastening screws A-fig. 51 and
remove the protection cover B.
A0F0128mfig. 51
A0F0123mfig. 52
169-208 Alfa BRERA gb 28-08-2008 11:38 Pagina 197

198
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND
CONTROLS
CORRECT USE

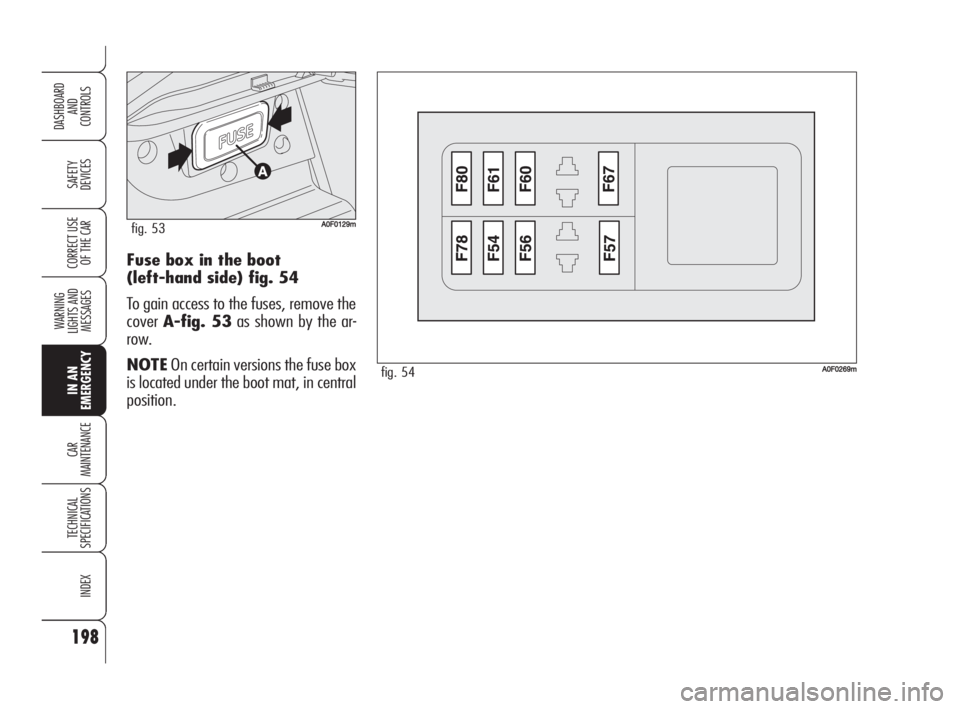

OF THE CARFuse box in the boot
(left-hand side) fig. 54
To gain access to the fuses, remove the
coverA-fig. 53as shown by the ar-
row.
NOTEOn certain versions the fuse box
is located under the boot mat, in central
position.
A0F0129mfig. 53
A0F0269mfig. 54
169-208 Alfa BRERA gb 28-08-2008 11:38 Pagina 198
