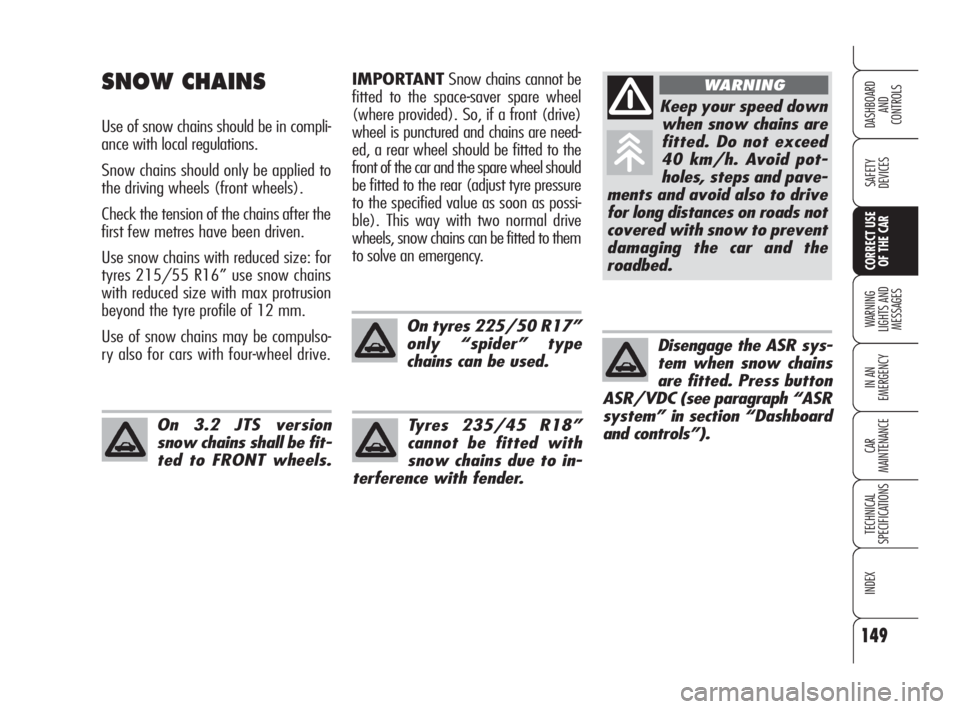

IMPORTANTSnow chains cannot be
fitted to the space-saver spare wheel
(where provided). So, if a front (drive)
wheel is punctured and chains are need-
ed, a rear wheel should be fitted to the
front of the car and the spare wheel should
be fitted to the rear (adjust tyre pressure
to the specified value as soon as possi-
ble). This way with two normal drive
wheels, snow chains can be fitted to them
to solve an emergency.SNOW CHAINS
Use of snow chains should be in compli-
ance with local regulations.
Snow chains should only be applied to
the driving wheels (front wheels).
Check the tension of the chains after the
first few metres have been driven.
Use snow chains with reduced size: for
tyres 215/55 R16” use snow chains
with reduced size with max protrusion
beyond the tyre profile of 12 mm.
Use of snow chains may be compulso-
ry also for cars with four-wheel drive.
On tyres 225/50 R17”
only “spider” type
chains can be used.
Keep your speed down
when snow chains are
fitted. Do not exceed
40 km/h. Avoid pot-
holes, steps and pave-
ments and avoid also to drive
for long distances on roads not
covered with snow to prevent
damaging the car and the
roadbed.
WARNING
Disengage the ASR sys-
tem when snow chains
are fitted. Press button
ASR/VDC (see paragraph “ASR
system” in section “Dashboard
and controls”). Tyres 235/45 R18”
cannot be fitted with
snow chains due to in-
terference with fender. On 3.2 JTS version
snow chains shall be fit-
ted to FRONT wheels.
137-150 Alfa BRERA gb 28-08-2008 11:20 Pagina 149

150
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND
CONTROLS
CORRECT USE
OF THE CAR

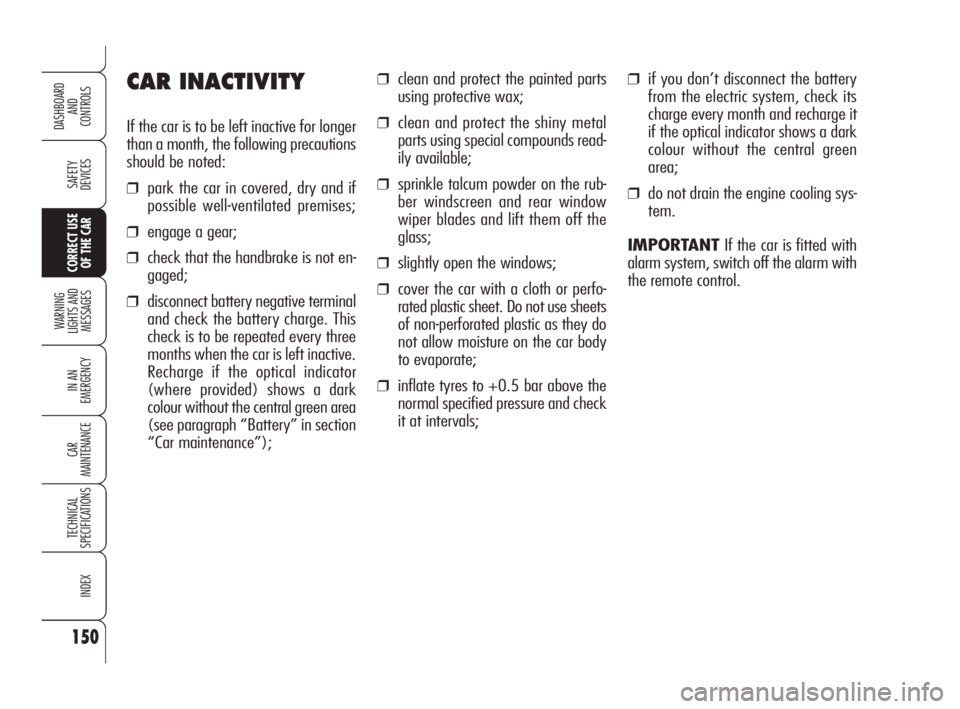

CAR INACTIVITY
If the car is to be left inactive for longer
than a month, the following precautions
should be noted:
❒park the car in covered, dry and if
possible well-ventilated premises;
❒engage a gear;
❒check that the handbrake is not en-
gaged;
❒disconnect battery negative terminal
and check the battery charge. This
check is to be repeated every three
months when the car is left inactive.
Recharge if the optical indicator
(where provided) shows a dark
colour without the central green area
(see paragraph “Battery” in section
“Car maintenance”);
❒clean and protect the painted parts
using protective wax;
❒clean and protect the shiny metal
parts using special compounds read-
ily available;
❒sprinkle talcum powder on the rub-
ber windscreen and rear window
wiper blades and lift them off the
glass;
❒slightly open the windows;
❒cover the car with a cloth or perfo-
rated plastic sheet. Do not use sheets
of non-perforated plastic as they do
not allow moisture on the car body
to evaporate;
❒inflate tyres to +0.5 bar above the
normal specified pressure and check
it at intervals;
❒if you don’t disconnect the battery
from the electric system, check its
charge every month and recharge it
if the optical indicator shows a dark
colour without the central green
area;
❒do not drain the engine cooling sys-
tem.
IMPORTANTIf the car is fitted with
alarm system, switch off the alarm with
the remote control.
137-150 Alfa BRERA gb 28-08-2008 11:20 Pagina 150

151
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND
CONTROLS
CORRECT USE
OF THE CAR
W W
A A
R R
N N
I I
N N
G G
L L
I I
G G
H H
T T
S S
A A
N N
D D
M M
E E
S S
S S
A A
G G
E E E
S S

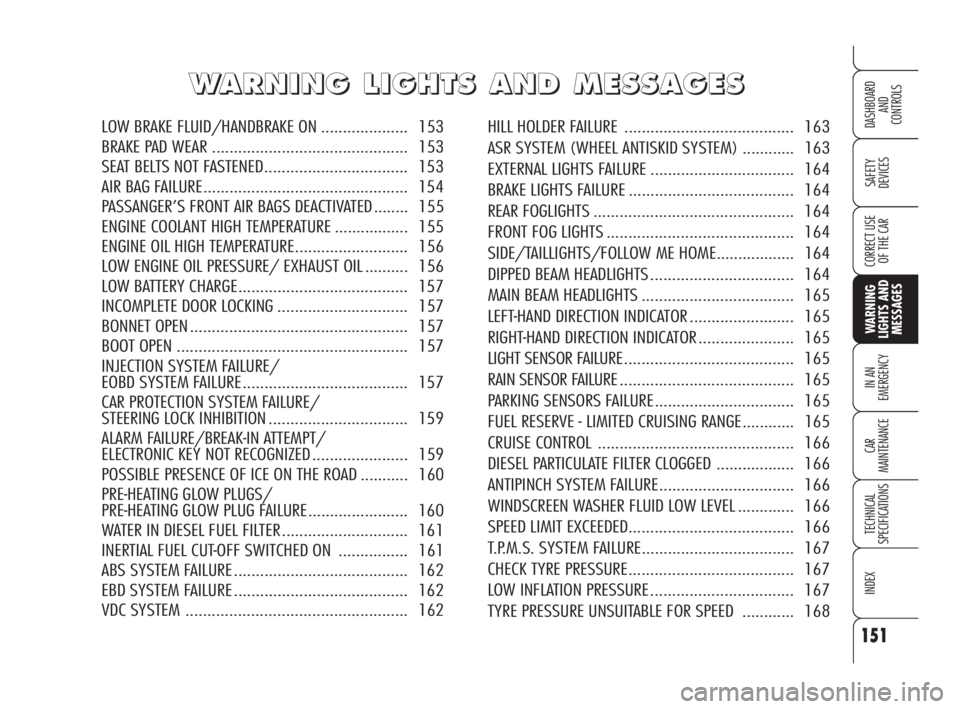

LOW BRAKE FLUID/HANDBRAKE ON .................... 153
BRAKE PAD WEAR ............................................. 153
SEAT BELTS NOT FASTENED................................. 153
AIR BAG FAILURE............................................... 154

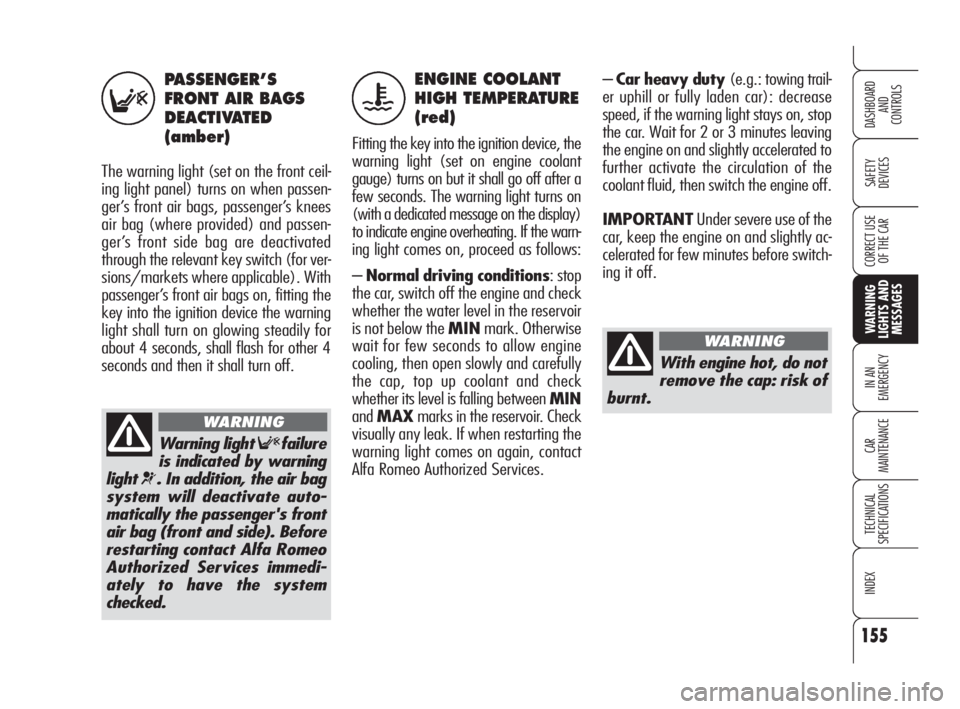

PASSANGER’S FRONT AIR BAGS DEACTIVATED ........ 155

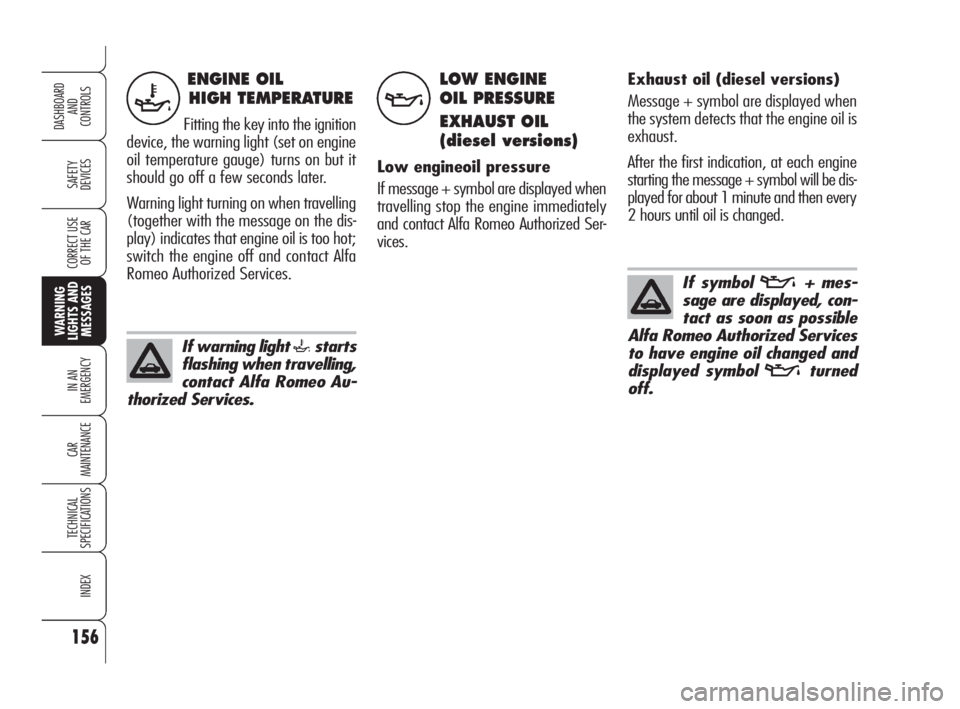

ENGINE COOLANT HIGH TEMPERATURE ................. 155
ENGINE OIL HIGH TEMPERATURE.......................... 156
LOW ENGINE OIL PRESSURE/ EXHAUST OIL .......... 156

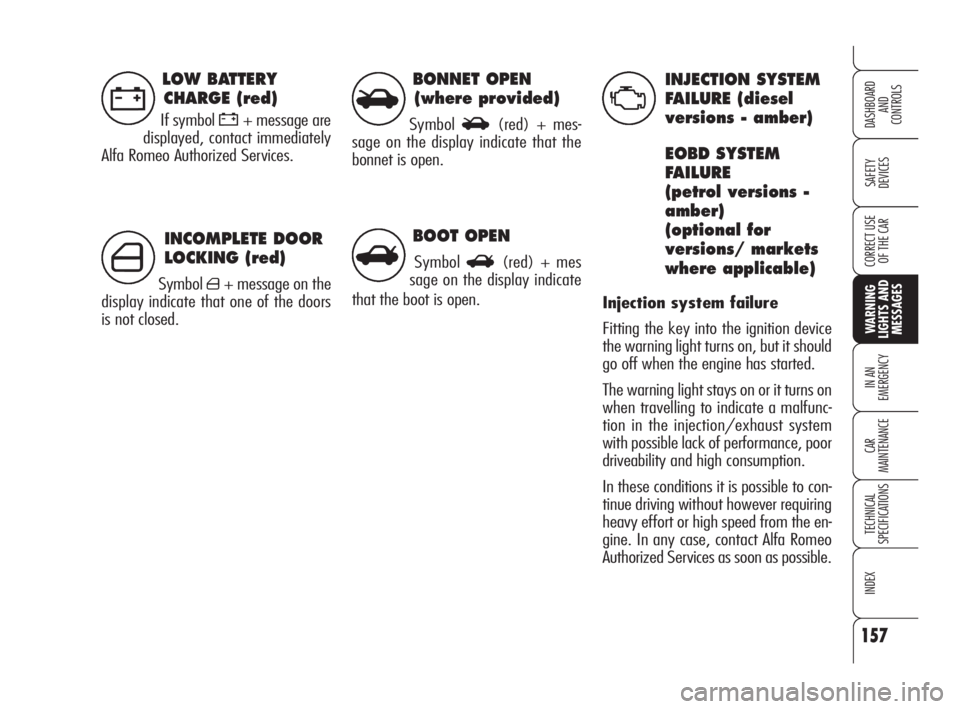

LOW BATTERY CHARGE....................................... 157
INCOMPLETE DOOR LOCKING.............................. 157
BONNET OPEN.................................................. 157
BOOT OPEN..................................................... 157

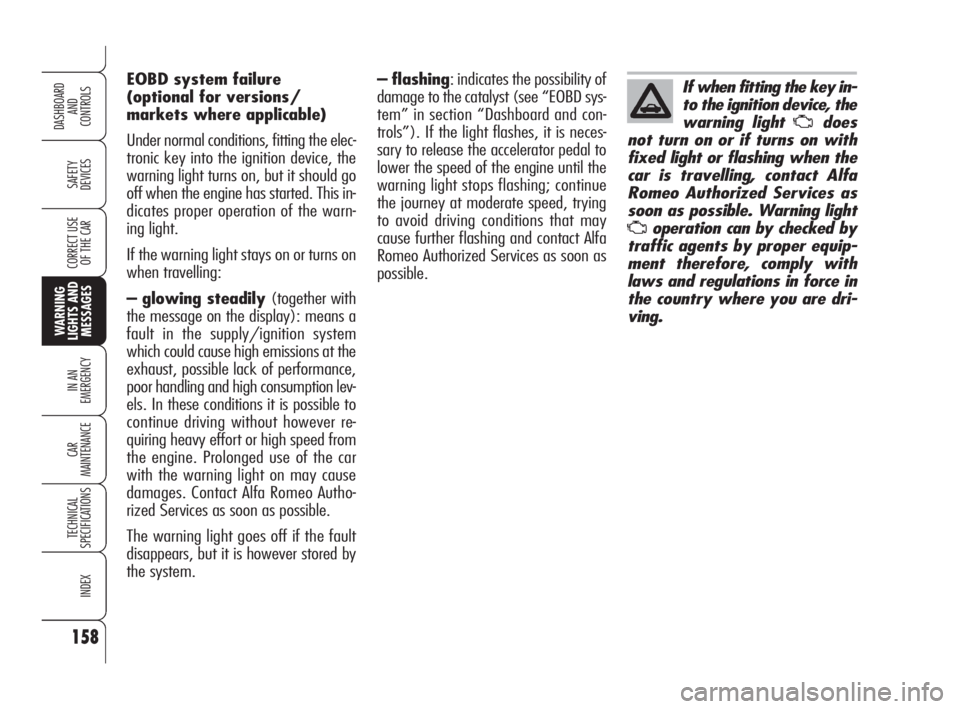

INJECTION SYSTEM FAILURE/
EOBD SYSTEM FAILURE...................................... 157
CAR PROTECTION SYSTEM FAILURE/
STEERING LOCK INHIBITION................................ 159
ALARM FAILURE/BREAK-IN ATTEMPT/
ELECTRONIC KEY NOT RECOGNIZED...................... 159
POSSIBLE PRESENCE OF ICE ON THE ROAD ........... 160
PRE-HEATING GLOW PLUGS/
PRE-HEATING GLOW PLUG FAILURE....................... 160
WATER IN DIESEL FUEL FILTER ............................. 161
INERTIAL FUEL CUT-OFF SWITCHED ON ................ 161
ABS SYSTEM FAILURE ........................................ 162
EBD SYSTEM FAILURE ........................................ 162
VDC SYSTEM ................................................... 162HILL HOLDER FAILURE ....................................... 163
ASR SYSTEM (WHEEL ANTISKID SYSTEM) ............ 163
EXTERNAL LIGHTS FAILURE ................................. 164
BRAKE LIGHTS FAILURE ...................................... 164
REAR FOGLIGHTS.............................................. 164
FRONT FOG LIGHTS........................................... 164
SIDE/TAILLIGHTS/FOLLOW ME HOME.................. 164
DIPPED BEAM HEADLIGHTS................................. 164
MAIN BEAM HEADLIGHTS................................... 165
LEFT-HAND DIRECTION INDICATOR ........................ 165
RIGHT-HAND DIRECTION INDICATOR ...................... 165
LIGHT SENSOR FAILURE....................................... 165
RAIN SENSOR FAILURE........................................ 165
PARKING SENSORS FAILURE................................ 165
FUEL RESERVE - LIMITED CRUISING RANGE............ 165
CRUISE CONTROL ............................................. 166
DIESEL PARTICULATE FILTER CLOGGED .................. 166
ANTIPINCH SYSTEM FAILURE............................... 166
WINDSCREEN WASHER FLUID LOW LEVEL ............. 166
SPEED LIMIT EXCEEDED...................................... 166
T.P.M.S. SYSTEM FAILURE................................... 167
CHECK TYRE PRESSURE...................................... 167
LOW INFLATION PRESSURE................................. 167
TYRE PRESSURE UNSUITABLE FOR SPEED ............ 168
151-168 Alfa BRERA gb 28-08-2008 11:22 Pagina 151

152
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND
CONTROLS
CORRECT USE
OF THE CAR

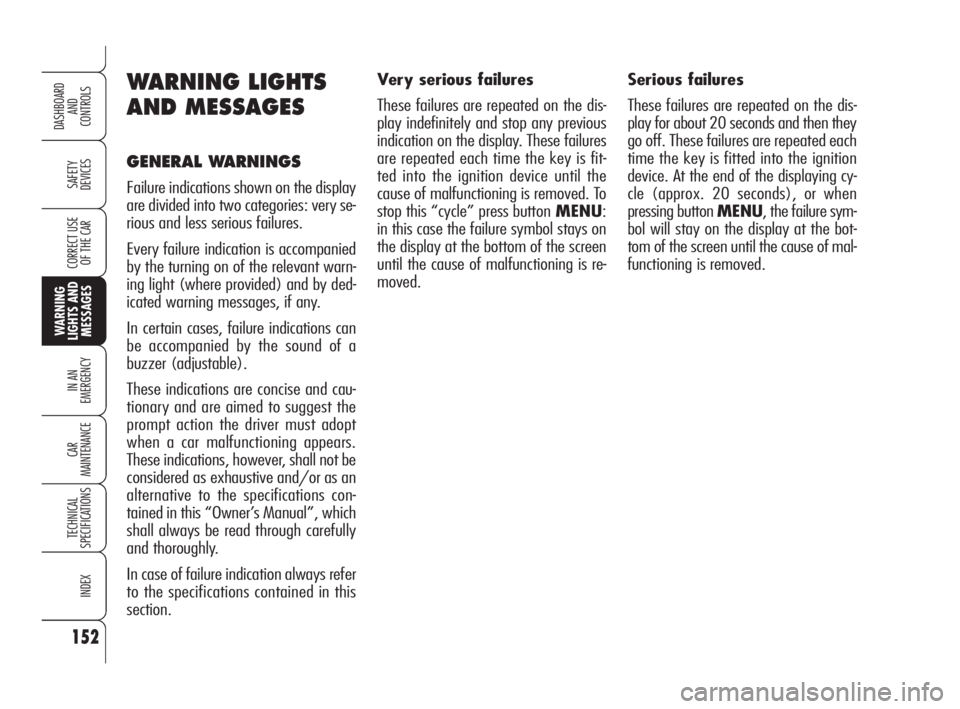

Very serious failures
These failures are repeated on the dis-
play indefinitely and stop any previous
indication on the display. These failures
are repeated each time the key is fit-
ted into the ignition device until the
cause of malfunctioning is removed. To
stop this “cycle” press buttonMENU:
in this case the failure symbol stays on
the display at the bottom of the screen
until the cause of malfunctioning is re-
moved.WARNING LIGHTS
AND MESSAGES
GENERAL WARNINGS
Failure indications shown on the display
are divided into two categories: very se-
rious and less serious failures.
Every failure indication is accompanied
by the turning on of the relevant warn-
ing light (where provided) and by ded-
icated warning messages, if any.
In certain cases, failure indications can
be accompanied by the sound of a
buzzer (adjustable).
These indications are concise and cau-
tionary and are aimed to suggest the
prompt action the driver must adopt
when a car malfunctioning appears.
These indications, however, shall not be
considered as exhaustive and/or as an
alternative to the specifications con-
tained in this “Owner’s Manual”, which
shall always be read through carefully
and thoroughly.
In case of failure indication always refer
to the specifications contained in this
section.Serious failures
These failures are repeated on the dis-
play for about 20 seconds and then they
go off. These failures are repeated each
time the key is fitted into the ignition
device. At the end of the displaying cy-
cle (approx. 20 seconds), or when
pressing button MENU, the failure sym-
bol will stay on the display at the bot-
tom of the screen until the cause of mal-
functioning is removed.
151-168 Alfa BRERA gb 28-08-2008 11:22 Pagina 152

153
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND
CONTROLS
CORRECT USE
OF THE CAR

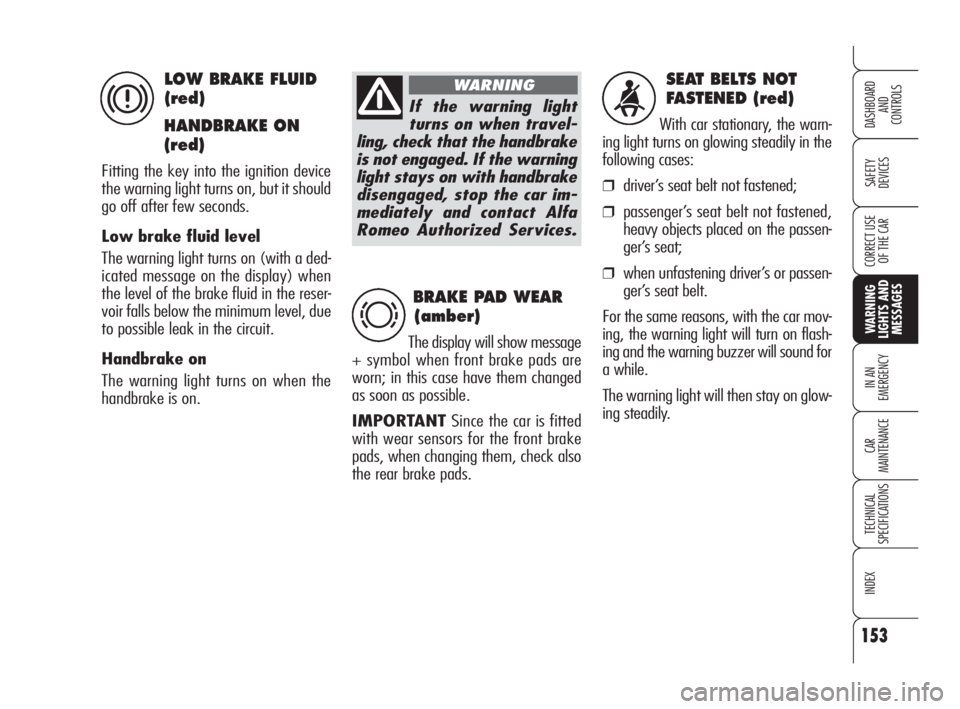

SEAT BELTS NOT
FASTENED (red)
With car stationary, the warn-
ing light turns on glowing steadily in the
following cases:
❒driver’s seat belt not fastened;
❒passenger’s seat belt not fastened,
heavy objects placed on the passen-
ger’s seat;
❒when unfastening driver’s or passen-
ger’s seat belt.
For the same reasons, with the car mov-
ing, the warning light will turn on flash-
ing and the warning buzzer will sound for
a while.
The warning light will then stay on glow-
ing steadily.
BRAKE PAD WEAR
(amber)
The display will show message
+ symbol when front brake pads are
worn; in this case have them changed
as soon as possible.
IMPORTANTSince the car is fitted
with wear sensors for the front brake
pads, when changing them, check also
the rear brake pads.
d
turns on when travel-
ling, check that the handbrake
is not engaged. If the warning
light stays on with handbrake
disengaged, stop the car im-
mediately and contact Alfa
Romeo Authorized Services.
WARNINGLOW BRAKE FLUID
(red)
HANDBRAKE ON
(red)
Fitting the key into the ignition device
the warning light turns on, but it should
go off after few seconds.
Low brake fluid level
The warning light turns on (with a ded-
icated message on the display) when
the level of the brake fluid in the reser-
voir falls below the minimum level, due
to possible leak in the circuit.
Handbrake on
The warning light turns on when the
handbrake is on.
x
151-168 Alfa BRERA gb 28-08-2008 11:22 Pagina 153

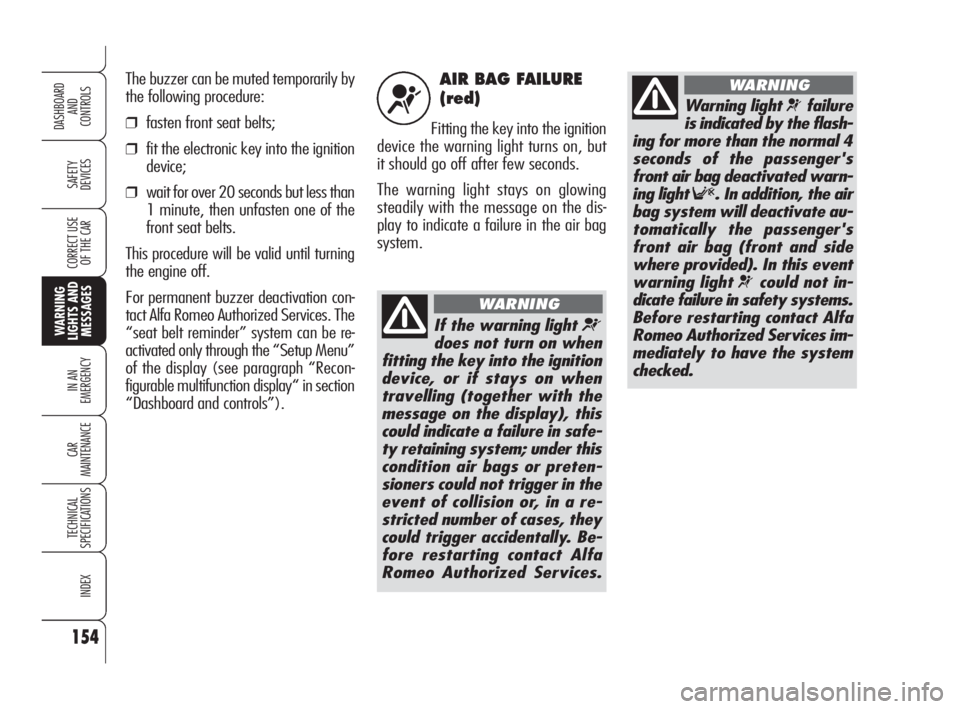

AIR BAG FAILURE
(red)
Fitting the key into the ignition
device the warning light turns on, but
it should go off after few seconds.
The warning light stays on glowing
steadily with the message on the dis-
play to indicate a failure in the air bag
system. The buzzer can be muted temporarily by
the following procedure:❒fasten front seat belts;
❒fit the electronic key into the ignition
device;
❒wait for over 20 seconds but less than
1 minute, then unfasten one of the
front seat belts.
This procedure will be valid until turning
the engine off.
For permanent buzzer deactivation con-
tact Alfa Romeo Authorized Services. The
“seat belt reminder” system can be re-
activated only through the “Setup Menu”
of the display (see paragraph “Recon-
figurable multifunction display“ in section
“Dashboard and controls”).
154
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND
CONTROLS
CORRECT USE
OF THE CAR
¬
If the warning light ¬
does not turn on when
fitting the key into the ignition
device, or if stays on when
travelling (together with the
message on the display), this
could indicate a failure in safe-
ty retaining system; under this
condition air bags or preten-
sioners could not trigger in the
event of collision or, in a re-
stricted number of cases, they
could trigger accidentally. Be-
fore restarting contact Alfa
Romeo Authorized Services.
WARNING
Warning light ¬failure
is indicated by the flash-
ing for more than the normal 4
seconds of the passenger's
front air bag deactivated warn-
ing light
F. In addition, the air
bag system will deactivate au-
tomatically the passenger's
front air bag (front and side
where provided). In this event
warning light
¬could not in-
dicate failure in safety systems.
Before restarting contact Alfa
Romeo Authorized Services im-
mediately to have the system
checked.
WARNING
151-168 Alfa BRERA gb 28-08-2008 11:22 Pagina 154

155
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND
CONTROLS
CORRECT USE
OF THE CAR
PASSENGER’S
FRONT AIR BAGS
DEACTIVATED
(amber)
The warning light (set on the front ceil-
ing light panel) turns on when passen-
ger’s front air bags, passenger’s knees
air bag (where provided) and passen-
ger’s front side bag are deactivated
through the relevant key switch (for ver-
sions/markets where applicable). With
passenger’s front air bags on, fitting the
key into the ignition device the warning
light shall turn on glowing steadily for
about 4 seconds, shall flash for other 4
seconds and then it shall turn off.
F
–Car heavy duty (e.g.: towing trail-
er uphill or fully laden car): decrease
speed, if the warning light stays on, stop
the car. Wait for 2 or 3 minutes leaving
the engine on and slightly accelerated to
further activate the circulation of the
coolant fluid, then switch the engine off.
IMPORTANTUnder severe use of the
car, keep the engine on and slightly ac-
celerated for few minutes before switch-
ing it off.
Warning light Ffailure
is indicated by warning
light
¬. In addition, the air bag
system will deactivate auto-
matically the passenger's front
air bag (front and side). Before
restartingcontact Alfa Romeo
Authorized Services immedi-
ately to have the system
checked.
WARNING
ENGINE COOLANT
HIGH TEMPERATURE
(red)
Fitting the key into the ignition device, the
warning light (set on engine coolant
gauge) turns on but it shall go off after a
few seconds. The warning light turns on
(with a dedicated message on the display)
to indicate engine overheating. If the warn-
ing light comes on, proceed as follows:
–Normal driving conditions: stop
the car, switch off the engine and check
whether the water level in the reservoir
is not below the MINmark. Otherwise
wait for few seconds to allow engine
cooling, then open slowly and carefully
the cap, top up coolant and check
whether its level is falling between MIN
andMAXmarks in the reservoir. Check
visually any leak. If when restarting the
warning light comes on again, contact
Alfa Romeo Authorized Services.
u
With engine hot, do not
remove the cap: risk of
burnt.
WARNING
151-168 Alfa BRERA gb 28-08-2008 11:22 Pagina 155

156
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND
CONTROLS
CORRECT USE
OF THE CAR
ENGINE OIL
HIGH TEMPERATURE
Fitting the key into the ignition
device, the warning light (set on engine
oil temperature gauge) turns on but it
should go off a few seconds later.
Warning light turning on when travelling
(together with the message on the dis-
play) indicates that engine oil is too hot;
switch the engine off and contact Alfa
Romeo Authorized Services.
`
If symbol v+ mes-
sage are displayed, con-
tact as soon as possible
Alfa Romeo Authorized Services
to have engine oil changed and
displayed symbol
vturned
off.
LOW ENGINE
OIL PRESSURE
EXHAUST OIL
(diesel versions)
Low engineoil pressure
If message + symbol are displayed when
travelling stop the engine immediately
and contact Alfa Romeo Authorized Ser-
vices.
v
If warning light `starts
flashing when travelling,
contact Alfa Romeo Au-
thorized Services.
Exhaust oil (diesel versions)
Message + symbol are displayed when
the system detects that the engine oil is
exhaust.
After the first indication, at each engine
starting the message + symbol will be dis-
played for about 1 minute and then every
2 hours until oil is changed.
151-168 Alfa BRERA gb 28-08-2008 11:22 Pagina 156

157
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND
CONTROLS
CORRECT USE
OF THE CAR
LOW BATTERY
CHARGE (red)
If symbol w+ message are
displayed, contact immediately
Alfa Romeo Authorized Services.
w
INCOMPLETE DOOR
LOCKING (red)
Symbol´+ message on the
display indicate that one of the doors
is not closed.
´
BOOT OPEN
SymbolR(red) + mes
sage on the display indicate
that the boot is open.
BONNET OPEN
(where provided)
SymbolS(red) + mes-
sage on the display indicate that the
bonnet is open.
S
R
INJECTION SYSTEM
FAILURE (diesel
versions - amber)
EOBD SYSTEM
FAILURE
(petrol versions -
amber)
(optional for
versions/ markets
where applicable)
Injection system failure
Fitting the key into the ignition device
the warning light turns on, but it should
go off when the engine has started.
The warning light stays on or it turns on
when travelling to indicate a malfunc-
tion in the injection/exhaust system
with possible lack of performance, poor
driveability and high consumption.
In these conditions it is possible to con-
tinue driving without however requiring
heavy effort or high speed from the en-
gine. In any case, contact Alfa Romeo
Authorized Services as soon as possible.
U
151-168 Alfa BRERA gb 28-08-2008 11:22 Pagina 157

158
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND
CONTROLS
CORRECT USE
OF THE CAR
EOBD system failure
(optional for versions/
markets where applicable)
Under normal conditions, fitting the elec-
tronic key into the ignition device, the
warning light turns on, but it should go
off when the engine has started. This in-
dicates proper operation of the warn-
ing light.
If the warning light stays on or turns on
when travelling:
– glowing steadily (together with
the message on the display): means a
fault in the supply/ignition system
which could cause high emissions at the
exhaust, possible lack of performance,
poor handling and high consumption lev-
els. In these conditions it is possible to
continue driving without however re-
quiring heavy effort or high speed from
the engine. Prolonged use of the car
with the warning light on may cause
damages. Contact Alfa Romeo Autho-
rized Services as soon as possible.
The warning light goes off if the fault
disappears, but it is however stored by
the system.– flashing: indicates the possibility of
damage to the catalyst (see “EOBD sys-
tem” in section “Dashboard and con-
trols”). If the light flashes, it is neces-
sary to release the accelerator pedal to
lower the speed of the engine until the
warning light stops flashing; continue
the journey at moderate speed, trying
to avoid driving conditions that may
cause further flashing and contact Alfa
Romeo Authorized Services as soon as
possible.If when fitting the key in-
to the ignition device, the
warning light
Udoes
not turn on or if turns on with
fixed light or flashing when the
car is travelling, contact Alfa
Romeo Authorized Services as
soon as possible. Warning light
Uoperation can by checked by
traffic agents by proper equip-
ment therefore, comply with
laws and regulations in force in
the country where you are dri-
ving.
151-168 Alfa BRERA gb 28-08-2008 11:22 Pagina 158
