Alfa Romeo Brera/Spider 2009 Owner handbook (in English)

229
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND
CONTROLS
CORRECT USE

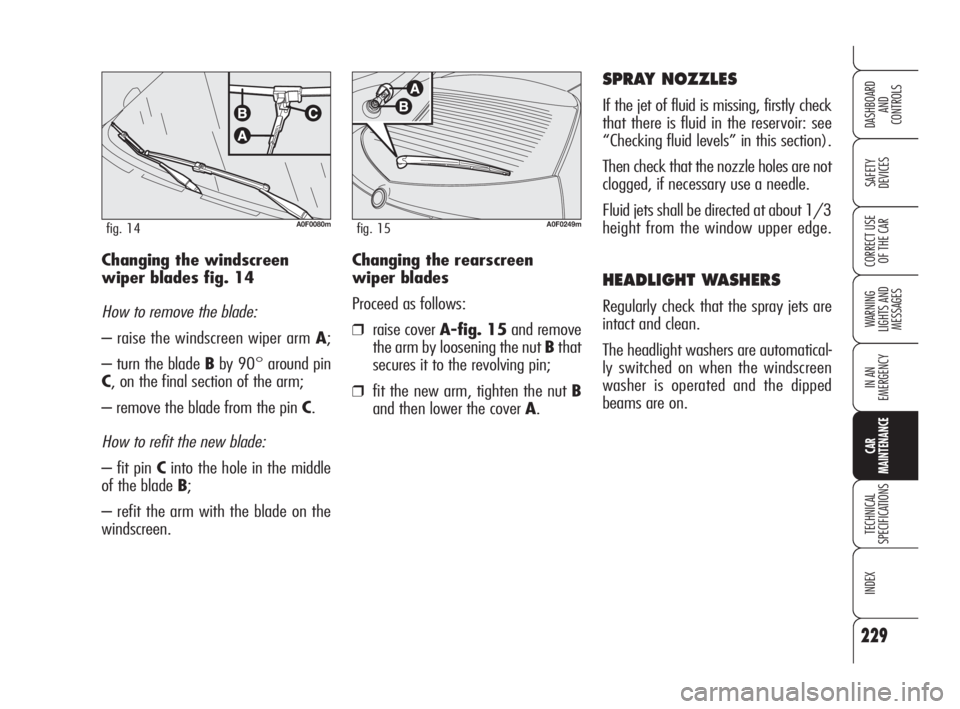

OF THE CARChanging the rearscreen
wiper blades
Proceed as follows:
❒raise cover A-fig. 15and remove
the arm by loosening the nut Bthat
secures it to the revolving pin;
❒fit the new arm, tighten the nut B
and then lower the cover A.
SPRAY NOZZLES
If the jet of fluid is missing, firstly check
that there is fluid in the reservoir: see
“Checking fluid levels” in this section).
Then check that the nozzle holes are not
clogged, if necessary use a needle.
Fluid jets shall be directed at about 1/3
height from the window upper edge.
HEADLIGHT WASHERS
Regularly check that the spray jets are
intact and clean.
The headlight washers are automatical-
ly switched on when the windscreen
washer is operated and the dipped
beams are on. Changing the windscreen
wiper blades fig. 14How to remove the blade:
– raise the windscreen wiper arm A;
– turn the blade Bby 90° around pin
C, on the final section of the arm;
– remove the blade from the pin C.
How to refit the new blade:
– fit pin Cinto the hole in the middle
of the blade B;
– refit the arm with the blade on the
windscreen.
A0F0080mfig. 14A0F0249mfig. 15
209-234 Alfa BRERA gb 28-08-2008 11:44 Pagina 229

230
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND
CONTROLS
CORRECT USE
OF THE CAR
These include:
❒Painting products and systems which
give the car particular resistance to
corrosion and abrasion;
❒Use of galvanised (or pretreated)
steel sheets, with high resistance to
corrosion;
❒Spraying of plastic parts, with a pro-
tective function, in the more exposed
points: underdoor, inner fender parts,
edges, etc;
❒Use of “open” boxed sections to pre-
vent condensation and pockets of
moisture from triggering rust inside;
❒Use of special anti-abrasion protec-
tive tapes in the most exposed areas
(e.g.: rear mudguard, etc.).
BODY AND UNDERBODY
WARRANTY
Your car is covered by warranty against
perforation due to rust of any original el-
ement of the structure or body. For the
general terms of this warranty, refer to
the Alfa Romeo Warranty booklet.

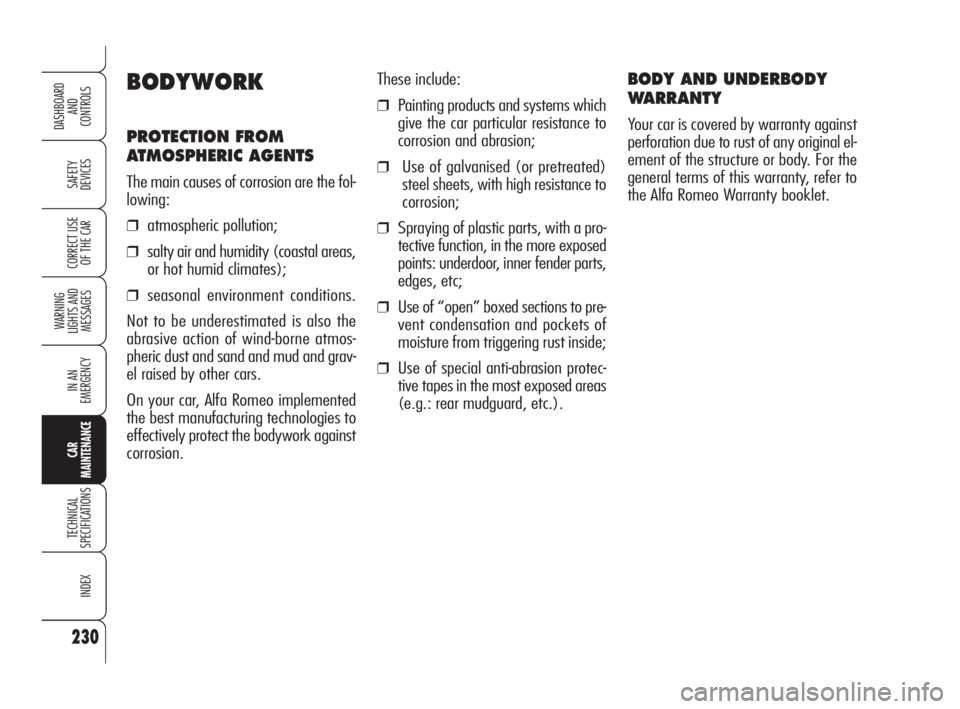

BODYWORK
PROTECTION FROM
ATMOSPHERIC AGENTS
The main causes of corrosion are the fol-
lowing:
❒atmospheric pollution;
❒salty air and humidity (coastal areas,
or hot humid climates);
❒seasonal environment conditions.
Not to be underestimated is also the
abrasive action of wind-borne atmos-
pheric dust and sand and mud and grav-
el raised by other cars.
On your car, Alfa Romeo implemented
the best manufacturing technologies to
effectively protect the bodywork against
corrosion.
209-234 Alfa BRERA gb 28-08-2008 11:44 Pagina 230

231
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND
CONTROLS
CORRECT USE
OF THE CAR
To wash the car correctly proceed as fol-
lows:
❒remove the aerial from the roof to
prevent damage to it if the car is
washed in an automatic system;
❒wash the body using a low pressure
jet of water;
❒wipe a sponge with a slightly soapy
solution over the bodywork, fre-
quently rinsing with the sponge;
❒rinse well with water and dry with
a jet of air or a chamois leather.
When drying, take particular care with
the less visible parts like door surrounds,
bonnet and around the headlights where
water may stagnate. The car should not
be taken to a closed area immediately,
but left in the open so that residual wa-
ter can evaporate.
Do not wash the car after it has been left
in the sun or with the bonnet hot: this
may alter the shine of the paintwork.

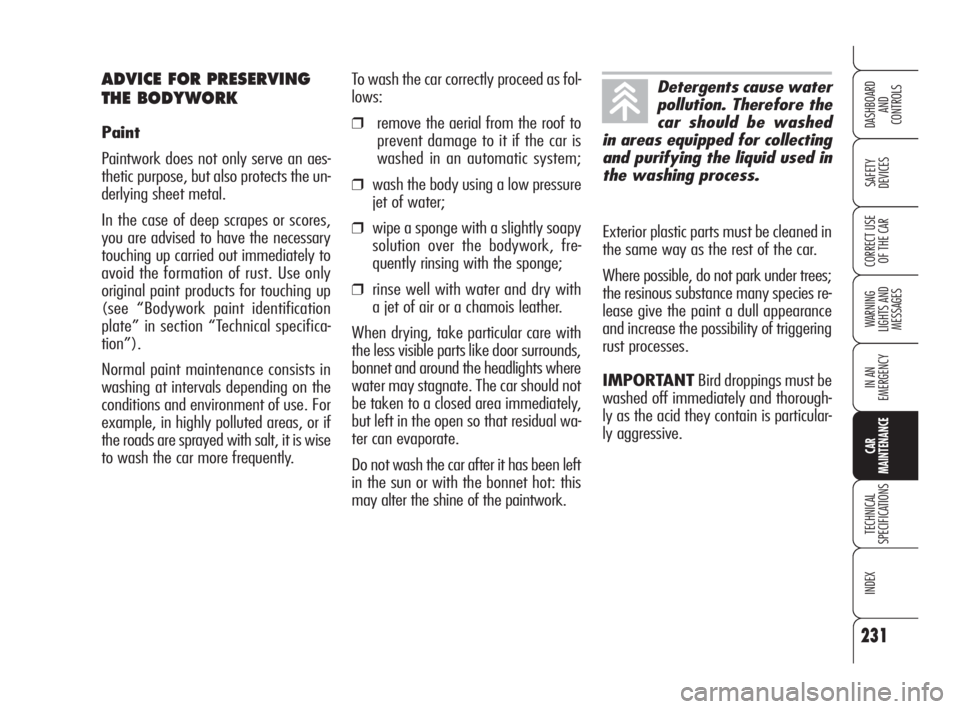

ADVICE FOR PRESERVING
THE BODYWORK
Paint
Paintwork does not only serve an aes-
thetic purpose, but also protects the un-
derlying sheet metal.
In the case of deep scrapes or scores,
you are advised to have the necessary
touching up carried out immediately to
avoid the formation of rust. Use only
original paint products for touching up
(see “Bodywork paint identification
plate” in section “Technical specifica-
tion”).
Normal paint maintenance consists in
washing at intervals depending on the
conditions and environment of use. For
example, in highly polluted areas, or if
the roads are sprayed with salt, it is wise
to wash the car more frequently.
Detergents cause water
pollution. Therefore the
car should be washed
in areas equipped for collecting
and purifying the liquid used in
the washing process.
Exterior plastic parts must be cleaned in
the same way as the rest of the car.
Where possible, do not park under trees;
the resinous substance many species re-
lease give the paint a dull appearance
and increase the possibility of triggering
rust processes.
IMPORTANTBird droppings must be
washed off immediately and thorough-
ly as the acid they contain is particular-
ly aggressive.
209-234 Alfa BRERA gb 28-08-2008 11:44 Pagina 231

232
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND
CONTROLS
CORRECT USE
OF THE CAR

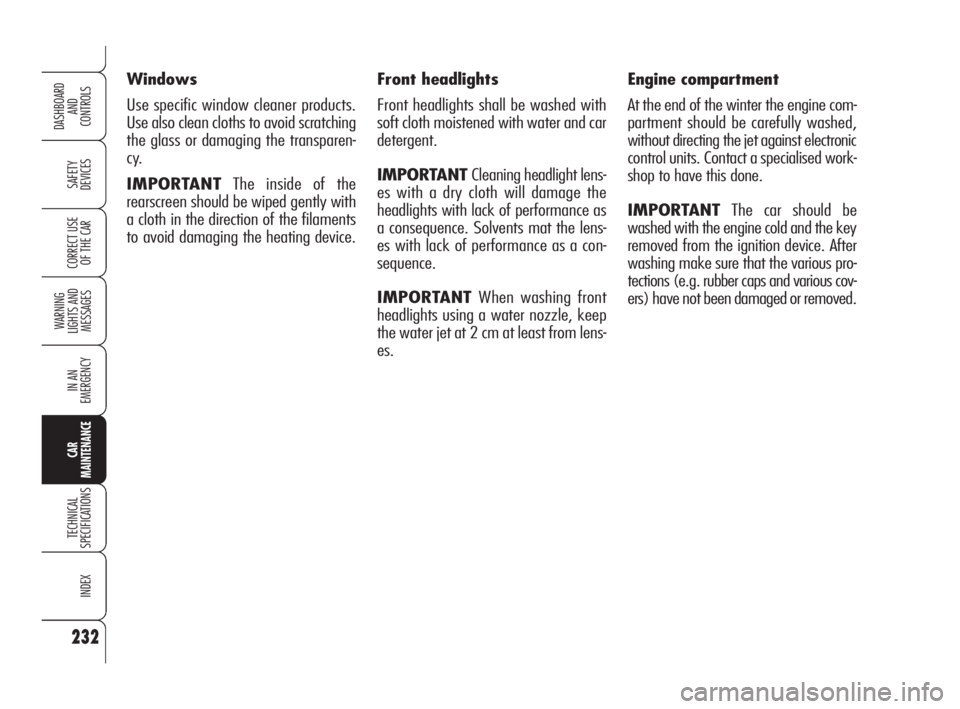

Engine compartment
At the end of the winter the engine com-
partment should be carefully washed,
without directing the jet against electronic
control units. Contact a specialised work-
shop to have this done.
IMPORTANTThe car should be
washed with the engine cold and the key
removed from the ignition device. After
washing make sure that the various pro-
tections (e.g. rubber caps and various cov-
ers) have not been damaged or removed. Front headlights
Front headlights shall be washed with
soft cloth moistened with water and car
detergent.
IMPORTANT Cleaning headlight lens-
es with a dry cloth will damage the
headlights with lack of performance as
a consequence. Solvents mat the lens-
es with lack of performance as a con-
sequence.
IMPORTANTWhen washing front
headlights using a water nozzle, keep
the water jet at 2 cm at least from lens-
es. Windows
Use specific window cleaner products.
Use also clean cloths to avoid scratching
the glass or damaging the transparen-
cy.
IMPORTANTThe inside of the
rearscreen should be wiped gently with
a cloth in the direction of the filaments
to avoid damaging the heating device.
209-234 Alfa BRERA gb 28-08-2008 11:44 Pagina 232

CLEANING LEATHER SEATS
(optional for versions/
markets where applicable)
Remove dried on dirt with lightly moist-
ened chamois leather or cloth without
pressing too hard.
Remove liquid or grease stains with a dry
absorbent cloth without rubbing. Then
wipe with a soft cloth or chamois leather
with water and neutral soap.
If the stain persists, use specific prod-
ucts, carefully following the instructions
for use.
IMPORTANTNever use spirit or al-
cohol-based products.
233
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND
CONTROLS
CORRECT USE
OF THE CAR
Upholstery of your car
has been designed to
withstand wear deriv-
ing from common use of the car.
You are however recommended
to avoid strong and/or contin-
uous scratching with clothing ac-
cessories such as metallic buck-
les, studs, Velcro fastenings and
the like, since these items cause
circumscribed stress of the cov-
er fabric that could lead to yarn
breaking, and damage the cov-

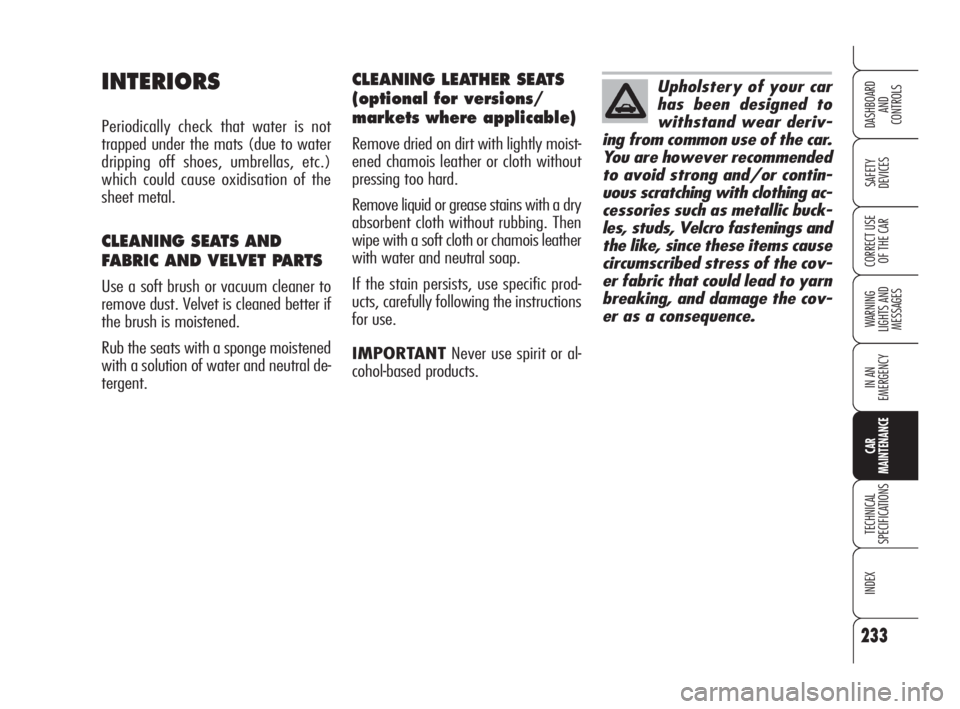

er as a consequence.INTERIORS
Periodically check that water is not
trapped under the mats (due to water
dripping off shoes, umbrellas, etc.)
which could cause oxidisation of the
sheet metal.
CLEANING SEATS AND
FABRIC AND VELVET PARTS
Use a soft brush or vacuum cleaner to
remove dust. Velvet is cleaned better if
the brush is moistened.
Rub the seats with a sponge moistened
with a solution of water and neutral de-
tergent.
209-234 Alfa BRERA gb 28-08-2008 11:44 Pagina 233

234
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND
CONTROLS
CORRECT USE
OF THE CAR

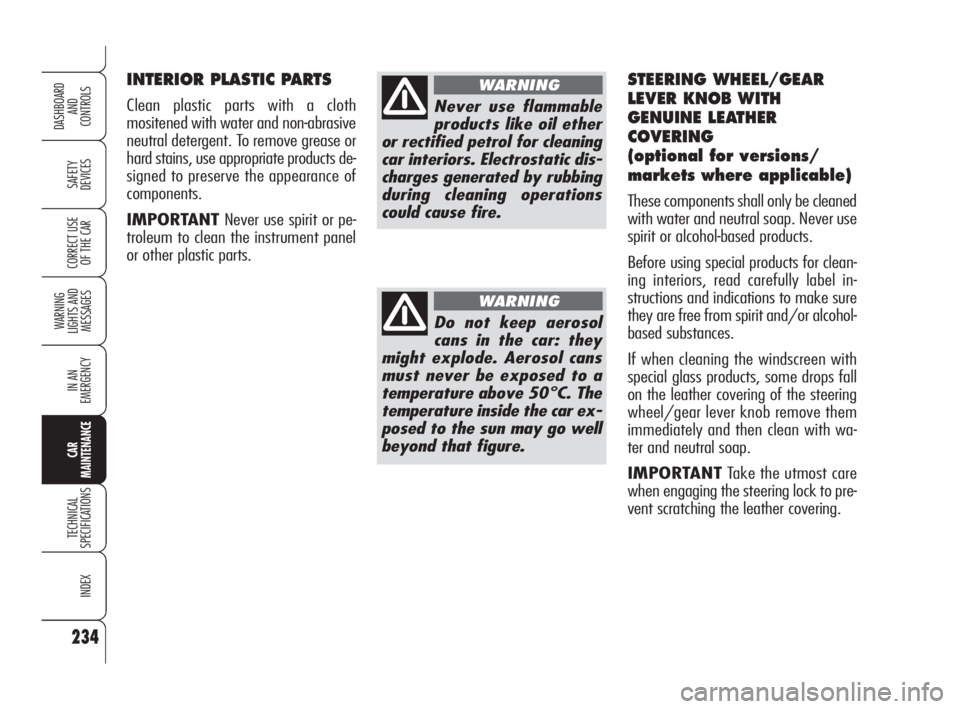

INTERIOR PLASTIC PARTS
Clean plastic parts with a cloth
mositened with water and non-abrasive
neutral detergent. To remove grease or
hard stains, use appropriate products de-
signed to preserve the appearance of
components.
IMPORTANTNever use spirit or pe-
troleum to clean the instrument panel
or other plastic parts.Never use flammable
products like oil ether
or rectified petrol for cleaning
car interiors. Electrostatic dis-
charges generated by rubbing
during cleaning operations
could cause fire.
WARNING
Do not keep aerosol
cans in the car: they
might explode. Aerosol cans
must never be exposed to a
temperature above 50°C. The
temperature inside the car ex-
posed to the sun may go well
beyond that figure.
WARNING
STEERING WHEEL/GEAR
LEVER KNOB WITH
GENUINE LEATHER
COVERING
(optional for versions/
markets where applicable)
These components shall only be cleaned
with water and neutral soap. Never use
spirit or alcohol-based products.
Before using special products for clean-
ing interiors, read carefully label in-
structions and indications to make sure
they are free from spirit and/or alcohol-
based substances.
If when cleaning the windscreen with
special glass products, some drops fall
on the leather covering of the steering
wheel/gear lever knob remove them
immediately and then clean with wa-
ter and neutral soap.
IMPORTANTTake the utmost care
when engaging the steering lock to pre-
vent scratching the leather covering.
209-234 Alfa BRERA gb 28-08-2008 11:44 Pagina 234

235
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND
CONTROLS
CORRECT USE
OF THE CAR

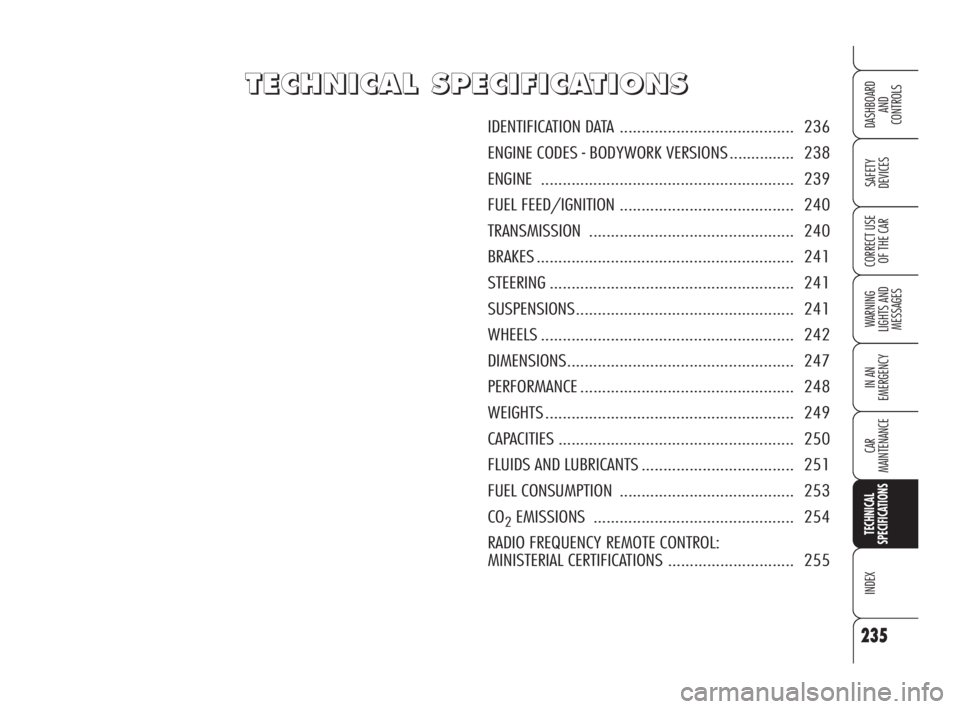

T T
E E
C C
H H
N N
I I
C C
A A
L L
S S
P P
E E
C C
I I
F F
I I
C C
A A
T T
I I
O O
N N
S S

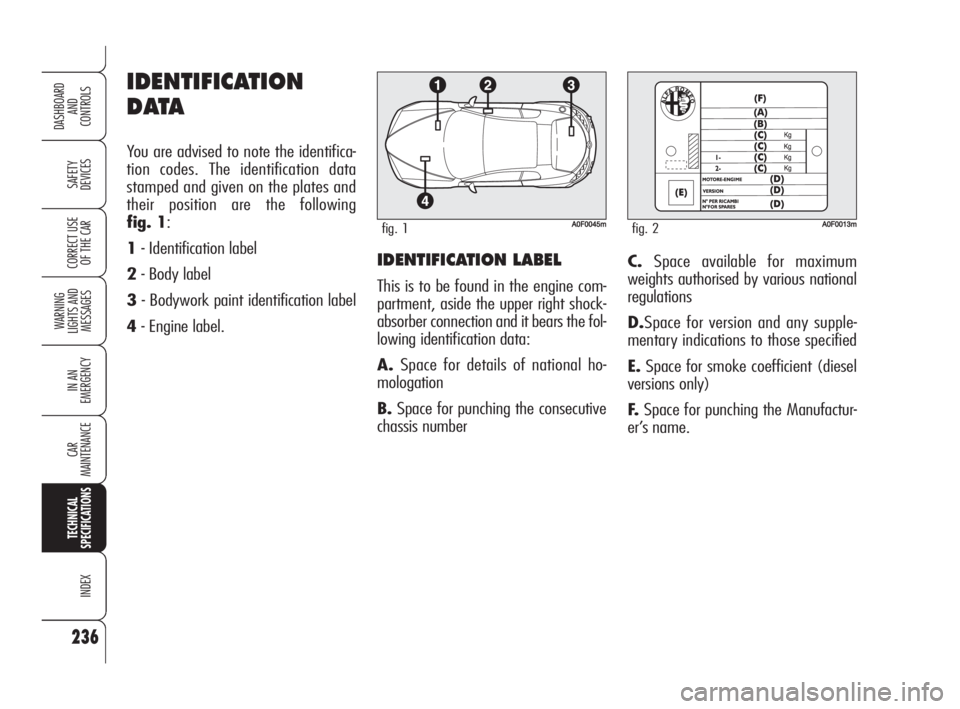

IDENTIFICATION DATA ........................................ 236

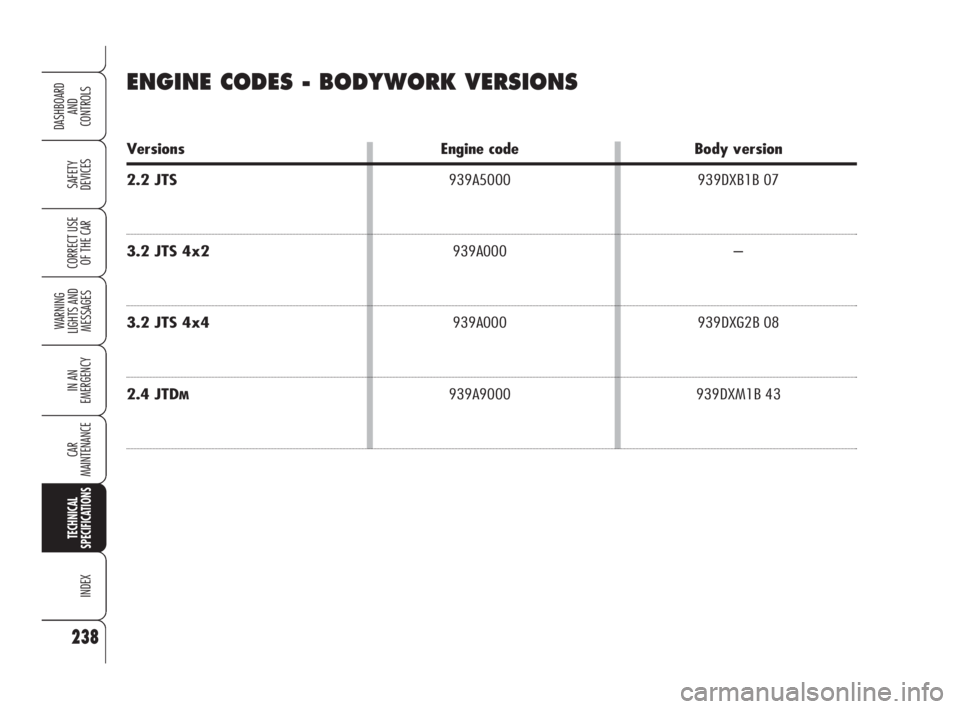

ENGINE CODES - BODYWORK VERSIONS ............... 238
ENGINE.......................................................... 239
FUEL FEED/IGNITION ........................................ 240
TRANSMISSION............................................... 240
BRAKES........................................................... 241
STEERING........................................................ 241
SUSPENSIONS.................................................. 241
WHEELS.......................................................... 242
DIMENSIONS.................................................... 247
PERFORMANCE................................................. 248
WEIGHTS......................................................... 249
CAPACITIES...................................................... 250
FLUIDS AND LUBRICANTS................................... 251
FUEL CONSUMPTION ........................................ 253
CO
2EMISSIONS.............................................. 254
RADIO FREQUENCY REMOTE CONTROL:
MINISTERIAL CERTIFICATIONS ............................. 255
235-258 Alfa BRERA gb 28-08-2008 11:47 Pagina 235

236
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND
CONTROLS
CORRECT USE
OF THE CARIDENTIFICATION LABEL
This is to be found in the engine com-
partment, aside the upper right shock-
absorber connection and it bears the fol-
lowing identification data:
A.Space for details of national ho-
mologation
B.Space for punching the consecutive
chassis number
IDENTIFICATION
DATA
You are advised to note the identifica-
tion codes. The identification data
stamped and given on the plates and
their position are the following
fig. 1:
1- Identification label
2- Body label
3- Bodywork paint identification label
4- Engine label.C.Space available for maximum
weights authorised by various national
regulations
D.Space for version and any supple-
mentary indications to those specified
E.Space for smoke coefficient (diesel
versions only)
F.Space for punching the Manufactur-
er’s name.
A0F0045mfig. 1A0F0013mfig. 2
235-258 Alfa BRERA gb 28-08-2008 11:47 Pagina 236

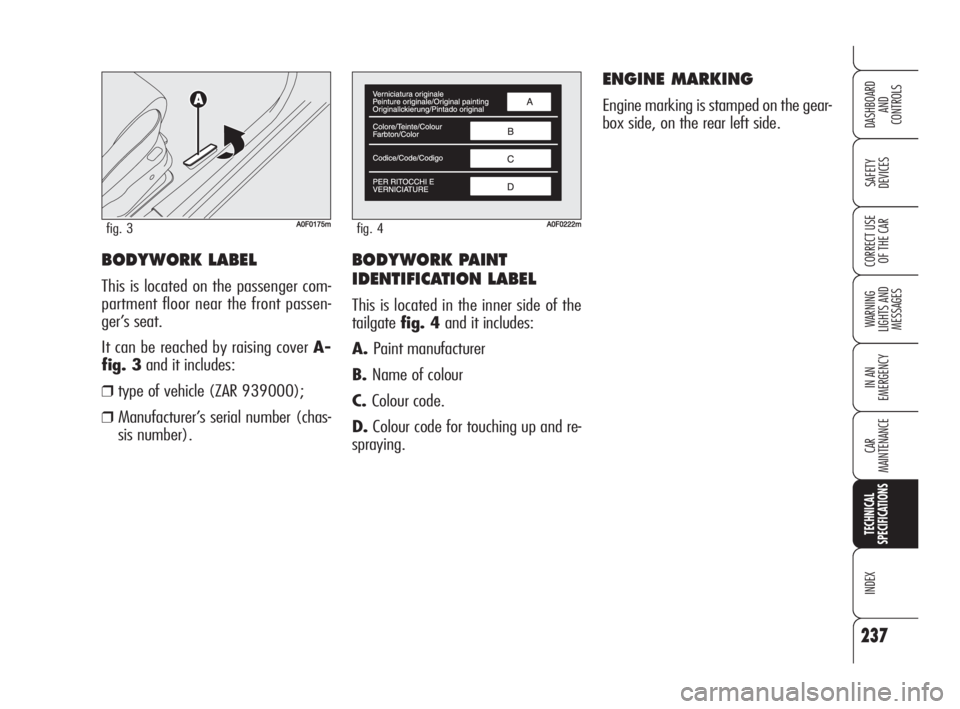

BODYWORK PAINT
IDENTIFICATION LABEL
This is located in the inner side of the
tailgatefig. 4and it includes:
A.Paint manufacturer
B.Name of colour
C.Colour code.
D.Colour code for touching up and re-
spraying.
ENGINE MARKING
Engine marking is stamped on the gear-
box side, on the rear left side.
BODYWORK LABEL
This is located on the passenger com-
partment floor near the front passen-
ger’s seat.
It can be reached by raising cover A-
fig. 3and it includes:
❒type of vehicle (ZAR 939000);
❒Manufacturer’s serial number (chas-
sis number).
237
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND
CONTROLS
CORRECT USE
OF THE CAR
AA0F0222mfig. 4A0F0175mfig. 3
235-258 Alfa BRERA gb 28-08-2008 11:47 Pagina 237

238
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND
CONTROLS
CORRECT USE
OF THE CAR
ENGINE CODES - BODYWORK VERSIONS
Versions Engine code Body version
2.2 JTS939A5000 939DXB1B 07
3.2 JTS 4x2939A000 –
3.2 JTS 4x4939A000 939DXG2B 08
2.4 JTDM939A9000 939DXM1B 43
235-258 Alfa BRERA gb 28-08-2008 11:47 Pagina 238
