Alfa Romeo Brera/Spider 2009 Owner handbook (in English)

239
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND
CONTROLS
CORRECT USE
OF THE CAR
To change plugs contact Alfa Romeo Authorized Services.
2.4 JTDM
939A9000
Diesel
5 in line
4
82
X90.4
2387
154
210
4000
400
40.8
1500
–
Diesel fuel for
motor vehicles
(Specification
EN590)
2.2 JTS
939A5000
Otto
4 in line
4
86 X 94.6
2198
136
185
6500
230
23.4
4500
NGKFR5CP
Unleaded petrol
95 RON
(Specification
EN228)3.2 JTS
939A000
Otto
6 in 60° V
4
85.6 X 89
3195
191
260
6300
322
32.8
4500
BOSCH
HR7MPP152
Unleaded petrol
95 RON
(Specification
EN228)

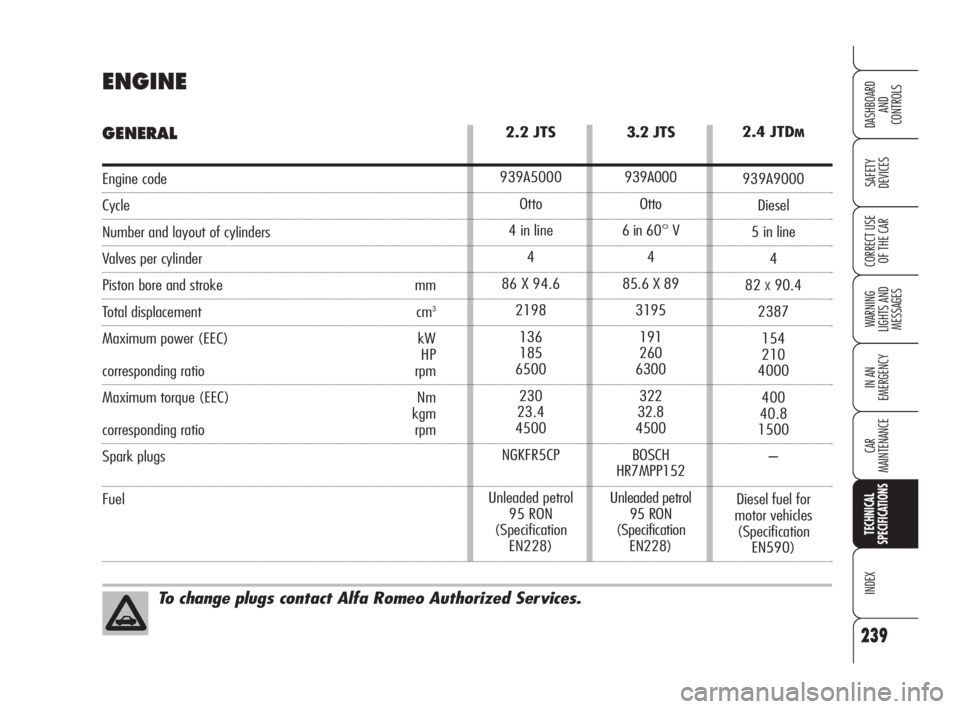

ENGINE
GENERAL
Engine code
Cycle
Number and layout of cylinders
Valves per cylinder
Piston bore and stroke mm
Total displacement cm3
Maximum power (EEC) kW
HP
corresponding ratio rpm
Maximum torque (EEC) Nm
kgm
corresponding ratio rpm
Spark plugs
Fuel
235-258 Alfa BRERA gb 28-08-2008 11:47 Pagina 239

240
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND
CONTROLS
CORRECT USE
OF THE CAR
FUEL FEED/IGNITION
2.2 JTS - 3.2 JTS2.4 JTDM
Fuel feed Direct injection Multijet direct injection, variable geometry
turbosupercharger and intercooler
Modifications or repairs to the fuel feed system that are not carried out properly or do not
take the system’s technical specifications into account can cause malfunctions leading to
the risk of fire.
TRANSMISSION
Gearbox
Clutch
Drive
IMPORTANTIn the event of difficult disengagement, due to significant difference of grip between front and rear axle, do
not insist with heavy accelerations: it is actually more effective an attempt of disengagement at medium slow engine rpm,
with pauses of a few seconds if several attempts are necessary.
2.2 JTS - 2.4 JTDM- 3.2 JTS 4x2
Six forward gears + reverse and
synchronisers for forward
speeds
Dry single disk
with hydraulic control
Front drive3.2 JTS 4x4
Six forward gears + reverse and
synchronisers for forward
speeds
Dry single disk
with hydraulic control
Four-wheel drive
235-258 Alfa BRERA gb 28-08-2008 11:47 Pagina 240

241
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND
CONTROLS
CORRECT USE
OF THE CAR
2.2 JTS 3.2 JTS - 2.4 JTDM

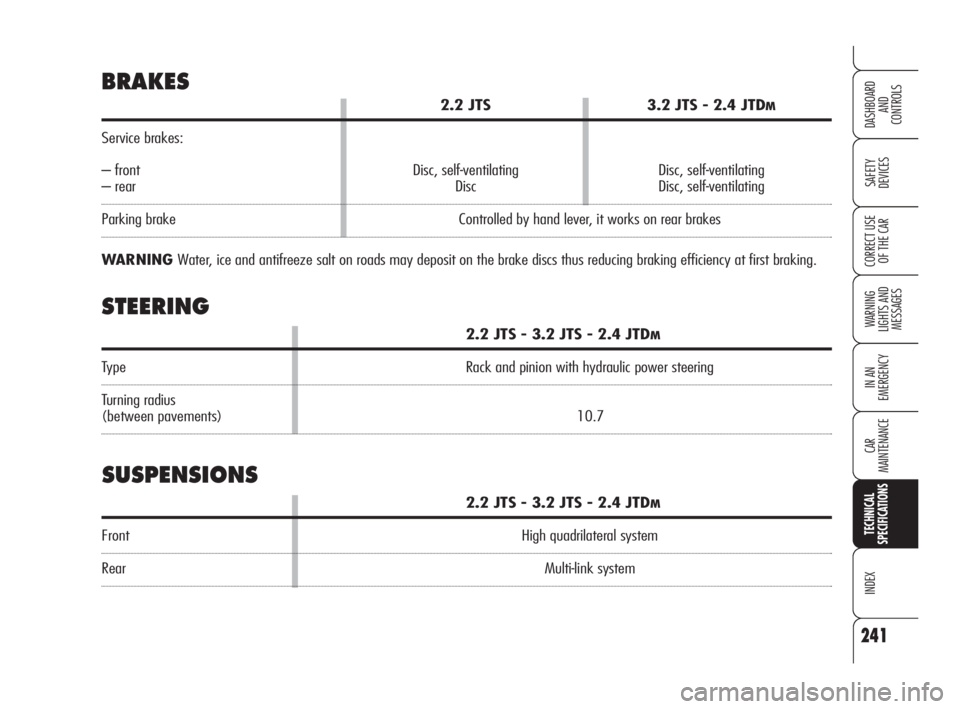

Service brakes:
– front Disc, self-ventilating Disc, self-ventilating
– rear Disc Disc, self-ventilating
Parking brake Controlled by hand lever, it works on rear brakes
WARNING Water, ice and antifreeze salt on roads may deposit on the brake discs thus reducing braking efficiency at first braking.
2.2 JTS - 3.2 JTS - 2.4 JTDM
Type Rack and pinion with hydraulic power steering
Turning radius
(between pavements) 10.7
BRAKES
STEERING
2.2 JTS - 3.2 JTS - 2.4 JTDM
Front High quadrilateral system
Rear Multi-link system
SUSPENSIONS
235-258 Alfa BRERA gb 28-08-2008 11:47 Pagina 241

UNDERSTANDING
TYRE MARKING fig. 5
Example: 215/55 R 16 93 V
215= Nominal width (S, distance be-
tween sidewalls in mm).
55= Percentage height/width ratio
(H/S).
R= Radial tyre.
16= Rim diameter in inches. (Ø).
93= Load rating (capacity).
V= Maximum speed index.

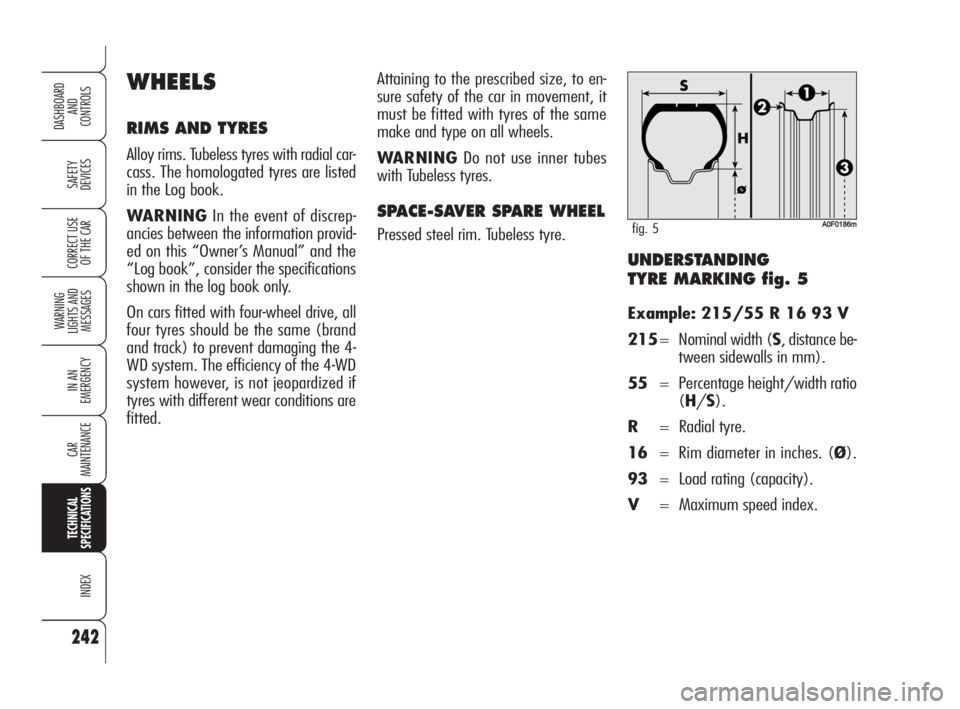

WHEELS
RIMS AND TYRES
Alloy rims. Tubeless tyres with radial car-
cass. The homologated tyres are listed
in the Log book.
WARNINGIn the event of discrep-
ancies between the information provid-
ed on this “Owner’s Manual” and the
“Log book”, consider the specifications
shown in the log book only.
On cars fitted with four-wheel drive, all
four tyres should be the same (brand
and track) to prevent damaging the 4-
WD system. The efficiency of the 4-WD
system however, is not jeopardized if
tyres with different wear conditions are
fitted.
242
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND
CONTROLS
CORRECT USE
OF THE CAR
AA0F0186mfig. 5
Attaining to the prescribed size, to en-
sure safety of the car in movement, it
must be fitted with tyres of the same
make and type on all wheels.
WARNINGDo not use inner tubes
with Tubeless tyres.
SPACE-SAVER SPARE WHEEL
Pressed steel rim. Tubeless tyre.
235-258 Alfa BRERA gb 28-08-2008 11:47 Pagina 242

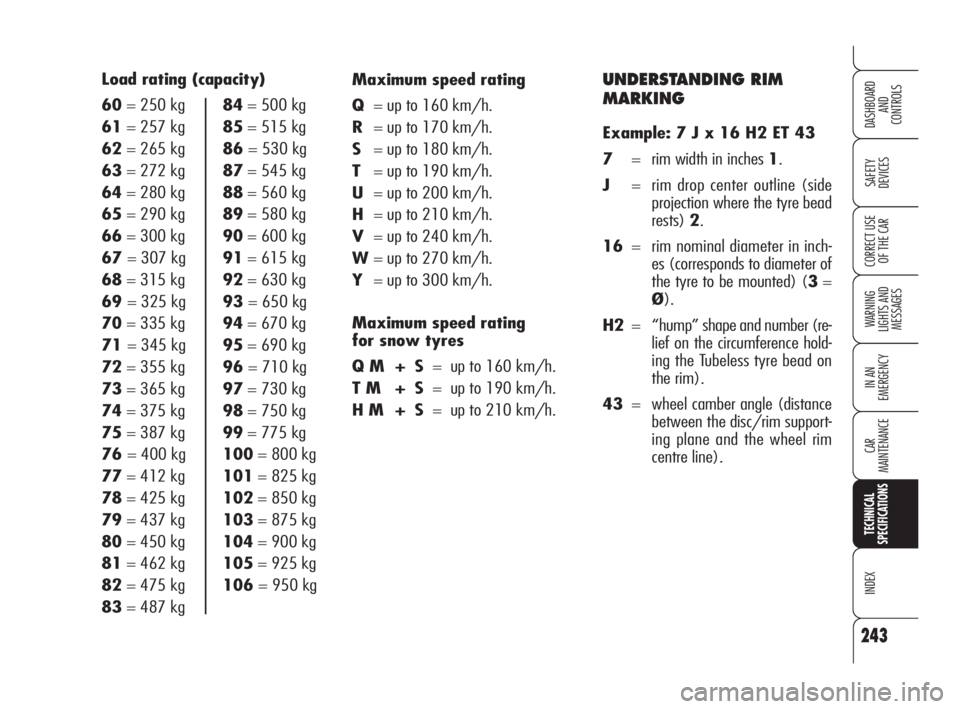

Load rating (capacity)
60= 250 kg 84= 500 kg
61= 257 kg 85= 515 kg
62= 265 kg 86= 530 kg
63= 272 kg 87= 545 kg
64= 280 kg 88= 560 kg
65= 290 kg 89= 580 kg
66= 300 kg 90= 600 kg
67= 307 kg 91= 615 kg
68= 315 kg 92= 630 kg
69= 325 kg 93= 650 kg
70= 335 kg94= 670 kg
71= 345 kg 95= 690 kg
72= 355 kg 96= 710 kg
73= 365 kg 97= 730 kg
74= 375 kg98= 750 kg
75= 387 kg 99= 775 kg
76= 400 kg 100= 800 kg
77= 412 kg 101= 825 kg
78= 425 kg 102= 850 kg
79= 437 kg 103= 875 kg
80= 450 kg 104= 900 kg
81= 462 kg 105= 925 kg
82= 475 kg 106= 950 kg
83= 487 kgUNDERSTANDING RIM
MARKING
Example: 7 J x 16 H2 ET 43
7= rim width in inches 1.
J= rim drop center outline (side
projection where the tyre bead
rests)2.
16= rim nominal diameter in inch-
es (corresponds to diameter of
the tyre to be mounted) (3=
Ø).
H2= “hump” shape and number (re-
lief on the circumference hold-
ing the Tubeless tyre bead on
the rim).
43= wheel camber angle (distance
between the disc/rim support-
ing plane and the wheel rim
centre line). Maximum speed rating
Q= up to 160 km/h.
R= up to 170 km/h.
S= up to 180 km/h.
T= up to 190 km/h.
U= up to 200 km/h.
H= up to 210 km/h.
V= up to 240 km/h.
W= up to 270 km/h.
Y= up to 300 km/h.
Maximum speed rating
for snow tyres
Q M + S= up to 160 km/h.
T M + S= up to 190 km/h.
H M + S= up to 210 km/h.
243
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND
CONTROLS
CORRECT USE
OF THE CAR
235-258 Alfa BRERA gb 28-08-2008 11:47 Pagina 243

244
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND
CONTROLS
CORRECT USE
OF THE CAR
On tyres 225/50 R17” only “spider” type chains can be used. Also for 3.2 JTS version, snow chains shall be fitted on the FRONT axle of the car.
Tyres 235/45 R18” cannot be fitted with snow chains due to interference with fender.
(*) Tyres that cannot be fitted with traditional snow chains. Only “spider” type chains can be used.
(**) Vehicles with “Red brake caliper” opt should not use 16” wheel rims.
WARNINGSnow tyres with speed index Hare recommended.
(
▼) Unchainable tyres. Size certified and admitted only for PIRELLI 235/40 ZR19 96Y. When using winter tyres, use 225/50 R17 98 tyres or
235/45 R18 98.
4,00B x17"
T125/80 R17

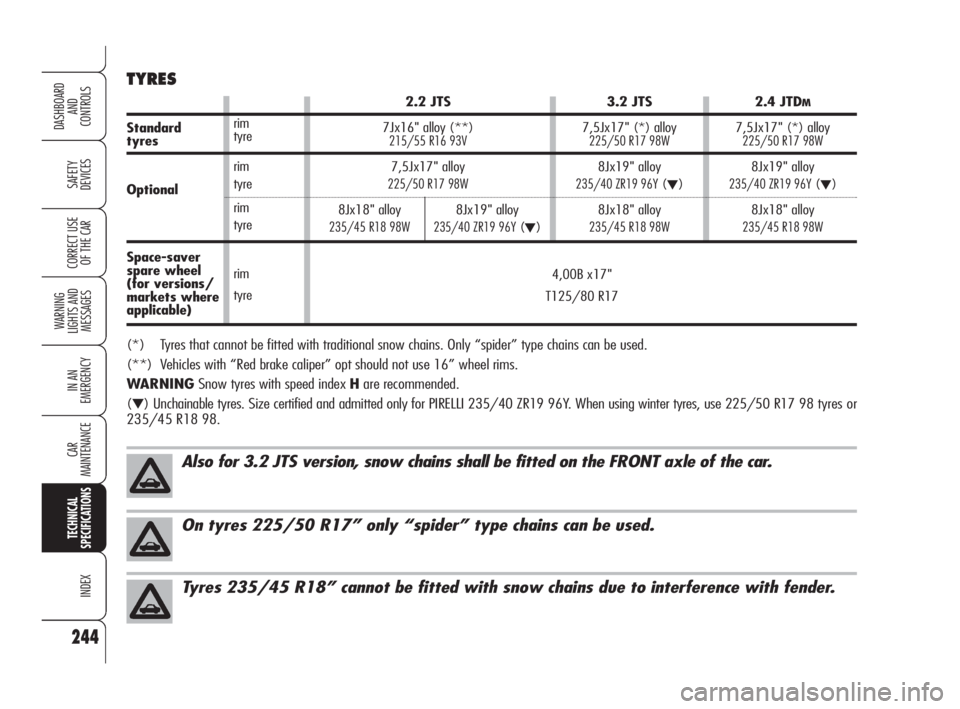

TYRES
Standardtyres
Optional
Space-saver
spare wheel
(for versions/
markets where
applicable)rim
tyre
rim
tyre
rim
tyre
rim
tyre2.2 JTS
7Jx16" alloy (**)
215/55 R16 93V
7,5Jx17" alloy
225/50 R17 98W
8Jx18" alloy 8Jx19" alloy
235/45 R18 98W 235/40 ZR19 96Y(O)3.2 JTS
7,5Jx17" (*) alloy
225/50 R17 98W
8Jx19" alloy
235/40 ZR19 96Y(O)
8Jx18" alloy
235/45 R18 98W
2.4 JTDM
7,5Jx17" (*) alloy225/50 R17 98W
8Jx19" alloy
235/40 ZR19 96Y(O)
8Jx18" alloy
235/45 R18 98W
235-258 Alfa BRERA gb 28-08-2008 11:47 Pagina 244

245
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND
CONTROLS
CORRECT USE
OF THE CARAdd +0.3 bar to the prescribed inflation pressure when the tyres are warm. Recheck pressure value with cold tyres.
With snow tyres, add +0.2 bar to the inflation pressure value prescribed for standard tyres.
Inflate tyres to full load pressures if driving at continuous speed exceeding 160 km/h.
(
▼) Unchainable tyres. Size certified and admitted only for PIRELLI 235/40 ZR19 96Y. When using winter tyres, use 225/50 R17 98 tyres
or 235/45 R18 98.

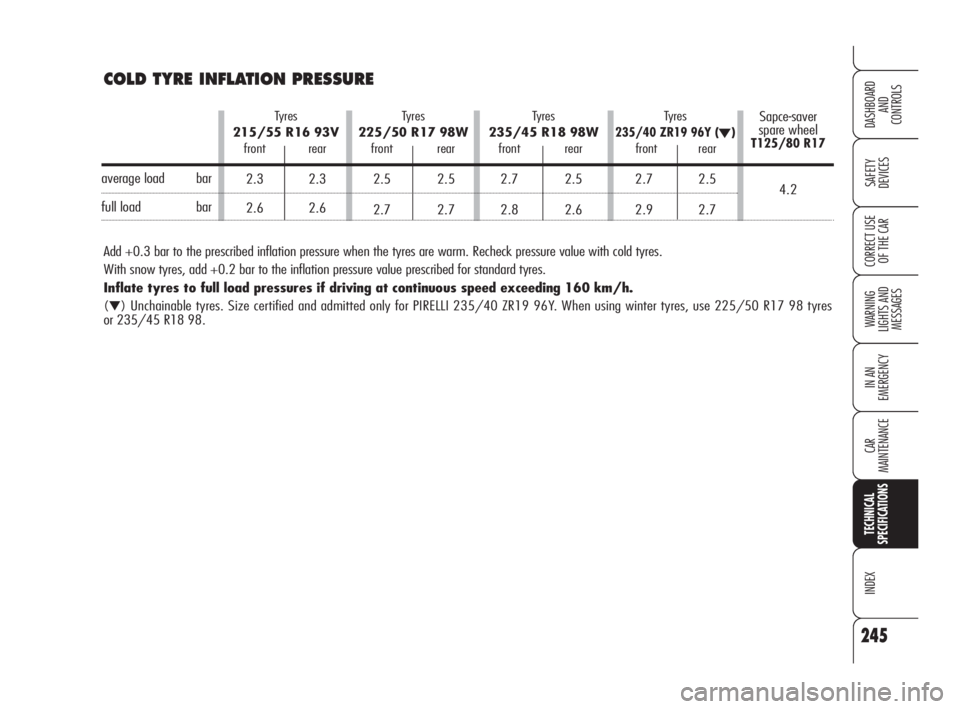

COLD TYRE INFLATION PRESSURE
average load bar
full load bar
Tyres
215/55 R16 93V
front rear
2.3 2.3
2.6 2.6Sapce-saver
spare wheel
T125/80 R17
4.2
Tyres
225/50 R17 98W
front rear
2.5 2.5
2.7 2.7
Tyres
235/45 R18 98W
front rear
2.7 2.5
2.8 2.6
Tyres
235/40 ZR19 96Y (O)
front rear
2.7 2.5
2.9 2.7
235-258 Alfa BRERA gb 28-08-2008 11:47 Pagina 245

246
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND
CONTROLS– camber
front wheels: – caster
– half toe-in
16” rim (*)
17” rim (*)
18” rim (*)
– camber
Rear wheels:
– half toe-in
16” rim (*)
17” rim (*)
18” rim (*)
CORRECT USE
OF THE CAR

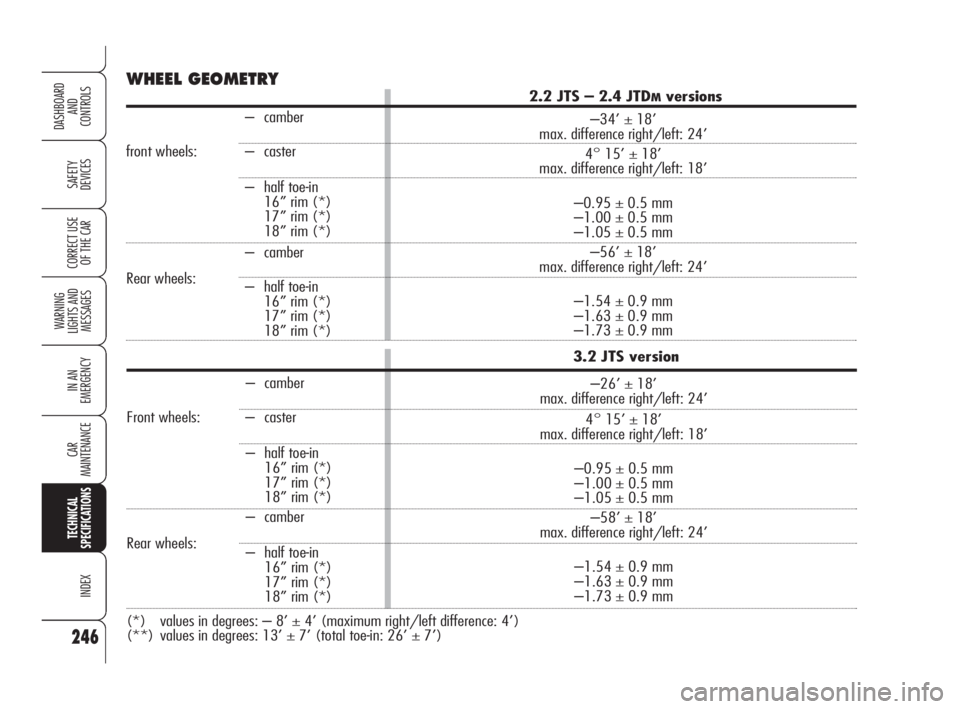

WHEEL GEOMETRY
2.2 JTS – 2.4 JTDMversions
–34’ ± 18’
max. difference right/left: 24’
4° 15’ ± 18’
max. difference right/left: 18’
–0.95 ± 0.5 mm
–1.00 ± 0.5 mm
–1.05 ± 0.5 mm
–56’ ± 18’
max. difference right/left: 24’
–1.54 ± 0.9 mm
–1.63 ± 0.9 mm
–1.73 ± 0.9 mm
3.2 JTS version
–26’ ± 18’
max. difference right/left: 24’
4° 15’ ± 18’
max. difference right/left: 18’
–0.95 ± 0.5 mm
–1.00 ± 0.5 mm
–1.05 ± 0.5 mm
–58’ ± 18’
max. difference right/left: 24’
–1.54 ± 0.9 mm
–1.63 ± 0.9 mm
–1.73 ± 0.9 mm
– camber
Front wheels: – caster
– half toe-in
16” rim (*)
17” rim (*)
18” rim (*)
– camber
Rear wheels:
– half toe-in
16” rim (*)
17” rim (*)
18” rim (*)
(*) values in degrees: – 8’ ± 4’ (maximum right/left difference: 4’)
(**) values in degrees: 13’ ± 7’ (total toe-in: 26’ ± 7’)
235-258 Alfa BRERA gb 28-08-2008 11:47 Pagina 246

247
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND
CONTROLS
CORRECT USE
OF THE CAR
DIMENSIONS
Dimensions are
expressed in mm and
refer to the car
fitted with standard tyres.
Min. size variations
when optional tyres are
fitted.
The height refers to
the car unladen.
BOOT VOLUME
Boot volume: 220 dm3(or
300 dm3according to versions)
(■) With tyres 225/50 R17”
A0F0044mfig. 6
ABCDE FGH
4410 1000 2528 882 1341 1593 1830 1573
1579 (■) 1559 (■)
235-258 Alfa BRERA gb 28-08-2008 11:47 Pagina 247

248
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND
CONTROLS
CORRECT USE
OF THE CAR

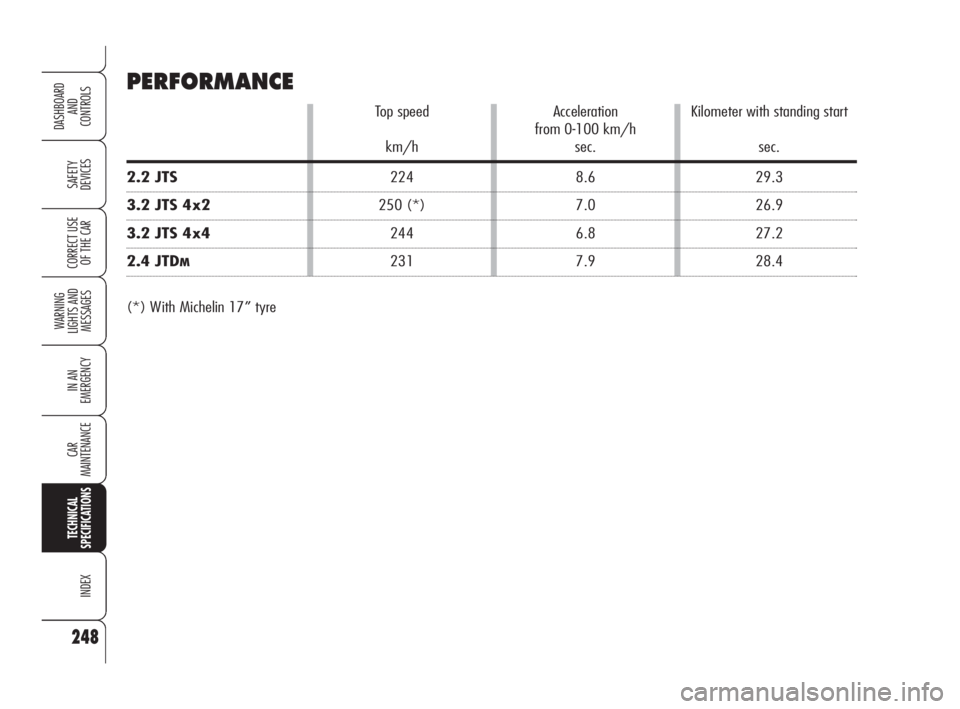

PERFORMANCE
Top speed Acceleration Kilometer with standing start
from 0-100 km/h
km/h sec. sec.
2.2 JTS224 8.6 29.3
3.2 JTS 4x2250 (*) 7.0 26.9
3.2 JTS 4x4244 6.8 27.2
2.4 JTDM231 7.9 28.4
(*) With Michelin 17” tyre
