Alfa Romeo Giulia 2016 Owner's Manual

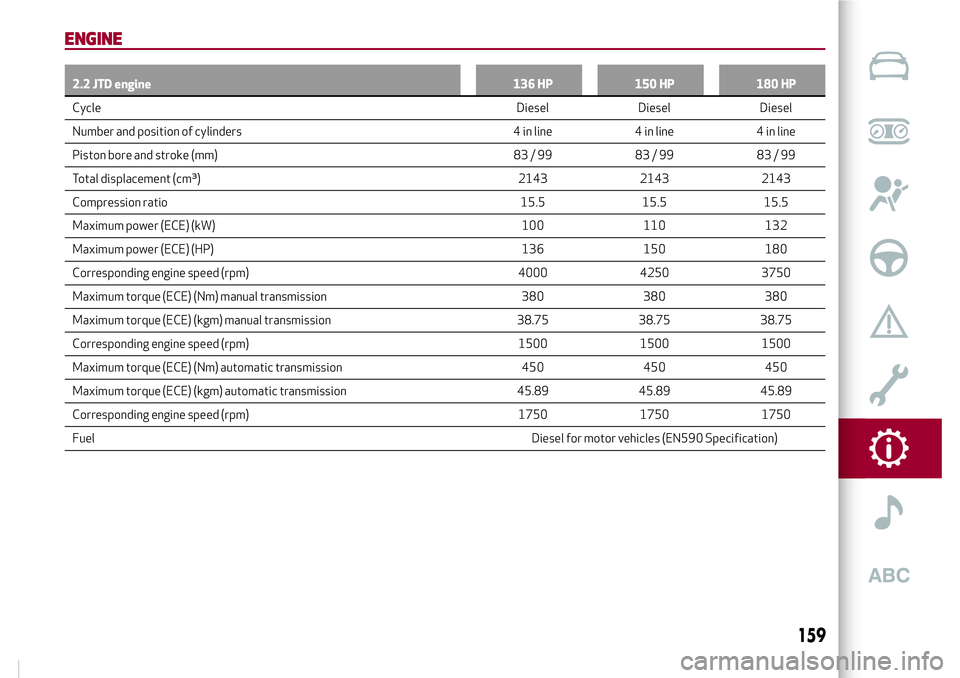

ENGINE
2.2 JTD engine 136 HP 150 HP 180 HP
CycleDiesel Diesel Diesel
Number and position of cylinders 4 in line 4 in line 4 in line
Piston bore and stroke (mm) 83 / 99 83 / 99 83 / 99
Total displacement (cm³) 2143 2143 2143
Compression ratio 15.5 15.5 15.5
Maximum power (ECE) (kW) 100 110 132
Maximum power (ECE) (HP) 136 150 180
Corresponding engine speed (rpm) 4000 4250 3750
Maximum torque (ECE) (Nm) manual transmission 380 380 380
Maximum torque (ECE) (kgm) manual transmission 38.75 38.75 38.75
Corresponding engine speed (rpm) 1500 1500 1500
Maximum torque (ECE) (Nm) automatic transmission 450 450 450
Maximum torque (ECE) (kgm) automatic transmission 45.89 45.89 45.89
Corresponding engine speed (rpm) 1750 1750 1750
FuelDiesel for motor vehicles (EN590 Specification)
159

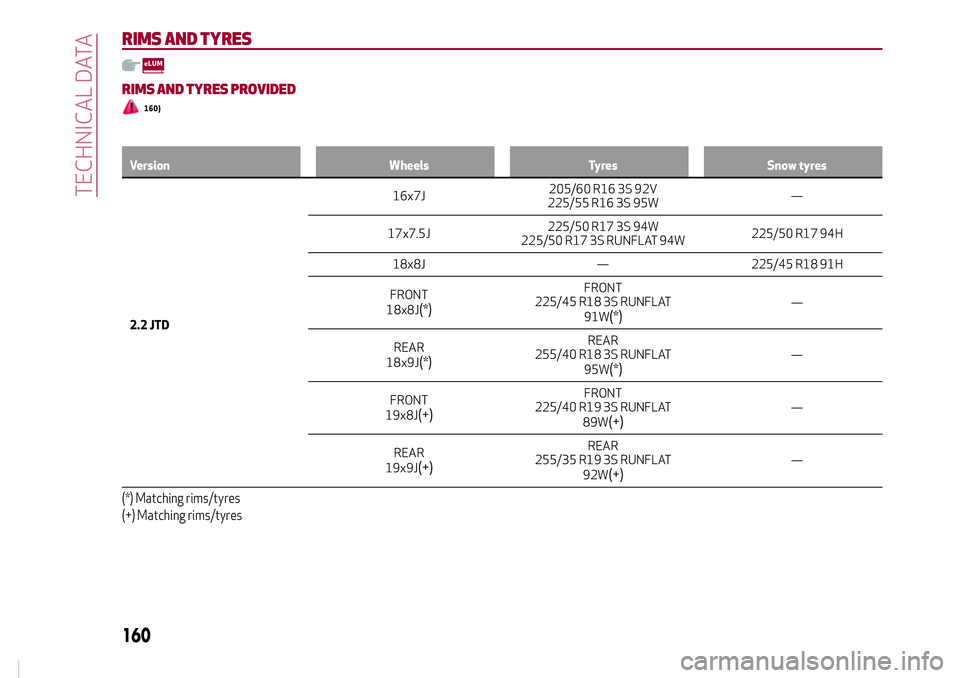

RIMS AND TYRES
RIMS AND TYRES PROVIDED
160)
Version Wheels Tyres Snow tyres
2.2 JTD16x7J205/60 R16 3S 92V
225/55 R16 3S 95W—
17x7.5J225/50 R17 3S 94W
225/50 R17 3S RUNFLAT 94W225/50 R17 94H
18x8J — 225/45 R18 91H
FRONT
18x8J(*)
FRONT
225/45 R18 3S RUNFLAT
91W
(*)—
REAR
18x9J
(*)
REAR
255/40 R18 3S RUNFLAT
95W
(*)—
FRONT
19x8J
(+)
FRONT
225/40 R19 3S RUNFLAT
89W
(+)—
REAR
19x9J
(+)
REAR
255/35 R19 3S RUNFLAT
92W
(+)—
(*) Matching rims/tyres
(+) Matching rims/tyres
160
TECHNICAL DATA

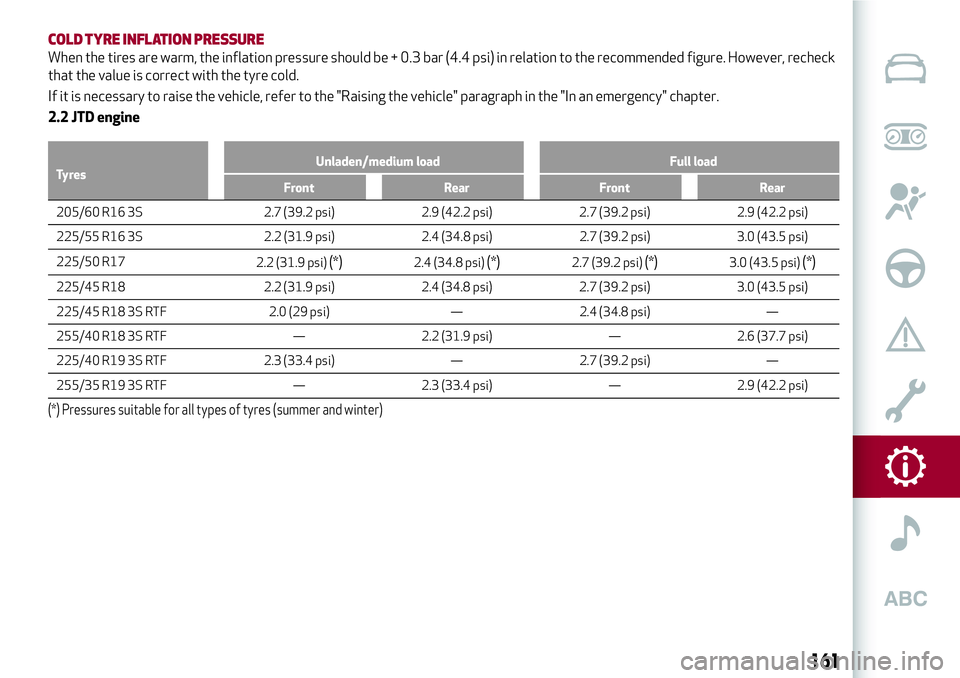

COLD TYRE INFLATION PRESSURE
When the tires are warm, the inflation pressure should be + 0.3 bar (4.4 psi) in relation to the recommended figure. However, recheck
that the value is correct with the tyre cold.
If it is necessary to raise the vehicle, refer to the "Raising the vehicle" paragraph in the "In an emergency" chapter.
2.2 JTD engine
TyresUnladen/medium load Full load
Front Rear Front Rear
205/60 R16 3S 2.7 (39.2 psi) 2.9 (42.2 psi) 2.7 (39.2 psi) 2.9 (42.2 psi)
225/55
R16 3S 2.2(31.9 psi) 2.4 (34.8 psi) 2.7 (39.2 psi) 3.0 (43.5 psi)
225/50 R17
2.2 (31.9 psi)
(*)2.4 (34.8 psi)(*)2.7 (39.2 psi)(*)3.0 (43.5 psi)(*)
225/45 R18 2.2 (31.9 psi) 2.4 (34.8 psi) 2.7 (39.2 psi) 3.0 (43.5 psi)
225/45 R18 3S RTF 2.0 (29 psi) — 2.4 (34.8 psi) —
255/40 R18 3S RTF — 2.2 (31.9 psi) — 2.6 (37.7 psi)
225/40 R19 3S RTF 2.3 (33.4 psi) — 2.7 (39.2 psi) —
255/35 R19 3S RTF — 2.3 (33.4 psi) — 2.9 (42.2 psi)
(*) Pressures suitable for all types of tyres (summer and winter)
161

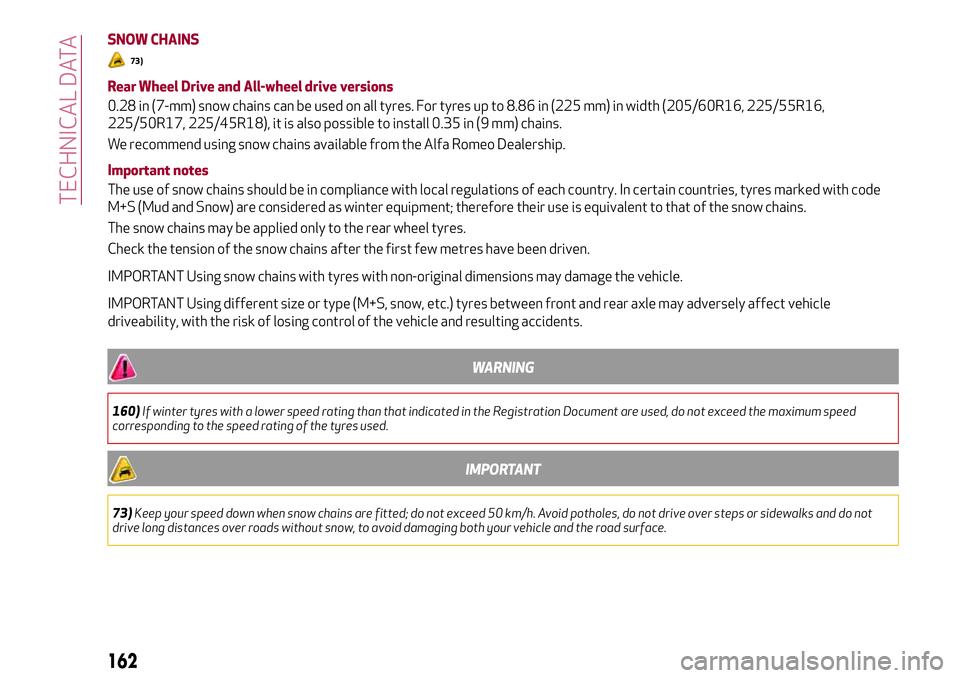

SNOW CHAINS
73)
Rear Wheel Drive and All-wheel drive versions
0.28 in (7-mm) snow chains can be used on all tyres. For tyres up to 8.86 in (225 mm) in width (205/60R16, 225/55R16,
225/50R17, 225/45R18), it is also possible to install 0.35 in (9 mm) chains.
We recommend using snow chains available from the Alfa Romeo Dealership.
Important notes
The use of snow chains should be in compliance with local regulations of each country. In certain countries, tyres marked with code
M+S (Mud and Snow) are considered as winter equipment; therefore their use is equivalent to that of the snow chains.
The snow chains may be applied only to the rear wheel tyres.
Check the tension of the snow chains after the first few metres have been driven.
IMPORTANT Using snow chains with tyres with non-original dimensions may damage the vehicle.
IMPORTANT Using different size or type (M+S, snow, etc.) tyres between front and rear axle may adversely affect vehicle
driveability, with the risk of losing control of the vehicle and resulting accidents.
WARNING
160)If winter tyres with a lower speed rating than that indicated in the Registration Document are used, do not exceed the maximum speed
corresponding to the speed rating of the tyres used.
IMPORTANT
73)Keep your speed down when snow chains are fitted; do not exceed 50 km/h. Avoid potholes, do not drive over steps or sidewalks and do not
drive long distances over roads without snow, to avoid damaging both your vehicle and the road surface.
162
TECHNICAL DATA

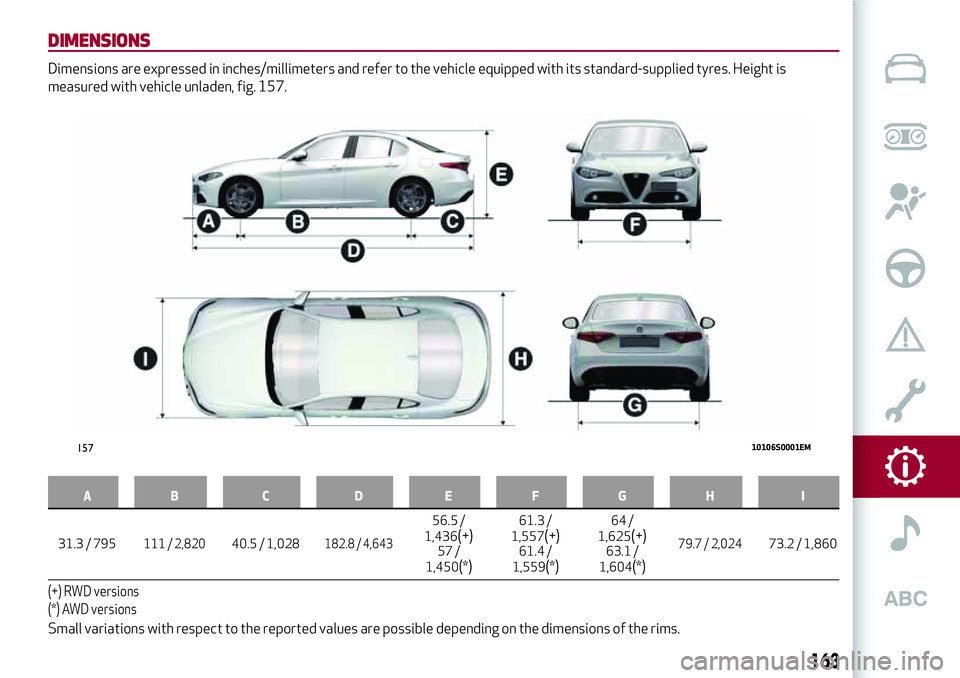

DIMENSIONS
Dimensions are expressed in inches/millimeters and refer to the vehicle equipped with its standard-supplied tyres. Height is
measured with vehicle unladen, fig. 157.
AB C D EFGH I
31.3 / 795111 / 2,82040.5 / 1,028182.8 / 4,643
56.5 /
1,436(+)57 /
1,450(*)
61.3 /
1,557(+)61.4 /
1,559(*)
64 /
1,625(+)63.1 /
1,604(*)
79.7 / 2,02473.2 / 1,860
(+) RWD versions
(*) AWD versions
Small variations with respect to the reported values are possible depending on the dimensions of the rims.
15710106S0001EM
163

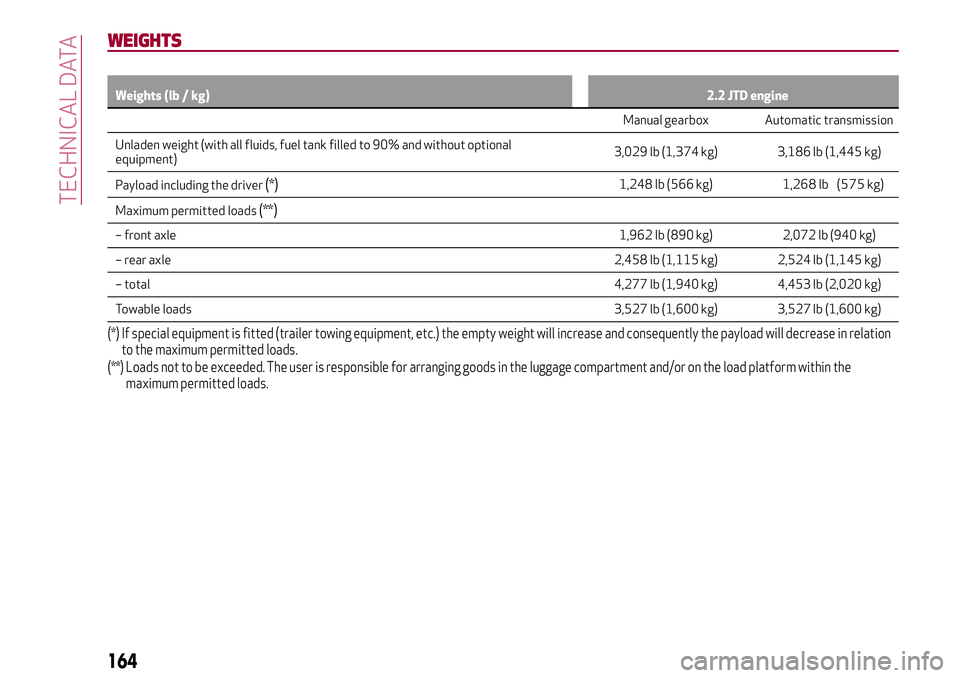

WEIGHTS
Weights (lb / kg)2.2 JTD engine
Manual gearbox Automatic transmission
Unladen weight (with all fluids, fuel tank filled to 90% and without optional equipment) 3,029 lb (1,374 kg) 3,186 lb (1,445 kg)
Payload including the driver(*)1,248lb(566kg)1,28lb
Maximum permitted loads(**)
– front axle 1,962 lb (890 kg) 2,072 lb (940 kg)
– rear axle 2,458 lb (1,115 kg) 2,524 lb (1,145 kg)
– total 4,277 lb (1,940 kg) 4,453 lb (2,020 kg)
Towable loads 3,527 lb (1,600 kg) 3,527 lb (1,600 kg)
(*) If special equipment is fitted (trailer towing equipment, etc.) the empty weight will increase and consequently the payload will decrease in relation to the maximum permitted loads.
(**) Loads not to be exceeded. The user is responsible for arranging goods in the luggage compartment and/or on the load platform within the maximum permitted loads.
164
TECHNICAL DATA
6(575

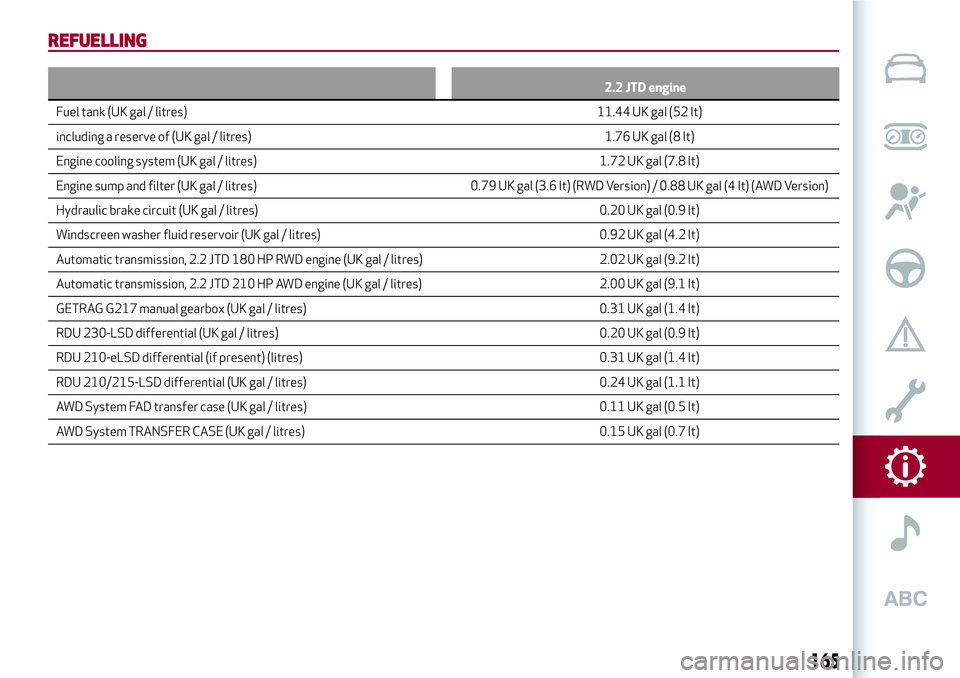

REFUELLING
2.2 JTD engine
Fuel tank (UK gal / litres) 11.44 UK gal (52 lt)
including a reserve
of (UK gal / litres) 1.76 UK gal (8 lt)
Engine cooling system (UK gal / litres) 1.72 UK gal (7.8 lt)
Engine sump and filter (UK gal / litres) 0.79 UK gal (3.6 lt) (RWD Version) / 0.88 UK gal (4 lt) (AWD Version)
Hydraulic brake circuit (UK gal / litres) 0.20 UK gal (0.9 lt)
Windscreen washer fluid reservoir (UK gal / litres) 0.92 UK gal (4.2 lt)
Automatic transmission, 2.2 JTD 180 HP RWD engine (UK gal / litres) 2.02 UK gal (9.2 lt)
Automatic transmission, 2.2 JTD 210 HP AWD engine (UK gal / litres) 2.00 UK gal (9.1 lt)
GETRAG G217 manual gearbox (UK gal / litres) 0.31 UK gal (1.4 lt)
RDU 230-LSD differential (UK gal / litres) 0.20 UK gal (0.9 lt)
RDU 210-eLSD differential (if present) (litres) 0.31 UK gal (1.4 lt)
RDU 210/215-LSD differential (UK gal / litres) 0.24 UK gal (1.1 lt)
AWD System FAD transfer case (UK gal / litres) 0.11 UK gal (0.5 lt)
AWD System TRANSFER CASE (UK gal / litres) 0.15 UK gal (0.7 lt)
165

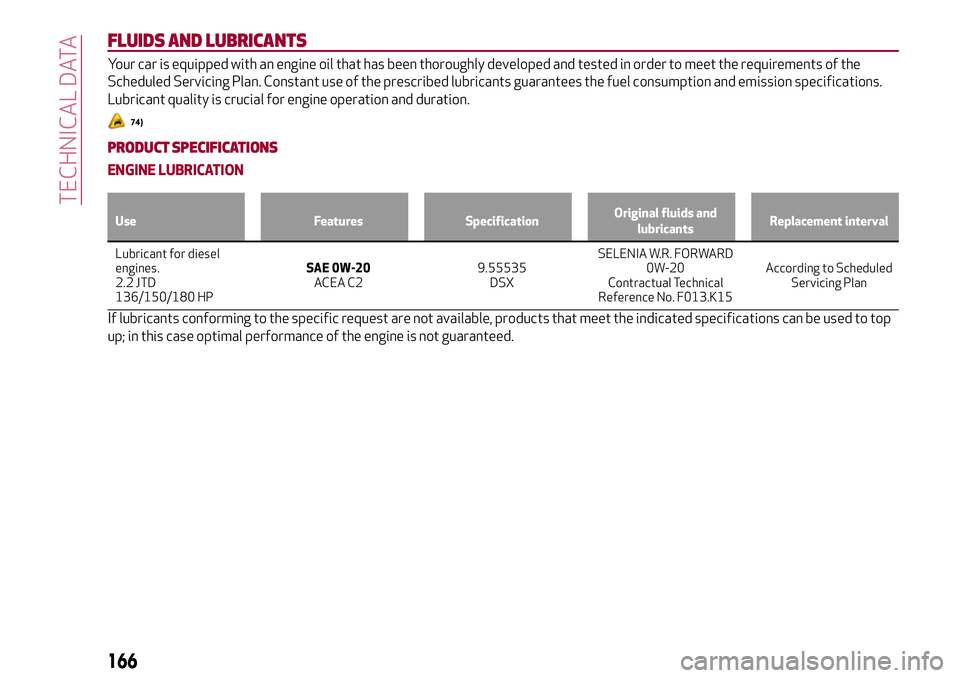

FLUIDS AND LUBRICANTS
Your car is equipped with an engine oil that has been thoroughly developed and tested in order to meet the requirements of the
Scheduled Servicing Plan. Constant use of the prescribed lubricants guarantees the fuel consumption and emission specifications.
Lubricant quality is crucial for engine operation and duration.
74)
PRODUCT SPECIFICATIONS
ENGINE LUBRICATION
Use Features SpecificationOriginal fluids and
lubricantsReplacement interval
Lubricant for diesel
engines.
2.2 JTD
136/150/180
SAE
0W-20
ACEA C29.55535
DSXSELENIA W.R. FORWARD
0W-20
Contractual Technical
Reference No. F013.K15According to Scheduled
Servicing Plan
If lubricants conforming to the specific request are not available, products that meet the indicated specifications can be used to top
up; in this case optimal performance of the engine is not guaranteed.
166
TECHNICAL DATA

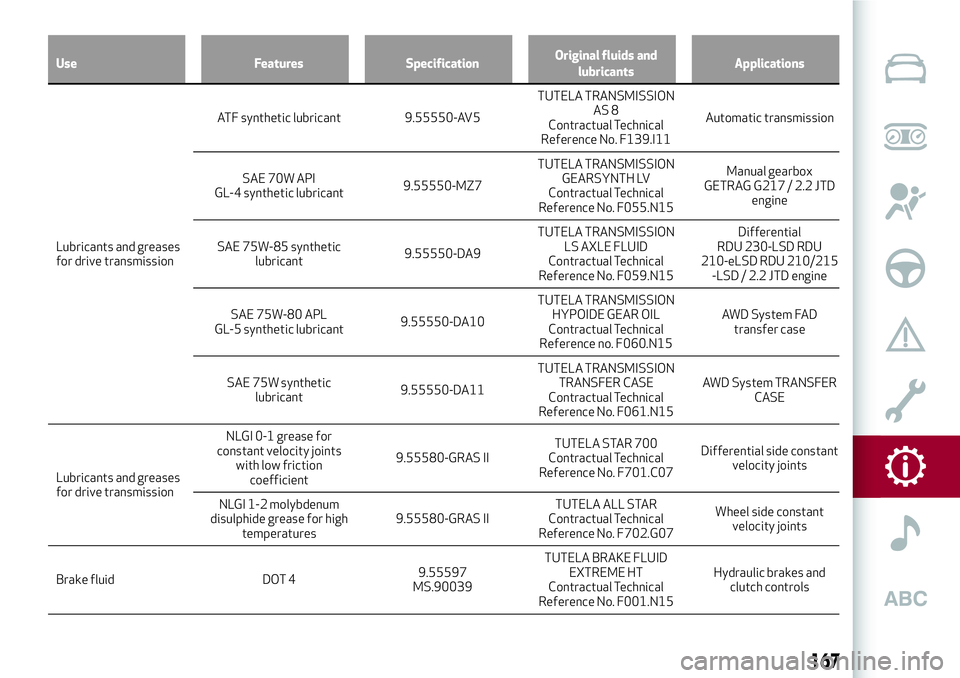

Use Features SpecificationOriginal fluids and
lubricantsApplications
Lubricants and greases
for drive transmissionATF synthetic lubricant 9.55550-AV5TUTELA TRANSMISSION
AS 8
Contractual Technical
Reference No. F139.I11Automatic transmission
SAE 70W API
GL-4 synthetic lubricant9.55550-MZ7TUTELA TRANSMISSION
GEARSYNTH LV
Contractual Technical
Reference No. F055.N15Manual gearbox
GETRAG G217 / 2.2 JTD
engine
SAE 75W-85 synthetic
lubricant9.55550-DA9TUTELA TRANSMISSION
LS AXLE FLUID
Contractual Technical
Reference No. F059.N15Differential
RDU 230-LSD RDU
210-eLSD RDU 210/215
-LSD / 2.2 JTD engine
SAE 75W-80 APL
GL-5 synthetic lubricant9.55550-DA10TUTELA TRANSMISSION
HYPOIDE GEAR OIL
Contractual Technical
Reference no. F060.N15AWD System FAD
transfer case
SAE 75W synthetic
lubricant9.55550-DA11TUTELA TRANSMISSION
TRANSFER CASE
Contractual Technical
Reference No. F061.N15AWD System TRANSFER
CASE
Lubricants and greases
for drive transmissionNLGI 0-1 grease for
constant velocity joints
with low friction
coefficient9.55580-GRAS IITUTELA STAR 700
Contractual Technical
Reference No. F701.C07Differential side constant
velocity joints
NLGI 1-2 molybdenum
disulphide grease for high
temperatures9.55580-GRAS IITUTELA ALL STAR
Contractual Technical
Reference No. F702.G07Wheel side constant
velocity joints
Brake fluid DOT 49.55597
MS.90039TUTELA BRAKE FLUID
EXTREME HT
Contractual Technical
Reference No. F001.N15Hydraulic brakes and
clutch controls
167

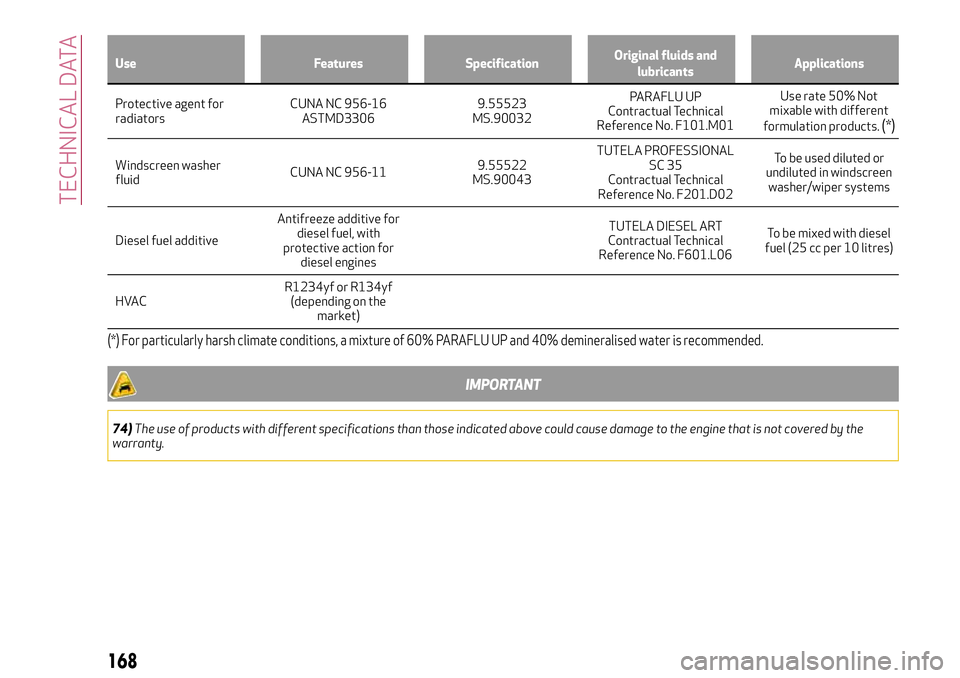

Use Features SpecificationOriginal fluids and
lubricantsApplications
Protective agent for
radiatorsCUNA NC 956-16
ASTMD33069.55523
MS.90032PARAFLU UP
Contractual Technical
Reference No. F101.M01Use rate 50% Not
mixable with different
formulation products.
(*)
Windscreen washer
fluidCUNA NC 956-119.55522
MS.90043TUTELA PROFESSIONAL
SC 35
Contractual Technical
Reference No. F201.D02To be used diluted or
undiluted in windscreen
washer/wiper systems
Diesel fuel additiveAntifreeze additive for
diesel fuel, with
protective action for
diesel enginesTUTELA DIESEL ART
Contractual Technical
Reference No. F601.L06To be mixed with diesel
fuel (25 cc per 10 litres)
HVACR1234yf or R134yf
(depending on the
market)
(*) For particularly harsh climate conditions, a mixture of 60% PARAFLU UP and 40% demineralised water is recommended.
IMPORTANT
74)The use of products with different specifications than those indicated above could cause damage to the engine that is not covered by the
warranty.
168
