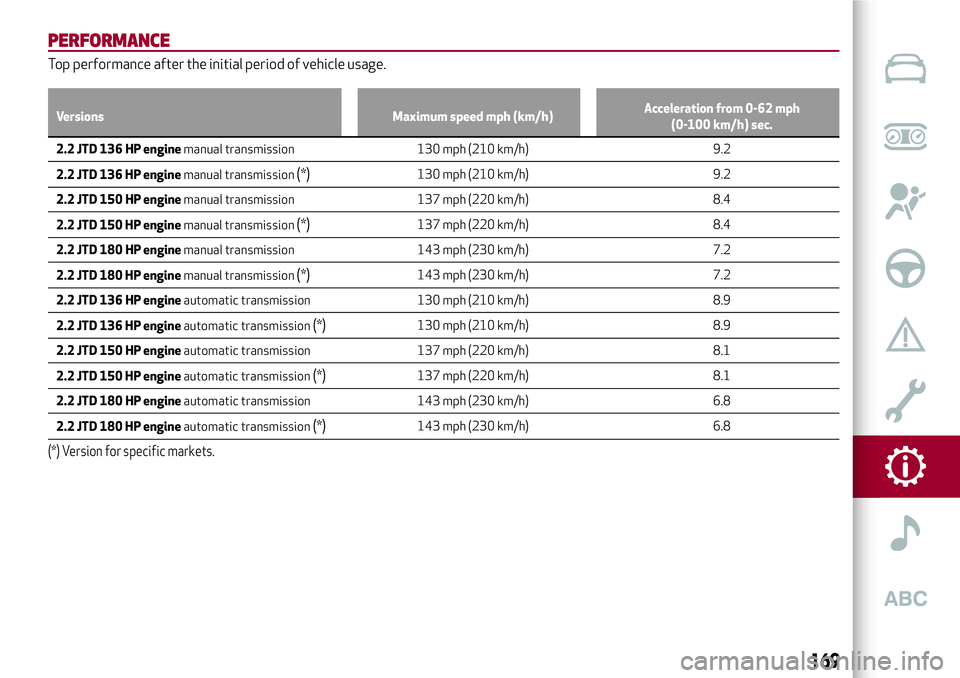

PERFORMANCE
Top performance after the initial period of vehicle usage.
Versions Maximum speed mph (km/h)Acceleration from 0-62 mph
(0-100 km/h) sec.
2.2 JTD 136 HP enginemanual transmission 130 mph (210 km/h) 9.2
2.2 JTD 136 HP enginemanual transmission
(*)130 mph (210 km/h) 9.2
2.2 JTD 150 HP enginemanual transmission 137 mph (220 km/h) 8.4
2.2 JTD 150 HP enginemanual transmission
(*)137 mph (220 km/h) 8.4
2.2 JTD 180 HP enginemanual transmission 143 mph (230 km/h) 7.2
2.2 JTD 180 HP enginemanual transmission
(*)143 mph (230 km/h) 7.2
2.2 JTD 136 HP engineautomatic transmission 130 mph (210 km/h) 8.9
2.2 JTD 136 HP engineautomatic transmission
(*)130 mph (210 km/h) 8.9
2.2 JTD 150 HP engineautomatic transmission 137 mph (220 km/h) 8.1
2.2 JTD 150 HP engineautomatic transmission
(*)137 mph (220 km/h) 8.1
2.2 JTD 180 HP engineautomatic transmission 143 mph (230 km/h) 6.8
2.2 JTD 180 HP engineautomatic transmission
(*)143 mph (230 km/h) 6.8
(*) Version for specific markets.
169
Page 172 of 204

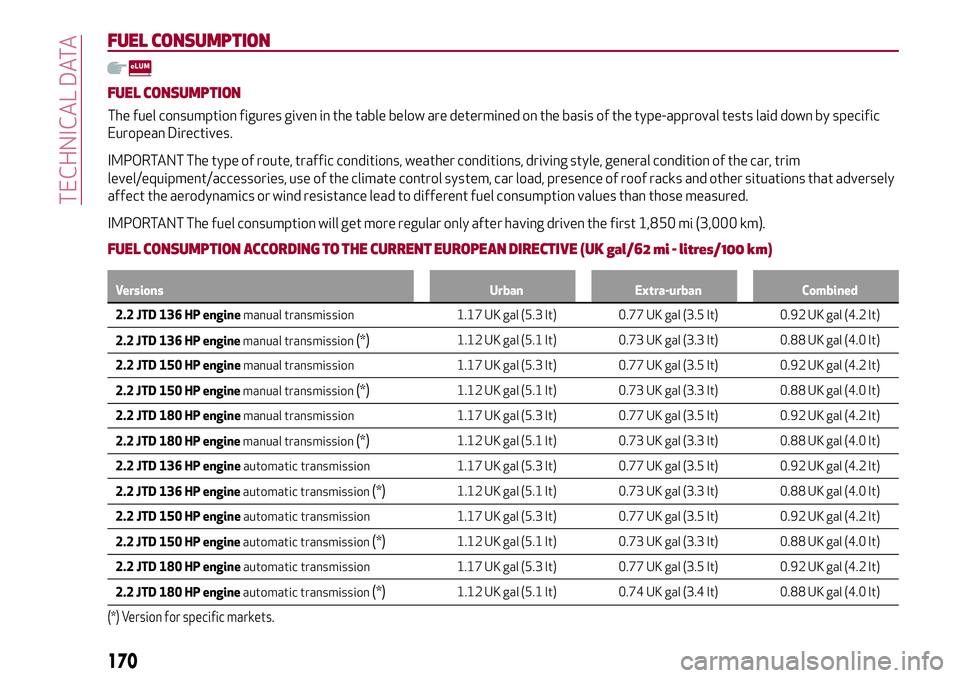

FUEL CONSUMPTION
FUEL CONSUMPTION
The fuel consumption figures given in the table below are determined on the basis of the type-approval tests laid down by specific
European Directives.
IMPORTANT The type of route, traffic conditions, weather conditions, driving style, general condition of the car, trim
level/equipment/accessories, use of the climate control system, car load, presence of roof racks and other situations that adversely
affect the aerodynamics or wind resistance lead to different fuel consumption values than those measured.
IMPORTANT The fuel consumption will get more regular only after having driven the first 1,850 mi (3,000 km).
FUEL CONSUMPTION ACCORDING TO THE CURRENT EUROPEAN DIRECTIVE (UK gal/62 mi - litres/100 km)
Versions Urban Extra-urban Combined
2.2 JTD 136 HP enginemanual transmission 1.17 UK gal (5.3 lt) 0.77 UK gal (3.5 lt) 0.92 UK gal (4.2 lt)
2.2 JTD 136 HP enginemanual transmission
(*)1.12 UK gal (5.1 lt) 0.73 UK gal (3.3 lt) 0.88 UK gal (4.0 lt)
2.2 JTD 150 HP enginemanual transmission 1.17 UK gal (5.3 lt) 0.77 UK gal (3.5 lt) 0.92 UK gal (4.2 lt)
2.2 JTD 150 HP enginemanual transmission
(*)1.12 UK gal (5.1 lt) 0.73 UK gal (3.3 lt) 0.88 UK gal (4.0 lt)
2.2 JTD 180 HP enginemanual transmission 1.17 UK gal (5.3 lt) 0.77 UK gal (3.5 lt) 0.92 UK gal (4.2 lt)
2.2 JTD 180 HP enginemanual transmission
(*)1.12 UK gal (5.1 lt) 0.73 UK gal (3.3 lt) 0.88 UK gal (4.0 lt)
2.2 JTD 136 HP engineautomatic transmission 1.17 UK gal (5.3 lt) 0.77 UK gal (3.5 lt) 0.92 UK gal (4.2 lt)
2.2 JTD 136 HP engineautomatic transmission
(*)1.12 UK gal (5.1 lt) 0.73 UK gal (3.3 lt) 0.88 UK gal (4.0 lt)
2.2 JTD 150 HP engineautomatic transmission 1.17 UK gal (5.3 lt) 0.77 UK gal (3.5 lt) 0.92 UK gal (4.2 lt)
2.2 JTD 150 HP engineautomatic transmission
(*)1.12 UK gal (5.1 lt) 0.73 UK gal (3.3 lt) 0.88 UK gal (4.0 lt)
2.2 JTD 180 HP engineautomatic transmission 1.17 UK gal (5.3 lt) 0.77 UK gal (3.5 lt) 0.92 UK gal (4.2 lt)
2.2 JTD 180 HP engineautomatic transmission
(*)1.12 UK gal (5.1 lt) 0.74 UK gal (3.4 lt) 0.88 UK gal (4.0 lt)
(*) Version for specific markets.
170
TECHNICAL DATA
Page 173 of 204

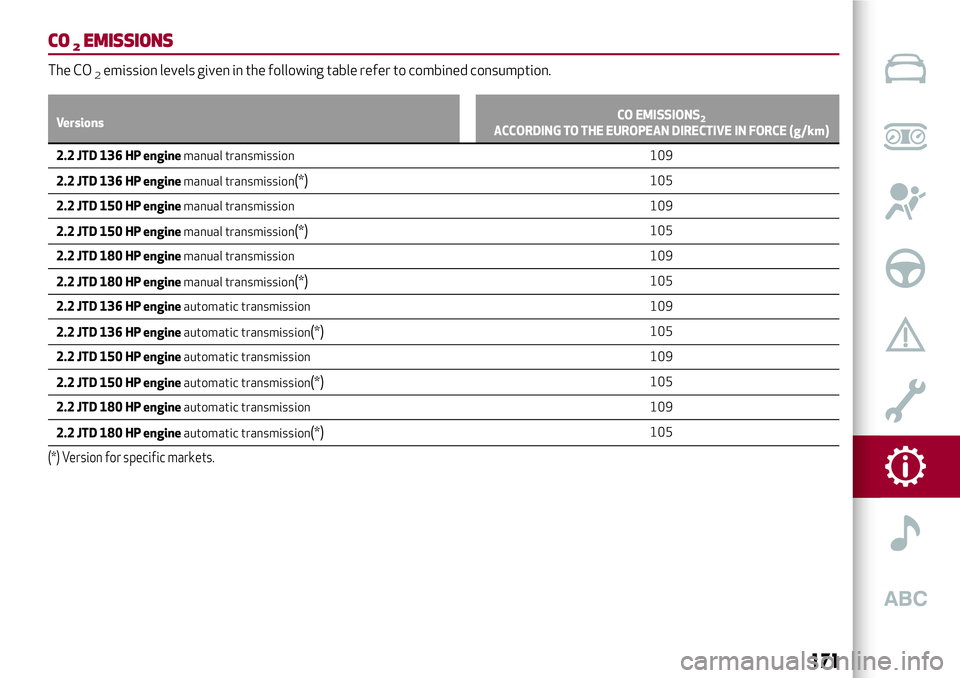

CO2EMISSIONS
The CO2emission levels given in the following table refer to combined consumption.
VersionsCO EMISSIONS2ACCORDING TO THE EUROPEAN DIRECTIVE IN FORCE (g/km)
2.2 JTD 136 HP enginemanual transmission 109
2.2 JTD 136 HP enginemanual transmission
(*)105
2.2 JTD 150 HP enginemanual transmission 109
2.2 JTD 150 HP enginemanual transmission
(*)105
2.2 JTD 180 HP enginemanual transmission 109
2.2 JTD 180 HP enginemanual transmission
(*)105
2.2 JTD 136 HP engineautomatic transmission 109
2.2 JTD 136 HP engineautomatic transmission
(*)105
2.2 JTD 150 HP engineautomatic transmission 109
2.2 JTD 150 HP engineautomatic transmission
(*)105
2.2 JTD 180 HP engineautomatic transmission 109
2.2 JTD 180 HP engineautomatic transmission
(*)105
(*) Version for specific markets.
171
Page 174 of 204

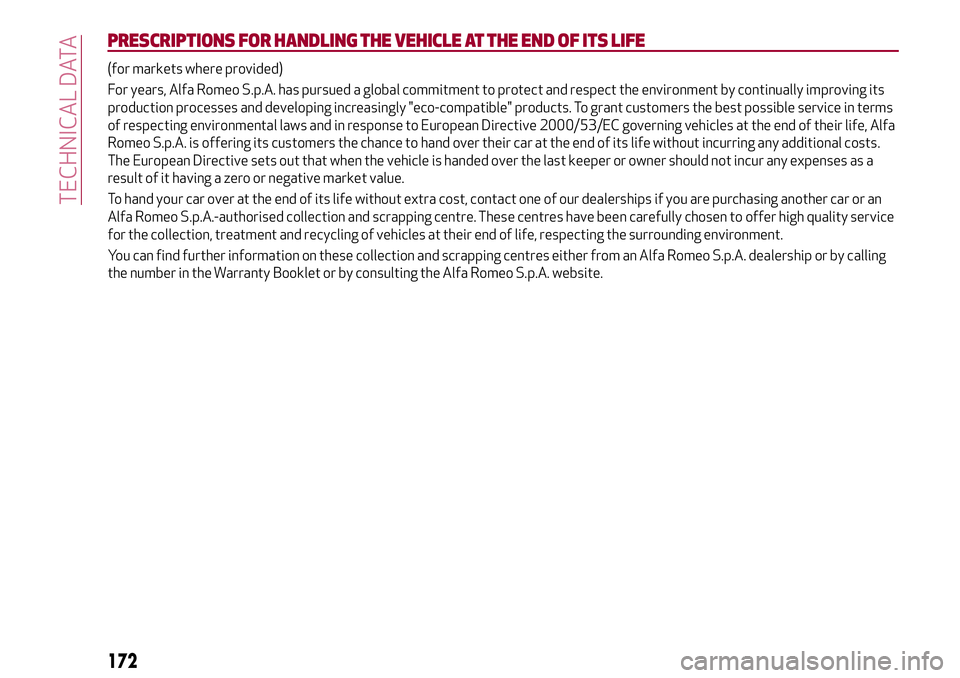

PRESCRIPTIONS FOR HANDLING THE VEHICLE AT THE END OF ITS LIFE
(for markets where provided)
For years, Alfa Romeo S.p.A. has pursued a global commitment to protect and respect the environment by continually improving its
production processes and developing increasingly "eco-compatible" products. To grant customers the best possible service in terms
of respecting environmental laws and in response to European Directive 2000/53/EC governing vehicles at the end of their life, Alfa
Romeo S.p.A. is offering its customers the chance to hand over their car at the end of its life without incurring any additional costs.
The European Directive sets out that when the vehicle is handed over the last keeper or owner should not incur any expenses as a
result of it having a zero or negative market value.
To hand your car over at the end of its life without extra cost, contact one of our dealerships if you are purchasing another car or an
Alfa Romeo S.p.A.-authorised collection and scrapping centre. These centres have been carefully chosen to offer high quality service
for the collection, treatment and recycling of vehicles at their end of life, respecting the surrounding environment.
You can find further information on these collection and scrapping centres either from an Alfa Romeo S.p.A. dealership or by calling
the number in the Warranty Booklet or by consulting the Alfa Romeo S.p.A. website.
172
TECHNICAL DATA
Page 175 of 204

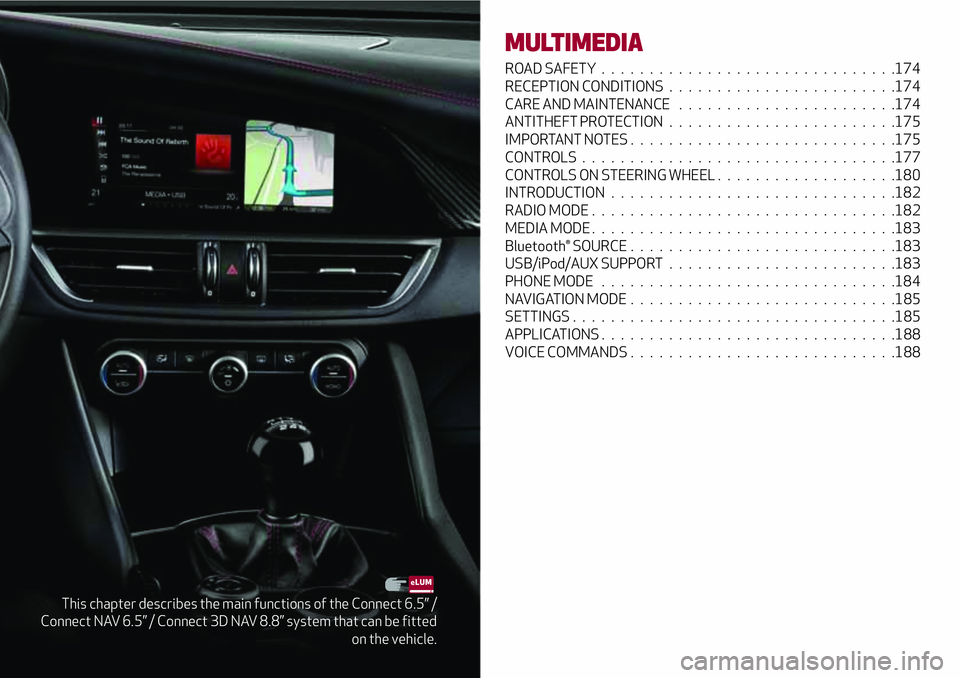

This chapter describes the main functions of the Connect 6.5” /
Connect NAV 6.5” / Connect 3D NAV 8.8” system that can be fitted
on the vehicle.
MULTIMEDIA
ROAD SAFETY...............................174
RECEPTION CONDITIONS........................174
CARE AND MAINTENANCE.......................174
ANTITHEFT PROTECTION........................175
IMPORTANT NOTES............................175
CONTROLS.................................177
CONTROLS ON STEERING WHEEL...................180
INTRODUCTION..............................182
RADIO MODE................................182
MEDIA MODE................................183
Bluetooth® SOURCE ............................183
USB/iPod/AUX SUPPORT........................183
PHONE MODE...............................184
NAVIGATION MODE ............................185
SETTINGS..................................185
APPLICATIONS...............................188
VOICE COMMANDS . . ..........................188
Page 176 of 204

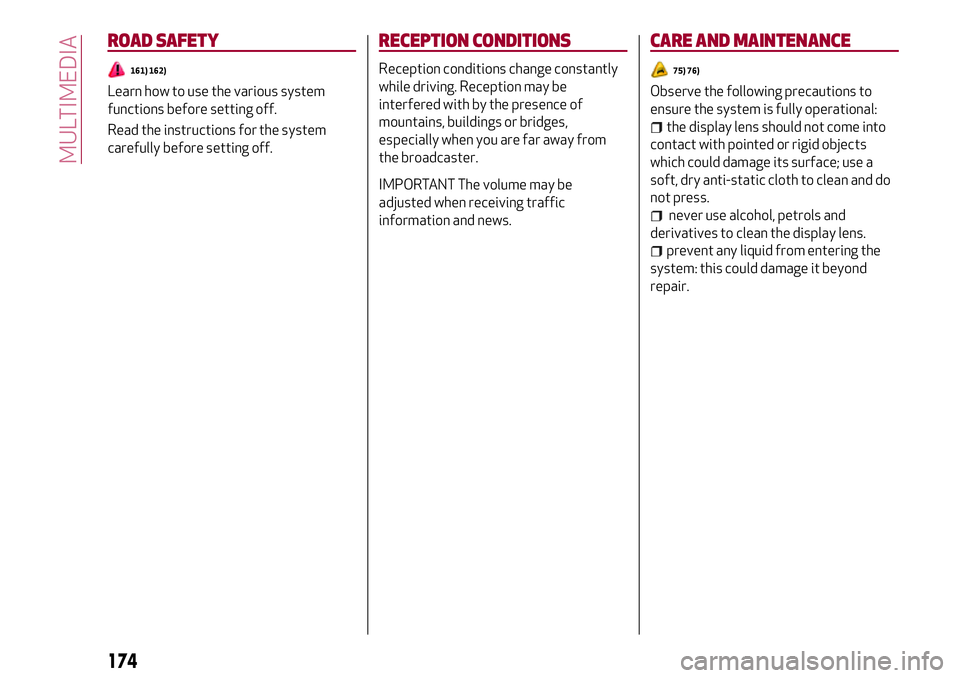

ROAD SAFETY
161) 162)
Learn how to use the various system
functions before setting off.
Read the instructions for the system
carefully before setting off.
RECEPTION CONDITIONS
Reception conditions change constantly
while driving. Reception may be
interfered with by the presence of
mountains, buildings or bridges,
especially when you are far away from
the broadcaster.
IMPORTANT The volume may be
adjusted when receiving traffic
information and news.
CARE AND MAINTENANCE
75) 76)
Observe the following precautions to
ensure the system is fully operational:
the display lens should not come into
contact with pointed or rigid objects
which could damage its surface; use a
soft, dry anti-static cloth to clean and do
not press.
never use alcohol, petrols and
derivatives to clean the display lens.
prevent any liquid from entering the
system: this could damage it beyond
repair.
174
MULTIMEDIA
Page 177 of 204

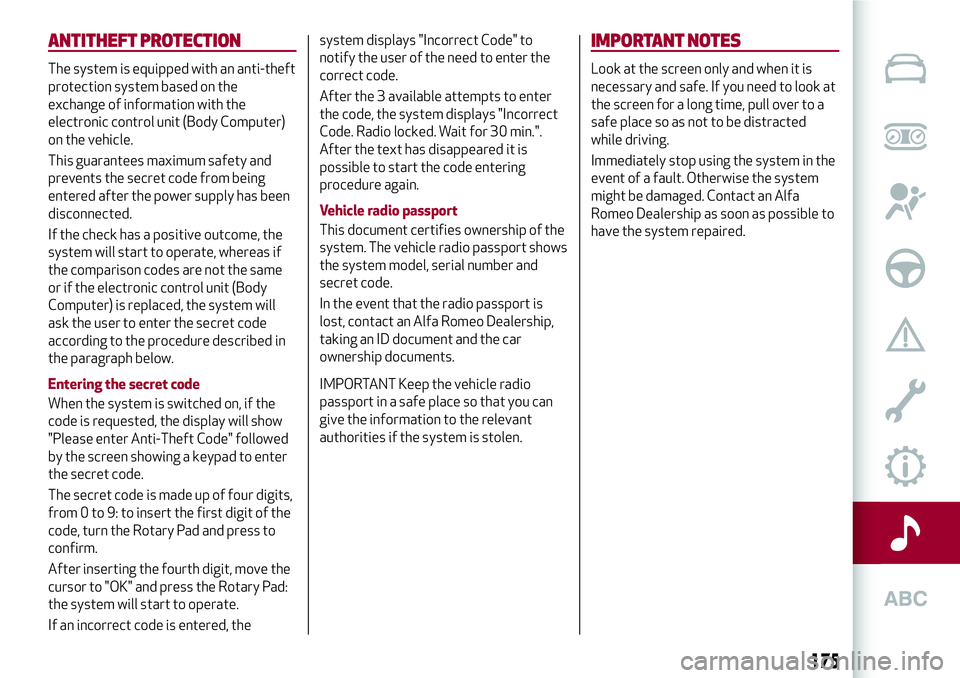

ANTITHEFT PROTECTION
The system is equipped with an anti-theft
protection system based on the
exchange of information with the
electronic control unit (Body Computer)
on the vehicle.
This guarantees maximum safety and
prevents the secret code from being
entered after the power supply has been
disconnected.
If the check has a positive outcome, the
system will start to operate, whereas if
the comparison codes are not the same
or if the electronic control unit (Body
Computer) is replaced, the system will
ask the user to enter the secret code
according to the procedure described in
the paragraph below.
Entering the secret code
When the system is switched on, if the
code is requested, the display will show
"Please enter Anti-Theft Code" followed
by the screen showing a keypad to enter
the secret code.
The secret code is made up of four digits,
from 0 to 9: to insert the first digit of the
code, turn the Rotary Pad and press to
confirm.
After inserting the fourth digit, move the
cursor to "OK" and press the Rotary Pad:
the system will start to operate.
If an incorrect code is entered, thesystem displays "Incorrect Code" to
notify the user of the need to enter the
correct code.
After the 3 available attempts to enter
the code, the system displays "Incorrect
Code. Radio locked. Wait for 30 min.".
After the text has disappeared it is
possible to start the code entering
procedure again.
Vehicle radio passport
This document certifies ownership of the
system. The vehicle radio passport shows
the system model, serial number and
secret code.
In the event that the radio passport is
lost, contact an Alfa Romeo Dealership,
taking an ID document and the car
ownership documents.
IMPORTANT Keep the vehicle radio
passport in a safe place so that you can
give the information to the relevant
authorities if the system is stolen.
IMPORTANT NOTES
Look at the screen only and when it is
necessary and safe. If you need to look at
the screen for a long time, pull over to a
safe place so as not to be distracted
while driving.
Immediately stop using the system in the
event of a fault. Otherwise the system
might be damaged. Contact an Alfa
Romeo Dealership as soon as possible to
have the system repaired.
175
Page 178 of 204

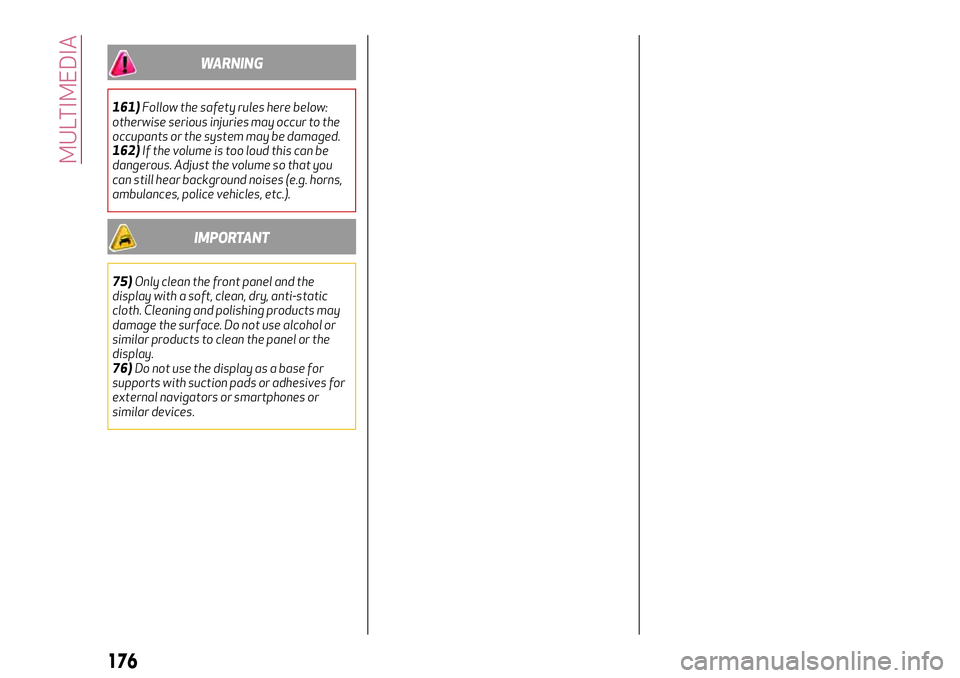

WARNING
161)Follow the safety rules here below:
otherwise serious injuries may occur to the
occupants or the system may be damaged.
162)If the volume is too loud this can be
dangerous. Adjust the volume so that you
can still hear background noises (e.g. horns,
ambulances, police vehicles, etc.).
IMPORTANT
75)Only clean the front panel and the
display with a soft, clean, dry, anti-static
cloth. Cleaning and polishing products may
damage the surface. Do not use alcohol or
similar products to clean the panel or the
display.
76)Do not use the display as a base for
supports with suction pads or adhesives for
external navigators or smartphones or
similar devices.
176
MULTIMEDIA
Page 179 of 204

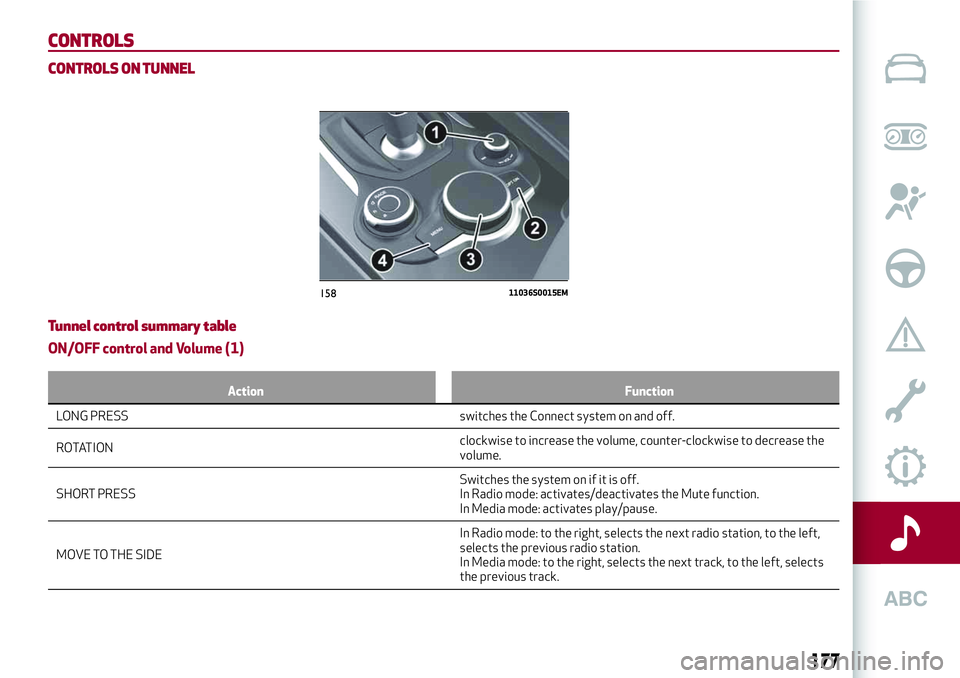

CONTROLS
CONTROLS ON TUNNEL
Tunnel control summary table
ON/OFF control and Volume (1)
Action Function
LONG PRESS switches the Connect system on and off.
ROTA
TIONclockwise to increase the volume, counter-clockwise to decrease the
volume.
SHORT PRESSSwitches the system on if it is off.
In Radio mode: activates/deactivates the Mute function.
In Media mode: activates play/pause.
MOVE TO THE SIDEIn Radio mode: to the right, selects the next radio station, to the left,
selects the previous radio station.
In Media mode: to the right, selects the next track, to the left, selects
the previous track.
15811036S0015EM
177
Page 180 of 204

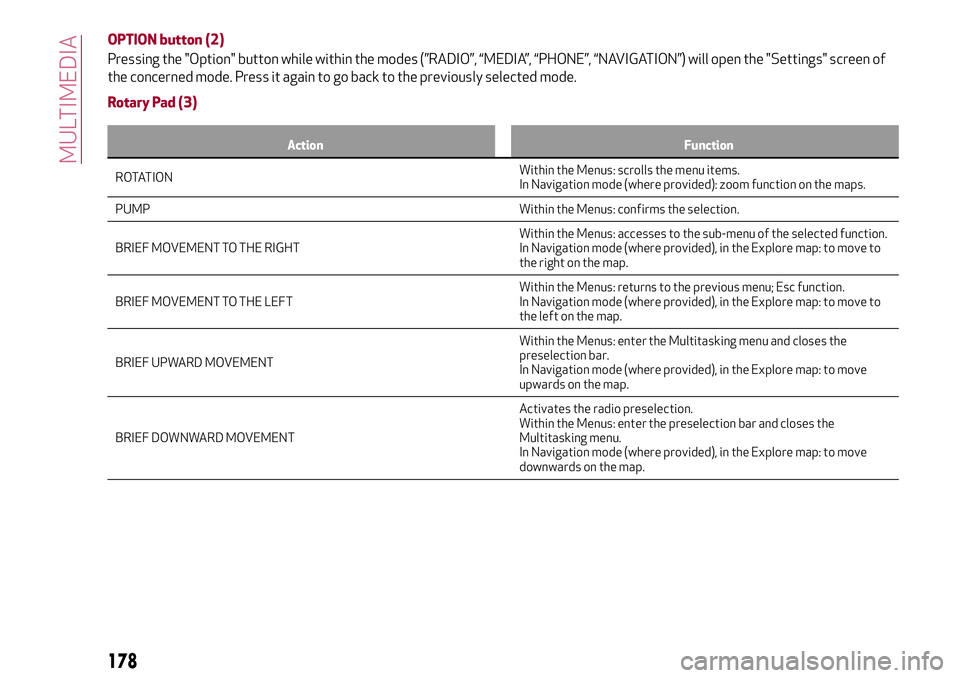

OPTION button (2)
Pressing the "Option" button while within the modes (”RADIO”, “MEDIA”, “PHONE”, “NAVIGATION”) will open the "Settings" screen of
the concerned mode. Press it again to go back to the previously selected mode.
Rotary Pad (3)
Action Function
ROTATIONWithin the Menus:scrolls the menu items.
In Navigation mode (where provided): zoom function on the maps.
PUMP Within the Menus: confirms the selection.
BRIEF MOVEMENT TO THE RIGHTWithin the Menus: accesses to the sub-menu of the selected function.
In Navigation mode (where provided), in the Explore map: to move to
the right on the map.
BRIEF MOVEMENT TO THE LEFTWithin the Menus: returns to the previous menu; Esc function.
In Navigation mode (where provided), in the Explore map: to move to
the left on the map.
BRIEF UPWARD MOVEMENTWithin the Menus: enter the Multitasking menu and closes the
preselection bar.
In Navigation mode (where provided), in the Explore map: to move
upwards on the map.
BRIEF DOWNWARD MOVEMENTActivates the radio preselection.
Within the Menus: enter the preselection bar and closes the
Multitasking menu.
In Navigation mode (where provided), in the Explore map: to move
downwards on the map.
178
