IDENTIFICATION
DATA
Vehicle Identification
Number
The Vehicle Identification Number (VIN)
is stamped on a plate on the front left
corner of the dashboard cover, which
can be seen from outside the vehicle,
through the windshield.This number is also printed on the
chassis at the front left shock absorber
and can be seen by opening the engine
compartment hood.
Vehicle Identification
Number (VIN) Plate
The plates are located on the left side A
pillar and contain the data about:
Chassis number (VIN).
Vehicle type (USA and Canada only).
Color code.
Place of manufacturing of the vehicle
(USA and Mexico only).
Vehicle manufacturing date.
Maximum permitted weights.
Permitted tire inflation pressure (USA
and Canada only).
10016S0001EMVehicle Identification Number
10016S0002EMVehicle Identification Number
239

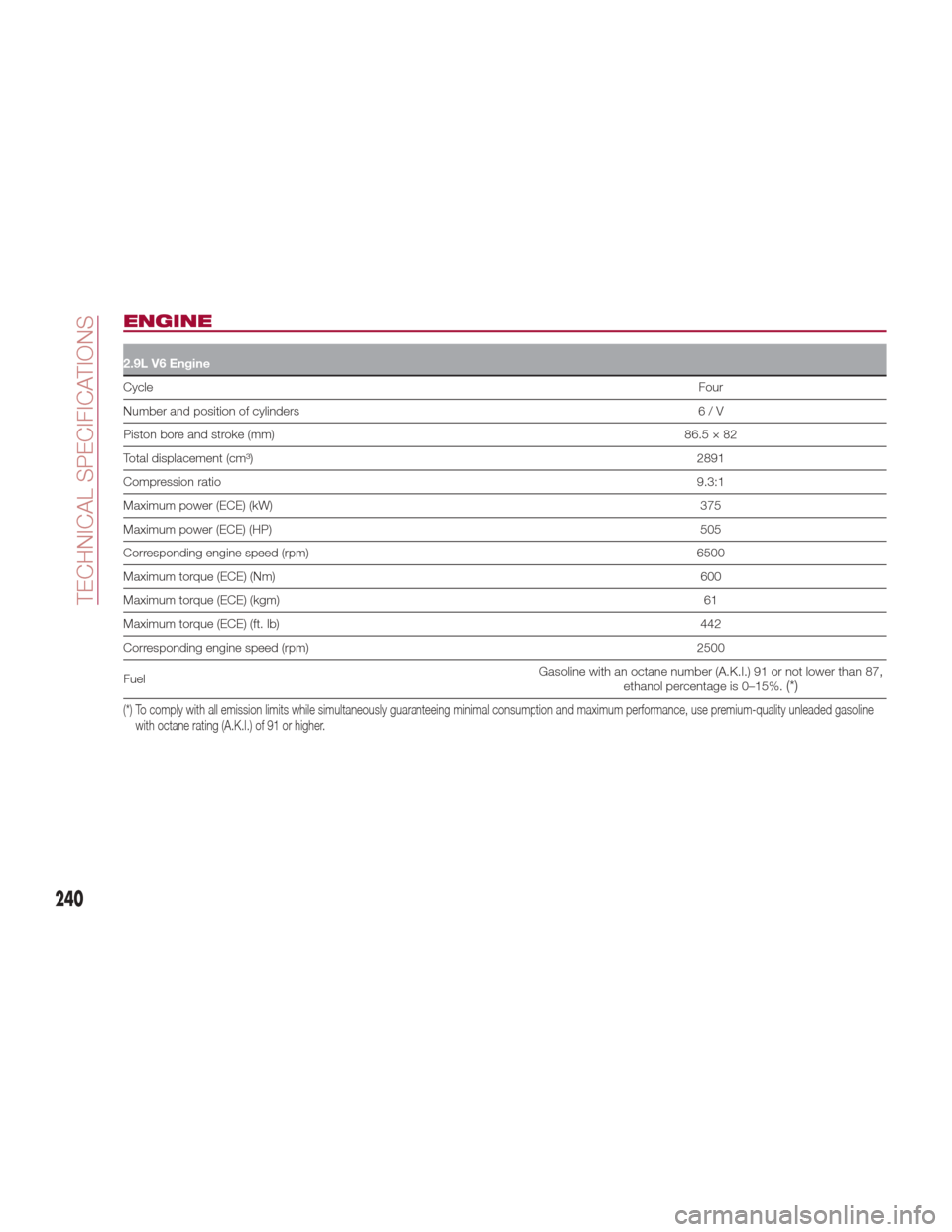

ENGINE
2.9L V6 Engine
CycleFour
Number
and position of cylinders 6/V
Piston bore and stroke (mm) 86.5 × 82
Total displacement (cm³) 2891
Compression ratio 9.3:1
Maximum power (ECE) (kW) 375
Maximum power (ECE) (HP) 505
Corresponding engine speed (rpm) 6500
Maximum torque (ECE) (Nm) 600
Maximum torque (ECE) (kgm) 61
Maximum torque (ECE) (ft. lb) 442
Corresponding engine speed (rpm) 2500
Fuel Gasoline with an octane number (A.K.I.) 91 or not lower than 87,
ethanol percentage is 0–15%.
(*)
(*) To comply with all emission limits while simultaneously guaranteeing minimal consumption and maximum performance, use premium-quality unleaded gasolinewith octane rating (A.K.I.) of 91 or higher.
240
TECHNICAL SPECIFICATIONS

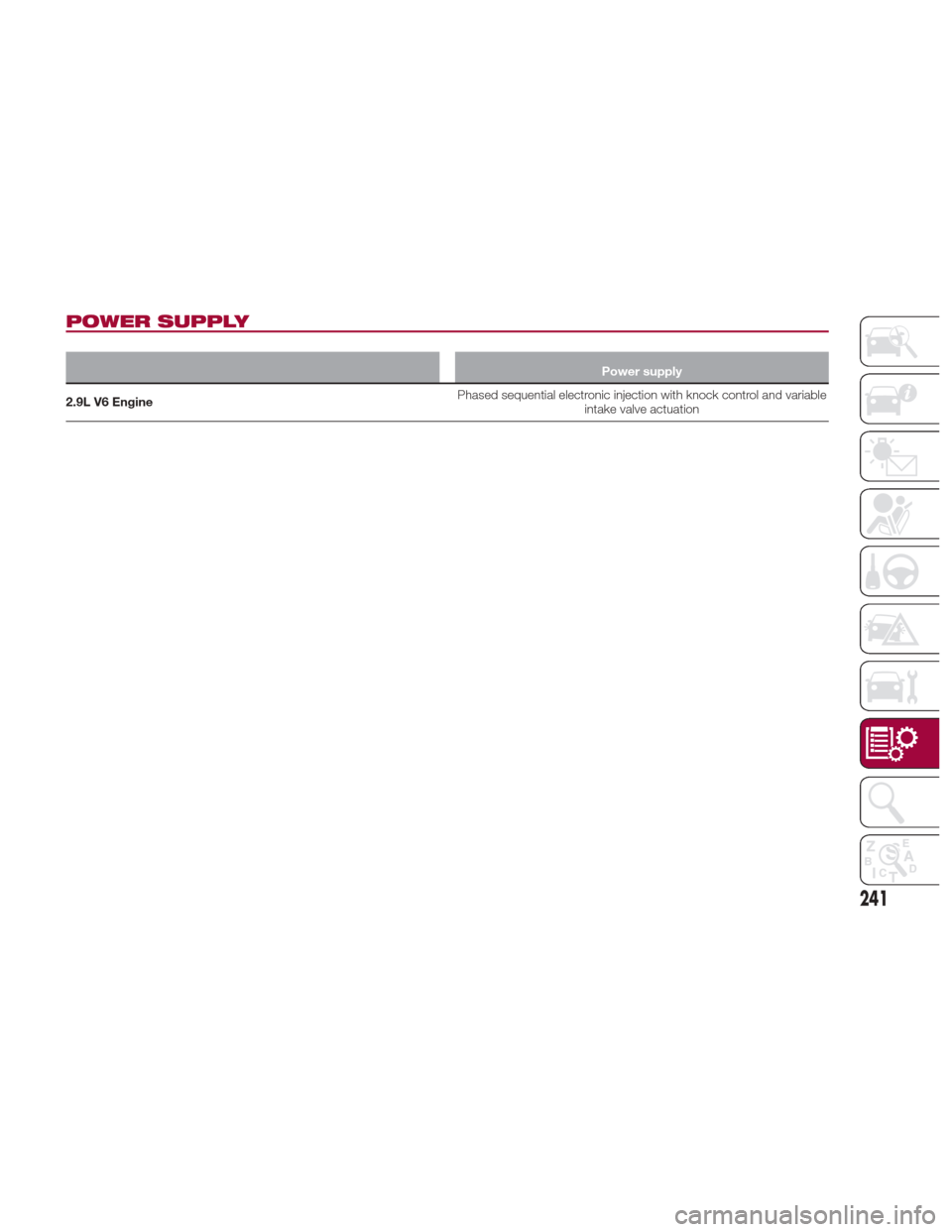

POWER SUPPLY
Power supply
2.9L V6 Engine Phased
sequential electronic injection with knock control and variable
intake valve actuation
241

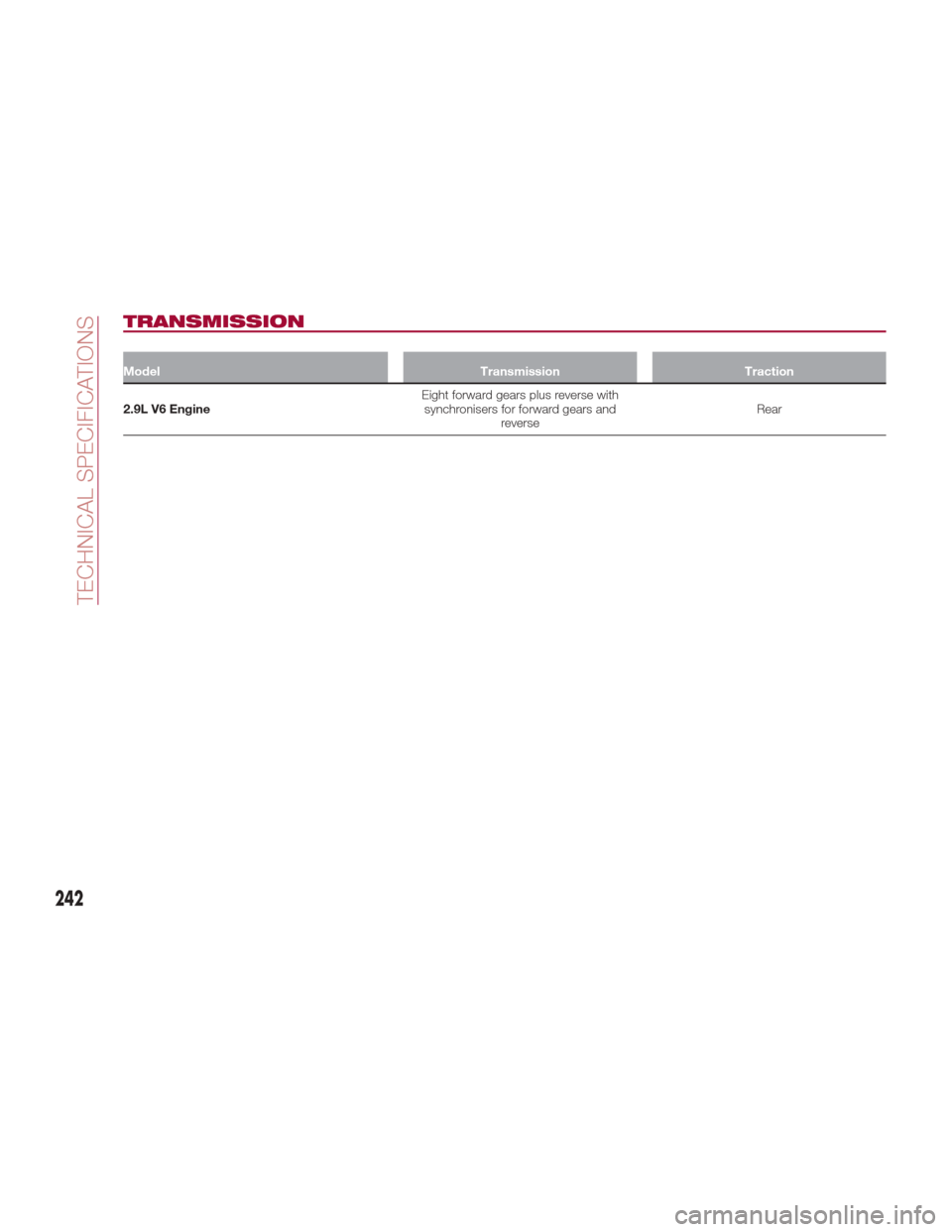

TRANSMISSION
ModelTransmissionTraction
2.9L V6 Engine Eight
forward gears plus reverse with
synchronisers for forward gears and reverse Rear
242
TECHNICAL SPECIFICATIONS

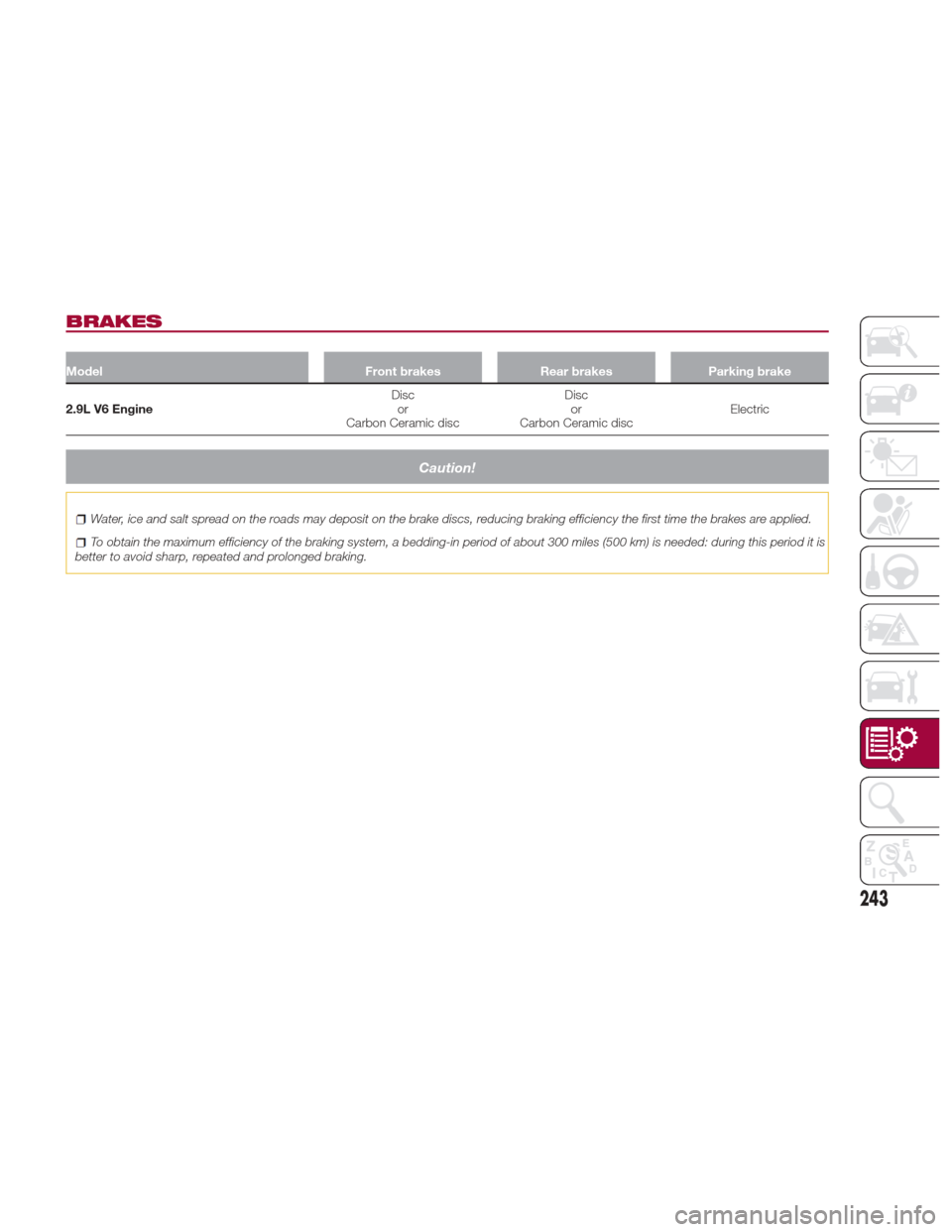

BRAKES
ModelFront brakesRear brakesParking brake
2.9L V6 Engine Disc
or
Carbon
Ceramic discDisc
or
Carbon Ceramic disc Electric
Caution!
Water, ice and salt spread on the roads may deposit on the brake discs, reducing braking efficiency the first time the brakes are applied.
To obtain the maximum efficiency of the braking system, a bedding-in period of about 300 miles (500 km) is needed: during this period it is
better to avoid sharp, repeated and prolonged braking.
243

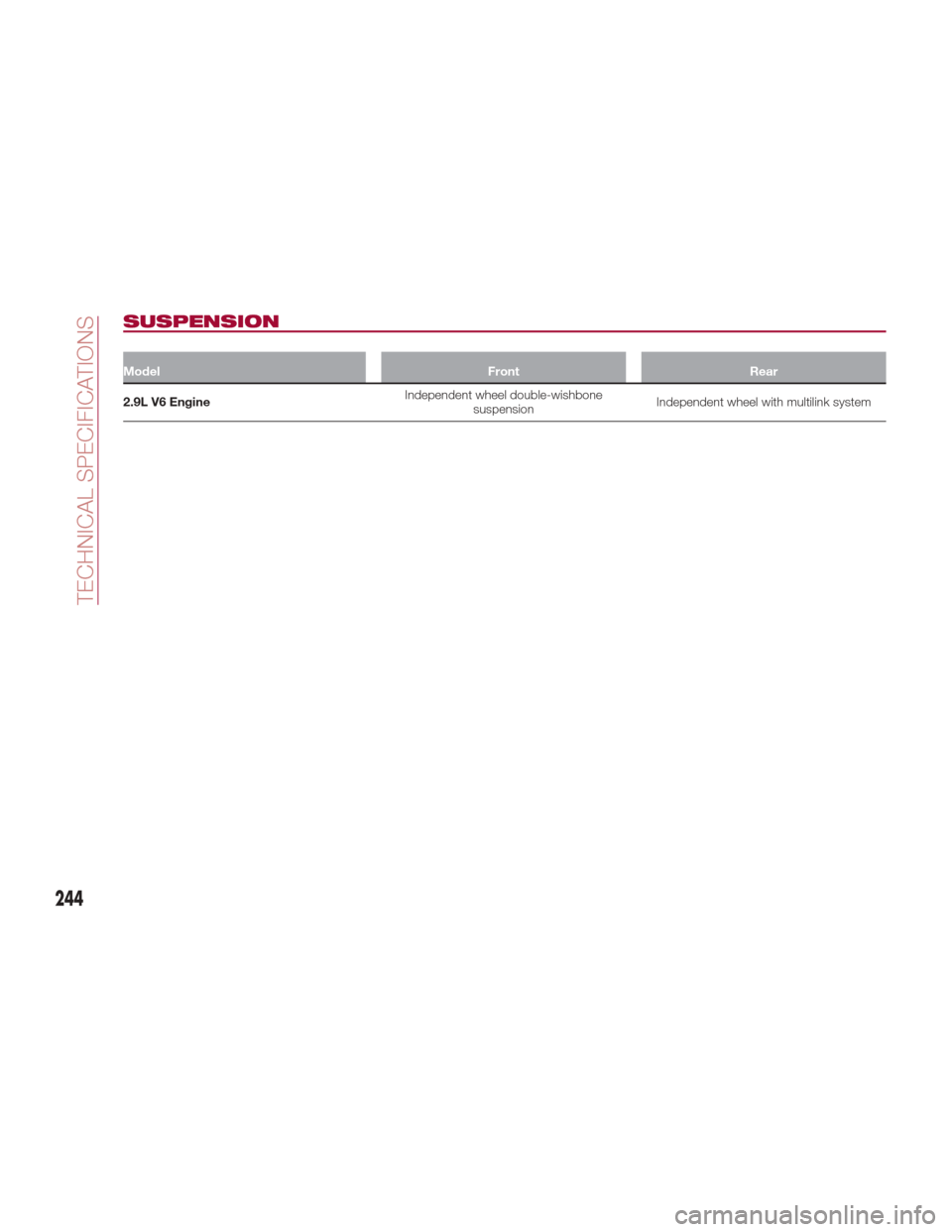

SUSPENSION
ModelFrontRear
2.9L V6 Engine Independent
wheel double-wishbone
suspension Independent wheel with multilink system
244
TECHNICAL SPECIFICATIONS

STEERING SYSTEM
ModelCurb-to-curb turning circleType
2.9L V6 Engine 37.10
ft (11.30 m)Rack and pinion with electric power
steering
245

DIMENSIONS
Dimensions
Dimensions are expressed in inches and refer to the vehicle equipped with its standard-supplied tires. Height is measured with
vehicle unladen.
AB C D EFGH I
31.30 111.02 40.31 182.64 56.14 61.22 63.27 79.69 73.74
GUID-10106S0002EM
246
TECHNICAL SPECIFICATIONS

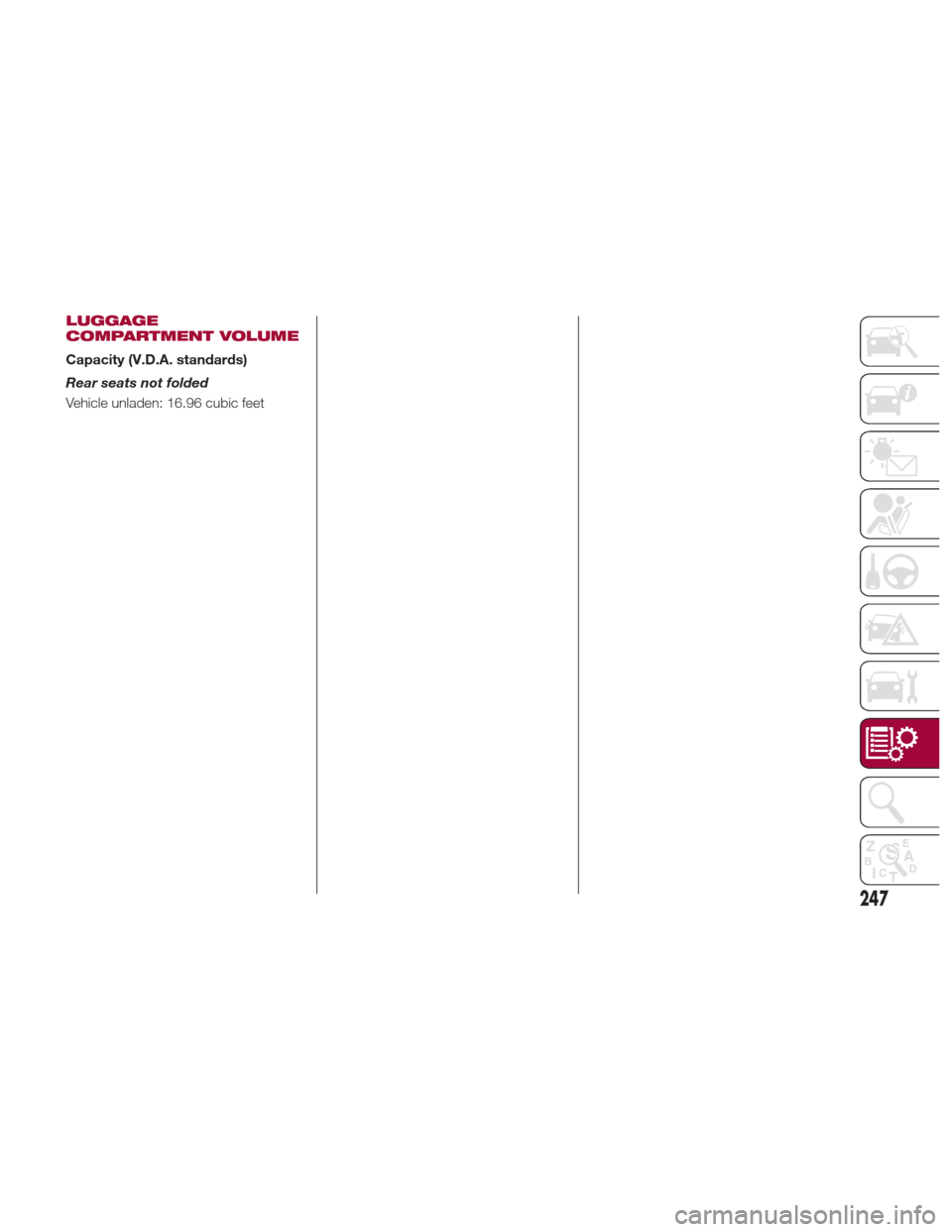

LUGGAGE
COMPARTMENT VOLUME
Capacity (V.D.A. standards)
Rear seats not folded
Vehicle unladen: 16.96 cubic feet
247

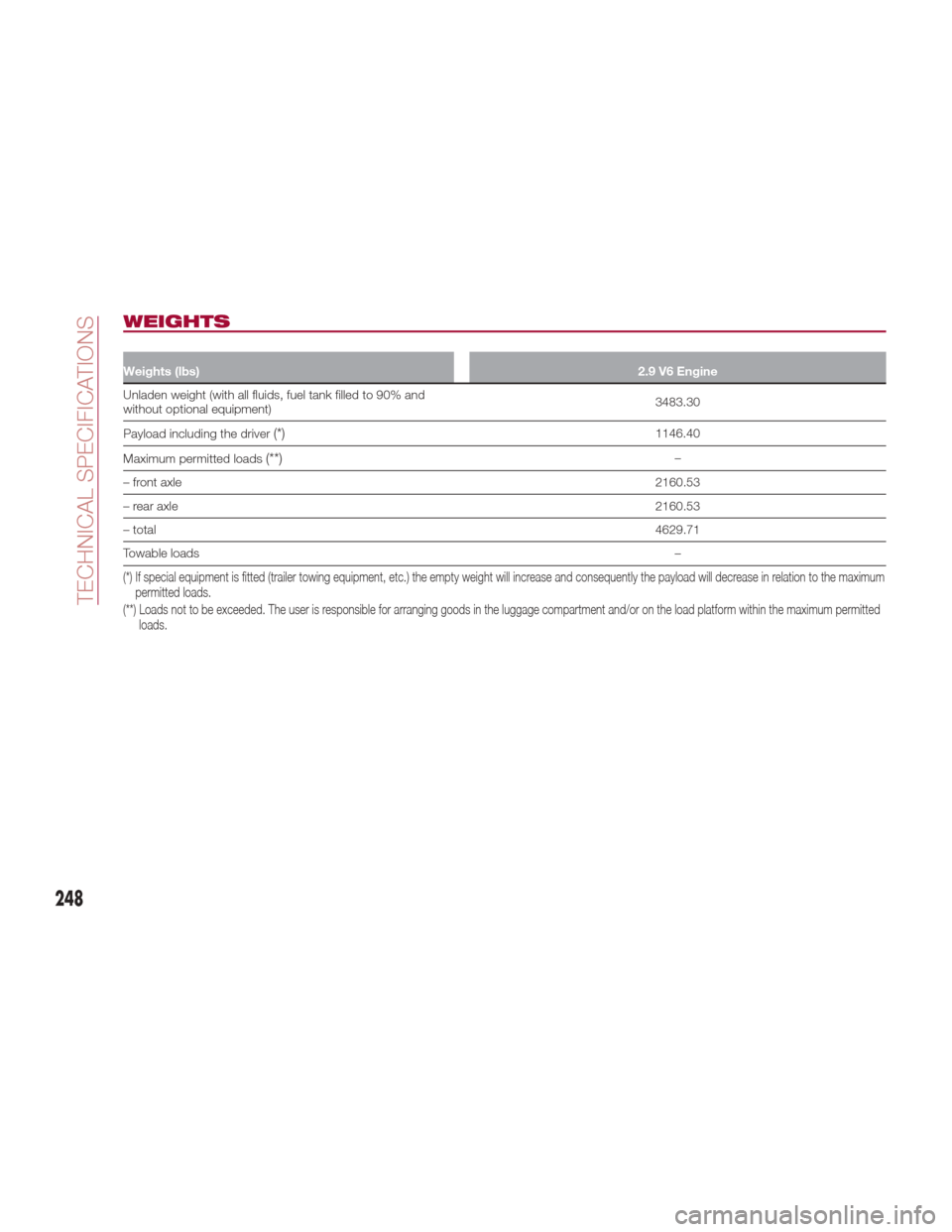

WEIGHTS
Weights (lbs)2.9 V6 Engine
Unladen weight (with all fluids, fuel tank filled to 90% and
without
optional equipment) 3483.30
Payload including the driver
(*)1146.40
Maximum permitted loads
(**)–
– front axle 2160.53
– rear axle 2160.53
– total 4629.71
Towable loads –
(*) If special equipment is fitted (trailer towing equipment, etc.) the empty weight will increase and consequently the payload will decrease in relation to the maximum
permitted loads.
(**) Loads not to be exceeded. The user is responsible for arranging goods in the luggage compartment and/or on the load platform within the maximum permitted loads.
