steering wheel must be easy to access).
The maximum clearance should be kept
between the abdomen and the steering
wheel.
The seat belt must not be twisted. The
upper part must pass over the shoulder
and cross the chest diagonally. The lower
part must adhere to the pelvis fig. 74, not
to the abdomen of the occupant. Never
use devices (clips, clamps, etc.) that hold
the seat belt away from your body.Each seat belt must be used by only one
person. Never travel with a child sitting
on the passenger's lap and a single belt to
protect them both fig. 75. In general, do
not place any objects between the person
and the belt.SEAT BELTS MAINTENANCE
For keeping the seat belts in efficient
conditions, carefully observe the
following warnings:
always use the seat belt well
stretched and never twisted; make sure
that it is free to run without obstructions;
check seat belt operation as follows:
attach the seat belt and pull it hard;
replace the belt after an accident of a
certain severity even if it does not appear
to be damaged. Always replace the seat
belt if the pretensioners were deployed;
prevent the retractors from getting
wet: their correct operation is only
guaranteed if water does not get inside;
replace the seat belt when it shows
wear or cuts.
WARNING
72)The pretensioner may be used only once.
After its activation, contact an Alfa Romeo
Dealership to have it replaced.
73)Removing or otherwise tampering with
pretensioner and seat belt components is
strictly prohibited. Any intervention on these
components must be performed by qualified
and authorised technicians. Always contact
an Alfa Romeo Dealership.
7306076S0001EM
7406076S0002EM
7506076S0003EM
89

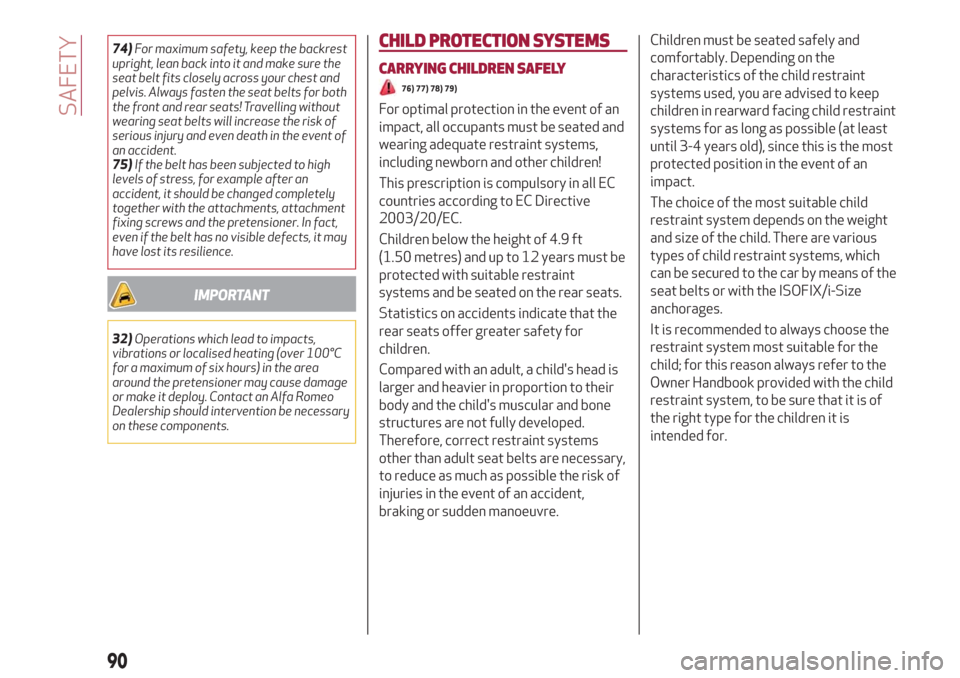

74)For maximum safety, keep the backrest
upright, lean back into it and make sure the
seat belt fits closely across your chest and
pelvis. Always fasten the seat belts for both
the front and rear seats! Travelling without
wearing seat belts will increase the risk of
serious injury and even death in the event of
an accident.
75)If the belt has been subjected to high
levels of stress, for example after an
accident, it should be changed completely
together with the attachments, attachment
fixing screws and the pretensioner. In fact,
even if the belt has no visible defects, it may
have lost its resilience.
IMPORTANT
32)Operations which lead to impacts,
vibrations or localised heating (over 100°C
for a maximum of six hours) in the area
around the pretensioner may cause damage
or make it deploy. Contact an Alfa Romeo
Dealership should intervention be necessary
on these components.
CHILD PROTECTIONSYSTEMS
CARRYING CHILDREN SAFELY
76) 77) 78) 79)
For optimal protection in the event of an
impact, all occupants must be seated and
wearing adequate restraint systems,
including newborn and other children!
This prescription is compulsory in all EC
countries according to EC Directive
2003/20/EC.
Children below the height of 4.9 ft
(1.50 metres) and up to 12 years must be
protected with suitable restraint
systems and be seated on the rear seats.
Statistics on accidents indicate that the
rear seats offer greater safety for
children.
Compared with an adult, a child's head is
larger and heavier in proportion to their
body and the child's muscular and bone
structures are not fully developed.
Therefore, correct restraint systems
other than adult seat belts are necessary,
to reduce as much as possible the risk of
injuries in the event of an accident,
braking or sudden manoeuvre.Children must be seated safely and
comfortably. Depending on the
characteristics of the child restraint
systems used, you are advised to keep
children in rearward facing child restraint
systems for as long as possible (at least
until 3-4 years old), since this is the most
protected position in the event of an
impact.
The choice of the most suitable child
restraint system depends on the weight
and size of the child. There are various
types of child restraint systems, which
can be secured to the car by means of the
seat belts or with the ISOFIX/i-Size
anchorages.
It is recommended to always choose the
restraint system most suitable for the
child; for this reason always refer to the
Owner Handbook provided with the child
restraint system, to be sure that it is of
the right type for the children it is
intended for.
90
SAFETY

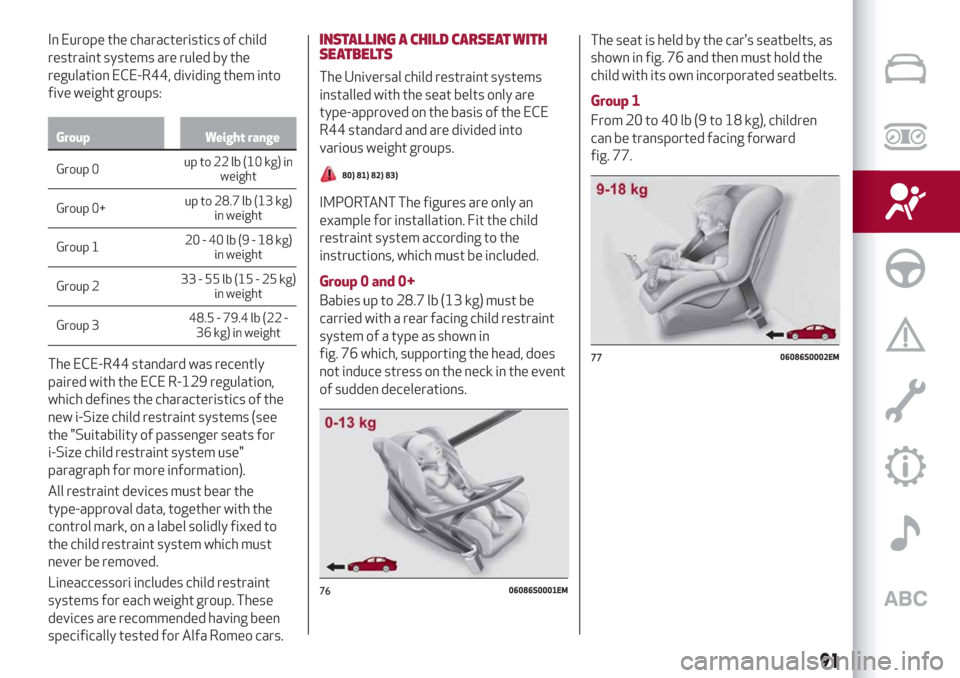

In Europe the characteristics of child
restraint systems are ruled by the
regulation ECE-R44, dividing them into
five weight groups:
Group Weight range
Group 0up to 22 lb (10 kg) in
weight
Group 0+up to 28.7 lb (13 kg)
in weight
Group 120-40lb(9-18kg)
in weight
Group 233-55lb(15-25kg)
in weight
Group 348.5 - 79.4 lb (22 -
36 kg) in weight
The ECE-R44 standard was recently
paired with the ECE R-129 regulation,
which defines the characteristics of the
new i-Size child restraint systems (see
the "Suitability of passenger seats for
i-Size child restraint system use"
paragraph for more information).
All restraint devices must bear the
type-approval data, together with the
control mark, on a label solidly fixed to
the child restraint system which must
never be removed.
Lineaccessori includes child restraint
systems for each weight group. These
devices are recommended having been
specifically tested for Alfa Romeo cars.
INSTALLING A CHILD CARSEAT WITH
SEATBELTS
The Universal child restraint systems
installed with the seat belts only are
type-approved on the basis of the ECE
R44 standard and are divided into
various weight groups.
80) 81) 82) 83)
IMPORTANT The figures are only an
example for installation. Fit the child
restraint system according to the
instructions, which must be included.
Group 0 and 0+
Babies up to 28.7 lb (13 kg) must be
carried with a rear facing child restraint
system of a type as shown in
fig. 76 which, supporting the head, does
not induce stress on the neck in the event
of sudden decelerations.The seat is held by the car's seatbelts, as
shown in fig. 76 and then must hold the
child with its own incorporated seatbelts.
Group 1
From 20 to 40 lb (9 to 18 kg), children
can be transported facing forward
fig. 77.
7606086S0001EM
7706086S0002EM
91

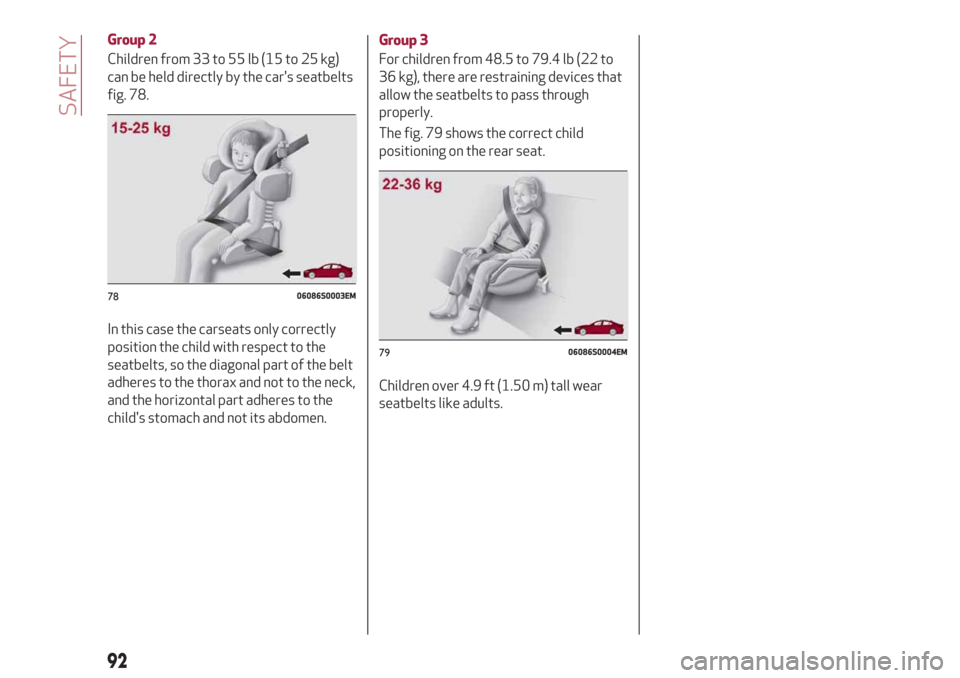

Group 2
Children from 33 to 55 lb (15 to 25 kg)
can be held directly by the car's seatbelts
fig. 78.
In this case the carseats only correctly
position the child with respect to the
seatbelts, so the diagonal part of the belt
adheres to the thorax and not to the neck,
and the horizontal part adheres to the
child's stomach and not its abdomen.Group 3
For children from 48.5 to 79.4 lb (22 to
36 kg), there are restraining devices that
allow the seatbelts to pass through
properly.
The fig. 79 shows the correct child
positioning on the rear seat.
Children over 4.9 ft (1.50 m) tall wear
seatbelts like adults.
7806086S0003EM
7906086S0004EM
92
SAFETY

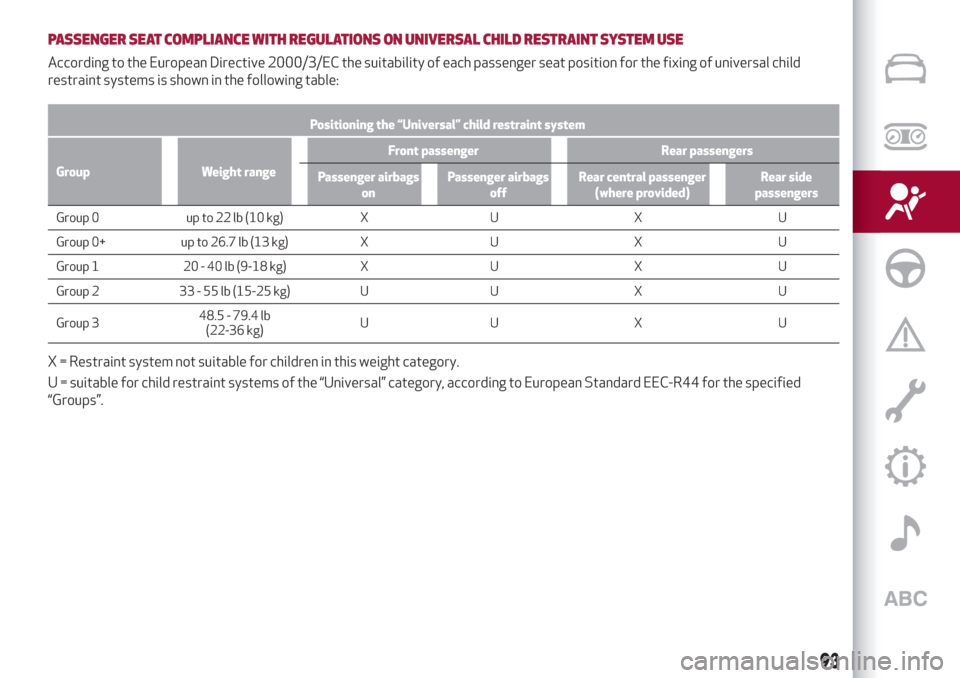

PASSENGER SEAT COMPLIANCE WITH REGULATIONS ON UNIVERSAL CHILD RESTRAINTSYSTEM USE
According to the European Directive 2000/3/EC the suitability of each passenger seat position for the fixing of universal child
restraint systems is shown in the following table:
Positioning the “Universal” child restraint system
Group Weight rangeFront passenger Rear passengers
Passenger airbags
onPassenger airbags
offRear central passenger
(where provided)Rear side
passengers
Group 0 up to 22 lb (10 kg) X U X U
Group 0+ up to 26.7 lb (13 kg) X U X U
Group 1 20 - 40 lb (9-18 kg) X U X U
Group 2 33 - 55 lb (15-25 kg) U U X U
Group 348.5 - 79.4 lb
(22-36 kg)UUXU
X = Restraint system not suitable for children in this weight category.
U = suitable for child restraint systems of the “Universal” category, according to European Standard EEC-R44 for the specified
“Groups”.
93

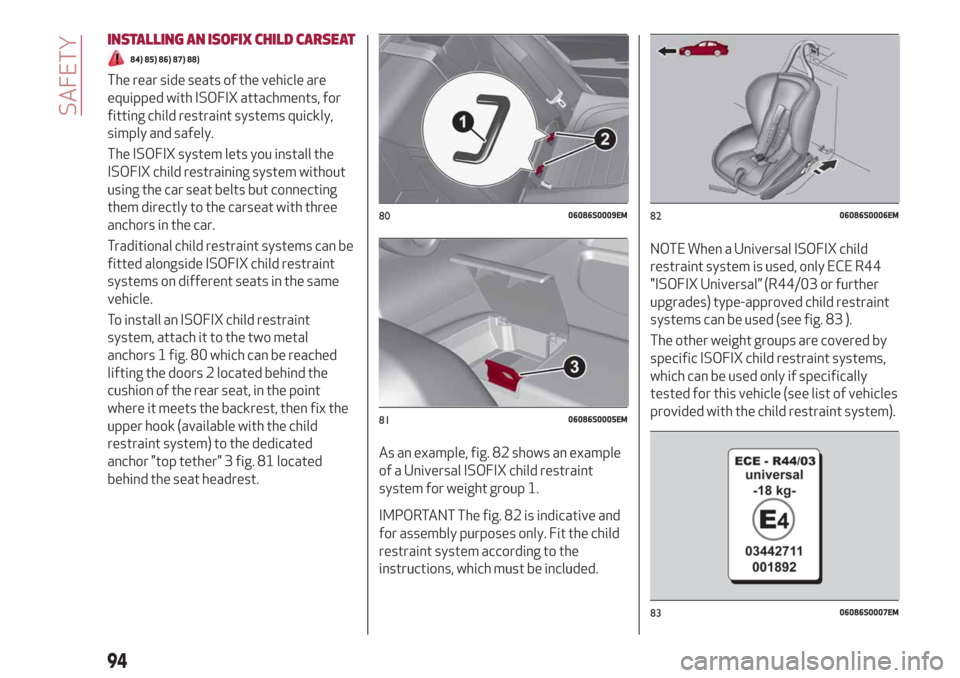

INSTALLING AN ISOFIX CHILD CARSEAT
84) 85) 86) 87) 88)
The rear side seats of the vehicle are
equipped with ISOFIX attachments, for
fitting child restraint systems quickly,
simply and safely.
The ISOFIX system lets you install the
ISOFIX child restraining system without
using the car seat belts but connecting
them directly to the carseat with three
anchors in the car.
Traditional child restraint systems can be
fitted alongside ISOFIX child restraint
systems on different seats in the same
vehicle.
To install an ISOFIX child restraint
system, attach it to the two metal
anchors 1 fig. 80 which can be reached
lifting the doors 2 located behind the
cushion of the rear seat, in the point
where it meets the backrest, then fix the
upper hook (available with the child
restraint system) to the dedicated
anchor "top tether" 3 fig. 81 located
behind the seat headrest.As an example, fig. 82 shows an example
of a Universal ISOFIX child restraint
system for weight group 1.
IMPORTANT The fig. 82 is indicative and
for assembly purposes only. Fit the child
restraint system according to the
instructions, which must be included.
NOTE When a Universal ISOFIX child
restraint system is used, only ECE R44
"ISOFIX Universal” (R44/03 or further
upgrades) type-approved child restraint
systems can be used (see fig. 83 ).
The other weight groups are covered by
specific ISOFIX child restraint systems,
which can be used only if specifically
tested for this vehicle (see list of vehicles
provided with the child restraint system).
8006086S0009EM
8106086S0005EM
8206086S0006EM
8306086S0007EM
94
SAFETY

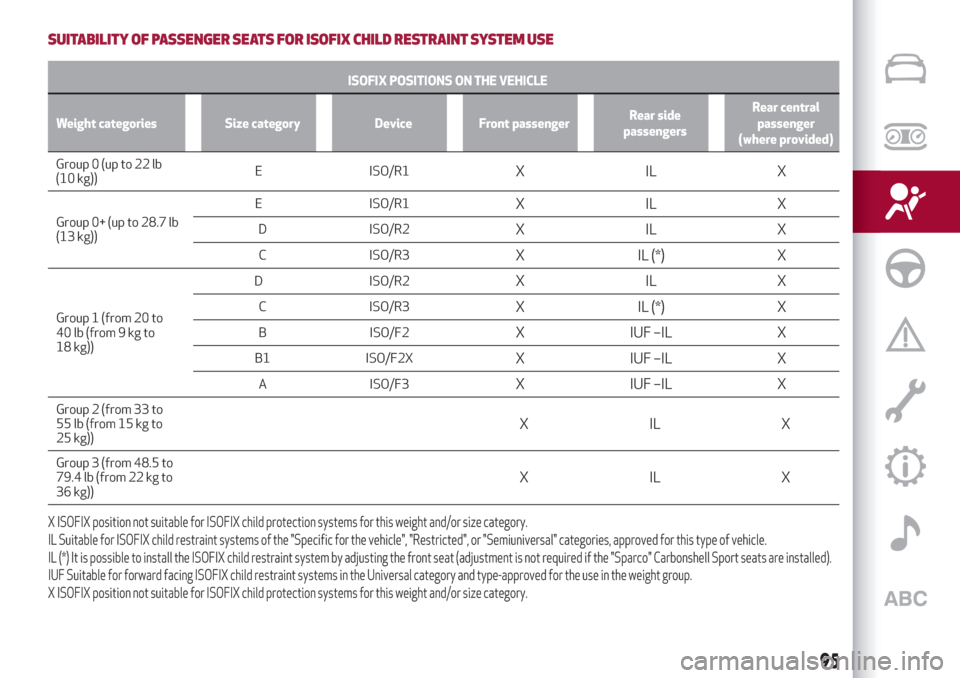

SUITABILITY OF PASSENGER SEATS FOR ISOFIX CHILD RESTRAINTSYSTEM USE
ISOFIX POSITIONS ON THE VEHICLE
Weight categories Size category Device Front passengerRear side
passengersRear central
passenger
(where provided)
Group 0 (up to 22 lb
(10 kg))E ISO/R1XILX
Group 0+ (up to 28.7 lb
(13 kg))E ISO/R1
XILX
D ISO/R2XILX
C ISO/R3X IL (*) X
Group 1 (from 20 to
40 lb (from 9 kg to
18 kg))D ISO/R2
XILX
C ISO/R3X IL (*) X
B ISO/F2X IUF–IL X
B1 ISO/F2XX IUF–IL X
A ISO/F3X IUF–IL X
Group 2 (from 33 to
55 lb (from 15 kg to
25 kg))XILX
Group 3 (from 48.5 to
79.4 lb (from 22 kg to
36 kg))XILX
X ISOFIX position not suitable for ISOFIX child protection systems for this weight and/or size category.
IL Suitable for ISOFIX child restraint systems of the "Specific for the vehicle", "Restricted", or "Semiuniversal" categories, approved for this type of vehicle.
IL (*) It is possible to install the ISOFIX child restraint system by adjusting the front seat (adjustment is not required if the "Sparco" Carbonshell Sport seats are installed).
IUF Suitable for forward facing ISOFIX child restraint systems in the Universal category and type-approved for the use in the weight group.
X ISOFIX position not suitable for ISOFIX child protection systems for this weight and/or size category.
95

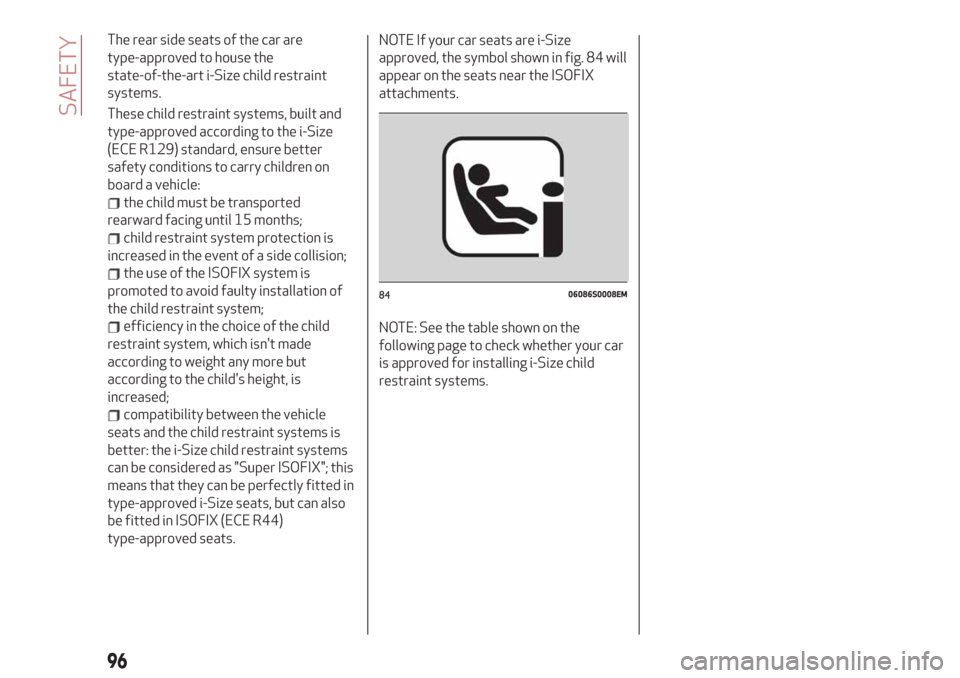

The rear side seats of the car are
type-approved to house the
state-of-the-art i-Size child restraint
systems.
These child restraint systems, built and
type-approved according to the i-Size
(ECE R129) standard, ensure better
safety conditions to carry children on
board a vehicle:
the child must be transported
rearward facing until 15 months;
child restraint system protection is
increased in the event of a side collision;
the use of the ISOFIX system is
promoted to avoid faulty installation of
the child restraint system;
efficiency in the choice of the child
restraint system, which isn't made
according to weight any more but
according to the child's height, is
increased;
compatibility between the vehicle
seats and the child restraint systems is
better: the i-Size child restraint systems
can be considered as "Super ISOFIX"; this
means that they can be perfectly fitted in
type-approved i-Size seats, but can also
be fitted in ISOFIX (ECE R44)
type-approved seats.NOTE If your car seats are i-Size
approved, the symbol shown in fig. 84 will
appear on the seats near the ISOFIX
attachments.
NOTE: See the table shown on the
following page to check whether your car
is approved for installing i-Size child
restraint systems.
8406086S0008EM
96
SAFETY

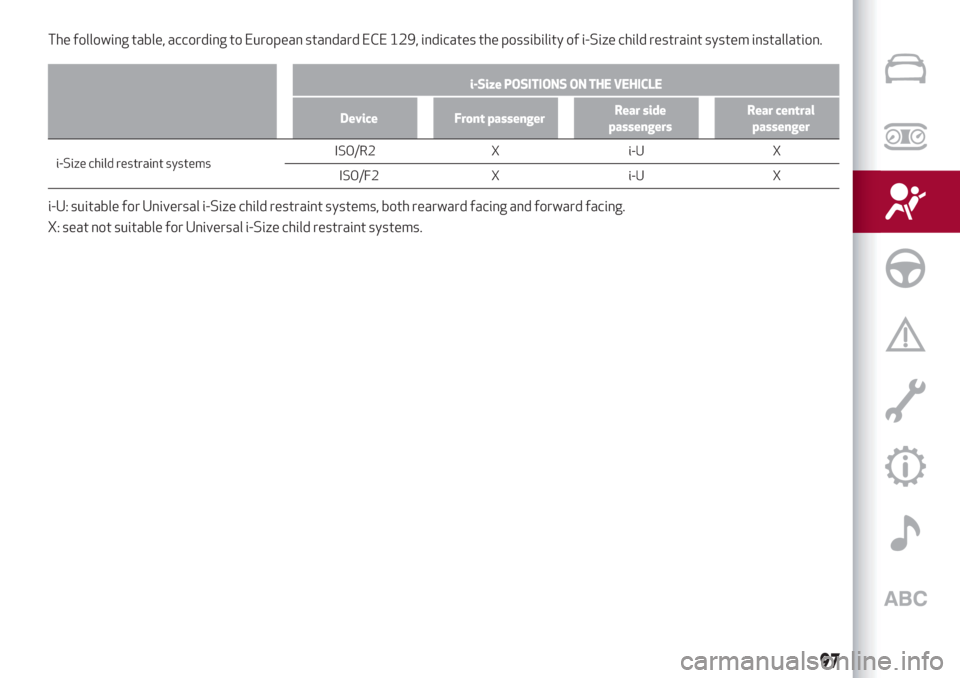

The following table, according to European standard ECE 129, indicates the possibility of i-Size child restraint system installation.
i-Size POSITIONS ON THE VEHICLE
Device Front passengerRear side
passengersRear central
passenger
i-Size child restraint systemsISO/R2 X i-U X
ISO/F2 X i-U X
i-U: suitable for Universal i-Size child restraint systems, both rearward facing and forward facing.
X: seat not suitable for Universal i-Size child restraint systems.
97

CHILD RESTRAINTSYSTEMS RECOMMENDED BY ALFA ROMEO FOR YOUR GIULIA
Lineaccessori Alfa Romeo includes a complete range of child restraint systems to be fixed using the seat belt with three anchorage
points or the ISOFIX anchorages.
IMPORTANT Alfa Romeo recommends fitting the child restraint system according to the instructions, which must be included.
Weight group Child restraint systemType of child restraint
systemChild restraint system installation
Group 0+: from
birth
to 28.7 lb
(13 kg)
from 15.7 to 33.5 in
(from 40 to 85 cm)
PEG-PEREGO
Primo Viaggio SLUniversal/ISOFIX child restraint
system.
It must be installed rearward facing,
using the vehicle seat belts only, or
the dedicated ISOFIX K base (which
can be purchased separately) and the
vehicle ISOFIX anchorages.
Alfa Romeo recommends using the
specific ISOFIX K base (which can
be purchased separately) and the
ISOFIX anchorages of the vehicle to
install it.
With the base it must be fitted on the
rear outer seats.
ISOFIX Basic 0+1 K
98
SAFETY
