SCHEDULED SERVICING PLAN
1.4 Turbo Petrol and 1.4 Turbo Multi Air VERSIONS
Thousands of kilometres
Check tyre condition/wear and adjust pressure if required
Check lighting system operation (headlights, direction indicators, hazard lights, passenger
compartment lights, boot lights, instrument panel warning lights, etc.)
Check windscreen wiper/washer operation
Check the position/wear of the windscreen/rear window wiper blades
Check condition and wear of front disc brake pads and
operation of pad wear indicator
Check rear disc brake pad condition and wear
Conditions and visual check: bodywork exterior, underbody protection,
pipes and hoses (exhaust - fuel system - braking system),
rubber elements (boots - sleeves - bushes - etc.)
Check cleanliness of bonnet and boot locks,
as well as cleanliness and lubrication of linkages
Check and top up, if required, fluid levels
(engine coolant, brake/hydraulic clutch fluid, windscreen washer fluid, battery fluid, etc)
Check the handbrake lever travel and adjust it, if necessary
Check condition of timing belt
Visually inspect the condition of accessory drive belt(s)
Check exhaust gas emissions 30 60 90 120 150 180
●●● ●●●
●●● ●●●
●●● ●●●
●●● ●●●
●●● ●●●
●●● ●●●
●●● ●●●
●●● ●●●
●●● ●●●
●●● ●●●
●●
●●
●●● ●●●
199-224 Alfa Giulietta EN 5ed 26-07-2010 16:38 Pagina 200

201
GETTING
TO KNOW
YOUR CAR
SAFETY
STARTING
AND DRIVING
IN AN
EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
CONTENTS
2 If the car is mainly used in cities or travels less than 10,000 km a year, change the engine oil and filter every 12
months.
30 60 90 120 150 180
●●● ●●●
●
●
●●● ●●●
●●●
●●● ●●●
●●●
●●● ●●●
1 For 1.4 Turbo Petrol and 1.4 Turbo Multi Air versions, in order to guarantee correct operation and prevent seri-
ous damage to the engine, it is essential to observe the following:
- only use spark plugs specifically certified for Turbo Petrol engines; all spark plugs should be of the same type and brand
(see the “Engine” paragraph in the “Technical Specifications” chapter);
- adhere strictly to the spark plug replacement intervals detailed in the Scheduled Servicing Plan;
- You are advised to go to Alfa Romeo Authorized Services to have the spare plugs replaced.
Thousands of kilometres
Check engine control system operation (using diagnosis socket)
Replace accessory drive belt(s)
Replace toothed timing drive belt (*)
Replace spark plugs 1
Replace air filter cartridge
Change engine oil and oil filter (or every 24 months) 2
Change brake fluid (or every 24 months)
Change pollen filter (or every 15 months)
(*) Regardless of the distance covered, the timing belt must be changed every 4 years for particularly demanding use (cold climates, city driving,
long periods of idling) or at least every 5 years.
199-224 Alfa Giulietta EN 5ed 26-07-2010 16:39 Pagina 201

35 70 105 140 175
●● ●●●
●● ●●●
●● ●●●
●● ●●●
●● ●●●
●● ●●●
●● ●●●
●● ●●●
●● ●●●
●● ●●●
●●
●●
202
GETTING
TO KNOW
YOUR CAR
SAFETY
STARTING
AND DRIVING
IN AN
EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
CONTENTS
1750 Turbo Petrol VERSIONS
Thousands of kilometres
Check tyre conditions/wear and adjust pressure if required
Check lighting system operation (headlights, direction indicators, hazard warning lights, passenger
compartment lights, boot lights, instrument panel warning lights, etc.)
Check windscreen wiper/washer operation
Check the position/wear of the windscreen/rear window wiper blades
Check condition and wear of front disc brake pads and operation of
pad wear indicator
Check rear disc brake pad condition and wear
Conditions and visual check: bodywork exterior, underbody protection,
pipes and hoses (exhaust - fuel system - braking system),
rubber elements (boots - sleeves - bushes - etc.)
Check cleanness of locks, bonnet and boot and lever
cleanness and lubrication
Check and top up, if required, fluid levels
(engine coolant, brake/hydraulic clutch fluid, windscreen washer fluid, battery fluid, etc)
Check the handbrake lever travel and adjust it, if necessary
Visually inspect the condition of the auxiliary drive belt
Visually inspect the condition of toothed timing belt
199-224 Alfa Giulietta EN 5ed 26-07-2010 16:39 Pagina 202

203
GETTING
TO KNOW
YOUR CAR
SAFETY
STARTING
AND DRIVING
IN AN
EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
CONTENTS
(*) Regardless of the distance covered, the timing belt must be changed every four years for particularly demanding use (cold climates, city driving,
long periods of idling) or at least every five years in all other cases.
(**) The engine oil and the oil filter must be changed when the instrument panel warning light comes on (see “Warning lights and messages” in “Get-
ting to know your car” chapter) or in any case every 12 months.
Thousands of kilometres
Check exhaust emissions
Check engine control system operation (via diagnostic socket)
Replace accessory drive belt(s)
Replace toothed timing belt (*)
Replace spark plugs
Replace air filter cartridge
Change engine oil and oil filter (or every 12 months) (**)
Change brake fluid (or every 24 months)
Change pollen filter (or every 15 months)35 70 105 140 175
●●●● ●
●●●● ●
●
●
●●
●●
●●
●●●● ●
199-224 Alfa Giulietta EN 5ed 26-07-2010 16:39 Pagina 203

204
GETTING
TO KNOW
YOUR CAR
SAFETY
STARTING
AND DRIVING
IN AN
EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
CONTENTS
Thousands of kilometres
Check tyre condition/wear and adjust pressure if required
Check operation of lighting system (headlights, direction indicators, hazard warning lights,
luggage compartment, passenger compartment, instrument panel warning lights, etc.)
Check windscreen wiper/washer operation
Check the position/wear of the windscreen/rear window wiper blades
Check condition and wear of front disc brake pads and
operation of pad wear indicator
Check rear disc brake pad condition and wear
Conditions and visual check: bodywork exterior, underbody protection,
pipes and hoses (exhaust - fuel system - braking system),
rubber elements (boots - sleeves - bushes - etc.)
Check cleanliness of bonnet and boot locks,
as well as cleanliness and lubrication of linkages
Check and top up, if required, fluid levels
(engine coolant, brake/hydraulic clutch fluid, windscreen washer fluid, battery fluid, etc)
Check the handbrake lever travel and adjust it, if necessary
Check exhaust fumes/emissions
Visually inspect the condition of the auxiliary drive belt
Check engine control system operation (via diagnostic socket)35 70 105 140 175
●● ●● ●
●● ●● ●
●● ●● ●
●● ●● ●
●● ●● ●
●● ●● ●
●● ●● ●
●● ●● ●
●● ●● ●
●● ●● ●
●● ●● ●
●●
●● ●● ●
Diesel VERSIONS
199-224 Alfa Giulietta EN 5ed 26-07-2010 16:39 Pagina 204

205
GETTING
TO KNOW
YOUR CAR
SAFETY
STARTING
AND DRIVING
IN AN
EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
CONTENTS
35 70 105 140 175
●
●
●●
●●
●●
●● ● ● ●
Thousands of kilometres
Replace auxiliary drive belts
Replace toothed timing drive belt (*)
Replace fuel filter
Replace air filter cartridge
Change engine oil and oil filter (**)(or every 24 months)
Change brake fluid (or every 24 months)
Change pollen filter (or every 15 months)
(*) Regardless of the distance covered, the timing belt must be changed every 4 years for particularly demanding use (cold climates, city driving,
long periods of idling) or at least every 5 years.
(**) The engine oil and oil filter should be changed when the warning light on the dashboard comes on, or every 24 months.
If the car is mainly used in town, change the engine oil and filter every 12 months.
199-224 Alfa Giulietta EN 5ed 26-07-2010 16:39 Pagina 205

206
GETTING
TO KNOW
YOUR CAR
SAFETY
STARTING
AND DRIVING
IN AN
EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
CONTENTS
REGULAR CHECKS
Every 1,000 km or before long journeys, check and top up the fol-
lowing if necessary:
❍engine coolant level, brake fluid and windscreen washer fluid
❍tyre pressure and condition;
❍operation of lighting system (headlights, direction indicators,
hazard lights, etc.);
❍operation of the windscreen wiper/washer system, position
and wear of windscreen/rear window wiper blades;
Check and top up, if required, the engine oil level every 3,000 km.
We recommend the use of PETRONAS LUBRICANTS, designed and
produced specifically for Alfa Romeo cars (see “Capacities” table
in the “Technical Specifications” chapter).
DEMANDING USE OF THE CAR
If you use the car mainly under one of the following conditions:
❍trailer or caravan towing;
❍dusty roads;
❍short (less than 7-8 km) and repeated journeys in sub-zero
temperatures;
❍frequent engine idling, travelling long distances at low speeds
or long term inactivity;
❍in cities;
perform the following inspections more frequently than shown on
the Scheduled Servicing Plan:
❍check front disc brake pad condition and wear;
❍check cleanliness of bonnet and boot locks, as well as cleanli-
ness and lubrication of linkages;
❍visually inspect the conditions of: engine, gearbox, transmis-
sion, pipes and tubes (exhaust - fuel - brakes), rubber parts
(boots, sleeves, bushes, etc.);
❍check battery charge and liquid level (electrolyte);
❍visually inspect the condition of auxiliary drive belts;
❍check and if necessary change engine oil and oil filter;
❍check pollen filter and replace it, if required;
❍check air filter and replace, if required.
199-224 Alfa Giulietta EN 5ed 26-07-2010 16:39 Pagina 206

207
GETTING
TO KNOW
YOUR CAR
SAFETY
STARTING
AND DRIVING
IN AN
EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
CONTENTS

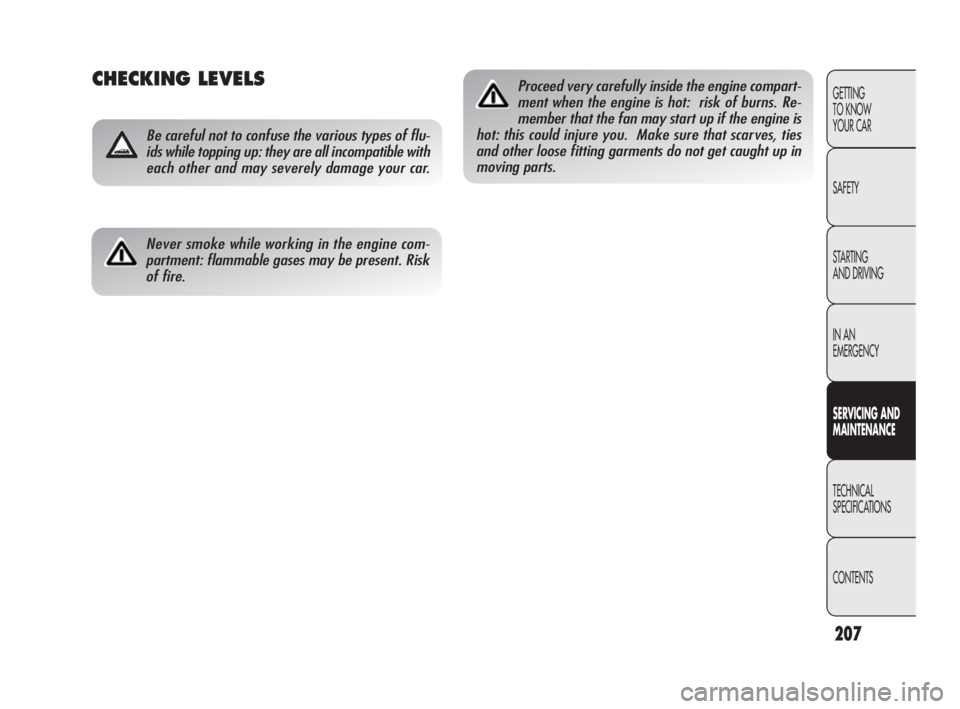

CHECKING LEVELS
Be careful not to confuse the various types of flu-
ids while topping up: they are all incompatible with
each other and may severely damage your car.
Never smoke while working in the engine com-
partment: flammable gases may be present. Risk
of fire.
Proceed very carefully inside the engine compart-
ment when the engine is hot: risk of burns. Re-
member that the fan may start up if the engine is
hot: this could injure you. Make sure that scarves, ties
and other loose fitting garments do not get caught up in
moving parts.
199-224 Alfa Giulietta EN 5ed 26-07-2010 16:39 Pagina 207

208
GETTING
TO KNOW
YOUR CAR
SAFETY
STARTING
AND DRIVING
IN AN
EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
CONTENTS

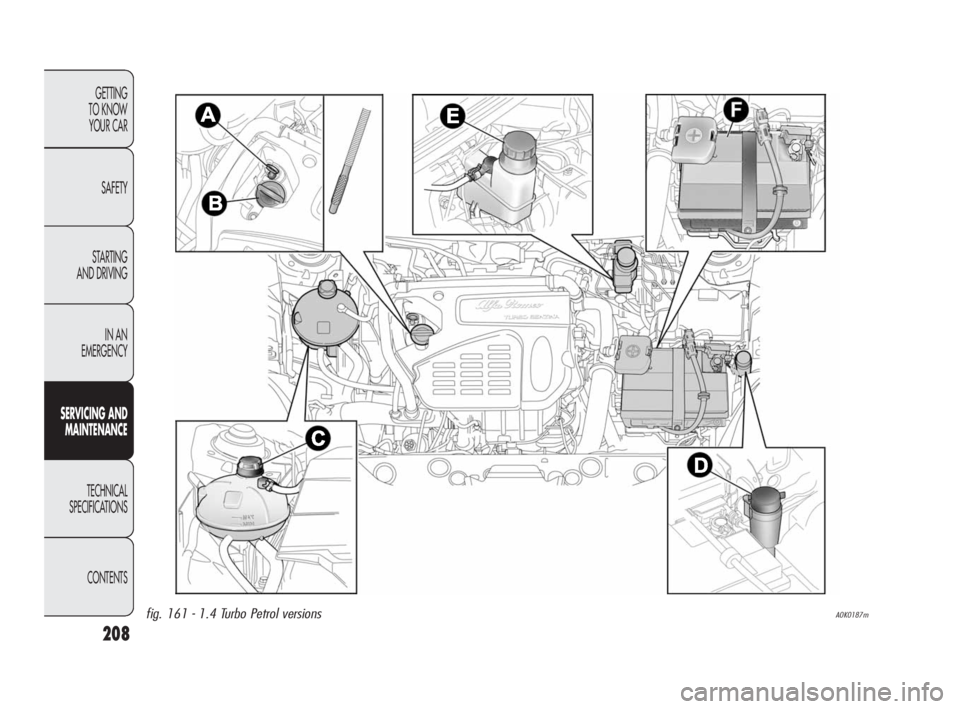

A0K0187mfig. 161 - 1.4 Turbo Petrol versions
199-224 Alfa Giulietta EN 5ed 26-07-2010 16:39 Pagina 208

209
GETTING
TO KNOW
YOUR CAR
SAFETY
STARTING
AND DRIVING
IN AN
EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
CONTENTS

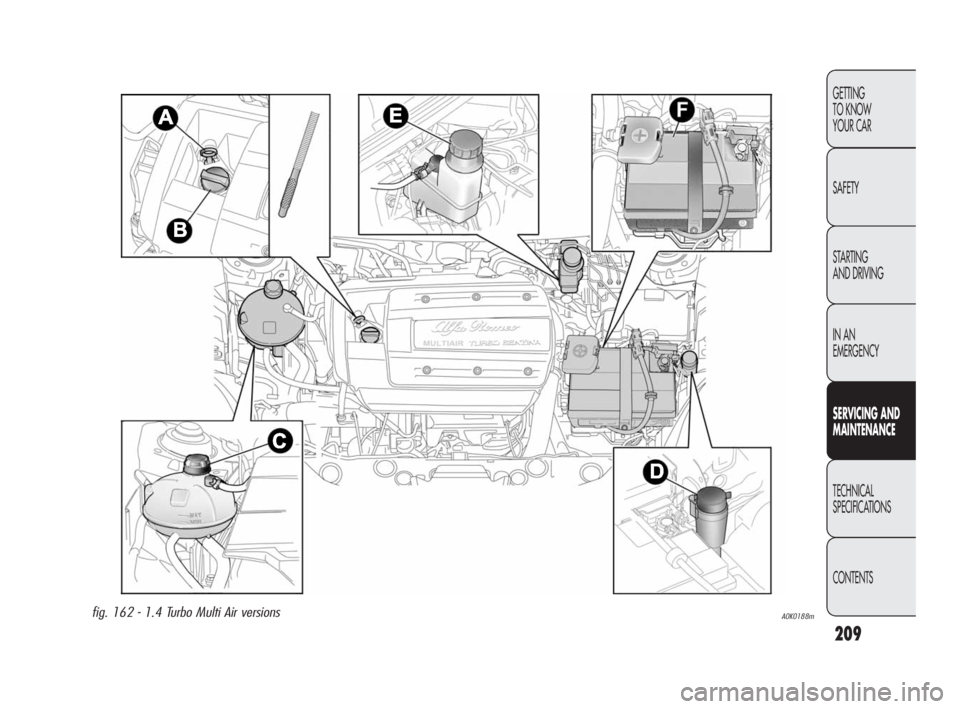

A0K0188mfig. 162 - 1.4 Turbo Multi Air versions
