Alfa Romeo Giulietta 2012 Owner handbook (in English)

OWNER HANDBOOK
ENGLISH
Alfa Services
Cop Alfa Giulietta GB:Alfa 159 cop. LUM GB 15-09-2011 15:08 Pagina 1

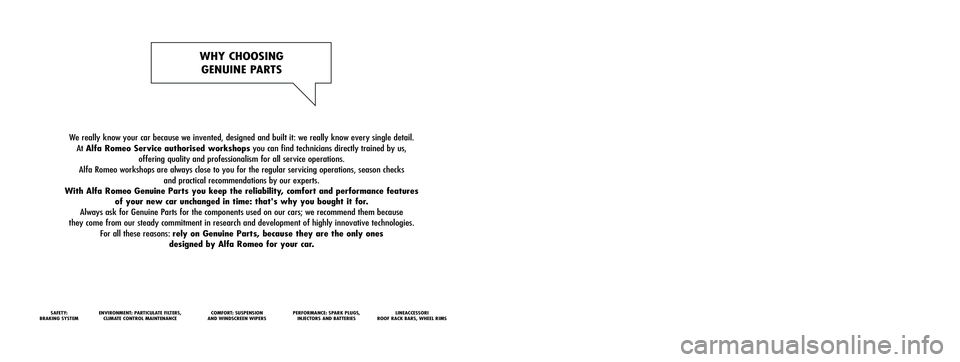

We really know your car because we invented, designed and built it: we really know every single detail.
At Alfa Romeo Service authorised workshopsyou can find technicians directly trained by us,
offering quality and professionalism for all service operations.
Alfa Romeo workshops are always close to you for the regular servicing operations, season checks
and practical recommendations by our experts.
With Alfa Romeo Genuine Parts you keep the reliability, comfort and performance features
of your new car unchanged in time: that's why you bought it for.
Always ask for Genuine Parts for the components used on our cars; we recommend them because
they come from our steady commitment in research and development of highly innovative technologies.
For all these reasons: rely on Genuine Parts, because they are the only ones
designed by Alfa Romeo for your car.
SAFETY:
BRAKING SYSTEMENVIRONMENT: PARTICULATE FILTERS,
CLIMATE CONTROL MAINTENANCECOMFORT: SUSPENSION
AND WINDSCREEN WIPERS PERFORMANCE: SPARK PLUGS,
INJECTORS AND BATTERIESLINEACCESSORI
ROOF RACK BARS, WHEEL RIMS
WHY CHOOSING
GENUINE PARTS
Cop Alfa Giulietta GB:Alfa 159 cop. LUM GB 15-09-2011 15:08 Pagina 2

Dear Customer,
Congratulations on your purchase and thank you for choosing Alfa Romeo.
We have written this handbook to help you get the most out of your new car.
Please read it all the way through before taking your car on the road for the first time.
Here you will find information, tips and important warnings regarding use of your car and how to achieve the best performance from
the technological features of your Alfa Romeo.
The booklet also provides a description of special features as well as tips and essential information for the correct care and mainte-
nance of your Alfa Romeo and safe driving tips.
Please read the warnings and indications at the bottom; these are marked with the following symbols:
personal safety
car’s wellbeing
environmental protection.
The enclosed Warranty Booklet lists the services that Alfa Romeo offers to its Customers:
– the Warranty Certificate with terms and conditions for maintaining its validity
– the range of additional services available to Alfa Romeo Customers.
We are confident that these instructions will help you become familiar with your new car and the Alfa Romeo after-sales staff who will
be at your service.
Enjoy the read. Happy motoring!
This Owner Handbook describes all versions of Alfa Giulietta; please consider only the information
relevant to your version, engine and configuration.
The data in this publication is provided by way of example. Fiat Group Automobiles can modify
the specifications of the model described in this publication at any time, for technical or marketing
purposes. For further information, contact an Alfa Romeo Authorised Service Provider.

REFUELLING
Petrol engines: refuel with unleaded petrol with an
octane rating (RON) of 95 or higher only.
Diesel engines: refuel with diesel fuel compliant with
European specification EN590 only. The use of other products or
mixtures may damage the engine beyond repair and consequently
invalidate the warranty, depending on the damage caused.
STARTING THE ENGINE
Petrol engines: make sure that the handbrake is
engaged, set the gearshift lever to neutral, fully depress the
clutch without pressing the accelerator, then turn the ignition key
to AVV and release it as soon as the engine has started.
Diesel engines: turn the ignition key to MAR and wait for the Yandmwarning lights to turn off; turn the key to AVV and release it
as soon as the engine starts.
PARKING ON FLAMMABLE MATERIAL
The catalytic converter reaches high temperatures
during operation. Do not park the car on grass, dry
leaves, pine needles or other flammable material: fire
hazard.
RESPECTING THE ENVIRONMENT
The car is fitted with a system that carries out a
continuous diagnosis of the emission-related components
in order to help protect the environment.
ELECTRIC ACCESSORIES
If after having purchased your car you decide to add
accessories requiring electricity (that may otherwise
cause the battery to gradually lose power), please
contact Alfa Romeo Authorized Services. They can
calculate the overall electric requirement and check that
the car’s electric system can support the required load
CODE CARD(for versions/markets where provided)
Keep this in a safe place, not in the car. We recommend
that you always carry the electronic code provided on
the CODE card with you, in case you need to perform
an emergency start.
SCHEDULED SERVICING
Correct car maintenance is essential to ensure that the
performance, safety features, environmental
friendliness and low running costs stay in tip-top
condition over the years.
THE OWNER HANDBOOK CONTAINS…
... information, tips and important warnings on the
correct use and maintenance of your car over time. Pay
special attention to the symbols
"(personal safety) #(environmental protection) â(car integrity).
READ THIS CAREFULLY
K



3
GETTING
TO KNOW
YOUR CAR
SAFETY
STARTING
AND DRIVING
IN AN
EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
CONTENTS
GETTING TO KNOW YOUR CAR
1. Fixed vent for sending air to side windows - 2. Adjustable air vent - 3. External light control stalk - 4. Instrument panel -
5. Windscreen wiper/rear screen wiper/trip computer stalk - 6. Upper adjustable vents - 7. Radio navigator display (for versions/markets, where
provided) - 8. Hazard lights - 9. Passenger front air bag - 10. Glove box - 11. Central adjustable air vents - 12. Radio (for versions/markets,
where provided) - 13. Heating/ventilation/air conditioning controls - 14. Gear shifting stick - 15. “Alfa DNA” system - 16. Control buttons: fog
lights/rear fog lights, Start&Stop system (for versions/markets, where provided), door lock/unlock, AFS light on/off (for versions/markets, where
provided) -17. Ignition device - 18. Driver’s front air bag - 19. Cruise Control stalk (for versions/markets, where provided) - 20. Headlight align-
ment corrector (for versions/markets, where provided) and Set Up Menu access button.
A0K0074mfig. 1
DASHBOARD
The presence and position of the controls, the instruments and the indicators may vary according to the versions.

4
GETTING
TO KNOW
YOUR CAR
SAFETY
STARTING
AND DRIVING
IN AN
EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
CONTENTS
CONTROL PANEL AND INSTRUMENTS
VERSIONS WITH MULTIFUNCTION DISPLAY
A Speedometer (speed indicator)
B Multifunction display
C Rev counter
D Fuel gauge with reserve warning light
E Engine coolant temperature gauge with overheating warning light
mcWarning lights present on diesel versions only On diesel versions, the end of scale for the rev counter is 6000 rpm
IMPORTANT Instrument panel graphics lighting may vary according to the versions.
A0K0002mfig. 2

5
GETTING
TO KNOW
YOUR CAR
SAFETY
STARTING
AND DRIVING
IN AN
EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
CONTENTS
VERSIONS WITH RECONFIGURABLE MULTIFUNCTION DISPLAY
A Speedometer (speed indicator)
B Reconfigurable multifunction display
C Rev counter
D Fuel gauge with reserve warning light
E Engine coolant temperature gauge with overheating warning light
mcWarning lights present on diesel versions only On diesel versions, the end of scale for the rev counter is 6000 rpm
IMPORTANT Instrument panel graphics lighting may vary according to the versions.
A0K0001mfig. 3

6
GETTING
TO KNOW
YOUR CAR
SAFETY
STARTING
AND DRIVING
IN AN
EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
CONTENTS
SPEEDOMETER (SPEED INDICATOR)
This shows the speed of the car.
REV COUNTER
This indicates the engine rpm.
FUEL LEVEL GAUGE
This shows the amount of fuel left in the fuel tank.
0 - tank empty.
1 - tank full
The warning light in the gauge lights up when there are only 8 to
10 litres of fuel remaining in the tank; refuel at the earliest op-
portunity.
ENGINE COOLANT TEMPERATURE INDICATOR
This gauge indicates the temperature of the engine coolant. The
warning light on the indicator lights up to indicate an increase in
coolant temperature; in the event of this happening, switch off the
engine and contact an Alfa Romeo Authorised Service Provider.
INSTRUMENT PANEL WARNING LIGHTS
General warnings
The warning lights come on in conjunction with a dedicated mes-
sage and/or a buzzer where appropriate. These indications are
brief and precautionary and as such must not be considered as
exhaustive and/or alternative to the information contained in the
Owner’s Handbook, which you are recommended to read careful-
ly in all cases. Always refer to the information in this chapter in the
event of a failure signal.
Low brake fluid level (red)
When the ignition key is turned to MAR, the warning
light turns on but should go off after a few seconds.
The warning light (or symbol on the display) comes on
when the level of the brake fluid in the reservoir falls below the
minimum level due to possible leaks in the circuit.
A specific message will be shown on the display.
Handbrake on (red)
When the ignition key is turned to MAR, the warning light turns
on but should go off after a few seconds. The warning light (or
symbol on the display) comes on when the handbrake is on. If
the car is moving a buzzer is also triggered.
IMPORTANT If the warning light comes on with the vehicle in mo-
tion, check that the handbrake is not engaged.
x
