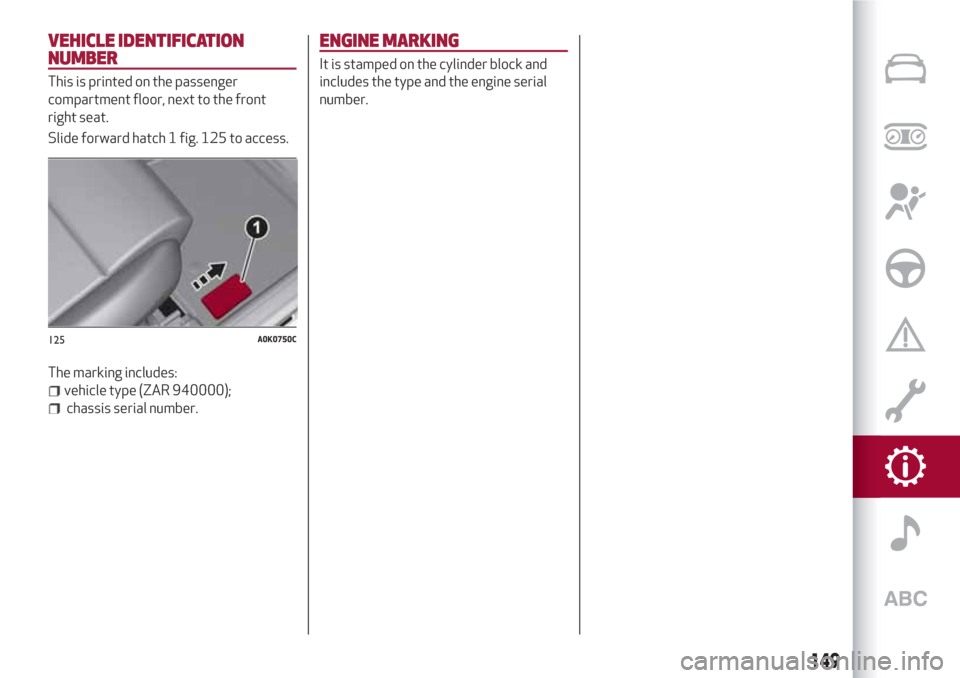

VEHICLE IDENTIFICATION
NUMBER
This is printed on the passenger
compartment floor, next to the front
right seat.
Slide forward hatch 1 fig. 125 to access.
The marking includes:
vehicle type (ZAR 940000);
chassis serial number.
ENGINE MARKING
It is stamped on the cylinder block and
includes the type and the engine serial
number.
125A0K0750C
149

ENGINE
GENERAL INFORMATION 1.4 Turbo petrol 120 HP 1.4 Turbo Petrol/LPG 120 HP
Engine code 940B7000 940B7000
Cycle Otto Otto
Number and
position of cylinders 4 in line 4 in line
Piston bore and stroke (mm) 72.0 × 84.0 72.0 × 84.0
Total displacement (cm³) 1368 1368
Compression ratio 9.8 9.8
LPG PETROL
Maximum power (EC) (kW) 88 88 88
Maximum power (EEC) (HP) 120 120 120
corresponding engine speed (rpm) 5000 5000 5000
Maximum torque (EC) (Nm) 215 215 215
Maximum torque (EC) (kgm) 22 22 22
corresponding engine speed (rpm) 2500 2500 2500
Spark plugs NGK IKR9J8 NGK IKR9J8 NGK IKR9J8
FuelUnleaded petrol 95 R.O.N. (EN
228 specifications)LPG for motor
vehicles
(EN589 Specification)Unleaded petrol
95 R.O.N. (EN
228 specifications)
150
TECHNICAL SPECIFICATIONS

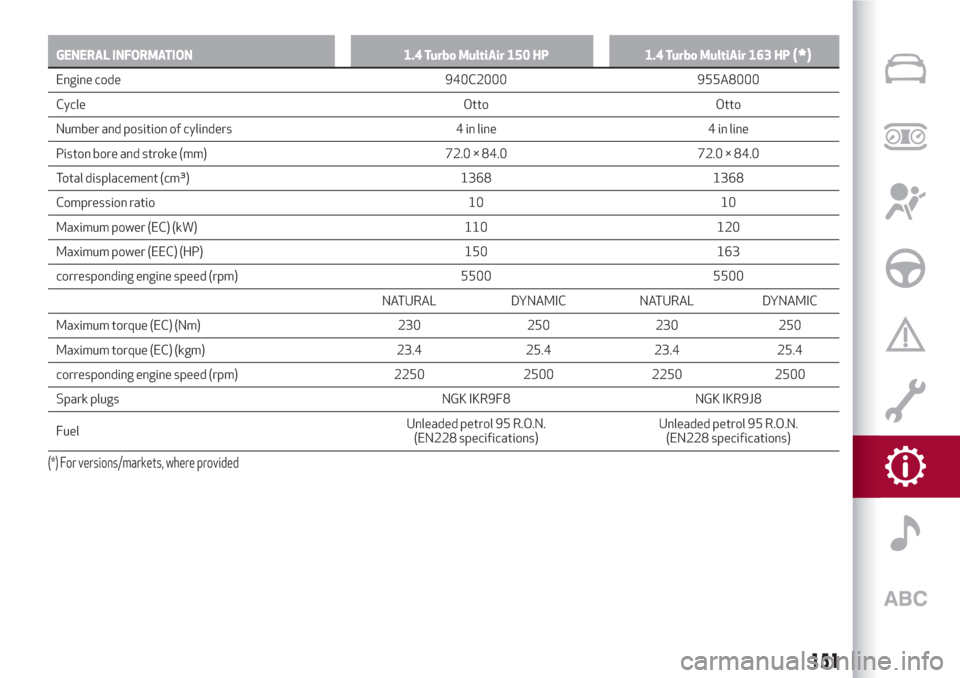

GENERAL INFORMATION 1.4 Turbo MultiAir 150 HP 1.4 Turbo MultiAir 163 HP(*)
Engine code 940C2000 955A8000
Cycle Otto Otto
Number and position of cylinders 4 in line 4 in line
Piston bore and stroke (mm) 72.0 × 84.0 72.0 × 84.0
Total displacement (cm³) 1368 1368
Compression ratio 10 10
Maximum power (EC) (kW) 110 120
Maximum power (EEC) (HP) 150 163
corresponding engine speed (rpm) 5500 5500
NATURAL DYNAMIC NATURAL DYNAMIC
Maximum torque (EC) (Nm) 230 250 230 250
Maximum torque (EC) (kgm) 23.4 25.4 23.4 25.4
corresponding engine speed (rpm) 2250 2500 2250 2500
Spark plugs NGK IKR9F8 NGK IKR9J8
FuelUnleaded petrol 95 R.O.N.
(EN228 specifications)Unleaded petrol 95 R.O.N.
(EN228 specifications)
(*) For versions/markets, where provided
151

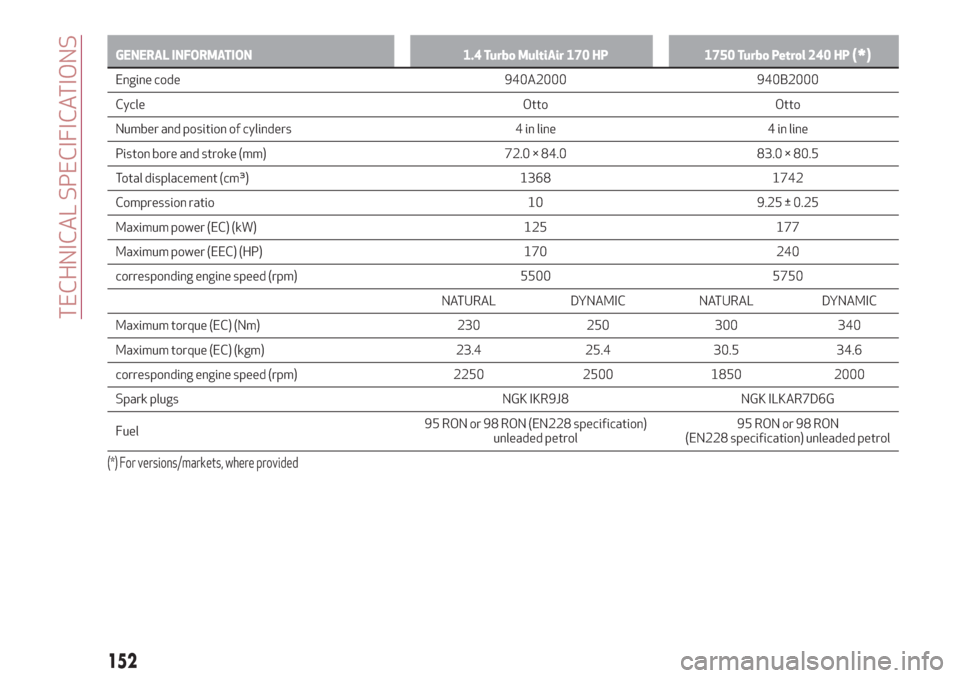

GENERAL INFORMATION 1.4 Turbo MultiAir 170 HP 1750 Turbo Petrol 240 HP(*)
Engine code 940A2000 940B2000
Cycle Otto Otto
Number and position of cylinders 4 in line 4 in line
Piston bore and stroke (mm) 72.0 × 84.0 83.0 × 80.5
Total displacement (cm³) 1368 1742
Compression ratio 10 9.25 ± 0.25
Maximum power (EC) (kW) 125 177
Maximum power (EEC) (HP) 170 240
corresponding engine speed (rpm) 5500 5750
NATURAL DYNAMIC NATURAL DYNAMIC
Maximum torque (EC) (Nm) 230 250 300 340
Maximum torque (EC) (kgm) 23.4 25.4 30.5 34.6
corresponding engine speed (rpm) 2250 2500 1850 2000
Spark plugs NGK IKR9J8 NGK ILKAR7D6G
Fuel95 RON or 98 RON (EN228 specification)
unleaded petrol95 RON or 98 RON
(EN228 specification) unleaded petrol
(*) For versions/markets, where provided
152
TECHNICAL SPECIFICATIONS

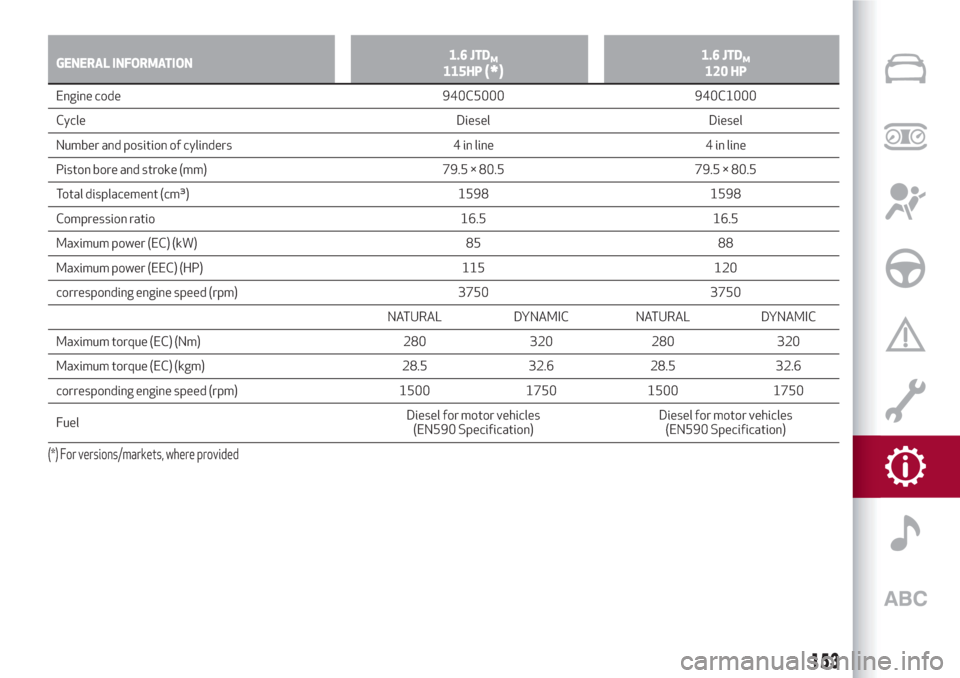

GENERAL INFORMATION1.6 JTDM115HP(*)1.6 JTDM120 HP
Engine code 940C5000 940C1000
Cycle Diesel Diesel
Number and
position of cylinders 4 in line 4 in line
Piston bore and stroke (mm) 79.5 × 80.5 79.5 × 80.5
Total displacement (cm³) 1598 1598
Compression ratio 16.5 16.5
Maximum power (EC) (kW) 85 88
Maximum power (EEC) (HP) 115 120
corresponding engine speed (rpm) 3750 3750
NATURAL DYNAMIC NATURAL DYNAMIC
Maximum torque (EC) (Nm) 280 320 280 320
Maximum torque (EC) (kgm) 28.5 32.6 28.5 32.6
corresponding engine speed (rpm) 1500 1750 1500 1750
FuelDiesel for motor vehicles
(EN590 Specification)Diesel for motor vehicles
(EN590 Specification)
(*) For versions/markets, where provided
153

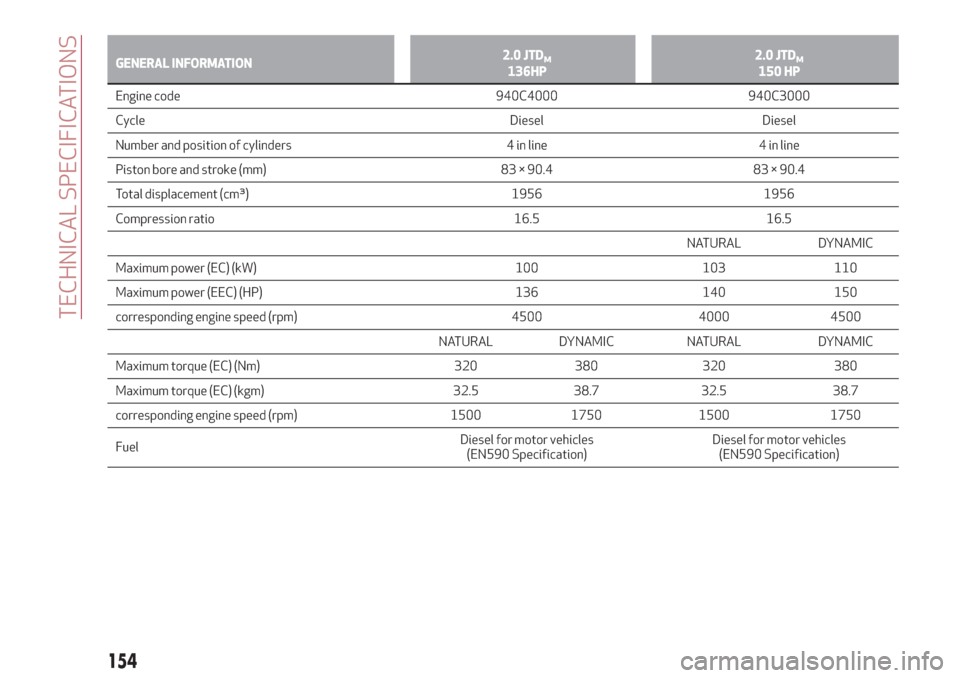

GENERAL INFORMATION2.0 JTDM136HP2.0 JTDM150 HP
Engine code 940C4000 940C3000
Cycle Diesel Diesel
Number and position of cylinders 4 in line 4 in line
Piston bore and stroke (mm) 83 × 90.4 83 × 90.4
Total displacement (cm³) 1956 1956
Compression ratio 16.5 16.5
NATURAL DYNAMIC
Maximum power (EC) (kW) 100 103 110
Maximum power (EEC) (HP) 136 140 150
corresponding engine speed (rpm) 4500 4000 4500
NATURAL DYNAMIC NATURAL DYNAMIC
Maximum torque (EC) (Nm) 320 380 320 380
Maximum torque (EC) (kgm) 32.5 38.7 32.5 38.7
corresponding engine speed (rpm) 1500 1750 1500 1750
FuelDiesel for motor vehicles
(EN590 Specification)Diesel for motor vehicles
(EN590 Specification)
154
TECHNICAL SPECIFICATIONS

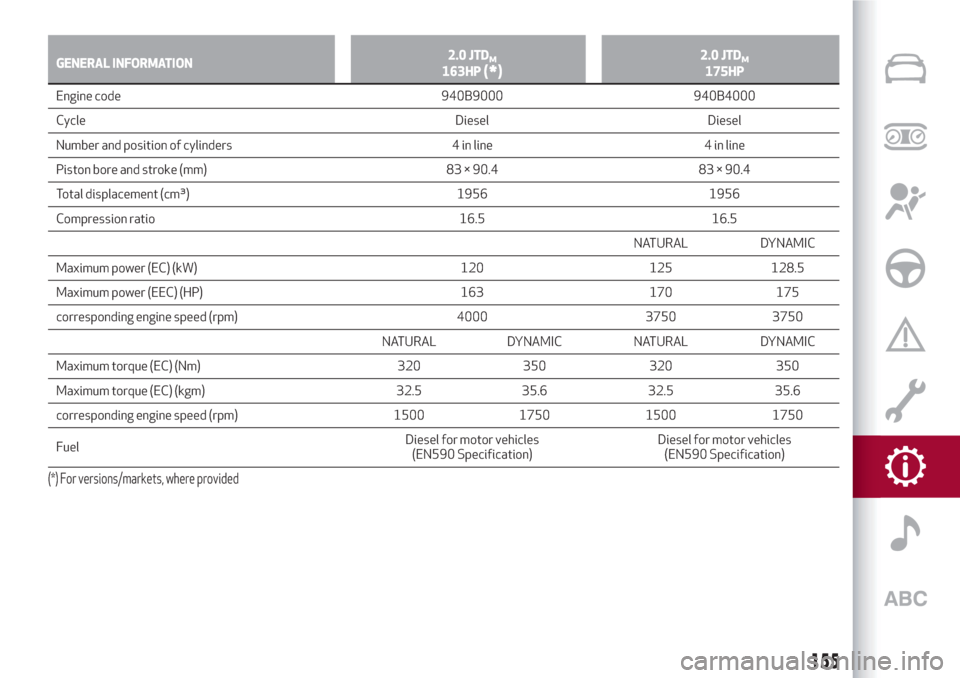

GENERAL INFORMATION2.0 JTDM163HP(*)2.0 JTDM175HP
Engine code 940B9000 940B4000
Cycle Diesel Diesel
Number and
position of cylinders 4 in line 4 in line
Piston bore and stroke (mm) 83 × 90.4 83 × 90.4
Total displacement (cm³) 1956 1956
Compression ratio 16.5 16.5
NATURAL DYNAMIC
Maximum power (EC) (kW) 120 125 128.5
Maximum power (EEC) (HP) 163 170 175
corresponding engine speed (rpm) 4000 3750 3750
NATURAL DYNAMIC NATURAL DYNAMIC
Maximum torque (EC) (Nm) 320 350 320 350
Maximum torque (EC) (kgm) 32.5 35.6 32.5 35.6
corresponding engine speed (rpm) 1500 1750 1500 1750
FuelDiesel for motor vehicles
(EN590 Specification)Diesel for motor vehicles
(EN590 Specification)
(*) For versions/markets, where provided
155

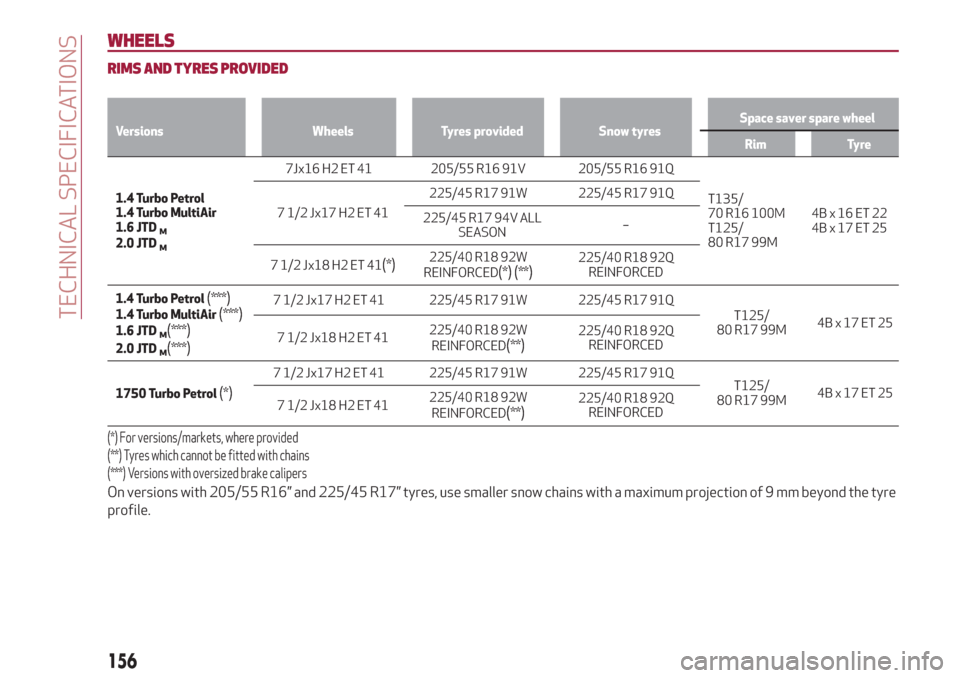

WHEELS
RIMS AND TYRES PROVIDED
Versions Wheels Tyres provided Snow tyresSpace saver spare wheel
Rim Tyre
1.4 Turbo Petrol
1.4
Turbo
MultiAir
1.6 JTD
M2.0 JTDM
7Jx16 H2 ET 41 205/55 R16 91V 205/55 R16 91Q
T135/
70 R16 100M
T125/
80 R17 99M4Bx16ET22
4Bx17ET25 7 1/2 Jx17 H2 ET 41225/45 R17 91W 225/45 R17 91Q
225/45 R17 94V ALL
SEASON–
7 1/2 Jx18 H2 ET 41
(*)225/40 R18 92W
REINFORCED(*) (**)225/40 R18 92Q
REINFORCED
1.4 Turbo Petrol
(***)1.4 Turbo MultiAir(***)1.6 JTDM(***)
2.0 JTDM(***)
7 1/2 Jx17 H2 ET 41 225/45 R17 91W 225/45 R17 91Q
T125/
80 R17 99M4Bx17ET25
7 1/2 Jx18 H2 ET 41225/40 R18 92W
REINFORCED
(**)225/40 R18 92Q
REINFORCED
1750 Turbo Petrol
(*)
7 1/2 Jx17 H2 ET 41 225/45 R17 91W 225/45 R17 91Q
T125/
80 R17 99M4Bx17ET25
7 1/2 Jx18 H2 ET 41225/40 R18 92W
REINFORCED
(**)225/40 R18 92Q
REINFORCED
(*) For versions/markets, where provided
(**) Tyres which cannot be fitted with chains
(***) Versions with oversized brake calipers
On versions with 205/55 R16” and 225/45 R17” tyres, use smaller snow chains with a maximum projection of 9 mm beyond the tyre
profile.
156
TECHNICAL SPECIFICATIONS

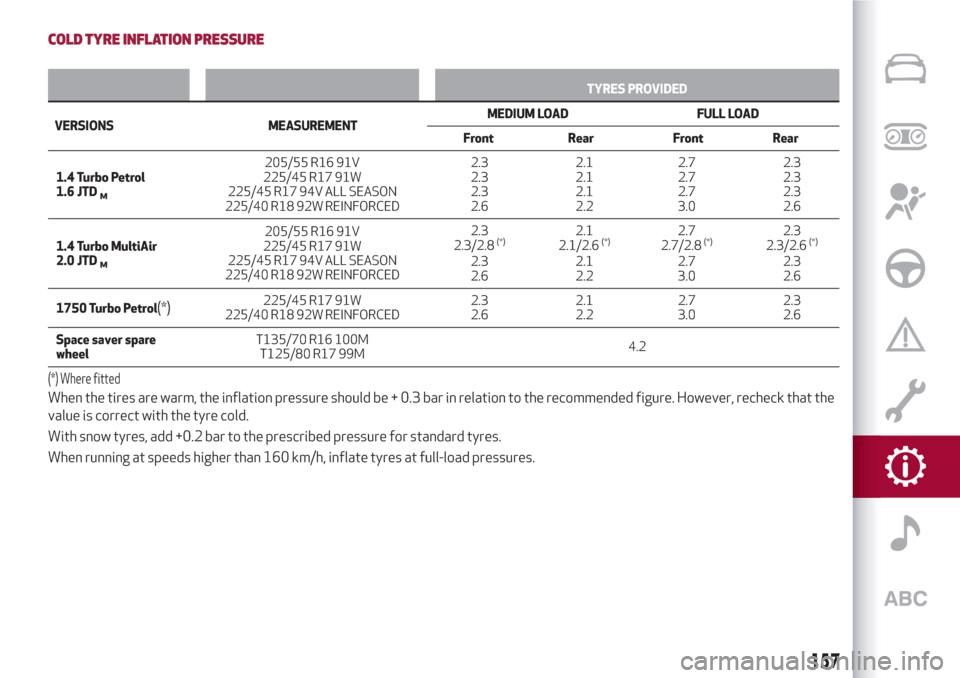

COLD TYRE INFLATION PRESSURE
TYRES PROVIDED
VERSIONS MEASUREMENTMEDIUM LOAD FULL LOAD
Front Rear Front Rear
1.4 Turbo Petrol
1.6 JTD
M
205/55 R16 91V
225/45 R17 91W
225/45 R17 94V ALL SEASON
225/40 R18 92W REINFORCED2.3
2.3
2.3
2.62.1
2.1
2.1
2.22.7
2.7
2.7
3.02.3
2.3
2.3
2.6
1.4 Turbo MultiAir
2.0 JTD
M
205/55 R16 91V
225/45 R17 91W
225/45 R17 94V ALL SEASON
225/40 R18 92W REINFORCED2.3
2.3/2.8(*)
2.3
2.62.1
2.1/2.6
(*)
2.1
2.22.7
2.7/2.8
(*)
2.7
3.02.3
2.3/2.6
(*)
2.3
2.6
1750 Turbo Petrol
(*)225/45 R17 91W
225/40 R18 92W REINFORCED2.3
2.62.1
2.22.7
3.02.3
2.6
Space saver spare
wheelT135/70 R16 100M
T125/80 R17 99M4.2
(*) Where fitted
When the tires are warm, the inflation pressure should be + 0.3 bar in relation to the recommended figure. However, recheck that the
value is correct with the tyre cold.
With snow tyres, add +0.2 bar to the prescribed pressure for standard tyres.
When running at speeds higher than 160 km/h, inflate tyres at full-load pressures.
157

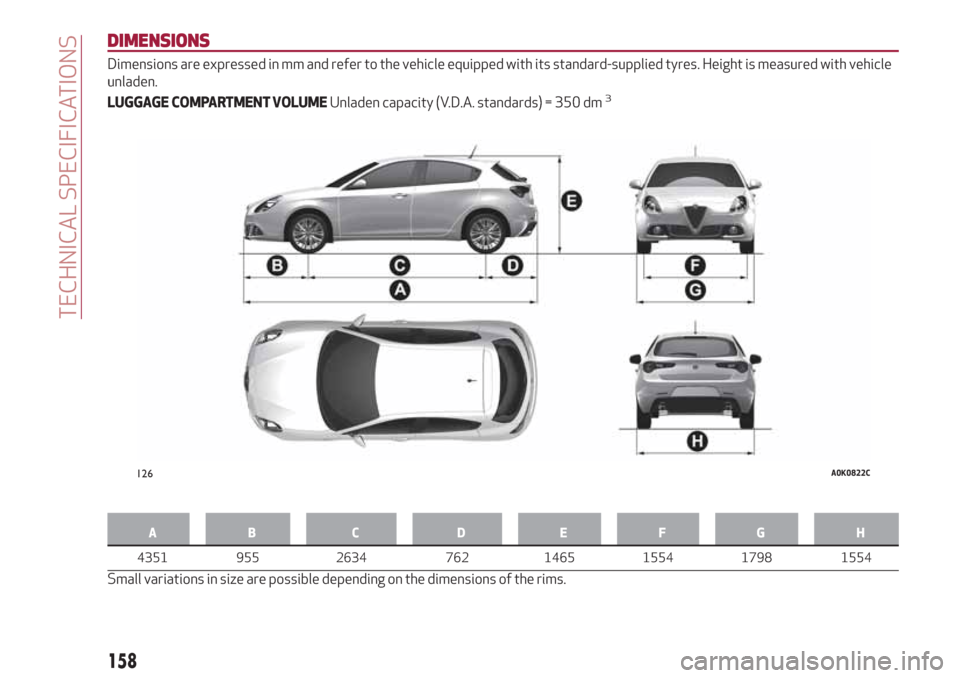

DIMENSIONS
Dimensions are expressed in mm and refer to the vehicle equipped with its standard-supplied tyres. Height is measured with vehicle
unladen.
LUGGAGE COMPARTMENT VOLUMEUnladen capacity (V.D.A. standards) = 350 dm
3
AB C D EFGH
4351 955 2634 762 1465 1554 1798 1554
Small variations in size are possible depending on the dimensions of the rims.
