Alfa Romeo Giulietta 2018 Owner's Manual

PERFORMANCE
Versions Maximum speed (km/h)Acceleration from 0-100 km/h
(sec)
1.4 Turbo petrol 120 HP195 9.4
1.4 Turbo Multi Air 163 HP TCT
(*)218 7.8
1.4 Turbo Multi Air 150 HP210 8.2
1.4 Turbo Multi Air 170 HP TCT218 7.7
1.4 Turbo Petrol/LPG 120 HP195 9.4
1750 Turbo Petrol 240 HP
(*)244 6.0
1.6 JTD
M115 HP(*) (**)192 10.5
1.6 JTD
M120 HP(**)195 10
2.0 JTD
M136 HP205 9.2
2.0 JTD
M150 HP210 8.8
2.0 JTD
M163 HP TCT(*)215 8.2
2.0 JTD
M175 HP TCT219 7.8
(*) For versions/markets, where provided
(**) For versions with manual transmission or TCT
169

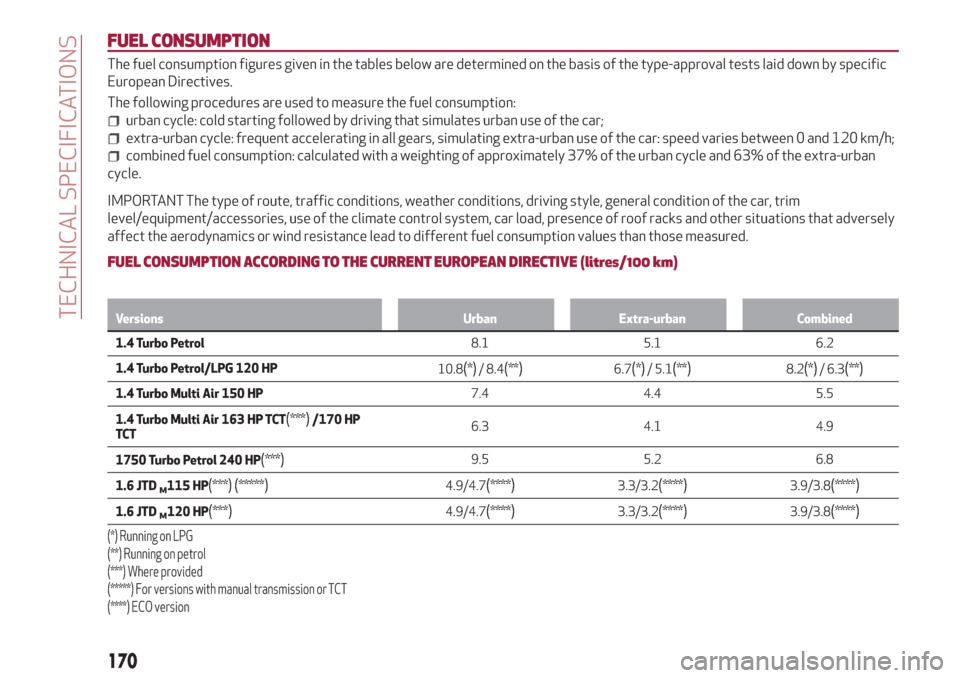

FUEL CONSUMPTION
The fuel consumption figures given in the tables below are determined on the basis of the type-approval tests laid down by specific
European Directives.
The following procedures are used to measure the fuel consumption:
urban cycle: cold starting followed by driving that simulates urban use of the car;
extra-urban cycle: frequent accelerating in all gears, simulating extra-urban use of the car: speed varies between 0 and 120 km/h;
combined fuel consumption: calculated with a weighting of approximately 37% of the urban cycle and 63% of the extra-urban
cycle.
IMPORTANT The type of route, traffic conditions, weather conditions, driving style, general condition of the car, trim
level/equipment/accessories, use of the climate control system, car load, presence of roof racks and other situations that adversely
affect the aerodynamics or wind resistance lead to different fuel consumption values than those measured.
FUEL CONSUMPTION ACCORDING TO THE CURRENT EUROPEAN DIRECTIVE (litres/100 km)
Versions Urban Extra-urban Combined
1.4 Turbo Petrol8.1 5.1 6.2
1.4 T
urbo Petrol/LPG 120 HP
10.8
(*)/ 8.4(**)6.7(*)/ 5.1(**)8.2(*)/ 6.3(**)
1.4 Turbo Multi Air 150 HP7.4 4.4 5.5
1.4 Turbo Multi Air 163 HP TCT
(***)/170 HP
TCT6.3 4.1 4.9
1750 Turbo Petrol 240 HP
(***)9.5 5.2 6.8
1.6 JTD
M115 HP(***) (*****)4.9/4.7(****)3.3/3.2(****)3.9/3.8(****)
1.6 JTDM120 HP(***)4.9/4.7(****)3.3/3.2(****)3.9/3.8(****)
(*) Running on LPG
(**) Running on petrol
(***) Where provided
(*****) For versions with manual transmission or TCT
(****) ECO version
170
TECHNICAL SPECIFICATIONS

Versions Urban Extra-urban Combined
2.0 JTDM136 HP5.0 3.7 4.2
2.0 JTD
M150 HP
5.0/4.8(****)3.7/3.5(****)4.2/4.0(****)
2.0 JTDM163 HP TCT(***)5.1 3.8 4.3
2.0 JTD
M175 HP TCT5.1 3.8 4.3
(****) ECO version
(***) Where provided
171

CO2EMISSIONS
The CO2emission levels given in the following tables refer to combined consumption.
VersionsCO emissions2according to the European Directive in force (g/km)
1.4 Turbo Petrol144
1.4 Turbo Petrol/LPG 120 HP
133
(*)/ 147(**)
1.4 Turbo MultiAir 150 HP127
1.4 Turbo MultiAir 163 HP TCT
(***)114
1.4 Turbo MultiAir 170 HP TCT114
1750 Turbo Petrol 240 HP
(***)157
1.6 JTD
M115 HP(****)103/99(*****)
1.6 JTDM120 HP(****)103/99(*****)
2.0 JTDM136 HP110
2.0 JTD
M150 HP
110/105(*****)
2.0 JTDM163 HP TCT(***)113
2.0 JTD
M175 HP TCT113
(*) Running on LPG
(**) Running on petrol
(***) For versions/markets, where provided
(****) For versions with manual transmission or TCT
(*****) ECO version
172
TECHNICAL SPECIFICATIONS

PRESCRIPTIONS FOR HANDLING THE VEHICLE AT THE END OF ITS LIFE
(where present)
FCA has been committed for many years to safeguarding the environment through the constant improvement of its production
processes and manufacturing products that are increasingly "eco-compatible". To grant customers the best possible service in terms
of respecting environmental laws and in response to European Directive 2000/53/EC governing vehicles at the end of their life, FCA
is offering its customers the chance to hand over their vehicle at the end of its life without incurring any additional costs. The
European Directive sets out that when the vehicle is handed over, the last keeper or owner should not incur any expenses as a result
of it having a zero or negative market value.
To hand your vehicle over at the end of its life without extra cost, contact one of our dealerships if you are purchasing another vehicle
or an FCA-authorised collection and scrapping centre. These centres have been carefully chosen to offer high quality service for the
collection, treatment and recycling of vehicles at their end of life, respecting the surrounding environment.
You can find further information on these collection and scrapping centres either from an FCA dealership or by calling the number in
the Warranty Booklet or by consulting the websites of the various FCA brands.
173

174
This page is intentionally left blank

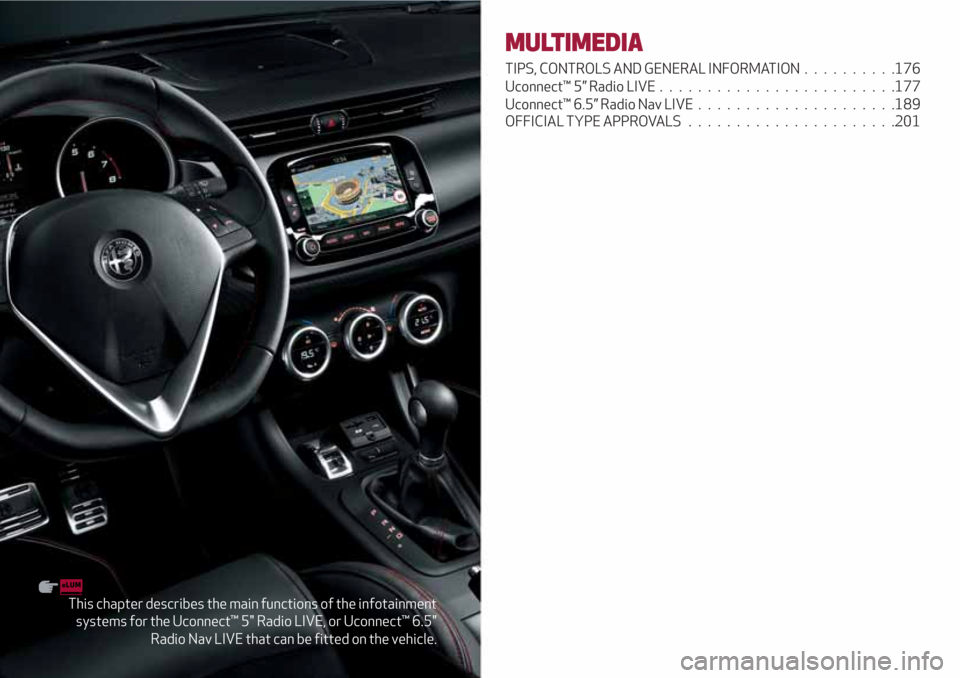

This chapter describes the main functions of the infotainment
systems for the Uconnect™ 5" Radio LIVE, or Uconnect™ 6.5"
Radio Nav LIVE that can be fitted on the vehicle.
MULTIMEDIA
TIPS, CONTROLS AND GENERAL INFORMATION . . ........176
Uconnect™ 5” Radio LIVE.........................177
Uconnect™ 6.5” Radio Nav LIVE.....................189
OFFICIAL TYPE APPROVALS . . . . . . . . . . . . . . . . . . . . . .201

TIPS, CONTROLS AND GENERAL
INFORMATION
TIPS
Road safety
Learn how to use the various system
functions before setting off.
Read the instructions for the system
carefully before setting off.
145) 146)
Reception conditions
Reception conditions change constantly
while driving. Reception may be
interfered with by the presence of
mountains, buildings or bridges,
especially when you are far away from
the broadcaster.
IMPORTANT The volume may be
increased when receiving traffic
bulletins.
Care and maintenance
52) 53)
Observe the following precautions to
ensure the system is fully operational:
never use alcohol, petrol or
petroleum-based solvents to clean the
display screen;
the display is sensitive to scratching,
liquids and detergents. The display
should not come into contact with
pointed or rigid objects which could
damage its surface. Do not press on the
display when cleaning it;
prevent any liquid from entering the
system: this could damage it beyond
repair.
SAFETY SETTINGS
Look at the screen only and when it is
necessary and safe. If you need to look at
the screen for a long time, pull over to a
safe place so as not to be distracted
while driving.
Immediately stop using the system in the
event of a fault. Otherwise the system
might be damaged. Contact an Alfa
Romeo Dealership as soon as possible to
have the system repaired.
WARNING
145)Follow the safety rules here below:
otherwise serious injuries may occur to the
occupants or the system may be damaged.
146)If the volume is too loud this can be
dangerous. Adjust the volume so that you
can still hear background noises (e.g. horns,
ambulances, police vehicles, etc.).
IMPORTANT
52)Only clean the front panel and the
display lens with a soft, clean, dry, anti-static
cloth. Cleaning and polishing products may
damage the surface. Never use alcohol,
petrols and derivatives.53)Do not use the display as a base for
supports with suction pads or adhesives for
external navigators or smartphones or
similar devices
176
MULTIMEDIA

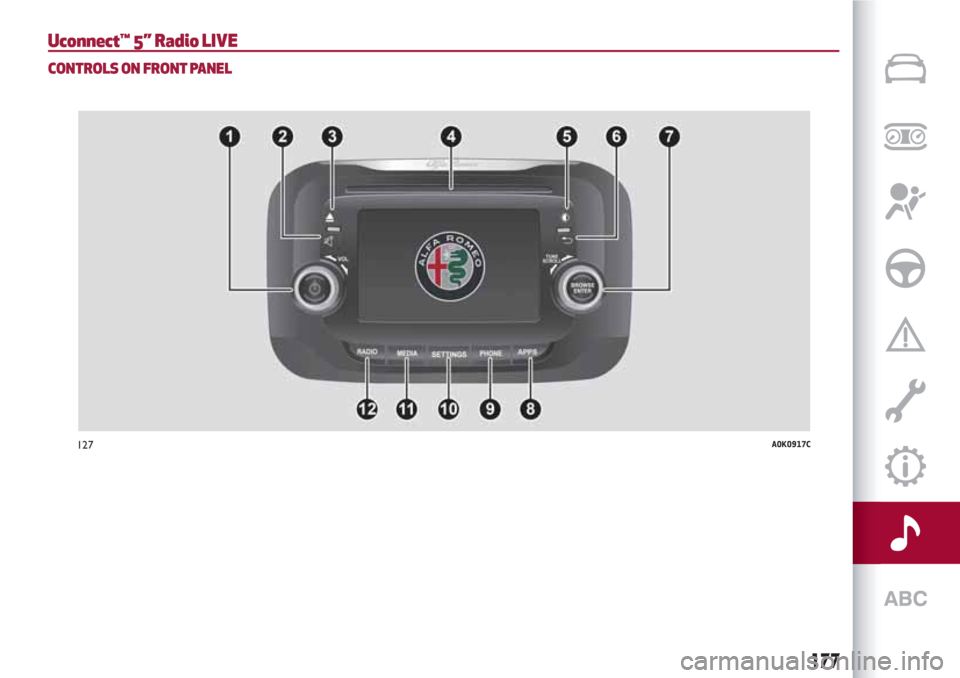

Uconnect™ 5” Radio LIVE
CONTROLS ON FRONT PANEL
127A0K0917C
177

FRONT CONTROL PANEL SUMMARY TABLE
Button Functions Mode
1–
Switching on Short button press
Switching off Short button press
Volume adjustment Left/right rotation of knob
2–
Volume activation/deactivation (Mute/Pause) Short button press
3–
Ejecting CD Short button press
4CD housing –
5–
Display on/off Short button press
6–
Exit the selection/return to previous screen Short button press
7 –BROWSE ENTERScrolling the list or tuning to a radio station Left/right rotation of knob
Confirmation of the option displayed Short button press
8 –APPSAccess to the additional functions: (for example, Clock
View, Outside temperature, Media, Radio andUconnect
™LIVE services)Short button press
9 – PHONEAccess to the Phone mode Short button press
10 – SETTINGSAccess to the main settings menu Short button press
11 – MEDIA
Short button press
12 –RADIOAccess to the Radio mode Short button press
178
MULTIMEDIA
Source selection: CD, USB, AUX (for versions/markets,
where provided),Bluetooth®
