Alfa Romeo Giulietta 2018 Owner's Manual

WEIGHTS
Weights 1.4 Turbo Petrol 1.4 Turbo MultiAir(*)1.4 Turbo MultiAir(**)
Unladen weight (with all fluids, fuel tank filled to
90% and without optional equipment)1280 1290 1305
Payload including the driver
(***)505 505 505
Maximum permitted loads
(****)
– front axle 1100 1100 1100
– rear axle 850 850 850
– total 1785 1795 1810
Towable loads (kg)
– braked trailer 1300 1300
1300 / 0
(****)
– trailer without brakes 500 500 500
Maximum load on roof 50 50 50
Maximum load on tow hitch (trailer with brakes) 60 60 60
(*) Versions with manual gearbox
(**) Versions with Alfa TCT
(***) If special equipment is fitted (sunroof, tow hitch, etc.) the unladen car weight increases, thus reducing the specified payload in relation to the maximum permissible
loads.
(****) Hot-humid climate countries
159

Weights1.4 Turbo Petrol/LPG
120 HP1750 Turbo Petrol
240 HP TCT(*)1.6 JTDM(**)
Unladen weight (with all fluids, fuel tank filled to 90% and
without optional equipment)1317 1320 1310
Payload including the driver
(***)503 535 540
Maximum permitted loads
(****)
– front axle 1100 1100 1100
– rear axle 890 850 850
– total 1820 1855 1850
Towable loads (kg)
– braked trailer 1300 1000 1300
– trailer without brakes 500 500 500
Maximum load on roof 50 50 50
Maximum load on tow hitch (trailer with brakes) 60 60 60
(*) For versions/markets, where provided
(**) Versions with manual gearbox
(***) If special equipment is fitted (sunroof, tow hitch, etc.) the unladen car weight increases, thus reducing the specified payload in relation to the maximum permissible
loads.
(****) Loads not to be exceeded. The user is responsible for arranging goods in the luggage compartment and/or load platform within the maximum permitted loads.
160
TECHNICAL SPECIFICATIONS

Weights 1.6 JTDM(**)2.0 JTDM(*)2.0 JTDM(**)
Unladen weight (with all fluids, fuel tank filled to 90% and
without optional equipment)1320 1320 1335
Payload including the driver
(***)540 540 540
Maximum permitted loads
(****)
– front axle 1100 1100 1100
– rear axle 850 850 850
– total 1860 1860 1875
Towable loads (kg)
– braked trailer 600 1300 600
– trailer without brakes 500 500 500
Maximum load on roof 50 50 50
Maximum load on tow hitch (trailer with brakes) 60 60 60
(**) Versions with Alfa TCT
(*) Versions with manual gearbox
(***) If special equipment is fitted (sunroof, tow hitch, etc.) the unladen car weight increases, thus reducing the specified payload in relation to the maximum permissible
loads.
(****) Loads not to be exceeded. The user is responsible for arranging goods in the luggage compartment and/or load platform within the maximum permitted loads.
161

REFUELLING
1.4 Turbo Petrol 1.4 Turbo MultiAir
Prescribed fuels and original
lubricants
litres kg litres kg
Fuel tank 60 – 60 –
Unleadedpetrol not
less than
95 RON (EN 228 specification)
including a reserve of 8 - 10 – 8 - 10 –
Engine cooling system (with
climate control)5.7 5.0 5.7 5.0Mixture of distilled water and
PARAFLU
UPfluid 50%(*)
Engine sump 2.75 2.3 3.1 2.6SELENIA StAR P.E. (1.4 Turbo
Petrol versions)
SELENIA DIGITEK P.E.
(1.4 Turbo MultiAir versions) Engine sump and filter 3.1 2.6 3.5 2.9
Transmission casing/differential 2.0 1.7 2.0 1.7TUTELA TRANSMISSION
GEARFORCE
Hydraulic brake circuit with ABS
(Anti-lock braking system)0.83 0.78 0.83 0.78TUTELA BRAKE FLUID
EXTREME HT
Windscreen/rear
window/headlight washer fluid
reservoir
(**)2.8 (4.6) 2.5 (4.1) 2.8 (4.6) 2.5 (4.1)Mixture of water and liquid
PETRONAS DURANCE SC 35
(*) When the vehicle is used in particularly harsh weather conditions, we recommend using a 60-40 mixture of PARAFLUUPand demineralised water.
(**) Values in brackets refer to versions with headlight washer
162
TECHNICAL SPECIFICATIONS

1.4 Turbo Petrol/LPG 120 HP
Prescribed fuels and original lubricants
litres kg
Fuel tank (Petrol/LPG) 60/38 –
Unleadedpetrol not
less than 95 RON (EN
228 specification)/LPG
Including a reserve of (petrol/LPG) 8 - 10/8 –
Engine cooling system (with climate control) 5.7 5.0Mixture of demineralised water and 50%
PARAFLU
UP(*)
Engine sump 2.75 2.3
SELENIA MULTIPOWER GAS 5W-40
Engine sump and filter 3.1 2.6
Transmission casing/differential 2.0 1.7 TUTELA TRANSMISSION GEARFORCE
Hydraulic brake circuit with ABS (Anti-lock
braking system)0.83 0.78
TUTELA BRAKE FLUID EXTREME HT
Windscreen/rear window/headlight washer fluid
reservoir
(**)2.8 (4.6) 2.5 (4.1)
Mixture of water and liquid PETRONAS
DURANCE SC 35
(*) When the vehicle is used in particularly harsh weather conditions, we recommend using a 60-40 mixture of PARAFLUUPand demineralised water.
(**) Values in brackets refer to versions with headlight washer
163

1750 Turbo Petrol 240 HP(*)Prescribed fuels and original lubricants
litres kg
Fuel tank 60 –
Unleaded petrol notless than 95 RON (EN
228 specification)
including a reserve of 8 - 10 –
Engine cooling system (with climate control) 6.4 5.7Mixture of demineralised water and 50%
PARAFLU
UP(**)
Engine sump 5.0 4.25
SELENIA SPORT POWER
Engine sump and filter 5.1 4.35
Automatic transmission casing 2.0 1.7 TUTELA TRANSMISSION GEARFORCE
Hydraulic brake circuit with ABS (Anti-lock
braking system)0.83 0.78 TUTELA BRAKE FLUID EXTREME HT
Windscreen/rear window/headlight washer
fluid reservoir
(***)2.8 (4.6) 2.5 (4.1)Mixture of water and liquid PETRONAS
DURANCE SC 35
(*) Where fitted
(**) When the vehicle is used in particularly harsh weather conditions, we recommend using a 60-40 mixture of PARAFLUUPand demineralised water.
(***) Values in brackets refer to versions with headlight washer
164
TECHNICAL SPECIFICATIONS

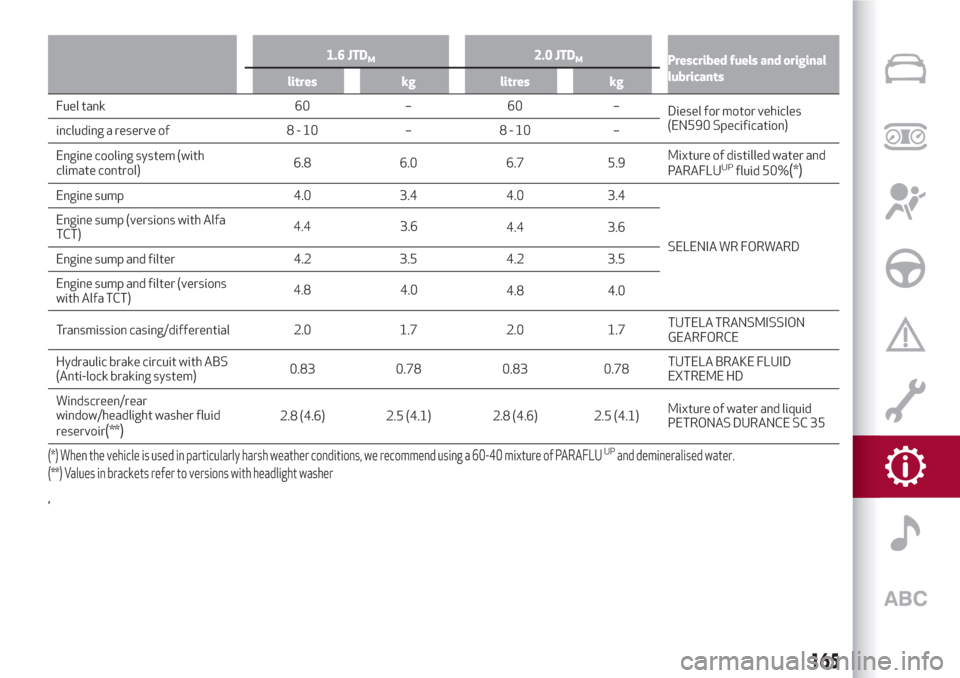

1.6 JTDM2.0 JTDMPrescribed fuels and original
lubricants
litres kg litres kg
Fuel tank 60 – 60 –
Diesel for motorvehicles
(EN590 Specification)
including a reserve of 8 - 10 – 8 - 10 –
Engine cooling system (with
climate control)6.8 6.0 6.7 5.9Mixture of distilled water and
PARAFLU
UPfluid 50%(*)
Engine sump 4.0 3.4 4.0 3.4
SELENIA WR FORWARD Engine sump (versions with Alfa
TCT)4.4 3.6
Engine sump and filter 4.2 3.5 4.2 3.5
Engine sump and filter (versions
with Alfa TCT)4.8 4.0
Transmission casing/differential 2.0 1.7 2.0 1.7TUTELA TRANSMISSION
GEARFORCE
Hydraulic brake circuit with ABS
(Anti-lock braking system)0.83 0.78 0.83 0.78TUTELA BRAKE FLUID
EXTREME HD
Windscreen/rear
window/headlight washer fluid
reservoir
(**)2.8 (4.6) 2.5 (4.1) 2.8 (4.6) 2.5 (4.1)Mixture of water and liquid
PETRONAS DURANCE SC 35
(*) When the vehicle is used in particularly harsh weather conditions, we recommend using a 60-40 mixture of PARAFLUUPand demineralised water.
(**) Values in brackets refer to versions with headlight washer
,
165
4.4 3.6
4.8 4.0

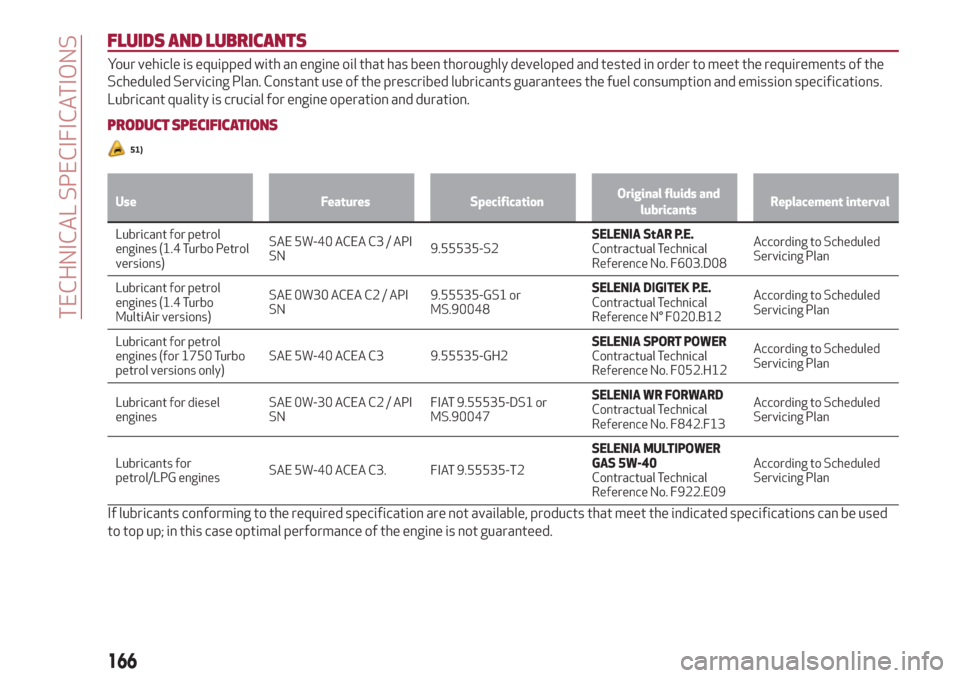

FLUIDS AND LUBRICANTS
Your vehicle is equipped with an engine oil that has been thoroughly developed and tested in order to meet the requirements of the
Scheduled Servicing Plan. Constant use of the prescribed lubricants guarantees the fuel consumption and emission specifications.
Lubricant quality is crucial for engine operation and duration.
PRODUCT SPECIFICATIONS
51)
Use Features SpecificationOriginal fluids and
lubricantsReplacement interval
Lubricant for petrol
engines (1.4 T
urbo Petrol
versions)SAE 5W-40 ACEA C3 / API
SN9.55535-S2SELENIA StAR P.E.
Contractual Technical
Reference No. F603.D08According to Scheduled
Servicing Plan
Lubricant for petrol
engines (1.4 Turbo
MultiAir versions)SAE 0W30 ACEA C2 / API
SN9.55535-GS1 or
MS.90048SELENIA DIGITEK P.E.
Contractual Technical
Reference N° F020.B12According to Scheduled
Servicing Plan
Lubricant for petrol
engines (for 1750 Turbo
petrol versions only)SAE 5W-40 ACEA C3 9.55535-GH2SELENIA SPORT POWER
Contractual Technical
Reference No. F052.H12According to Scheduled
Servicing Plan
Lubricant for diesel
enginesSAE 0W-30 ACEA C2 / API
SNFIAT 9.55535-DS1 or
MS.90047SELENIA WR FORWARD
Contractual Technical
Reference No. F842.F13According to Scheduled
Servicing Plan
Lubricants for
petrol/LPG enginesSAE 5W-40 ACEA C3. FIAT 9.55535-T2SELENIA MULTIPOWER
GAS 5W-40
Contractual Technical
Reference No. F922.E09According to Scheduled
Servicing Plan
If lubricants conforming to the required specification are not available, products that meet the indicated specifications can be used
to top up; in this case optimal performance of the engine is not guaranteed.
166
TECHNICAL SPECIFICATIONS

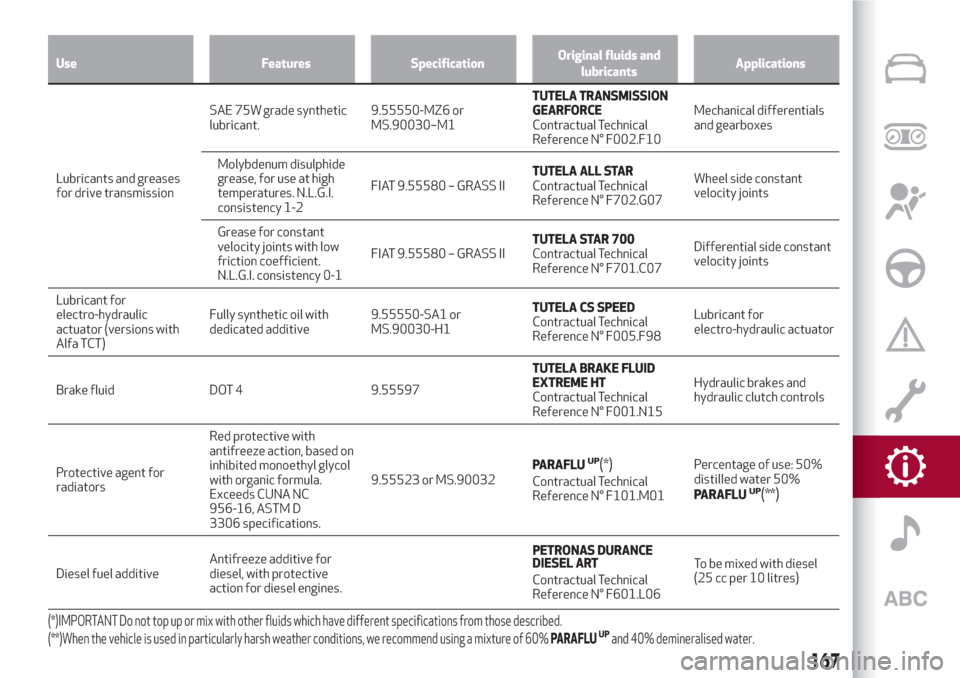

Use Features SpecificationOriginal fluids and
lubricantsApplications
Lubricants and greases
for drive transmissionSAE 75W grade synthetic
lubricant.9.55550-MZ6 or
MS.90030–M1TUTELA TRANSMISSION
GEARFORCE
Contractual Technical
Reference N° F002.F10Mechanical differentials
and gearboxes
Molybdenum disulphide
grease, for use at high
temperatures. N.L.G.I.
consistency 1-2FIAT 9.55580 – GRASS IITUTELA ALL STAR
Contractual Technical
Reference N° F702.G07Wheel side constant
velocity joints
Grease for constant
velocity joints with low
friction coefficient.
N.L.G.I. consistency 0-1FIAT 9.55580 – GRASS IITUTELA STAR 700
Contractual Technical
Reference N° F701.C07Differential side constant
velocity joints
Lubricant for
electro-hydraulic
actuator (versions with
Alfa TCT)Fully synthetic oil with
dedicated additive9.55550-SA1 or
MS.90030-H1TUTELA CS SPEED
Contractual Technical
Reference N° F005.F98Lubricant for
electro-hydraulic actuator
Brake fluid DOT 4 9.55597TUTELA BRAKE FLUID
EXTREME HT
Contractual Technical
Reference N° F001.N15Hydraulic brakes and
hydraulic clutch controls
Protective agent for
radiatorsRed protective with
antifreeze action, based on
inhibited monoethyl glycol
with organic formula.
Exceeds CUNA NC
956-16, ASTM D
3306 specifications.9.55523 or MS.90032PARAFLU
UP(*)
Contractual Technical
Reference N° F101.M01Percentage of use: 50%
distilled water 50%
PARAFLUUP(**)
Diesel fuel additiveAntifreeze additive for
diesel, with protective
action for diesel engines.DIESEL ART
Contractual Technical
Reference N° F601.L06To be mixed with diesel
(25 cc per 10 litres)
(*)IMPORTANT Do not top up or mix with other fluids which have different specifications from those described.
(**)When the vehicle is used in particularly harsh weather conditions, we recommend using a mixture of 60%PARAFLUUPand 40% demineralised water.
167

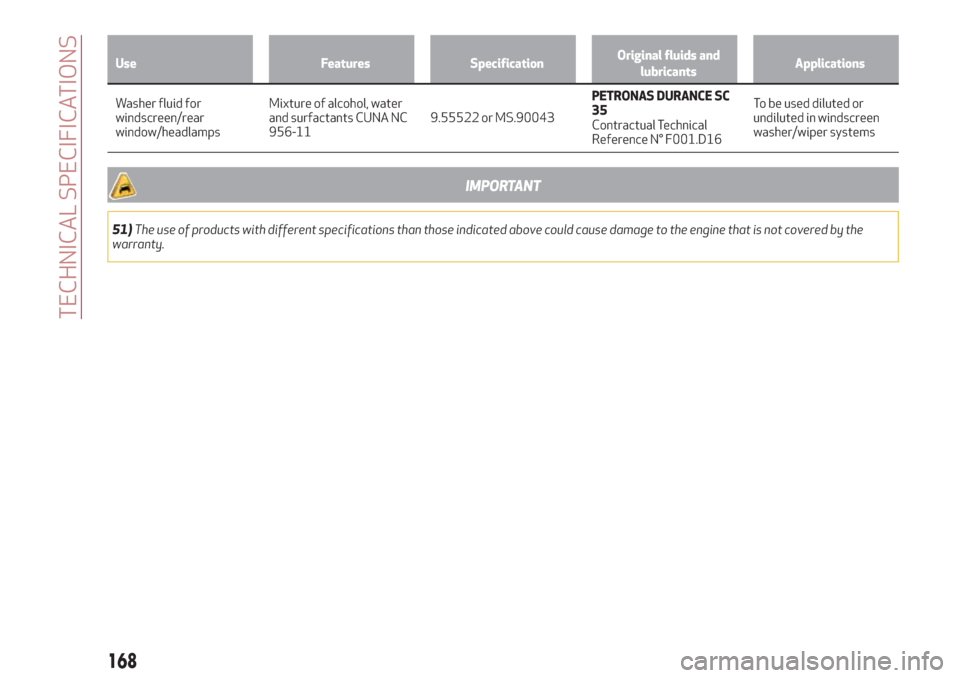

PETRONAS DURANCE

Use Features SpecificationOriginal fluids and
lubricantsApplications
Washer fluid for
windscreen/rear
window/headlampsMixture of alcohol,water
and surfactants CUNA NC
956-119.55522 or MS.90043PETRONAS DURANCE SC
35
Contractual Technical
Reference N° F001.D16To be used diluted or
undiluted in windscreen
washer/wiper systems
IMPORTANT
51)The use of products with different specifications than those indicated above could cause damage to the engine that is not covered by the
warranty.
