Alfa Romeo MiTo 2009 Owner handbook (in English)

50GETTING TO KNOW YOUR CAR
REPLACING THE BATTERY
IN THE KEY WITH REMOTE CONTROL
Proceed as follows:
❍press button A-fig. 17 and bring the metal insert B into the open
position; turn screw C
:using a small point screwdriver;
❍remove the battery holder case D and replace battery E re-
specting the polarity; reinsert case D into the key and secure
it by turning screw C to
Á.
fig. 17A0J0073m
Used batteries are harmful to the environment.
They should be disposed of as specified by law in
special containers or taken to an Alfa Romeo Au-
thorised Service, which will take care of their disposal.
001-126 Alfa MiTo GB 13-11-2008 10:08 Pagina 50

GETTING TO KNOW YOUR CAR51
1
SAFE LOCK DEVICE (where provided)
This safety device inhibits the operation of the interior door han-
dles and the door locking/unlocking button. We recommend that
you activate this device each time you park your car.
Engaging the system
The system is enabled on all the doors by quickly double-pressing
the
Ábutton on the key.
Theengagement of the system is indicated by three flashes of the di-
rection indicators and the flashing of LED A-fig. 18. The device will
not engage if one or more doors are not closed correctly.Once the safe lock system is engaged it is impossi-
ble to open the doors from inside the vehicle. Be-
fore engaging the system please therefore check
that there is no one left on board. If the battery in the
key with the remote control is flat, the device may only
be turned off by inserting the metal part of the key into
the door catch.
Disengaging the system
The system disengages automatically by:
❍opening the driver-side door using the metal insert;
❍pressing the Ëbutton on the remote control;
❍turning the ignition key to MAR.
fig. 18A0J0027m
001-126 Alfa MiTo GB 13-11-2008 10:08 Pagina 51

52GETTING TO KNOW YOUR CAR
The main functions that can be activated with the keys (with or without remote control) are as follows:
Type of key
Key without remote control
Key with remote control
Direction
indicators flashing (only for
key with remote control)
Deterrence led
Unlocking
the doors
Turn key
anticlockwise
(driver’s side)
Turn key
anticlockwise
(driver’s side)
Briefly press
button
Ë
blinks twice
OffLocking the doors
from the outside
Turn key
clockwise
(driver’s side)
Turn key
clockwise
(driver’s side)
Briefly press
button
Á
blinks once
Turning on glowing
steadily for about 3
seconds followed by
deterrenceflashing
Safe lock activation
(where provided)
–
–
Double pressing
button
Á
3 blinks
Double flashing, fol-
lowed by deterrence
flashingTailgate
opening
–
–
Briefly press
button
R
blinks twice
Deterrent
flashing
IMPORTANT The windows will be opened when the doors are unlocked; the windows will be closed when the doors are locked.
Windows down
(where provided)
–
–
Hold down
(for more than 2
seconds)
button
Ë
blinks twice
OffWindows up
(where provided)
–
–
Hold down
(for more than 2
seconds)
button
Á
blinks once
Deterrence LED
blinks
001-126 Alfa MiTo GB 13-11-2008 10:08 Pagina 52

GETTING TO KNOW YOUR CAR53
1ALARM (where provided)
ALARM TRIPPING
The alarm trips in the following cases:
❍illegal opening of doors/bonnet/luggage compartment
(perimeter protection);
❍illegal operation of ignition system (ignition key rotated to
MAR);
❍when the battery cables are cut;
❍when someone is moving inside the passenger compartment
(volume-sensing protection);
❍anomalous lifting/tilting of the vehicle (for versions/markets
where provided).
The tripping of the alarm is indicated by a sound and a visual dis-
play (flashing of the direction indicators for several seconds). The
alarm triggering methods may vary according to the market. There
is a maximum number of acoustic/visual cycles. When this is
reached the system returns to normal operation.
IMPORTANT The engine inhibitor function is guaranteed by the
Alfa Romeo CODE, which is automatically activated when the ig-
nition key is extracted from the ignition switch.
IMPORTANT the alarm is configured to comply with the regulations
existing in different countries.
ACTIVATING THE ALARM
With the doors and bonnet closed and the ignition key either turned
to STOP or removed, direct the key with the remote control to-
wards the vehicle and press button
Á. Except on some versions
for specific markets, the system produces a visual and acoustic
warning and enables door locking.
Before the alarm is enabled, a self-diagnosis test is run. in the event
of a fault, the system emits a further acoustic and/or visual warn-
ing via the LED on the dashboard.
If after the alarm is activated, a second acoustic warning is emit-
ted and/or the LED on the dashboard flashes, wait about 4 sec-
onds and then deactivate the alarm by pressing
Ë, check that
the doors, bonnet and luggage compartment are closed correctly
and then reactivate the system by pressing
Á.
If the alarm produces an acoustic signal even when the doors, bon-
net and boot are correctly closed, a failure has occurred in sys-
tem operation. Contact an Alfa Romeo Authorised Service.
001-126 Alfa MiTo GB 13-11-2008 10:08 Pagina 53

54GETTING TO KNOW YOUR CAR
SWITCHING OFF THE ALARM
Press the Ëbutton. The following operations are performed (ex-
cluding some versions for specific markets):
❍the direction indicators flash twice;
❍two brief acoustic signals are emitted;
❍the doors are unlocked.
IMPORTANT If the central door locking system is engaged using the
metal insert of the key, the alarm is not disabled.
VOLUME SENSING/ ANTI-TILT PROTECTION
To guarantee the correct operation of the protection, close the side
windows and any sunroof completely (where provided).
To disable the function press button A-fig. 20 before activating
the alarm. The deactivation of the function is indicated by the
LED on button A flashing for several seconds.
Any disabling of the volume sensing/anti-tilt protection must be
repeated each time the instrument panel is switched off.
DISABLING THE ALARM
To permanently disable the alarm (e.g. during a lengthy period
of idleness), lock the vehicle by turning the metal insert of the key
with remote control in the lock.
IMPORTANT If the battery of the key with the remote control goes
flat or the system fails, the alarm can be switched off by placing
the key in the ignition switch and turning it to MAR.
fig. 20A0J0226m
A
001-126 Alfa MiTo GB 13-11-2008 10:08 Pagina 54

GETTING TO KNOW YOUR CAR55
1IGNITION DEVICE
The key can be turned to three different positions fig. 21:
❍STOP: the engine is off, the key can be extracted, the steer-
ing is locked. Some electrical devices (e.g. car radio, central
door locking system, alarm, etc.) are enabled;
❍MAR: driving position. All electrical devices are enabled;
❍AVV: engine start-up.
The ignition switch is fitted with an electronic safety system that
requires the ignition key to be turned back to STOP if the engine
will not start, before the starting operation can be repeated.
fig. 21A0J0031m
If the ignition switch is tampered with (e.g.:
attempted theft), have it checked over by an Alfa
Romeo Authorised Service as soon as possible.
Always remove the key when you leave your car
to prevent someone from accidentally operating
the controls. Remember to engage the handbrake.
Engage 1
stgear if the car is parked uphill or reverse if the
car is parked downhill. Never leave children unattended
in the car.
001-126 Alfa MiTo GB 13-11-2008 10:08 Pagina 55

56GETTING TO KNOW YOUR CAR
STEERING COLUMN LOCK
Engagement
When the key is at STOP, remove the key and turn the steering
wheel until it locks.
Disengagement
Move the steering wheel slightly as you turn the ignition key to
MAR.
It is absolutely forbidden to carry out any after-
market operation involving steering system or
steering column modifications (e.g.: installation of
anti-theft device). This could badly affect performance and
safety, invalidate the warranty and also result in the non-
compliance of the car with approval requirements.
Never remove the key while the vehicle is moving.
The steering wheel would lock as soon as the steer-
ing wheel is turned. This also applies to cases in
which the car is towed.
SEATS
FRONT SEATS fig. 22
All adjustments must be made with the car sta-
tionary.
Longitudinal adjustment
Lift lever A and push the seat forwards or backwards: your arms
should rest on the steering wheel rim while you are driving.
After releasing the adjustment lever, always check
that the seat is locked on the runners by trying
to move it back and forth. If it is not locked, the
seat may move unexpectedly and make you lose control
of the car.
001-126 Alfa MiTo GB 13-11-2008 10:08 Pagina 56

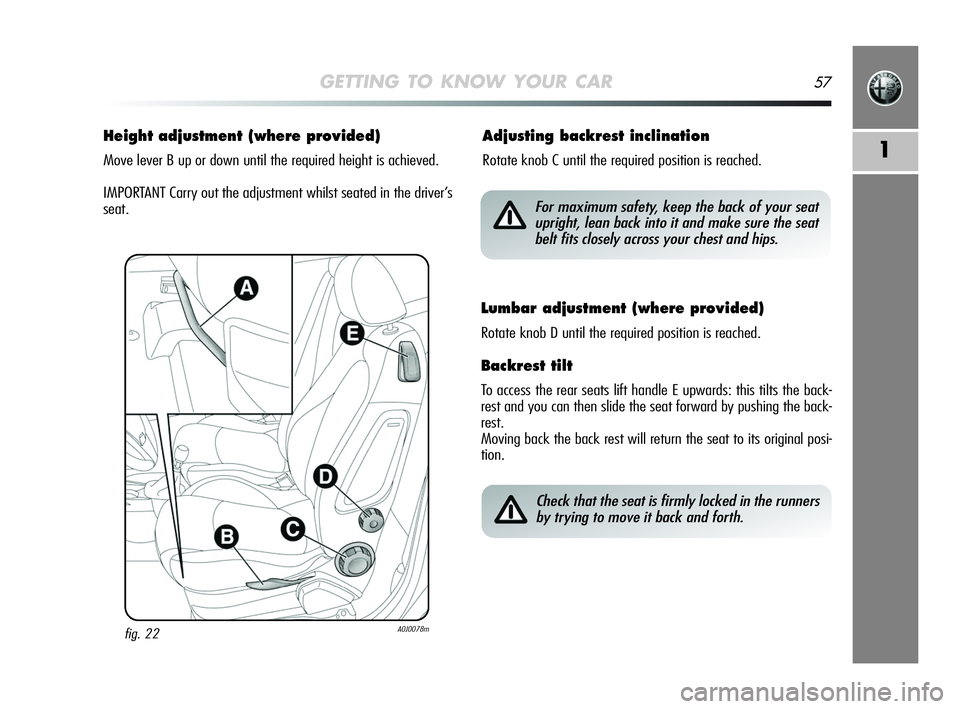

GETTING TO KNOW YOUR CAR57
1
Height adjustment (where provided)
Move lever B up or down until the required height is achieved.
IMPORTANT Carry out the adjustment whilst seated in the driver’s
seat.
Adjusting backrest inclination
Rotate knob C until the required position is reached.
fig. 22A0J0078m
For maximum safety, keep the back of your seat
upright, lean back into it and make sure the seat
belt fits closely across your chest and hips.
Lumbar adjustment (where provided)
Rotate knob D until the required position is reached.
Backrest tilt
To access the rear seats lift handle E upwards: this tilts the back-
rest and you can then slide the seat forward by pushing the back-
rest.
Moving back the back rest will return the seat to its original posi-
tion.
Check that the seat is firmly locked in the runners
by trying to move it back and forth.
001-126 Alfa MiTo GB 13-11-2008 10:08 Pagina 57

58GETTING TO KNOW YOUR CAR
Seat warming (where provided)
With the key turned to MAR, press buttons A or B-fig. 23 to acti-
vate/deactivate the function. When the function is enabled, the
LED on the buttons will light up.
EASY ENTRY
This function allows easy access to the rear seats.
To reach the rear seats, lift up handle E-fig. 22 and move the seat
backrest forward: the seat will automatically move forward.
Bringing the backrest back to its normal position will move the seat
back to its original position.
If the backrest encounters an obstacle when moving back (e.g. the
knees of the passenger in the back seat), the seat will stop, move
forwards by a few centimetres and then stop in this position.
fig. 23A0J0253m
001-126 Alfa MiTo GB 13-11-2008 10:08 Pagina 58

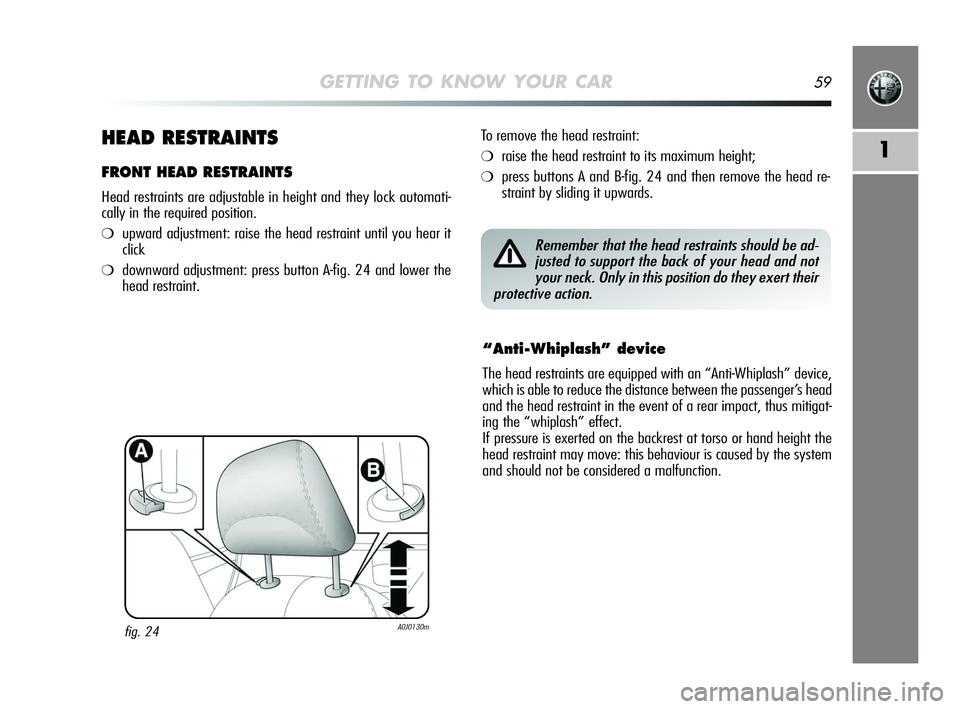

GETTING TO KNOW YOUR CAR59
1HEAD RESTRAINTS
FRONT HEAD RESTRAINTS
Head restraints are adjustable in height and they lock automati-
cally in the required position.
❍upward adjustment: raise the head restraint until you hear it
click
❍downward adjustment: press button A-fig. 24 and lower the
head restraint.To remove the head restraint:
❍raise the head restraint to its maximum height;
❍press buttons A and B-fig. 24 and then remove the head re-
straint by sliding it upwards.
fig. 24A0J0130m
“Anti-Whiplash” device
The head restraints are equipped with an “Anti-Whiplash” device,
which is able to reduce the distance between the passenger’s head
and the head restraint in the event of a rear impact, thus mitigat-
ing the “whiplash” effect.
If pressure is exerted on the backrest at torso or hand height the
head restraint may move: this behaviour is caused by the system
and should not be considered a malfunction.
Remember that the head restraints should be ad-
justed to support the back of your head and not
your neck. Only in this position do they exert their
protective action.
001-126 Alfa MiTo GB 13-11-2008 10:08 Pagina 59
