20GETTING TO KNOW YOUR CAR

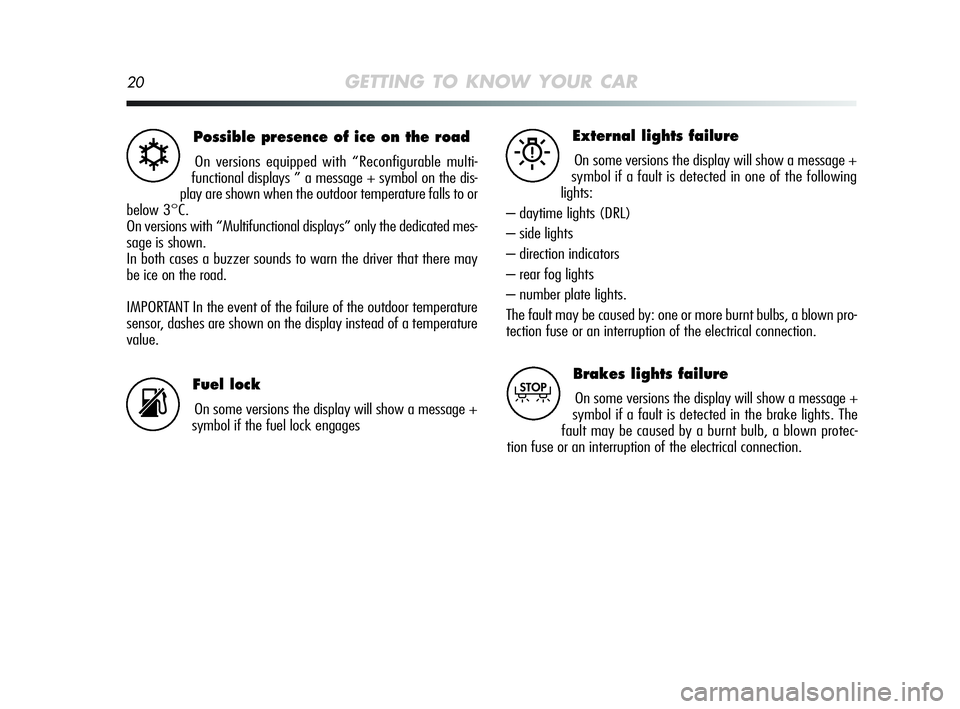

Possible presence of ice on the road
On versions equipped with “Reconfigurable multi-
functional displays ” a message + symbol on the dis-
play are shown when the outdoor temperature falls to or
below 3°C.
On versions with “Multifunctional displays” only the dedicated mes-
sage is shown.
In both cases a buzzer sounds to warn the driver that there may
be ice on the road.
IMPORTANT In the event of the failure of the outdoor temperature
sensor, dashes are shown on the display instead of a temperature
value.√
Fuel lock
On some versions the display will show a message +
symbol if the fuel lock engagess
External lights failure
On some versions the display will show a message +
symbol if a fault is detected in one of the following
lights:
– daytime lights (DRL)
– side lights
– direction indicators
– rear fog lights
– number plate lights.
The fault may be caused by: one or more burnt bulbs, a blown pro-
tection fuse or an interruption of the electrical connection.W
Brakes lights failure
On some versions the display will show a message +
symbol if a fault is detected in the brake lights. The
fault may be caused by a burnt bulb, a blown protec-
tion fuse or an interruption of the electrical connection.T
001-126 Alfa MiTo GB 13-11-2008 10:08 Pagina 20

GETTING TO KNOW YOUR CAR21
1

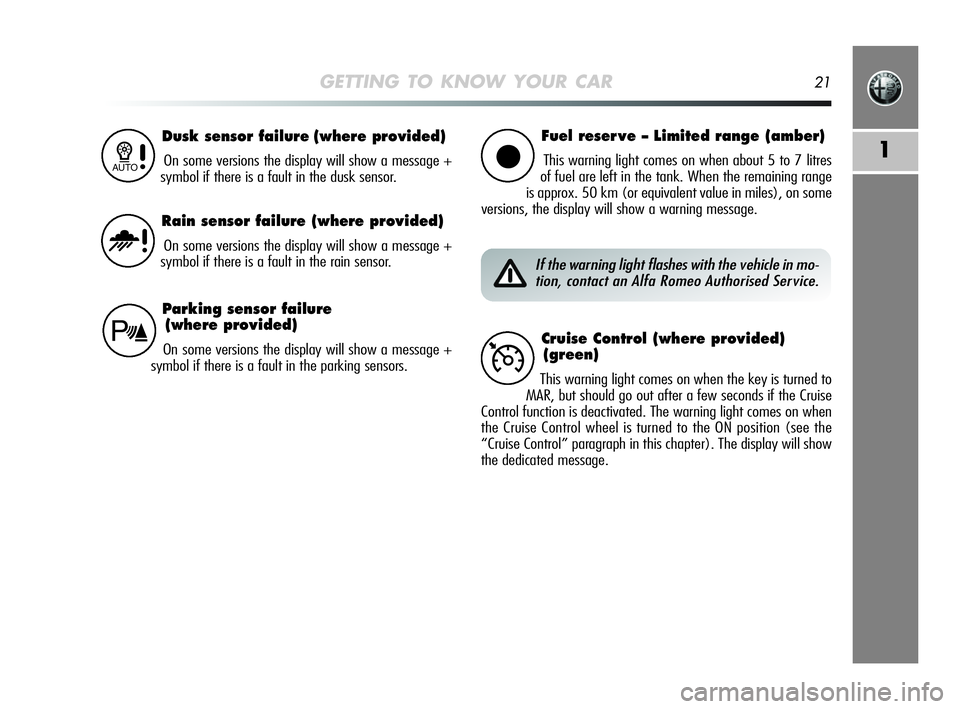

Dusk sensor failure (where provided)
On some versions the display will show a message +
symbol if there is a fault in the dusk sensor.1
Fuel reser ve – Limited range (amber)
This warning light comes on when about 5 to 7 litres
of fuel are left in the tank. When the remaining range
is approx. 50 km (or equivalent value in miles), on some
versions, the display will show a warning message.
Parking sensor failure
(where provided)
On some versions the display will show a message +
symbol if there is a fault in the parking sensors.
Rain sensor failure (where provided)
On some versions the display will show a message +
symbol if there is a fault in the rain sensor.u
ç
t
If the warning light flashes with the vehicle in mo-
tion, contact an Alfa Romeo Authorised Service.
Cruise Control (where provided)
(green)
This warning light comes on when the key is turned to
MAR, but should go out after a few seconds if the Cruise
Control function is deactivated. The warning light comes on when
the Cruise Control wheel is turned to the ON position (see the
“Cruise Control” paragraph in this chapter). The display will show
the dedicated message.Ü
001-126 Alfa MiTo GB 13-11-2008 10:08 Pagina 21

22GETTING TO KNOW YOUR CAR
Speed limit exceeded
(for versions/markets where
provided) (red)
This warning light (for versions/markets where provided)
comes on when the vehicle speed exceeds 120 km/h.
When the vehicle exceeds the speed limit set in the Setup Menu
(e.g. 120 km/h), on some versions a message and symbol are
shown in the display and a buzzer sounds.
X
General failure (amber)
(where provided)
On some versions, this warning light comes on under the
following circumstances:
External lights failure
See description of 6warning light.
Brake lights failure
See description of “brake lights failure”.
Fuel lock
This warning light comes on when the fuel cut-off inertia switch is
triggered. The display will show the dedicated message.
Rain sensor failure (where provided)
See description of uwarning light.
Parking sensor failure (where provided)
See description of twarning light.
Dusk sensor failure (where provided)
This warning light comes on when a dusk sensor failure is detect-
ed.
è
Particulate trap filter blocked
(Diesel versions) (amber)
This warning light comes on (together with a message
in the display), when the particulate trap filter is blocked.
To clean the filter, you should continue driving the vehicle until
the warning light goes out.
h
001-126 Alfa MiTo GB 13-11-2008 10:08 Pagina 22

GETTING TO KNOW YOUR CAR23
1

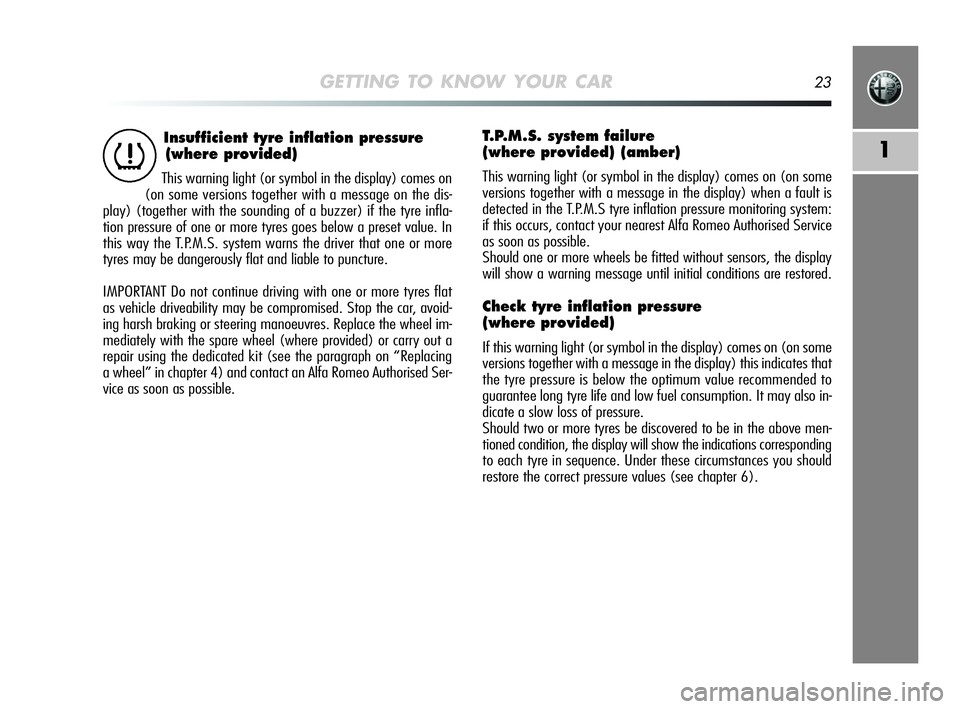

Insufficient tyre inflation pressure
(where provided)
This warning light (or symbol in the display) comes on
(on some versions together with a message on the dis-
play) (together with the sounding of a buzzer) if the tyre infla-
tion pressure of one or more tyres goes below a preset value. In
this way the T.P.M.S. system warns the driver that one or more
tyres may be dangerously flat and liable to puncture.
IMPORTANT Do not continue driving with one or more tyres flat
as vehicle driveability may be compromised. Stop the car, avoid-
ing harsh braking or steering manoeuvres. Replace the wheel im-
mediately with the spare wheel (where provided) or carry out a
repair using the dedicated kit (see the paragraph on “Replacing
a wheel” in chapter 4) and contact an Alfa Romeo Authorised Ser-
vice as soon as possible.n
T.P.M.S. system failure
(where provided) (amber)
This warning light (or symbol in the display) comes on (on some
versions together with a message in the display) when a fault is
detected in the T.P.M.S tyre inflation pressure monitoring system:
if this occurs, contact your nearest Alfa Romeo Authorised Service
as soon as possible.
Should one or more wheels be fitted without sensors, the display
will show a warning message until initial conditions are restored.
Check tyre inflation pressure
(where provided)
If this warning light (or symbol in the display) comes on (on some
versions together with a message in the display) this indicates that
the tyre pressure is below the optimum value recommended to
guarantee long tyre life and low fuel consumption. It may also in-
dicate a slow loss of pressure.
Should two or more tyres be discovered to be in the above men-
tioned condition, the display will show the indications corresponding
to each tyre in sequence. Under these circumstances you should
restore the correct pressure values (see chapter 6).
001-126 Alfa MiTo GB 13-11-2008 10:08 Pagina 23

24GETTING TO KNOW YOUR CAR

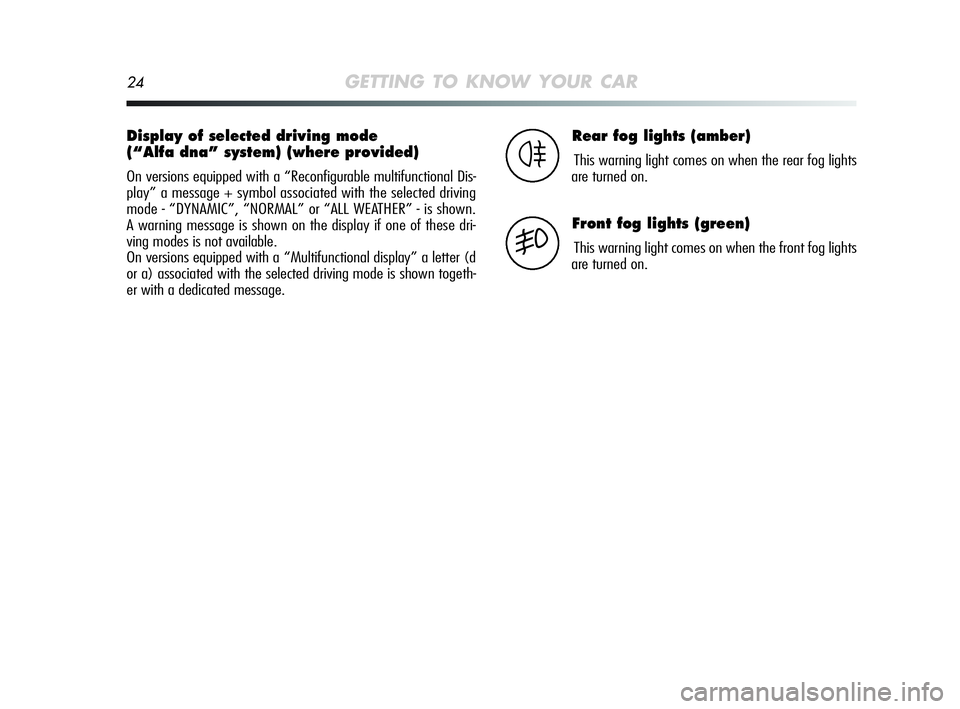

Display of selected driving mode
(“Alfa dna” system) (where provided)
On versions equipped with a “Reconfigurable multifunctional Dis-
play” a message + symbol associated with the selected driving
mode - “DYNAMIC”, “NORMAL” or “ALL WEATHER” - is shown.
A warning message is shown on the display if one of these dri-
ving modes is not available.
On versions equipped with a “Multifunctional display” a letter (d
or a) associated with the selected driving mode is shown togeth-
er with a dedicated message.
Rear fog lights (amber)
This warning light comes on when the rear fog lights
are turned on.4
Front fog lights (green)
This warning light comes on when the front fog lights
are turned on.5
001-126 Alfa MiTo GB 13-11-2008 10:08 Pagina 24

GETTING TO KNOW YOUR CAR25
1

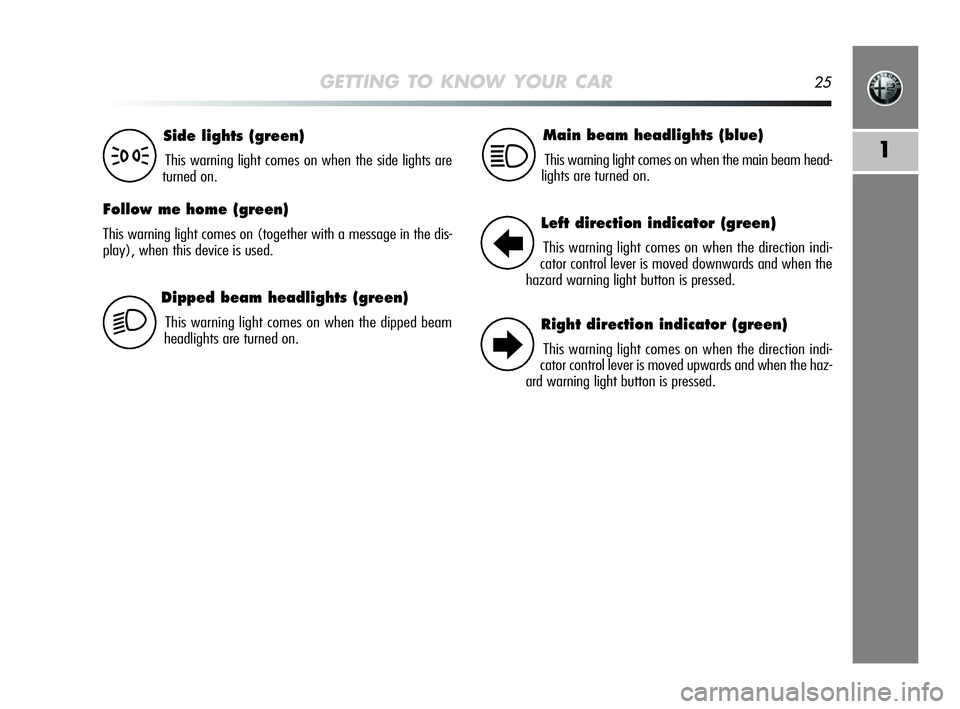

Dipped beam headlights (green)
This warning light comes on when the dipped beam
headlights are turned on.
Side lights (green)
This warning light comes on when the side lights are
turned on.
Follow me home (green)
This warning light comes on (together with a message in the dis-
play), when this device is used.
3
2
Main beam headlights (blue)
This warning light comes on when the main beam head-
lights are turned on.1
Left direction indicator (green)
This warning light comes on when the direction indi-
cator control lever is moved downwards and when the
hazard warning light button is pressed.
Right direction indicator (green)
This warning light comes on when the direction indi-
cator control lever is moved upwards and when the haz-
ard warning light button is pressed.
R
E
001-126 Alfa MiTo GB 13-11-2008 10:08 Pagina 25

26GETTING TO KNOW YOUR CAR
DISPLAY
The car may be equipped with the multifunctional display/multi-
functional reconfigurable display which, in accordance with the set-
tings made, can display useful information when driving.

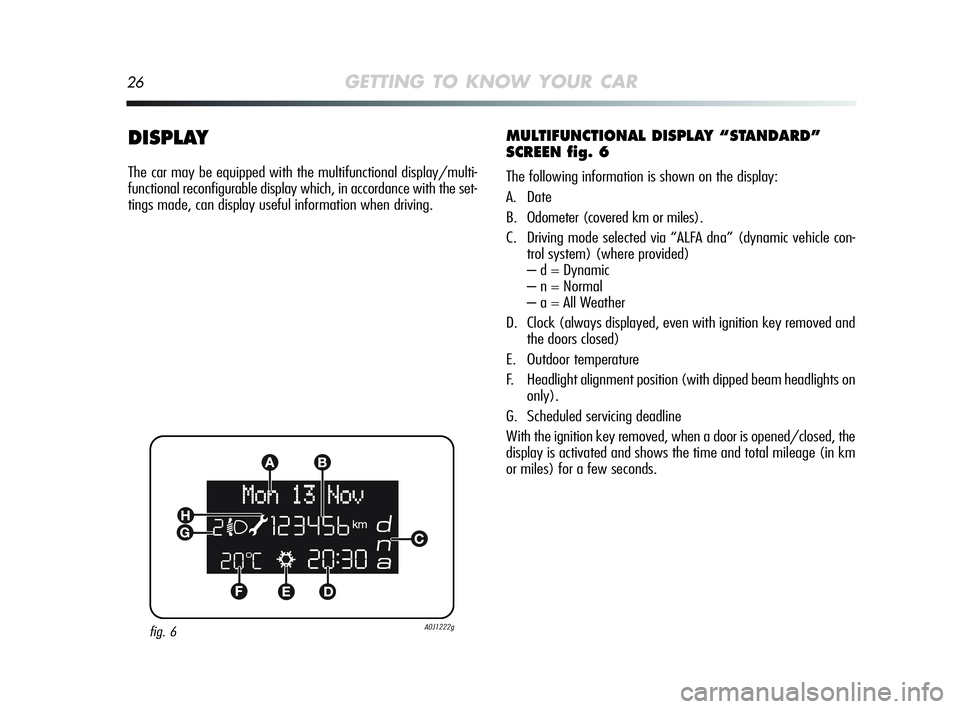

MULTIFUNCTIONAL DISPLAY “STANDARD”
SCREEN fig. 6
The following information is shown on the display:
A. Date
B. Odometer (covered km or miles).
C. Driving mode selected via “ALFA dna” (dynamic vehicle con-
trol system) (where provided)
– d = Dynamic
– n = Normal
– a = All Weather
D. Clock (always displayed, even with ignition key removed and
the doors closed)
E. Outdoor temperature
F. Headlight alignment position (with dipped beam headlights on
only).
G. Scheduled servicing deadline
With the ignition key removed, when a door is opened/closed, the
display is activated and shows the time and total mileage (in km
or miles) for a few seconds.
fig. 6A0J1222g
001-126 Alfa MiTo GB 13-11-2008 10:08 Pagina 26

GETTING TO KNOW YOUR CAR27
1

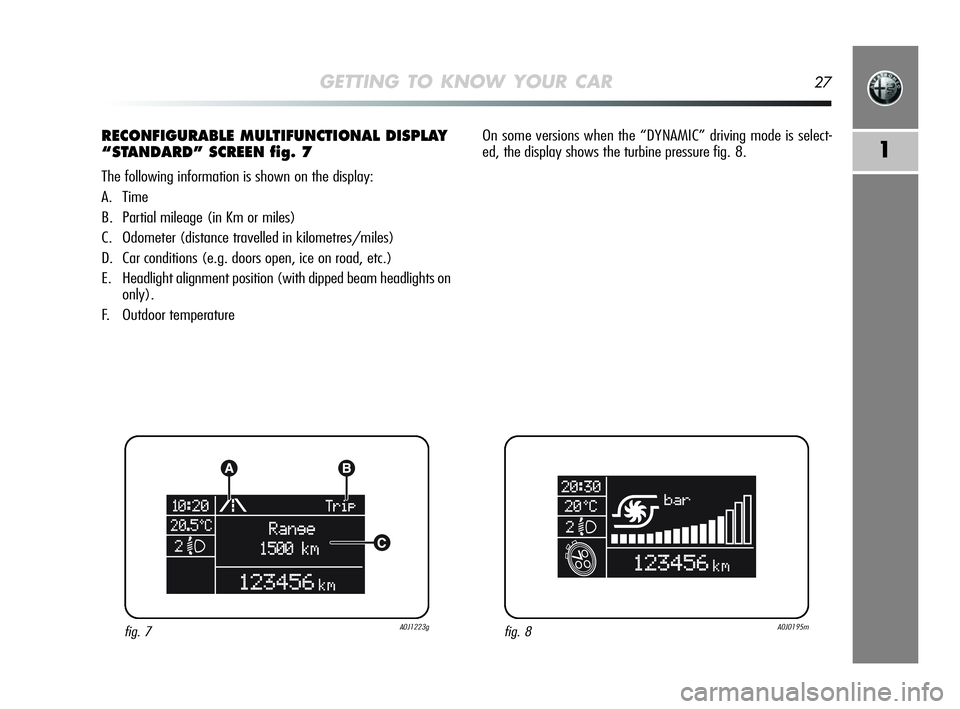

RECONFIGURABLE MULTIFUNCTIONAL DISPLAY
“STANDARD” SCREEN fig. 7
The following information is shown on the display:
A. Time
B. Partial mileage (in Km or miles)
C. Odometer (distance travelled in kilometres/miles)
D. Car conditions (e.g. doors open, ice on road, etc.)
E. Headlight alignment position (with dipped beam headlights on
only).
F. Outdoor temperatureOn some versions when the “DYNAMIC” driving mode is select-
ed, the display shows the turbine pressure fig. 8.
fig. 7A0J1223gfig. 8A0J0195m
001-126 Alfa MiTo GB 13-11-2008 10:08 Pagina 27

28GETTING TO KNOW YOUR CAR

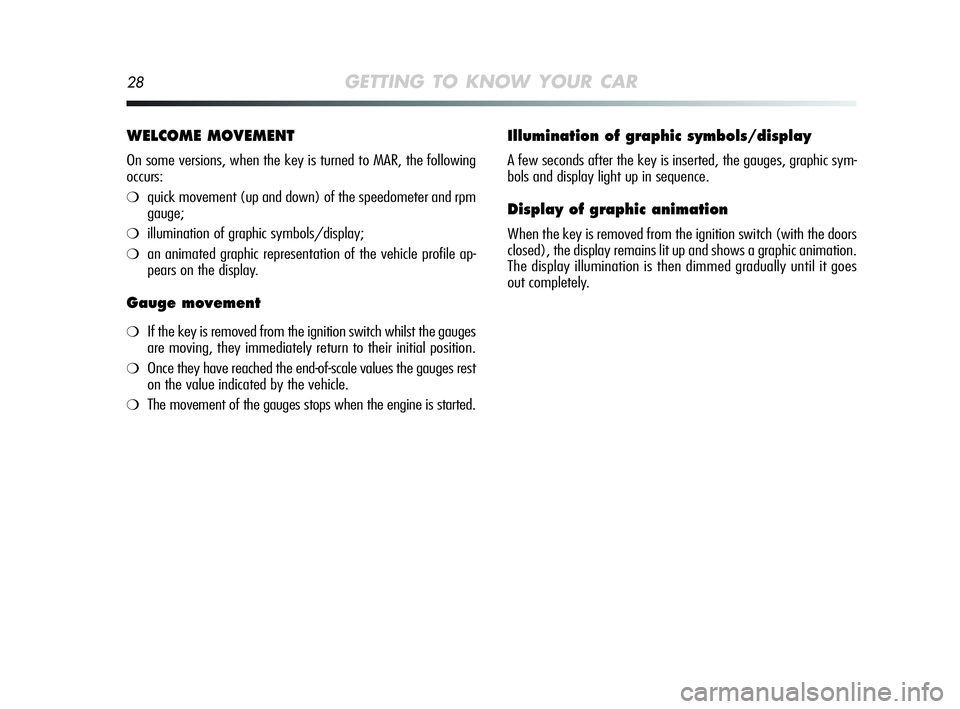

WELCOME MOVEMENT
On some versions, when the key is turned to MAR, the following
occurs:
❍quick movement (up and down) of the speedometer and rpm
gauge;
❍illumination of graphic symbols/display;
❍an animated graphic representation of the vehicle profile ap-
pears on the display.
Gauge movement
❍If the key is removed from the ignition switch whilst the gauges
are moving, they immediately return to their initial position.
❍Once they have reached the end-of-scale values the gauges rest
on the value indicated by the vehicle.
❍The movement of the gauges stops when the engine is started.
Illumination of graphic symbols/display
A few seconds after the key is inserted, the gauges, graphic sym-
bols and display light up in sequence.
Display of graphic animation
When the key is removed from the ignition switch (with the doors
closed), the display remains lit up and shows a graphic animation.
The display illumination is then dimmed gradually until it goes
out completely.
001-126 Alfa MiTo GB 13-11-2008 10:08 Pagina 28

GETTING TO KNOW YOUR CAR29
1

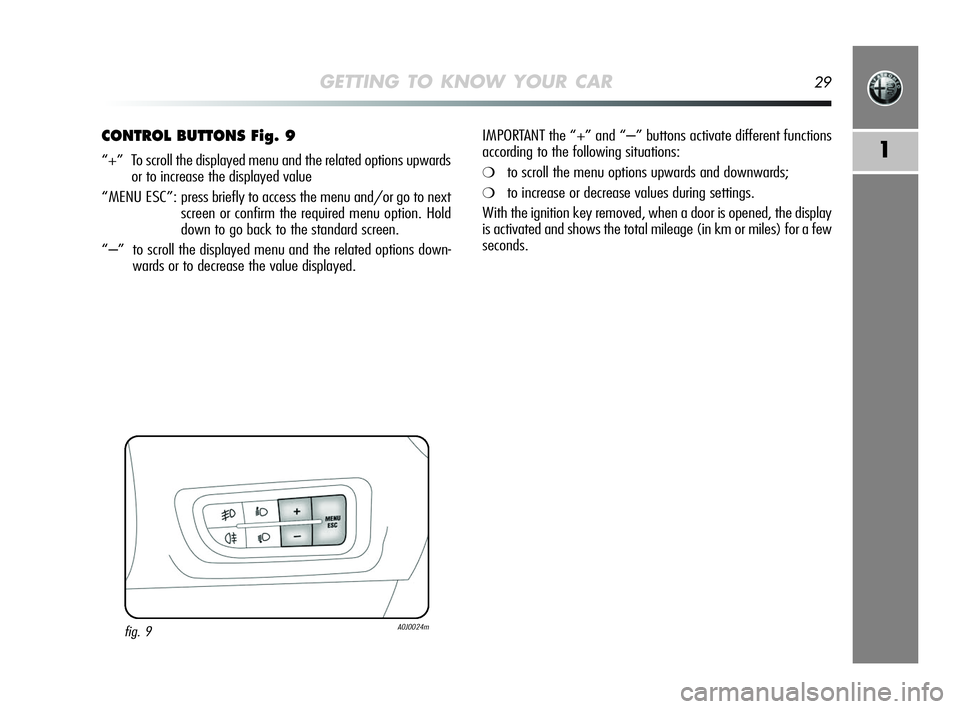

CONTROL BUTTONS Fig. 9
“+” To scroll the displayed menu and the related options upwards
or to increase the displayed value
“MENU ESC”: press briefly to access the menu and/or go to next
screen or confirm the required menu option. Hold
down to go back to the standard screen.
“–” to scroll the displayed menu and the related options down-
wards or to decrease the value displayed.IMPORTANT the “+” and “–” buttons activate different functions
according to the following situations:❍to scroll the menu options upwards and downwards;
❍to increase or decrease values during settings.
With the ignition key removed, when a door is opened, the display
is activated and shows the total mileage (in km or miles) for a few
seconds.
fig. 9A0J0024m
