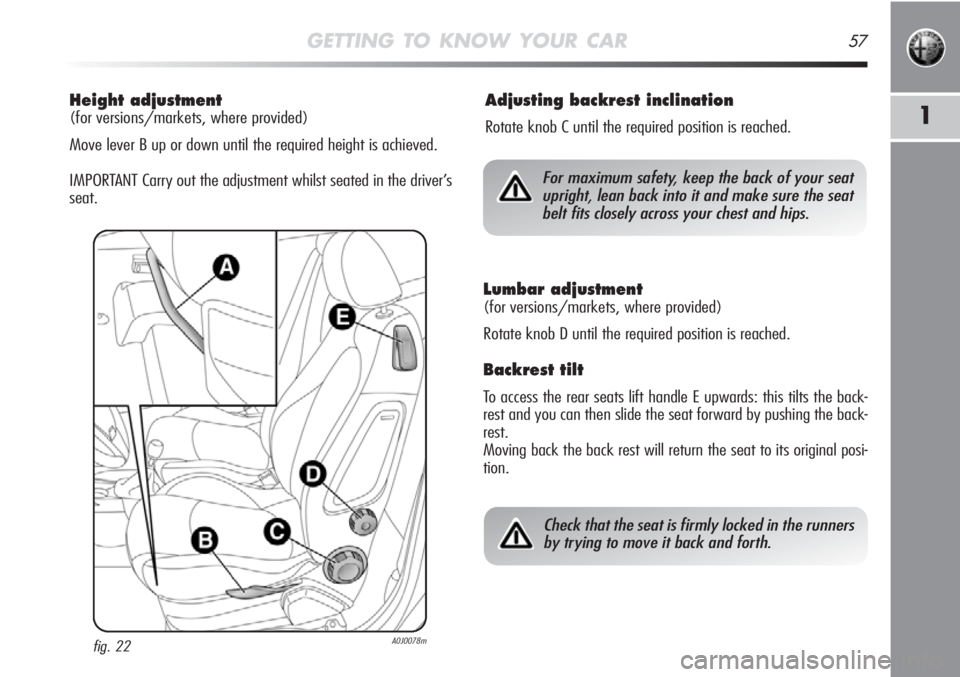

GETTING TO KNOW YOUR CAR57
1
Height adjustment
(for versions/markets, where provided)
Move lever B up or down until the required height is achieved.
IMPORTANT Carry out the adjustment whilst seated in the driver’s
seat.
Adjusting backrest inclination
Rotate knob C until the required position is reached.
fig. 22A0J0078m
For maximum safety, keep the back of your seat
upright, lean back into it and make sure the seat
belt fits closely across your chest and hips.
Lumbar adjustment
(for versions/markets, where provided)
Rotate knob D until the required position is reached.
Backrest tilt
To access the rear seats lift handle E upwards: this tilts the back-
rest and you can then slide the seat forward by pushing the back-
rest.
Moving back the back rest will return the seat to its original posi-
tion.
Check that the seat is firmly locked in the runners
by trying to move it back and forth.

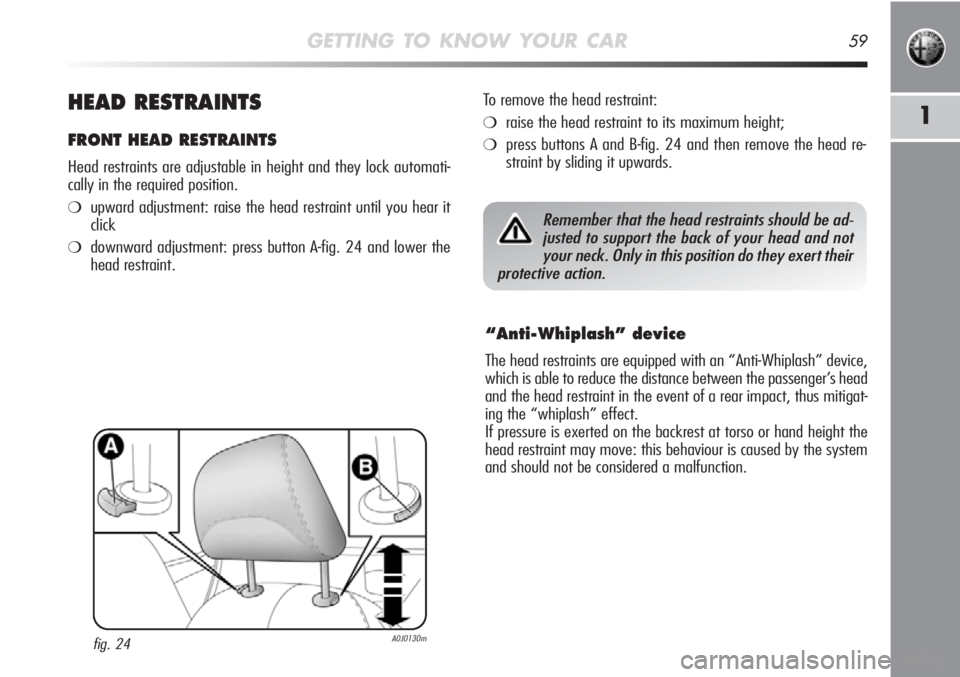

GETTING TO KNOW YOUR CAR59
1HEAD RESTRAINTS
FRONT HEAD RESTRAINTS
Head restraints are adjustable in height and they lock automati-
cally in the required position.
❍upward adjustment: raise the head restraint until you hear it
click
❍downward adjustment: press button A-fig. 24 and lower the
head restraint.To remove the head restraint:
❍raise the head restraint to its maximum height;
❍press buttons A and B-fig. 24 and then remove the head re-
straint by sliding it upwards.
fig. 24A0J0130m
“Anti-Whiplash” device
The head restraints are equipped with an “Anti-Whiplash” device,
which is able to reduce the distance between the passenger’s head
and the head restraint in the event of a rear impact, thus mitigat-
ing the “whiplash” effect.
If pressure is exerted on the backrest at torso or hand height the
head restraint may move: this behaviour is caused by the system
and should not be considered a malfunction.
Remember that the head restraints should be ad-
justed to support the back of your head and not
your neck. Only in this position do they exert their
protective action.

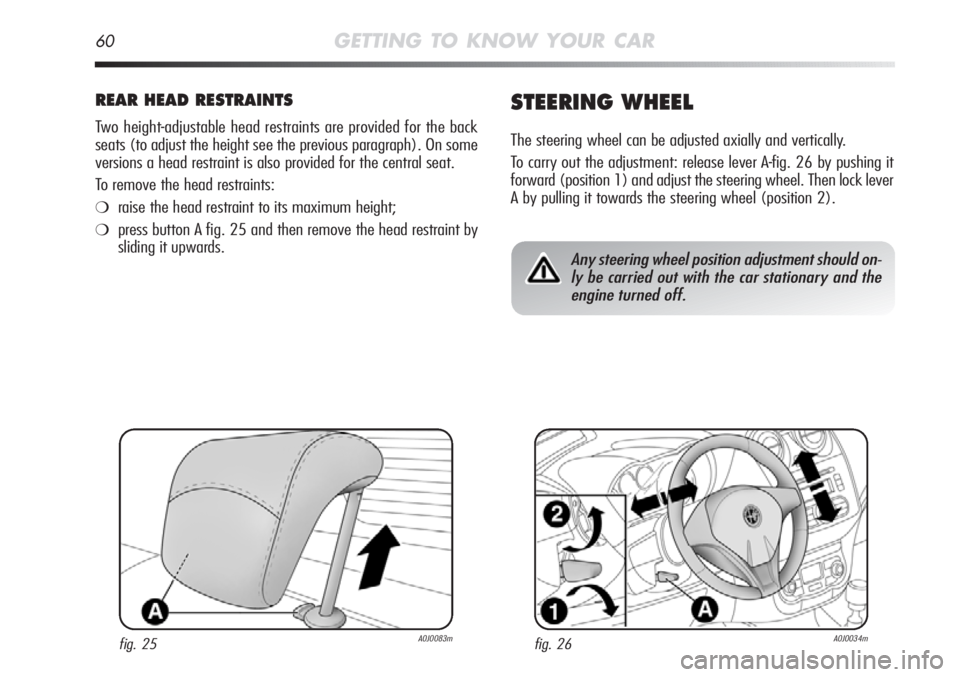

60GETTING TO KNOW YOUR CAR
REAR HEAD RESTRAINTS
Two height-adjustable head restraints are provided for the back
seats (to adjust the height see the previous paragraph). On some
versions a head restraint is also provided for the central seat.
To remove the head restraints:
❍raise the head restraint to its maximum height;
❍press button A fig. 25 and then remove the head restraint by
sliding it upwards.
STEERING WHEEL
The steering wheel can be adjusted axially and vertically.
To carry out the adjustment: release lever A-fig. 26 by pushing it
forward (position 1) and adjust the steering wheel. Then lock lever
A by pulling it towards the steering wheel (position 2).
fig. 25A0J0083mfig. 26A0J0034m
Any steering wheel position adjustment should on-
ly be carried out with the car stationary and the
engine turned off.
