mirror controls Alfa Romeo MiTo 2013 Owner handbook (in English)

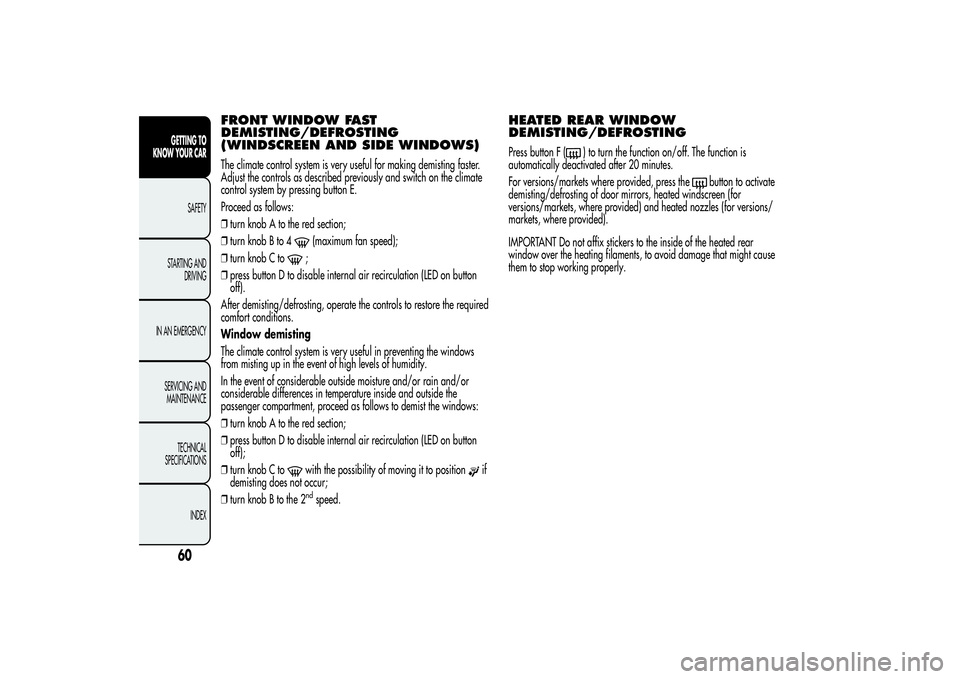

FRONT WINDOW FAST
DEMISTING/DEFROSTING
(WINDSCREEN AND SIDE WINDOWS)The climate control system is very useful for making demisting faster.
Adjust the controls as described previously and switch on the climate
control system by pressing button E.
Proceed as follows:
❒turn knob A to the red section;
❒turn knob B to 4
(maximum fan speed);
❒turn knob C to;
❒press button D to disable internal air recirculation (LED on button
off).
After demisting/defrosting, operate the controls to restore the required
comfort conditions.
Window demisting
The climate control system is very useful in preventing the windows
from misting up in the event of high levels of humidity.
In the event of considerable outside moisture and/or rain and/or
considerable differences in temperature inside and outside the
passenger compartment, proceed as follows to demist the windows:
❒turn knob A to the red section;
❒press button D to disable internal air recirculation (LED on button
off);
❒turn knob C towith the possibility of moving it to position
if
demisting does not occur;
❒turn knob B to the 2
ndspeed.
HEATED REAR WINDOW
DEMISTING/DEFROSTINGPress button F (
) to turn the function on/off. The function is
automatically deactivated after 20 minutes.
For versions/markets where provided, press the
button to activate
demisting/defrosting of door mirrors, heated windscreen (for
versions/markets, where provided) and heated nozzles (for versions/
markets, where provided).
IMPORTANT Do not affix stickers to the inside of the heated rear
window over the heating filaments, to avoid damage that might cause
them to stop working properly.
