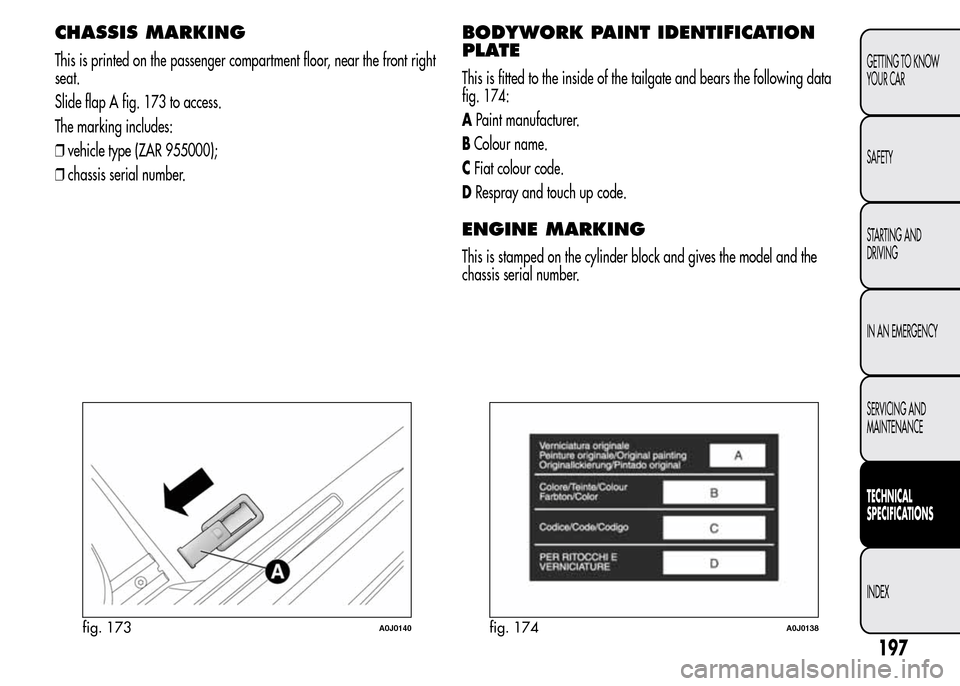

CHASSIS MARKING
This is printed on the passenger compartment floor, near the front right
seat.
Slide flap A fig. 173 to access.
The marking includes:
❒vehicle type (ZAR 955000);
❒chassis serial number.
BODYWORK PAINT IDENTIFICATION
PLATE
This is fitted to the inside of the tailgate and bears the following data
fig. 174:
APaint manufacturer.
BColour name.
CFiat colour code.
DRespray and touch up code.
ENGINE MARKING
This is stamped on the cylinder block and gives the model and the
chassis serial number.
fig. 173A0J0140fig. 174A0J0138
197
GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

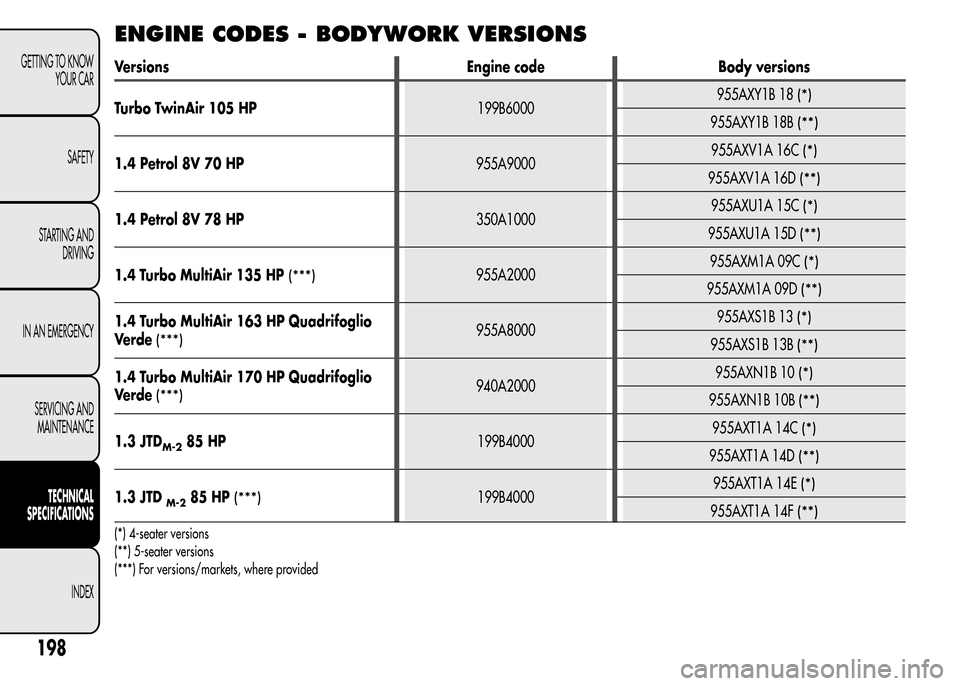

ENGINE CODES - BODYWORK VERSIONS
Versions Engine code Body versions
Turbo TwinAir 105 HP199B6000955AXY1B 18
(*)
955AXY1B 18B(**)
1.4 Petrol 8V 70 HP955A9000955AXV1A 16C(*)
955AXV1A 16D(**)
1.4 Petrol 8V 78 HP350A1000955AXU1A 15C(*)
955AXU1A 15D(**)
1.4 Turbo MultiAir 135 HP(***)955A2000955AXM1A 09C(*)
955AXM1A 09D(**)
1.4 Turbo MultiAir 163 HP Quadrifoglio
Ve r d e
(***)955A8000955AXS1B 13(*)
955AXS1B 13B(**)
1.4 Turbo MultiAir 170 HP Quadrifoglio
Ve r d e
(***)940A2000955AXN1B 10(*)
955AXN1B 10B(**)
1.3 JTDM-285 HP199B4000955AXT1A 14C(*)
955AXT1A 14D(**)
1.3 JTDM-285 HP(***)199B4000955AXT1A 14E(*)
955AXT1A 14F(**)
(*) 4-seater versions
(**) 5-seater versions
(***) For versions/markets, where provided
198
GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

Versions Engine code Body versions
1.6 JTD
M115 HP(***)955A4000955AXE1B 04N(*)
955AXHE1B 04P(**)
1.6 JTDM120 HP955A3000955AXC1B 02L(*)
955AXC1B 02M(**)
(***) For versions/markets, where provided
(*) 4-seater versions
(**) 5-seater versions
199
GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

ENGINE
GENERAL INFORMATION Turbo TwinAir 105 HP
Type code199B6000
CycleOtto
Number and arrangement of cylinders 2 in line
Piston diameter and travel (mm) 80.5x86
Total displacement (cm³)875
Compression ratio10
NATURAL DYNAMIC
Maximum power (EC) (kW) 72 77
Maximum power (EC) (HP) 98 105
corresponding engine speed (rpm) 5750 5500
NATURAL DYNAMIC
Maximum torque (EC) (Nm) 120 145
Maximum torque (EC) (kgm) 12,2 14,8
corresponding engine speed (rpm) 1750 2000
Spark plugsNGK ILKR9G8
Fuel Unleaded petrol 95 RON or 98 RON (EN 228 specification)
200
GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

GENERAL INFORMATION 1.4 petrol 8V 70 HP 1.4 Petrol 8V 78 HP
Type code 955A9000 350A1000
Cycle Otto Otto
Number and arrangement of cylinders 4 in line 4 in line
Piston bore and stroke (mm) 72.0 x 80.4 72.0 x 80.4
Total displacement (cm³) 1368 1368
Compression ratio 11.1 11.1
Maximum power (EEC) (kW) 51 57
Maximum power (EEC) (HP) 70 78
corresponding engine speed (rpm) 6000 6000
Max torque (EEC) (Nm) 115 115
Maximum torque (EEC) (kgm) 11.7 11.7
corresponding engine speed (rpm) 3000 3000
Spark plugs NGK ZKR7A-10 or Champion RA8MCX4 NGK ZKR7AI-8
FuelUnleaded petrol 95 RON
228)Unleaded petrol 95 RON or 98 RON
(EN 228 specification)
201
GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
(Specification EN

GENERAL INFORMATION
1.4 Turbo MultiAir 135 HP(*)
Type code955A2000
CycleOtto
Number and arrangement of cylinders 4 in line
Piston bore and stroke (mm) 72.0 x 80.4
Total displacement (cm³)1368
Compression ratio9.8
Maximum power (EC) (kW)99
Maximum power (EC) (HP)135
corresponding engine speed (rpm) 5500
NATURAL DYNAMIC
Maximum torque (EC) (Nm) 190 206
Maximum torque (EC) (kgm) 19,3 21
corresponding engine speed (rpm) 4250 1750
Spark plugsNGK IKR9F8
Fuel Unleaded petrol 95 RON or 98 RON (EN 228 specification)
(*) For versions/markets, where provided
202
GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

GENERAL INFORMATION 1.4 Turbo MultiAir 170 HP Quadrifoglio Verde
Type code955A8000
(*)
940A2000
CycleOtto
Number and arrangement of cylinders 4 in line
Piston bore and stroke (mm) 72.0 x 80.4
Total displacement (cm³)1368
Compression ratio9.8
Maximum power (EC) (kW)
120
(*)/ 125
Maximum power (EC) (HP)
163
(*)/ 170
corresponding engine speed (rpm)
5500
(*)/ 5000
NATURAL DYNAMIC
Maximum torque (EC) (Nm) 230 250
Maximum torque (EC) (kgm) 23.4 25.5
corresponding engine speed (rpm) 2500 2500
Spark plugsNGK IKR9F8
Fuel Unleaded petrol 95 RON or 98 RON (EN 228 specification)
(*) For versions/markets, where provided
203
GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

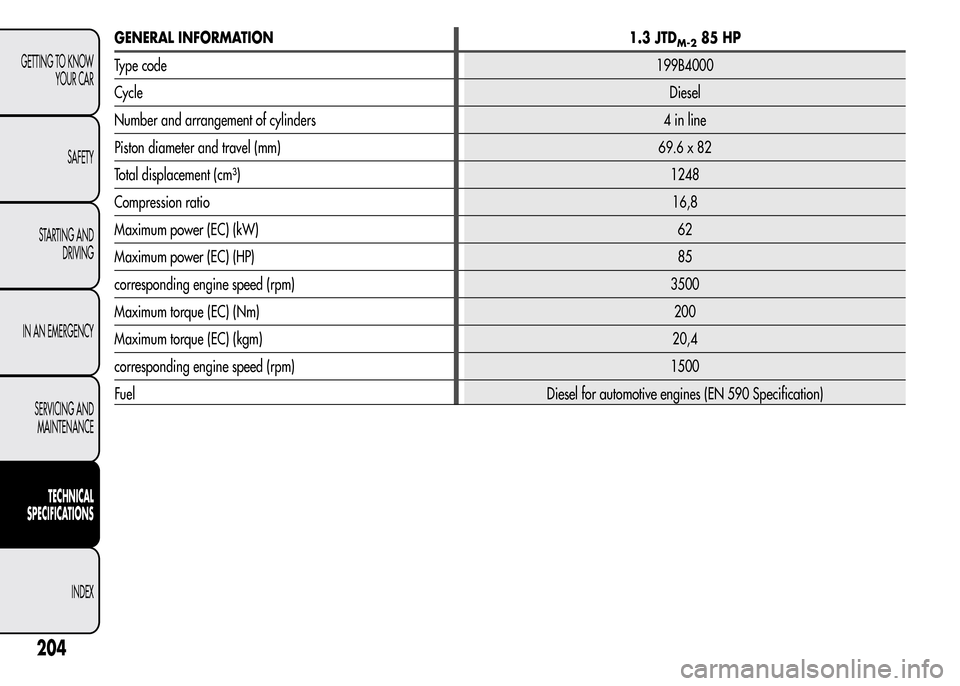

GENERAL INFORMATION 1.3 JTDM-285 HP
Type code199B4000
CycleDiesel
Number and arrangement of cylinders 4 in line
Piston diameter and travel (mm) 69.6 x 82
Total displacement (cm³)1248
Compression ratio16,8
Maximum power (EC) (kW)62
Maximum power (EC) (HP)85
corresponding engine speed (rpm) 3500
Maximum torque (EC) (Nm)200
Maximum torque (EC) (kgm)20,4
corresponding engine speed (rpm) 1500
FuelDiesel for automotive engines (EN 590 Specification)
204
GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

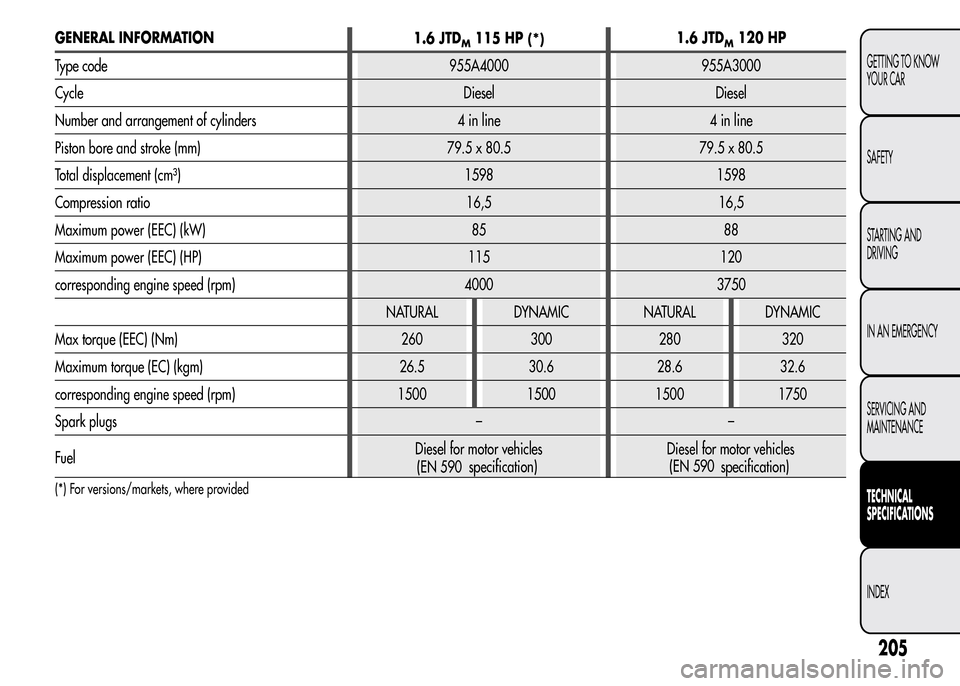

GENERAL INFORMATION
1.6 JTDM115 HP(*)1.6 JTDM120 HP
Type code 955A4000 955A3000
Cycle Diesel Diesel
Number and arrangement of cylinders 4 in line 4 in line
Piston bore and stroke (mm) 79.5 x 80.5 79.5 x 80.5
Total displacement (cm³) 1598 1598
Compression ratio 16,5 16,5
Maximum power (EEC) (kW) 85 88
Maximum power (EEC) (HP) 115 120
corresponding engine speed (rpm) 4000 3750
NATURAL DYNAMIC NATURAL DYNAMIC
Max torque (EEC) (Nm) 260 300 280 320
Maximum torque (EC) (kgm) 26.5 30.6 28.6 32.6
corresponding engine speed (rpm) 1500 1500 1500 1750
Spark plugs – –
FuelDiesel for motor vehicles
specification)Diesel for motor vehicles
specification)
(*) For versions/markets, where provided
205
GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
(EN 590(EN 590

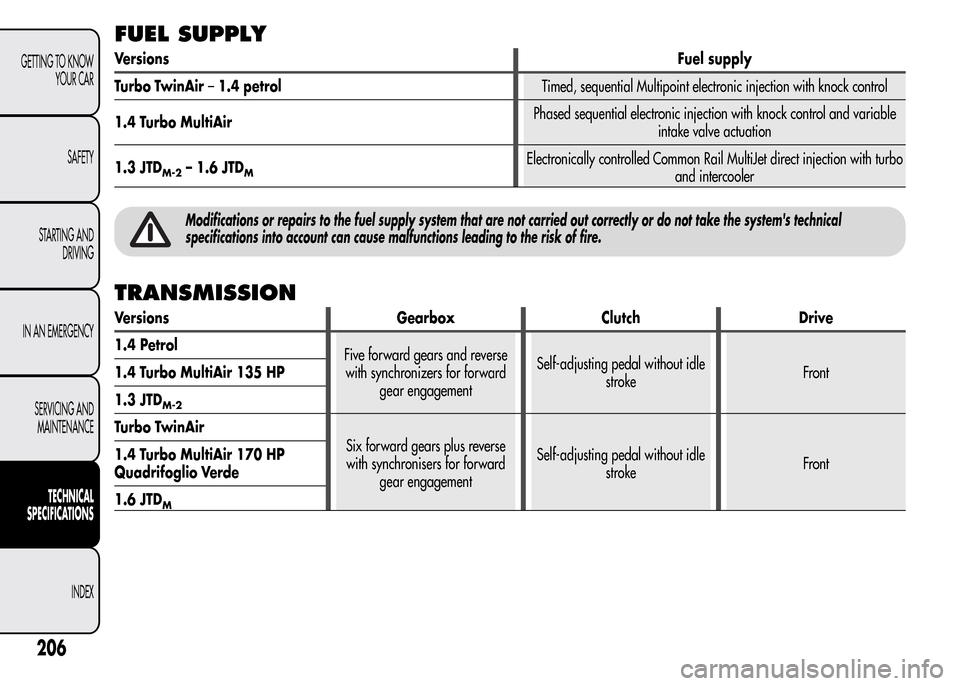

FUEL SUPPLY
VersionsFuel supply
Turbo TwinAir–1.4 petrolTimed, sequential Multipoint electronic injection with knock control
1.4 Turbo MultiAirPhased sequential electronic injection with knock control and variable
intake valve actuation
1.3 JTD
M-2– 1.6 JTDMElectronically controlled Common Rail MultiJet direct injection with turbo
and intercooler
