Alfa Romeo MiTo 2016 Owner's Manual

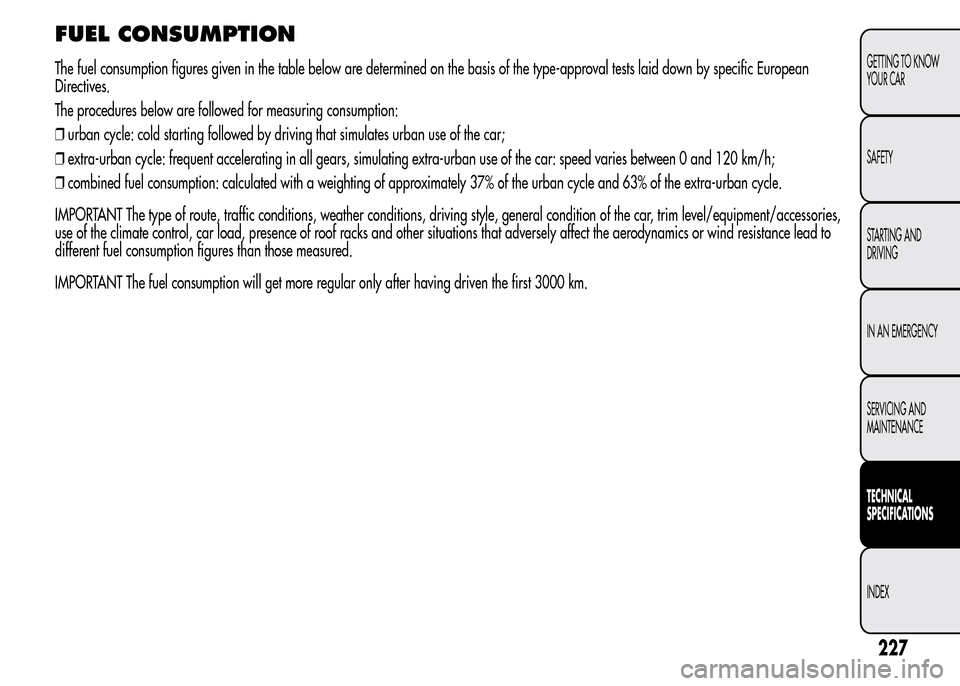

FUEL CONSUMPTION
The fuel consumption figures given in the table below are determined on the basis of the type-approval tests laid down by specific European
Directives.
The procedures below are followed for measuring consumption:
❒urban cycle: cold starting followed by driving that simulates urban use of the car;
❒extra-urban cycle: frequent accelerating in all gears, simulating extra-urban use of the car: speed varies between 0 and 120 km/h;
❒combined fuel consumption: calculated with a weighting of approximately 37% of the urban cycle and 63% of the extra-urban cycle.
IMPORTANT The type of route, traffic conditions, weather conditions, driving style, general condition of the car, trim level/equipment/accessories,
use of the climate control, car load, presence of roof racks and other situations that adversely affect the aerodynamics or wind resistance lead to
different fuel consumption figures than those measured.
IMPORTANT The fuel consumption will get more regular only after having driven the first 3000 km.
227
GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

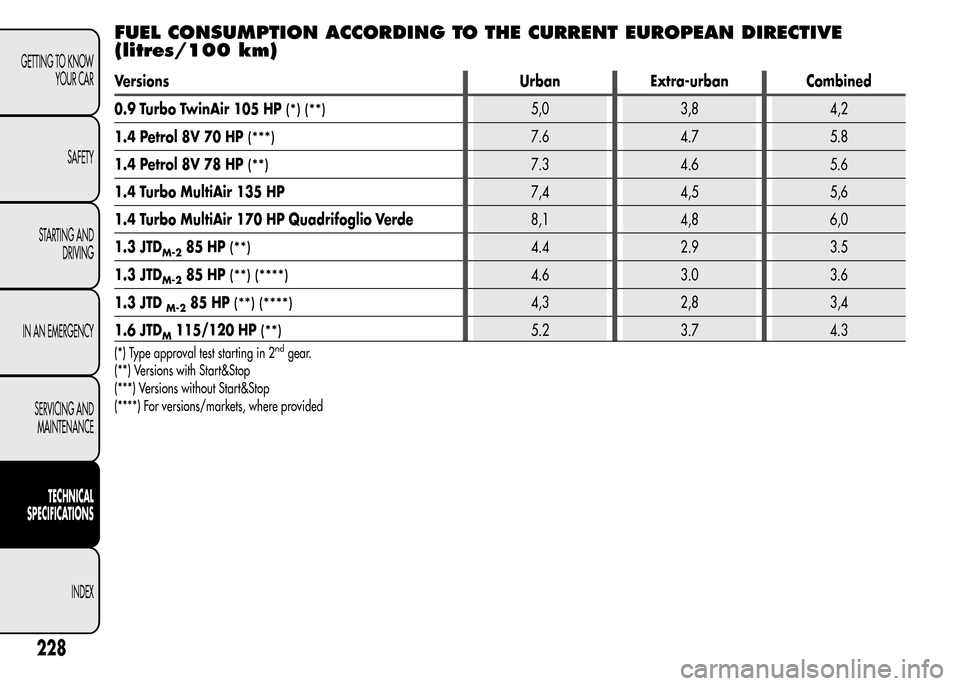

FUEL CONSUMPTION ACCORDING TO THE CURRENT EUROPEAN DIRECTIVE
(litres/100 km)
Versions Urban Extra-urban Combined
0.9 Turbo TwinAir 105 HP
(*) (**)5,0 3,8 4,2
1.4 Petrol 8V 70 HP
(***)7.6 4.7 5.8
1.4 Petrol 8V 78 HP
(**)7.3 4.6 5.6
1.4 Turbo MultiAir 135 HP7,4 4,5 5,6
1.4 Turbo MultiAir 170 HP Quadrifoglio Verde8,1 4,8 6,0
1.3 JTD
M-285 HP(**)4.4 2.9 3.5
1.3 JTD
M-285 HP(**) (****)4.6 3.0 3.6
1.3 JTD
M-285 HP(**) (****)4,3 2,8 3,4
1.6 JTD
M115/120 HP(**)5.2 3.7 4.3
(*) Type approval test starting in 2ndgear.
(**) Versions with Start&Stop
(***) Versions without Start&Stop
(****) For versions/markets, where provided
228
GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

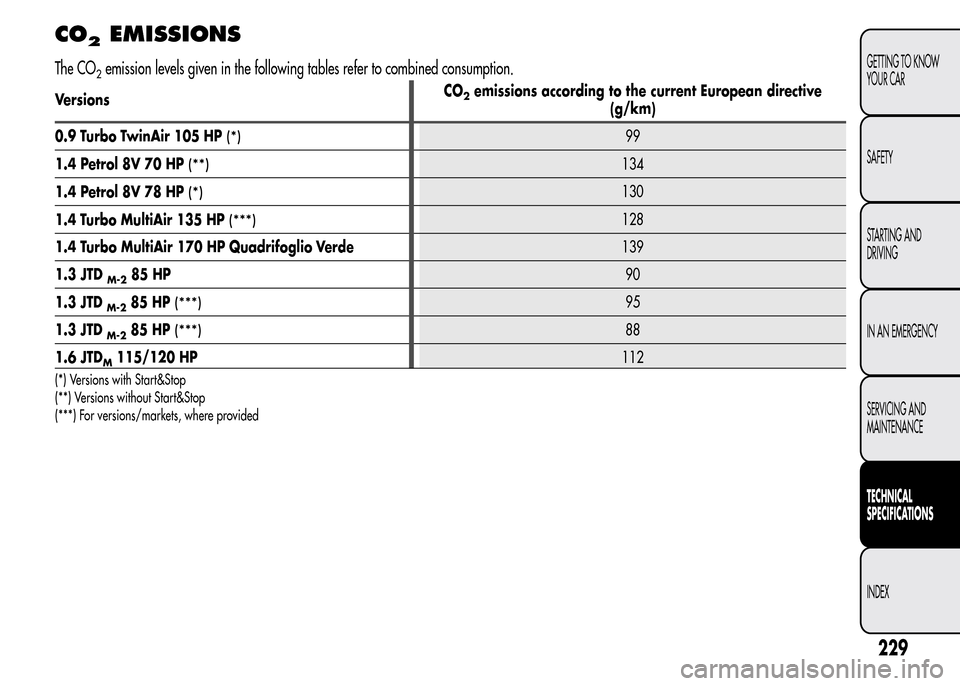

CO2EMISSIONS
The CO2emission levels given in the following tables refer to combined consumption.
VersionsCO2emissions according to the current European directive
(g/km)
0.9 Turbo TwinAir 105 HP
(*)99
1.4 Petrol 8V 70 HP
(**)134
1.4 Petrol 8V 78 HP
(*)130
1.4 Turbo MultiAir 135 HP
(***)128
1.4 Turbo MultiAir 170 HP Quadrifoglio Verde139
1.3 JTD
M-285 HP90
1.3 JTD
M-285 HP(***)95
1.3 JTD
M-285 HP(***)88
1.6 JTD
M115/120 HP112
(*) Versions with Start&Stop
(**) Versions without Start&Stop
(***) For versions/markets, where provided
229
GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

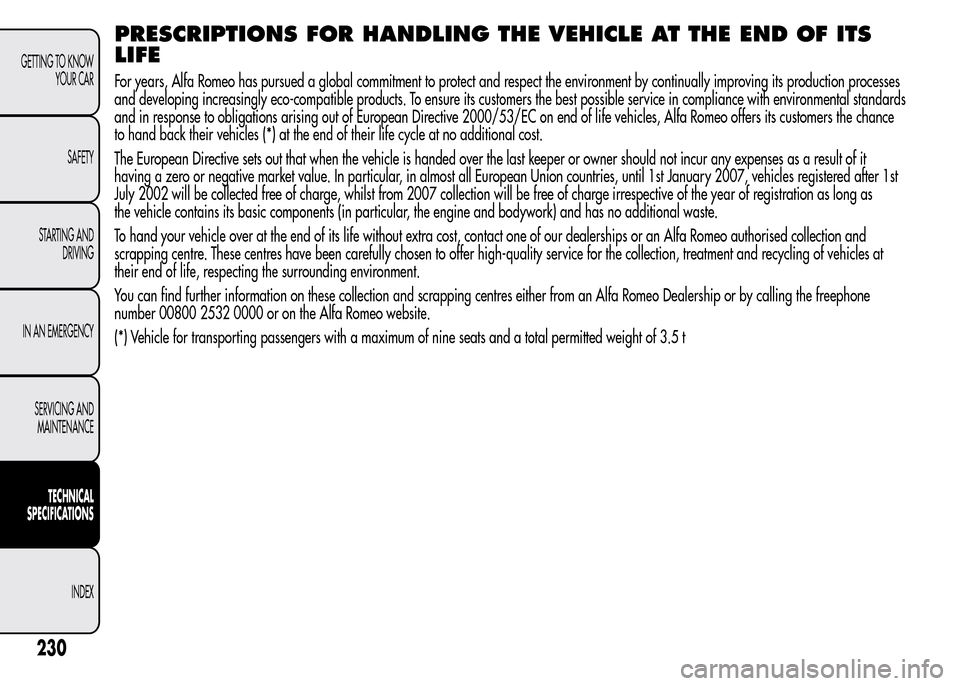

PRESCRIPTIONS FOR HANDLING THE VEHICLE AT THE END OF ITS
LIFE
For years, Alfa Romeo has pursued a global commitment to protect and respect the environment by continually improving its production processes
and developing increasingly eco-compatible products. To ensure its customers the best possible service in compliance with environmental standards
and in response to obligations arising out of European Directive 2000/53/EC on end of life vehicles, Alfa Romeo offers its customers the chance
to hand back their vehicles (*) at the end of their life cycle at no additional cost.
The European Directive sets out that when the vehicle is handed over the last keeper or owner should not incur any expenses as a result of it
having a zero or negative market value. In particular, in almost all European Union countries, until 1st January 2007, vehicles registered after 1st
July 2002 will be collected free of charge, whilst from 2007 collection will be free of charge irrespective of the year of registration as long as
the vehicle contains its basic components (in particular, the engine and bodywork) and has no additional waste.
To hand your vehicle over at the end of its life without extra cost, contact one of our dealerships or an Alfa Romeo authorised collection and
scrapping centre. These centres have been carefully chosen to offer high-quality service for the collection, treatment and recycling of vehicles at
their end of life, respecting the surrounding environment.
You can find further information on these collection and scrapping centres either from an Alfa Romeo Dealership or by calling the freephone
number 00800 2532 0000 or on the Alfa Romeo website.
(*) Vehicle for transporting passengers with a maximum of nine seats and a total permitted weight of 3.5 t
230
GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

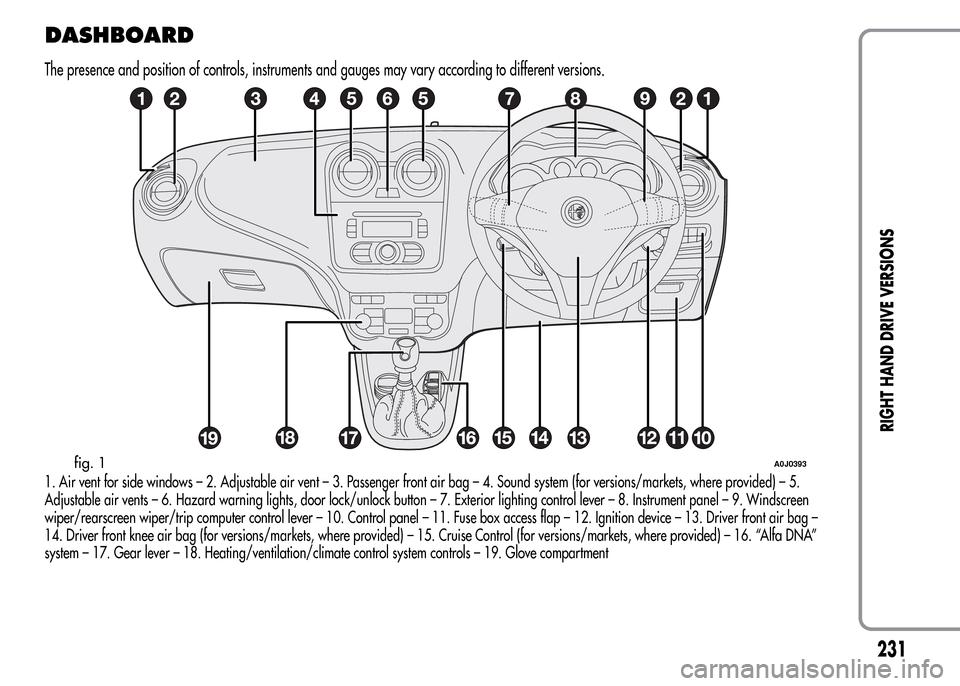

DASHBOARD
The presence and position of controls, instruments and gauges may vary according to different versions.
1. Air vent for side windows – 2. Adjustable air vent – 3. Passenger front air bag – 4. Sound system (for versions/markets, where provided) – 5.
Adjustable air vents – 6. Hazard warning lights, door lock/unlock button – 7. Exterior lighting control lever – 8. Instrument panel – 9. Windscreen
wiper/rearscreen wiper/trip computer control lever – 10. Control panel – 11. Fuse box access flap – 12. Ignition device – 13. Driver front air bag –
14. Driver front knee air bag (for versions/markets, where provided) – 15. Cruise Control (for versions/markets, where provided) – 16. “Alfa DNA”
system – 17. Gear lever – 18. Heating/ventilation/climate control system controls – 19. Glove compartment
fig. 1A0J0393
231
RIGHT HAND DRIVE VERSIONS

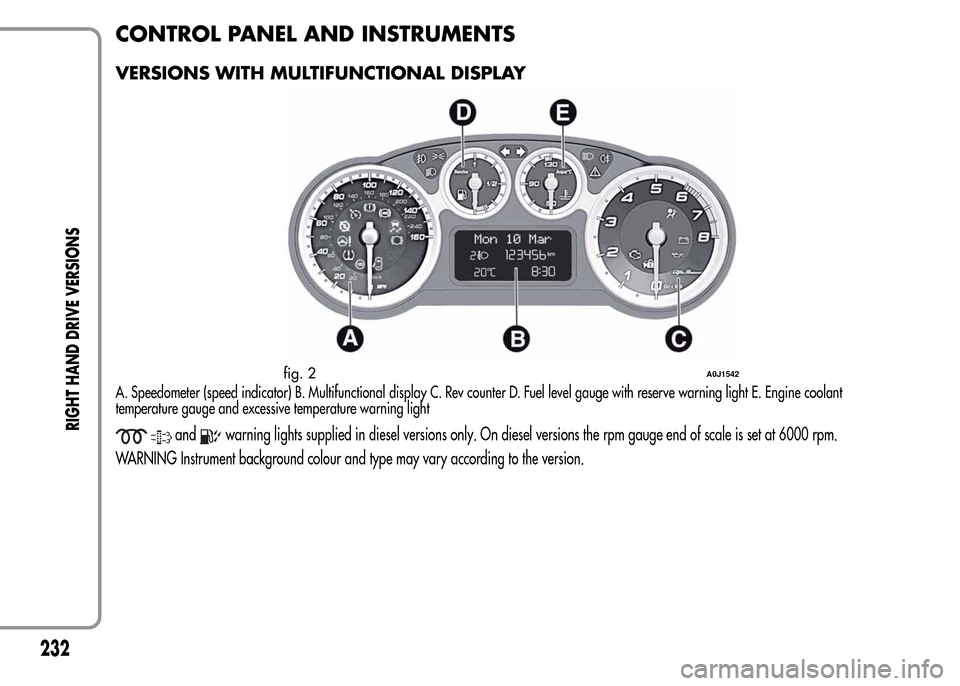

CONTROL PANEL AND INSTRUMENTS
VERSIONS WITH MULTIFUNCTIONAL DISPLAY
A. Speedometer (speed indicator) B. Multifunctional display C. Rev counter D. Fuel level gauge with reserve warning light E. Engine coolant
temperature gauge and excessive temperature warning light
andwarning lights supplied in diesel versions only. On diesel versions the rpm gauge end of scale is set at 6000 rpm.
WARNING Instrument background colour and type may vary according to the version.
fig. 2A0J1542
232
RIGHT HAND DRIVE VERSIONS

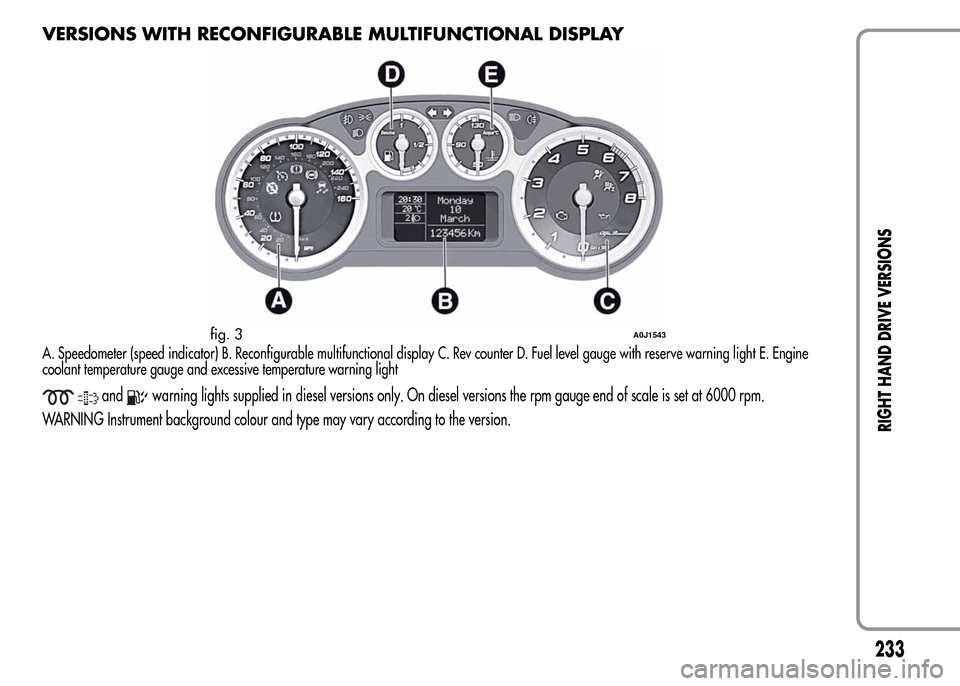

VERSIONS WITH RECONFIGURABLE MULTIFUNCTIONAL DISPLAY
A. Speedometer (speed indicator) B. Reconfigurable multifunctional display C. Rev counter D. Fuel level gauge with reserve warning light E. Engine
coolant temperature gauge and excessive temperature warning light
andwarning lights supplied in diesel versions only. On diesel versions the rpm gauge end of scale is set at 6000 rpm.
WARNING Instrument background colour and type may vary according to the version.
fig. 3A0J1543
233
RIGHT HAND DRIVE VERSIONS

page intentionally left blank

SOUND SYSTEM
