Alfa Romeo MiTo 2017 Owner's Manual

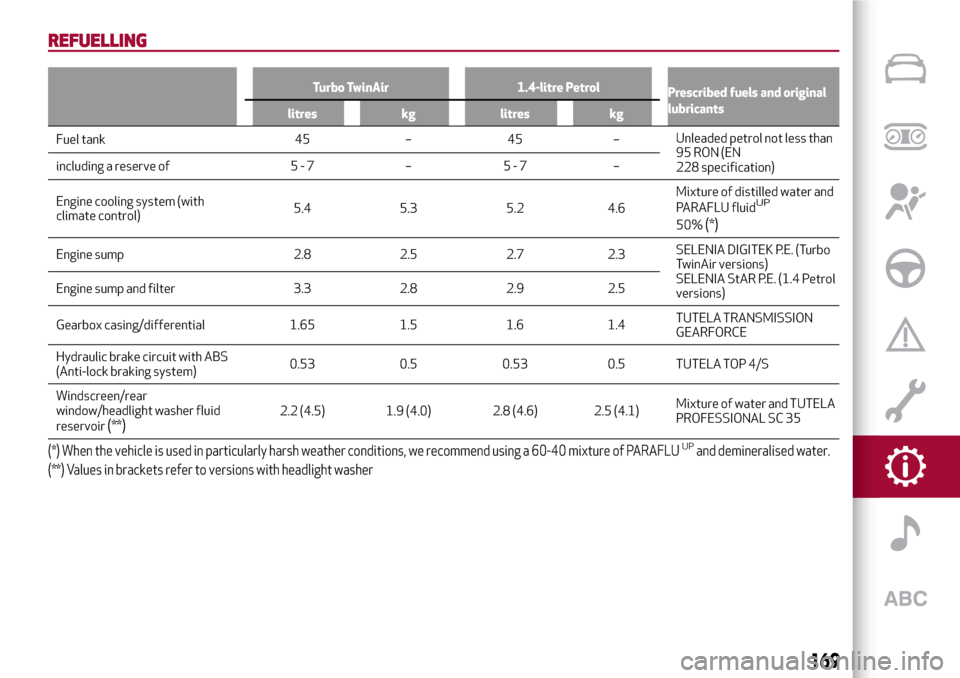

REFUELLING
Turbo TwinAir 1.4-litre Petrol
Prescribed fuels and original
lubricants
litres kg litres kg
Fuel tank 45 – 45 –Unleaded petrol not less than
95 RON (EN
228 specification) including a reserve of 5 - 7 – 5 - 7 –
Engine cooling system (with
climate control)5.4 5.3 5.2 4.6Mixture of distilled water and
PARAFLU fluid
UP
50%(*)
Engine sump 2.8 2.5 2.7 2.3SELENIA DIGITEK P.E. (Turbo
TwinAir versions)
SELENIA StAR P.E. (1.4 Petrol
versions) Engine sump and filter 3.3 2.8 2.9 2.5
Gearbox casing/differential 1.65 1.5 1.6 1.4TUTELA TRANSMISSION
GEARFORCE
Hydraulic brake circuit with ABS
(Anti-lock braking system)0.53 0.5 0.53 0.5 TUTELA TOP 4/S
Windscreen/rear
window/headlight washer fluid
reservoir
(**)2.2 (4.5) 1.9 (4.0) 2.8 (4.6) 2.5 (4.1)Mixture of water and TUTELA
PROFESSIONAL SC 35
(*) When the vehicle is used in particularly harsh weather conditions, we recommend using a 60-40 mixture of PARAFLUUPand demineralised water.
(**) Values in brackets refer to versions with headlight washer
169

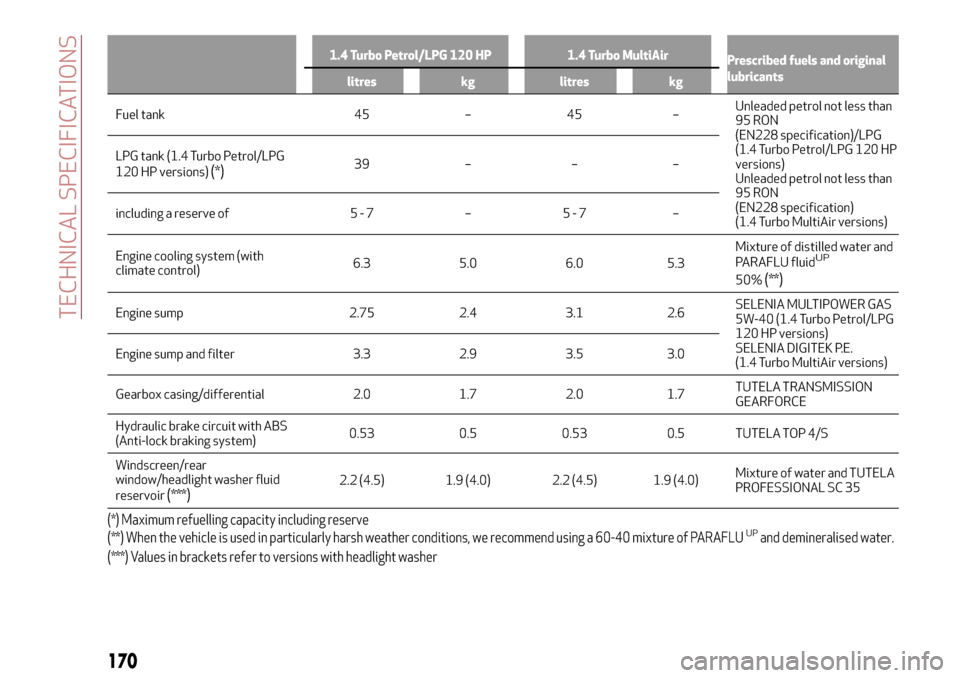

1.4 Turbo Petrol/LPG 120 HP 1.4 Turbo MultiAir
Prescribed fuels and original
lubricants
litres kg litres kg
Fuel tank 45 – 45 –Unleaded petrol not less than
95 RON
(EN228 specification)/LPG
(1.4 Turbo Petrol/LPG 120 HP
versions)
Unleaded petrol not less than
95 RON
(EN228 specification)
(1.4 Turbo MultiAir versions) LPG tank (1.4 Turbo Petrol/LPG
120 HP versions)
(*)39 – – –
including a reserve of 5 - 7 – 5 - 7 –
Engine cooling system (with
climate control)6.3 5.0 6.0 5.3Mixture of distilled water and
PARAFLU fluid
UP
50%(**)
Engine sump 2.75 2.4 3.1 2.6SELENIA MULTIPOWER GAS
5W-40 (1.4 Turbo Petrol/LPG
120 HP versions)
SELENIA DIGITEK P.E.
(1.4 Turbo MultiAir versions) Engine sump and filter 3.3 2.9 3.5 3.0
Gearbox casing/differential 2.0 1.7 2.0 1.7TUTELA TRANSMISSION
GEARFORCE
Hydraulic brake circuit with ABS
(Anti-lock braking system)0.53 0.5 0.53 0.5 TUTELA TOP 4/S
Windscreen/rear
window/headlight washer fluid
reservoir
(***)2.2 (4.5) 1.9 (4.0) 2.2 (4.5) 1.9 (4.0)Mixture of water and TUTELA
PROFESSIONAL SC 35
(*) Maximum refuelling capacity including reserve
(**) When the vehicle is used in particularly harsh weather conditions, we recommend using a 60-40 mixture of PARAFLUUPand demineralised water.
(***) Values in brackets refer to versions with headlight washer
170
TECHNICAL SPECIFICATIONS

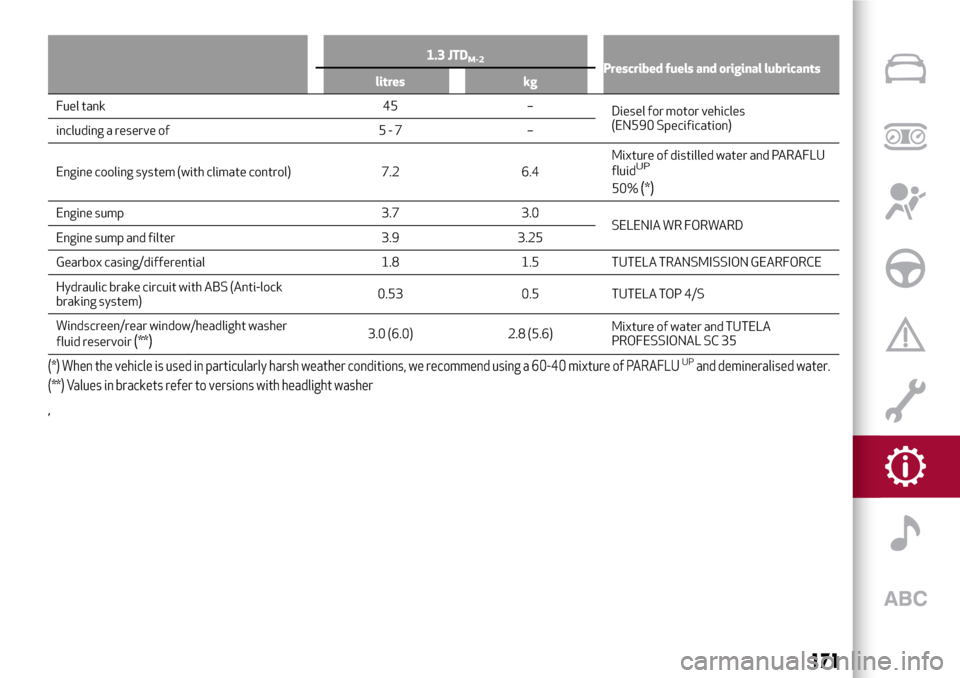

1.3 JTDM-2Prescribed fuels and original lubricants
litres kg
Fuel tank 45 –
Diesel for motor vehicles
(EN590 Specification)
including a reserve of 5 - 7 –
Engine cooling system (with climate control) 7.2 6.4Mixture of distilled water and PARAFLU
fluid
UP
50%(*)
Engine sump 3.7 3.0
SELENIA WR FORWARD
Engine sump and filter 3.9 3.25
Gearbox casing/differential 1.8 1.5 TUTELA TRANSMISSION GEARFORCE
Hydraulic brake circuit with ABS (Anti-lock
braking system)0.53 0.5 TUTELA TOP 4/S
Windscreen/rear window/headlight washer
fluid reservoir
(**)3.0 (6.0) 2.8 (5.6)Mixture of water and TUTELA
PROFESSIONAL SC 35
(*) When the vehicle is used in particularly harsh weather conditions, we recommend using a 60-40 mixture of PARAFLUUPand demineralised water.
(**) Values in brackets refer to versions with headlight washer
,
171

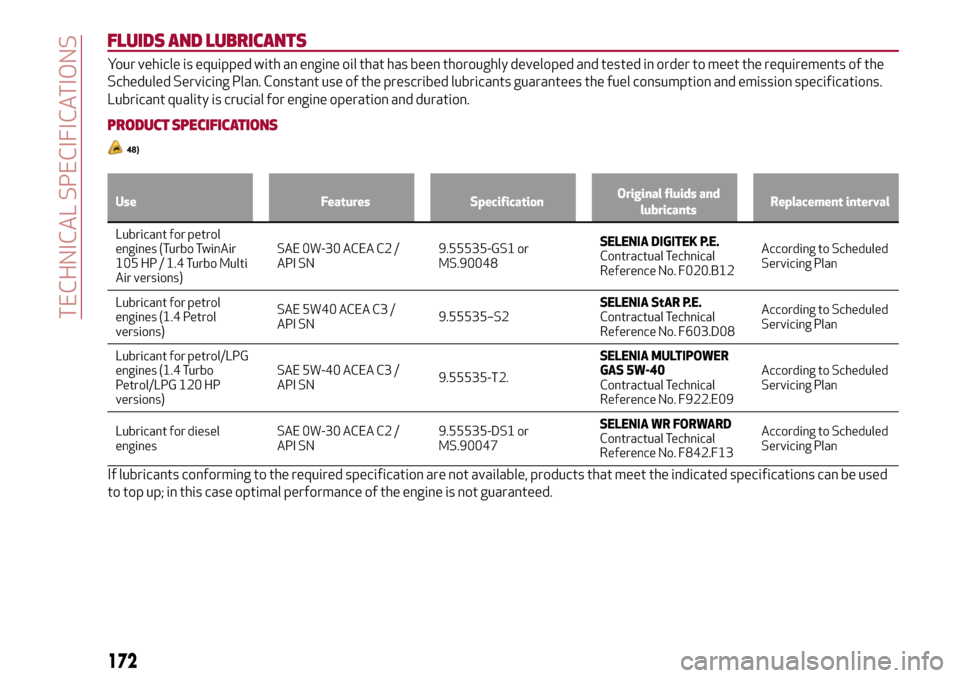

FLUIDS AND LUBRICANTS
Your vehicle is equipped with an engine oil that has been thoroughly developed and tested in order to meet the requirements of the
Scheduled Servicing Plan. Constant use of the prescribed lubricants guarantees the fuel consumption and emission specifications.
Lubricant quality is crucial for engine operation and duration.
PRODUCT SPECIFICATIONS
48)
Use Features SpecificationOriginal fluids and
lubricantsReplacement interval
Lubricant for petrol
engines (Turbo TwinAir
105 HP / 1.4 Turbo Multi
Air versions)SAE 0W-30 ACEA C2 /
API SN9.55535-GS1 or
MS.90048SELENIA DIGITEK P.E.
Contractual Technical
Reference No. F020.B12According to Scheduled
Servicing Plan
Lubricant for petrol
engines (1.4 Petrol
versions)SAE 5W40 ACEA C3 /
API SN9.55535–S2SELENIA StAR P.E.
Contractual Technical
Reference No. F603.D08According to Scheduled
Servicing Plan
Lubricant for petrol/LPG
engines (1.4 Turbo
Petrol/LPG 120 HP
versions)SAE 5W-40 ACEA C3 /
API SN9.55535-T2.SELENIA MULTIPOWER
GAS 5W-40
Contractual Technical
Reference No. F922.E09According to Scheduled
Servicing Plan
Lubricant for diesel
enginesSAE 0W-30 ACEA C2 /
API SN9.55535-DS1 or
MS.90047SELENIA WR FORWARD
Contractual Technical
Reference No. F842.F13According to Scheduled
Servicing Plan
If lubricants conforming to the required specification are not available, products that meet the indicated specifications can be used
to top up; in this case optimal performance of the engine is not guaranteed.
172
TECHNICAL SPECIFICATIONS

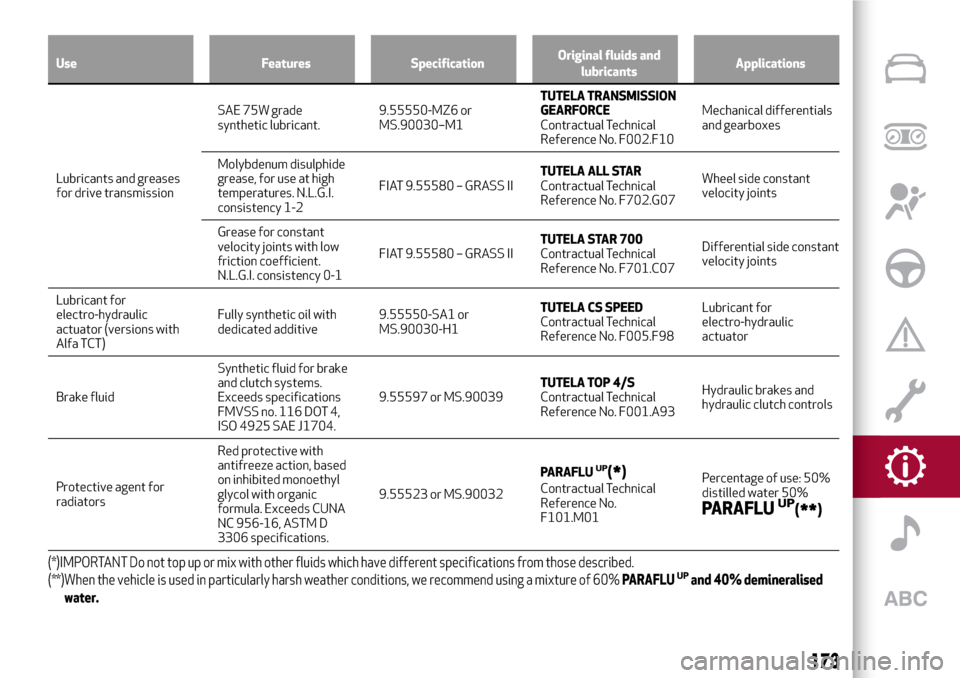

Use Features SpecificationOriginal fluids and
lubricantsApplications
Lubricants and greases
for drive transmissionSAE 75W grade
synthetic lubricant.9.55550-MZ6 or
MS.90030–M1TUTELA TRANSMISSION
GEARFORCE
Contractual Technical
Reference No. F002.F10Mechanical differentials
and gearboxes
Molybdenum disulphide
grease, for use at high
temperatures. N.L.G.I.
consistency 1-2FIAT 9.55580 – GRASS IITUTELA ALL STAR
Contractual Technical
Reference No. F702.G07Wheel side constant
velocity joints
Grease for constant
velocity joints with low
friction coefficient.
N.L.G.I. consistency 0-1FIAT 9.55580 – GRASS IITUTELA STAR 700
Contractual Technical
Reference No. F701.C07Differential side constant
velocity joints
Lubricant for
electro-hydraulic
actuator (versions with
Alfa TCT)Fully synthetic oil with
dedicated additive9.55550-SA1 or
MS.90030-H1TUTELA CS SPEED
Contractual Technical
Reference No. F005.F98Lubricant for
electro-hydraulic
actuator
Brake fluidSynthetic fluid for brake
and clutch systems.
Exceeds specifications
FMVSS no. 116 DOT 4,
ISO 4925 SAE J1704.9.55597 or MS.90039TUTELA TOP 4/S
Contractual Technical
Reference No. F001.A93Hydraulic brakes and
hydraulic clutch controls
Protective agent for
radiatorsRed protective with
antifreeze action, based
on inhibited monoethyl
glycol with organic
formula. Exceeds CUNA
NC 956-16, ASTM D
3306 specifications.9.55523 or MS.90032PARAFLU
UP(*)
Contractual Technical
Reference No.
F101.M01Percentage of use: 50%
distilled water 50%
PARAFLUUP(**)
(*)IMPORTANT Do not top up or mix with other fluids which have different specifications from those described.
(**)When the vehicle is used in particularly harsh weather conditions, we recommend using a mixture of 60%PARAFLUUPand 40% demineralised
water.
173

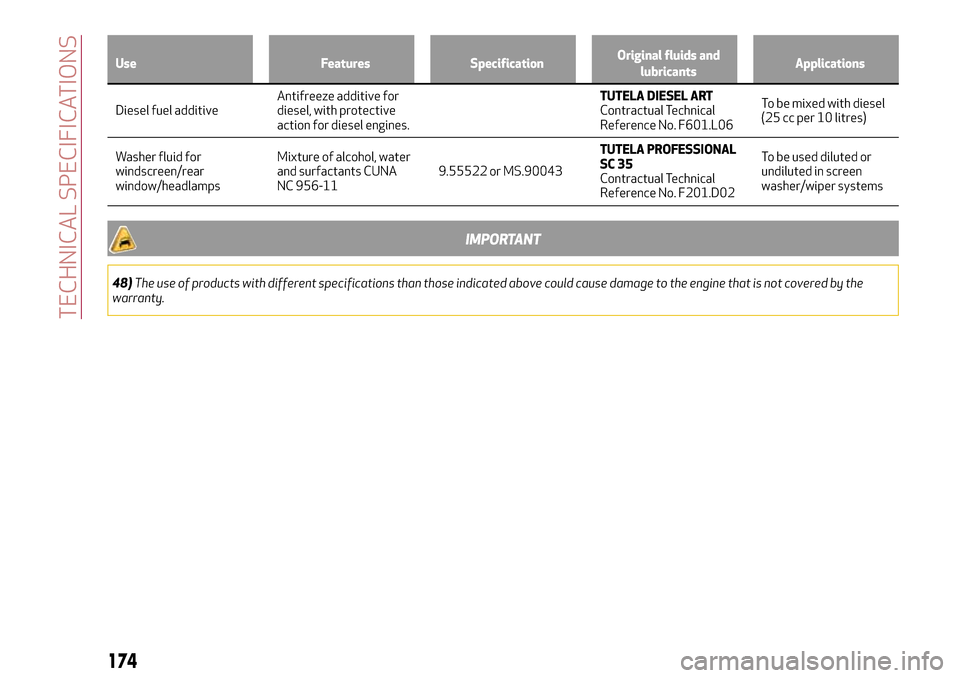

Use Features SpecificationOriginal fluids and
lubricantsApplications
Diesel fuel additiveAntifreeze additive for
diesel, with protective
action for diesel engines.TUTELA DIESEL ART
Contractual Technical
Reference No. F601.L06To be mixed with diesel
(25 cc per 10 litres)
Washer fluid for
windscreen/rear
window/headlampsMixture of alcohol, water
and surfactants CUNA
NC 956-119.55522 or MS.90043TUTELA PROFESSIONAL
SC 35
Contractual Technical
Reference No. F201.D02To be used diluted or
undiluted in screen
washer/wiper systems
IMPORTANT
48)The use of products with different specifications than those indicated above could cause damage to the engine that is not covered by the
warranty.
174
TECHNICAL SPECIFICATIONS

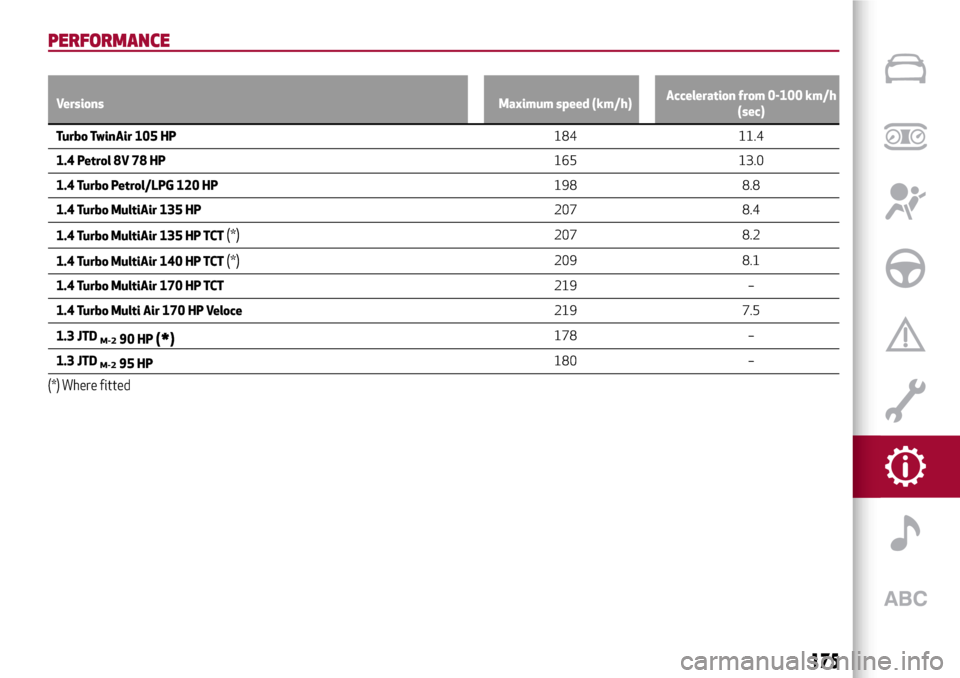

PERFORMANCE
Versions Maximum speed (km/h)Acceleration from 0-100 km/h
(sec)
Turbo TwinAir 105 HP184 11.4
1.4 Petrol 8V 78 HP165 13.0
1.4 Turbo Petrol/LPG 120 HP198 8.8
1.4 Turbo MultiAir 135 HP207 8.4
1.4 Turbo MultiAir 135 HP TCT
(*)207 8.2
1.4 Turbo MultiAir 140 HP TCT
(*)209 8.1
1.4 Turbo MultiAir 170 HP TCT219 –
1.4 Turbo Multi Air 170 HP Veloce219 7.5
1.3 JTD
M-290 HP(*)178 –
1.3 JTD
M-295 HP180 –
(*) Where fitted
175

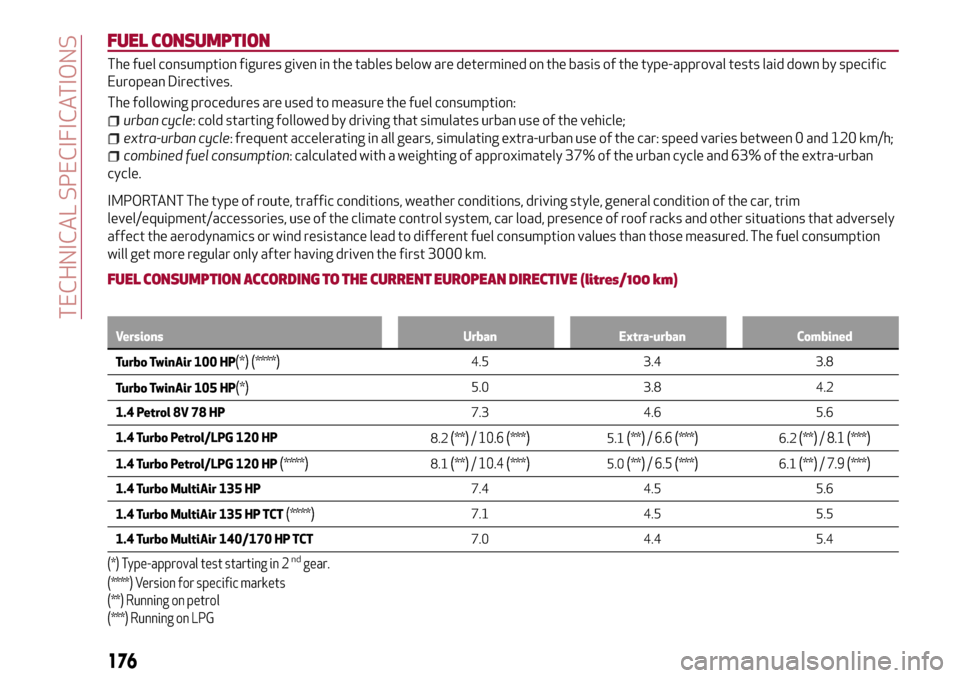

FUEL CONSUMPTION
The fuel consumption figures given in the tables below are determined on the basis of the type-approval tests laid down by specific
European Directives.
The following procedures are used to measure the fuel consumption:
urban cycle: cold starting followed by driving that simulates urban use of the vehicle;
extra-urban cycle: frequent accelerating in all gears, simulating extra-urban use of the car: speed varies between 0 and 120 km/h;
combined fuel consumption: calculated with a weighting of approximately 37% of the urban cycle and 63% of the extra-urban
cycle.
IMPORTANT The type of route, traffic conditions, weather conditions, driving style, general condition of the car, trim
level/equipment/accessories, use of the climate control system, car load, presence of roof racks and other situations that adversely
affect the aerodynamics or wind resistance lead to different fuel consumption values than those measured. The fuel consumption
will get more regular only after having driven the first 3000 km.
FUEL CONSUMPTION ACCORDING TO THE CURRENT EUROPEAN DIRECTIVE (litres/100 km)
Versions Urban Extra-urban Combined
Turbo TwinAir 100 HP(*) (****)4.5 3.4 3.8
Turbo TwinAir 105 HP
(*)5.0 3.8 4.2
1.4 Petrol 8V 78 HP7.3 4.6 5.6
1.4 Turbo Petrol/LPG 120 HP
8.2
(**)/ 10.6(***)5.1(**)/ 6.6(***)6.2(**)/ 8.1(***)
1.4 Turbo Petrol/LPG 120 HP(****)8.1(**)/ 10.4(***)5.0(**)/ 6.5(***)6.1(**)/ 7.9(***)
1.4 Turbo MultiAir 135 HP7.4 4.5 5.6
1.4 Turbo MultiAir 135 HP TCT
(****)7.1 4.5 5.5
1.4 Turbo MultiAir 140/170 HP TCT7.0 4.4 5.4
(*) Type-approval test starting in 2ndgear.
(****) Version for specific markets
(**) Running on petrol
(***) Running on LPG
176
TECHNICAL SPECIFICATIONS

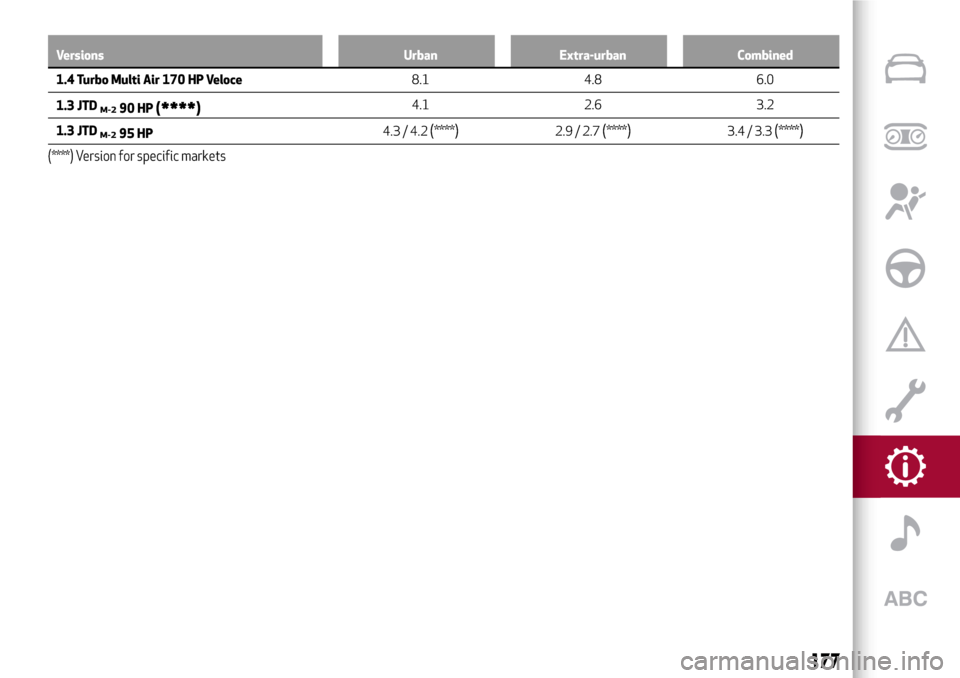

Versions Urban Extra-urban Combined
1.4 Turbo Multi Air 170 HP Veloce8.1 4.8 6.0
1.3 JTD
M-290 HP(****)4.1 2.6 3.2
1.3 JTD
M-295 HP4.3 / 4.2(****)2.9 / 2.7(****)3.4 / 3.3(****)
(****) Version for specific markets
177

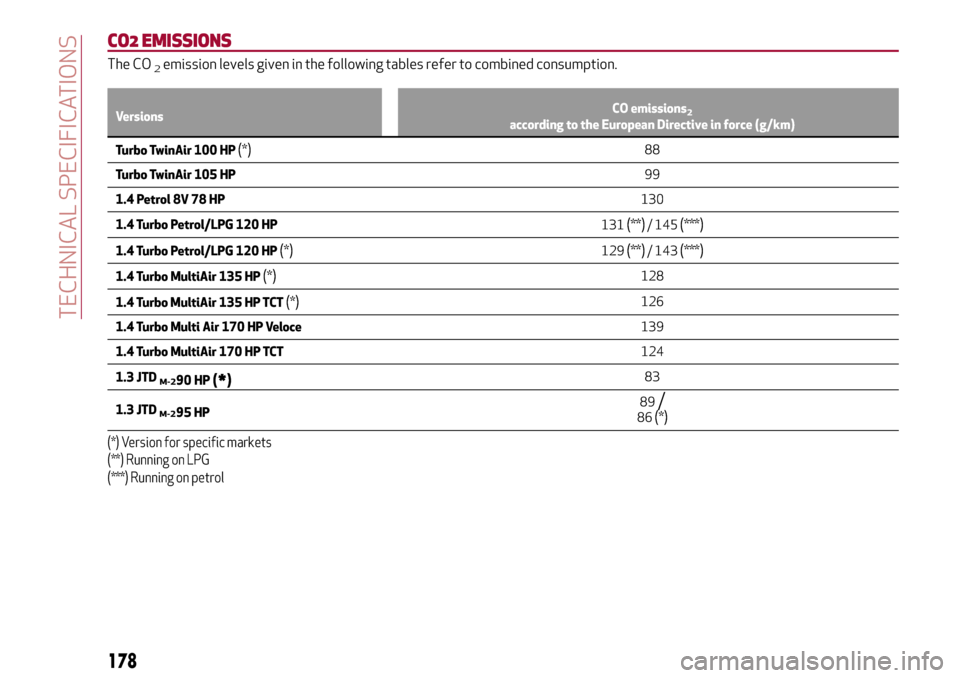

CO2 EMISSIONS
The CO2emission levels given in the following tables refer to combined consumption.
VersionsCO emissions2according to the European Directive in force (g/km)
Turbo TwinAir 100 HP(*)88
Turbo TwinAir 105 HP99
1.4 Petrol 8V 78 HP130
1.4 Turbo Petrol/LPG 120 HP
131
(**)/ 145(***)
1.4 Turbo Petrol/LPG 120 HP(*)129(**)/ 143(***)
1.4 Turbo MultiAir 135 HP(*)128
1.4 Turbo MultiAir 135 HP TCT
(*)126
1.4 Turbo Multi Air 170 HP Veloce139
1.4 Turbo MultiAir 170 HP TCT124
1.3 JTD
M-290 HP(*)83
1.3 JTD
M-295 HP89/86(*)
(*) Version for specific markets
(**) Running on LPG
(***) Running on petrol
178
