@ Tips
-Where snow chains are mandatory on
certain roads, this normally also applies
to vehicles with All Wheel Drive .
- If snow chains are insta lled, the tire
pressures shou ld not be stored in the tire
pressure monitoring system (TPMS).
Otherwise the system could malfunction
¢page 232.
Wheel bolts
Wheel bolts must always be tightened to the
correct torque .
The design of whee l bolts is matched to the
factory installed rims. If different rims are fit­
ted, the correct wheel bolts wit h the right
length and correctly s haped bolt heads must
be used. This ensures that wheels are fitted
secure ly and that the bra ke system f unctions
cor rectly .
In certain circumstances, you may not use
wh eel bolts from a differ ent vehicle -even if it
i s the same mode l.
.&, WARNING
Improperly tig hte ned o r maint ained wheel
bol ts can become loose ca using loss of
cont ro l, a co llision and ser ious persona l in ­
jury.
- Always keep the wheel bolts an d the
threads in the wheel hubs clean so the
whee l bolts can tu rn easily and be pro p­
er ly t ightened.
- Never grease or oil the wheel bo lts and
the threads in the w heel hubs. They can
become loose w hile driving if greased or
o iled, even if tightened to the specified
torq ue.
- Only use wheel bolts t hat belong to the
r im being installed.
- Never use different whee ls bolts on your
vehicle.
- Always maintai n the co rrect tighten ing
torq ue for the wheel bo lts t o reduce the
risk of a wheel loss. If the tightening tor-
Tire s an d wheel s 229
que of t he whee l bolts is too low, they
can loosen and come out when the vehi­
cle is mov ing. If the tig htening torq ue is
too high, the wheel bolts and threads
can be damaged and the whee l can be­
come loose.
(D Note
The specified torque for the whee l bolts is
90 ft lb (120 Nm) with a tolerance of± 7,4
ft lb(± 10 Nm). Torq ue whee l bolts diago­
nally. After changing a whee l, the tor que
must be checked as so on as possible with a
torq ue w rench -prefe rably by an au thor ­
iz ed A udi de aler or qu alified workshop .
Low aspect ratio tires
Your Audi is factory -eq uipped w ith low aspect
r atio tires . These tires have been tho ro ughly
tested and been se lected specifically for your
model for their superb performance, road fee l
and handli ng u nder a var iety of driving condi­
tions . Ask your au thorized Aud i dealer for
more d etails.
The low aspect ratio of these t ires is ind icated
by a numeral of
55 or less in the tire's s ize
designation . The numera l represen ts the ratio
of the t ire's sidewa ll height in relation to its
t read width exp ressed in perce ntage. Conven­
tiona l tires have a he ight/w idth ratio of 60 o r
more.
The performance of low-a spect-ratio tires i s
particularly sensitive to improper inflation
pre ssure.
It is therefore important that low
aspect ratio tires are inflated to the specified
pres sure and that the inflation pressure is
regularly checked and maintained. Tire pre s­
sures should be checked at least once a month and always befo re a long trip
¢ page 218, Checking tire pressure.
What you can do to avoid tire and rim
damage
Low aspect ratio tires can be damaged mo re
easily by impact w it h potholes, curbs, gul lies ..,.
•
•

230 Tire s and wheel s
or ridges on the road, part icu larly if the tire is
u nderinflated.
I n o rder to m inim ize the o ccurrence of impact
damage to the t ires of your vehicle, we recom­
mend that you observe the following precau ­
tions:
- Always maintain recommended infla tion
pressures. Check your t ire pressure every
2,000 miles (3,000
km) and add air if neces ­
sary .
- Drive carefu lly on roads with potholes, deep
gullies or ridges. The impact from driving
t h rough or over such obstacles can damage
your tires. Impact with a curb may also cause damage to your tires.
- After any impact, immediately inspect your
tires or have them inspected by the nearest
authorized Aud i dealer. Replace a damaged
t ire as soon as possible .
- Inspect your t ires every 2,000 miles (3,000
km) for damage and wear . Damage is not al­
ways easy to see . Damage can lead to loss of
air and underinflation, wh ich could eventu­
ally cause t ire failure . If you be lieve that a
t ire may have been damaged, replace the
t ir e as soon as possible.
- T hese tires may wea r mo re quick ly than oth­
ers.
- Please a lso remember that, wh ile these t ires
deliver respons ive handling, they may ride
l ess comfortably and make mo re no ise than
other choices.
Reduced performance in winter /co ld
sea son condit ion s
All ti res a re des igned for certa in pu rposes.
The low aspect ratio, ultra high performance
tires originally installed on your vehicle are in­
tended for max imum dry and wet road per­
formance and handling. They are not suitable
for cold, snowy or icy weather condit ions. If
you dr ive under those circumstances, you
should equip your vehicle with all -season or
winter tires, which offer better traction under
those cond it ions. We suggest you use the rec­
ommended snow or all-season tires specified
fo r your vehi cle, or their eq uivalent. Refer to
q page 22 7 for more detailed infor­
mation regarding winter tires.
Tire pressure monitoring system
ill General notes
Applies to veh icles: w ith tire pressure monitoring system
Each tire, incl uding the spare ( if provided),
sho uld be checked monthly when co ld and in­
flated to the inflation pressure recommended by the veh icle manufacturer on the veh icle
placard or tire inflation pressure label. (If your
vehicle has tires of a different size than the s ize indicated on the vehicle placard or tire in­
flat ion p ressure labe l, you should dete rmine
the p roper t ire infla tion p ress ure fo r those
t i res.)
As an added safety feature, your ve hicle has
been equipped with a tire pressure mon itoring
system ( TPMS) tha t illum ina tes a low ti re
pressure tel ltale when one or more of your
tires is significant ly under-inflated . Acco rding­
l y, when the low tire pressure te lltale i llumi­
nates, you should stop and check your tires as
soon as possib le, and inflate them to the
proper pressure. Driving on a sign ificantly un­
der- inflated t ire causes the tire to overheat
and can lead to tire fa ilure . Under-inflation al ­
so reduces fuel effic iency and tire tread life,
and may affect the vehicle 's handling and
stopp ing ability.
Please note that the TPMS is not a substitute
for proper tire ma intenance, and it is the driv­
er's respons ibility to maintain co rrect tire
pressure, even if under-inflation has not
reached the leve l to tr igger illum inat ion of the
T PMS low tire pressu re tellta le .
You r vehicle has also been equipped with a
T PMS ma lf un ction indicator to ind icate when
the sys tem is not operating properly. The
T PMS ma lf u nction indicator is combined w ith
t h e low tire pressure te lltale. When the sys­
tem detects a malfunction, the telltale will
flash for approximately one min ute and then ..,_

remain continuously illuminated. This se­
quence will continue upon subsequent vehicle
start-ups as long as the malfunction exists.
When the malfunction indicator is illuminat­
ed, the system may not be able to detect or
signal low tire pressure as intended . TPMS
malfunct ions may occur for a variety of rea­
sons, including the installation of replace­
ment or alternate tires or wheels on the vehi­
cle that prevent the TPMS from functioning
properly . Always check the TPMS malfunction
tellta le after replacing one or more tires or
wheels on your vehicle to ensure that the re­
placement or alternate tires and wheels allow
the TPMS to continue to function properly.
Tire pressure indicator appears
Appl ies to vehicles: with tire pressur e monitoring sys te m
The tire pressure indicator in the instrument
cluster informs you if the tire pressure is too
low or if there is a system malfunction.
Fig. 172 Display : underinflation warning
Fig. 173 Display: System malfunction
Using the ABS sensors, the tire pressure moni ­
toring system compares the tire tread circum­
ference and vibration characteristics of the in­
dividual tires. If the pressure decreases in one
or more tires, this is indicated in the instru­
ment cluster with a warning symbol
ti] and a
Tires and wheels 231
message r=!) fig. 172. The driver message in the
display goes out after 5 seconds. The driver
message can be displayed again by pressing
the
ICHECKI button @¢ page 10, fig . 3 . If on­
ly one tire is affected, the display will indicate
its position .
The tire pressure monitoring must be reset in
the menu display each time the pressures are
adjusted (e .g. when switching between parti­
al and full load pressure) or after changing or
replacing a tire on your vehicle¢
page 232.
You can find the recommended tire pressures
for your vehicle on the label on the driver's
door pillar¢
page 216.
Tire tread circumference and vibration charac­
teristics can change and cause a tire pressure
warning if:
- the tire pressure in one or more tires is too
low,
- the tire has structural damage,
- the tire pressure was changed, wheels rotat- ed or replaced but the TPMS was not reset
¢page 232.
Warning symbols
ti] Loss of pressure in at least one tire¢&.
Check the tire or tires and replace or repair if
necessary. The indicator light
ti] in the instru­
ment cluster also illuminates
¢page 13.
Check/correct the pressures of all four tires
and reset TPMS in the menu display .
11@1&1 (Tire Pressure Monitoring System) Tire
pressure! System malfunction . Ifll@IS, ap­
pears after switching the ignition on or while
driving ¢
fig. 173 and the indicator light ti] in
the instrument cluster blinks for approx i­
mately one minute and then stays on, there is
a system malfunction. See your autho rized
Audi dealer as soon as possible.
A WARNING
-If the tire pressure indicator appears in
the instrument cluster display, one or
more of your tires is significantly under­
inflated. Reduce your speed immediately
and avoid any hard steering or braking ..,.

232 Tires and wheels
maneuvers. Stop as soon as possible and
check the tires and their pressures. In­
flate the tire pressure to the proper pres­
sure as indicated on the vehicle's tire
pressure label ¢
page 216. Driving on a
significantly under-inf lated tire causes
the tire to overheat and can lead to tire
failure. Under-inflation also is likely to
impair the vehicle's handling and stop­
ping ability.
- T he driver is responsible for maintain ing
the correct tire pressures. You must
check the tire pressures regularly.
- Under certain cond itions (such as a spor­
ty driving style, winter conditions or un­
paved roads), the pressure monitor indi­
cator may be delayed.
- Ask your authorized Audi dealer if run­
flat tires may be used on your vehicle .
Your vehicle registration becomes invalid
if you use these tires when not permit­
ted. Damage to your veh icle or acc idents
could also result .
(D Tips
- The tire pressure monitoring system
stops working when there is an ESP/ABS malfunction .
- Using snow chains may result in a system
malfunction.
- Tires with the identification "AO" or "RO"
have been specially matched with your
Audi. We recommend using only these
tires because they meet the highest
standards regarding safety and driving
characteristics when used correctly. Your
a uthorized Audi dea ler will g ladly pro­
v ide you w ith more information.
Reset tire pressure monitoring system
(Stepl)
Applies to veh icles: w ith tire pressure monitoring system
If the tire pressure is adjusted, wheels ore ro­
tated or changed, the TPMS must be reset in
the menu display.
----- ®
Fig. 174 Wipe r lever: Contro ls fo r the menu d isplay
Fig. 175 Disp lay: S ta rt m enu
I Rese t I button @ and rocker switch @
¢ fig. 17 4 functions:
To open the menu
" Press the I Reset ! button @ unt il the menu
disp lay¢
fig. 175 appears
Selections and settings
" Press the rocker switch @ to reach a menu
d isp lay. The switch is operated the same as
the display (up/down) .
Entering and confirming
" Press the I Reset I button @.
Returning to the Start menu
" Press the I Rese t I button longer than 2 sec­
onds to return from any menu level to the
Start menu.

@ Tips
-Before resetting the TPMS, the current
pressures of
all four tires must corre­
spond t o the specified va lues. Adjust the
tire pressu re and reset the pressure in
the tire pressure mon itor ing system ac­
cord ing to the load yo u are carry ing
~pag e
216.
- Do not store the tire pressures if snow
cha ins a re installed. Otherw ise the sys­
tem could malfunction.
Reset tire pressure monitoring system
(Step2}
Applies to vehicles: with tire pressure monitoring system
Fig. 1 76 Display: Tire pressure
Fig. 1 77 Display: Tire pressure
I Reset ! button @ and rock e r swit ch @
~ page 232, fig . 17 4 func tions:
Storing tire pressures
.. Turn on the ignition .
.. Se lect the menu:
> Adjusting * > Tire pres-
sure
> Store .
Entering and confirming
.. Se lect the menu : Store now
.. Press the
I Reset I button @ .
.. Se lect the menu : Confirm
Tires and wheels 233
.. Press the I Reset I button @.
Returning to the Start menu
.. Press the I Reset ! button longer than 2 sec­
onds to re tur n from any menu level to the
S ta rt men u.
{!) Tips
Befo re resetting the TPMS, t he cur rent
p re ssu res of
all four tires mus t corres pond
to the speci fied val ues. Adjus t the tire
pr essure and rese t the pressure in the ti re
press ure monitoring system acco rding to
the load you are carry ing
~ page 216 .

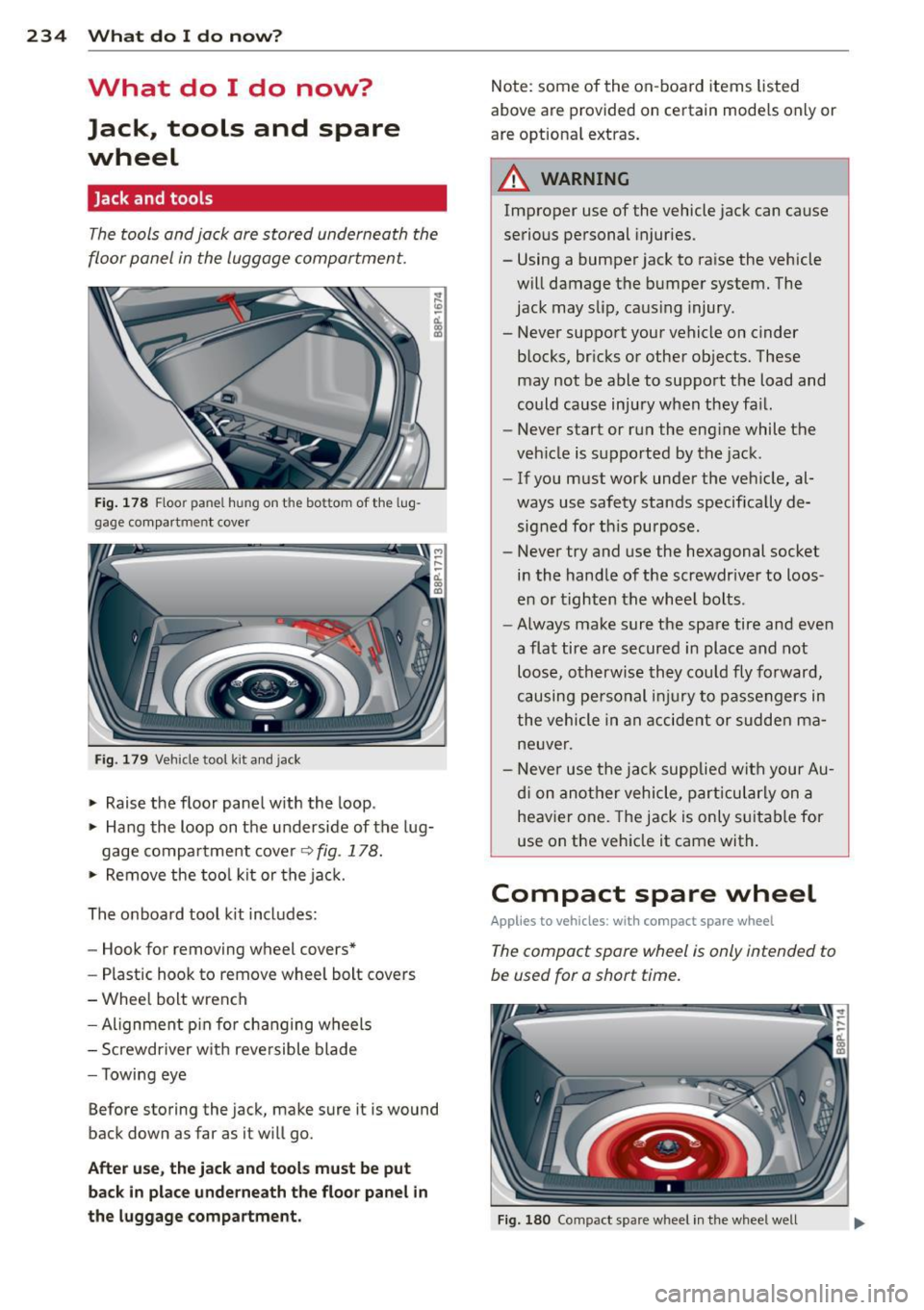

234 What do I do now ?
What do I do now?
Jack, tools and spare
wheel
Jack and tools
The tools and jack are stored underneath the
floor panel in the luggage compartment.
Fig . 178 Floor panel hung on the bottom of the lug­
gage compartment cover
Fig. 179 Vehicle tool kit and jack
~ Raise the floor panel w ith the loop.
~ Hang the loop on the underside of the lug-
gage compartment cover
Q fig. 178.
~ Remove the too l kit or the jac k.
The onboard tool kit incl udes:
- Hook for removing wheel covers*
- Plastic hook to remove wheel bolt covers
- Wheel bolt wrench
- Alignment p in for changing wheels
- Screwdriver w ith reve rsible blade
- T owing eye
Before storing the jack, make sure it is wound
back down as far as it will go.
After u se , th e jack and tool s mu st be put
b ac k in pl ace under nea th t he floo r pan el in
t he luggag e comp artmen t.
Note: some of the on -board items listed
above are provided on certain mode ls only or
are optiona l extras.
A WARNING
-Improper use of the vehicle jack can cause
serious personal injuries.
- Using a bumper jack to raise the vehicle
will damage the bumper system. The
jack may slip, caus ing injury.
- Never support your vehicle on c inder
b locks, br icks or other objects. These
may not be able to support the load and
could cause injury when they fail.
- Never start or run the eng ine while the
veh icle is supported by the jack.
- If you must work under the veh icle, al­
ways use safety stands specifically de­ signed fo r th is purpose.
- Never try and use the hexagonal socket
in the handle of the screwdriver to loos­
en or tighten the whee l bolts.
- Always make sure the spare tire and even
a flat tire are secured in place and not
loose, otherwise they cou ld fly forward,
causing pe rsonal i njury to passengers in
the vehicle in an accident or sudden ma­
neuver.
- Neve r use the ja ck supplied with your Au­
d i on another vehicle, particularly on a
heav ier one. The jack is only s uitable for
use on the vehicle it came with.
Compact spare wheel
Applies to veh icles: w ith compact spare whee l
The compact spare wheel is only intended to
be used for a short time.
Fig . 180 Compact spare wheel in the wheel well

You will find the compact spare wheel under
the floor in the luggage compartment . It is
secured w ith a large nut.
Using the compact spare wheel
The compact spa re wheel is only intended for
emergenc ies until you can reach a repair shop .
Replace i t as quickly as possible with a normal
wheel.
There are some restrictions on the use of the
compact spare wheel~ &. . The compact spare
wheel has been developed especially for your
type of vehicle . It must not be exchanged for
the compact spare whee l from another type of
vehicle.
Normal summer or winter tires must not be
installed on the compact spare whee l rim.
Snow chains
For technica l reasons, the use of snow chains
on the compact spare wheel is
n ot permitted .
If you do have to dr ive w ith snow cha ins and
have a t ire failure on a
front wheel, insta ll the
spa re wheel in place of a rear wheel. Install
the snow chains on the rear wheel and use it
to replace the defective front whee l.
Using the spare wheel
The spare wheel is only intended for emergen­
cies until you can reach a repair shop. Replace
it as qu ickly as possib le with a no rmal wheel.
There are some restrict ions on the use of a
spare wheel
Q &. . The spare wheel has been
developed especially for your type of vehicle.
It m ust not be exchanged for the spare whee l
from anot her type of vehicle.
Normal summer or winter tires must not be
i nstalled on the spare wheel rim.
Snow t ires
For technical reasons, the use of snow chains
on the spare whee l is
not p erm itte d.
If you do have to drive with snow chains and
have a t ire failure on a
front wheel, insta ll the
spare wheel in place of a rear wheel. Install
What do I do now? 235
the snow chains on the rear whee l and use it
to replace the defective front wheel.
A WARNING -
A lways store jacking equipment, spare
wheel in the luggage compartment. Tight­
en screw for the spare wheel secure ly. Un­
der no circumstances should you store the
spa re wheel o r jack and tools unsecured in
the passenger compartment . This could
cause ser ious persona l inju ry to passen­
gers in the veh icle in case of a collision .
- The compact spare tire is for temporary
use only and is so marked on the side­
walls .
- Do not dr ive at speeds exceeding SO mph
(80 km/h) wi th the compact spare whee l
mounted . A lso rapid acce lerat ion, ha rd
braking and hard cornering must be
avoided to he lp prevent loss of vehicle
contro l.
- Any continuous road use of the compact
spare tire may result in tire failure, loss
of vehicle control and injury to vehicle
occupants.
- Do not put a snow chain on your compact
spare tire. Due to the smaller t ire size,
the chain will not fit properly and can
thus damage your vehicle. You cou ld also
lose the chain, as well as contro l of the
veh icle .
- If you have a flat front t ire in road condi­
tions which require snow chains, first re­
move the undamaged rea r whee l and
mount the compact spare wheel in its
place. Then remove the damaged front
wheel, take the snow cha ins off it and at­
tach them to the whee l taken from the
rear. This wheel can now be mounted on
the front with its snow chains. Check and
adjust t ire pressure promptly .
- Never use two or more compact spare
tires at the same time.
(D Note
When using the compact spare wheel, note the fo llowing: •
•

236 What do I do now?
-After installing the compact spare wheel,
the tire inflation pressure should be
checked and, if necessary, increased to
60 psi (4.2 bar).
- The load carrying capacity is marked on
the tire sidewalls and must not be ex ­
ceeded.
- After installing the compact spare wheel,
make sure that you remount the flat tire
in its storage area properly.
- The compact spare tire should be proper­
ly remounted in its storage area as soon
as the standard road tire can be re­ placed .
- Because the compact spare tire was spe­
cifically designed for your vehicle, it must not be used on any other vehicle .
Likewise, compact spare wheels from
other vehicles must not be used on your
vehicle.
- The compact spare tire must not be
mounted on any other wheels, nor must
standard tires, snow tires, wheel covers
or trim rings be used with the compact
spare wheel. If such use is attempted,
damage to these items or other vehicle
components may occur .
(D Tips
Check the inflation pressure of the com­
pact spare tire (60 psi/4.2 bar) periodically
to keep the tire ready for use.
Wheel change
Before changing a wheel
Observe the following precautions for your
own and your passenger's safety when chang­
ing a wheel .
.. After you experience a tire failure, pull the
car well away from moving traffic and try to
reach
level ground before you stop c:> ,&. .
.. All passengers should leave the car and
move to a safe location (for instance, behind
the guardrail)
c:> _&. .
.. Apply the parking brake firmly c:> _&. .
.. Move selector lever to position Pon an au­
tomatic transmission ; put manual transmis­
sion in
first gear c:> _&..
.. If you are towing a trailer : unhitch the trail­
e r from your vehicle.
.. Take the
tool and the spare tire c:> page 234
out of the luggage compartment .
.&, WARNING
You or your passengers could be injured
while changing a wheel if you do not fol­
low these safety precautions:
- If you have a flat tire, move a safe dis­
tance off the road. Turn off the engine,
turn the emergency flasher on and use
other warning devices to alert other mo­
torists.
- Make sure that passengers wait in a safe place away from the vehicle and well
away from the roadway and traffic .
- To help prevent the vehicle from moving suddenly and possibly slipping off the
jack, always fully set the parking brake
and block the wheel diagonally opposite
the wheel being changed. When one
front wheel is lifted off the ground, plac ­
ing the automatic transmission in "P"
(Park) , or engaging a gear in a manual
transmission will
not prevent the vehicle
from moving.
- Before you change a wheel, be sure the
ground is level and firm. If necessary,
use a sturdy board under the jack.
- After installing the spare wheel, make
sure that you remount the flat tire/wheel
in its storage area properly and tighten
the knurled retaining screw securely.
Changing a wheel
-
When you change a wheel, follow these­
quence described below step-by-step and ex­
actly in that order .
1. Remove the decorative wheel cover*. For
more details see also
c:> page 23 7, Deco­
rative wheel covers
or c:> page 238,
Wheels with cap-covered wheel bolts.

2. Loosen the w hee l bol ts ¢ page 238.
3. Locate the proper mounting point for the
jack and align the jack below that point
¢ page 239.
4. Lift the car with the jack¢ page 239.
5. Take the flat wheel off and then put the
spare on
¢ page 240 .
6. Tighten all wheel bo lts light ly .
7 .
Low er the veh icle w ith the jack.
8 . Use the wheel bolt wrench and
firml y
tighten all whee l bolts ¢ page 238.
9. Put the decorative wh eel cov er* back on.
A WARNING -
Always read and head all WARNINGS and
information
¢ A in Raising the vehicle on
page 240
and ¢ page 241.
After changing a wheel
A wheel change is not complete without the
following actions .
.. Store and secu re the replaced wheel in the
spare wheel we ll.
.. Put the tool case and the jack back in place
in the luggage compartment .
.. Check the
tir e pres su re on the spare wheel
immediately after mounting it .
.. As soon as possible, have the
tightening
torqu es
on all wheel bolts checked with a
torque wrench. The correct tightening tor­
que is 90 ft lb (120 Nm).
.. Have the flat tire
repl aced as soon as possi ­
ble.
@ Tips
- If yo u n otice wh ile chang ing a tire tha t
the wheel bo lts a re cor roded and diffi ­
cult to turn, then they should be re­ placed before you check the tightening
torque.
- Drive at reduced speed until you have the
tightening torques checked .
What do I do now ? 237
Full wheel covers
App lies to vehicles : with ful l wheel cove rs
T he wheel covers must be removed to access
the wheel bolts.
Remo val
.. Pull the full whe el cover off manua lly.
Installation
.. First press the full w hee l cover on to the rim
a t the cut-o ut prov ided for the va lve . Then
engage the outer edge of the
full wheel cov ­
er
in the steel rim.
Decorative wheel covers
App lies to vehicles: with decorat ive w hee l covers
The decorative wheel covers must be removed
first to access the wheel bolts .
Fig. 181 Whee l cha nge : removing the whee l cover
Remo ving
.. Insert the hook provided with the on board
tool kit into the hole on the center hub
piece.
.. Pull off the
decorati ve wh eel cover
¢ fig . 181 .

238 What do I do now?
Wheels with cap-covered wheel bolts
Applies to vehicles: wit h cap-cove red w hee l bo lts
The caps must be removed first from the
wheel bolts before the bolts can be un­
screwed.
Fig. 182 Whee l change : removing the wheel bo lt caps
Removing
.,. Push the plastic clip provided w ith the on­
board tool kit down over the wheel bolt cap
u nt il it engages .
.. Pull on the properly engaged
plastic clip to
extract the cap
¢ fig. 182 .
Refitting
.. Place the caps over the wheel bolts and
push them back in .
The caps are there to p rotect and keep the
wheel bolts clean.
Anti-theft wheel bolts
Applies to vehicles : wit h ant i-t heft wheel bo lts
To tighten or untighten the anti-theft wheel
bolts you must use a special adapter.
(~
'
Fig. 183 Anti-theft w hee l bo lt w it h cap and adapter
.. Remove the cap* ¢fig. 183 @using the
plastic clip found in the vehicle tool kit. ..
Insert the adapter @ as far as it will go into
the anti -theft wheel
CD bolt.
.. Push the socket wrench over the adapter
@ .
.. Loosen or tighten the wheel bolt
¢page 238.
To remove the cap* @, make sure the plastic
clip is pushed in as far in as possible until it
lines up with the edge of the cap .
We recommend you keep the whee l bolt
adapter in the tool kit.
T he
code number of the wheel bolt lock is
stamped on the front side of the adapter . You
will need this number in order to get a re­ placement from your authorized A udi dealer.
Q) Tips
Write down the code number and keep it
in safe place. Do not keep it in the vehicle.
Loosening and tightening the wheel
bolts
The wheel bolts must be loosened before rais­
ing the vehicle.
Fig. 184 W hee l change : loosen ing the wheel bolts
Loosening
.,. Fit the wheel bolt wrench over the wheel
bolt and push it down as far as it will go .
"' ... -cL a, a,
.,. Close your g rip around the end of the
w rench handle for maximum torque and
turn the wheel bolts
counter-clockwise
about one single turn in the direction of ar-
row ¢
fig. 184. .,.
