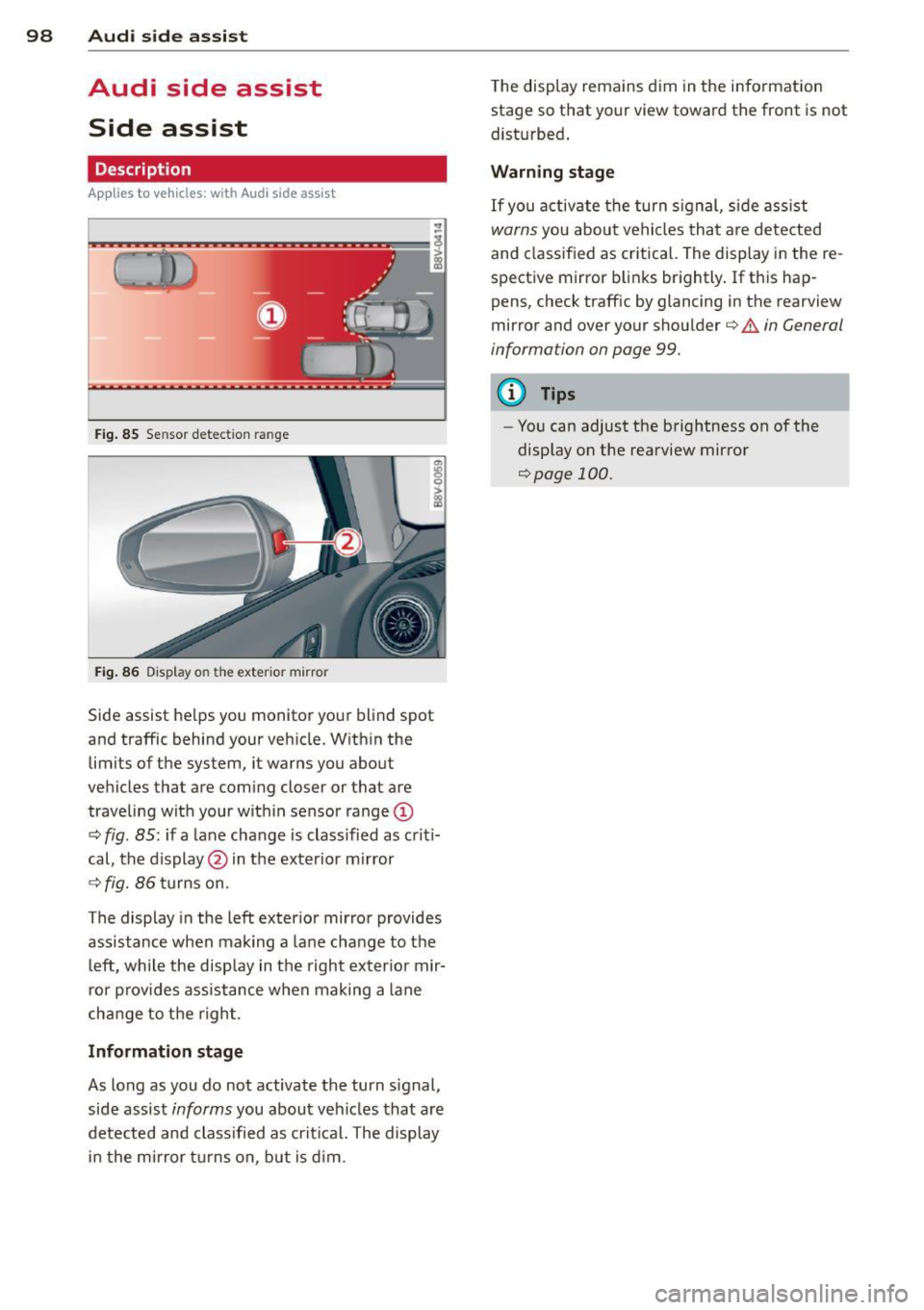

98 Audi side assist
Audi side assist
Side assist
Description
App lies to vehicles: with Audi side assist
Fig . 85 Se nsor detect ion ra nge
Fig. 86 Display o n the exte rior mirror
Side assist helps you monitor your blind spot
and traffic behind your vehicle. Within the
limits of the system, it warns you about
vehicles that are coming closer or that are
traveling with your within sensor range@
c:> fig. 85: if a lane change is classified as criti­
cal, the display@in the exterior mirror
c:> fig. 86 turns on.
The display in the left exterior mirror provides
assistance when mak ing a lane change to the
left, while the display in the right exterior mir­
ror provides assistance when making a lane
change to the right.
Information stage
As long as you do not activate the turn signal,
side assist
informs you about vehicles that are
detected and class ified as critical. The display
in the mirror turns on, but is dim. The
display remains dim in the information
stage so that your view toward the front is not
disturbed .
Warning stage
If you activate the turn signal, side assist
warns you about vehicles that are detected
and class ified as critical. The display in the re­
spective mirror blinks brightly. If this hap­
pens, check traffic by glancing in the rearview
mirror and over your shoulder
c:> .&. in General
information on page 99.
(D Tips
- You can adjust the brightness on of the
display on the rearview mirror
c:>page 100.

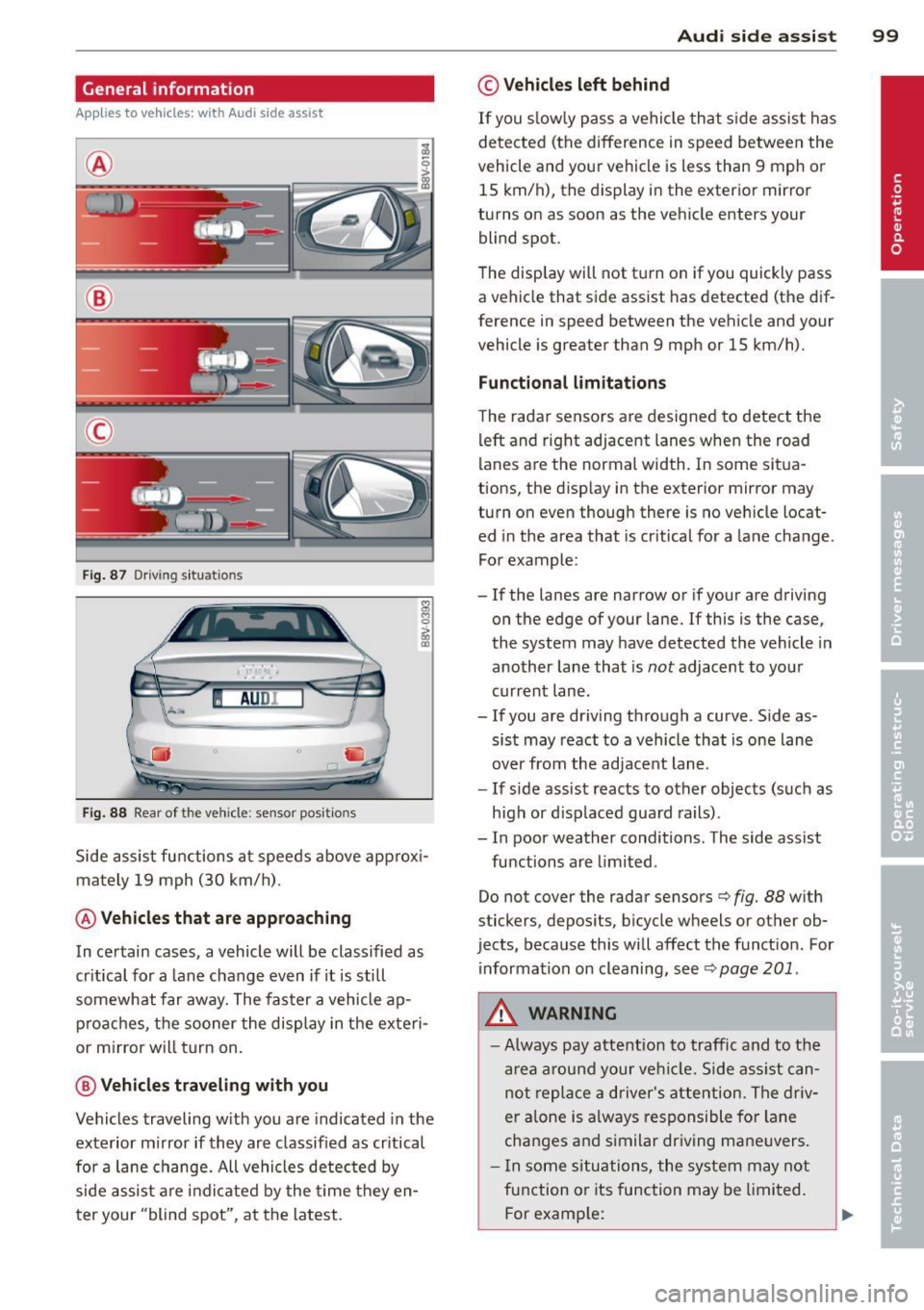

General information
Applies to vehicles: with Audi side assist
®
®
©
Fig . 87 Driving situations
I AUDI
Fi g. 88 Rear of the vehicle: sensor posit ions
Side assist functions at speeds above approx i­
mately 19 mph (30 km/h).
@ Vehicl es th at ar e approaching
In certain cases, a vehicle will be classified as
cr itical for a lane change even if it is still
somewhat far away. The fas ter a vehicle ap­
p roaches, t he sooner the display in the exteri­
or m irror will t urn on.
@ V ehicles traveling with you
Vehicles traveling w ith you are indicated in the
exterior m irror if they are classified as cr itical
for a lane change. All vehicles detec ted by
side assist are indicated by the time they en­
t er your "blind spot", at the latest.
Audi side assist 99
© Veh icles left behind
If you s low ly pass a vehi cle that s ide assist has
detected (the difference in speed between the
vehicle and you r vehicle is less than 9 mph or
15 km/h), the display in the exterio r mir ro r
turns on as soon as the vehicle enters your blind spot.
T he disp lay will not t urn on if you quickly pass
a vehicle that side assist has detected (the dif­
ference in speed between the veh icle and your
vehicle is greater than 9 mph or 15 km/h).
Functional limitations
The radar sensors are designed to detect the
left and right adjacent lanes when the road
lanes are the normal width. In some sit ua­
tions, the d isp lay in the exterior mirror may
turn on even though there is no ve hicle locat­
ed in the area that is cr itical for a lane cha nge.
For example:
- If the lanes are narrow or if your are driving
on the edge of your lane.
If this is the case,
the system may have detected the vehicle in
another lane that is
not adjacent to you r
current lane .
-If you are dr iving through a curve . S ide as­
sis t may react to a vehicle that is one lane
over from the adjacent lane.
- If side assist reacts to other objects (such as
high or d isp laced guard rails) .
- In poor weather conditions. The side assist
functions are limited .
Do not cover the radar sensors
c> fig. 88 with
stickers, depos its, bicycle wheels or other ob­
jects, because this will affect the funct ion. For
information on cleaning, see
c> page 201 .
A WARNING
-Always pay attention to traffic and to the
a rea a round your ve hicl e. Side assi st can­
not repla ce a d river's attention. The driv ­
er a lone is always responsible for la ne
cha nges and s imilar dr iv ing ma ne uvers.
- In some si tua tions, the system may not
function or its function may be limited.
F or examp le:

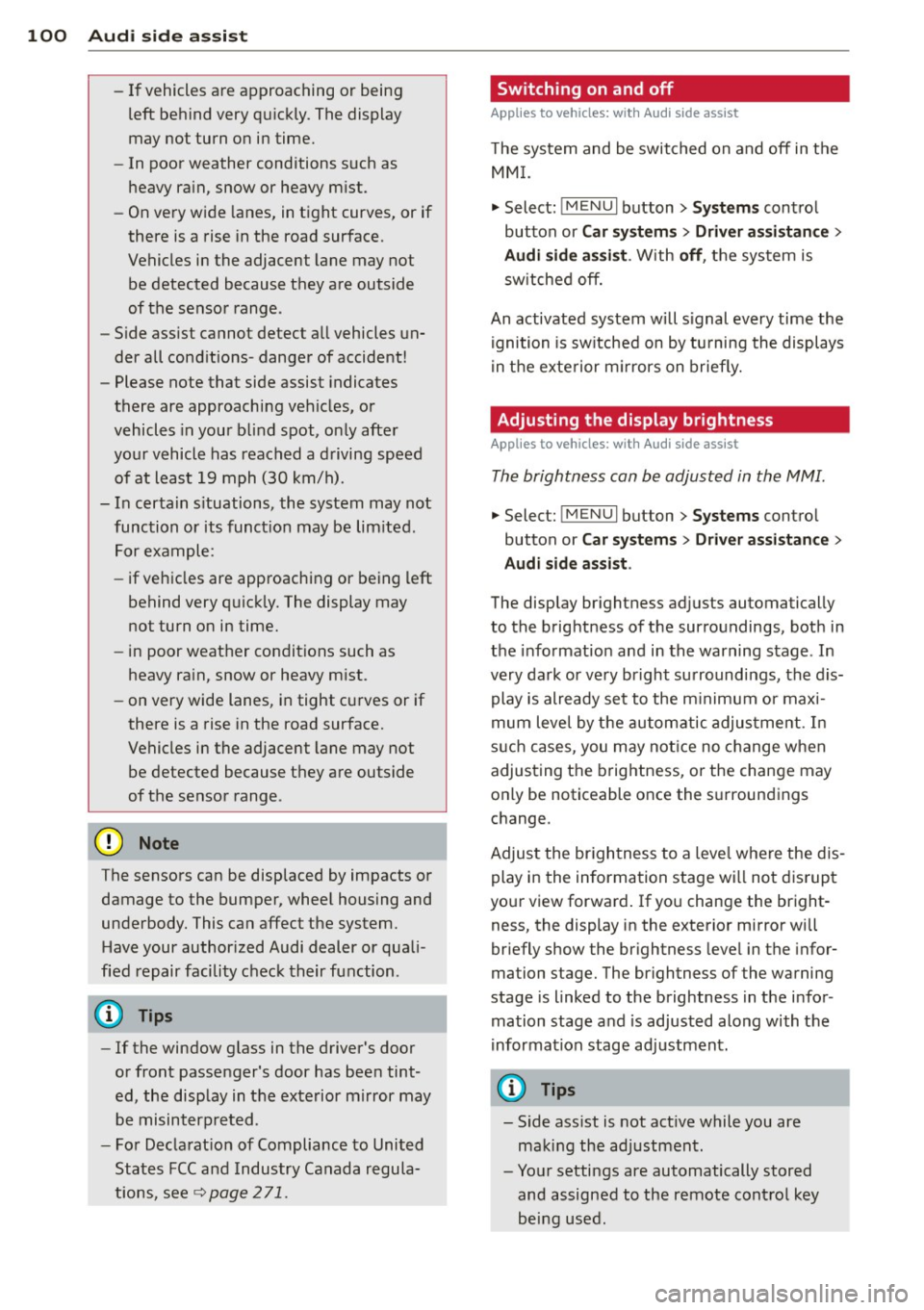

100 Audi side assist
-If vehicles are approaching or being
left behind very quickly. The display
may not turn on in time.
- In poor weather conditions such as
heavy rain, snow or heavy mist.
- On very wide lanes, in tight curves, or if
there is a rise in the road surface.
Vehicles in the adjacent lane may not
be detected because they are outside
of the sensor range.
- Side assist cannot detect all vehicles un­
der all conditions- danger of accident!
- Please note that side assist indicates
there are approaching vehicles, or
vehicles in your blind spot, only after
your vehicle has reached a driving speed
of at least 19 mph (30 km/h).
- In certain situations, the system may not
function or its function may be limited.
For example:
- if vehicles are approaching or being left
behind very quickly. The display may
not turn on in time.
- in poor weather conditions such as heavy rain, snow or heavy mist.
- on very wide lanes, in tight curves or if
there is a rise in the road surface.
Vehicles in the adjacent lane may not
be detected because they are outside
of the sensor range.
The sensors can be displaced by impacts or damage to the bumper, wheel housing and
underbody. This can affect the system. Have your authorized Audi dealer or quali­
fied repair facility check their function.
(D Tips
-If the window glass in the driver's door
or front passenger's door has been tint­
ed, the display in the exterior mirror may
be misinterpreted.
- For Declaration of Compliance to United
States FCC and Industry Canada regula­
tions, see
9 page 271.
Switching on and off
Applies to vehicles : wi th Audi side ass ist
The system and be switched on and off in the
MMI.
"'Select: !MENUI button> Systems control
button or
Car systems > Driver assistance >
Audi side assist. With off, the system is
switched off.
An activated system will signal every time the ignition is switched on by turning the displays
in the exterior mirrors on briefly.
Adjusting the display brightness
App lies to vehicles: wi th Audi s ide ass ist
The brightness can be adjusted in the MMI.
"'Selec t: !ME NUI button> Systems control
button or
Car systems > Driver assistance >
Audi side assist .
The display brightness adjusts automatically
to the brightness of the surroundings, both in
the information and in the warning stage . In
very dark or very bright surroundings, the dis­
play is already set to the minimum or maxi­
mum level by the automatic adjustment. In
such cases, you may notice no change when
adjusting the brightness, or the change may
only be noticeable once the surroundings
change.
Adjust the brightness to a level where the dis­
play in the information stage will not disrupt
your view forward. If you change the bright­
ness, the display in the exterior mirror will
briefly show the brightness level in the infor­
mation stage. The brightness of the warning
stage is linked to the brightness in the infor ­
mation stage and is adjusted along with the
information stage adjustment.
(D Tips
- Side assist is not active while you are
making the adjustment.
- Your settings are automatically stored
and assigned to the remote control key
being used.

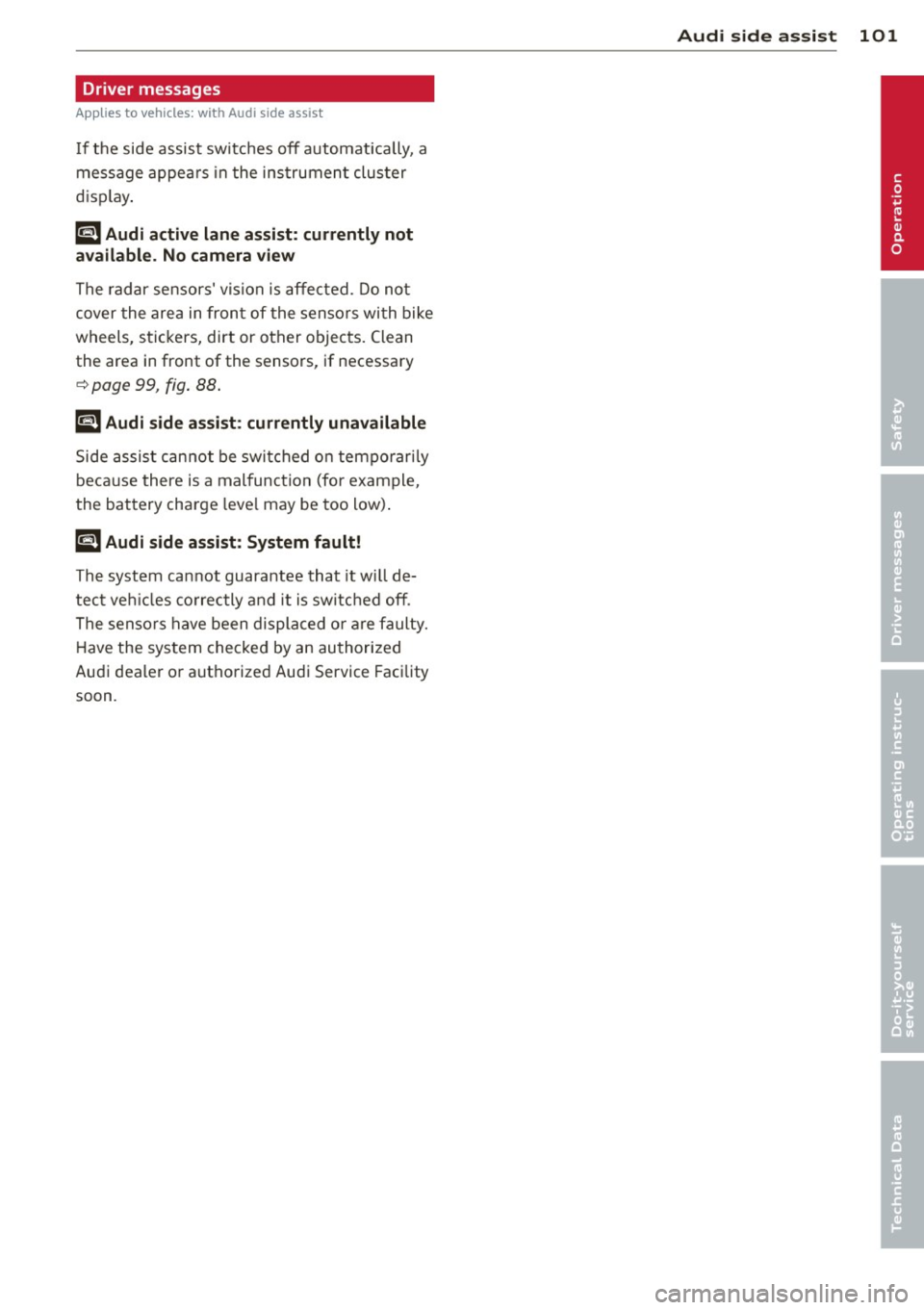

Driver messages
Applies to vehicles: with Audi side assist
If the side assist switches off automatica lly, a
message appea rs in the instrument cluster
disp lay .
@j Audi active lane assist: currently not
available. No camera view
The radar sensors' vision is affected. Do not
cover the area in fron t of the sensors with bike
wheels, stickers, dirt or other objects. Clean
the area in front of the sensors, if necessary
r::!) page 99, fig. 88.
@j Audi side assist : currently unavailable
Side assist cannot be switched on temporari ly
because there is a malfunction (for example,
the battery charge leve l may be too low) .
@j Audi side assist: System fault!
The system cannot guarantee that it wi ll de­
tec t ve hicl es correctly and it is switched off.
The sensors have been displaced or are faulty.
H ave the system checked by an authorized
Audi dealer or authorized Aud i Service Facility
soon.
Audi side assist 101
•

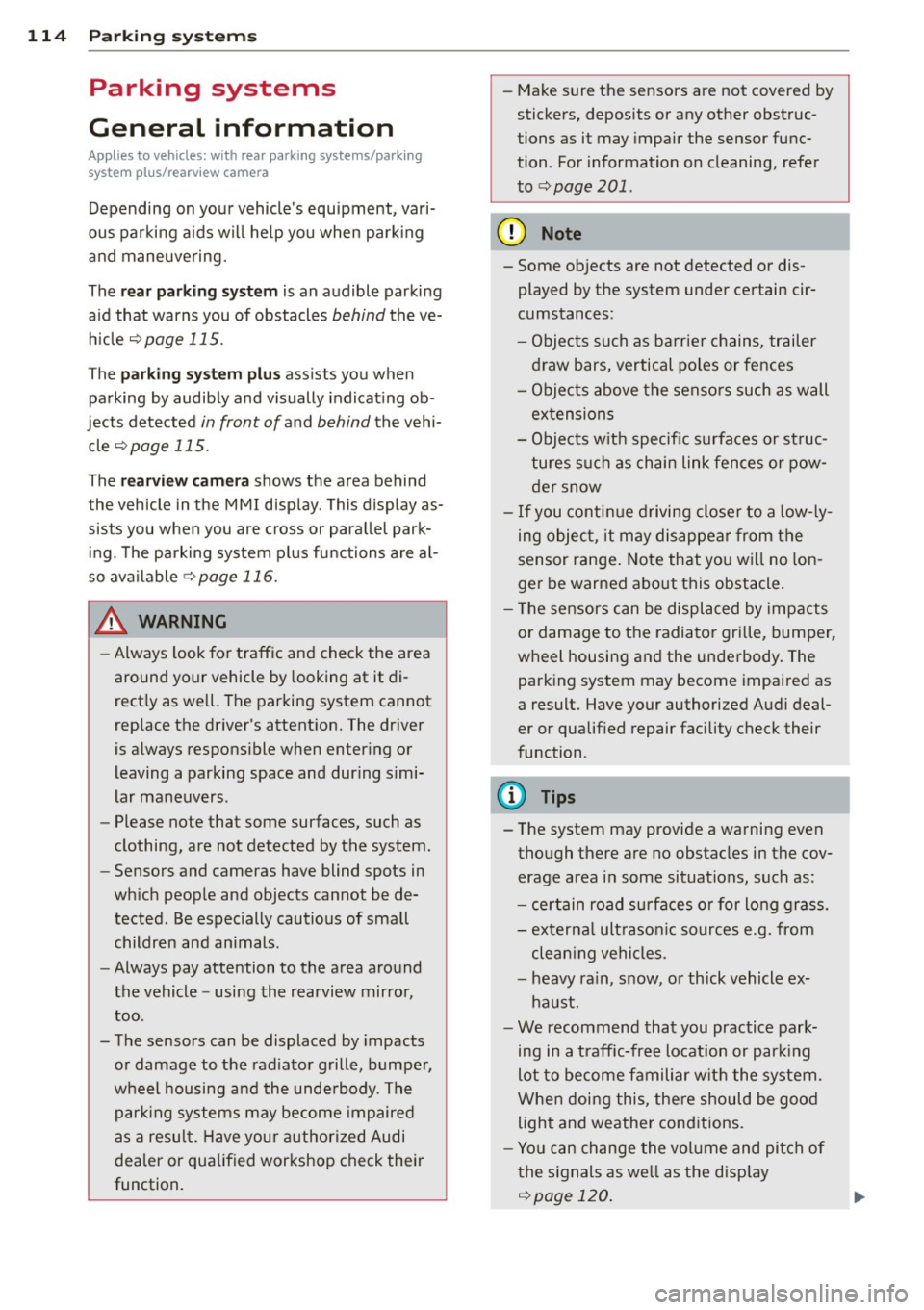

114 Parking systems
Parking systems
General information
A ppl ies to vehicles: with rea r parking sys te m s/park in g
syste m plus/rearv iew camera
Depending on your vehicle's equipment, vari­
ous parking aids will help you when parking
and maneuvering.
The
rear parking system is an audible parking
aid that warns you of obstacles
behind the ve­
hicle
¢ page 115.
The parking system plus assists you when
parking by audibly and visually indicating ob­
jects detected
in front of and behind the vehi­
cle
¢ page 115.
The rearview camera shows the area behind
the vehicle in the MMI display . This display as­
sists you when you are cross or parallel park­
ing. The parking system plus functions are al­
so available
¢ page 116.
& WARNING
- Always look for traffic and check the area
around your vehicle by looking at it di­
rectly as well. The parking system cannot
replace the driver's attention. The driver
is always responsible when entering or
leaving a parking space and during simi­
lar maneuvers .
- Please note that some surfaces, such as
clothing, are not detected by the system.
- Sensors and cameras have blind spots in
which people and objects cannot be de­
tected . Be especially cautious of small
children and animals .
- Always pay attention to the area around
the vehicle -using the rearview mirror,
too.
- The sensors can be displaced by impacts
or damage to the radiator grille, bumper,
wheel housing and the underbody. The
parking systems may become impaired
as a result. Have your authorized Audi
dealer or qualified workshop check their
function. -
Make sure the sensors are not covered by
stickers, deposits or any other obstruc­
tions as it may impair the sensor func­
tion . For information on cleaning, refer
to ~
page 201 .
(D Note
- Some objects are not detected or dis­
played by the system under certain cir­
cumstances:
- Objects such as barrier chains, trailer
draw bars, vertical poles or fences
- Objects above the sensors such as wall
extensions
- Objects with specific surfaces or struc­
tures such as chain link fences or pow­
der snow
- If you continue driving closer to a low-ly­
ing object, it may disappear from the
sensor range. Note that you will no lon­
ger be warned about this obstacle.
- The sensors can be displaced by impacts
or damage to the radiator grille, bumper,
wheel housing and the underbody. The
parking system may become impaired as
a result. Have your authorized Audi deal­
er or qualified repair facility check their
function .
(D Tips
- The system may provide a warning even
though there are no obstacles in the cov­
erage area in some situations, such as:
- certain road surfaces or for long grass.
- external ultrasonic sources e.g. from
cleaning vehicles.
- heavy rain, snow, or thick vehicle ex­
haust.
- We recommend that you practice park­
ing in a traffic-free location or parking
lot to become familiar with the system.
When doing this, there should be good
light and weather conditions.
- You can change the volume and pitch of
the signals as well as the display
¢page 120.

-What appears in the MM I display is
somewhat time -de layed .
- The sensors mus t be kept clean and free
of snow and ice for the park assist to op­
erate .
Rear parking system
Description
Applies to vehicles: with rear parking system
The rear parking system is an audible parking
aid .
Desc ripti on
There is a sensor in the rear bumper cover. If
these detect an obstacle, audib le signals warn
you .
Make sure the sensors are not covered by
stickers, deposits or any other obstructions as it may impair the sensor function. For infor­
mation on cleaning, see ¢
page 201.
The range at which the sensors begin to meas­
ure is approximately:
side 3 ft (0 .90 m)
rear center 5.2 ft (1.60 m)
The closer you get to the obstacle, the shorter the interval between the audib le signa ls . A
continuous tone sounds when the obstacle is
less than approximate ly 1 foot (0 .30 meters)
away. Do not continue backing up¢&.
in Gen­
eral information on page 114,
¢ (D in General
information on page 114!
If the d istance to an obstacle remains con­
stant, the volume of the distance warning
gradually drops after about four seconds (th is
is not apply in the continuous tone range) .
Activat ing
The par king system activates automatically
when the reverse gear is selected. Yo u will
hear a brief confirmation tone.
P arking systems 115
Parking system plus
Description
Applies to vehicles: with parking system plus
The parking system plus provides audio and
visual signals when parking .
Fig. 98 Display field
Senso rs a re loca ted in the front and rear
bumpers. If these detect an obstacle, a udible
and visual signals warn you.
Make sure the sensors a re not covered by
stickers, depos its or any other obstr uctions a s
it may impair the senso r func tion. For in fo r­
mation on cleani ng, see ¢
page 201.
The display field begins approx imately at:
@ 4 ft (1.20 m)
® 3 ft (0.90 m)
© 5.2 ft (1.60 m)
@ 3 ft (0.90 m)
T he close r you get to the obstacle, the shorte r
the inte rva l between the audible signals . A
continuous to ne sounds when the obs ta cl e is
less than approx ima tely 1 foot (0.30 meters)
away . Do no t continue dr iving forward or in re­
verse
¢ &. in General information on
page 114,
¢ (D in General information on
page 114!
If the distance to an obstacle remains con­
stant, the vo lume of the distance warning
gradua lly drops after about fo ur seconds (this
is not apply in the cont inuo us tone range).

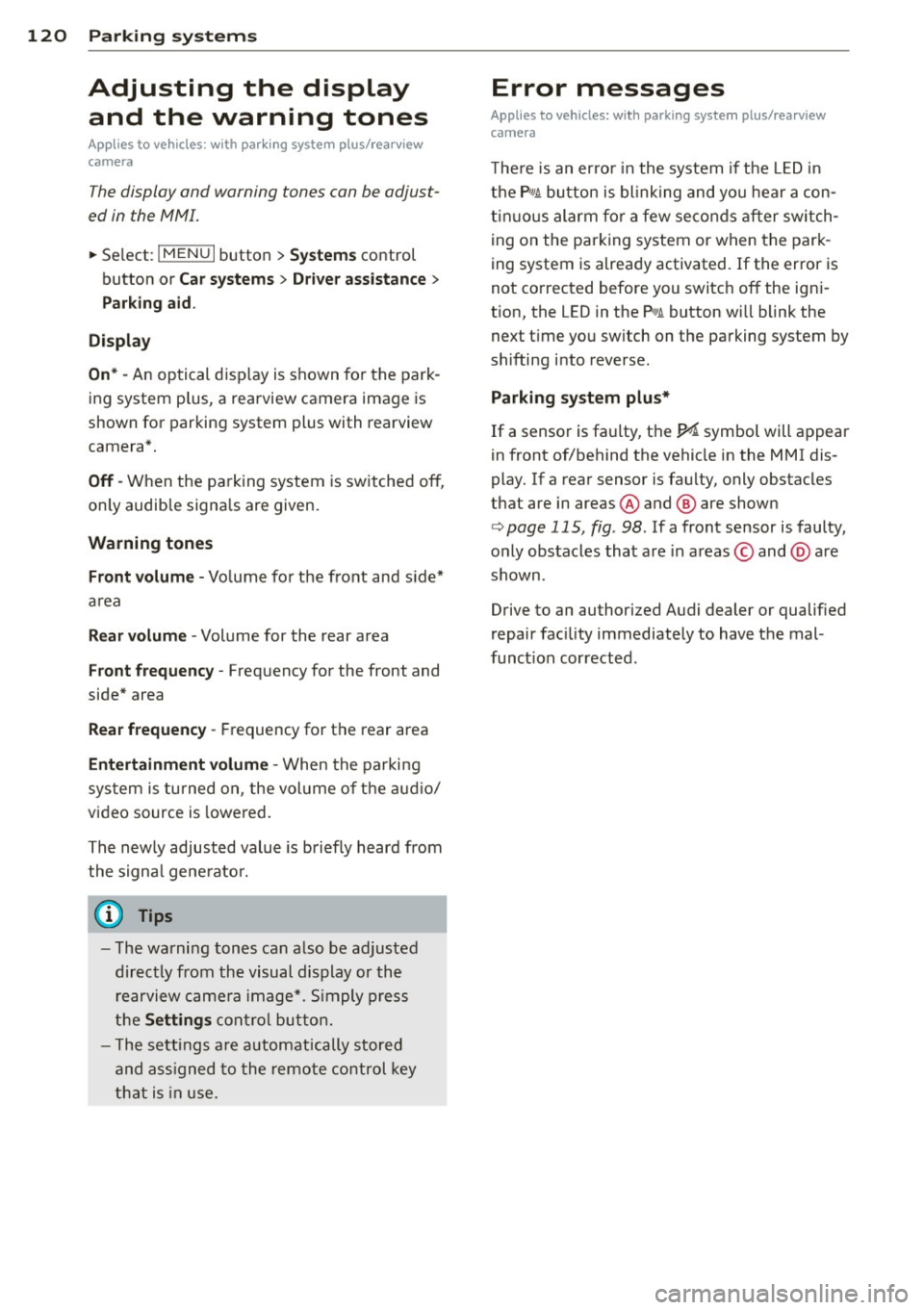

120 Parking systems
Adjusting the display and the warning tones
App lies to vehicles: with par king system p lus/ rearview
camera
The display and warning tones can be adjust­
ed in the MMI.
.. Se lect : IMENUI button> Systems control
button or
Car systems > D riv e r assistance >
Parking aid .
Display
On* -
An opti cal d isp lay is shown for the park­
ing system p lus, a rearview camera image is
shown fo r parking system plus with rearview
camera*.
Off -When the parking system is sw itched off,
on ly audib le signa ls are given.
Warning tones
Front volume -
Volume fo r th e fro nt and s ide*
a rea
Rear volume -Volume for the rear area
Front frequency -Frequency for the front and
side* area
Rear frequency -Frequency for the rear area
Entertainm ent volume -When the parki ng
sys tem is tu rned o n, the vol ume o f the aud io/
video source is lowe red.
The new ly adjust ed value is briefly heard from
the signa l gene rato r.
- The wa rning tones can a lso be adjusted
directly from the visual display or the r earview camera image*. Simply press
t he
Settings con tro l button.
- The settings a re automatically stored
and ass igned to the remote control key
t ha t is in use.
Error messages
Applies to vehicles: wi th parking syste m plus/ rea rview
camera
T he re is an error in the system if t he LE D i n
the
p, q~ button is bl ink ing and yo u hear a con ­
t inu ous al arm for a few se conds after switch­
i ng on the park ing system or when the park ­
ing system is already activated. If the error is
not co rrected before you switch off the igni­
t ion, the LED in the
P'#A button wi ll blink the
next time you switch on the parking system by
shifting in to reverse.
Parking system plu s*
If a sensor is faulty, th e~ symbol will a ppear
in front of/behind the vehicle in the MMI dis ­
play. If a rear sensor is faulty, only obstacles
that are in areas @ and @ are shown
Q page 115, fig. 98. If a front sensor is faulty,
o n ly obstacles that a re in a reas © and @are
shown .
Drive to an authorized Audi dealer or qualified
repair fac ility immediately to have the mal­
funct ion corrected.

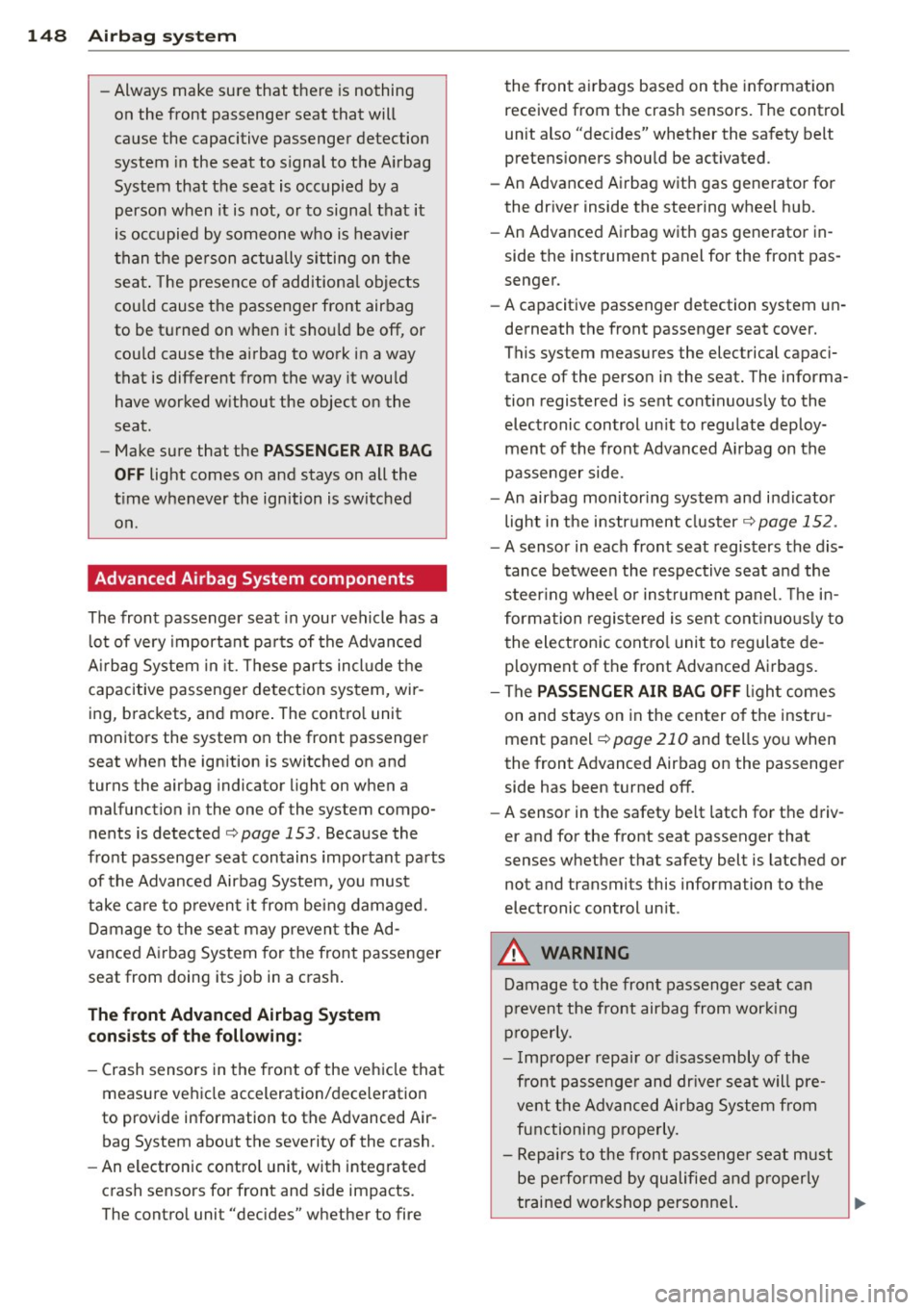

148 Airbag system
-Always make sure that there is nothing
on the front passenger seat that will
cause the capacitive passenger detection
system in the seat to signal to the Airbag
System that the seat is occupied by a
person when it is not, or to signal that it
is occupied by someone who is heavier
than the person actually sitting on the
seat. The presence of additional objects
could cause the passenger front airbag
to be turned on when it should be off, or
could cause the airbag to work in a way
that is different from the way it would have worked without the object on the
seat.
- Make sure that the
PASSENGER AIR BAG
OFF
light comes on and stays on all the
time whenever the ignition is switched on.
Advanced Airbag System components
The front passenger seat in your vehicle has a
lot of very important parts of the Advanced
Airbag System in it. These parts include the
capacitive passenger detection system, wir­
ing, brackets, and more. The control unit
monitors the system on the front passenger
seat when the ignition is switched on and
turns the airbag indicator light on when a
malfunction in the one of the system compo­
nents is detected
¢ page 153. Because the
front passenger seat contains important parts
of the Advanced Airbag System, you must
take care to prevent it from being damaged.
Damage to the seat may prevent the Ad­
vanced Airbag System for the front passenger
seat from doing its job in a crash.
The front Advanced Airbag System
consists of the following:
- Crash sensors in the front of the vehicle that
measure vehicle acceleration/deceleration
to provide information to the Advanced Air­ bag System about the severity of the crash .
- An electronic control unit, with integrated
crash sensors for front and side impacts.
The control unit "decides" whether to fire the front
airbags based on the information
received from the crash sensors. The control
unit also "decides" whether the safety belt
pretensioners should be activated.
- An Advanced Airbag with gas generator for
the driver inside the steering wheel hub.
- An Advanced Airbag with gas generator in­
side the instrument panel for the front pas­
senger.
- A capacitive passenger detection system un­
derneath the front passenger seat cover.
This system measures the electrical capaci­ tance of the person in the seat. The informa­
tion registered is sent continuously to the
electronic control unit to regulate deploy­ ment of the front Advanced Airbag on the
passenger side.
- An airbag monitoring system and indicator
light in the instrument cluster
¢page 152 .
-A sensor in each front seat registers the dis­
tance between the respective seat and the steering wheel or instrument panel. The in­
formation registered is sent continuously to
the electronic control unit to regulate de­
ployment of the front Adv a need Airbags.
- The
PASSENGER AIR BAG OFF light comes
on and stays on in the center of the instru­
ment panel
¢ page 210 and tells you when
the front Advanced Airbag on the passenger
side has been turned off.
- A sensor in the safety belt latch for the driv­
er and for the front seat passenger that
senses whether that safety belt is latched or not and transmits this information to the
electronic control unit .
A WARNING
--
Damage to the front passenger seat can
prevent the front airbag from working
properly.
- Improper repair or disassembly of the
front passenger and driver seat will pre­
vent the Advanced Airbag System from
functioning properly.
- Repairs to the front passenger seat must
be performed by qualified and properly
trained workshop personnel.
~

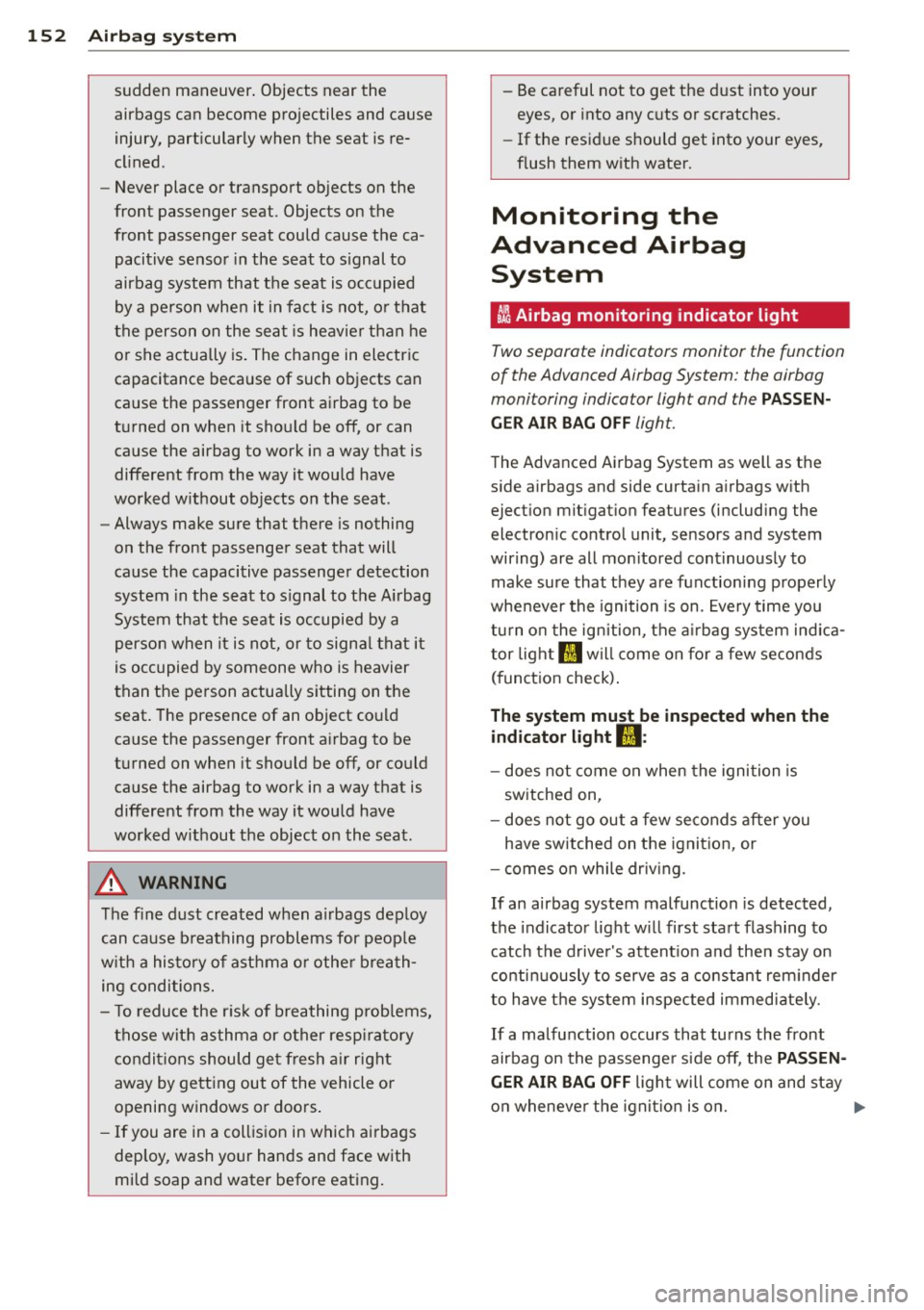

152 Airbag sys te m
sudden maneuver. Objects near the
air bags can become projectiles and cause
injury, particularly when t he s eat is re­
cl in ed .
- Never place or trans port objects on the
front passenger seat. Obj ects on the
front passenger seat could cause the ca­
pacitive sensor in the seat to s ignal to
airbag system that the seat is occupied
by a person when it in fa ct is not, o r th at
the person on the sea t is he avie r than he
or she actually is. The change in electric
capacitance because of such objects can
cause the passenger front airbag to be
t u rned on when it sho uld be off, or can
cause the airbag to work in a way that is
different from the way it wou ld have
worked w ithout objects on the seat.
- Always make sure that there is nothing
on the front passenge r seat that will
cause the capaci tive passenger detection
system in the s eat to s ignal to the A irbag
System that the seat is occupied by a
person when it is not, or to sign al that it
is occupied by someone who is heavier
than the person actually sitting on the seat . The prese nce of an object co uld
cause the passenger front a irbag to be
t u rned on when it sho uld be off, or co uld
cause the airbag to work in a way that is
differe nt from the way it wou ld have
worked w it h out the object on the seat.
.&, WARNING
The fine dust created when a irbags deploy
can ca use b reathing problems for peop le
w ith a hi story of ast hma o r othe r brea th ­
ing conditions.
- T o redu ce the r is k of breathing p rob lems,
th ose w it h asthma or o ther resp iratory
condit ions shoul d ge t fresh a ir right
away by gett ing out of the vehicle o r
opening windows or doo rs .
- If you are in a coll is ion in which a irbags
dep loy, wash yo ur hands and face w ith
mild soap and water befo re eating. -
Be ca reful not to get the dust into your
eyes, or into any c uts or scratches.
- If the resid ue s hould get into your eyes,
f lush them w ith wate r.
Monitoring the
Advanced Airbag
System
tli Airbag monitor ing indicator light
Two separate indicators monitor the function
of the Advanced Airbag System: the airbag
monitoring indicator light and the
PASSEN­
GER AIR BAG OFF
light.
The Advanced Airbag System as well as the
s ide airbags and side curta in a irbags w ith
eject ion mit igat ion features (including the
electron ic contro l unit, se nsors a nd system
wiring) are all mon itored continuously to
make su re that they are functioning p roperly
whenever the ignition is on. Eve ry time you
tu rn o n the ignition, the a irbag sys tem indica ­
tor light II will come on fo r a few seconds
(funct ion check) .
The system must be inspected when the
indicator light
II:
- does not come on when the igni tion is
sw itched on,
- does not go out a few seconds after you
have switched on the ignit ion, or
- comes on while driv ing .
If an airbag system malfunction is detected,
the indicator lig ht w ill first sta rt flashing to
catch t he d rive r's attent io n and the n stay on
conti nuously to serve as a constant rem inder
to have the sys tem inspected immed iate ly.
If a malfunction occurs that tu rns the front
airbag on the passenge r side off, the
PASSEN ­
GER AIR BAG OFF
light will come on and stay
o n wheneve r th e ign it io n is on.

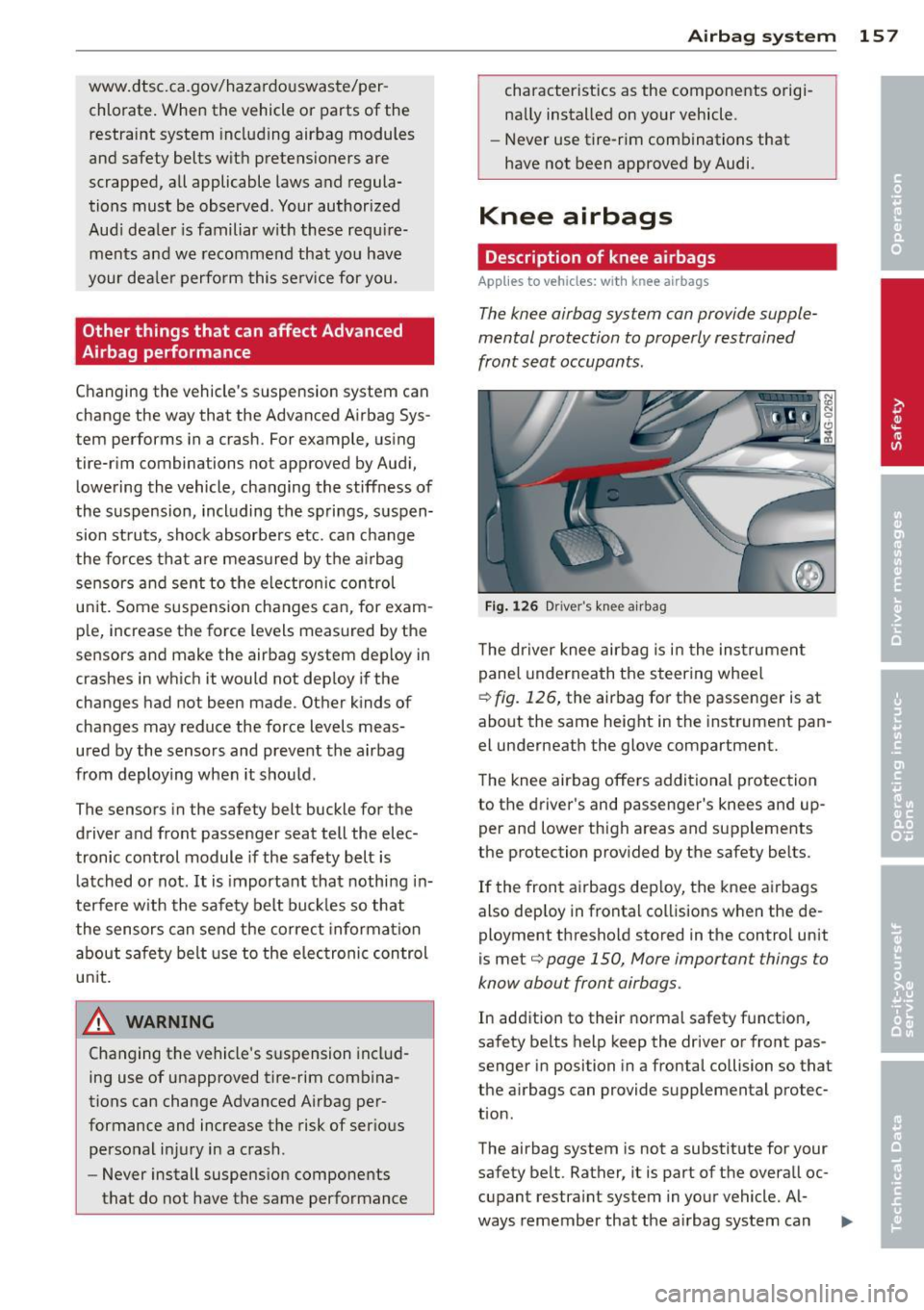

www.dtsc.ca.gov/hazardouswaste/per­chlorate. When the vehicle or parts of the
restraint system includ ing airbag modules
and safety belts with pretensioners are
scrapped, all applicable laws and regula­
tions must be observed. Your authorized
Audi dealer is familiar with these require­
ments and we recommend that you have
your dealer perform this serv ice for you.
Other things that can affect Advanced
Airbag performance
Changing the vehicle's suspension system can
change the way that the Advanced Airbag Sys­
tem performs in a crash. For example, using
tire-r im combinations not approved by Audi,
lowering the vehicle, changing the stiffness of
the suspension, including the springs, suspen­
sion struts, shock absorbers etc. can change
the forces that are measured by the airbag sensors and sent to the electron ic control
unit. Some suspension changes can, for exam­
ple, increase the force levels measured by the
sensors and make the airbag system deploy in
crashes in which it would not deploy if the
changes had not been made. Other kinds of
changes may reduce the force levels meas­
ured by the sensors and prevent the airbag
from deploying when it should .
The sensors in the safety belt buckle for the
driver and front passenger seat tell the elec­
tronic control module if the safety belt is
latched or not.
It is important that nothing in­
terfere with the safety belt buckles so that
the sensors can send the correct information
about safety belt use to the electronic control
unit.
_& WARNING
Changing the vehicle's suspension includ­
ing use of unapproved tire-rim combina­
tions can change Advanced Airbag per­
formance and increase the risk of serious personal injury in a crash.
- Never install suspension components
that do not have the same performance
Airbag system 157
characteristics as the components origi­
nally installed on your vehicle.
- Never use tire-rim combinations that
have not been approved by Audi.
Knee airbags
Description of knee airbags
App lies to vehicles: wi th knee airbags
The knee airbag system can provide supple­
mental protection to properly restrained
front seat occupants.
Fig. 126 Driver 's kn ee airbag
The dr iver knee airbag is in the instrument
panel underneath the steering wheel
~ fig. 126, the airbag for the passenger is at
about the same height in the instrument pan­
el underneath the glove compartment.
The knee airbag offers additional protection
to the driver's and passenger's knees and up ­
per and lower thigh areas and supplements
the protection provided by the safety belts.
If the front airbags deploy, the knee airbags
also dep loy in frontal collisions when the de­
ployment threshold stored in the control unit
is met
q page 150, More important things to
know about front airbags.
In addition to their normal safety function,
safety belts help keep the driver or front pas­
senger in position in a frontal collision so that
the airbags can provide supplemental protec­
tion.
The airbag system is not a substitute for your
safety belt. Rather, it is part of the overall oc­
cupant restraint system in your vehicle. Al­
ways remember that the airbag system can
