-Starting on inclines in stop-and-go traf­
fic: To help prevent the vehicle from roll­
ing back when starting, press and hold
the brake pedal for several seconds when
the vehicle is stationary .
(D Tips
You can find out if your vehicle is equipped
with Hill Hold by checking at an authorized
Audi dealer or qualified repair facility .

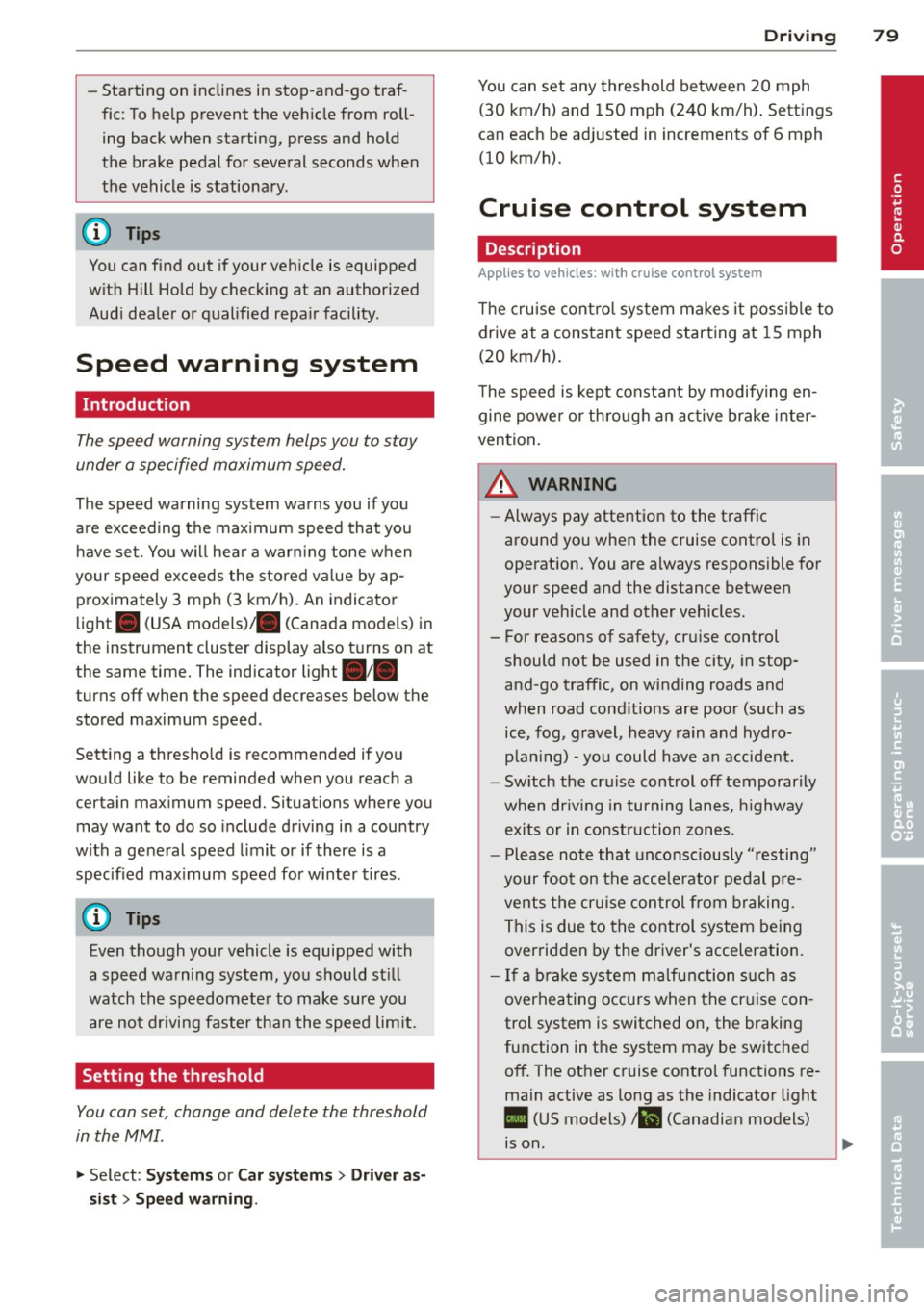

Speed warning system
Introduction
The speed warning system helps you to stay
under a specified maximum speed.
The speed warning system warns you if you
are exceeding the maximum speed that you
have set. You will hear a warning tone when
your speed exceeds the stored value by ap­ proximately 3 mph (3 km/h). An indicator
light . (USA models) . (Canada models) in
the instrument cluster display also turns on at
the same time. The indicator light./.
turns
off when the speed decreases below the
stored maximum speed .
Setting a threshold is recommended if you
would like to be reminded when you reach a
certain maximum speed. Situations where you may want to do so include driving in a country
with a general speed limit or if there is a
specified maximum speed for winter tires .
@ Tips
Even though your vehicle is equipped with
a speed warning system, you should still
watch the speedometer to make sure you
are not driving faster than the speed limit.
Setting the threshold
You can set, change and delete the threshold
in the MMI.
"' Select: Systems or Car systems > Driver as­
sist> Speed warning .
Driving 79
You can set any threshold between 20 mph (30 km/h) and 150 mph (240 km/h). Settings
can each be adjusted in increments of 6 mph
(10 km/h).
Cruise control system
Description
Applies to vehicles: with cruise control system
The cruise control system makes it possible to
drive at a constant speed starting at 15 mph
(20 km/h).
The speed is kept constant by modifying en­
gine power or through an active brake inter­
vention.
.&_ WARNING ~
- Always pay attention to the traffic
around you when the cruise control is in
operation. You are always responsible for
your speed and the distance between
your vehicle and other vehicles.
- For reasons of safety, cruise control
should not be used in the city, in stop­
and-go traffic, on winding roads and
when road conditions are poor (such as ice, fog, gravel, heavy rain and hydro­
planing) -you could have an accident.
- Switch the cruise control
off temporarily
when driving in turning lanes, highway
exits or in construction zones.
- Please note that unconsciously "resting"
your foot on the accelerator pedal pre­
vents the cruise control from braking.
This is due to the control system being
overridden by the driver's acceleration.
- If a brake system malfunction such as
overheating occurs when the cruise con­
trol system is switched on, the braking
function in the system may be switched
off. The other cruise control functions re­
main active as long as the indicator light
II (US models) !l'I (Canadian models)
ison.
~ •

80 Driving
@ Tips
-The cruise control system is idea l for
stretches with speed limits . The driver is
responsible for adhering to the correct
speed.
- The cruise control remains active when
shifting gears.
- The brake lights turn on when the brakes
are activated.
Switching on
Applies to vehicles: with c ruise cont ro l syste m
0
f
~
0

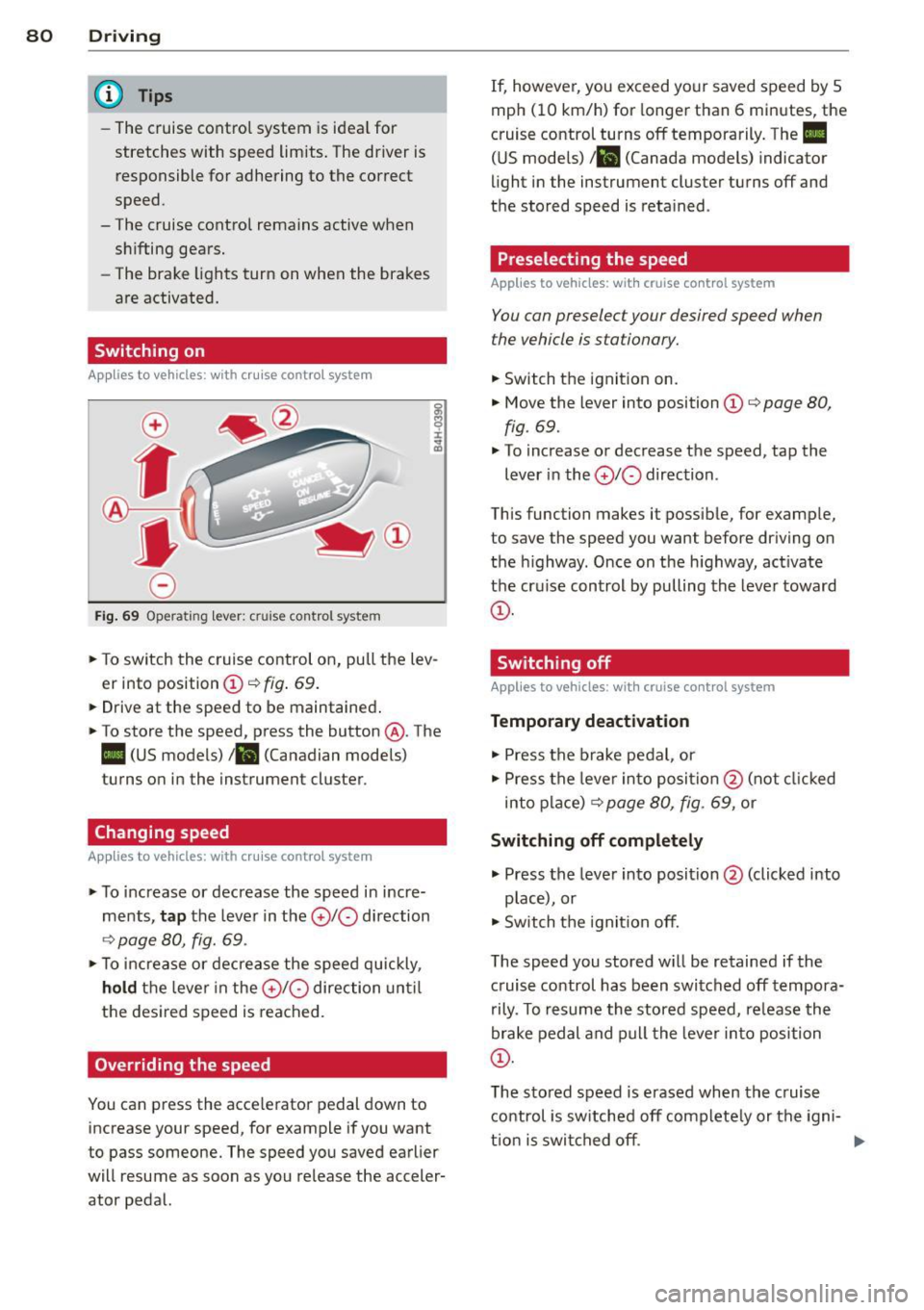

Fig. 69 Operating lever: cruise control system
., To switch the cruise control on, pull the lev­
er into position
CD ¢ fig . 69.
... Drive at the speed to be maintained .
., To store the speed, press the button @. The
II (US models) !Bl (Canadian models)
turns on in the instrument cluster.
Changing speed
Applies to vehicles: with cruise contro l syste m
., To increase or decrease the speed in incre­
ments,
tap the lever in the 010 direction
¢ page 80, fig. 69 .
., To increase or decrease the speed quickly,
hold the lever in the 010 direction until
the desired speed is reached.
Overriding the speed
You can press the acce lerator pedal down to
increase your speed, for example if you want
to pass someone. The speed you saved earlier
will resume as soon as you release the acceler­
ator pedal. If, however, you exceed your saved speed by
5
mph (10 km/h) for longer than 6 minutes, the
cruise control turns off temporarily. The
II
(US models) 1 81 (Canada models) indicator
light in the instrument cluster turns off and
the stored speed is retained .
Preselecting the speed
Applies to vehic les: wit h cruise co ntrol system
You can preselect your desired speed when
the vehicle is stationary.
., Switch the ignit ion on .
., Move the lever into position
CD ¢ page 80,
fig . 69.
., To increase or decrease the speed, tap the
lever in the
010 direction .
This function makes it possible, for example,
to save the speed you want before driving on
the highway . Once on the h ighway, act ivate
the cru ise control by pulling the lever toward
CD -
Switching off
App lies to vehicles: wi th cruise co n trol system
Temporary deactivation
., Press the brake pedal, or
., Press the lever into position @(not clicked
into place)
¢ page 80, fig. 69, or
Switching off completely
., Press the lever into position@(clicked into
p lace), or
., Switch the igni tion off.
The speed you stored w ill be retained if the
c ruise control has been switched off tempora­
rily . To resume the stored speed, re lease the
brake pedal and pull the lever into position
CD.
The stored speed is erased when the cruise
control is switched off complete ly or the igni-
t ion is switched off. ..,

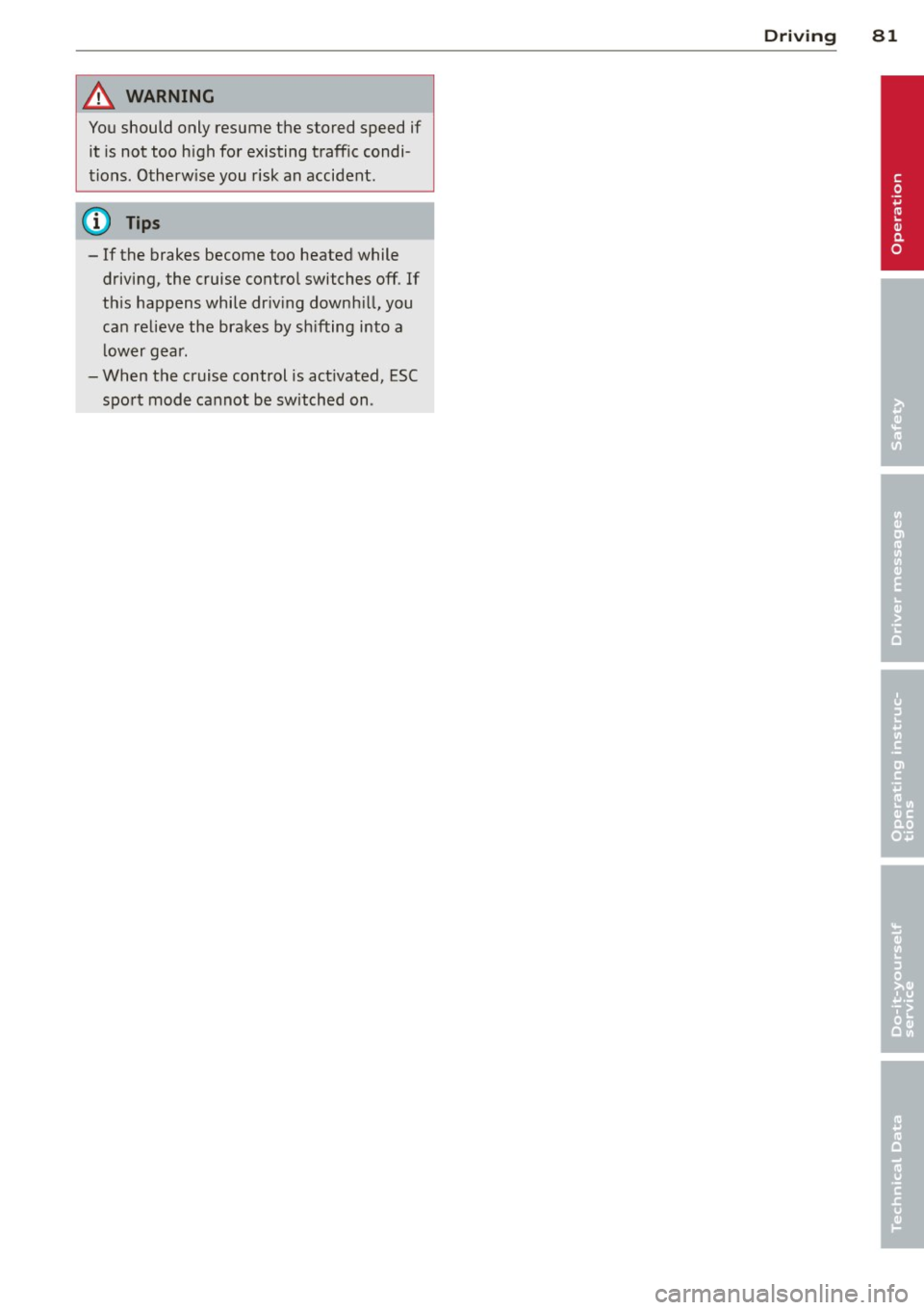

A WARNING ,~
You should only resume the stored speed if
it is not too high for existing traffic condi­
tions . Otherw ise you risk an accident.
- If the brakes become too heated while
driving, the cruise control switches off. If
th is happens while dr iving downh ill, you
can relieve the brakes by shifting into a
lower gear.
- When the cruise control is act ivated, ESC
sport mode cannot be switched on . Driving 81
•

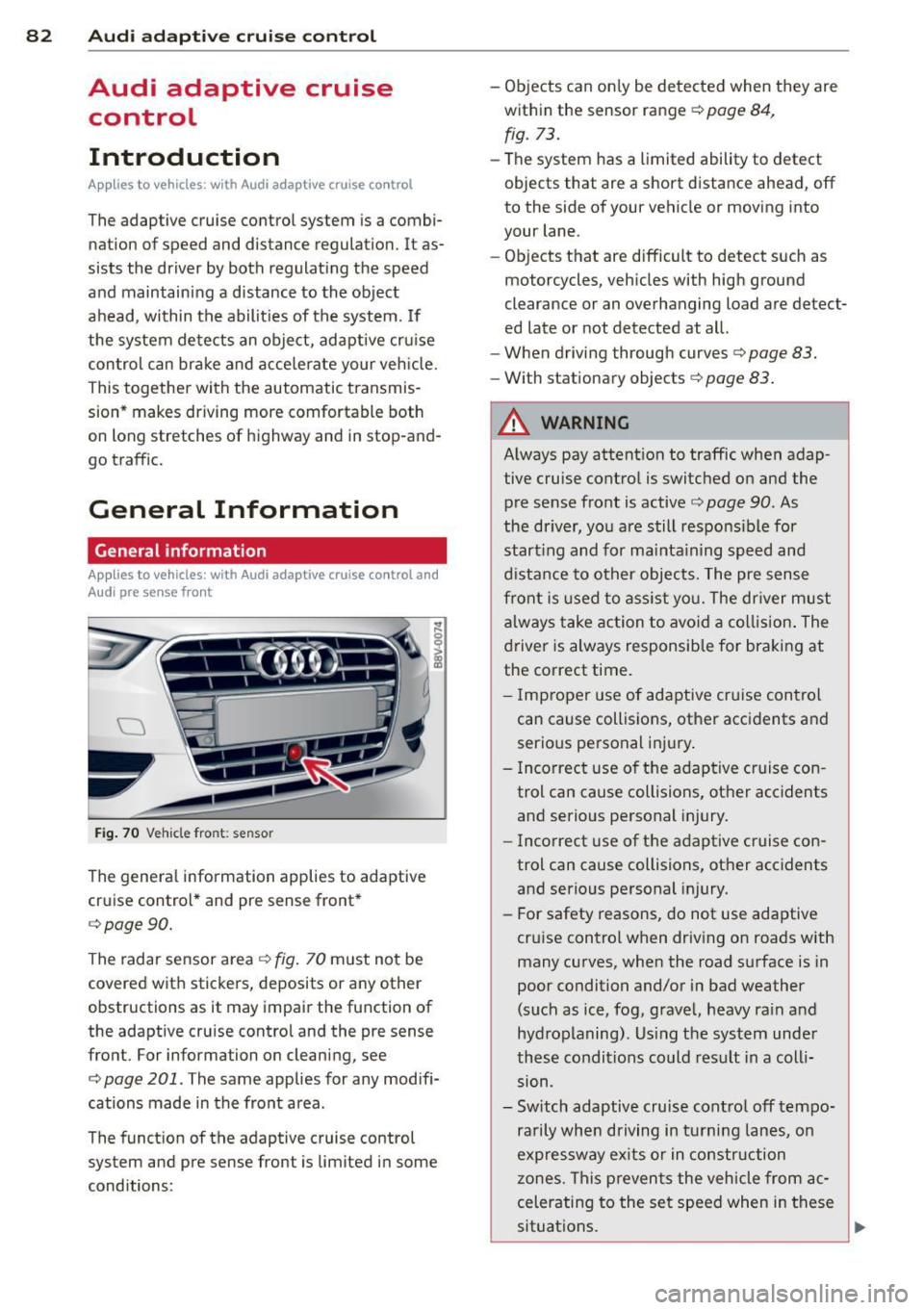

82 Audi adaptive cruise control
Audi adaptive cruise
control
Introduction
Ap plies to vehicles: with Audi adaptive cruise co ntrol
The adaptive cruise control system is a combi­
nation of speed and distance regulation. It as­
sists the driver by both regulating the speed
and maintaining a distance to the object
ahead, within the abilit ies of the system. If
the system detects an object, adaptive cruise
con trol can brake and accelerate your vehicle.
This together with the automatic transmis ­
sion* makes driving more comfortable both
on long stretches of highway and in stop-and­
go traffic.
General Information
General information
A ppl ies to vehicles: with Audi adaptive cruise co ntrol a nd
Audi pre se nse fro nt
Fig. 70 Vehicle fro nt: sensor
The general information applies to adaptive
cruise control* and pre sense front*
c:>page90.
The radar sensor area c:>fig. 70 must not be
covered with stickers, deposits or any other
obstructions as it may impair the function of
the adaptive cru ise control and the pre sense
front. For information on cleaning, see
c:> page 201 . The same applies for any modifi­
cations made in the front area .
The function of the adaptive cruise control
system and pre sense front is limited in some
conditions: -
Objects can only be detected when they are
within the sensor range
c:> page 84,
fig. 73.
-The system has a limited ability to detect
objects that are a short distance ahead, off
to the side of your vehicle or moving into
your lane.
- Objects that are difficult to detect such as
motorcycles, vehicles with high ground
clearance or an overhanging load are detect­
ed late or not detected at all.
- When driving through curves
c:> page 83.
-With stationary objects r=;, page 83 .
A WARNING
-
Always pay attent ion to traffic when adap­
tive cruise control is switc hed on and the
pre sense front is active
c:> page 90. As
the driver, you are still responsible for
start ing and for maint.;1 ining speed and
distance to other objects. The pre sense
front is used to assist you. The driver must
always take action to avoid a collision. The
driver is always responsible for braking at
the correct time.
- I mp roper use of adaptive cruise con trol
can cause collisions, other accidents and
serio us personal injury.
- Incorrect use of the adaptive cruise con­
trol can cause collisions, other acc idents
and serio us personal injury.
- Incorrect use of the adaptive cruise con­
trol can cause collisions, other accidents
and serio us personal injury.
- For safety reasons, do not use adaptive
cru ise control when driv ing on roads with
many curves, when the road surface is in
poor condition and/or in bad weather
(such as ice, fog, gravel, heavy ra in and
hydroplaning). Us ing the system under
these conditions could result in a colli­
sion .
- Sw itch adaptive cruise contro l off tempo­
ra rily when driving in turning lanes, on
expressway ex its or in construction
zones. This preven ts the vehicle from ac­
celerating to the set speed when in these
situations .

-The adaptive cr uise control system will
not brake by itself if you put your foot on
the accelerator pedal. Doing so can over­
ride the speed and d istance regulation .
- When approaching stationary objects
such as stopped traffic, adaptive cruise
control will not respond and pre sense
front will have lim ited function.
- The adaptive cru ise control system and
pre sense front do not react to people,
animals, objects cross ing the road or on­
coming objects.
- The function of the rada r senso rs can be
affected by reflective objects such as guard ra ils, the entra nce to a tunnel,
heavy rain or i ce.
- Never follow a veh icle so closely that you
cannot s top your vehi cle safe ly. The
adap tive cruise cont ro l c anno t slow or
brake the ve hicle safe ly when you follow
another vehicle too closely. Always re­
member that the automatic braking
function cannot bring the veh icle to a
sudden or emergency stop under these
condit ions .
- To prevent unintended operation, always
switch ACC off when it is not being used.
(D Note
The sensor can be disp laced by impacts or
damage to the bumper, whee l housing and
underbody. The adaptive cruise control
and pre sense front may become impaired
as a resu lt . Have your authorized Aud i
dea le r or q ual ified repa ir facility check
their function.
Audi ad apti ve crui se control 83

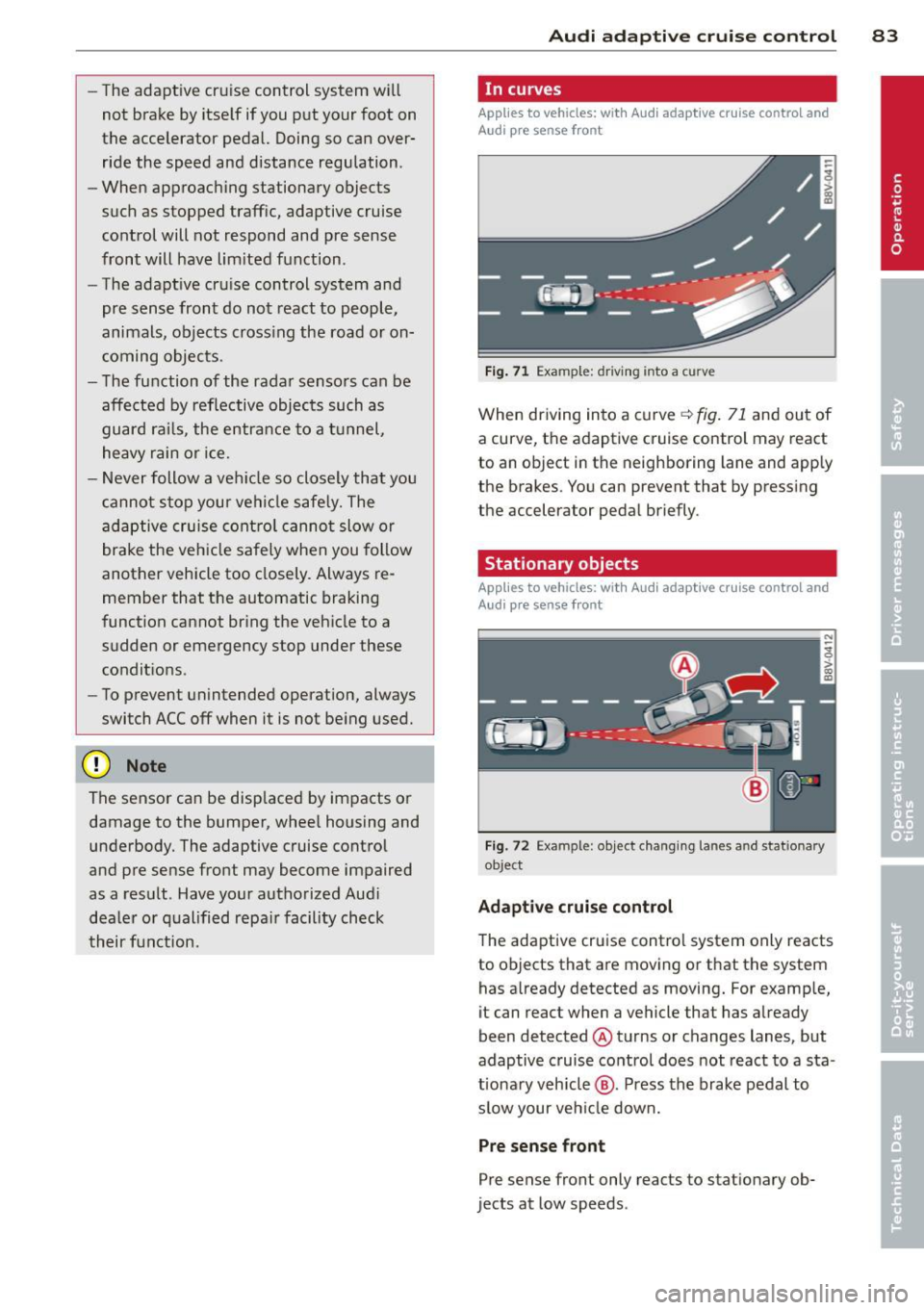

In curves
App lies to vehicles: wit h Aud i adapt ive c ruise contro l and
A udi pre sense front
Fig . 71 Example : dr iving into a cu rve
When dr iving into a curve r=.> fig. 71 and out of
a curve, the adaptive cruise control may react
to an object in the neighboring lane and apply
the brakes. You can prevent that by pressing
the accelerator pedal briefly.
Stationary objects
App lies to vehicles: wit h Aud i adapt ive cr uise contro l and
Aud i pre sense front
Fi g. 72 Example: object ch ang ing lanes a nd stat ionary
ob ject
Adaptiv e crui se cont rol
The adaptive cruise control system only reacts
to objects that are moving or that the system
has already detected as moving. For example,
it can react when a vehicle that has already
been detected @turns or changes lanes, but
adaptive c ruise contro l does not react to a sta ­
t iona ry veh icle @. Press the brake pedal to
s low your vehicle down.
Pre sense front
Pre sense front only reacts to stationary ob­
jects at low speeds .

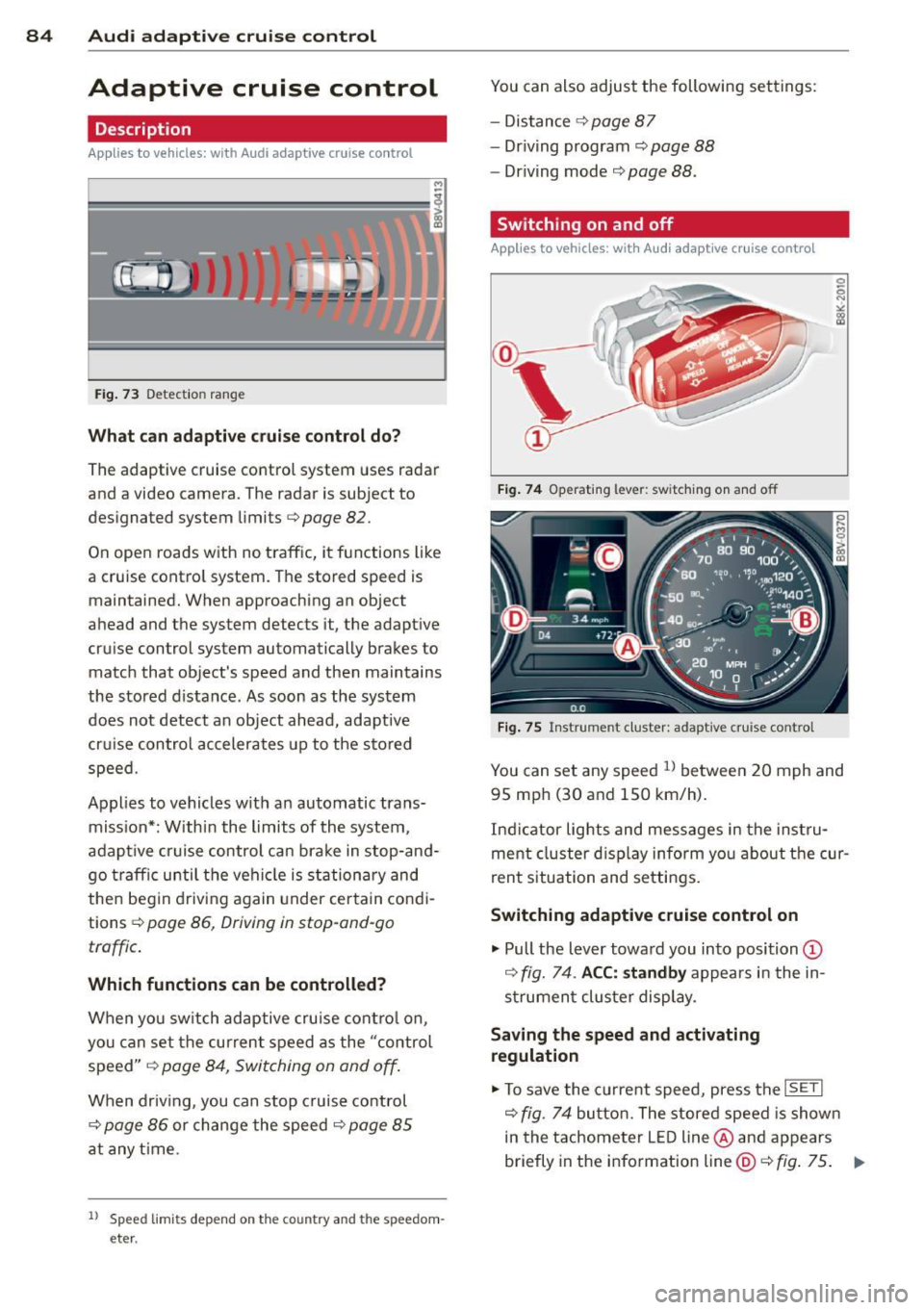

84 Audi adaptive cruise control
Adaptive cruise control
Description
Applies to vehicles: with Audi adaptive cruise co ntrol
)
Fig. 73 Detect ion range
What can ad apti ve crui se contr ol do ?
The adaptive cruise contro l system uses radar
and a video camera. The radar is subject to
designated system limits¢
page 82.
On open roads with no traffic, it functions like
a cruise contro l system. The stored speed is
maintained. When approaching an object
ahead and the system detects it, the adapt ive
cru ise control system automatically brakes to
match that object's speed and then maintains
the stored d istance. As soon as the system
does not detect an object ahead, adaptive
cr uise contro l accelerates up to the stored
speed.
Applies to vehicles w ith an automatic trans­
miss ion*: Within the limits of the system,
adap tive cr uise control ca n bra ke in stop-and­
go traffic until t he vehi cle is station ary and
then begin driving again under cer tain condi­
tions ¢
page 86, Driving in stop-and-go
traffic .
Which functions can be controlled?
When you sw itch adaptive cru ise con tro l on,
you can set the cu rren t speed as the "control
speed"
¢ page 84, Switching on and off .
When driving, you can stop cruise co ntrol
¢
page 86 or change the speed ¢ page 85
at any t ime.
l ) Speed lim its depend on t he cou ntry and t he speedom ­
eter .
You can also adjust the following settings:
- Distance
¢ page 87
-Dr iv ing program¢ page 88
-Dr iving mode ¢ page 88.
Switching on and off
App lies to vehicles: wit h Audi adapt ive cr uise contro l
Fig . 74 Operating lever: switc hing on and off
Fig. 75 Instrument cluster: adaptive cruise control
You can set any speed ll betwee n 20 mph and
95 mp h (30 and 150 km/h).
In dicator lights and mess ages in the ins tru­
ment cluster d isp lay inform yo u about t he cur­
r en t situation and settings.
Switching adaptive cruise control on
"' Pull the lever towa rd you into position (D
¢ fig. 74 . ACC: standb y appea rs in the in­
s trumen t cluster display.
Saving the speed and activating
regulation
"' To save the current speed, press the !SETI
¢fig. 74 butto n. The stored speed is show n
in the tachometer L ED line @and appears
briefly in the information line@¢
fig. 75 . .,..

.. Automa tic transmission: To activate the reg ­
ulation while stationary , you must press the
brake pedal.
Switching adaptiv e cruise control off
.. Push the lever away from you into position
@ until it cl icks into p lace. The message
A CC: off appears.
The stored speed in the L ED line is erased.
@ Indicato r lights
II -adaptive cruise contro l is switched on . No
objects are detected ahead. The sto red speed
is ma inta ined .
• -An object ahead was detected . The adap­
tive cruise control system regulates the speed
and distance to the object ahead and brakes/
accelerates automatica lly.
fai -Automatic transmission: The adapt ive
cr uise control is switched on . An object ahead
was detected. Your vehicle remains stopped
and will not start driving automatically .
• -The automatic brak ing is not eno ugh to
maintain a sufficient d istance to an object
ahead . Yo u must intervene
¢ page 88, Re­
quest for driver intervention.
© Instrument cluster display
I f adap tive cruise contro l is not shown in the
instr ument cluster disp lay, you ca n call it up
using the mu ltifunction steering wheel but ­
tons
¢ page 2 7 .
B ased on t he g raphics in the display, you can
dete rmine if the system is maintaining a dis­
tance to a veh icle ahead and what that dis ­
tance to this vehicle is:
N o vehicle -No object ahead was detec ted .
White vehicle -An object ahead was detected .
Red vehicle -Request for the dr iver to take ac­
t ion ¢
page 88 .
Both arrows on the scale © indicate the dis­
tance to the object ahead. No arrow appears
when the vehicle is on an open road and there

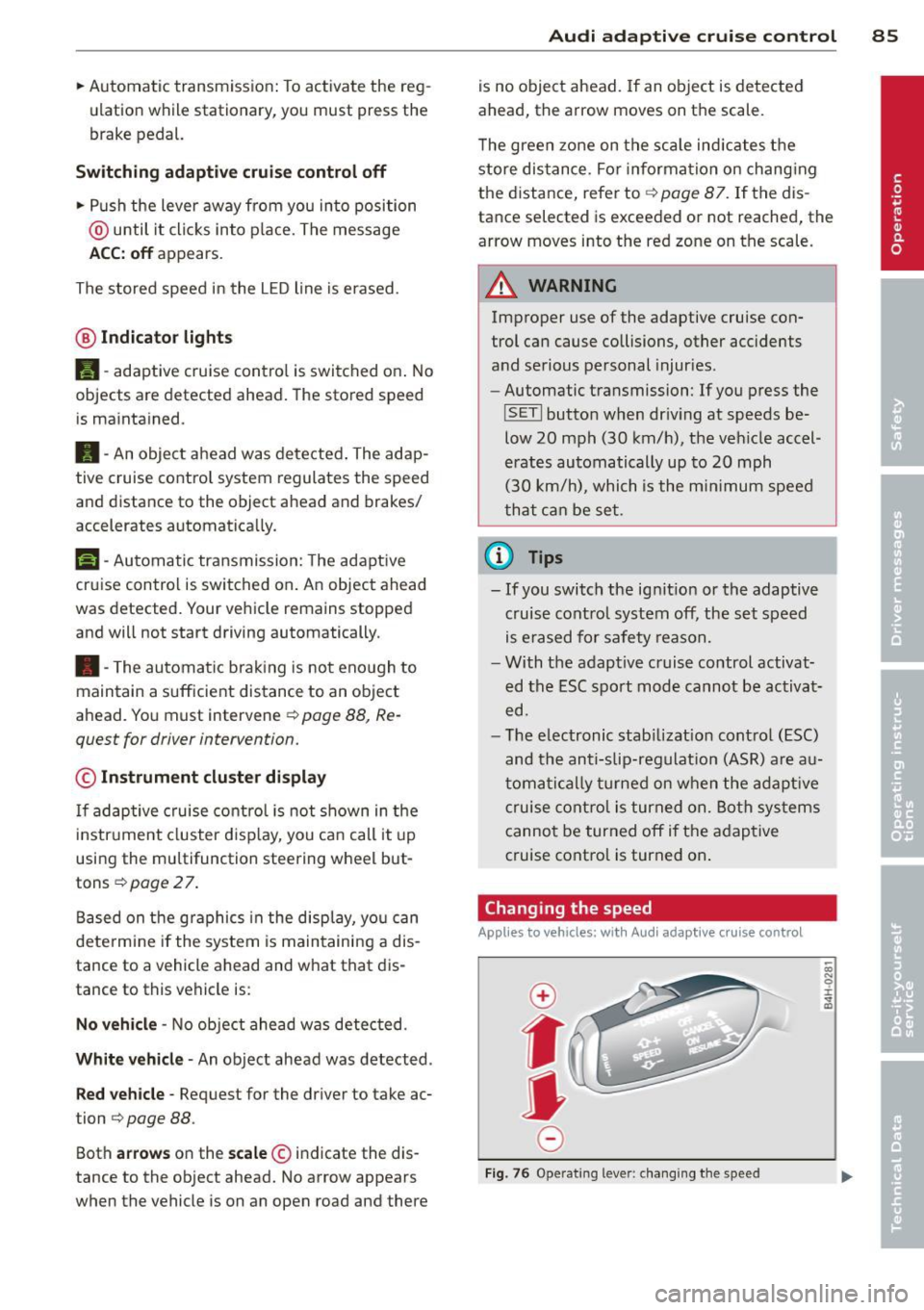

Audi ad apti ve crui se control 85
is no object ahead. If an object is detected
ahead, the ar row moves on t he scale.
T he green zone on t he sca le indicates the
store dis tance . Fo r informa tion on chang ing
the distance, refe r to ¢
page 87. If the dis ­
tance selected is exceeded or not reached, the
arrow moves into the red zone on the scale.
_& WARNING
Improper use of the adaptive cruise con­
trol can cause collisi ons, other accidents
a nd se rious personal injur ies.
- Automatic transmission: If you press the
ISETI butto n when dr iv ing at speeds be­
low 20 mph (30 km/h) , the veh icle accel ­
erates au tomatically up to 20 mph
(30 km/h), which is the mi nimum speed
th at can be set.
{i) Tips
- If you switch the ignit ion or the adaptive
cruise cont rol system off, the set speed
is e rased fo r safety reason.
- With the adaptive cruise control activat­
ed the ESC spo rt mod e cannot be activat­
ed.
- The e lectronic stab ilizat ion cont ro l (E SC)
and the anti-slip-regulat ion (ASR) are a u­
t oma tic a lly turned on w hen the adapt ive
c ruise cont ro l is turned on. Bot h sys tems
canno t be turned off if the a daptive
cruise cont rol is turned on .
Changing the speed
Applies to vehicles: with Audi adaptive cru ise control
0
f
jJ
0
Fi g. 76 Operat ing leve r: c ha ng in g the spee d
0)
"' 0 i.
" a,

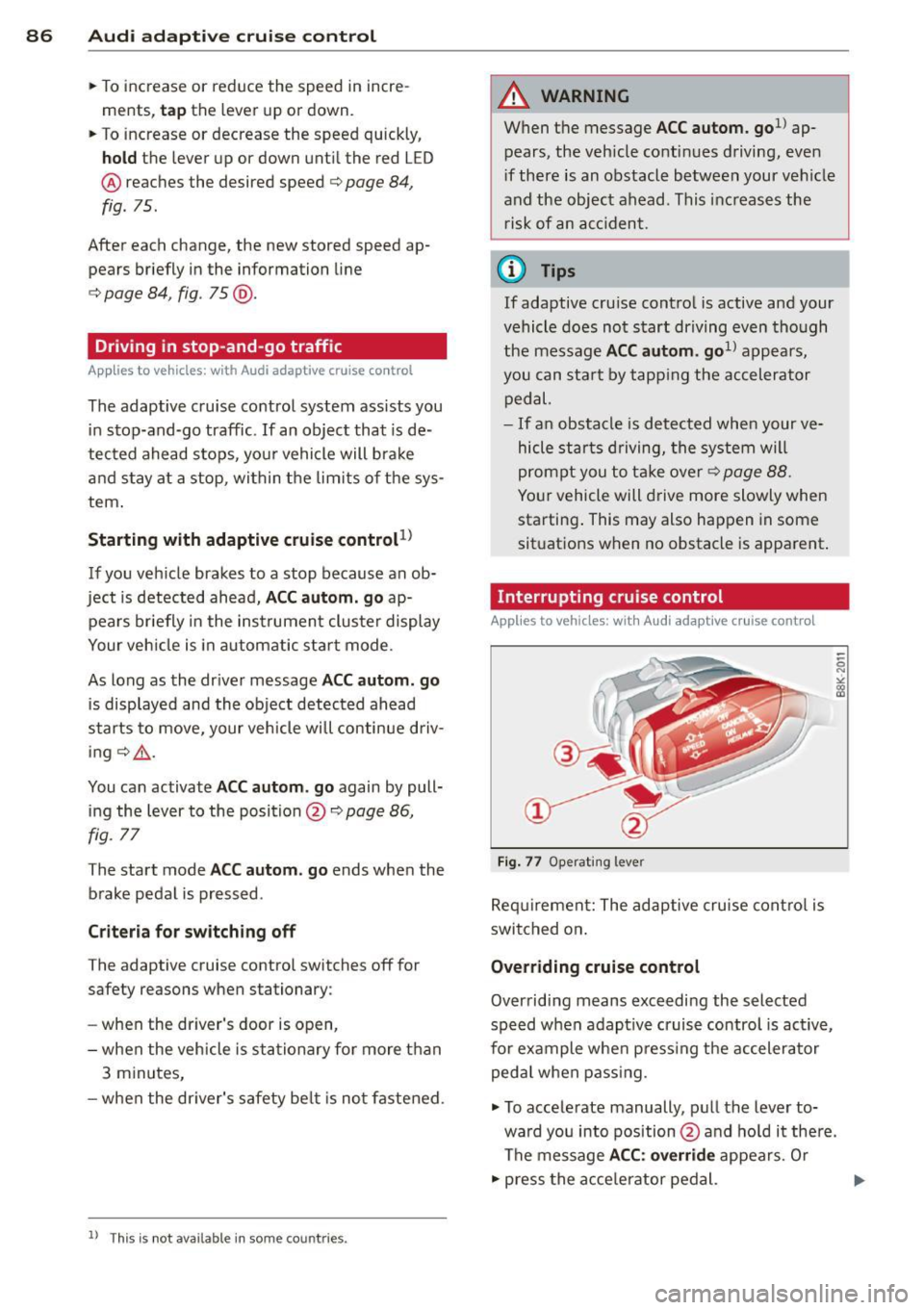

86 Audi adaptive cruise control
• To increase or reduce the speed in incre­
ments,
tap the lever up or down .
• To increase or decrease the speed quickly,
hold the lever up or down until the red LED
@ reaches the desired speed c:> page 84,
fig. 75.
After each change, the new stored speed ap­
pears briefly in the information line
c:;, page 84 , fig. 75 @.
Driving in stop-and-go traffic
App lies to vehicles: with Audi adaptive cruise control
The adaptive cruise control system assists you
in stop-and-go traffic.
If an object that is de­
tected ahead stops, you r vehicle will brake
and stay at a stop , wi th in the limits of the sys­
tem .
Starting with adaptive cruise control 1l
If you veh icle brakes to a stop because an ob­
ject is detected ahead,
ACC autom. go ap­
pears briefly in the instrument clus ter display
Your veh icle is in automatic start mode.
As long as the dr iver message
ACC autom. go
is displayed and the object detected ahead
starts to move, your vehicle will continue driv­
ing
c:> .&, .
You can activate ACC autom . go again by pull­
ing the lever to the position @
c:> page 86,
fig. 77
The start mode ACC autom. go ends when the
brake pedal is pressed .
Criteria for switching off
The adaptive cruise control sw itches off for
safety reasons when stationary :
- when the dr iver's door is open,
- when the vehicle is stationary for more than
3 m inutes,
- when the dr iver's safety be lt is not fastened .
ll This is not available in some countries .
A WARNING
-~
When the message ACC autom. go1l ap-
pears, the veh icle continues driving, even
i f there is an obstacle between your vehicle
and the object ahead . This increases the
risk of an accident .
(@ Tips
If adaptive cru ise control is active and your
vehicle does not start driving even though
the message
ACC autom . go1
) appears,
you can start by tapping the accelerator
pedal.
- If an obstacle is detected when your ve­
hicle starts driving, the system will
prompt you to take over
c:> page 88.
Your vehicle will drive more slowly when
starting. This may also happen in some
sit uations when no obstacle is apparent.
Interrupting cruise control
Applies to vehicles: wit h Audi adapt ive cruise control
Fig. 77 Op erat ing leve r
Requirement: The adaptive cruise control is
switched on.
Overriding cruise control
Overriding means exceeding the selected
speed when adaptive cruise control is active ,
for example whe n press ing the accelerator
pedal when passing.
• To accele rate manually, pull the lever to­
ward you into position @and hold it there .
The message
ACC: override appears. Or
• press the acce lerator pedal. ...

.. To resume cruise control, release the lever
or take your foot off the acce lerator pedal.
Interrupting cruise control while driving
.. Move the lever into position @. The mes­
sage
ACC: standby appears . Or
.. press the brake pedal.
.. To resume the stored speed, move the lever
into position @.
Interrupting cruise control when stopped
Applies to vehicles w ith an automatic trans­
mission:
.,. Push the lever away from you into position
@ . The message
ACC: standby appears.
.. To resume cruise control, press the brake
pedal and pull the lever toward you into po­
sition @.
_& WARNING
It is dangerous to activate cruise contro l
and resume the stored speed when the
current road, traffic or weather conditions
do not permit th is . This could result in a
crash .
Setting the distance
Appl ies to vehicles: with Audi adaptive cruise co ntrol
Fig. 78 Opera tin g lev er: Se tting the d ista nce
-
.. Tap the switch to display the current set dis ­
tance
¢ fig . 78.
.. To increase or reduce the distance in incre­
ments, tap the switch again to the right or
left . The distance between the two vehicles
will change in the instrument cluster d is ­
play .

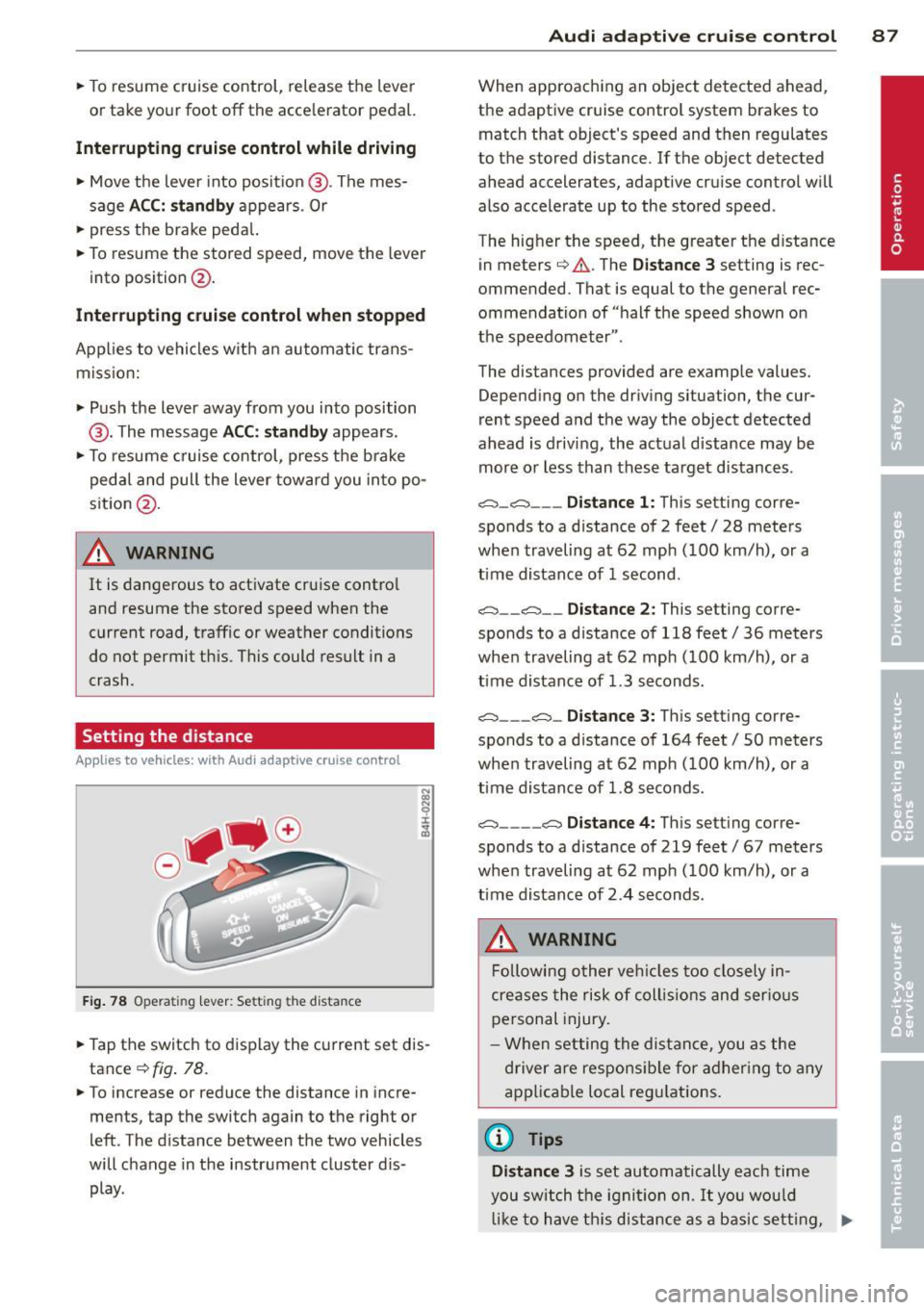

Audi adaptive cruise control 87
When approaching an object detected ahead,
the adaptive cruise control system brakes to
match that object's speed and then regulates
to the stored distance . If the object detected
ahead accelerates, adaptive cru ise control w ill
also accelerate up to the stored speed .
The hig her the speed, the greater the distance
in meters ¢
A. The Distance 3 setting is rec­
ommended. That is equal to the general rec­
ommendation of "half the speed shown on
the speedometer ".
The distances provided are example values. Depending on the driving situation, the cur­
rent speed and the way the object detected
ahead is driving, the actual distance may be
more o r less than these target distances .
o:;:::::,_o:;:::::, ___ Distance 1: This setting corre-
sponds to a d istance of 2 feet/ 28 meters
when traveling at 62 mph (100 km/h), or a
time distance of 1 second .
o:;:::::, __ o:;:::::, __ Distance 2: This setting corre­
sponds to a d istance of 118 feet/ 36 meters
when traveling at 62 mph (100 km/h), or a
time distance of 1.3 seconds.
o:;:::::, ___ o:;:::::,_ Distance 3: This setting corre-
sponds to a d istance of 164 feet/ 50 meters
when traveling at 62 mph (100 km/h), or a
time distance of 1.8 seconds.
o:;:::::, ____ o:;:::::, Distance 4: This setting corre-
sponds to a d istance of 219 feet/ 67 meters
when traveling at 62 mph (100 km/h), or a
time distance of 2 .4 seconds.
_& WARNING
Following other vehicles too closely in­
cre ases the risk of collisions and serious
personal injury.
- When setting the distance, you as the
driver are responsible for adhering to any
applicable local regulations .
(D Tips
Distance 3
is set automatically each time
you switch the ignition on.
It you would
like to have th is distance as a basic setting, .,..

88 Audi adaptive cruise control
you can have the adaptive cruise control
me nu extende d I enabled from an autho r­
ized re pair faci lity.
Setting the driving program
Applies to vehicles: with Audi adaptive cruise control
A adaptive cru ise control driving program is
adjustab le on vehicles without Aud i drive se­
lect* .
.. Se lect in the MMI:
!MENUI button> Systems
or Car systems > Driver assistance > Adap·
tive cru ise control
> Driving program >
comfort /standard /dynamic .
Selecting the driving mode
App lies to vehicles: with Audi adaptive cruise control
The adaptive c ruise co ntro l dr iv ing prog ram is
ad justa ble for ve hicles w ith Au di drive se lect
usi ng the dr iv ing mode.
.. Se lect t he des ired driv ing mod e
comfort ,
auto , dynamic
or individual* with the knob
¢ page 10 2.
Request for driver intervention
App lies to vehicles: with Audi adaptive cruise control
Fig . 7 9 In st rum ent clus ter : d river interve ntio n re qu est
In some s ituations, the braki ng from the
adapt ive cr uise control system is not enoug h
to maintain enoug h distance to the object
a head . In these situations, the system will re­
q ues t yo u to take action .
The . indicator light and the graphic in the
d isplay w ill wa rn you about the danger
¢
fig. 79. You will a lso hear a n aud io signa l.
P ress the br ake pedal to s low y our veh icle
do wn .
Driver messages
Applies to vehicles: wit h Aud i adapt ive c ru ise control
IIJ ACC : unavailable
The system cannot gu arantee that it will de­
tect o bject s cor rectly and i s switched off. The
sens or was m ove d or is fa ulty. Drive to your
autho rize d Audi dea le r or a uth ori zed Audi
service facility immediately to have the ma l­
f unct ion corrected .
Ill ACC: currently unavailable . No sensor vi·
sion
fl ACC and Audi pre sense : currently un ­
available. No sen sor vision
T h is message appears if the senso r view is ob·
structe d, for examp le by l eaves, snow, heavy
s pr ay or d irt . C lean t he sensor ¢
page 82,
fig. 70 .
ill ACC: currently unavailable. Gradient too
steep
The road exceeds t he max imum possible an­
gle fo r safe adaptive cruise control operation.
T he adapt ive cr uise control cannot be switch­
ed o n.
ill ACC: only available in D, Sor M
Se lect the D/S or M selector leve r position .
ill ACC: parking brake applied
The adapt ive cr uise control system switch es
off automa tically if th e parki ng br ake is set.
T he adapt ive cru ise con tro l is ava ilable again
aft er re leas ing t he pa rking br ake.
ill ACC: currently unavailable. Stabilization
control input
This message appears if the Electronic Stabili ­
zation Control (ESC) is taking action to stab i·
l ize the veh icle. I n this case, adapt ive cr uise
control switches off automat ica lly .
ill ACC off: manual control!
This message a ppears if t he vehicle ro lls back
whe n start ing on a s light incline, even though
ACC is active. Press the b rake pedal to prevent
the vehicle from rolling or starting to move. .,.
