-In some situations, the system may not
function or its function may be limited. For
example:
- If vehicles are approach ing or being left
behind very quickly. The display may not
turn on in time.
- In poor weather conditions such as heavy
rain, snow or heavy mist.
- On very wide lanes, in tight curves, or if
there is a rise in the road surface. Vehicles
in the adjacent lane may not be detected
because they are outside of the sensor
range.
- Audi side assist cannot detect all vehicles
under all conditions, which can increase the
risk of accidents.
- Please note that side assist only displays ap­
proaching vehicles or vehicles in your blind
spot if your vehicle is traveling at least
19 mph (30 km/h).
- In certain situations, the system may not
work or its function may be limited. For ex­ ample:
- The display may not turn on at the right
time if veh icles are approaching or passing
very quickly.
- In poor weather conditions, such as heavy
rain, snow or fog.
- In very wide lanes, in tight curves or when
there are slopes in the roadway, vehicles
in the neighboring lanes may not be de­
tected because they are outside of the
sensor range.
(D Note
The sensors can be displaced by impacts or damage to the bumper, wheel housing and
underbody. This can affect the system. Have
an authorized Audi dealer or authorized Audi
Service Facility check their function.
(D Tips
-If the window glass in the driver's door or
front passenger's door has been tinted, the
display in the exterior mirror may be misin­
terpreted.
Assist
- For an explanation on conformity with the
FCC regulations in the United States and the
Industry Canada regulations, refer to
¢ page 256.
Switching on and off
Applies to : vehicles with Aud i s ide ass ist
The system and be switched on and off in the
MMI*.
.. Select: the I MENU I button> Car> Systems*
control button > Driver assistance> Audi side
assist .
With Off, the system is switched off.
An activated system will signal every time the ig­
nition is switched on by turning the displays in
the exterior mirrors on briefly .
Adjusting the display brightness
Applies to: vehicles with Aud i s ide assist
The display brightness can be adjusted in the
MM!*.
.. Select: the I MENU I button >C ar> Systems*
control button > Driver assistance > Aud i side
assist .
The display brightness adjusts automatically to
the brightness of the surroundings, both in the
information and in the warning stage. In very
dark or very bright surroundings, the display is
already set to the minimum or max imum level by
the automatic adjustment . In such cases, you
may not ice no change when adjust ing the bright­
ness , or the change may only be noticeable once
the surround ings change .
Adjust the br ightness to a level where the display
in the information stage will not disrupt your
view forward. If you change the brightness, the
display in the exterior m irror will briefly show the
brightness level in the information stage. The
brightness of the warning stage is linked to the
brightness in the information stage and is adjust­
ed along with the information stage adjustment.
(D Tips
- Side assist is not active while you are mak­
ing the adjustment.
105

Ass is t
- Your settings are automatically stored and
assigned to the remote control key being
used .
Driver messages
Applies to: ve hicles w ith Audi side assist
If the side assist switches off automatically, a
message appears in the instrument cluster dis­
play.
(ij Audi side a ssi st : cur rentl y un ava ilable No
s en so r v isi on
The radar sensors' vision is affected. Do not cover
the area in front of the sensors with bike wheels,
stickers, dirt or other objects . Clean the area in
front of the sensors, if necessary~
page 104,
fig. 105.
@j Audi side assist : cur rently un available
Side assist cannot be switched on temporar ily be­
cause there is a malfunction (for example, the
battery charge level may be too low).
@j Audi side a ssi st : S ystem fau lt!
The system cannot guarantee that it will detect
veh icles correctly and it is switched off. The sen­
sors have been d isplaced or are faulty . Have the
system checked by an authorized Audi dealer or
author ized Audi Service Facility soon .
Audi drive select (drive
settings)
Introduction
App lies to: vehicles with Aud i drive select
Audi drive select makes it possible to experience
d ifferent types of vehicle settings in o ne veh icle .
The drive r can select from three
Comfort , Auto
and D ynam ic modes us ing the te'i:.1 button in the
center console or the MMI to switch between a
sporty and a comfortable driving mode, for ex ­
ample. In the
Ind ividu al* mode, the settings can
be adjusted to your personal preferences. This
makes it poss ible to combine settings such as a
sporty eng ine setting w ith smooth steering.
106
A WARNING ,_
Using Aud i drive select incorrectly can lead to
coll is ions, other accidents and serious inju­
ries.
Description
App lies to: vehicles with Aud i drive se lect
The vehicle setup in each mode depends on the
vehicle's features. However, the engine a nd
steering are a lways affected.
Engine and automatic tr ansmiss ion
Depending on the mode, the engine and auto­
matic transmission* respond more qu ickly or in a
more ba lanced manner to accelerator pedal
movements.
Adapt ive damper s (Audi magneti c ride )*
The adaptive dampers use sensors to record in­
format ion regarding steering movements, brak­
i ng and acceleration operations by the driver,
road surface, driving speed, and load . W ith Aud i
drive select you can adjust the adaptive dampers
spo rty (dynamic), comfortable (comfort) o r bal­
anced (auto).
Ste ering
The steering adapts in terms of steering ass is­
tance. There are d ifferent modes
~page 107.
Ind irect steering that moves easi ly as in comfort
mode is espec ially suited to long d rives on a h igh­
way. The dynamic mode provides sporty, direct
steering.
Fo r vehicles with p rogress ive steering* the steer­
i ng perfo rmance is more agile.
Corn ering light*
The cornering light adjusts when driv ing on
curves at speeds between 6 mph (10 km/h) and 68 mp h (1 10 km/h) . The pivoting act ion and the
li ght ing are also adapted to the mode.
Adapt ive cruise cont rol*
The behavior whe n accelerating can be adjusted
from comfortable to sporty, depending on the
Audi drive select mode . Adaptive cruise control ..,.

<( co .... N r--­N .... 0 r--­> co
Parking systems
General information
Applies to: ve hicles with a rea r parking sys te m /pa rking sys­
tem plus/rearv iew camera
Depending on your vehicle's equipment, various
parking aids will help you when parking and ma­
neuvering.
The
rear parking system is an audible parking aid
that warns you of obstacles
behind the vehicle
¢page 110.
The parking system plus assists you when park ­
ing by audibly and visually indicating objects de­
tected
in front of and behind the vehicle
¢page 110.
The rearview camera shows the area behind the
vehicle in the MMI display. This display assists
you when you are cross or parallel parking. The parking system plus functions are also available
¢page 111.
A WARNING ,--
- Always look for traffic and check the area
around your vehicle by looking at it directly
as well. The parking system cannot replace
the driver's attention. The driver is always
responsible when entering or leaving a park­
ing space and during similar maneuvers.
- Please note that some surfaces, such as
clothing, are not detected by the system.
- Sensors and cameras have blind spots in
which people and objects cannot be detect­
ed . Be especially cautious of small children
and animals.
- Always pay attention to the area around the
vehicle -using the rearview mirror, too.
- The sensors can be displaced by impacts or
damage to the radiator grille, bumper,
wheel housing and the underbody . The park­
ing system may become impaired as a re­
sult. Have an authorized Audi dealer or au­
thorized Audi Service Facility check their
function.
- Make sure the sensors are not obstructed by
stickers, deposits or other materials. If they
are the sensor function could be impaired.
I
Parking systems
For additional information on cleaning, re­
fer to¢
page 224.
@ Note
-Some objects are not detected or displayed
by the system under certain circumstances:
- Objects such as barrier chains, trailer draw
bars, vertical poles or fences
- Objects above the sensors such as wall ex­
tensions
- Objects with specific surfaces or struc­
tures such as chain link fences or powder
snow
- If you continue driving closer to a low-lying
object, it may disappear from the sensor
range . Note that you will no longer be
warned about this obstacle.
- The sensors can be displaced by impacts or
damage to the radiator grille, bumper,
wheel housing and the underbody. The
parking system may become impaired as a
result . Have an authorized Audi dealer or
authorized Audi Service Facility check their
function.
(D Tips
- The system may provide a warning even
though there are no obstacles in the cover­
age area in some situations, such as:
- certain road surfaces or for long grass .
- external ultrasonic sources e.g. from
cleaning vehicles.
- heavy rain, snow, or thick vehicle exhaust.
- We recommend that you practice parking in
a traffic-free location or parking lot to be­
come familiar with the system. When doing
this, there should be good light and weath­
er conditions .
- You can change the volume and pitch of the
signals as well as the display¢
page 115.
-What appears in the MMI display is some­
what time-delayed.
- The sensors must be kept clean and free of
snow and ice for the park assist to operate.
109

Parking system s
Rear parking system
Description
Applies to: ve hicles w ith rear park ing system
The rear parking system is an audible parking
aid.
Descri ption
There is a sensor in the rear bumper cover . If
these detect an obstacle, audible signals warn
you .
Make sure the sensors are not covered by stick­
ers, deposits or any other obstructions as it may
impair the sensor function. For information on
cleaning , refer to¢
page 224.
The range at which the sensors begin to measure
is approximately:
Side rear 3 ft (0.90 m)
Side center 5.2
ft (1.60 m)
The closer
you get to the obstacle, the shorter
the interval between the audible signals . A con­
tinuous tone sounds when the obstacle is less
than approximately 1 foot (0.30 meters) away.
Do not continue backing up¢.&.
in General infor­
mation on page 109,
¢0 in General information
on page 109!
If the distance to an obstacle remains constant,
the volume of the distance warning gradually drops after about four seconds (this is not apply
in the continuous tone range).
Activ ating
The parking system activates automatically when
the reverse gear is selected. You will hear a brief
confirmation tone.
110
Parking system plus
Description
App lies to: vehicles with parking system plus
The parking system plus provides audio and visu­
al signals when parking .
Fig. 108 D isp lay fie ld
Sensors are located in the front and rear bump ­
ers. If these detect an obstacle, audible and visu­
al signals warn you .
Make sure the sensors are not covered by stick­
ers, deposits or any other obstruct ions as it may
impair the sensor function. For information on
cleaning, refer to¢
page 224.
The display field begins approx imately at:
® 4 ft (1.20 m)
® 3 ft (0 .90 m)
© 5.2 ft (1.60 m)
® 3 ft (0 .90 m)
The closer you get to the obstacle , the shorter
the interval between the audible signals. A con­
tinuous tone sounds when the obstacle is less
than approximately 1 foot (0.30 meters) away.
Do not continue driving forward or in reverse
¢.&. in General information on page 109, ¢@) in
General information on page 109!
If the distance to an obstacle remains constant,
the volume of the distance warning gradually
drops after about four seconds (this is not apply
in the continuous tone range).

<( co .... N ,.__
N .... 0 ,.__
> co
Adjusting the display and the warning tones
A ppl ies to: ve hicl es with parkin g system plus/rearview cam·
era
The display and warning tones con be adjusted in
the MMI.
~ Select: the I MENU ! button >Car > Systems *
control button > Driver assistance > Parking
aid .
Display
On * -
An op tical d isp lay is shown for the parking
system plus, a rearview camera image is s hown
for parking system plus with rearv iew camera* .
Off -Whe n the par king system is switched off,
only audib le sign als are give n.
Signal tones
Front volume -
volume for the front and side*
a rea
Rear volume -volume for t he rear area
Front frequenc y-frequency for the front and
side * area
Rear frequency -frequency fo r the rear area
Music volume during nav . prompts -the volume
of the a udio/v ideo so urce is lowe red when t he
pa rking system is turned o n.
The new ly selected leve l is demons trated briefly
by the sound generator.
- The warning tones ca n also be adjusted d i­
r ec tly from the visua l display or t he rearv iew
cam era image *. Simply pr ess the
Settings
co ntrol bu tton.
- The setti ngs a re auto mat ica lly stored and
ass igned to the remote co ntro l key t hat is in
u se .
Error messages
App lies to: ve hicles with par kin g system plus/rearview cam­
era
There is an erro r in the system if the LED in the
P111A. button is b linking and you hear a continuous
Parking systems
alarm for a few seconds after sw itch ing on the
par king system or w hen the pa rking system is a l­
ready activated. If the error is not cor rected be ­
fo re you switch off the ignition, the LED in the
Pw ,
button w ill blink the next time you switch on the
park ing system by shifting into reverse.
Parking sy stem plus*
If a sensor is fa ulty, the~ symbol will appear i n
f ront of/behind the vehicle in the MMI display. If
a rear sensor is faulty, only obstacles that are in
areas @and @are shown
<=>page 110, fig. 108.
If a front sensor is fa ulty, only obstacles that are
i n a reas © and @are shown .
Drive to an authorized Audi dealer or authorized
Audi Service Facility immed iate ly to have the
malfu nction corrected.
115

Transport Canada M otor Vehicle Safety Investig a­
tions Laboratory
80 Noel Street
Gatin eau, QC
J8Z OAl
For additional road safety infor­
mation, please visit the Road
Safety website at:
http:/ /www.tc.gc.ca/eng/
road safety/menu. htm
Active rollover
protection system
Function
The rollover protection system protects vehicle
occupants in the event of a rollover.
----Fig. 123 Rear seats: rollbar dep loy men t range
~ The active rollover protection system consists of: ..... 0
S: -two rollbars 00
Driving safety
-the safety belts with belt tensioners
- the windshield frame
- the rollover sensors
The active rollover protection system provides
additional safety in the event of a rollover. With ­
in milliseco nds, sensors dep loy two rollbars lo­
cated beh ind the head restraints in the rear seats
Qfig . 124.
The rollbars, reinforced windshield frame and
belt tensioners help protect front and rear pas­
sengers in the event of a rollover.
The rollover protection system functions when
the power top is both open and closed .
A WARNING
Do not use the area behi nd the rear seat head
r estraints
Q fig. 123 as a storage area. T h is is
the area where the rollbars deploy. If the roll­
over protection system is triggered, objects
place there can be propelled through the ve ­
hicle and make it more difficult for the roll­
bars to deploy. This increases the risk for seri­
ous or life-threatening in juries.
When is rollover protection deployed?
Rollover protection deploys in a collision or roll­
over.
Depending on the collision, sensors throughout
the vehicle and the control modu le trigger the
rollover system to deploy.
For safety reasons, rollover protection also de­
ploys during front, side and rear collisions above
a certain level of severity.
133

<( co .... N ,.__
N .... 0 ,.__
> co
A WARNING ,~
Improperly worn safety belts increase the risk
of serious personal injury and death whenever
a vehicle is be ing used.
- Always make sure that all vehicle occupants
are correctly restra ined and stay in a correct
seating pos it ion whenever the veh icle is be­
ing used .
- Always read and heed all WARNINGS and
other important information
~ page 13 7 .

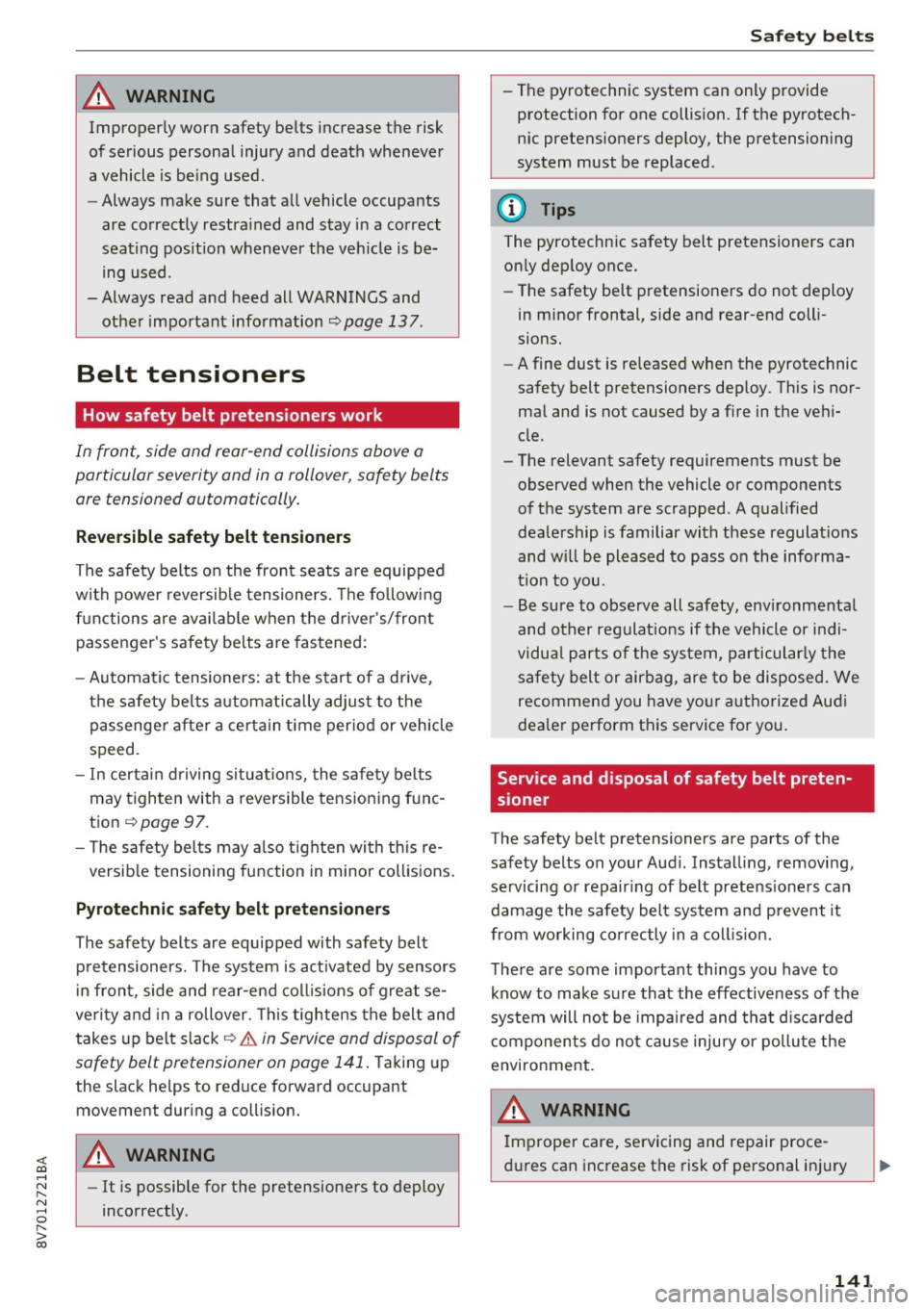

Belt tensioners
How safety belt pretensioners work
In front, side and rear-end collisions above a
particular s everity and in a rollov er, saf ety belts
are tensioned automatically.
Re ve rsib le safe ty belt ten sione rs
The safety belts on the front seats are equipped
with power reversib le tensioners. The fo llowing
f u nctions are avai lab le when the driver 's/front
passenger's safety be lts are fastened:
- Automatic tensioners: at the start of a drive,
the safety belts automatically adjust to the
passenge r after a ce rtain t ime per iod or vehicle
speed.
- In certain driving situat io ns, the safety belts
may t ighten with a reversible tens ioning func­
tion
~ page 97.
- The safety belts may a lso tighten with this re-
versib le tensioning function in minor collisions.
P y rotechnic safet y be lt pretensioners
The safety belts are equipped with safety belt
p retensioners. The system is act ivated by sensors
i n front, side and rear-end coll is ions of great se­
veri ty and in a rollover. This tightens the belt and
takes up belt slack
q & in Service and disposal of
saf ety belt pr etensioner on page 141 .
Taking up
the slack helps to reduce forward occupant movement dur ing a coll is ion.
A WARNING
- It is possible for the pretensioners to deploy
incorrectly .
Safet y be lts
- The pyrotechnic system can only provide
protection for one collision. If the pyrotech­
nic pretens ioners deploy, the pretensioning
system must be replaced .
(D Tips
The pyrotechnic safety belt pretensioners can
only dep loy once.
- The safety belt pretensioners do not deploy
in minor frontal, side and rear-end coll i­
sions.
- A fine dust is re leased when the pyrotechnic
safety belt pretensioners dep loy. This is nor­
ma l and is not caused by a f ire in the veh i­
cle.
- The relevant safety requirements must be
observed when the vehicle or components
of the system are scrapped . A qualified
dealership is familiar with these regulat ions
and w ill be pleased to pass on the informa­
tion to you.
- Be sure to observe all safety, environmenta l
and other regulat ions if the vehicle or indi­
vidua l parts of the system, particular ly the
safety belt or airbag, are to be disposed. We
recommend you have yo ur authorized Aud i
dealer perform this service fo r you.
Service and disposal of safety belt preten­
sioner
The safety belt pretensioners are parts of the
safety belts on your Aud i. Installing , removing ,
se rvicing or repair ing of be lt pretens ione rs can
damage the safety belt system and prevent it
from wo rking co rrectly in a co llision.
There are some important things you have to know to make sure that the effectiveness of the
system will no t be impa ired and that d iscarded
componen ts do not cause inju ry or pollute the
environment .
A WARNING ~ -
Improper care, servicing and repair proce­
dures can increase the risk of personal injury
141

<( co .... N ,.__
N .... 0 ,.__
> co
switched on and turns the airbag indicator light
on when a malfunction in the one of the system
components is detected
c::> page 155. Because
the front passenger seat contains important
parts of the Advanced Airbag System, you must
take care to prevent it from being damaged .
Damage to the seat may prevent the Advanced
Airbag System for the front passenger seat from
doing its job in a crash.
The front Advanced Airbag System consists
of the following:
-Crash sensors in the front of the vehicle that
measure vehicle acceleration/ deceleration to
provide information to the Advanced Airbag
System about the severity of the crash.
- An electronic control unit, with integrated
crash sensors for front and side impacts. The
control unit "decides" whether to fire the front
airbags based on the information received from
the crash sensors. The control unit also "de­
cides" whether the safety belt pretensioners
should be activated .
- An Advanced Airbag with gas generator for the
driver inside the steering wheel hub.
- An Advanced Airbag with gas generator inside
the instrument panel for the front passenger.
- A capacitive passenger detection system under­
neath the front passenger seat cover. This sys­
tem measures the electrical capacitance of the person in the seat. The information registered
is sent continuously to the electronic control
unit to regulate deployment of the front Ad­
vanced Airbag on the passenger side .
- An airbag monitoring system and indicator
light in the instrument cluster
c::> page 155 .
-A sensor in each front seat registers the dis­
tance between the respective seat and the
steering wheel or instrument panel. The infor­
mation registered is sent continuously to the
electronic control unit to regulate deployment
of the front Adv a need Airbags.
- The
PASSENGER AIR BAG OFF light comes on
and stays on in the center of the instrument
panel
c::> page 188 and tells you when the front
Advanced Airbag on the passenger side has been turned off.
Airbag system
-A sensor in the safety belt latch for the driver
and for the front seat passenger that senses
whether that safety belt is latched or not and
transmits this information to the electronic control unit.
A WARNING ,.__
Damage to the front passenger seat can pre­
vent the front airbag from working properly .
- Improper repair or disassembly of the front
passenger and driver seat will prevent the
Advanced Airbag System from functioning properly.
- Repairs to the front passenger seat must be
performed by qualified and properly trained
workshop personnel.
- Never remove the front passenger or driver
seat from the vehicle .
- Never remove the upholstery from the front
passenger seat.
- Never disassemble or remove parts from the
seat or disconnect wires from it.
- Never carry sharp objects in your pockets or
put them on the seat. The capacitive pas­
senger detection mat in the front passenger
seat will not function properly if it is punc­
tured.
- Never carry things on your lap or carry ob­
jects on the front passenger seat. Such ob­
jects can influence the capacitance regis­
tered by the capacitive passenger detection
system, so that incorrect information is pro­
vided to the airbag control unit.
- Never store items under the front passenger
seat. Parts of the Advanced Airbag System
under the passenger seat could be dam­
aged, preventing them and the airbag sys­
tem from working properly.
- Never place seat covers or replacement up­
holstery that have not been specifically ap­
proved by Audi on the front seats.
- Seat covers can prevent the Advanced Air­
bag System from recognizing child re­
straints or occupants on the front passenger
seat and prevent the side airbag in the seat
backrest from deploying properly .
151

Airbag system
A WARNING
A child in a rearward-facing child seat instal­
led on the front passenger seat will be seri ­
ously injured and can be killed if the front air­
bag inflates - even with an Advanced Airbag
System.
- The inflating airbag will hit the child seat or
infant carrier with great force and will
smash the child seat and child against the backrest, center armrest, door or roof.
- Always install rear-facing child seats on the
rear seat.
- If you must install a rearward facing child
seat on the front passenger seat because of exceptional circumstances and the
PASSEN­
GER AIR BAG OFF
light does not come on
and stay on, immediately install the rear­
facing child seat in a rear seating position
and have the airbag system inspected by
your Audi dealer.
A WARNING
Objects between you and the airbag will in­
crease the risk of injury in a crash by interfer­
ing with the way the airbag unfolds or by be­
ing pushed into you as the airbag inflates .
- Never hold things in your hands or on your
lap when the vehicle is in use .
- Never transport items on or in the area of
the front passenger seat . Objects could
move into the area of the front airbags dur­
ing braking or other sudden maneuvers and
become dangerous projectiles that can
cause serious personal injury if the airbags
inflate.
- Never place or attach accessories or other
objects (such as cup holders, telephone
brackets , large, heavy or bulky objects) on
the doors, over or near the area marked "A IRBAG" on the steering wheel, instru­
ment panel, seat backrests or between
those areas and yourself. These objects
could cause injury in a crash, especially
when the airbags inflate .
- Never recline the front passenger 's seat to
transport objects. Items can also move into
the area of the side airbag or the front air-
154
-
bag during braking or in a sudden maneu­
ver. Objects near the airbags can become
projectiles and cause injury, particularly
when the seat is reclined.
- Never place or transport objects on the
front passenger seat. Objects on the front passenger seat could cause the capacitive
sensor in the seat to signal to airbag system
that the seat is occupied by a person when it
in fact is not , or that the person on the seat
is heavier than he or she actually is. The
change in electric capacitance because of
such objects can cause the passenger front
airbag to be turned on when it should be
off, or can cause the airbag to work in a way
that is different from the way it would have
worked without objects on the seat.
- Always make sure that there is nothing on
the front passenger seat that will cause the
capacitive passenger detection system in
the seat to signal to the Airbag System that
the seat is occupied by a person when it is not, or to signal that it is occupied by some­
one who is heavier than the person actually
sitting on the seat. The presence of an ob­
ject could cause the passenger front airbag to be turned on when it should be off, or
could cause the airbag to work in a way that is different from the way it would have
worked without the object on the seat.
A WARNING
The fine dust created when airbags deploy can
cause breathing problems for people with a history of asthma or other breathing condi­
tions .
- To reduce the risk of breathing problems,
those with asthma or other respiratory con­
ditions should get fresh air right away by
getting out of the vehicle or opening win­
dows or doors .
- If you are in a collision in which airbags de­
ploy , wash your hands and face with mild
soap and water before eating.
- Be careful not to get the dust into your eyes,
or into any cuts or scratches.
- If the residue should get into your eyes,
flush them with water .

<( co ..... N
" N ..... 0 r--. > 00
Monitoring the
Advanced Airbag System
~ ( USA models) / !f (Canada models )
Airbag monitoring indicator light
Two separate indicators monitor the function of
the Advanced Airbag System: the airbag moni­ toring indicator light and the
PASSENGER AIR
BAG OFF
light.
The Advanced Airbag System as we ll as the side
a ir bags and side curtain airbags with eject ion
mitigation features (including the e lectronic con­
trol unit, sensors and system w iring) are all
monitored co nti nuously to make sure that they
are funct io ni ng properly whenever the ignition is
on. Every t ime you turn on the ignition, the air­
bag system ind icator light
1B (USA models)/ El
(C an ada models) will come on for a few seconds
(f unction check).
The system must be inspected when the
indicator light
II ( USA models) / m
( Canada models) :
-does not come on when the ignition is switched
on,
- does not go out a few seconds after you have switched on the ign ition, or
- comes on w hile d riving .
I f an airbag system malf unct ion is detected, the
i ndicator lig ht w ill c ome on to se rve as a consta nt
reminder to h ave the system inspected immedi­
a tely .
I f a malfunction occurs that turns the front air­
bag on the passenger side off, the
PASSENGER
AIR BAG OFF
light will come on and stay on
whenever the ignit io n is on .
A WARNING
An airbag system that is not functioning prop­
er ly cannot provide supp lemental protection
in a frontal crash.
- If the airbag indicator l ight
c:::> page 17
comes when the vehicle is be ing used, have
the system inspected immed iate ly by your
authorized Aud i dealer. It is possible that
Airbag system
the airbag will inflate when it is not sup­
posed to, or w ill not inf late w hen it should.
PASSENGER AIR BAG OFF light
F ig . 14 0 Center console: passenger a irbag off warning
light
The PASS ENG ER AIR BAG OFF light is located in
the center of the inst rument panel
c:::> fig . 140.
The PASSENGER AIR BAG OFF light w ill come on
and stay on to tell you when the front Advanced
Airbag on the passenger side has been turned off by the electronic contro l unit. If the b ulb for the
PASSENGER AIR BAG OFF light bur ns out, the
airbag indicato r ligh t
fl (USA models)/ El
(Canada models) w ill come on to signa l a ma l­
f unct ion in the Advanced Airbag System. A l­
though the burned -out bu lb wi ll not change the
way the front passenger's fronta l airbag works, it
will no longer be possible to use the
PASSENGER
AIR BAG OFF
light to make sure that the a irbag
on/off status is correct for the occupant on the
front passenger seat. Have the airbag system in­
spected immediately by your authorized A udi
dealer.
The PASSENGER AIR BAG OFF light will blink
for about 5 seconds when:
- the ignition is switched on and
- the capacitive passenger detection system,
which switches the fro nt seat passenger's fron ­
tal Advanced Airbag on and off, detects a
change in the status of the front passenger
seat.
As soon as the
PASSENGER AIR BAG OFF light
stops blinking, always make sure that the airbag
status (on or off) as shown by the
PASSENGER
AIR BAG OFF
light is proper for the age, size and ..,.
155
