Page 21 of 272
Instruments and indicator lights
Audi dealer or authorized Audi Service Facility im
m ediately to have the malfunction corrected.
~ i. Engine oil level (min .)
Ill Check oil level
You may continue driving for the time being.
Check the engine oil level as soon as possible
r::!) page 191.
-If the engine oil level is too low, add engine oil
¢page 193 .
-If the engine oil level is correct and the indica
tor light st ill turns on, drive at low engine
speed to an authorized Audi dealer or author
ized Audi Service Facility.
~ .... Engine oil sensor
• Oil level sensor: system fault!
The sensor to check the engine oil level has
failed. Drive to an authorized Audi dealer or au
thorized Audi Service Facility immediately to have
the malfunction corrected.
(D Note
Refer to the description in the Owner's Man
ual ¢
page 193, Checking the engine oil level
and adding oil.
Bil Tank system
D Please refuel
If the indicator light turns first turns on and this
message appears, the tank contains the follow
ing amount of fuel :
- Front wheel drive: approximately 1.8 gallons (7
liters)
- All wheel drive: approximately 2.2 gallons (8.S
liters)
D Please refuel immediately
If the indicator light turns on the message ap
pears, the fuel tank is almost empty . Refuel the
vehicle immediate ly.
D Fuel tank malfunction! Please contact Serv
ice
20
If the indicator light turns on and this message
appears, there is a malfunction in the tank sys
tem.
Drive to an authorized Audi dealer or authorized
Audi Service Facility immediately to have the
malfunction corrected .
@ For the sake of the environment
Fuel should never enter the sewer system or
come into contact with the ground.
(D Tips
More information on refueling is available on
page
¢page 185.
.. Washer fluid level
C·w$ Please add washer fluid
Fill the washer fluid for the windshield washer
system and the headlight washer system* when
the ignition is switched off¢
page 202.
• Windshield wipers
m Windshield wiper: system fault!
There is a malfunction with the windsh ield wip
ers .
Drive to an authorized Audi dealer or authorized
Audi Service Facility immediate ly to have the
malfunction corrected .
~ Defective light bulb warning
Applies to: vehicles with driver info rmation system
If the J:i indicator light turns on, a bulb has
failed . The message indicates the location of the
bulb.
Replace the bulb immediately.
Vehicle lights: system fault!
There is a malfunction in the headlights or the
light switch. Drive to an authori zed Audi dealer or
authorized Aud i Service Facility immediately to
have the malfunction corrected .
...
Page 188 of 272
Checking and Filling
"'Never put too much motor oil in your engine
¢ page 193 , Checking the engin e oil lev el and
adding oil.
"'Never try to push- or tow-star t your vehicle.
The catalytic converter is an efficient "clean-up"
device built into the exhaust system of the v ehi
cle. The catalytic converter burns many of the pollutants in the exhaust gas before they are re
leased into the atmosphere .
The exclusive use of unleaded fuel is critically im
portant for the life of the catalytic converter and
proper functioning of the engine.
A WARNING
The temperature of the exhaust system is
high, both when driving and after stopping
the engine.
-
- Never touch the exhaust tail pipes once they
have become hot . This could result in burns .
- Do not park or operate the vehicle in areas
where the hot exhaust system may come in
contact with dry grass, brush , fuel spill or
other material which can cause a fire.
- Do not apply additional undercoating or
rustproofing on or near the exhaust mani
fold, exhaust pipes, catalytic converter or heat shields. During driving, the substance
used for undercoating could overheat and
cause a fire.
(D Note
- Be aware that just one tank filling with
leaded fuel will already seriously degrade
the performance of the catalytic converter.
- Do not exceed the correct engine oil level
¢page 193.
-Do not drive until the fuel tank becomes
completely empty. The engine could mis
fire. Unburned fuel could also get into the
exhaust system and this could cause the
catalytic converter to overheat.
- Do not switch off the ignition while the vehi
cle is moving.
- Do not continue to operate your vehicle un
der these conditions, as otherwise fuel can reach the catalytic converter. This could re-
188
sult in overheating of the converter, requir
ing its replacement.
- To assure efficient operation of the Emis
sion Control System:
- Have your vehicle maintained properly and
in accordance with the service recommen
dations in your Warranty
& Maintenance
booklet.
- Lack of proper maintenance as well as im
proper use of the vehicle will impair the
function of the emission control system
and could lead to damage.
@ For the sake of the environment
Even when the Emission Control System is op
erating properly, the exhaust gas can have a
sulfur-like exhaust gas smell under some op
erating states. This depends on the sulfur
content of the fuel being used. Using a differ
ent brand of fuel may help, or filling the tank
with lead-free super grade gasoline.
Engine compartment
Working in the engine compartment
Special care is required if you are working in the
engine compartment
For work in the engine compartment, such as
checking and filling fluids, there is a risk of in
jury, scalding, accidents, and burns. For this
reason, follow all the following listed warnings
and general safety precautions. The engine
compartment is a dangerous area.
£:=? &. -
A WARNING
To reduce the risk of injuries, complete the
following steps before opening the hood:
- Turn the engine off.
- Switch the ignition off.
- Set the parking brake.
- Place the selector lever in the P position .
- Let the engine cool down .
- Never open the hood when you see that
steam or coolant drips from the engine
compartment- there is a danger of burns!
Wait until no steam or coolant flows out .
-
Page 191 of 272
<( co ..... N
" N ..... 0 r--. > 00
Checking and Filling

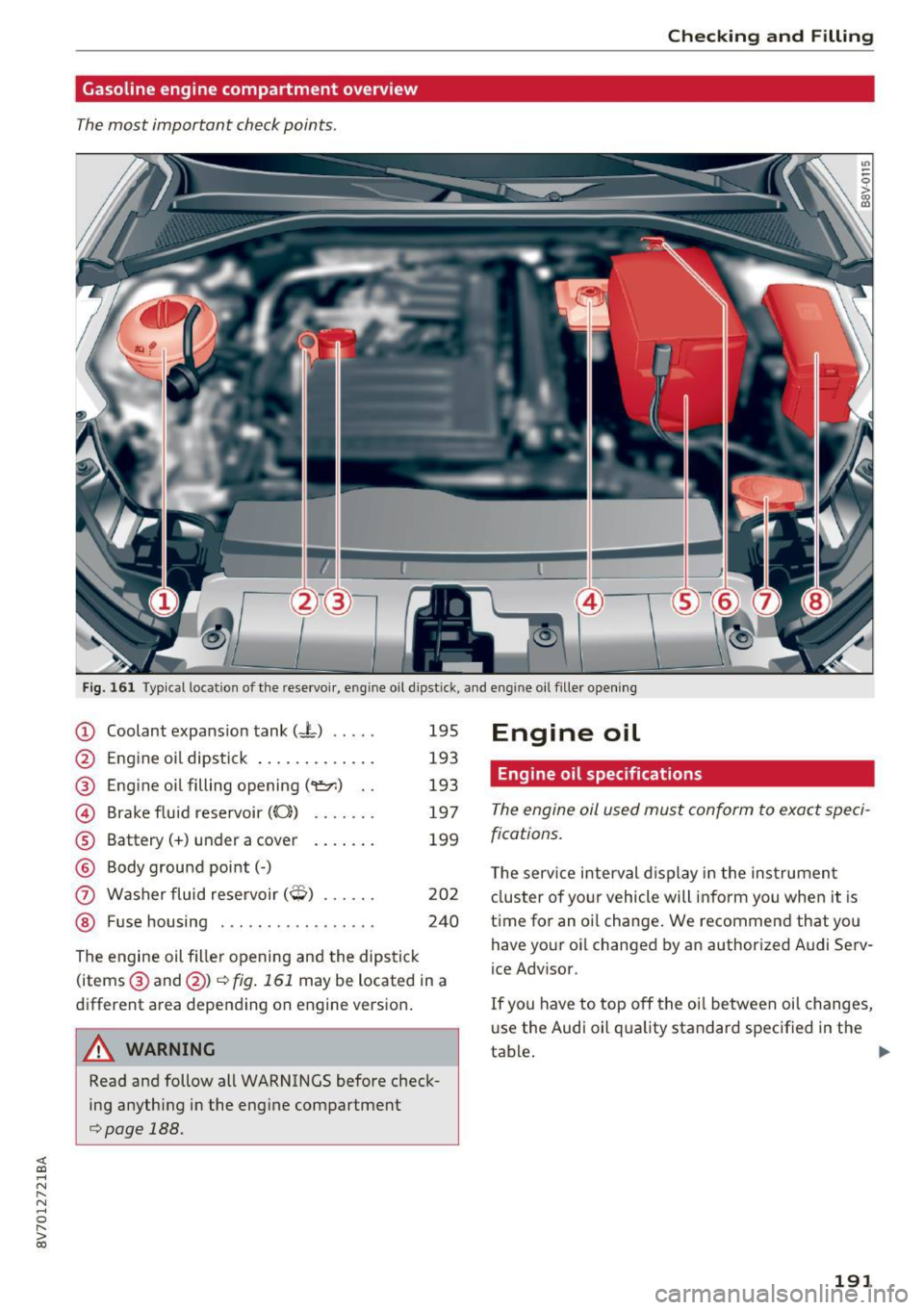

Gasoline engine compartment overview
The most important check points .
Fig. 161 Typical location of the rese rvoir , engine oil dipst ick, and engine oil filler opening
(D Coolant expansion tank (-L) .....
@
®
©
®
©
(J)
®
Engine oil dipstick ............ .
Engine oil filling opening
('er.) . .
Brake fluid reservoir (0))
Battery(+) under a cover
Body ground point(-)
Washer fluid reservoir
(O) ..... .
Fuse housing . .... .... ....... .
195
193
193
197
199
202
240
The engine oil filler opening and the dipstick
(items ® and @)
¢ fig. 161 may be located in a
different area depending on engine version.
A WARNING
Read and follow all WARNINGS before check
ing anything in the engine compartment
¢page 188.
Engine oil
Engine oil specifications
The engine oil used must conform to exact speci
fications.
The service interval d isplay in the instrument
cluster of your vehicle will inform you when it is
time for an oil change. We recommend that you
have your oil changed by an authorized Audi Serv
ice Advisor.
If you have to top off the oil between oil changes,
us e the Audi oil quality standard specified in the
tab~ .
~
191
Page 193 of 272
<( co ..... N
" N ..... 0
" > 00
(D Tips
- The oil pre ssure w arning display. i s not
an indicator of the oil level. Do not rel y on
it. Instead , check the oil level in your en
gine at regular inte rval s, preferably each
t ime you refuel , and alway s befo re going
on a long trip.
- If y ou have the impressio n your engine con
sumes excessive amounts of oil, we recom
mend that you cons ult an autho rized Aud i
dealer to have the cause of your concern
properly d iagnosed . Keep in mind that the
accurate measurement of oil consump tion
requi res great care and may take some
time. An a uthorized Audi dea ler has instruc
tions about how to measure oil consump
tion accurately .
Checking the engine oil level and adding oil
Fig. 16 2 O il dip stick (example) : ch ec king th e eng in e oil
l evel
Fi g. 1 63 Engine co mpartme nt: e ngin e oil f ille r ope ning
c ov er
0
N
-N
"' ::l
Read and follow all WARNINGS before checking
anyth ing in the engine compartment
c:> page 188, Working in the engine comport
men t .
Checking and Filling
Checking the engin e oil level
- Park the vehicle o n a level su rface .
- Shut the eng ine off when it is wa rm. Wait ap-
proximate ly two minutes so that the eng ine oil
can flow back i nto the oil pan .
- Open the hood
c:> page 190.
- Remove the oil d ipstick <=:> page 191, fig . 161 ,
wipe it off w ith a clea n clot h and inse rt it all the
way in aga in .
- Remove the oil d ipstick again and then read the
oil leve l
c:> table on page 193.
-Add engine o il if necessary .
Areas on the oi l dipstick
c:> fig . 162 .
CD If the engine oil level is just before the
mark ing
CD , then eng ine oil must be added .
See
c:> (D .
@ Do not add eng
ine oil.
Adding engine oil
- Unscrew the cap 'l=:7: c:> fig. 163 for the engine
oil filling opening
c:> poge 191, fig. 161.
- Carefully add 0.5 quart (0 .5 liter) of the correct
oil
c:> poge 191.
-Check the oi l level aga in after two minu tes.
- Add a smaller amo unt of engine oil if necessa -
ry. The marking @ <=:>
fig. 162 must no t be ex
ceeded
c:> (!) .
-Scr ew the eng ine oil filler cap 'l=:7: and slide the
dipstick a ll the way in.
.&_ WARNING
=
- When adding engine o il, do not let oil drip
onto hot engine components. This increases
the risk of a fire.
- You must sea l the cap on the oil filler open
ing correct ly so that oil does not leak out
onto the hot engine and ex haust system
when the engine is runn ing , because this is
a fire hazard.
- Always clean sk in thoroughly if it comes into
contact w ith eng ine o il.
(D Note
- The engine o il leve l must not be under the
marking
CD c:> fig. 162, because t his increas-
es the r isk of engine damage.
111>
193
Page 195 of 272
<( co ..... N
" N ..... 0 r--. > 00
-Always dispose of used engine oil prope rly .
Do not dump it on garden soi l, wooded
areas, into open streams or down sewage
drains.
- Recycle used engine oil by taking it to a used
engine oil collection facility in your area, or
contact a serv ice stat ion.
Cooling system
Coolant
The engine coo ling system is filled wi th a mixture
of purified water and coolant additive at the fac
tory. This coo lant must not be not changed.
The coolant leve l is moni to red throug h the . in
d icator light
q page 16 . Howeve r, we do recom
mend occasiona lly checking the coo lant level
manually.
If you m ust add coo lant, use a m ix ture of water
an d coolant addit ive. Mixing the coolant additive
with d isti lled water is recommended.
Coolant additive
The coolan t additive is made of anti-freezing and
corros ion pro tection agents. Only use the fol low
in g coolant add it ives. The se addi tives may be
mixed wit h each other.
Coolant additive Specification
G13 TL 7
74)
G12 ++ TL 774 G
T he amount of coo lant additive that needs to be
mixed with water depends on the climate where
the vehicle will be ope rated. If the coolant addi
tive percentage is too low, the coolant can freeze
and damage the eng ine.
Coolant Freeze protec-
additive tion
Warm reg ions min . 40% m in. -13 °F
max. 45% (-
25
°()
Cold regions min . 50% max . -40 °F
max. 55% (-40
°()
Checking and Filling
(D Note
-
Before the start of w inte r, have you r auth or
ized Aud i dealer or a uthorized Aud i Serv ice
Facility check if the coolant addit ive in your
vehicle matches the pe rcentage appropriate
for the climate. This is especially important
when driving in colder climates .
- If the appropr iate coo lant add itive is not
availab le in an emergency, do not add any
other additive. Yo u could damage the en
gine. If this happens, on ly use water and re
store t he corre ct m ix tu re ratio with the
specified coolant ad ditive as soon as poss i
ble.
- O nly refill w ith new coolant.
- Radiator sea lant must not be mi xed with
the coolant.
Adding coolant
Fig . 1 64 En g in e compa rtment: ma rki ngs o n the coolant
expans ion
t ank
Read and follow the WARNINGS befo re check
ing anything in the engine compartment
i=> page 188, Working in the engine compart
ment.
Che cking the engine coolant level
.. Park your vehicle on a leve l su rface .
.. Switch t he ignition off .
.. Read the coolant level on the coolant expansion
tank ¢
fig. 164. The coolant level must be be
tween the markings when the eng ine in cold .
When the eng ine is warm it can be slig htly
above the upper marking.
195
Page 197 of 272
<( co ..... N
" N ..... 0 r--. > 00
Brake fluid
Checking brake fluid level
Fig. 165 Engine compartment : cover on t he brake fluid
reservoir (examp le)
"' N N
~ .,
Before you check anything in the engine compart
ment,
always read and heed all WARNINGS
¢page 188, Working in the engine compart
ment.
.,. Read the brake fluid level from the brake fluid
reservoir
~fig. 165, ¢page 191, fig. 161 . The
brake fluid level must be between the "MIN"
and "MAX" markings .
The location of the brake fluid reservoir can be
seen in the engine compartment illustration
¢page 191.
The fluid level may drop slightly after some time
due to the automatic adjustment of the brake
pads . This is not cause for alarm.
I f the brake fluid level falls
considerably below
the "MIN" mark, the brake warning/indicator
light
1111 (U.S. mode ls)/ . (Canadian models)
will come on¢
page 15. Do not continue to oper
ate the vehicle . The complete brake system
should be thoroughly checked by an authorized
Audi dealer or other qualified facility and the
cause corrected. If the brake fluid level is too
low, the brake warning/indicator light will illumi
nate. Contact an authorized Audi dealer
immedi
ately.
Checking and Filling
Changing brake fluid
Have the brake fluid changed by an experienced
technician.
Brake fluid absorbs moisture from the air. If the
water content in the brake fluid is too high, cor
rosion in the brake system may result after ape
riod of time . The boiling point of the brake fluid
will also decrease considerably and decrease braking performance.
Therefore, the brake fluid must be changed
every
two years. Always use new brake fluid which con
forms to Federal Motor Vehicle Standard "FMVSS
116 DO T 4" .
The brake fluid reservoir can be difficult to reach,
therefore, we recommend that you have the
brake fluid changed by your author ized
Audi
dealer. Your dealer has the correct tools, the
right brake fluid and the know-how to do this for
you.
A WARNING
- Brake fluid is poisonous. It must be stored
only in the closed original container out of
the reach of children!
- Brake failure can result from old or inappro
priate brake fluid . Observe these precau
tions:
- Use only brake fluid that meets SAE speci
fication
J 1703 and conforms to Federal
Motor Vehicle Standard 116. Always check
with your authorized Audi dealer to make
sure you are using the correct brake fluid .
The correct type of brake fluid is also indi
cated on the brake fluid reservoir.
- The brake fluid must be new. Heavy use of
the brakes can cause a vapor lock if the
brake fluid is left in the system too long.
This can seriously affect the efficiency of
the brakes as well as your safety. This
could result in an accident.
(D Note
Brake fluid will damage the paint of your vehi-
cle. ..,.
197
Page 261 of 272
<( co .... N r--N .... 0 r--> co
Electronic Stabilization Control (ESC) . . . . . 116
Emergency assistance . . . . . . . . . . . . . . . . . 230
Emergency flasher . . . . . . . . . . . . . . . . . . . . . 44
E mergency flashe rs
I ndicator light . . . . . . . . . . . . . . . . . . . . . . .
21
Emergency locking the front passenger 's door .3.2
Emergency operat ion
Emergency braking function . . . . . . . . . . . .
75
Front passenger's door . . . . . . . . . . . . . . . . 32
Luggage compartment lid . . . . . . . . . . . . . . 33
Power top . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
with conven ience key . . . . . . . . . . . . . . . . . . 72
Emergency release
Fuel filler door . . . . . . . . . . . . . . . . . . . . . .
187
Selector lever . . . . . . . . . . . . . . . . . . . . . . . . 83
Emergency starting 244
Energy management . . . . . . . . . . . . . . . . . . 121
Indicator light . . . . . . . . . . . . . . . . . . . . . . . 17
Engine
Coolant . . . . . . . . . . . . . . . . . . . . . . . . . . . .
195
Starting with jumper cables . . . . . . . . . . . 244
Starting (button) . . . . . . . . . . . . . . . . . . . . . 70
Starting (key) . . . . . . . . . . . . . . . . . . . . . . . . 68
Starting (messages with conven ience key) . 72
stopping (button) . . . . . . . . . . . . . . . . . . . . 71
stopping (key) . . . . . . . . . . . . . . . . . . . . . . . 69
Engine compartment
C losing the hood . . . . . . . . . . . . . . . . . . . .
190
Opening the hood . . . . . . . . . . . . . . . . . . . 190
Overview ... .................. ..... . 191
Safety precautions . . . . . . . . . . . . . . . . . . . 188
Engine control (indicator light) . . . . . . . . . . . 19
Engine coolant
Radiator fan
196
Engine oil . . . . . . . . . . . . . . . . . . . . . . . . . . . 191
Changing . . . . . . . . . . . . . . . . . . . . . . . . . . 194
Checking oil level . . . . . . . . . . . . . . . . . . . . 193
Consumption . . . . . . . . . . . . . . . . . . . . . . . 193
Dipstick . . . . . . . . . . . . . . . . . . . . . . . . 191, 193
F'll ' I mg . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 193
Indicator light . . . . . . . . . . . . . . . . . . . . . . . 16
Oi l consumption . . . . . . . . . . . . . . . . . . . . . 192
Specification and viscosity . . . . . . . . . . . . . 191
Engine speed limitation (indicator light) . . . 19
Environment
Break-in period . . . . . . . . . . . . . . . . . . . . . . .
65
Catalytic converter . . . . . . . . . . . . . . . . . . . 187
Index
Disposing of your vehicle battery . . . . . . . 201
Driving at high speeds . . . . . . . . . . . . . . . . . 66
Letting the vehicle stand and warm up. . . . 66
Proper disposal of drained brake fluid . . . 197
Proper disposal of drained engine oil . . . . 194
Unleaded gasoline . . . . . . . . . . . . . . . . . . . 184
What should I do with an old battery? . . . 201
EPC (engine control) . . . . . . . . . . . . . . . . . . . . 19
ESC
Automatic post-collision braking system .
116
Electronic stabilization control . . . . . . . . . 116
Sport mode . . . . . . . . . . . . . . . . . . . . . . . . 117
also refer to Electronic Stabilization Control
(ESC) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
116
ESP
refer to Electronic Stabilization
Control (ESC) . . . . . . . . . . . . . . . . . . . . . . .
116
Event Data Recorder (EDR) . . . . . . . . . . . . . 122
Exterior lighting . . . . . . . . . . . . . . . . . . . . . . . 43
Exterior mirrors
Adjusting . . . . . . . . . . . . . . . . . . . . . . . . . . .
47
Dimming . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
folding . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
Heating... .. .. .. .. ............... .. . 47
F
Fastening
Booster seats . . . . . . . . . . . . . . . . . . . . . . .
17 4
Convertible child safety seats . . . . . . . . . . 172
Infant seats . . . . . . . . . . . . . . . . . . . . . . . . 171
Floor mats . . . . . . . . . . . . . . . . . . . . . . . . . . . 129
Fog lights/rear fog light(s) . . . . . . . . . . . . . . 43
Folding the exterior mirrors
Center locking . . . . . . . . . . . . . . . . . . . . . . .
31
Folding the rear seats . . . . . . . . . . . . . . . . . . . 58
Foot pedals . . . . . . . . . . . . . . . . . . . . . . . . . . 129
Footwell lighting . . . . . . . . . . . . . . . . . . . . . . 46
For the sake of the env ironment
ear w indow defogger . . . . . . . . . . . . . . . . . .
64
Environmentally-friend ly driving . . . . . . . . 65
Fueling . . . . . . . . . . . . . . . . . . . . . . . . . . . . 186
Leaks..... .... .. ................. .. 189
Freeze protection
Coo lant additive . . . . . . . . . . . . . . . . . . . . .
195
Windshield washer system . . . . . . . . . . . . 202
261
