buttons AUDI A4 1995 B5 / 1.G APB Engine Ignition System Checking

28-17

Intake Air Temperature (IAT) sensor -
G42, checking

Location of sensor and connector Page 24
-5 .

- Connect vehicle diagnostic, testing and
information system VAS 5051 or VAG1551 scan
tool and select engine electronics control
module by entering address word "01" Page
01
-9 . When doing this the ignition must be
switched on.
Rapid data transfer
HELP
Select Function XX

Indicated on display
- Press buttons -0- and -8- to select function "Read Measuring Value
Block" and confirm entry with -Q- button.
Read Measurin
g Value Block
HELP
Input Displa
y Group Number XXX

Indicated on display
- Press buttons -0-, -0- and -4- to select Display Group 4 and confirm
entry with -Q- button.
Read Measuring Value Block 4
1
2
3
4

Indicated on display: (1...4 display fields) - Check display value for intake air temperature sensor (display field 4):
Pa
ge 19 of 64 I
gnition s
ystem, checkin
g
11/22/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.FU04.28.1

28-26

Rapid data transfer
HELP
Select function XX

Indicated on display
- Press buttons -0- and -8- to select function "Read Measuring Value
Block" and confirm entry with -Q- button.
Read Measuring Value Block Input displa
y group number XXX

Indicated on display
- Press buttons -0-, -0- and -4- to select Display Group 4 and confirm
entry with -Q- button.
Read Measuring Value Block 4
1
2
3
4

Indicated on display
- Check readout for coolant temperature sender in display field 3.
Pa
ge 29 of 64 I
gnition s
ystem, checkin
g
11/22/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.FU04.28.1

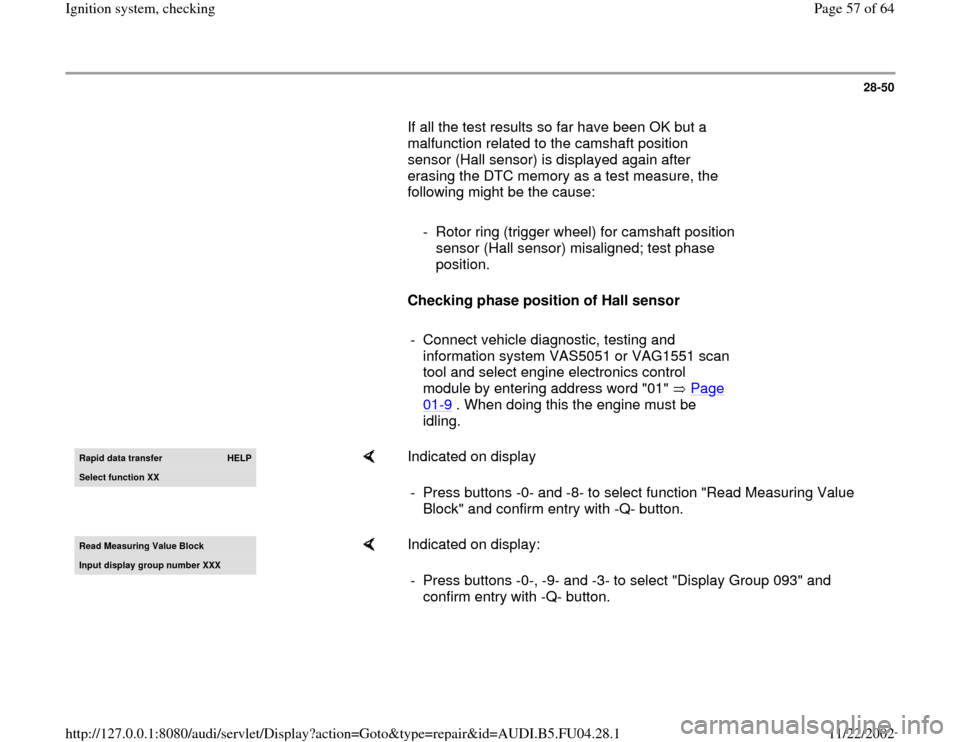

28-50
If all the test results so far have been OK but a
malfunction related to the camshaft position
sensor (Hall sensor) is displayed again after
erasing the DTC memory as a test measure, the
following might be the cause:

- Rotor ring (trigger wheel) for camshaft position
sensor (Hall sensor) misaligned; test phase
position.

Checking phase position of Hall sensor

- Connect vehicle diagnostic, testing and
information system VAS5051 or VAG1551 scan
tool and select engine electronics control
module by entering address word "01" Page
01
-9 . When doing this the engine must be
idling.
Rapid data transfer
HELP
Select function XX

Indicated on display
- Press buttons -0- and -8- to select function "Read Measuring Value
Block" and confirm entry with -Q- button.
Read Measurin
g Value Block
Input displa
y group number XXX

Indicated on display:
- Press buttons -0-, -9- and -3- to select "Display Group 093" and
confirm entry with -Q- button.
Pa
ge 57 of 64 I
gnition s
ystem, checkin
g
11/22/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.FU04.28.1

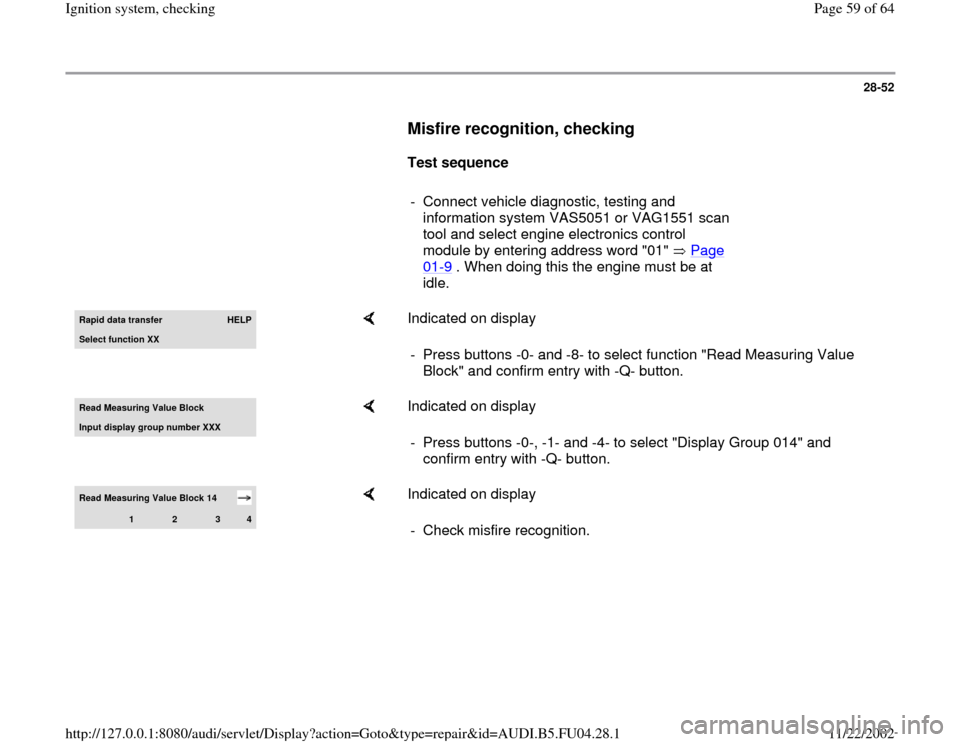

28-52

Misfire recognition, checking


Test sequence

- Connect vehicle diagnostic, testing and
information system VAS5051 or VAG1551 scan
tool and select engine electronics control
module by entering address word "01" Page
01
-9 . When doing this the engine must be at
idle.
Rapid data transfer
HELP
Select function XX

Indicated on display
- Press buttons -0- and -8- to select function "Read Measuring Value
Block" and confirm entry with -Q- button.
Read Measurin
g Value Block
Input displa
y group number XXX

Indicated on display
- Press buttons -0-, -1- and -4- to select "Display Group 014" and
confirm entry with -Q- button.
Read Measuring Value Block 14
1
2
3
4

Indicated on display
- Check misfire recognition.
Pa
ge 59 of 64 I
gnition s
ystem, checkin
g
11/22/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.FU04.28.1
