AUDI A4 1997 B5 / 1.G 01A Transmission Final Drive Ring Gear Pinion Shaft Workshop Manual 39-34


Front final drive ring gear and
pinion shaft, adjusting

Notes:

Careful adjustment of the pinion shaft and ring
gear is essential for the service life and smooth
running

Page 2 of 10

AUDI A4 1997 B5 / 1.G 01A Transmission Final Drive Ring Gear Pinion Shaft Workshop Manual tapered roller bearings and shims.
     The friction torque measurement only serves to
give a final check of the adjustment.
Pa
ge 2 of 10 Front final drive rin
g gear and
pinion shaft, ad
justin

Page 3 of 10

AUDI A4 1997 B5 / 1.G 01A Transmission Final Drive Ring Gear Pinion Shaft Workshop Manual 39-35


Adjustment and marking of final drive gear
sets

1 -
Identification "0937" signifies an Oerlikon
gear set with a ratio of 37:9
2 -
Pairing number (312) of final drive gear
set
3 -

Page 4 of 10

AUDI A4 1997 B5 / 1.G 01A Transmission Final Drive Ring Gear Pinion Shaft Workshop Manual 39-36


Installation position of shims

Note:
List of adjustments when replacing individual
components of transmission   Page 39
-37
 .
S1 - Shim for ring gear in differential cover
S2 - Shim

Page 5 of 10

AUDI A4 1997 B5 / 1.G 01A Transmission Final Drive Ring Gear Pinion Shaft Workshop Manual 39-37
 List of adjustments

Note:
If repairs have been carried out on the transmission, it is only necessary to adjust the pinion shaft, ring gear or final drive set if
components have been replac

Page 6 of 10

AUDI A4 1997 B5 / 1.G 01A Transmission Final Drive Ring Gear Pinion Shaft Workshop Manual 1) Shims, installation position   Page 39
-36
 .
2) Pinion shaft and ring gear, only replace together.  3) If the transmission housing is replaced, the input shaft must also be adjusted   input shaf

Page 7 of 10

AUDI A4 1997 B5 / 1.G 01A Transmission Final Drive Ring Gear Pinion Shaft Workshop Manual 39-38

Final drive gear set, recommended
sequence for re-adjusting


If the pinion shaft and ring gear have to be readjusted, the following
sequence is recommended for maximum efficiency:

Page 8 of 10

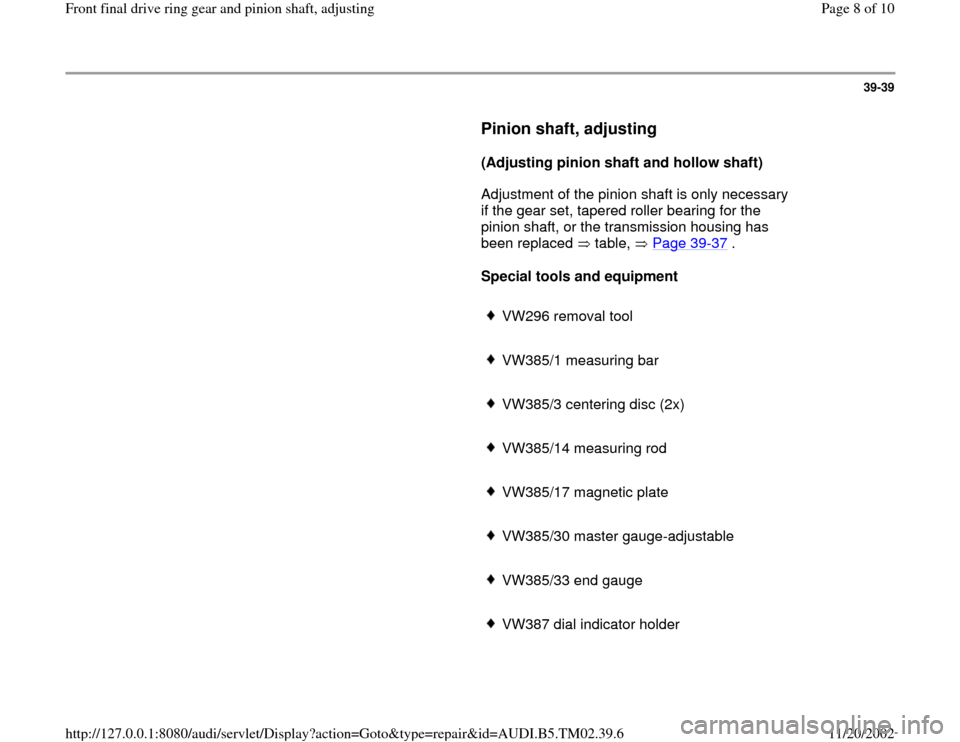

AUDI A4 1997 B5 / 1.G 01A Transmission Final Drive Ring Gear Pinion Shaft Workshop Manual 39-39

Pinion shaft, adjusting


(Adjusting pinion shaft and hollow shaft)
      Adjustment of the pinion shaft is only necessary
if the gear set, tapered roller bearing for the
pinion

Page 9 of 10

AUDI A4 1997 B5 / 1.G 01A Transmission Final Drive Ring Gear Pinion Shaft Workshop Manual
VW401 thrust plate
     VW407 punch
     VW519 sleeve
Pa
ge 9 of 10 Front final drive rin
g gear and
pinion shaft, ad
justin
g
11/20/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=G

Page 10 of 10

AUDI A4 1997 B5 / 1.G 01A Transmission Final Drive Ring Gear Pinion Shaft Workshop Manual 39-40

VW792 installation arbor
     3062 thrust pad
     3182 sleeve
     Torque gauge 0-600 Ncm (53 in. lb)
     Dial indicator
     Dial indicator extension 6.5 mm
     Dial indicator exten
