AUDI A4 1997 B5 / 1.G Brakes Basic Setting 04 Workshop Manual 01-242


Basic setting (scan tool
function 04)
      Initiating "Basic Setting" function 04 does the
following for ESP:

The steering angle sensor -G85- is zeroed
using display group

Page 2 of 64

AUDI A4 1997 B5 / 1.G Brakes Basic Setting 04 Workshop Manual 01-243

Steering angle sensor -G85-, zeroing
procedure


-  Now it is necessary to perform the zeroing
procedure on the steering angle sensor -G85-.

-  To initialize the steering

Page 3 of 64

AUDI A4 1997 B5 / 1.G Brakes Basic Setting 04 Workshop Manual 01-244

Note:
     The diagnostic must not be exited and ignition
must not be switched off between the procedures
"Code control module" and "Steering angle
sensor calibration". Otherwise, t

Page 4 of 64

AUDI A4 1997 B5 / 1.G Brakes Basic Setting 04 Workshop Manual 01-245

Rapid data transfer
Q
04 - Basic Setting

Indicated on display:
-  Press -Q- button to confirm input.
Basic Settin
g
Q
Enter display group number XXX

Indicated on display:
-  P

Page 5 of 64

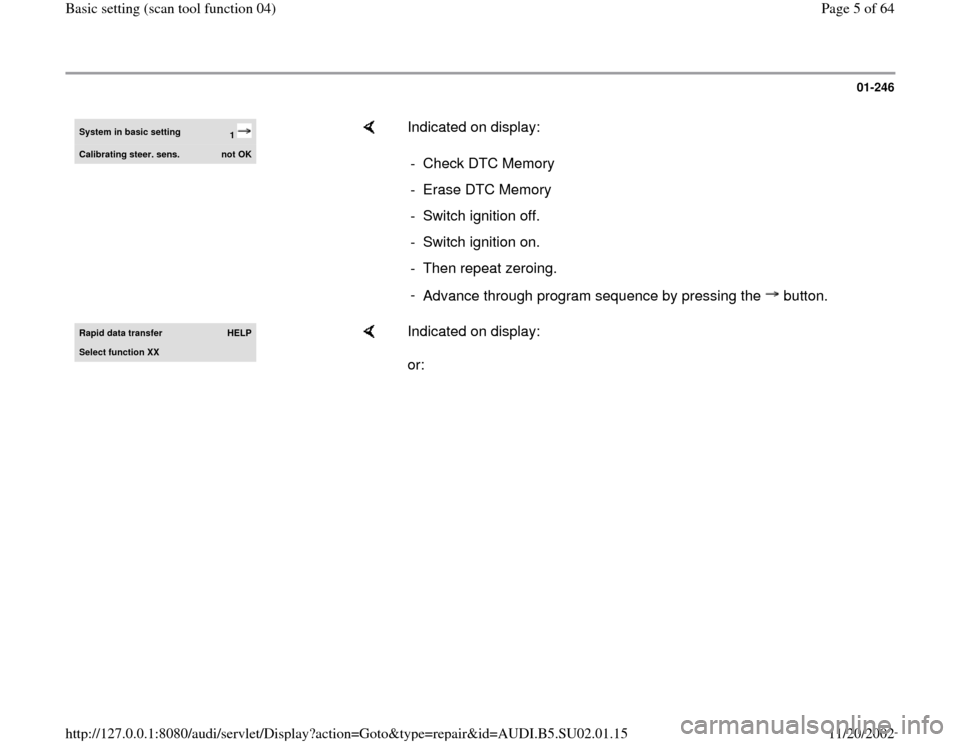

AUDI A4 1997 B5 / 1.G Brakes Basic Setting 04 Workshop Manual 01-246

System in basic setting
1
Calibrating steer. sens.
not OK

Indicated on display:
-  Check DTC Memory
-  Erase DTC Memory
-  Switch ignition off.
-  Switch ignition on.
-  Then repea

Page 6 of 64

AUDI A4 1997 B5 / 1.G Brakes Basic Setting 04 Workshop Manual 01-247

System in basic setting
1
Calibrating steer. sens.
locked

Indicated on display:
Steering wheel was not initialized, i.e. the steering wheel must be turned
at least 10 degrees in ei

Page 7 of 64

AUDI A4 1997 B5 / 1.G Brakes Basic Setting 04 Workshop Manual 01-248

Hydraulic system, bleeding

      The hydraulic pump for traction control -V156- is
activated to bleed the hydraulic system.

       Repair manual, Brake System, Repair Group
4

Page 8 of 64

AUDI A4 1997 B5 / 1.G Brakes Basic Setting 04 Workshop Manual 01-249

Basic Settin
g
Q
Enter display group number XXX

Indicated on display:
-  Press buttons -0-, -0-, and -2-. Press -Q- button to confirm input.
System in basic setting
2
Vent s
ystem

Page 9 of 64

AUDI A4 1997 B5 / 1.G Brakes Basic Setting 04 Workshop Manual 01-250

ESP driving and system test

      The ESP driving test is used to test the
plausibility of the signals from the sensor for
transverse acceleration, yaw sensor, and
pressure sensor.

Page 10 of 64

AUDI A4 1997 B5 / 1.G Brakes Basic Setting 04 Workshop Manual 01-251

WARNING!

While system is in diagnostic, the
ABS/ESP/EBD is not active. Driving the
vehicle after On Board Diagnostic (OBD) has
detected a malfunction presents the risk of
acci
