AUDI A4 1998 B5 / 1.G 01W Transmission Clutch Release Workshop Manual 30-17


Clutch release mechanism,
servicing
1 -
Clutch slave cylinder
Do not press clutch pedal after clutch slave
cylinder has been removed Installing  Fig. 1Tension clutch slave cylinder eno

Page 2 of 13

AUDI A4 1998 B5 / 1.G 01W Transmission Clutch Release Workshop Manual Lubricate end of plunger with copper
grease, e.g. 381 351 TE
Pa
ge 2 of 13 Clutch release mechanism, servicin
g
11/19/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=

Page 3 of 13

AUDI A4 1998 B5 / 1.G 01W Transmission Clutch Release Workshop Manual 30-18

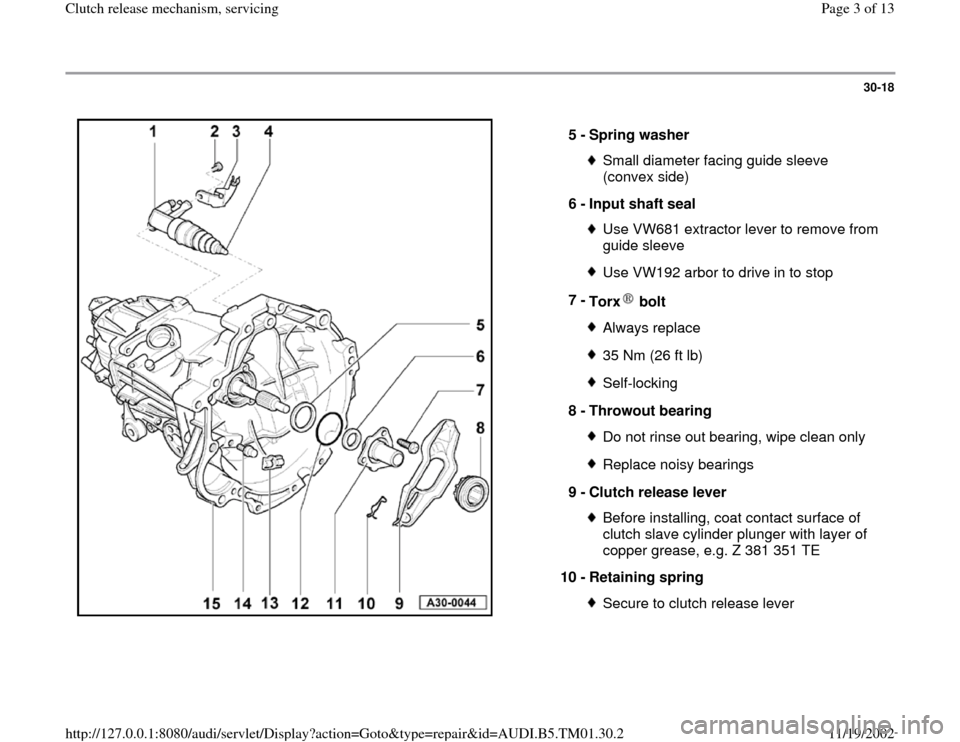

5 -
Spring washer
Small diameter facing guide sleeve
(convex side)
6 -
Input shaft seal Use VW681 extractor lever to remove from
guide sleeve Use VW192 arbor to drive in to stop
7 -

Page 4 of 13

AUDI A4 1998 B5 / 1.G 01W Transmission Clutch Release Workshop Manual 30-19


11 -
Guide sleeve
Before removing and installing, cover input
shaft splines with shrink-tube to protect
seal
12 -
O-ring Always replace
13 -
Intermediate piece
14 -
Ball pivot pin

Page 5 of 13

AUDI A4 1998 B5 / 1.G 01W Transmission Clutch Release Workshop Manual 30-20


Fig. 1  Installing clutch slave cylinder
-  Before installing, coat contact surface of clutch release lever plunger
with thin layer of copper grease, e.g. Z 381 351 TE.
-  Before instal

Page 6 of 13

AUDI A4 1998 B5 / 1.G 01W Transmission Clutch Release Workshop Manual 30-21

Clutch, servicing


Special tools and equipment

3067 flywheel retainer
     3176 centering mandrel

Notes:
     Observe general repair instructions   Page 00
-
10
 .

Page 7 of 13

AUDI A4 1998 B5 / 1.G 01W Transmission Clutch Release Workshop Manual and are greased. Only the contact surface may
be cleaned, otherwise the service life of the
clutch will be considerably reduced.
     If the clutch has been burned out, thoroughly
clean the bellho

Page 8 of 13

AUDI A4 1998 B5 / 1.G 01W Transmission Clutch Release Workshop Manual 30-22


-  Remove transmission to work on clutch   Page
34
-18
 .
A - Color marking on dual-mass flywheel
White color marking -A- on dual-mass
flywheel must line up with white color
marking -B-

Page 9 of 13

AUDI A4 1998 B5 / 1.G 01W Transmission Clutch Release Workshop Manual 30-23


 Repair Manual, Engine Mechanical, Repair
Group 13    1 -
Dual-mass flywheel
Make sure centering pins are in place and
seated correctly Contact surface for clutch lining must be
free o

Page 10 of 13

AUDI A4 1998 B5 / 1.G 01W Transmission Clutch Release Workshop Manual 30-24


3 -
Clutch plate
Installation position: Spring pack (coil
springs) facing pressure plate. Clutch lining
must make full contact with flywheel.
Marking "Getriebeseite" (if provided) face
