AUDI A4 1998 B5 / 1.G APB Engine Cylinder Block Crankshaft And Flywheel Assembly Manual 13-14


Cylinder block, crankshaft and
flywheel, disassembly and
assembly Note:
Replace all gaskets and seals.
1 -
Thrust washers
Measuring axial clearance of crankshaft
Page 13
-21

Thr

Page 2 of 26

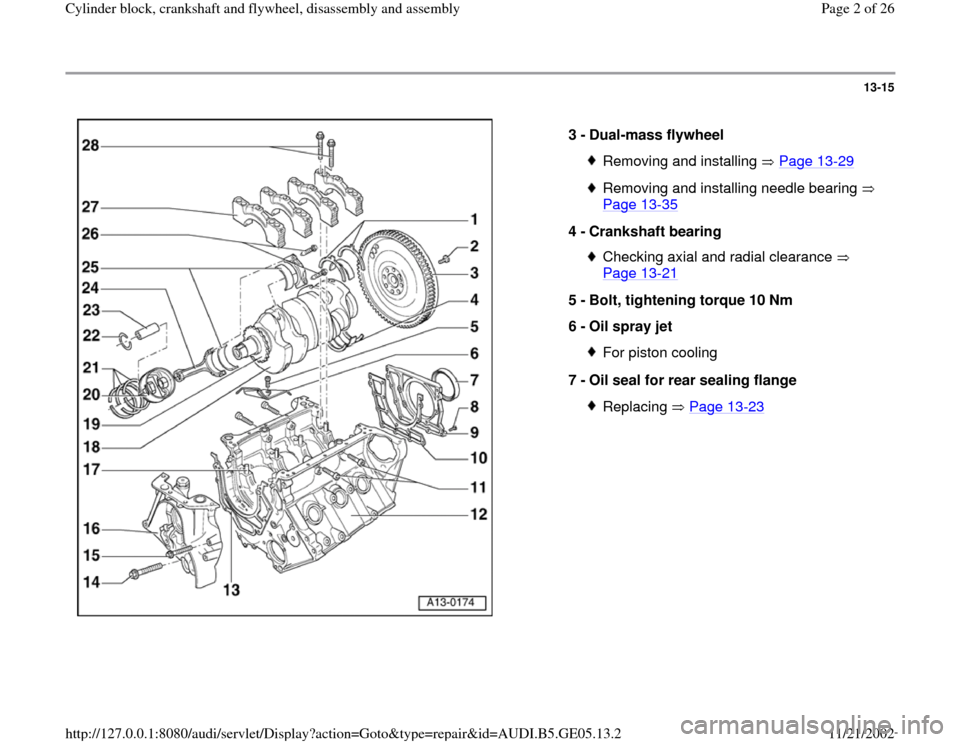

AUDI A4 1998 B5 / 1.G APB Engine Cylinder Block Crankshaft And Flywheel Assembly Manual 13-15


3 -
Dual-mass flywheel
Removing and installing   Page 13
-29
Removing and installing needle bearing
Page 13
-35

4 -
Crankshaft bearing
Checking axial and radial clearance
Page 1

Page 3 of 26

AUDI A4 1998 B5 / 1.G APB Engine Cylinder Block Crankshaft And Flywheel Assembly Manual 13-16


8 -
Bolt, tightening torque 10 Nm
9 -
Rear sealing flange
10 -
Gasket
11 -
Bolt, tightening torque 25 Nm
Screw in bolts on left and right sides finger-
tight before tightening bolts

Page 4 of 26

AUDI A4 1998 B5 / 1.G APB Engine Cylinder Block Crankshaft And Flywheel Assembly Manual 13-17


14 -
Collar bolt, tightening torque 30 Nm
Apply Loctite  when installing
15 -
Bolt, tightening torque 10 Nm
16 -
Front sealing flange
17 -
Expansion pins
18 -
Crankshaft
Checking

Page 5 of 26

AUDI A4 1998 B5 / 1.G APB Engine Cylinder Block Crankshaft And Flywheel Assembly Manual 13-18


21 -
Piston rings
Checking  Page 13
-36
22 -
Circlip for piston pin
23 -
Piston pin
24 -
Connecting rod
Mark cylinder number and installation
position of matching connecting rods a

Page 6 of 26

AUDI A4 1998 B5 / 1.G APB Engine Cylinder Block Crankshaft And Flywheel Assembly Manual 13-19


26 -
Connecting rod bearing bolts
Always replaceTightening torque: 30 Nm + 90 (
1/4turn)
When measuring radial clearance, tighten
to 20 Nm but do not turn further.
27 -
Main bearing ca

Page 7 of 26

AUDI A4 1998 B5 / 1.G APB Engine Cylinder Block Crankshaft And Flywheel Assembly Manual 13-20

Crankshaft bearing caps, installing


-  Bearing -1- is at the toothed belt end; bearing -4-
is at the flywheel end.

Tightening sequence:
-  Stage 1 Tighten all bolts in the

Page 8 of 26

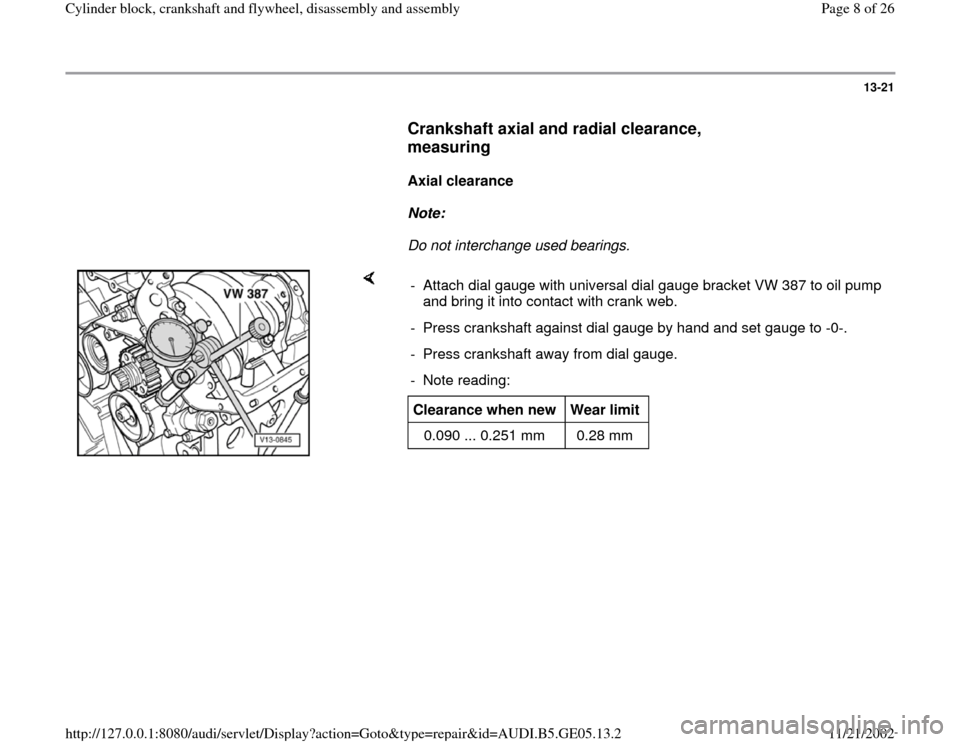

AUDI A4 1998 B5 / 1.G APB Engine Cylinder Block Crankshaft And Flywheel Assembly Manual 13-21

Crankshaft axial and radial clearance,
measuring


Axial clearance

Note:
     Do not interchange used bearings.

-  Attach dial gauge with universal dial gauge brack

Page 9 of 26

AUDI A4 1998 B5 / 1.G APB Engine Cylinder Block Crankshaft And Flywheel Assembly Manual 13-22

Radial clearance

Measure radial clearance with Plastigage .
- Read value:

Clearance when new
Wear limit
0.018 ... 0.045 mm   0.10 mm
Pa
ge 9 of 26 C
ylinder b

Page 10 of 26

AUDI A4 1998 B5 / 1.G APB Engine Cylinder Block Crankshaft And Flywheel Assembly Manual 13-23

Crankshaft oil seals, replacing


A - Toothed belt end

-  Remove toothed belt   Page 13-4 .

-  Remove toothed belt sprocket from crankshaft

Note:
Do not lubrica
