40-54


Wheel bearing housing,
removing and installing

Removing

- Remove wheel trim.

On light alloy wheels use puller in vehicle tool kit
to remove trim cap.

- Remove bolt for drive axle.

WARNING!

The vehicle must be standing on it's wheels
when loosening or tightening the bolt for the
drive axle. Otherwise the risk of an accident
exists.

- Remove wheel and secure brake disc using
wheel bolt.

- Detach ABS wheel speed sensor wire from
bracket on brake caliper.

CAUTION! - Remove bolts -1- for brake caliper and remove caliper.
Pa
ge 1 of 17 Wheel bearin
g housin
g, removin
g and installin
g
11/20/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.SU01.40.5

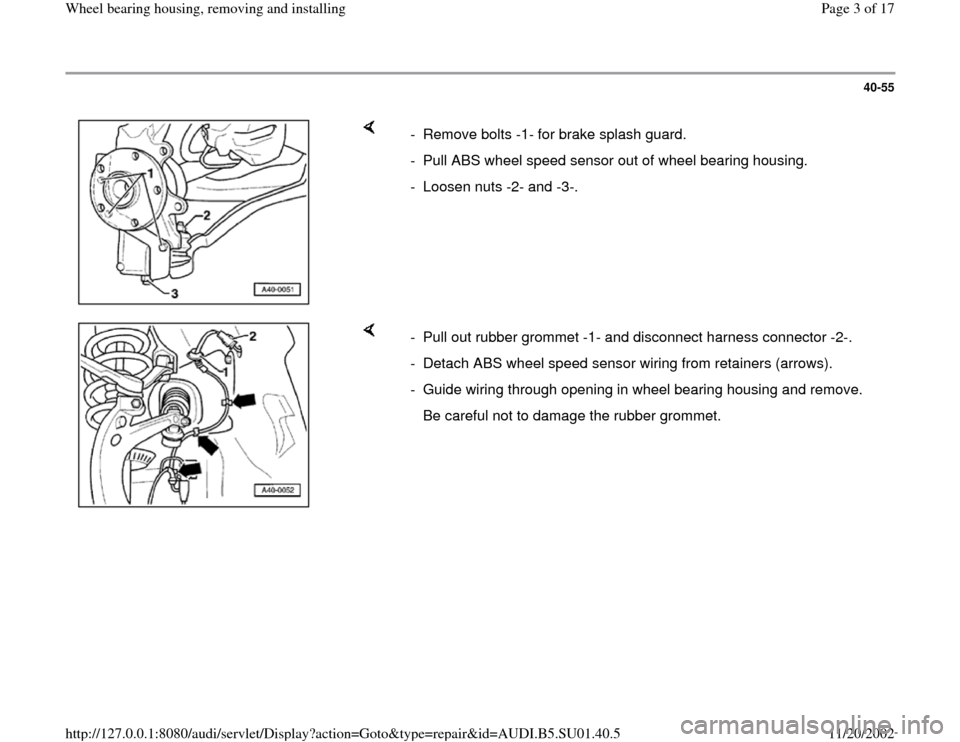

40-55


- Remove bolts -1- for brake splash guard.
- Pull ABS wheel speed sensor out of wheel bearing housing.
- Loosen nuts -2- and -3-.

- Pull out rubber grommet -1- and disconnect harness connector -2-.
- Detach ABS wheel speed sensor wiring from retainers (arrows).
- Guide wiring through opening in wheel bearing housing and remove.
Be careful not to damage the rubber grommet.
Pa
ge 3 of 17 Wheel bearin
g housin
g, removin
g and installin
g
11/20/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.SU01.40.5

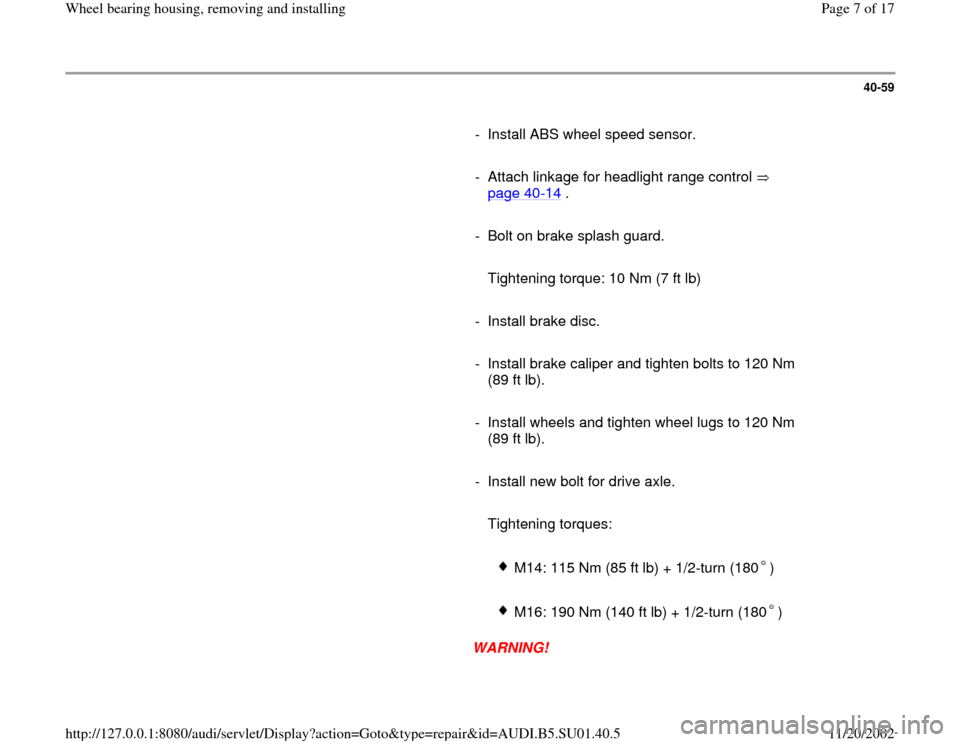

40-59

- Install ABS wheel speed sensor.

- Attach linkage for headlight range control
page 40
-14
.

- Bolt on brake splash guard.

Tightening torque: 10 Nm (7 ft lb)

- Install brake disc.

- Install brake caliper and tighten bolts to 120 Nm
(89 ft lb).

- Install wheels and tighten wheel lugs to 120 Nm
(89 ft lb).

- Install new bolt for drive axle.

Tightening torques:


M14: 115 Nm (85 ft lb) + 1/2-turn (180 )


M16: 190 Nm (140 ft lb) + 1/2-turn (180 )

WARNING!
Pa
ge 7 of 17 Wheel bearin
g housin
g, removin
g and installin
g
11/20/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.SU01.40.5

40-61


3 -
Wheel hub
Shouldered
With 75 mm diameter wheel bearing
housing: Pressing hub out Fig. 1Pressing hub in Fig. 9
With 82 or 85 mm diameter wheel bearing
housing:
Pressing hub out Fig. 2Pressing hub in Fig. 10
4 -
Bolt
10 Nm (7 ft lb)
5 -
Brake splash guard
6 -
ABS wheel speed sensor Pull out to removeInstall drive axle before installing speed
sensor Press into clamping sleeve up to stopRouting wiring page 40
-55
7 -
Clamping sleeve
Always replace
