Page 11 of 99

AUDI A4 1999 B5 / 1.G APB Engine Valve Gear Service User Guide 15-11

Oil seal at Hall sensor (right cylinder head)

-  Remove intake hose going to air cleaner (arrows).

-  Remove bolts -arrows- and remove engine cover panel -C-.
Pa
ge 11 of 99

Page 12 of 99

AUDI A4 1999 B5 / 1.G APB Engine Valve Gear Service User Guide 15-12


Note:
Watch position of retaining strip -2-.  -  Remove pressure line -1- (right side).
-  Unbolt Hall sensor housing (10 Nm).
-  Remove bolt securing Hall sensor rotor (20 Nm) and care

Page 13 of 99

AUDI A4 1999 B5 / 1.G APB Engine Valve Gear Service User Guide 15-13


-  Pull out seal with oil seal extractor 2085 and bolt 2085/1.
-  Clean contact surface and sealing surface.
   Do not apply oil to sealing lip or outer circumference of seal before
ins

Page 14 of 99

AUDI A4 1999 B5 / 1.G APB Engine Valve Gear Service User Guide 15-14

Removing oil seal at Hall sensor (left cylinder
head)

Note:
Leave coolant hoses connected.  -  Detach coolant reservoir -arrows- and move clear to side.
-  Unplug connector from

Page 15 of 99

AUDI A4 1999 B5 / 1.G APB Engine Valve Gear Service User Guide 15-15

-  Unbolt Hall sensor housing (10 Nm).

-  Unbolt Hall sensor rotor (20 Nm) and carefully
lever off rotor using a screwdriver.

-  Screw in bolt from 2085/1 oil ring extractor.

Page 16 of 99

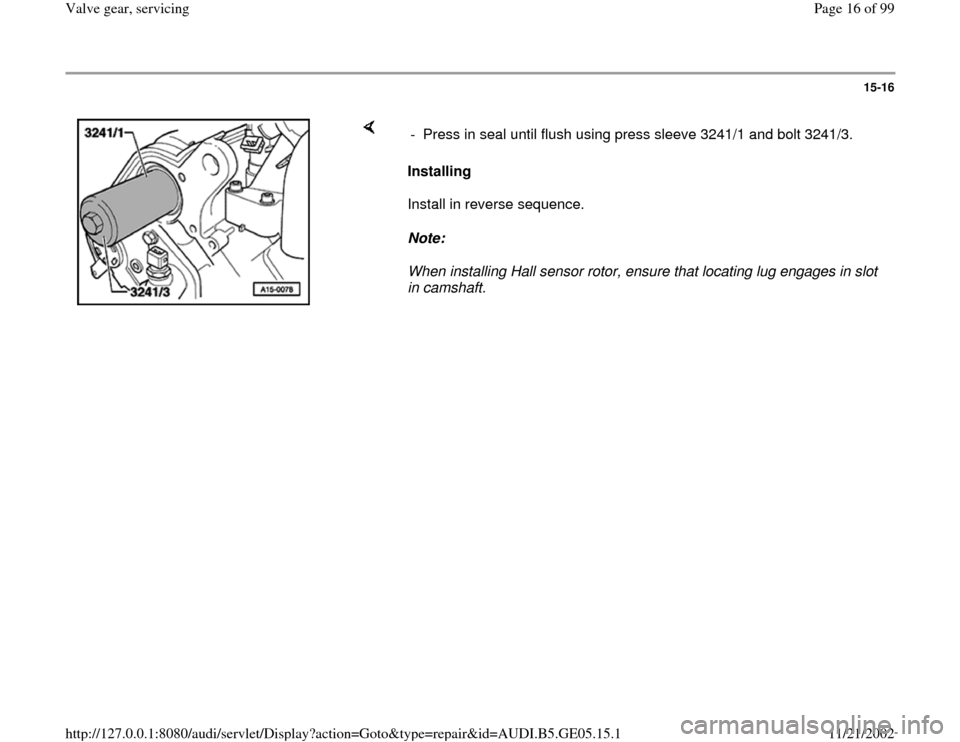

AUDI A4 1999 B5 / 1.G APB Engine Valve Gear Service User Guide 15-16


Installing
Install in reverse sequence.
Note:
When installing Hall sensor rotor, ensure that locating lug engages in slot
in camshaft.   -  Press in seal until flush using press sl

Page 17 of 99

AUDI A4 1999 B5 / 1.G APB Engine Valve Gear Service User Guide 15-17

Rear oil seal and sealing flange (left cylinder
head)

Note:
     Rear sealing flange and oil seal on left-hand
cylinder head must be replaceed together as
follows:

-  Re

Page 18 of 99

AUDI A4 1999 B5 / 1.G APB Engine Valve Gear Service User Guide 15-18


Note:
Leave coolant hoses connected.  -  Remove coolant reservoir -arrows- and move it clear to the side.
-  Unplug connector from coolant level monitor.
-  Move wiring harness clear at

Page 19 of 99

AUDI A4 1999 B5 / 1.G APB Engine Valve Gear Service User Guide 15-19

-  Remove cover panel from cylinder head cover
(cylinder bank 4-6).

-  Release hose clamp -arrow-.
-  Remove upper section of intake line -1-.
- Disconnect hose -2-.

-  Disco

Page 20 of 99

AUDI A4 1999 B5 / 1.G APB Engine Valve Gear Service User Guide 15-20


-  Remove double bearing cap -arrows-.
-  Take out oil seal and sealing flange.
-  Clean contact surfaces and sealing surfaces of double bearing cap.

-  Apply a thin coating of seala
