AUDI A4 2002 B5 / 1.G Radio System General Information

Downloaded from www.Manualslib.com manuals search engine 91-35


Multi-pin connector, 32-pin
1 - Battery B+ (terminal 30)
2 - Ground (GND) (terminal 31)
3 - Bass loudspeaker (+)
4 - Loudspeaker (-) left rear
5 - Loudspeaker (+) right rear
6 - Switched positive (from Radio)
7 - Line output - Ground (GND) (from Radio)
13 - Center mid/high range loudspeaker (+)
14 - Center mid/high range loudspeaker (-)
15 - Bass loudspeaker (-)
16 - Loudspeaker (+) left rear
17 - Loudspeaker (-) right rear
19 - Line output - left front (from Radio)
20 - Line output - right front (from Radio)
21 - Line output - left rear (from Radio)
22 - Line output - right rear (from Radio)
26 - Loudspeaker (-) right front
27 - Loudspeaker (+) right front
Audi A4 Sedan 2002-2004, Audi A4 Avant 2002-2004, Audi A4 Cabriolet 2003-2004 - Communication

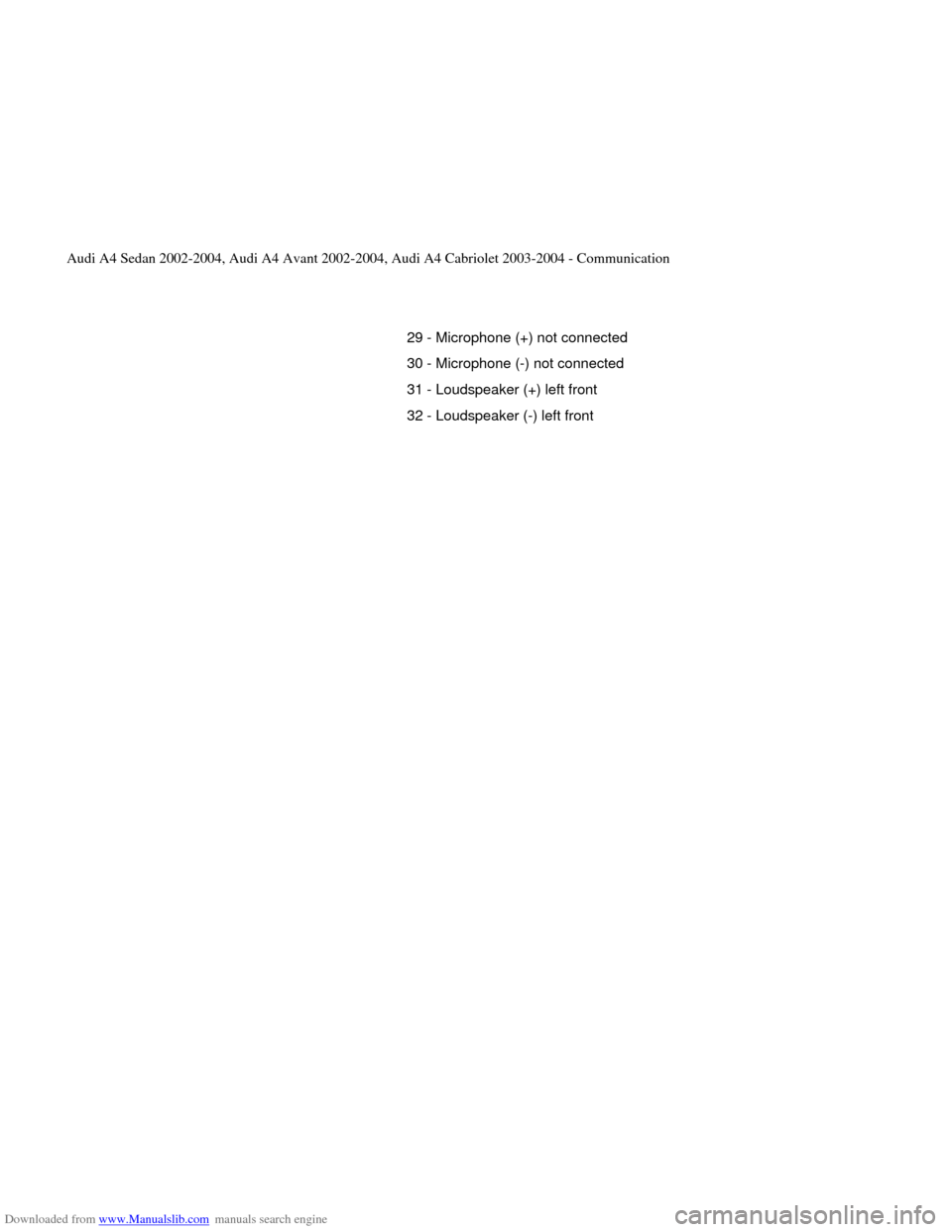

Downloaded from www.Manualslib.com manuals search engine 29 - Microphone (+) not connected
30 - Microphone (-) not connected
31 - Loudspeaker (+) left front
32 - Loudspeaker (-) left front
Audi A4 Sedan 2002-2004, Audi A4 Avant 2002-2004, Audi A4 Cabriolet 2003-2004 - Communication

Downloaded from www.Manualslib.com manuals search engine 91-36

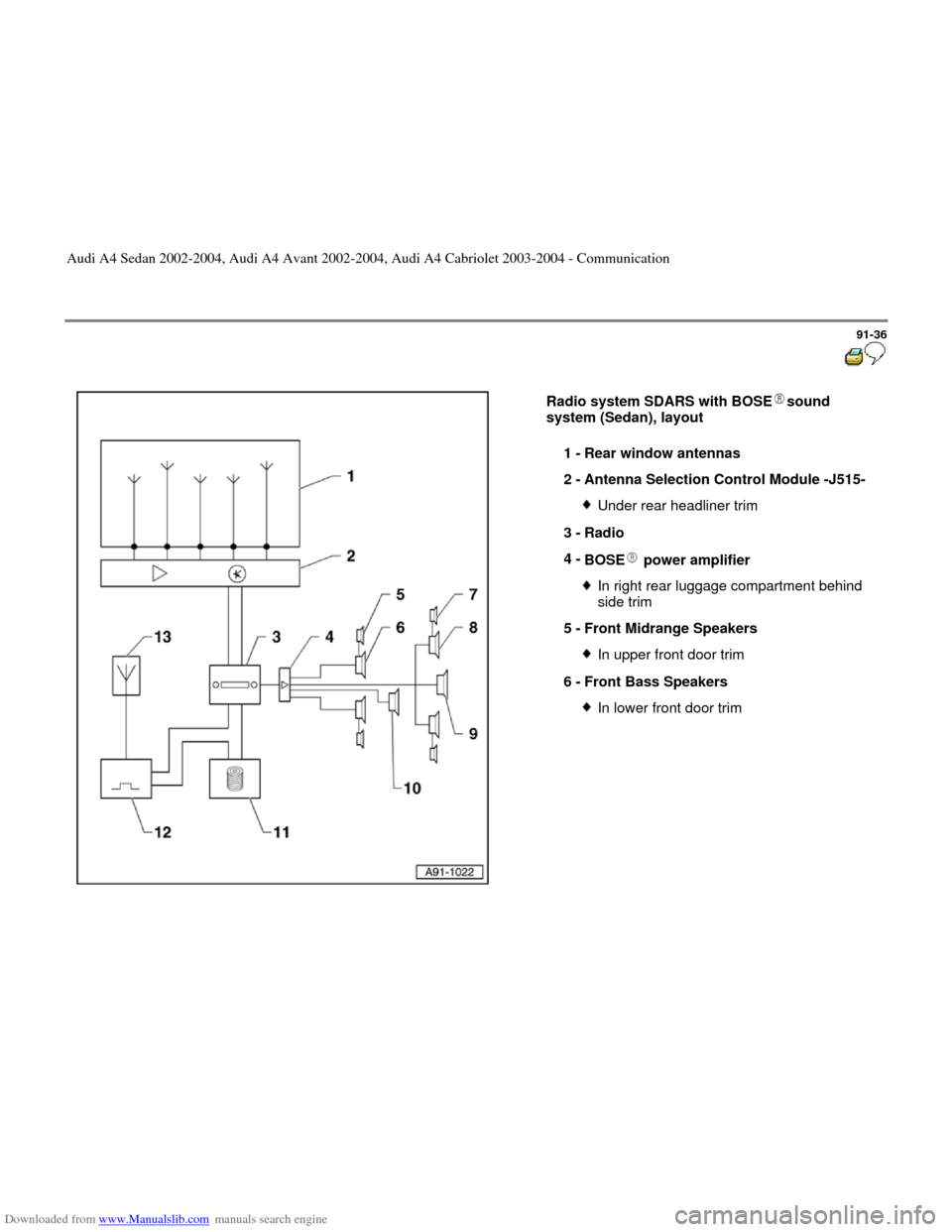

Radio system SDARS with BOSE sound
system (Sedan), layout
1 -
Rear window antennas
2 -
Antenna Selection Control Module -J515-
Under rear headliner trim
3 -
Radio
4 -
BOSE power amplifier In right rear luggage compartment behind
side trim
5 -
Front Midrange Speakers In upper front door trim
6 -
Front Bass Speakers In lower front door trim
Audi A4 Sedan 2002-2004, Audi A4 Avant 2002-2004, Audi A4 Cabriolet 2003-2004 - Communication

Downloaded from www.Manualslib.com manuals search engine 91-37


7 -
Rear Midrange Speakers
In upper rear door trim
8 -
Rear Bass Speakers In lower rear door trim
9 -
Bass Loudspeaker Under rear parcel shelf
10 -
Center Mid/High Range Loudspeaker In instrument panel
11 -
CD Changer Unit In glove compartment
12 -
Satellite Radio In left rear luggage compartment
13 -
Satellite Tuner Antenna On roofAlso for Telematics and Navigation
Audi A4 Sedan 2002-2004, Audi A4 Avant 2002-2004, Audi A4 Cabriolet 2003-2004 - Communication

Downloaded from www.Manualslib.com manuals search engine 91-38


Radio system SDARS with BOSE sound
system (Avant), layout
1 -
Left Antenna Module
In left rear luggage compartment behind
trim
2 -
Left rear window antenna
3 -
Rear window antenna
4 -
Right rear window antenna
5 -
Radio
6 -
BOSE power amplifier In right rear luggage compartment behind
trim
7 -
Front Midrange Speakers In upper front door trim
8 -
Front Bass Speakers In lower front door trim
Audi A4 Sedan 2002-2004, Audi A4 Avant 2002-2004, Audi A4 Cabriolet 2003-2004 - Communication

Downloaded from www.Manualslib.com manuals search engine 91-39


9 -
Rear Midrange Speakers
In upper rear door trim
10 -
Rear Bass Speakers In lower rear door trim
11 -
Bass Loudspeaker Under rear parcel shelf
12 -
Center Mid/High Range Loudspeaker In instrument panel
13 -
CD Changer Unit In glove compartment
14 -
Satellite Radio In left rear luggage compartment
15 -
Satellite Tuner Antenna On roofAlso for Telematics and Navigation
Audi A4 Sedan 2002-2004, Audi A4 Avant 2002-2004, Audi A4 Cabriolet 2003-2004 - Communication

Downloaded from www.Manualslib.com manuals search engine 91-40


Communication system with SDARS, layout
1 -
Satellite Radio
In left rear luggage compartment
2 -
Satellite Tuner Antenna on roof
3 -
Antenna splitter (GPS) Only AvantIn left rear luggage compartment behind
trim
4 -
Antenna for Navigation (GPS) Only sedanBehind roof end trim
5 -
Control module for navigation with CD
mechansim In left rear luggage compartment behind
trim
Audi A4 Sedan 2002-2004, Audi A4 Avant 2002-2004, Audi A4 Cabriolet 2003-2004 - Communication

Downloaded from www.Manualslib.com manuals search engine 91-41


6 -
Radio system antenna
7 -
Antenna amplifier
8 -
Speakers
9 -
Radio
10 -
CAN Bus (Infotainment)
11 -
CD Changer Unit
In glove compartment
12 -
Telephone/Telematics Control Module Under front passenger seat
Audi A4 Sedan 2002-2004, Audi A4 Avant 2002-2004, Audi A4 Cabriolet 2003-2004 - Communication

Downloaded from www.Manualslib.com manuals search engine 91-42


Multi-pin connector assignments on
"Symphony II" radio
1 -
Multi-pin connector IV, 10-pin, red
2 -
Multi-pin connector I, 20-pin - black
3 -
Radio fuse
4 -
Multi-pin connector III, 8-pin, black
5 -
Multi-pin connector II, 8-pin, brown
6 -
Intermediate frequency wire
7 -
Antenna connection (high frequency wire)
Audi A4 Sedan 2002-2004, Audi A4 Avant 2002-2004, Audi A4 Cabriolet 2003-2004 - Communication

Downloaded from www.Manualslib.com manuals search engine 91-43

Multi-pin connector assignments on Satellite
Radio -R146-

Note:
Terminals which are not listed are
vacant/unassigned.

A - Multi-pin connector, 8-pin
B - Multi-pin connector, 8-pin
C - Connection - Satellite Tuner Antenna (brown) 1 - CAN-Bus High (Infotainment)
2 - CAN-Bus Low (Infotainment)
3 - CD-IN L (CD Changer Unit)
4 - CD-IN R (CD Changer Unit)
5 - NF - Ground (GND) (Radio)
6 - NF - left (Radio)
7 - NF - right (Radio)
8 - CD Ground (GND) (CD Changer Unit)
1 - Terminal 30 (B+)
2 - Terminal 31 (GND)
