There are some important things you have to know to make sure that the effectiveness of
the system will not be impaired and that dis­
carded components do not cause injury or pol­
lute the environment.
A WARNING
Improper care, servicing and repair proce ­
dures can increase the risk of personal in­
jury and death by preventing an airbag from deploying when needed or deploying an airbag unexpectedly:
- Never cover, obstruct, or change the
steering wheel horn pad or airbag cover
or the instrument panel or modify them
in any way .
- Never attach any objects such as cu­
pholders or telephone mountings to the
surfaces covering the airbag units.
- For cleaning the horn pad or instrument
panel, use only a soft , dry cloth or one
moistened with plain water. Solvents or
cleaners could damage the airbag cover
or change the stiffness or strength of the
material so that the airbag cannot de­
ploy and protect properly.
- Never repair, adjust, or change any parts
of the airbag system .
- All work on the steering wheel, instru­
ment panel, front seats or electrical sys­
tem (including the installation of audio
equipment, cellular telephones and CB
radios, etc.) must be performed by a
qualified technician who has the training
and special equipment necessary.
- For any work on the airbag system, we
strongly recommend that you see your
authorized Audi dealer or qualified work­
shop.
- Never modify the front bumper or parts
of the vehicle body .
- Always make sure that the side airbag
can inflate without interference:
- Never install seat covers or replace­
ment upholstery over the front seat­
backs that have not been specifically
approved by Audi .
Airbag system 159
-Never use additional seat cushions that
cover the areas where the side airbags
inflate.
- Damage to the original seat covers or
to the seam in the area of the side air­
bag module must always be repaired
immediately by an authorized Audi
dealer .
- The airbag system can be activated only
once . After an airbag has inflated , it
must be replaced by an authorized Audi
dealer or qualified technician who has
the technical information, training and
special equipment necessary.
- The airbag system can be deployed only
once . After an airbag has been deployed,
it must be replaced with new replace­
ment parts designed and approved espe­
cially for your Audi model version. Re­ placement of complete airbag systems
or airbag components must be per­
formed by qualified workshops only.
Make sure that any airbag service action
is entered in your Audi Warranty
& Main­
tenance booklet under
AIRBAG REPLACE­
MENT RECORD.
- In accidents when an airbag is deployed,
the vehicle battery separates the alterna­
tor and the starter from the vehicle elec­
trical system for safety reasons with a
pyrotechnic circuit interrupter.
- Work on the pyrotechnic circuit inter­
rupter must only be performed by a
qualified dealer - risk of an accident!
- If the vehicle or the circuit interrupter
is scrapped, all applicable safety pre ­
cautions must be followed.
{® For the sake of the environment
Undeployed airbag modules and preten­
sioners might be classified as Perchlorate Material -special handling may apply, see
www.dtsc .ca.gov/hazardouswaste/per-
ch lorate. When the vehicle or parts of the
restraint system including airbag modules
safety belts with pretensioners are scrap­ ped, all applicable laws and regulations
must be observed. Your authorized Audi .,..
•
•

160 Airbag system
dealer is familiar with these re quirements
and we recommend that you have your
dea ler perform this serv ice for you.
Other things that can affect Advanced
Airbag performance
Changing the vehicle's suspension system can
change the way that the Advanced Airbag Sys­
tem pe rforms in a crash. For example, us ing
tire-r im combinations not app roved by Aud i,
lowering the vehicle, changing the stiffness of
the suspension, incl uding the springs, suspen­
sion struts, shock absorbers etc. can change
the forces that are measured by the airbag
sensors and sent to the electronic control
un it. Some suspension changes can, for exam­
ple, increase the force levels measured by the
sensors a nd make the airbag system deploy in
crashes in w hich it would not dep loy if the
changes had not been made . Other kinds of
changes may reduce the force levels meas ­
ured by the sensors and prevent the airbag
from deploying when it should .
The sensors in the safety belt buckle fo r the
d river and front passe nger seat tell the elec­
tronic control module if the safety belt is
latched or not.
If the safety belt is being used,
the front airbag will deploy at a slightly high­
er rate of vehicle deceleration than if the safe­
ty belt is not being used. Therefore, in a par­
ticular collision, it is poss ible that an a irbag
will not deploy at a seating position whe re the
safety belt is being used but will inflate at the
position whe re the safety belt is not bei ng
used. It is important tha t noth ing inte rfe re
with the safety belt buckles so t hat the sen­
sors can send the correct information a bout
safety belt use to the electronic contro l unit.
A WARNING
Changing the vehicle 's suspension includ­
ing use of unapproved tire-rim c ombina­
tions can change Advanced Airbag per­
formance and increase the risk of ser ious
personal i njur y in a crash.
- Never install suspension components
that do not have the same performance characterist
ics as the components origi­
na lly installed on your vehicle.
- Never use tire-rim com binations that
have not been approved by Audi.
A WARNING
= -
Items stored between the safety be lt
b uckle and the center console can cause
the sensors in the buckle to send the
wrong information to the e lectronic con­
trol module and prevent the Advanced Air­ bag System from wo rking prope rly.
- Always make s ure that nothing can inter­
fe re with the safety belt buckles and that
they are not obstructed.
Side airbags
Description of side airbags
The airbag system can provide supplemental
protection to properly restrained occupants.
F ig . 1 57 Side a irbag loca tion in t he drive r's seat
The side airbags are located in the sides of the
front seat backrests¢
fig. 157 and the rear
back rest facing the doors. They are ident ified
by the wo rd "AIRBAG".
The side airbag system basically consist s of:
- the electronic contro l modu le and external
side impact sensors
- the two airbags located in the s ides of the
front backrests and the two airbags* located
in the rear backrest
- the airbag warning light in the instrument
cluster .
T he air bag system is mon itored e lec tronically
to make ce rtain tha t it is function ing p roperly ..,.

at all times . Each time you turn on the igni­
tion, the airbag system indicator light will
come on fo r a few seconds (self diagnostics).
The s ide a irbag system supp lements the safe­
ty belts and can help to reduce the risk of in ­
jury to the driver's and front passenger's up­ per torso on the side of the vehicle that is
struck in a side co llision. The airbag deploys
only in s ide impacts and on ly when the veh icle
acceleration registered by the control unit is h igh enough . If this rate is below the refer­
ence va lue programmed into the control un it,
the side airbags will not be triggered, even
though the ca r may be badly damaged as a re ­
sult of the collision .
It is not possible to de­
fine an ai rbag triggering range that will cover
every possible angle of impact, since the cir­
cumstances wi ll vary considerably between
one co llision and another. Important factors
include, for examp le, the nature (hard or soft)
of the impacting object, the angle of impact,
veh icle speed, etc.
c::> page 162, Important
safety instructions on the side airbag system.
Aside from the ir normal safety function, safe­
ty belts work to he lp keep the driver or front
passenger in posit ion in the event of a side
coll is ion so that the side a irbags can provide
p rotection.
The airbag system is
not a substitute for your
safety belt. Rather, it is pa rt of the overall oc­
cupant restraint system i n your veh icle . Al­
ways remember that the side airbag sys tem
can only help to p rotec t you if yo u are wear ing
your safety belt and wear ing it properly. This
is another reason w hy you sho uld a lways wear
your safety belts, not just beca use the law re­
q ui r es you to do so
c::> page 13 7, General
notes.
It is important to remember that while the
supp lemental side airbag system is designed
to reduce the like lihood of serious injur ies,
other in juries, for example, swell ing, bruising,
and minor abras ions can also be associated
with deployed s ide a irbags. Remember too,
side a irbags w ill deploy on ly once and o nly in
certain kinds of accidents - you r safety belts
are a lways there to offer prote ct io n.
A irbag system 16 1
Vehicle damage, repair costs o r even t he lack
of ve hicle damage are not necessarily a n indi­
cation o f ove r-sensitive or failed airbag activa ­
tion. In some coll is ions, both front and side
airbags may i nflate. Remember too, that air­
bags will deploy only o nce and only in certain
k inds of coll is ions -your safety belts are al­
ways t he re to offe r protection in those acc i­
den ts in which a irbags are no t supposed to
deploy or when they have a lready deployed .
The side airbag system will not deploy:
-when the ignit io n is turned off
- in side co llisions whe n the acceleration
measured by the sensor is too low
- in front-end collisions
- in rear -end co llisions
- in rollove rs .
In some types of accidents the front airbags,
s ide cu rtain air bags and s ide airbags may be
trigge red togethe r.
&_ WARNING ~
- Safety belts and the airbag system wi ll
only provide protection when occupants
are in the proper seating position
c::> page 162.
- If the airbag ind icator light c::> page 20
comes when the veh icle is being used,
have the system inspected immediate ly
by your authorized Audi dealer. It is pos­
sible t hat the airbag will inflate when it
is not supposed to, or will not infla te
when it should. •
•

162 Airbag system
How supplemental side airbags work
Side airbags deploy instantly and con help re­
duce the risk of upper torso injuries for occu­
pants who ore properly restrained.

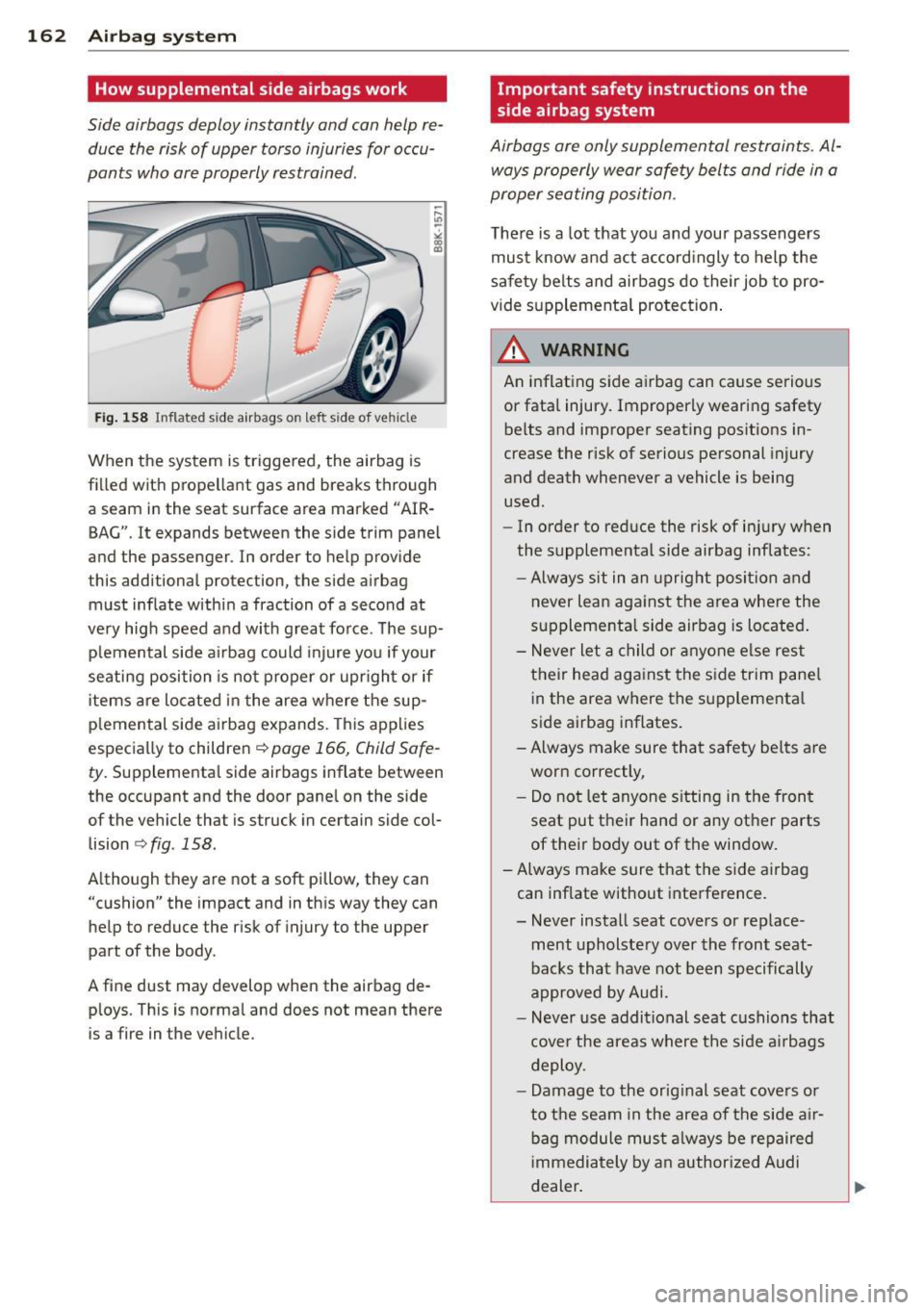

Fig. 158 Inflated s ide airbags on left side of vehicle
When the system is triggered, the airbag is
filled with propellant gas and breaks through
a seam in the seat surface area marked "AIR­
BAG". It expands between the side trim panel
and the passenger . In order to help provide
this additional protection, the side airbag
must inflate within a fraction of a second at
very high speed and with great force. The sup­ plemental side airbag could injure you if your
seating position is not proper or upright or if
items are located in the area where the sup­
plemental side airbag expands. This applies
especially to children
Q page 166, Child Safe­
ty.
Supplemental side airbags inflate between
the occupant and the door panel on the side
of the vehicle that is struck in certain side col­
lision
Q fig . 158.
Although they are not a soft pillow, they can
"cushion" the impact and in this way they can
help to reduce the risk of injury to the upper
part of the body.
A fine dust may develop when the airbag de­
ploys. This is normal and does not mean there
is a fire in the vehicle. Important safety instructions on the
side airbag system
Airbags ore only
supplemental restraints. Al­
ways properly wear safety belts and ride in a
proper seating position.
There is a lot that you and your passengers
must know and act accordingly to help the
safety belts and airbags do their job to pro­
vide supplemental protection.
A WARNING
An inflating side airbag can cause serious
or fatal injury. Improperly wearing safety
belts and improper seating positions in­
crease the risk of serious personal injury
and death whenever a vehicle is being
used.
- In order to reduce the risk of injury when
the supplemental side airbag inflates:
- Always sit in an upright position and
never lean against the area where the
supplemental side airbag is located.
- Never let a child or anyone else rest
their head against the side trim panel
in the area where the supplemental
side airbag inflates.
-Always make sure that safety belts are worn correctly,
- Do not let anyone sitting in the front
seat put their hand or any other parts
of their body out of the window.
-Always make sure that the side airbag can inflate without interference.
- Never install seat covers or replace­ ment upholstery over the front seat­
backs that have not been specifically
approved by Audi.
- Never use additional seat cushions that
cover the areas where the side airbags
deploy.
- Damage to the original seat covers or
to the seam in the area of the side air­
bag module must always be repaired
immediately by an authorized Audi
dealer.

-Objects between you and the airbag can
increase the risk of injury in an accident
by interfering with the way the airbag
unfolds or by being pushed into you as
the airbag inflates .
- Never place or attach accessories or
other objects (such as cupholders, tele­
phone brackets, or even large, bulky
objects) on the doors, over or near the
area marked "AIRBAG" on the seat
backrests.
- Such objects and accessories can be­
come dangerous projectiles and cause
injury when the supplemental side air­
bag deploys .
- Never carry any objects or pets in the
deployment space between them and
the airbags or allow children or other
passengers to travel in this position .
- Always use the built -in coat hooks only
for lightweight clothing . Never leave any
heavy or sharp-edged objects in the
pockets that may interfere with side air­
bag deployment and can cause personal
injury in an accident.
- Always prevent the side a irbags from be­
ing damaged by heavy objects knocking
against or hitting the sides of the seat­
backs.
- The airbag system can only be trigge red
once.
If the airbag has been triggered,
the system must be replaced by an au­
thorized Audi dealership .
- Damage (cracks, deep scratches etc .) to
the original seat covers or to the seam in
the area of the side airbag module must
always be repaired immediately by an au­
thorized Audi dealer .
- If children are seated improperly, their
risk of injury increases in the case of an
accident ~ page 166, Child Safety .
- Never attempt to modify any compo­
nents of the airbag system in any way .
- In a side collision, side airbags will not
function properly if sensors cannot cor­ rectly measure increasing air pressure in ­
side the doors when air escapes through
Airbag system 163
larger, unclosed openings in the door
panel.
- Never drive with interior door trim pan­
els removed .
- Never drive when parts have been re­
moved from the inside door panel and
the open ings they leave have not been
properly closed.
- Never drive when loudspeakers in the
doors have been removed unless the
speaker holes have been p roperly
closed.
- Always make certain that openings are
covered or filled if additiona l speakers
or other equipment is installed in the
inside door panels .
- Always have work on the doors done by
an authorized Audi dealer or qualified
workshop.
Side curtain airbags
Description of side curtain airbags
The side curtain airbag sy stem can provide
supplemental protection to properly restrain ­
ed occupants .
Fig. 1S9 Side curta in syst em , dri ver's side: sid e cur tain
airb ag loc ation
The side curtain airbags are located on both
sides of the interior above the front and rear
side windows ~ fig . 159 . They are identified
by the word "AIRBAG" on the windshield
frame and the center roof pillar.
T he side curtain airbag system supplements
the safety belts and can help to reduce the risk of injury for occupants' heads and upper
torso on the side of the vehicle that is struck .,.

164 Airbag system
in a side collision. The side curtain airbag in­
f lates in side impacts and on ly when the vehi­
cle acce lerat ion reg istered by the contro l unit
is high enough. If this rate is below the refer­
ence value programmed into the control unit,
the side airbags will not be triggered, even
though the car may be badly damaged as a re­
sult of the collision .
It is not possible to de­
fine an a irbag tr igger ing range that will cover
every possible angle of impact , since the c ir­
cumstances w ill vary considerably between
one co llision and another . Important factors
include, for examp le, the nat ure (hard or soft)
of the impacting object, the ang le of impact,
vehicle speed, etc.
c:> page 164, How side cur­
tain airbags work.
Aside from their normal safety function, safe­
ty belts work to he lp keep the driver or front
passenger in position in the event of a co lli­
sion so that the side curtain airbags can pro­
vide p rotection .
The airbag system is not a subst itute for your
safety belt. Rather, it is part of the overall oc­
cupant restraint system in your veh icle. Al­
ways remember that the airbag system can
only help to protect you if you are wea ring
your safety be lt and wear ing it prope rly . T his
i s ano ther reason why you shou ld always wear
your safety be lts, not jus t beca use the law re­
qu ires you to do soc;,
page 13 7, General
notes.
It
is important to remember that while the
side curtain a irbag sys tem is designed to he lp
reduce the like lihood o f serious injuries, other
inj uries, for example, swelling, bruising, and
minor abrasions can also be associated with
these airbags. Remember too, these airbags
will dep loy only once and only in certain k inds
of acc idents - your safety belts are always
there to offer protection .
The side curtain airbag system b asic all y
consists of:
- The electronic control module and externa l
s ide impact sensors
- The side curtai n airbags above the front and
rear side w indows - The airbag indicator light in the instrument
panel
T he airbag system is mo nitored elec tronically
to make certain i t is func tioning properly at all
times . Each time you turn on the ignition, the
airbag system indicator light will come on for
a few seconds (self diagnostics).
The side curtain airbag is not activated:
- if the ignition is tur ned off,
- in side co llisions whe n the accele ration
measured by the sensor is too low,
- in rear-end col lisions,
- in rollove rs .
A WARNING
-- Safety belts and the airbag system will
only provide protect ion when occupants
are in the proper seating posi tion
c:> page 58, Seats and s torage .
- If the ai rbag ind icator light c:> page 20
comes when the veh icle is being used,
have the system inspecte d immedia tely
by your author ized A udi dealer .
It is pos­
sible that the airbag will inflate when it is not supposed to, or will not inflate
when it should.
· How side curtain airbags work
Side curtain airbags can work together with
side airbags to help reduce the risk of head
and upper torso injuries for occupants who
are properly restrained.
F ig . 1 60 Illustrat ion of p rin ciple: Inflated si de curtain
a irbags o n the left side
The side c urtain airbags inflate between the
occupant and the windows on the s ide of the
lill>-

vehicle that is struck in a side collision
~ fig . 160.
When the system is tr iggered , the side c urtain
airbag is filled with propellant gas and breaks
through a seam above the front and rear side
windows identified by the AIRBAG label. In or­
der to help provide this additional protection,
the side curtain airbag must inflate within the
blink of an eye at very high speed and w ith
great force. The side curtain airbag cou ld in ­
jure you if your seat ing pos ition is not proper
or upright o r if items are located in the area
where the suppleme nta l side cu rtain airbag
in flates . This appl ies espec ia lly to childre n
~page 166.
Although they are not a soft pillow, side cur­
tain airbags can "cushion" the impact and in
this way they ca n he lp to reduce the r isk of in­
jury to the head and the upper part of the
body .
A fi ne dust may develop when the airbag de­
p loys. Th is is quite normal and does not mea n
there is a fire in the vehicle .
Important safety instructions on the
side curtain airbag system
Airbags are only supplemental restraints . Al­
ways properly wear safety belts and ride in a
proper seating position.
There is a lot that you and your passengers
must know and do to help the safety be lts and
airbags do the ir job to provide supplementa l
protection.
A WARNING
Improperly wear ing safety belts and im­
proper seating positions increase the risk
of serious personal injury and death when­
ever a veh icle is being used .
- Never let occupants p lace any parts of
their bodies in the a rea from wh ich the
side cu rtain airbags inflate.
- Always make sure that the side curta in
airbags can inflate w ithout interference.
Uns uitable accessories fitted inside the
A irbag system 165
expansion range of a head airbag can
dangerously interfere with its funct ion. A
deploying head airbag develops enough
force to catapult any p iece of add-on
component out of its path of inflation
and into the passenger compa rtment. An
o cc u pant hit by such a projectile can suf­
fer serious injury or death~
page 283,
Technical Modifications.
- Do not swive l the sun visors to the side i f
you have any ob jects clipped onto them
(for examp le pens) . If the airbag should
deploy, you could be injured by these ob­
jects .
- Use the bui lt - in coat hooks only for ligh t­
weight clothing . Never leave any heavy or
sharp-edged objects in the pockets that
may interfere with airbag dep loyment
and can cause personal injury in an acci­
dent.
- Never use hangers to hang clothing from
the hooks.
- On ly use factory-installed sun shades or,
in the case of shades installed after the
veh icle leaves the factory, only Audi roll­
up sunscreens may be used
~ page 282,
Additional accessories and parts re­
placement.
- Always sit in proper seat ing pos ition and
wear safety belts wh ile traveling so that
the side cu rtain airbag s can he lp p rov ide
protec tion.
- The airbag system can only be triggered
once . If the airbag has been triggered,
the system mus t be rep lace d by an au ­
thorized A udi dealer or qualified work ­
shop .
- Always have wor k involving the side cu r­
tain airbag system, removal and installa ­
tion of the airbag components, or ot her
repairs per formed by an authorized Audi
dea ler or qualified works hop. Otherwise
the airbag system may not work co rrect­
ly.
- Never attempt to mod ify any compo­
nents of the airbag system in any way.
•
•

166 Child Saf ety
Child Safety
Important things to
know
Introduction
The rear seat is generally the safest place in a
collision .
The physical principles of what happens when
your veh icle is in a crash app ly also to chi ldren
q page 138, What happens to occupants not
wearing safety belts? .
But unlike adults their
muscles and bones are not fully developed. In
many respects children are at greater risk of
serious injury in crashes than adults.
Because children's bodies are not fully deve l­
oped, they require restra int systems especial­
l y designed for their size , weight, and body
structure. Many countries and all states of the United States and p rovinces of Canada have
laws requiring the use of approved child re­
straint systems for infants and small children .
In a frontal crash at a speed of 20 -35 mph
(30-56 km/h) the forces acting on a 13-pound
(6 kg) infant will be more than 20 times the
weight of the child . This means the weight of
the child would suddenly be more than
260 pounds (120 kg). Under these conditions,
only an appropriate ch ild restraint properly
used can reduce the risk of serious injury.
Ch ild restra ints must be used properly to be
effective. Used improperly, they can increase
the risk of serious injury in an accident .
Consult the child safety seat manufactu rer's
instructions to be sure the seat is right for
your chi ld's size
q page 169, Important safe­
ty instructions for using child safety seats .
Please be sure to read and heed all of the im­
portant information and WARNINGS about
child safety, Advanced Airbags, and the instal­ lation of child restraints in this chapter .
There is a lot you need to know about the Ad­
vanced Airbags in your vehicle and how they
work when infants and children in child re­
straints are on the front passenger seat . Be ­
cause of the large amount of important infor- mation, we cannot repeat it all here
. We urge
you to read the detailed information in this
owner's manua l about airbags and the Ad ­
vanced Airbag System in your vehicle and the
very important information about transport­
ing children on the front passenger seat .
Please be sure to heed the WARNINGS - they
are extremely important for your safety and
the safety of your passengers, especially in­
fants and small children.
A WARNING
- Accident statistics have shown that chil­
dren are generally safer in the rear seat
area than in the front seating position.
Always restrain any child age 12 and un­
der in the rear.
- All vehicle occupants and especially chil­
dren must be restrained properly when­
ever riding in a vehicle. An unrestrained
or improperly restrained chi ld could be
injured by str ik ing the interior or by be­
ing ejected from the vehicle dur ing a
sudden maneuver or impact. An unre­
strained or improperly restrained ch ild is
also at greater risk of injury or death
through contact with an inflating airbag.
- A suitable child restraint properly instal­
led and used at one of the rear seating
positions provides the highest degree of
protection for infants and small children
in most accident situations.
A WARNING
Children on the front seat of any car even
with Advanced Airbags can be seriously in­
jured or even killed when an airbag in­
flates . A child in a rearward-facing child
safety seat installed on the front passen­
ger seat w ill be ser iously injured and can
be killed if the front airbag inflates.
- The inflating airbag will h it the child
safety seat or infant carrier with great
force and will smash the child safety seat
and child against the back rest, center
armrest or door .
- Always install rearward-facing child safe-
ty seats on the rear seat.
IJi,,,

-If you must install a rearward facing
child safety seat on the front passenger
seat in exceptional circumstances and
the
PASSENGER AIR BAG OFF light does
not come on and stay on, immediately
install the rearward-facing child safety
seat in a rear seating position and have
the airbag system inspected immediately by your authorized Audi dealer.
,& WARNING
If, in exceptional circumstances, you must
install a forward-facing child restraint on
the front passenger's seat:
- Always make sure the forward-facing
seat has been designed and certified by
its manufacturer for use on a front seat
with a passenger front and side airbag.
- Always follow the manufacturer's in­
structions provided with the child safety
seat or carrier.
- Always move the passenger seat into its
rearmost position in the seat's fore and
aft adjustment range, as far away from
the airbag as possible before installing
the child restraint. The backrest must be adjusted to an upright position .
- Always make sure that the
PASSENGER
AIR BAG OFF
light comes on and stays
on all the time whenever the ignition is
switched on.
@ Tips
Always replace child restraints that were
installed in a vehicle during a crash. Dam­
age to a child restraint that is not visible
could cause it to fail in another collision
situation.
Advanced front airbag system and children
Your vehicle is equipped with a front "Ad­
vanced Airbag System" in compliance with
United States Federal Motor Vehicle Safety
Standard (FMVSS) 208 as applicable at the
time your vehicle was manufactured .
Child Safety 167
The Advanced Airbag system in your vehicle
has been certified to meet the "low-risk" re­
quirements for 3- and 6-year old children on
the passenger side and small adults on the driver side. The low risk deployment criteria
are intended to reduce the risk of injury
through interaction with the airbag that can
occur, for example, by being too close to the
steering wheel and instrument panel when
the airbag inflates. In addition, the system
has been certified to comply with the "sup­
pression" requirements of the Safety Stand­
ard, to turn off the front airbag for infants up
to 12 months who are restrained on the front passenger seat in child restraints that are list­
ed in the Standard.
Even though your vehicle is equipped with an
Advanced Airbag system, all children, espe­
cially those 12 years and younger, should al­
ways ride in the back seat properly restrained
for their age and size . The airbag on the pas ­
senger side makes the front seat a potentially
dangerous place for a child to ride . The front
seat is not the safest place for a child in a for­
ward-facing child safety seat. It can be a very
dangerous place for an infant or a larger child
in a rearward-facing seat.
Advanced Airbags and the weight­
sensing mat in the front seat
The Advanced Airbag System in your vehicle
detects the presence of an infant or child in a
child restraint on the front passenger seat us­
ing the weight-sensing mat in the seat cush­
ion and the sensor below the safety belt latch
on the front passenger seat that measures the
tension on the safety belt.
The weight-sensing mat measures total
weight of the child and the child safety seat
and a child blanket on the front passenger
seat. The weight on the front passenger seat
is related to the design of the child restraint
and its "footprint", the size and shape of the
bottom of the child restraint as it sits on the
seat. The weight of a child restraint and its "footprint" vary for different kinds of child re -
straints and for the different models of the ..,. •
•

168 Child Saf ety
same kind of child rest raint offered by child
restraint manufact urers.
The weight ranges fo r the ind ividual types,
makes and mode ls o f chi ld restra ints that the
NHTSA has specified in the Safety Standard
together with the weight ranges of typical in­
fants and typical 1 year-o ld child have been
stored in the control unit of the Advanced A ir­
bag System. When a child restraint is being
used on the front passenger seat with a typi­
cal 1 year-old ch ild, the Advanced Airbag Sys­
tem compa res the we ight measured by the
weight sensing mat with the informat io n sto r­
ed i n the ele ct ron ic cont ro l uni t.
The electron ic control unit also registers the
tension on the front passenge r safety belt .
The tens io n on the safety be lt fo r the front
passenger seat will be d iffe ren t for an ad ult
who is prope rly using the safety belt as com­
pared to the tension on the be lt whe n it is
used to attach a chi ld restraint to the seat.
The sensor below the latch for the safety be lt
for the front seat passenger meas ures the
tension on the be lt. The input from this sen­
sor is then used with the we ight to "decide",
whether there is a ch ild restraint w ith a typ ical
1 year-o ld child o n the front passenger seat
and whe ther or not the ai rbag must be tu rned
off.
Child restraints and Advanced Airbags
Regardless o f the child restraint t hat you use,
make sure that it has been ce rtified to meet
United States Federal Motor Vehicle Safety
Standards and has been certified by its manu­
facturer for use with a n airbag. Always be sure
that the child restraint is properly instal led at
one of the rear seat ing pos itions .
If in excep­
tional c ircumstances you must use it on the
fro nt passenger sea t, caref ully read all of the
i n format ion on c hild safety and Advanced A ir­
bags and heed a ll of the app licab le WAR N­
I NGS . Ma ke certain that the child restraint is
correctly recognized by the weig ht-sensing
mat inside the front passenger seat, that the
fro nt passenger airbag is turned off and that the a
irbag sta tus is always cor rect ly signa led
by the
PASSENGER AIR BAG OFF light .
Many types and models of child res traints
h ave been available over the yea rs, new mod­
els are introduced regu larly incorporating new
and improved designs and o lde r mode ls are
ta ken out o f product ion . Ch ild restra ints are
not standard ized . Child restraints of the same
type typically have different weights and sizes
and different 'footpr ints,' the size and shape
of the bottom of the ch ild restra int that sits
on the seat, when they are insta lled on a vehi­
cl e seat. These d iffe rences make it v irtually
i mpossible to certify compl ian ce wi th t he re­
quiremen ts for advanced airbags with eac h
and every chi ld restraint that has eve r been
sold in the past or wi ll be sold over the course
of the useful life of your veh icle.
F or t his reason, the United S tates National
Highway T raffic Safety Adm inist ration has
published a list of specific type, ma kes and
models of child restraints that must be used
to certify comp liance of the Advanced Airbag
System i n your veh icle with the suppression
requirements of Federal Motor Vehicle Safety
Standa rd 208. These ch ild restraints a re:
Subpart A -Car bed child re straints
Model
A ngel Guard Angel
Ride AA2403FOF
Manufactured on or
after
September 25, 2007
Subpart B -Rear-facing child restraints
Model Manufactured on or
after
Ce ntury 5martFit December 1, 19 99
4 543
Cosco Arriva September 25, 2007
I
22-013PAW and base
22-999WHO
I
Evenflo Discove ry Ad- December 1, 1999
just Right 212
Evenflo First Choice December 1, 1999
20 4
Graco Infant 8457 December 1, 1999
