AUDI A4 2018 Owner's Manual

Applies to: ve hicles with multifunction steering wheel plus
"Press th e l<1 1>I butto n repeated ly until the Ra -
dio/Media tab is disp layed .
" Press the left control button ¢ page 14 .
Depending on vehicle equipmen t, the following
functions may be availab le in the driver informa­
tion system .
-Selecting a source : select and confi rm a source
s u ch as the SD card.
- Selecting a radio station from the source li st:
sele ct and confirm Switch to radio .
- Playing an audio /video file :
select and confi rm
a file.
- Pau sing/resuming playba ck : press the r ight
t hu mbwheel @
~page 15, fig. 11. To res ume
playb ack , p ress the r igh t thumbw heel again .
-Re starting playback of an audio file : select the
file that is curre ntly playing, if necessary. Press
the left th umbwheel.
- Opening additional track information: select:
r ig ht cont rol bu tton>
Show "Now Playing"
screen .
@ Tips
-The media drives do not play files that are
p ro te cte d by DRM and that a re identif ied
wi th the sym bol
1'.D.
- Please note t hat w ithin a media sou rce in
th e d river i nfo rm at ion s ystem, o nly pl aylis ts
tha t we re sele cted t hroug h the MMI cont rol
p anel c an be
playe d~ page 23 7.
-Pay attention to t he Infotai nmen t sys te m
display if ne cessary. Depen din g on these­
l ected function, it may
be necess ary to use
t h e MM I cont rol panel.

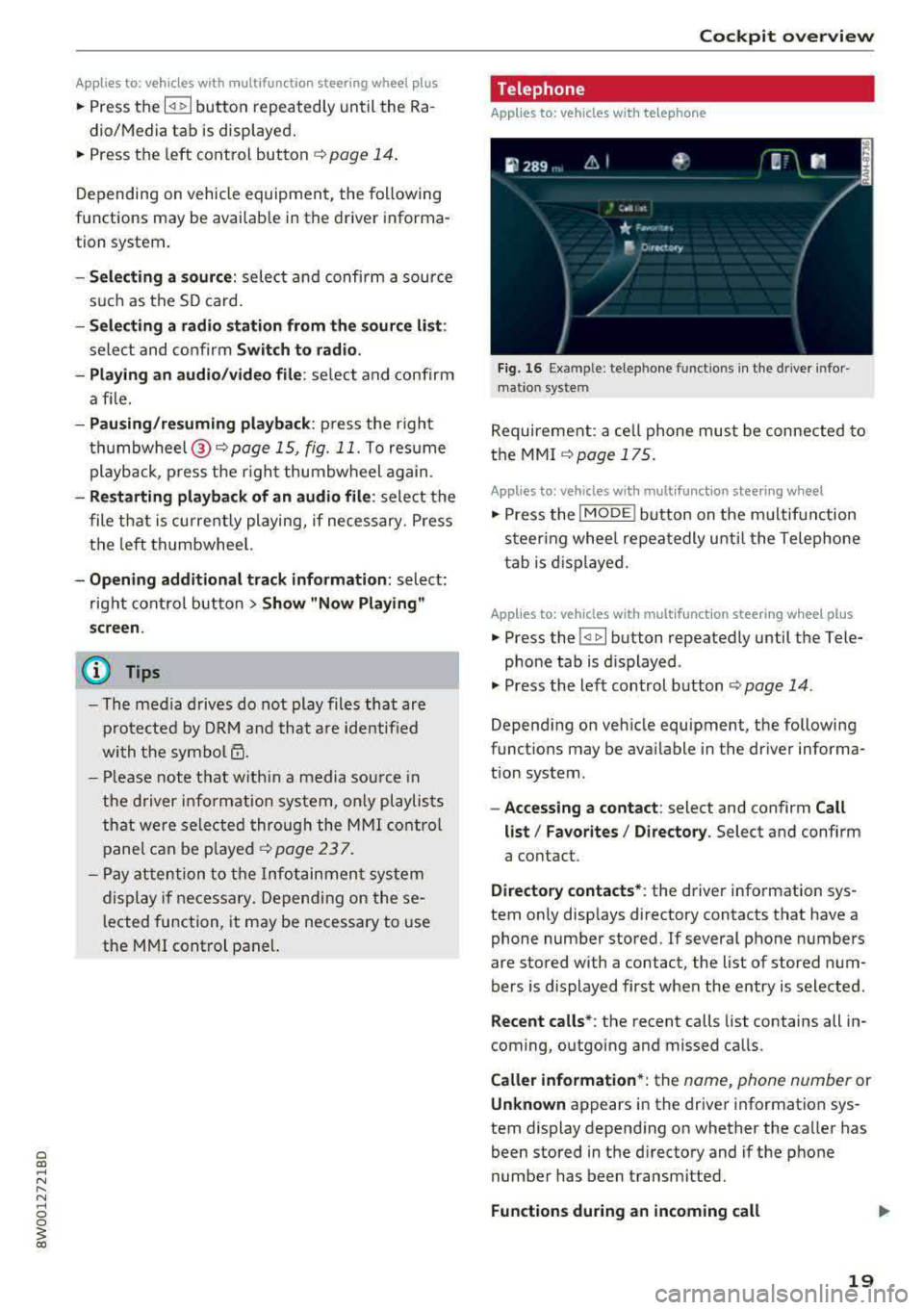

Cockpit overview
Telephone
Applies to: vehicles with te lephone
Fig . 1 6 Ex ampl e: telep hone functio ns in th e drive r info r­
m ati on sys te m
Requireme nt: a ce ll phone must be connected to
the MMI
~ page 175.
Applies to: vehicles wit h mult ifunction stee ring wheel
" Press the IMODE ! button on the m ultifun ction
steer ing whee l re peat edly u ntil t he Telephone
t ab is d is pla yed .
Applies to: vehicles with mult ifunction steering wheel plus
" Press the l<1 1>I button repeatedly until the Tele-
p ho ne tab is d isplayed .
" Press the le ft con trol b utton ¢ page 14 .
Depending on veh icle equipment , the following
funct ions may be ava ilable i n the dr iver informa­
t ion system .
-Accessing a contact : select and confirm Call
list / Favorites / Directory .
Select and confirm
a contact .
Directory contacts* : the driver info rmation sys­
tem on ly disp lays directory contacts that have a
phone number stored .
If several phone numbers
are stored with a contact, the list of stored num­
bers is d isplayed first when the entry is selected .
Recent calls*: the recent calls list contains all in­
coming, o utgoing and missed ca lls.
Caller information *: the name, phone number or
Unknown ap pears in the drive r information sys­
tem display depend ing on whether the ca ller has
been stored in the d irecto ry and if the phone
number has been transmitted.
Functions during an incoming call
19

Cockpit over view
-Accepting a call : press the le ft thumbwhee l
when there is an incoming call.
-D eclining a call : select and confirm Decline
when there is an incoming call.
-Ending a phone call: se lect and confi rm End
call.
Function s dur ing a phone c all :
-M ak ing an additi onal call *: select and confirm
Ho ld . Press the left control button> D irector y
or C all li st > the desired entry .
-Answ ering a call whil e in a call and whil e
th ere i s another call on hold *:
select and con­
firm
An sw er. The active call is replaced with the
incoming call.
Addit ional functions include:
M ute *: if you select and confirm this function,
the other person on the phone cannot hear you.
You can hear the other person .
Holding or re suming a c all* : you can put an ex­
isting phone call on hold and resume it .
Swap ca ll* : you can alternate between two p hone
calls at the same time. One of the calls wi ll be on
hold.
End call ends the active phone call. A call
that was placed on hold stays on ho ld and can be
t aken off hold with
R es ume .
Co nfe rence*:
a ca ll on hold and up to five active
parties (depend ing on the ce ll phone serv ice pro ­
vider) can be added to a conference call. To make
an add it iona l call, put all part ic ipants in the cur­
rent conference call on hold using
Ho ld *. By
pressing the left control button, you can make
addit ional calls from the d irectory or the call list .
Res ume * takes all part ies off hold .
(0 Tips
-The telephone functions can only be con­
trolled w ith the multifunction steering
whee l if the telephone equipment was in­
stalled
at the factory.
-The telephone functions depend on the cell phone and whethe r they a re supported by
your cell phone service provider o r not.
-The Call waiting * function must be act ivat­
ed in your cell phone and in the M MI to be
notified of an incoming call during an active
20
cal l. The call options depend on the cell
phone and service provider . You can obtain
more informat ion from you r cell phone
serv ice prov ider.
Navigation
App lies to: vehicles wi th nav igat ion sys te m
Requirement: a dest ina tion must be en tered
<:> page 205 and the route guidance must be
started .
.. Press the 14 t> I button repeated Ly until the Navi-
gation tab is displayed.
.. Press the left control button c:> page 14 .
Depending on veh icle equipment, the following
funct ions may be ava ilable in the dr iver informa­
tion system .
-Displaying na vigation during activ e route
guida nce :
selec t and confirm Ma p*/ Street
v iew * or Arro w v iew*.
-Showing the map when route guidan ce is not
a ct ive*:
select and confirm Map *.
-Ac cessing l ast destinations : select and confirm
Last dest inatio ns > the desired destination.
-Accessing f avorites *: se lect and confirm Fa vo r­
i te s
> the desired destination.
-Starting route guidance to the sto red home
a ddre ss :
se lect and confirm Cancel route guid­
a nce
if necessary and then Home add ress .
If you have not started any route g uidance, a
compass (analog instrument cluster) or the ar ­
row view (monochrome instrument clust er) is
displayed depending on the eq uipment. The map
i s disp layed in the Audi virtual cockpit".
Canc eling act ive route guidanc e
-Select: right control button> Cancel route
guidance
Additional settings
-Sele ct: r ight cont rol b utton> de sired entry.
Depend ing on the function selected, the follow­
i ng additional settings may be possible :
- Map d is play
c:> page 215
- Map colors c:> page 215
-Map or ienta tion <:> page 215

- Automatic zoom C) page 216

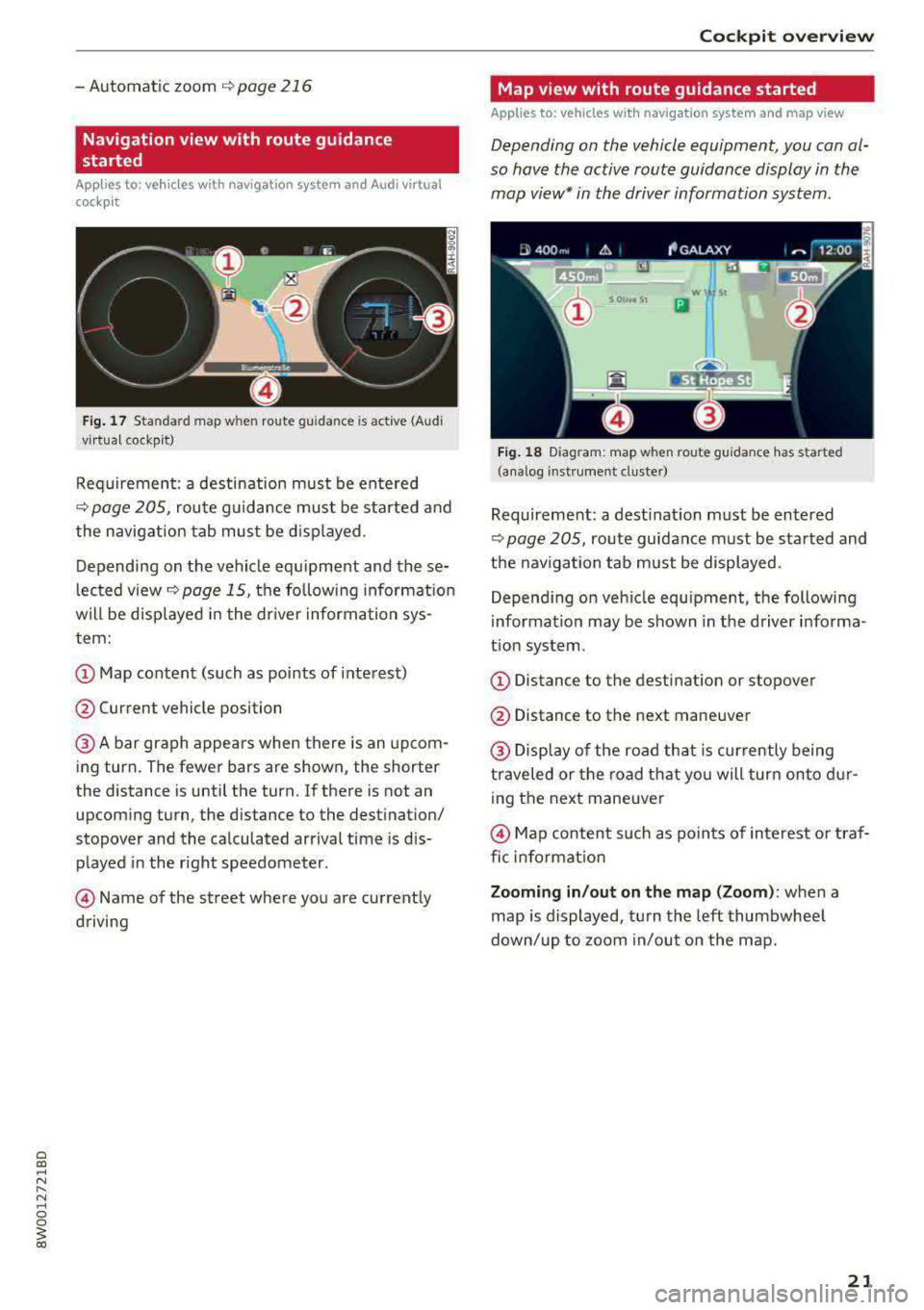

Navigation view with route guidance
started
App lies to: ve hicles with navigation system and Audi virtual
cockpit
Fig. 17 Sta ndard map w hen route gu ida nce is act ive (Audi
vi rtua l cockp it)
Requirement : a destination must be entered
C) page 205, route guidance must be started and
the navigation tab must be displayed .
Depending on the vehicle equipment and these­
lected view
r=;, page 15, the follow ing informat ion
will be displayed in the driver information sys­
tem:
@ Map content (such as points of interest)
@ Current vehicle position
@A bar graph appears when there is an upcom­
ing turn. The fewer bars are shown, the shorter
the distance is until the turn. If there is not an upcom ing turn, the distance to the destination/
stopover and the calculated arrival time is dis­
p layed in the right speedometer.
@Name of the street where you are current ly
driving
Cockpit overview
Map view with route guidance started
Applies to: vehicles with navigation system and map view
Depending on the vehicle equipment, you con al­
so hove the active route guidance display in the
mop view* in the driver information system.
Wl St
Iii
Fig. 18 D iagram: map when route guidance has started
(analog instrument duster)
Requireme nt: a dest inat ion must be entered
<=> page 205, route guidance must be started and
the navigation tab must be displayed.
Depend ing on veh icle equipment, the following
information may be shown in the driver in forma­
t io n system .
(D Distance to the destination or stopover
@ Distance to the next maneuver
@ Display of the road that is currently being
traveled or the road that you will turn onto dur­
ing the next maneuver
@Map content such as points of interest or traf­
fic inform ation
Zooming in/out on the map (Zoom ): when a
map is displayed, turn the left thumbwheel
down/up to zoom in/out on the map.
21

Cockpit overv iew

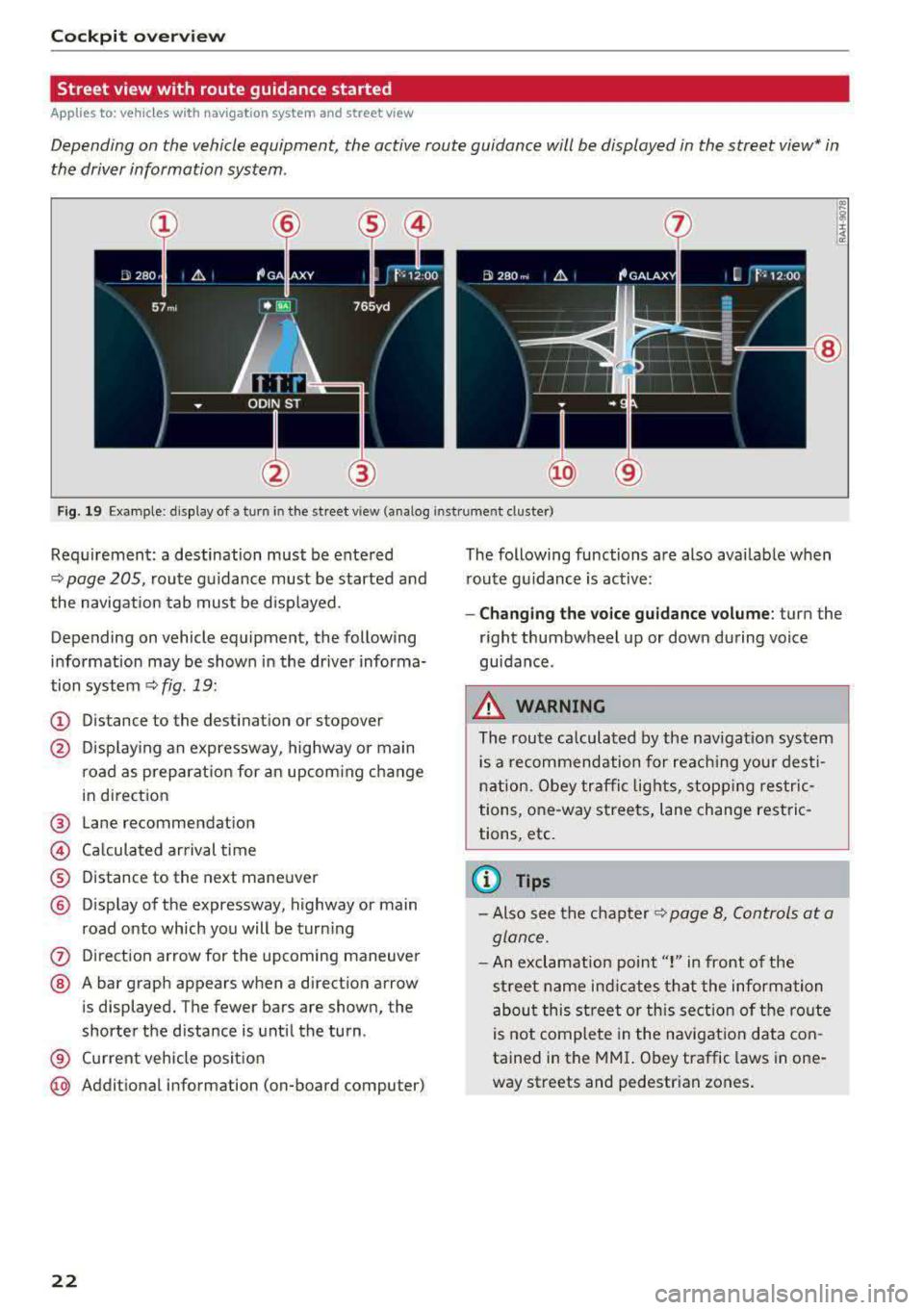

Street view with route guidance started
Applies to: ve hicles w ith navigation system and street view
Depending on the vehicle equipment , the active route guidance will be displayed in the street view* in
the driver information system .
®
Fig. 19 Example: display of a turn in the str eet v iew (ana log inst ru ment cluster)
Req uirement: a destination must be entered
¢
page 205, route g uidance must be started and
the navigation tab mus t be disp layed.
Depending on vehicle equipment, the following
information may be shown in the dr iver informa­
tion system ¢
fig. 19:
(D Distance to the destinat ion or stopover
@ Disp lay ing an expressway, highway or main
road as preparat ion for an upcom ing change
in direct ion
@ Lane recommendation
© Ca lcula ted ar rival time
® D istance to the next maneuver
@ Disp lay of the expressway, highway or main
road onto which you will be tur ning
(?) Di rect ion arrow for the upcoming maneuver
@ A bar graph appears when a direct ion arrow
is displayed. The fewer bars are shown, the
shorter the d istance is unt il the turn .
® Current veh icle pos ition
@ Addit ional information (on-board computer)
22
The following functions are also avai lab le when
r oute g uidanc e is active :
-Changing the vo ice g uidance volume : turn the
r ight thumbwheel up or dow n during voice
guidance .
_&. WARNING
The route ca lculated by the nav igat ion sy stem
is a recom mendation for reac hing your dest i­
n ation. Obey tra ffic lights, stopp ing restric­
tions, one-way stree ts, lane change restric­
tions, etc.
(D Tips
- Also see the c hapter ¢ page 8, Controls at a
glan ce.
- An exclamation point" !" in front of the
st reet name ind icates t hat the information
abou t this st reet or this sect ion of the ro ute
is not complete in the navigat ion data co n­
tained in the
M MI. Obey traffic laws in one­
way streets and pedestr ian zones .

Cockpit o verview

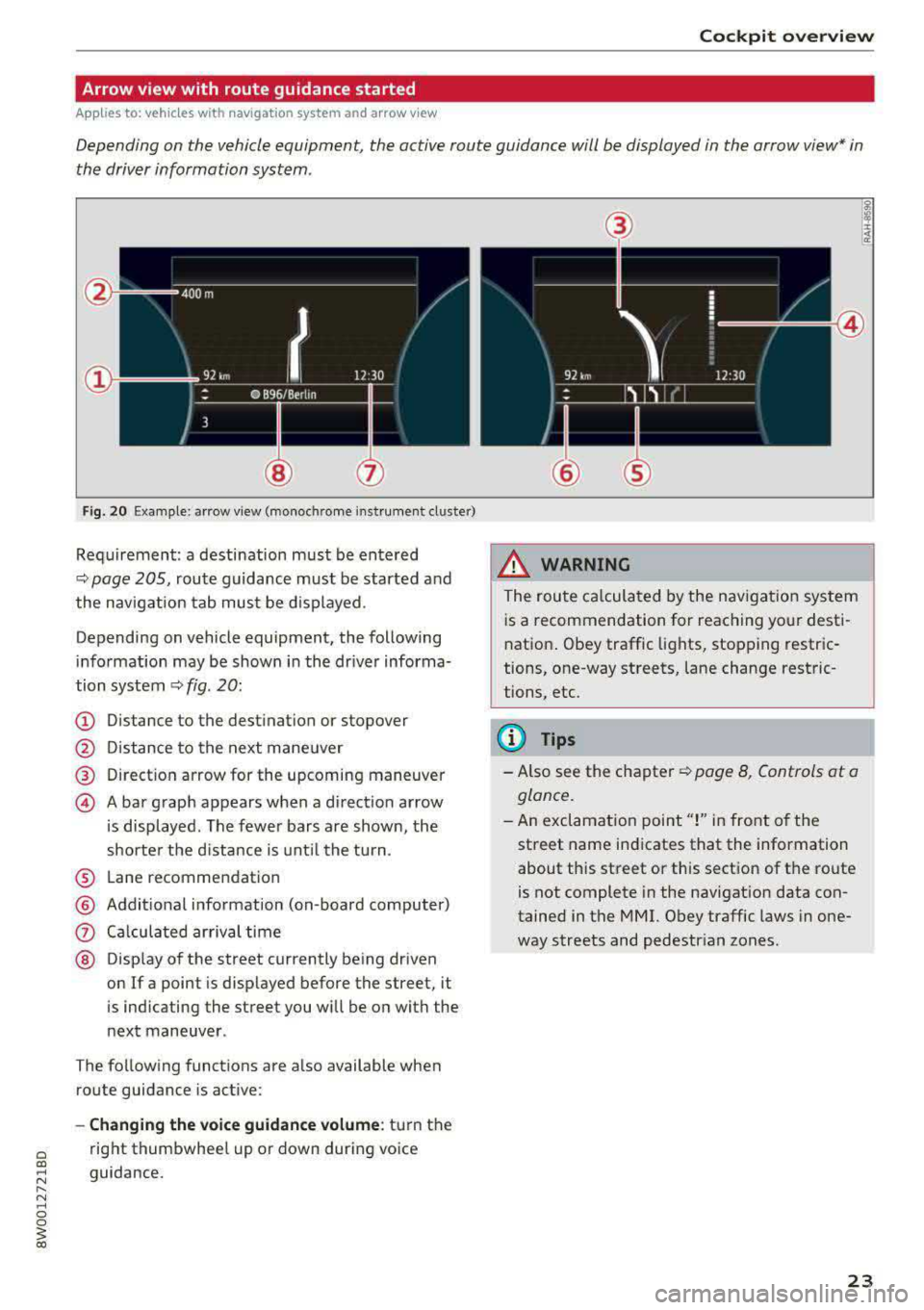

Arrow view with route guidance started
Applies to: vehicles with nav igation system and arrow view
Depending on the vehicle equipment, the active route guidance will be displayed in the arrow view* in
the driver information system .
Fig. 20 Example: arrow view (monoch rome instrument cluster)
Requirement: a destination must be entered
<::> page 205, route guidance must be started and
the navigation tab must be displayed .
Depending on vehicle equipment, the following
information may be shown in the dr iver informa­
tion system
ca:> fig . 20:
(D Distance to the destination or stopover
@ Distance to the next mane uver
@ Direct ion arrow for the upcoming maneuver
@ A bar graph appears when a direct ion arrow
i s displayed . The fewer bars are shown, the
shorte r the d istance is unt il the turn .
® Lane recommendation
@ Additional information (on -board computer)
Q) Calculated arrival time
® Disp lay of the street currently being driven
on If a point is disp layed before the street, it
is indicating the street you will be on with the
next maneuver .
T he following functions are a lso available when
route guidance is active:
- Changing the voice guidan ce volum e: turn the
right thumbwhee l up or down during
voice
guidance.
@
@
.&_ WARNING
The route ca lcula ted by the nav igat io n system
i s a recommendation for reaching your dest i­
nation . Obey traffic lights, stopping restric­
tions, one-way streets, lane change restric­
tions, etc.
@ Tips
- Also see the chapter ca:> page 8, Controls at a
glance.
-An exclamat ion point"!" in front of the
street name indicates that the information
about this street or this section of t he route
is not complete in the navigat ion data con­
tained in the MMI. Obey traffic laws in one­
way streets and pedestr ian zones.
23

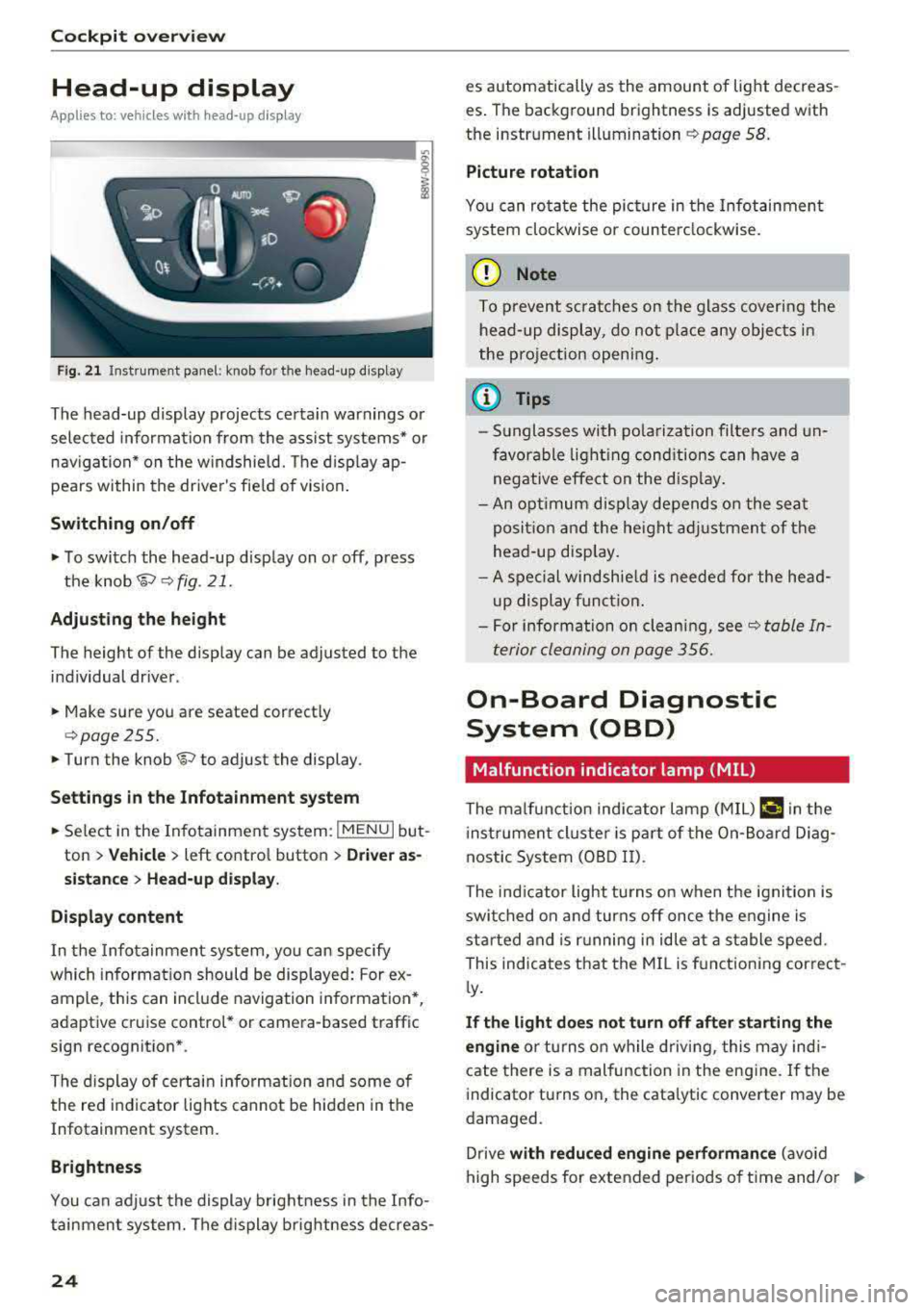

Cockpit overv iew
Head-up display
Applies to: vehicles with head-up display
Fig. 21 Instrument panel: knob for the head-up display
The head-up display projects certa in warnings or
selected information from the ass ist systems* or
nav igation* on the w indshield. The d isplay ap­
pears within the drive r's fie ld of vision .
Switching on /off
• To switch the head-up display on or off, press
the
knob~ ~ fig. 21.
Adjust ing th e height
The height of the display can be adjusted to the
individual driver.
• Make sure you are seated correctly
qpage255.
• Turn the knob~ to adjust the display .
Setting s in th e Infotainm ent sy ste m
• Se lect in the Infotainment system: I MENU I but­
ton
> Vehi cle > left contro l button > Dri ver as­
s ist ance
> H ea d-up di spl ay .
D is play content
In the Infotainment system, you can specify
which information should be displayed: For ex­
ample, this can include navigation information*,
adaptive cruise control* or camera-based traffic
sign recognition *.
The display of certa in information and some of
the red indicator lights cannot be hidden in the
Infotainment system.
Brightness
You can adjust the display brightness in the Info­
tainment system. The d isplay brightness decreas -
24
es automatically as the amount of light decreas ­
es . The background brightness is adjusted with
the instrument
illumination ~ page 58.
Picture rotation
You can rotate the picture in the Infotainment
system clockwise or counter clockwise.
(D Note
To p revent sc ratches on the glass covering the
head-up display, do no t place any objec ts in
the pro jection opening .
@ Tips
-Sunglasses with po larization filte rs and un­
favorable light ing cond itions can have a
negative effect on the disp lay .
- An optimum disp lay depends on the seat
posit ion and the height ad justment of the
head -up disp lay.
- A spec ial windshie ld is needed for the head ­
up display funct ion .
- For information on clean ing,
see~ table In­
terior cleaning on page 356.
On-Board Diagnostic
System (OBD)
Malfunction indicator lamp (MIL)
The ma lf u nction indicator lamp (MIL) ¢;# in the
i nstrumen t cluster is part of the On-Board Diag­
nostic System (OBD II).
The indicator light turns on when the ignition is
switched on and turns off once the engine is
star ted and is r unning in idle at a stable speed.
This indicates that the MI L is fu nctioning correct­
l y .
If th e light do es n ot turn off aft er start ing the
e ngin e
or turns on while driving, this may indi­
cate there is a malfunction in the engine .
If the
i ndicator turns on, the cata lytic converter may be
damaged.
Drive
with reduc ed eng in e perf orman ce (avoid
high speeds for extended periods of time and/o r
IJJ,-

fast acceleration) and have the malfunction cor­rected. See an authorized Audi dealer or
authorized Audi Service Facility .
The electronic speed limiter may be faulty if the
indicator light turns on. For additional informa­
tion, see
¢ page 102, Electronic speed limiter .
The MIL indicator light may also turn on if the
fuel filler cap is not closed correctly
¢page 317.
On-Board Diagnostics
Fig. 22 Location of Data Li nk Con nec tor (DLC )
On-Board Diagnostics monitors the components
of your em ission control system. Each monitored
component in your eng ine system has been as­
signed a code. In case of a ma lfunction, the com­
ponent will be identified and the fault stored as a
code in the control module memory.
The MI L light may also illuminate if there is a
leak in the on -board fuel vapor recovery system.
If the light illuminates after a refueling, stop the
vehicle and make sure the fuel filler cap is prop­ erly closed (only vehicles with gasoline engine)
¢ page 317 .
In order to make an accurate diagnosis, the stor­
ed data can only be displayed using special diag­ nostic equipment (generic scan tool for OBD) .
In order to connect the specia l diagnostic equip­
ment, push the plug into the Data Link Connector
(DLC). The DLC is located to the right of the hood
release¢ fig. 22.
a Your authorized Audi dealer or qualif ied work-al
;:::: shop can interpret the code and perform the nee-
" ~ essary repair . 0 0
~ al
Cockpit overview
A WARNING
--
Do not use the diagnostic connector for per­
sonal use. Incorrect usage can cause malfunc­
tions, which can increase the risk of a colli­
sion!
Indicator lights
Description
The indicator lights in the instrument cluster
blink or turn on. They indicate functions or mal­
functions.
Messages may appear with some indicator lights.
A warn ing s ignal will sound at the same time.
The indicator lights and messages in the instru­
ment cluster display can be covered by other dis­
plays. To show them again, select the second tab
with the mult ifunct ion steer ing
wheel ¢ page 13.
If there are several malfunctions, you can display
them one at a time using the thumbwheel.
Some indicator lights in the display can display in
several co lors.
it Central indicator light
If the. or d indicator light turns on, check
the message in the instr ument cluster.
Overview
Some indicator lights turn on briefly as a function
check when you sw itch the ignition on. These sys ­
tems are marked with
a./ in the fo llowing tab les.
If one of these indicator lights does not turn on,
there is a malfunction in that system.
Your vehicle has either a monochrome display or
a multicolored display, depending on vehicle
equipment. Some indicator lights appear white
on a monochrome display .
The. or Q central
indicator light turns on at the same time to indi-
cate the priority of these indicator lights.
..,.
25

Cockpit over view
Red indicator ligh ts
26
--------------
Central indicator light
¢page 25,
Aud i pre sense*
¢ page 120
USA model s:
Brake system ./
¢page28
Cana da m od els:
Brake system ./
¢ page28
USA models :
Electromechan ical parking brake
¢ page29
Canada models:
Electromechan ica l parking brake
¢page29
Cooling system
¢ page30
Engine oil pressure
¢ page 31
E ngine oil level
¢ page 31
Alter nator
¢ page30
Safety belt
¢page30
Electromechan ica l steering ./
¢page 150
Steering lock
¢ page 31
Engine start system
¢ page 31
Transmiss ion (automatic t ransm is ­
sion)
¢ page 96,
Clutch (manual transmission)
¢page32
Hood
¢ page32
Adapt ive cr uise control*./
¢ page 110
Traffic jam assist*
¢ page 116 Ad B
lue*
¢ page 319
Ad Bl ue*
¢ pag e 319
Yellow indi cator lights
--------------
Central indicator light
¢ page25
Electronic Stabi lization Control
( E SC)
¢ page32
Elec tronic Stab il izat io n Contro l
(ESC)
./
¢ page32
Electronic Stab ilizat ion Control
(ESC)
¢ page 147
Brake system
¢ page 33
USA models:
Ant i- lock braking system (ABS)./
¢ page32
Canad a model s:
Ant i-lock b raking system (ABS) ./
¢ page32
Safety systems ./
¢page32
USA mode ls:
Brake pads
¢ page33
Ca nad a model s:
Brake pads
¢ page 33
E lec tromechanical parking brake
¢ page29
Tire p ressure
¢ page352
Tire pressure
¢page 352
Engine contro l
¢page 33
Engine contro l (diesel engine)
¢ page 33

a co .... N ,....
N .... 0 0
3 co
'
-Yli-, I '
Malfunct ion Indicato r Lamp (MIL)
,/
¢page 33
Diese l part icu late filter*
¢page33
Eng ine speed limitat ion
¢page34
Eng ine oil level (MIN)
¢ page 31
Eng ine oil level ( MAX)
¢ page 327
Eng ine oi l sensor
¢ page34
Eng ine warm-up request
¢ page34
Battery charge
¢page 30
Tank system
¢page34
Washer fluid level
¢page34
W indshield w ipers
¢page34
Remote control key
¢ page83
Driver's door
¢page35
Battery in remote cont rol key
¢ page39
Bulb failure ind icator
¢ page 35
Headlight range control system
¢ page 35
Adapt ive light*
¢ page35
Light/rain sensor
¢page35
Active lane ass ist*
¢page 126
Audi side assist*
¢ pag e 133
AdBlue0
0
Coc kpit o ve rv iew
Audi pre s ense *
¢page 124
Parking aid*
¢page 144
Transmission (automatic transmis­
s ion)
¢ page 96,
Clutch (manual transmission)
¢page 32
Steering lock
¢ page 31
Engine sta rt system
¢page 31
Electrome chanical steering
¢ page 150
Suspension control*
¢page 35
All wheel drive/sport differential*
¢page35
Emergency call funct ion*
¢ page 203
Ad Blue *
¢page 319
Ad B lue*
¢ page 319
Other indicator light s
--------------
Turn signals
¢ page 36
USA models :
Cruise cont rol sys tem*
¢ page 102
Canad a model s:
Cru ise control system*
¢ page 102
Adaptive c ruise contro l*
¢ page 110
Adaptive c ruise contro l*
¢ page 110
Adaptive c ruise contro l*
¢ page 110
Ad aptive c ruise contro l*
¢ page 110
27

Cockpit over view
28
_J:L
1:1
y>))
Adapt ive cruise control*
¢ page 112, ¢page 115
Adapt ive cruise control*
¢ page 115
Traffic jam assist*
¢page 116
Active lane assist*
¢page 126
Predictive efficiency assist*
¢page 107
USA model s:
Predictive efficiency assist*
¢page 107
Canada mod els:
P redictive efficiency assist*
¢ page 107
Predictive efficiency assist*
¢page 107
Predictive efficiency assist*
¢page 107
Predictive efficiency assist*
E!)page 107
Hill descent assist*
¢page 148
Start/S top system *
¢page85
Start/Stop system*
¢ page 85
Remote cont rol key
¢ page85
Ad B lue *
¢page319
Automatic transm ission*
¢ page96
Dynamic steering"
¢page 150
Adapt ive cr uise control*
¢ page 112,
Traffic jam assist*
¢ page 118
Traffic jam assist *
¢page 118
D AUTO
Audi pre sense *
¢page 124
USA models:
Electromechanical parking brake
¢ page 29
Canad a models:
Electromechanical parking brake
¢ page29
Hill descent assist*
¢page 148
Child safety lock
¢ page48
USA models:
Speed warning system*
¢ page 102
Canada model s:
Speed warning system*
¢ page 102
Active lane assis t*
¢ page 126
Audi s ide assist*
¢ page 133
Camera-based traff ic sign recog ni­
tion*
High beam ass istant*
¢ page 55
High beams
¢ page 55,
High beam ass istant*
¢ page 55
BRAKE /CCD) Brake system
If this indicato r light turns on, t here is a malf unc­
t ion in the b rake system .
1111 (USA model s) /. (Canada model s)
Brakes : stop vehicle and chec k brake fluid level
Stop the vehicle and check the brake flu id leve l.
See an author ized Audi dealer or authorized Audi
Service Facility for assis tance if necessary .
1111 (USA models ) /. (Can ada model s)
Brakes : malfunction! Stop veh icle safely
..,.
