Driver information system
Trip computer
Introduction
The trip computer gives you information on cur­
rent and average fuel mileage , average speed ,
fuel range and driving time .
Fig. 9 Trip computer d isplay: Ave rage fuel m ileage
~ 9 a: CX) m
The fo llow ing information is contin uously evalu­
ated by the trip computer and can be d isplayed
sequent ia lly in the instrument cluster display:
Fuel range
The estima ted c ruising range i n miles (km) ap­
pea rs in the disp lay . This te lls you how fa r your
ve hicle w ill be able to trave l on t he current ta nk
of fuel and with the same driv ing style. The d is­
p lay changes in increments of 5 miles (10 km) .
The cruising range is calcu lated based on t he f ue l
consumption for the last 18 m iles (30 km). If yo u
drive conse rvative ly, the cruising range will in­
crease.
Average fuel mileage
The average fuel e co nomy in MPG (l/ 100 k m)
since yo u last cleared the memory appears in this
d is pl ay. You can use this display to ad just your
driving technique to achieve a desired mileage.
Current fuel mileage
The inst antaneo us f ue l cons umption in miles per
ga llon (l/100 km) is shown in this display. Yo u
can use t his disp lay to adjust your driving techni­
que to achieve a des ired mileage .
F ue l cons umption is rec alcul ated at intervals of
33 y ards (30 me ters). Th is disp lay swit ches to
ga llons/hou r (li ters/hour) when the vehicle is not
mov ing.
24
Average speed
The aver age spee d in mph (km/ h) sin ce you last
rese t the memory appears in the display .
Elapsed time
The length of time that yo u have been d riving
s ince you last reset the memory appears in this
display .
Distance
The distance that has been covered since the last
time the memory was cleared appears i n the dis­
play .
0) Tips
-Fuel consumptions (average and current),
range and speed a re displayed in me tric
units on Canad ian mode ls .
- All stored val ues will be lost if the vehicle
bat tery is disconnected .
Memories
The trip computer is equipped with two fully au ­
tomatic memories as well as an efficiency pro­
gram* .
Fig. 10 Tri p comput er di sp la y: me mory leve l 1
You can switch between the trip computer 1 and
2 and the efficiency program* by p ressing t he
I RESET I button @<=> page 25, fig. 11 .
You can tell wh ic h memory leve l is currently ac­
tive by the number o r the sig n in the display
Q fig. 10. The data from the single-t rip memory
(memo ry leve l 1) is being d isplayed if a
D ap­
pears in the display. If a
fJ is shown, t hen the da-
ta from the total-t rip memory is being d isp layed .,,_

M N
i? co ,...., \!) 1.1'1
N 1.1'1 ,....,
(memory level 2). The fuel pump nozz le iii
indicates the efficiency program*¢ page 26.
Single-t rip memory (Trip computer 1 )
The single -t rip memo ry s to res the trip informa­
tion from the t ime the ig nit ion is tu rned on unt il
it is turned
off. If the t rip is con tinued within 2
hour s
from the time the ignition was turned off,
the new data wi ll be included in the calculation of
the current trip information .
If the trip is inter­
rupted for
more than 2 hours the memory is re­
set automat ica lly.
Total -trip memo ry (Trip computer 2 )
Unlike the single-trip memory , the tota l-trip
memory is not reset automatically. This permits
you to evaluate your driving data for the entire
period between manual resets.
Efficiency program*
The eff ic iency p rog ram can help you to use less
fuel ¢
page 26.
Operation
The trip computer is controlled by two switches
on the windshield wiper lever .
Fig . 11 W inds hield w ipe r leve r: co ntro ls fo r th e trip co m­
p u ter
Operating
"'T o disp lay the t rip compu ter memory leve ls ,
press t he
I RESE T I but ton @¢ fig. 11 repeated ­
l y until the des ired memo ry level is shown in
t h e display .
"' To disp lay t rip information within a memory
l evel, press the top or bottom part of the func­
t ion select io n switch @.
Dri ver information s ystem
The trip computer will not ope rate un less the ig ­
nition is on. When you turn o n the ignition, the
f unct ion that was in use when yo u last turned the
ignition
off wi ll be displayed.
In add ition to info rmation about the trip comput ­
er (trip computer 1, 2 and the efficiency pro­
gram *), information about othe r systems can al ­
so be shown in the display. To switch the display betwee n the diffe rent information, tap the
I RESET ! button@ briefly .
Resetting values to zero
"' Select a value in the desired trip compute r or in
the effic iency program *.
"' Press and hold the
I RESE T I button @for at
least one second . All values in the selected trip
computer or in the eff ic iency program* a re re ­
set to zero .
If the data in tr ip computer 1 are deleted, then
t h e va lues in the eff iciency program* will also be
r eset.
With some vehicle equ ipment levels, the va lues
for the single tr ip or total trip memory can also
be reset i n the Infotai nment system
¢ page 25.
(D Tips
All stored va lues w ill be lost if the veh icle bat­
tery is d isconnected .
Basic Settings for the trip computer
Applies to vehicles: with trip computer
The radio or MM!* operating unit is used for set­
ting the trip computer 's basic settings.
"' Select: Function button I CAR!> Instrument
cluster > On -board computer 1 or On-board
computer 2 .
The values in the sing le-tr ip or the total-t rip
memory can all be reset to zero at the same t ime
u nder
Reset in the menu.
In addition, yo u can determi ne what info rmation
from t he trip computer sho uld be shown in the
instrument cluster display. If one of the pieces of
driver information is turned
Off , that driver .,.
25

Drive r in formation syste m
information w ill not be shown in the display. The
information will continue to be ca lculated by the
tr ip computer and can be turned back
On at any
time.
(D Tips
- This function is not availab le on a ll vehicles.
- The driving information in the efficiency
program is also reset to zero with the sin­
gle-tr ip memory.
Gearshift Indicator
Applies to vehicles: with manual transmission and gearsh ift
indicator
This indicator con help conserve fuel.
Fig. 12 Display: Gearshift indic ator
In order to become familiar with the gearshift in­
d ictor, at first just drive the way you are used to .
If the current gear -and the dr iving situation -is
not the best one for conserving fuel , then the in­
dicator wi ll display the recommended gear . The
d isp lay shows the cu rrent gear and the gear that
is recommended
¢ fig . 12 .
-Up shifting The display will light up to the r ight
of the gear currently se lected if it is recom­
mend ing a h igher gear .
-Dow nshifting : The display will light up to the
left of the gear currently se lected if it is recom­
mend ing a lower gear.
Sometimes the indicator w ill recommend sk ip­
p ing a gear (3
> 5) .
If there is no gearshift recommendation, then
just drive in the appropriate gear for conserving fuel.
26
(D Note
This indicator can help you conserve fue l. This
i ndicator is not meant to show you which gear
you should always be in in all driving situa­
tions. Sometimes, in situations such as pass­
i ng, driving through mounta ins or when tow­
ing a trailer, there won't be any gearshift rec­
ommendation .
(0 Tips
The display does not light up when the clutch
pedal is be ing depressed.
Efficiency program
Description
Applies to vehicles: with trip compute r with efficiency pro·
gram
Fig. 13 Disp lay: eff icie ncy prog ram
"'"Press the I RESET ! button ®¢ page 25, fig . 11
repeatedly until the efficiency program appears
in the display.
T he efficiency program can help you to use less
fuel. It eval uates driving information in reference
to fuel consumpt ion and shows other equ ipment
i nfluencing consumption as well as shift recom­
mendat ions . Fuel economy messages
¢ page 28 provide tips for efficient dr iv ing .
The efficiency program uses distance and con­ sumption data from trip computer
1. If the data
are deleted in the efficiency program, those val­
u es are also reset in trip computer
1.

M N
0 l­oo
rl I.O
"' N
"' rl
Enhanced shift indicator
Applies to vehicles: with manual transmission and trip com­
p uter with eff iciency program
Fig . 14 Display: enhanced shift indicator
"'In the efficiency program, press the function
selection switch¢
page 25, fig. 11@ repeat ­
edly until the enhanced shift indicator appears
in the disp lay.
The eff ic iency program also has an enhanced
shift indicator. This enhanced shift indicator fol­
lows the same concept as the "standard" shift in­
dicator¢
page 26. The se lected and the recom­
mended gears are highlighted in colors like a
traffic light.
The color of the circle indicates if the most suita­ b le gear is engaged or if you should shift up or
down.
Green circle withou t or No gear or the most
with a gear suitable gear is engag-
ed
Yellow circle¢
fig. 14 Shift up or down one
gear
Red circle Shift up two gears
(D Note
This enhanced shift indicator can help you
conserve fuel. It is not des igned to recom­
mend the correct gear in all driving situations.
Only the drive r can decide which gear is cor­
rect in certain dr iving situations such as when
passing another vehicle, driving on hills or
towing a trailer.
Dri ver information system
(D Tips
- The enhanced shift indicator display is dif­
ferent in vehicles with a monochrome dis­
play.
- Th e "standard" shift indicator* disappears
when the enhanced shift indicator is dis­
played.
Other equipment
Applies to vehicles: with trip computer with efficiency pro­
gram
Fig. 15 Display: othe r equ ipm ent
"'In the efficiency program, press the function
select ion switch ¢
page 25, fig. 11 @ repeat­
ed ly until the other equipment appears in the
disp lay.
Other equ ipment that is currently affecting fuel
consumption is listed in the efficiency program .
The display shows up to three other items of
equipment @. The equipment using the most
fuel i s listed first. If more than three items using
fuel are switched on, the equipment that is cur­ rently using the most fuel is displayed.
A scale @also shows the current total consump­
tion of all other equipment.
27

Drive r in formation syste m
Fuel economy messages
App lies to veh icles: w ith tr ip compute r w it h eff ic iency pro­
g ra m
F ig . 1 6 Display : fu el economy messag e
Fuel economy messages are disp layed when fuel
consumption is increased by certain conditions.
If
you follow these fuel economy messages, you can reduce your vehicle 's consumption of fuel. The
messages appear automatically and are only dis ­
played in the eff ic iency program . The fuel econo­
my messages turn
off automatically after acer­
tain period of time.
• To turn a fuel economy message
off immed iate ­
ly after it appears, press the !R ESET I button
¢ page 25, fig . 11 @, or
• Press the function selection switch~
page 25 ,
fig. 11
® ·
@ Tips
- Once you have turned a fuel economy mes­
sage off, it will on ly appear again after yo u
turn the ign it ion on again.
- The fuel economy messages are not dis­
played in every instance, but rather in inter­
vals over a per iod of t ime.
28
Service interval display
T he service interval display reminds you when
your next service is due.
Fig. 17 D isp lay : Se rvice i nterval dis play
<0 0
"' 0 a: co m
The schedule for the next oi l change or inspec­
tion is ca lculated automatically and disp layed ac­
cord ingly . T he d isp lay works in two stages:
Service r eminder
30 days before the next service is due, a service
reminder appears in the d isp lay when you turn on
the ignit ion
q fig. 17 .
After about 5 second s the display switches back
to norma l. The distance and time remaining are
updated each time the ignit ion is turned on unt il
the date due for service is reached.
Ser vice due
When the due date for service is reached, the
message
Se rvice due! appears in the instrume nt
cluster immed iately after you turn on the igni­
tion. Additiona lly, a warning tone sounds . After
about 5 seconds the d isplay switches back to nor ­
mal.
Calling up the service schedul es
If or when an oil change or inspection is due, can
be shown in the radio or MMI* d isplay by select­
i ng the service interval d isplay in the ca r menu.
Se lect
I C ARI funct ion but ton > Serv ic e interval
di spla y
or!CAR lfunction button> Ca r sy ste ms*
control b utton > Se rvicing & check s.
Resetting the servic e interval display
Your authorized Audi deale r will reset the corre­
sponding service schedule after performing the
appropria te service on your vehicle. You also have ..,.

M N
0 l­oo
rl I.O
"' N
"' rl
the possibility to reset the oi l change schedu le af ­
ter having performed an oil change according to
Audi specif ications. Select
ICARI function button
> Service interval display > Reset oil change in­
terval
or I CAR ! function button > Car systems*
control button > Servicing & checks > Reset oil
change interval.
(D Note
- Only reset the oil change d isp lay when you
have completed an oil change .
- If you d isconnect the battery terminals, no
calculations can be made for the service in­
terval display during this t ime and no serv­
i ce reminder will appear . Remember that
obse rv in g the proper serv ice intervals is vi­
tally impor tant to extending the life of your
vehicle, particularly the engine, and main­
taining its value. Even if the mi leage driven
i s low, the maximum period of one year
from one service to the next must not be ex­
ceeded.
(D Tips
The information in the Service Reminder re­
mains stored even when the veh icle battery is
disconnected.
On Board Diagnostic
System (OBD)
Malfunction Indicator Lamp (MIL)
The Malfunction Indicator Lamp (MIL) ¢-4 in the
instrument cluster is part of the On-Board Diag ­
nostic (OBD II) system.
The warning/indicator light illuminates when the
ignition is switched on and goes out after the en­
gine starts and the idle has stabilized. This indi­
cates that the MIL is working properly.
If the light does not go out after the engine is
started, or illuminates while you are driving, a malfunct ion may exist in the engine system. If
the light illuminates, the catalytic converter
could be damaged.
Continue driving
with reduced power (avoiding
sustained high speeds and/or rapid accelerations)
Dri ver information system
and have the condition corrected. Contact your
authorized Audi dea ler.
If t he light illuminates, the electronic speed lim­
ite r may also be ma lf u nctioning. For more infor­
mation
¢ page 30, Electronic speed limiter .
An improperly closed fuel filler cap may also
cause the MIL light to illuminate ¢
page 188.
On-Board Diagnostics
Fig. 18 Locat ion of Data Link Connector (DLC)
On-Board D iagnost ics monitors the components
of your emission control system. Each monito red
component in your engine system has been as­
signed a code. In case of a malfunction, the com­
ponent will be ident ified and the fault stored as a
code in the control module memory.
T he MIL light may also illum inate if there is a
leak in the on-board fuel vapo r recovery system .
If the light illuminates after a refueling, stop the
vehicle and make sure the fuel filler cap is prop­
erly closed
¢ page 188.
In order to make an accurate diagnosis, the stor­
ed data can only be displayed using special diag­
nostic equipment (generic scan tool for OBD).
In order to connect the spec ial diagnostic equip­
ment, push the plug into the Data Lin k Connec tor
(DLC). The DLC is located to the right of the hood
release
¢ fig. 18.
Your authorized Audi deale r or qualified work­
shop can interpre t the code and perform the nec-
essary repair. .,,.
29

M N
0 l­oo
rl I.O
"' N
"' rl
the windshield in this a rea in order to
prevent malfunctions or failures .
- Some exterior lighting functions can be ad­
ju ste d
~ page 45 .
-When yo u remove your key from the igni tion
while the vehi cle's ligh ts are turned o n, a
buzzer sounds as long as t he driver 's door is
open.
- In coo l o r dam p weather, t he inside of the
h eadlights, turn sig nals and tail lights can
fog over d ue to the temperature difference
between the inside and outs ide. They will
clea r shortly after switching them on. T his
does not affect t he service li fe of the light­
i ng.
- In the event of a light sensor malfunction,
the driver is not ified in the instr ume nt clus­
te r display~
page 21.
Turn signals and high beam lever
The lever operates the turn signals, the high
b eams and the headlight flasher.
Fi g. 3 8 Tu rn signa l and high beam lever
Turn signals ¢ Q
g N
0
~ CD
The turn signals activate when you move the lev­
er into a turn s ignal position when the ignition is
switched on.
@ -righ t tur n signal
@ -left turn signa l
The turn s ignal b links three times if you just tap
the lever.
High beams and headlight flasher
[0
M ove the lever to the corresponding position:
@ -high beams o n
Lights and Vis ion
@ -high beams off or headlight flasher
T he ind icator light
II in t he inst rument cl uste r
tu rns on.
Notes on these features
- The
turn signals on ly wor k w ith the ign ition
tur ned on. The indicator ligh ts . or
II in the
instr um ent clus ter also b link.
-After you have tu rned a corner, the turn s ignal
sw itches off automatically.
- The
high beam works on ly when the headlights
are on . T he indicator light
II in the instrument
cluste r illuminates whe n the high beams a re
on.
- The
headlight flash er works o nly as long as yo u
hold the leve r - even if there are no lights
sw itched on . The indica to r li ght
II in the in­
s trumen t cluste r ill umin ates when you use t he
head light flasher.
,&. WARNING
D o not use t he h igh beam or hea dlight flashe r
i f you know that these could blind oncoming
traffic.
Adjusting exterior lighting
The func tions are selected in the radio or MMI* .
.,. Select: !CAR I func tion b utton > Exterior light­
ing .
Or
.,. Sele ct: !~C_A _R~ I function b utton > Car systems *
contro l butto n > Vehicle settings > Exterior
lighting .
Coming home (light when leaving car )*,
Leaving home (light when unlocking car)*
The
coming home f u nction illuminates the area
aro und t he vehicle when the ignition is switched
off and the driver's door is opened. Depend ing on
vehicle equipment, the function can be switched o n and off o r the length of t ime t he lig hts rema in
on* can be adjusted .
The
leaving home function illuminates t he area
around th e vehicle when unloc kin g it. This func-
t ion can be switched on and off. ""
45

Lights and Vi sion
The comi ng h ome and leaving h ome fu nctions
only op erat e when it is da rk and the light switch
is in the AUTO position ¢
page 44, fig. 3 7.
Auto headlights*
When the light swit ch is in the A UTO ¢ page 44
posi tion, the sw itch-on po int of the lights can be
changed in the automatic drivi ng light function.
Daytime running lights
USA models :
You can sw itch th e dayt im e running
lights
on and off .
Canada models:
T he function ca nnot be turned
off . It is activated automatically eac h time the ig­
n ition is switched on.
Travel mode*
The headlight beam is asymmetrical. This pro­
vides stronger illum inat ion on the s ide of the
road on wh ich you a re driving. If you are driving
in a cou ntry that drives o n the opposite side of
the road from your own count ry, this will cause
g lare for oncom ing d rive rs. To prevent glare:
- Travel mode must be selected in vehicles with
Xenon headlights* .
- In veh icles with halogen headlights, certain
areas of the headlight lenses must be covered
with waterproof adhesive cove rs that prevent
l igh t from pass ing t hrough . For more informa ­
tion, ple ase see you r autho rized Aud i dea le r or
a ut ho rized repair facility.
When tr ave l mode is activa ted, a display in
t he dr ive r inform ati on system i nd ic ates this
e ach t ime yo u sw itch the ignition o n.
46
Emergency flashers
Fig. 39 Cente r co nsole : em erg en cy flas he r sw itc h
The emergency flashers makes other motorists
aware that you or you r vehicle a re in an emerge n­
cy situat ion .
.. Press the switch~¢
fig. 39 to t urn the emer-
ge ncy flashers on or off.
When the emergency flas hers are on, all fo ur
turn s ignals b link at the same time. The turn sig ­
nal indicator lights
RB i n the instrument clus­
ter, as we ll as the light in the emergency flasher
switch
IA] b link likewise .
You can indicate a lane change or a t urn w hen the
emergency flashers are switched on by using the
turn s ignal leve r. The emergency flashers stop
temporar ily .
The emergency flashers also wo rk when the igni­
tion is turned off.
The emergency flashers w ill tu rn on a utomat ica l­
l y if you a re in a n accident w here the airbag has
deployed .
@ Tips
You should turn on the emergency f lashers
when:
-yo u are the last veh icle standing in a t raff ic
jam so that any othe r vehicles com ing can
see you, or when
- yo ur vehicle has broken dow n or you a re in
an eme rgency s ituation, or when
-yo ur vehicle is be ing towed by a tow tru ck or
if yo u are towing a not her vehicle behind
you.

M N
0 l­oo
rl I.O
"' N
"' rl
Interior lighting
Front/rear interior lights
(• ' .,;,I
~~~
8 8
O. ~O
l
Fig. 40 Front headliner : interior lighting contro ls
Fig. 41 Rear headliner: rear reading lights
@Interior lights
Press the switch c> fig. 40 in the corresponding
position .
0 -Interior lights off
I -Inte rior lights on
If the switch is in the center position, the interior
lighting is controlled automatically.
@ Front /rear reading lights
To turn a reading light on/off, press the button
~ c> fig. 40 or c> fig. 41.
The appearance and location of the rear reading
lights may differ depending on the model.
Lights and Vision
Instrument illumination
The basic brightness of the illumination for the
instruments, the center console and the display
can be adjusted .
Fig. 42 Instrume nt illumination
• Press the knob to re lease it .
.. Turn the knob toward"-" or "+" to reduce or in­
crease the brightness.
• Press the knob again to return it to its original
position .
@ Tips
The instrument illumination (for dials and
needles) lights on when the ignition is switch­
ed on and the vehicle lights are turned off. As
the daylight fades, the illum ination of the di­
als likewise dims automatically and will go
out completely when the outside light is very
low. This feature is meant to remind you to
switch on the headlights when outside light
conditions become poor.
Vision
Adjusting the exterior mirrors
Fig. 43 Drive r's door : knob for the exterio r mir rors
Turn the knob to the desired position:
47

M N
0 l­oo
rl I.O
"' N
"' rl
Adjusting the magnetic zone
Applies to vehicles: with digital compass
The magnetic zone must be adjusted correctly
for the compass to read accurately .
®

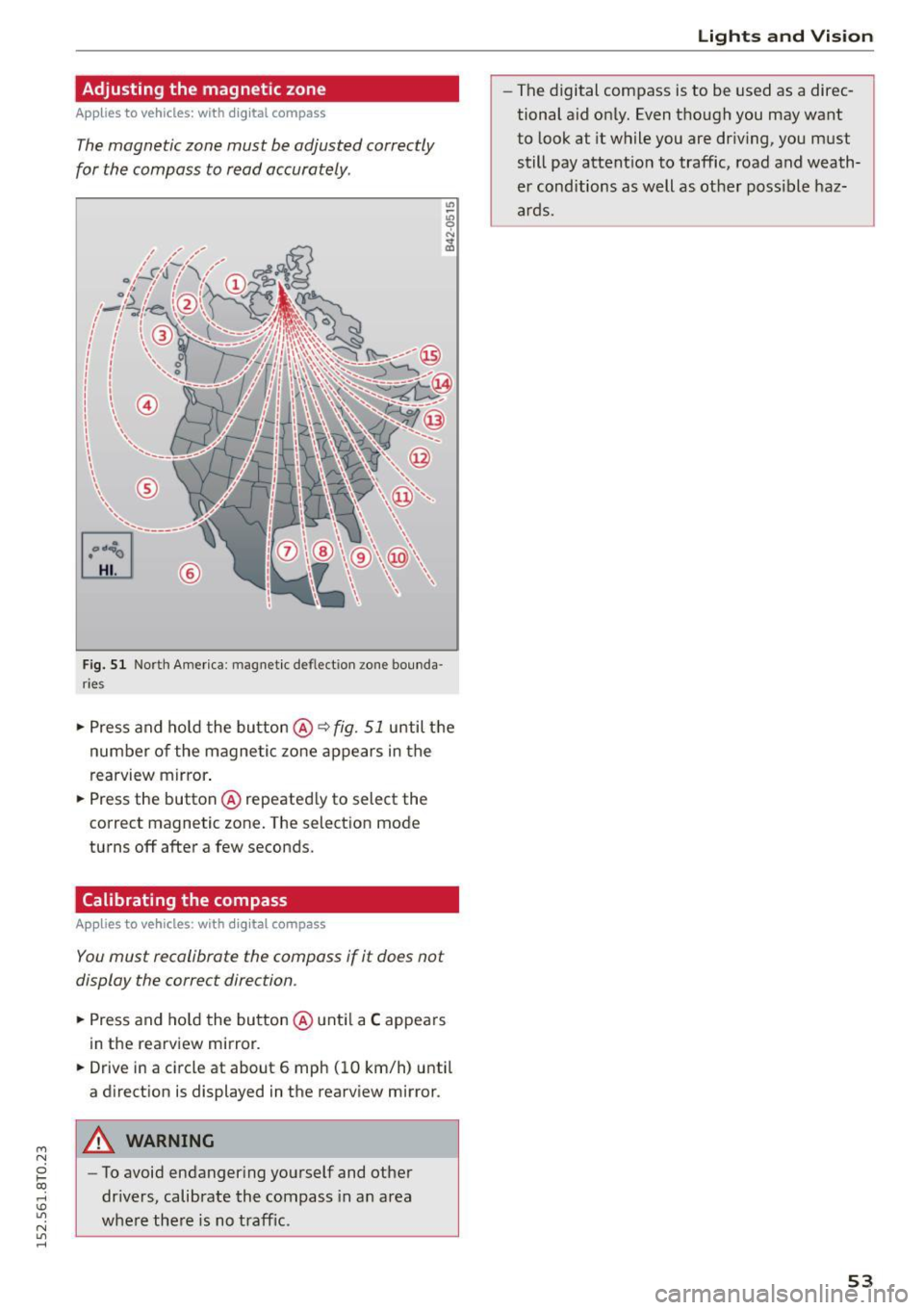

Fig. 51 North America : magnetic de flect io n zone bounda­
r ie s
• Press and ho ld the button @~ fig. 51 until the
number of the magnetic zone appears in the
rearview mirror .
• Press the button @repeatedly to select the
correct magnetic zone. The selection mode
turns off after a few seconds .
Calibrating the compass
Applies to vehicles: with digital compass
You must recalibrate the compass if it does not
display the correct direction .
• Press and hold the button @until a C appears
in the rearview mirror.
• Drive in a circle at about 6 mph (10 km/h) until
a direction is displayed in the rearview mirror .
A WARNING
-To avoid endangering yourself and other
drivers, calibrate the compass in an area
whe re there is no traffic.
Lights and Vision
-The digital compass is to be used as a direc­
tional aid only. Even though you may want
to look at it while you are driving, you must
still pay attention to traffic, road and weath­
er conditions as well as other poss ible haz­
ards.
53
