Driving and th e environment
(D Tips
- Check the depth of the water before driving
through it.
- Do not stop the veh icle, drive in reverse or
switch the engine
off when driving through
water.
- Keep in mind that oncoming vehicles may
create waves that raise the water level and
make it too deep for your vehicle to dr ive
through safely.
- Avoid driving through sa lt water because it
can cause corrosion.
Catalytic converter
It is very important that your emission control
system (catalytic converter) is functioning prop­ erly to ensure that your vehicle is running in an
environmentally sound manner .
~ Always use lead-free gasoline¢ page 186,
Fuel supply .
~ Never run the tank down a ll the way to empty .
~ Never put too much motor oil in your engine
¢ page 195, 9::?1 Adding engine oil .
~ Never try to push- or tow -start your veh icle.
The cata lytic conve rter is an eff icient "clean-up"
dev ice bu ilt into the exhaust system of the vehi­
cle. The cataly tic converter burns many of the
pollutants in the exhaust gas before they are re ­
leased into the atmosphere.
The ex clusive use of u nleaded fuel is critically im­
por tant for the life of the catalyt ic converte r and
p roper functioning o f the engine.
A WARNING ,..___ -
- The temperature of the exhaust system is
high, both when driving and after stopping
the engine.
- Never touch the exha ust tail pipes once they
have become hot. This could result in burns.
- Do not park o r operate the vehicle in areas
whe re the hot exhaust system may come in
contact with dry grass, brush, fue l spill or
other mater ial which can cause a fire.
- Do not apply additional undercoating or
rustproofing on or near the exha ust man i-
178
fold, exha ust pipes, catalytic converter or
heat shields. During driv ing, the substance
used for undercoat ing could overheat and
cause a f ire.
Cl) Note
- Be aware that just one tank fill ing with
le ad·
ed
fue l w ill already ser iously degrade the
performance of the catalytic converter.
- Do not exceed the correct engine oil level
¢page 195.
-Do not drive until the fue l tank becomes
completely empty. The engine co uld m isfire.
Unburned fuel could also get into the ex­
haust system and this could cause the cata­
lyt ic converter to overheat.
- Do not turn
off the ignition while the vehicle
is moving .
- Do not continue to operate your veh icle un­
der these conditions, as otherwise fuel can
reach the catalytic converter . This could re­
sult in overheating of the conve rter, requ ir­
ing its replacement.
- T o assure efficient operation of the Emission
Cont ro l System:
- Have your vehicle maintained properly and
in accordance with the se rvice recommen­
dations in yo ur Warranty
& Maintenance
booklet.
- Lack of proper maintenance as we ll as im­
proper use of the vehicle will impair the
function of the emission control system
and could lead to damage.
(® For the sake of the environment
Even when the Emiss ion C ontrol System is op­
e rat ing proper ly, the exhaust gas can have a
sulfur-like exhaust gas sme ll under some op­
erat ing states. This depends on the sulfur
content of the fuel being used. Us ing a d iffe r­
ent brand of fue l may he lp, or fi llin g the tank
wi th lead-free s uper grade gaso line.
Shutting down vehicle
If you would like you r vehicle to remai n inope ra­
tive for a longer period of time, con tact an Audi
o r other spec ia liz ed dealer. They can adv ise you .,.

Trailer mode
Tire pressure
When tow ing a trailer, inflate the tires of your ve­
hicle to the cold tire pressure listed under " Full
load" on the label located on the driver's side B ­
pillar (visible when the door is open). Inflate
trailer tires to trailer and tire manufacturers'
specifications.
Lights
The headlight settings should be checked with
the trailer attached before driving off . Check to
make sure both vehicle and trailer lights are
working properly.
Safety chains
Be su re trailer safety chains are properly connect­
ed from the trailer to the hitch on the vehicle.
Leave enough slack in the chains to permit turn­
ing corners. When you install safety chains, make
sure they will not drag on the road when you are
driving.
The chains shou ld cross under the trai ler tongue
to prevent it from dropping in case of separation
from the hitch.
Driving instructions
Driving with a trailer always requires extra care
and consideration.
To obtain the best possible handling of vehicle
and trai ler, please note the following:
.. Do not tow a loaded trailer when your car itself
is not loaded .
.. Be especia lly careful when passing other
vehicles.
.. Observe speed limits.
.. Do not drive at the maximum permissible
speed .
.. Always apply brakes early.
.. Monitor the temperature gauge.
Weight distribution
Towing a loaded trai ler with an empty car results
in a highly unstable distribution of weight. If this
cannot be avoided, drive at very low speeds only
to avoid the risk of losing steering control.
182
A "balanced" rig is easier to operate and contro l.
This means that the tow vehicle shou ld be loaded
to the extent possible and permissib le, wh ile
keep ing the trailer as light as possible under the
c ir cumstances. Whenever poss ible, transfer
some cargo to the luggage compartment of the
tow veh icle while observing tongue load require­
ments and vehicle load ing considerat ions .
Speed
The higher the speed, the more difficult it be­
comes for the driver to control the rig. Do not
drive at the maximum permissible speed. Reduce
your speed even more if load, weather or w ind
cond it ions are unfavorab le - particularly when
go ing downh ill.
Reduce veh icle speed
immediately if the trailer
shows the slightest sign of swaying.
Do not try
to stop the swaying by accelerating.
Observe speed limits. In some areas, speeds for
vehicles towing tra ilers are lower than for regular
vehicles.
Always apply brakes early. When dr iving down­
hill, shift into a lower gear to use the engine
braking effect to slow the vehicle. Use of the
brakes alone can cause them to overheat and fail.
Coolant temperature
The coolant temperature gauge¢ page 10 must
be observed carefully. If the needle moves close
to the upper end of the scale, reduce speed im­
med iately and/or turn off the air conditioner .
If the coolant temperature warning light . in
the instrument cluster starts flashing, pull off
the road, stop and let the engine
idle for about
two m inutes to prevent heat build-up .
&_ WARNING
Anyone not properly restrained in a moving
vehicle is at a much greater risk in an acci­
dent. Never let anyone ride in your car who is
not properly wearing the restraints provided
by Audi.
-

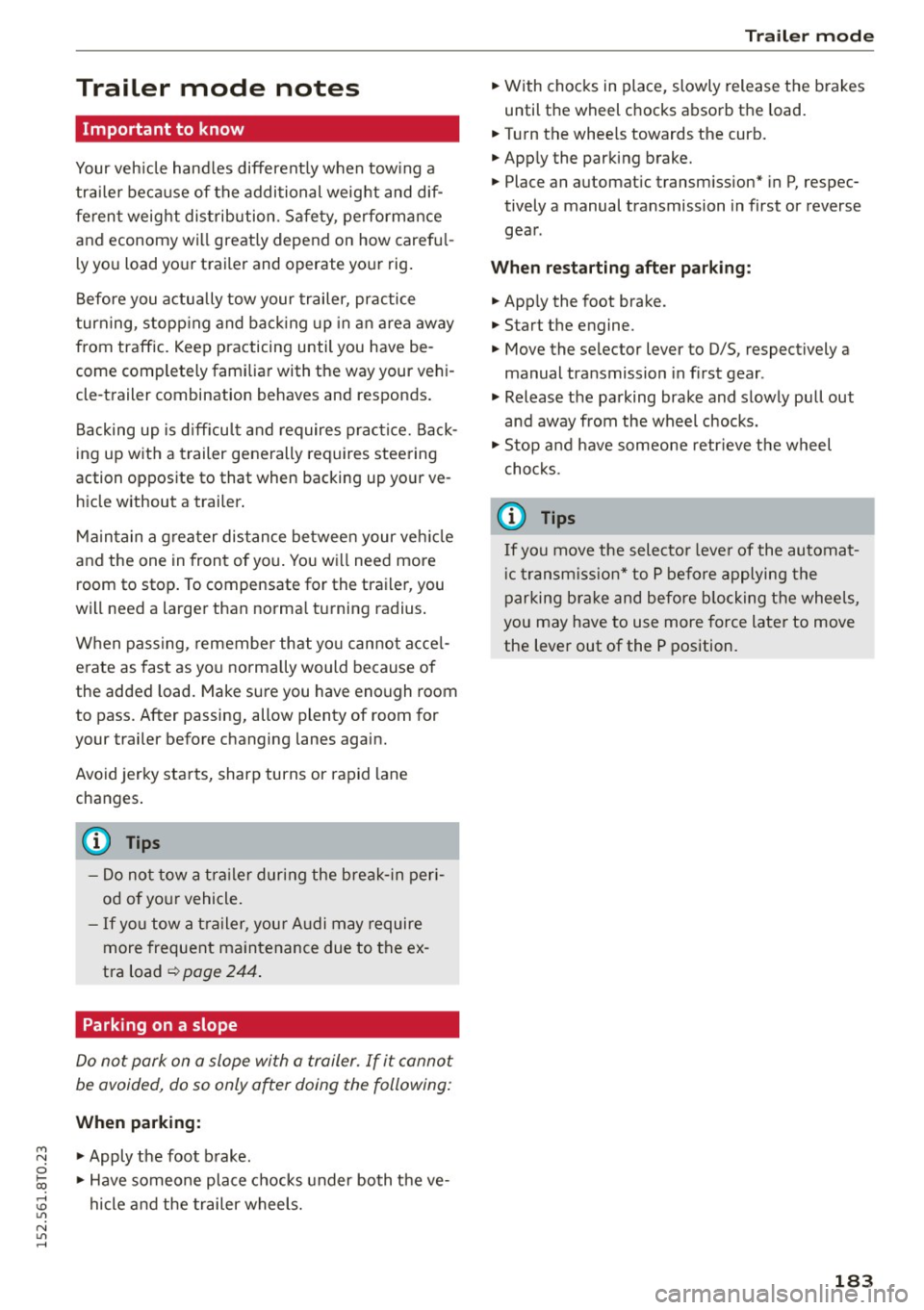

Trailer mode notes
Important to know
Your vehicle hand les differently when tow ing a
trailer because of the additional weight and dif­
ferent weight distribution. Safety, performance
and economy will greatly depend on how careful­
ly you load your trailer and operate your rig.
Before you actually tow your trailer, practice
turning, stopping and backing up in an area away
from traffic. Keep practicing until you have be­
come completely familiar with the way your vehi­
cle-trailer combination behaves and responds.
Backing up is difficult and requires practice. Back­
ing up with a trailer generally requires steering
action opposite to that when backing up your ve­ hicle without a trailer .
Maintain a greater distance between your vehicle
and the one in front of you. You wi ll need more
room to stop. To compensate for the trailer, you
will need a larger than normal turning radius.
When passing, remember that you cannot acce l­
erate as fast as you normally would because of
the added load. Make sure you have enough room
to pass. After passing, allow plenty of room for
your trailer before changing lanes again.
Avoid jerky starts, sharp turns or rapid lane
changes.
(D Tips
- Do not tow a trailer during the break-in peri­
od of your vehicle.
- If you tow a trailer, your A udi may require
more frequent maintenance due to the ex­
tra load
¢ page 244 .
Parking on a slope
Do not park on a slope with a trailer. If it cannot
be avoided, do so only after doing the following:
When parking:
~ .. Apply the foot brake.
~ .. Have someone place chocks under both the ve-
~ hide and the trailer wheels . ..,.,
N ..,., ,....,
Trailer mode
.. With chocks in place, slowly release the brakes
until the wheel chocks absorb the load.
.. Turn the whee ls towards the curb .
.. App ly the parking brake.
.. Place an automatic transmission* in P, respec­
tively a manual transmission in first or reverse
gear .
When restarting after parking:
.. App ly the foot brake.
.. Start the engine.
.. Move the selector lever to D/S, respectively a
manual transmission in first gear .
.. Release the parking brake and slowly pull out
and away from the wheel chocks.
.. Stop and have someone retr ieve the wheel
chocks .
(D Tips
If you move the selector lever of the automat­
ic transmission* to P before applying the
parking brak e and before blocking the wheels,
you may have to use more force later to move
the lever out of the P position.
183

Care and cleaning
Care and cleaning
General information
Regular, proper care he lps to maintain your vehi ­
cle's value.
It can also be a requirement when
submitting warranty claims for corrosion damage
and paint defects on the body.
The necessary care products can be obtained
from your authorized Audi dealer . Read and fol­
low the instructions for use on the packaging.
A WARNING
-Using cleaning and care products incorrectly
can be dangerous to your health.
- Always store cleaning and care products out of reach of children to reduce the risk of poi­
soning .
@ For the sake of the environment
-Preferably use environmentally-friendly
products when buying cleaning agents.
- Do not dispose of leftover cleaning and care
products with household trash .
Car washes
The longer that deposits remain on the vehicle,
the more the surface may be damaged. High
temperatures such as those caused by sunlight
increase the damaging effect.
Before washing, rinse
off heavy deposits with
p lenty of water.
Stubborn deposits such as bird dropp ings or tree
sap are best removed with plenty of water and a
microfiber cloth .
A ls o, wash the underside of your veh icle once
road salt stops be ing used for the season .
Pressure washers
When washing your veh icles with a pressure
washer, always follow the operating instructions
provided with the pressure washer. This is espe­
cially important in regard to the p ressure and
spray ing distance. Do not aim the spray directly
at seals on side windows, doors, the hood, the
rear lid or the sunroof* or at tires, rubber hoses,
184 insulating
material, sensors* or camera lenses*.
Keep a distance of at least 16 inches (40 cm).
Do not remove snow and ice with a pressure
washe r.
Never use rotary nozzles or high pressure noz­
zles.
The water temperature must not be above 140 °F
(60 °() .
Automatic car washes
Spray off the vehicle before washing.
Make sure that the w indows and roof* are closed
and the windshie ld wipers are off. Follow instruc­
tions from the car wash operator, especially if
there are accessories attached to your vehicle.
If possible, use car washes that do not have
brushes.
Washing by hand
Clean the veh icle starting from the top and work­
i ng down using a soft sponge or cleaning b rush .
Use solvent-free cleaning p roducts.
Washing vehicles with matte finish paint by
hand
To avoid damaging the paint when washing, first
remove dust and large particles from your vehi­
cle. Insects, grease spots and fingerprints are
best removed with a special cleaner for matte
finish paint.
Apply the p roduct using a microfiber cloth. To
avoid damaging the paint surface, do not use too
much pressure.
Rinse the ve hicle thoroughly with water. Then
clean using a neutra l shampoo and a soft micro­
fiber cloth .
Rinse the veh icle thoroughly again and let it air
dry. Remove any water residue using a shammy.
A WARNING
-On ly wash the vehicle when the ignition is
off and follow the instructions from the car
wash operator to reduce the risk of acc i­
dents.
-

also reduces fuel efficiency and tire tread life,
and may affect the vehicle's handling and stop­
ping ability .
Please note that the TPMS is not a substitute for
proper tire maintenance, and it is the driver's re­
sponsibility to maintain correct tire pressure,
even if under-inflation has not reached the level
to trigger illumination of the TPMS low tire pres­
sure telltale.
Your vehicle has also been equipped with a TPMS malfunction indicator to indicate when the sys­
tem is not operating properly. The TPMS mal­
function indicator is combined with the low tire pressure telltale . When the system detects a
malfunct ion, the telltale will flash for approxi­
mately one minute and then remain continuously
illuminated. This sequence will continue upon
subsequent veh icle start-ups as long as the mal­
function exists.
When the malfunction indicator is illuminated,
the system may not be able to detect or signal
low tire pressure as intended. TPMS malfunctions
may occur for a variety of reasons, including the
installation of replacement or alternate tires or
wheels on the vehicle that prevent the TPMS
from functioning properly. Always check the
TPMS malfunction telltale after replacing one or more tires or wheels on your vehicle to ensure
that the replacement or alternate tires and
wheels allow the TPMS to continue to function properly.
Wheels
If the Tire Pressure Monitoring System
indicator appears
Appl ies to vehicles : wi th t ir e p ress ure mo nito rin g system
The tire pressure indicator in the instrument
cluster informs you if the tire pressure is too low
or if there is a system malfunction.
Fig. 172 Instrument cluster: i ndicator light with message
Using the ABS sensors, the tire pressure monitor­
ing system compares the tire tread circumference
and vibration characteristics of the individual
tires .
If the pressure changes in one or more
tires, this is indicated in the instrument cluster
display with an indicator light
[I] and a message .
If only one tire is affected, the location of that
tire will be indicated .
The tire pressures must be stored in the Infotain­
ment system again each time the pressures
change (switching between partial and full load
pressure) or after changing or replacing a tire on
your vehicle ¢
page 224. The tire pressure moni­
toring system only monitors the tire pressure you have stored. Refer to the tire pressure label for
the recommended tire pressure for your vehicle
r=> page215, fig.171.
Tire tread circumference and vibration character­
istics can change and cause a tire pressure warn­
ing if:
- the tire pressure in one or more tires is too low .
- the tire has structural damage.
- the tir e was replaced or the tire pressure was
changed and it was not stored ¢
page 224.
-the spare t ire* is installed.
Indicator lights
[I] Loss of pressure in at least one tire¢.& .
Check the tires and replace or repair if necessary .
liJJ,-
223

M N
i? co ,...., \!) 1.1'1
N 1.1'1 ,....,

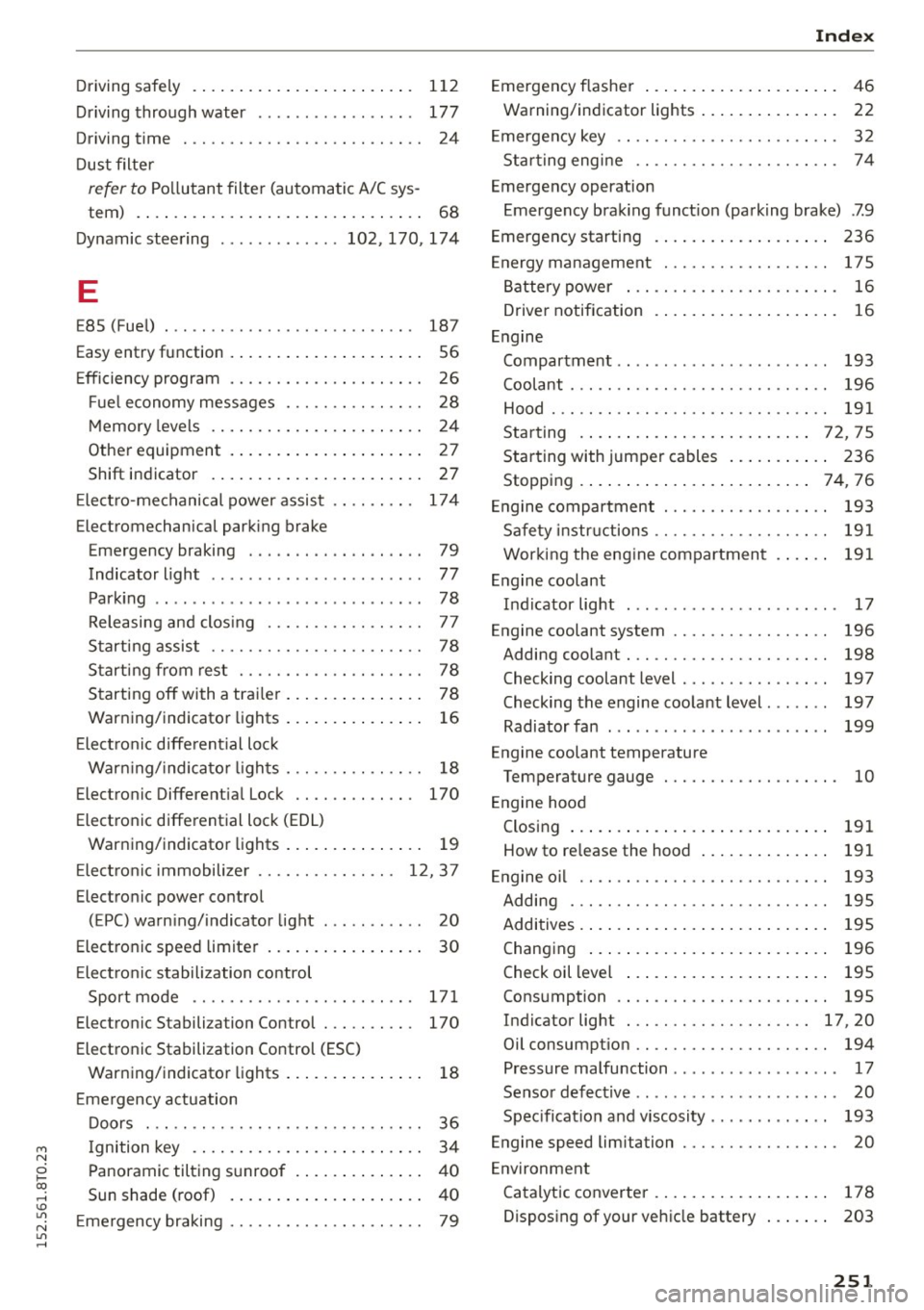

Driving safe ly . ..... .... ... .. .. .. .. ... 112
D riving through water . . . . . . . . . . . . . . . . . 177
Driving time . . . . . . . . . . . . . . . . . . . . . . . . . . 24
D ust filter
refer to Po llutant filte r (automa tic A/C sys-
tem) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68
D ynamic stee ring . ...... .... .. 102,170 ,174
E
E85 ( Fue l) . . . . . . . . . . . . . . . . . . . . . . . . . . . 187
Easy entry function . . . . . . . . . . . . . . . . . . . . . 56
E ffi ciency program . . . . . . . . . . . . . . . . . . . . . 26
Fu el economy messages . . . . . . . . . . . . . . . 28
M emory leve ls . . . . . . . . . . . . . . . . . . . . . . . 24
Other equipment . . . . . . . . . . . . . . . . . . . . . 27
Shift indicator . . . . . . . . . . . . . . . . . . . . . . . 27
E lect ro-me chanical power assist . . . . . . . . . 17 4
Electromechanical park ing brake
Emergency braking . . . . . . . . . . . . . . . . . . . 79
Indicator light . . . . . . . . . . . . . . . . . . . . . . . 77
Par king . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78
Releasing and clos ing . . . . . . . . . . . . . . . . . 77
S tart ing assist . . . . . . . . . . . . . . . . . . . . . . . 78
S tarting from rest . . . . . . . . . . . . . . . . . . . . 78
Starting off with a tra ile r. .. .. .. .. .. .... 78
War ning/indicator lights . . . . . . . . . . . . . . . 1 6
E lect ro ni c diffe rent ial loc k
War ning/ indica to r li ghts . . . . . . . . . . . . . . . 18
Electro nic Different ia l Lock . . . . . . . . . . . . . 170
Electronic different ial lock (EDL)
War ning/indicato r lights . . . . . . . . . . . . . . . 1 9
E le ctr onic immobili ze r . . . . . . . . . . . . . . . 12 , 37
Electronic power co ntrol
(EPC) warn ing/indicator light . . . . . . . . . . . 20
Elect ro nic speed limite r . . . . . . . . . . . . . . . . . 30
E lect ro ni c stabilization co ntrol
Sport mode . . . . . . . . . . . . . . . . . . . . . . . . 17 1
Electro nic Stabiliza tion Control . . . . . . . . . . 170
Electro nic Stabilization Control (ESC)
War ning/indicator lights . . . . . . . . . . . . . . . 1 8
E me rgency a ctuation
D oors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
I gnition key . . . . . . . . . . . . . . . . . . . . . . . . . 34
Panoramic tilting s unroof . . . . . . . . . . . . . . 4 0
Sun shade ( roof) . . . . . . . . . . . . . . . . . . . . . 4 0
Eme rgency braking . . . . . . . . . . . . . . . . . . . . . 79
Index
E mergency flashe r . . . . . . . . . . . . . . . . . . . . . 46
Warning/indicator lights . . . . . . . . . . . . . . . 22
E mergency key . . . . . . . . . . . . . . . . . . . . . . . . 32
Sta rting engi ne . . . . . . . . . . . . . . . . . . . . . . 74
Emergency operation Emergency brak ing funct ion (park ing brake) .7 .9
Emergency starting . . . . . . . . . . . . . . . . . . . 236
E nergy ma nagement . . . . . . . . . . . . . . . . . . 175
B attery power . . . . . . . . . . . . . . . . . . . . . . . 16
D rive r notification . . . . . . . . . . . . . . . . . . . . 16
E ngine
Compartment . . . . . . . . . . . . . . . . . . . . . . . 193
Coolant . . . . . . . . . . . . . . . . . . . . . . . . . . . . 196
Hood . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 191
Star ting . . . . . . . . . . . . . . . . . . . . . . . . . 72, 75
S tarting with jumper cables . . . . . . . . . . . 2 36
Stoppi ng . . . . . . . . . . . . . . . . . . . . . . . . . 7 4, 76
En gine compartmen t . . . . . . . . . . . . . . . . . . 193
Safety i nstr uctions............. .. .. .. 191
Wor king the eng ine compartmen t . . . . . . 191
En gine coolant
I n dicator light . . . . . . . . . . . . . . . . . . . . . . . 17
Engine coolant system . . . . . . . . . . . . . . . . . 196
Adding coolant . . . . . . . . . . . . . . . . . . . . . . 198
Checking coolant level . . . . . . . . . . . . . . . . 197
Checking the engine coo la nt level . . . . . . . 197
Radiator fan . . . . . . . . . . . . . . . . . . . . . . . . 199
Engine coolant temperature Temperature gauge . . . . . . . . . . . . . . . . . . . 10
E ngine hood
Closing . . . . . . . . . . . . . . . . . . . . . . . . . . . . 191
How to re lease the hood . . . . . . . . . . . . . . 191
En gine o il . . . . . . . . . . . . . . . . . . . . . . . . . . . 193
Adding . . . . . . . . . . . . . . . . . . . . . . . . . . . . 195
Addi tives. ..... .. .. ... .. ..... ... .. .. 195
Changing . . . . . . . . . . . . . . . . . . . . . . . . . . 196
Check oil level . . . . . . . . . . . . . . . . . . . . . . 195
Consumption . . . . . . . . . . . . . . . . . . . . . . . 195
Indicator light . .. ... .......... .. .. 17, 20
Oil consumpt io n . . . . . . . . . . . . . . . . . . . . . 194
Pressure malfunction . . . . . . . . . . . . . . . . . . 17
Senso r defect ive . . . . . . . . . . . . . . . . . . . . . . 20
Spec ificat io n and viscosity . . . . . . . . . . . . . 193
Engine speed limitation . . . . . . . . . . . . . . . . . 20
E nvironment
C atalytic converter . . . . . . . . . . . . . . . . . . . 178
Dispos ing of your veh icle battery . . . . . . . 203
251

Selective unlock feature . . . . . . . . . . . . . . . . . 36
Selector lever . . . . . . . . . . . . . . . . . . . . . . . . . 83
E mergency release . . . . . . . . . . . . . . . . . . . . 88
Selector lever emergency release . . . . . . . . . 88
Service and disposal Safety belt pretensioner . . . . . . . . . . . . . . 127
Service interval display . . . . . . . . . . . . . . . . . . 28
Service position
refer to Replacing wiper blades . . . . . . . . . 51
SE T button . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Shift indicator (efficiency program) . . . . . . . . 27
Shutting down vehicle . . . . . . . . . . . . . . . . . 178
Side airbags
Description . . . . . . . . . . . . . . . . . . . . . . . . . 145
How they work . . . . . . . . . . . . . . . . . . . . . . 147
side assist Adjusting the brightness . . . . . . . . . . . . . . 100
Sensor range . . . . . . . . . . . . . . . . . . . . . . . . 99
Side assist Activating and deactivating . . . . . . . . . . . . 100
Description . . . . . . . . . . . . . . . . . . . . . . . . . . 98
Side curtain airbags . . . . . . . . . . . . . . . . . . . 148
Description . . . . . . . . . . . . . . . . . . . . . . . . . 148
How they work . . . . . . . . . . . . . . . . . . . . . . 149
Safety instructions . . . . . . . . . . . . . . . . . . . 150
Side marker lights . . . . . . . . . . . . . . . . . . . . .
44
Ski sack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65
Snow chains . . . . . . . . . . . . . . . . . . . . . . . . . 220
Sound system display . . . . . . . . . . . . . . . . . . . 23
Sources of information about child restraints
and the ir use . . . . . . . . . . . . . . . . . . . . . . . . . 168
Spare tire . . . . . . . . . . . . . . . . . . . . . . . . . . . . 225
Speedometer . . . . . . . . . . . . . . . . . . . . . . . . . 12
Speed warn ing system . . . . . . . . . . . . . . . . . . 79
Sport differential . . . . . . . . . . . . . . . . . . . . . 102
Indicator lamp . . . . . . . . . . . . . . . . . . . . . . . 22
START ENGINE STOP button (convenience
key) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76
START ENGINE STOP button (Convenience key) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75
Starting from rest . . . . . . . . . . . . . . . . . . . . . . 78
Starting off with a trai ler . . . . . . . . . . . . . . . . 78
~ Start ing the engine . . . . . . . . . . . . . . . . . 72, 75
i? co ,...., \!) 1.1'1
N 1.1'1 ,....,
Index
Steering
Locking the steering . . . . . . . . . . . . . . . . . . 72
also refer to Electro-mechan ical power as-
sist .. .... .... .. ............. .... .. 174
Steering wheel Adjusting steering column . . . . . . . . . . . . . 72
Indicator light ... ................ 18, 174
Steps for determin ing correct load limit . . . 219
Stopping the engine . . . . . . . . . . . . . . . . . 74, 76
Storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60
Storage compartments . . . . . . . . . . . . . . 61, 66
S tronic . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82
Selector lever . . . . . . . . . . . . . . . . . . . . . . . . 83
S tronic transmission
Emergency release . . . . . . . . . . . . . . . . . . . . 88
Launch Control Program . . . . . . . . . . . . . . . 87
Sunroof
refer to Panoramic tilting sunroof . . . . . . . 40
Sun shades
Emergency closing (roof) . . . . . . . . . . . . . . .
40
Rear window . . . . . . . . . . . . . . . . . . . . . . . . . 49
Sun visors . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
Symbols
refer to Warning/indicator lights . . . . . . . . 13
T
Tachometer . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Technical data . . . . . . . . . . . . . . . . . . . . . . . . 241
T echnical modifications . . . . . . . . . . . . . . . . 246
Tether anchors . . . . . . . . . . . . . . . . . . . . . . . 166
Tether strap . . . . . . . . . . . . . . . . . . . . . . . . . 166
Tie-downs ...... .. ............. ... 65, 119
tiptronic . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82
Automatic Shift Lock (ASL) . . . . . . . . . . . . . 84
Driving . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 84
Emergency mode . . . . . . . . . . . . . . . . . . . . . 87
Kick-down . . . . . . . . . . . . . . . . . . . . . . . . . . . 87
Manual shift program . . . . . . . . . . . . . . . . . 86
Selector lever . . . . . . . . . . . . . . . . . . . . . . . . 83
Tires ........ ... .. .. ................. 205
Low aspect ratio tires . . . . . . . . . . . . . . . . . 221
Replac ing . . . . . . . . . . . . . . . . . . . . . . . . . . 226
Service life . ... .. .. .............. ... 213
Tire pressure . . . . . . . . . . . . . . . . . . . . 215, 224
Tire pressure monitoring system . . . 222, 223
Tire pressure table . . . . . . . . . . . . . . . . . . . 216
257
