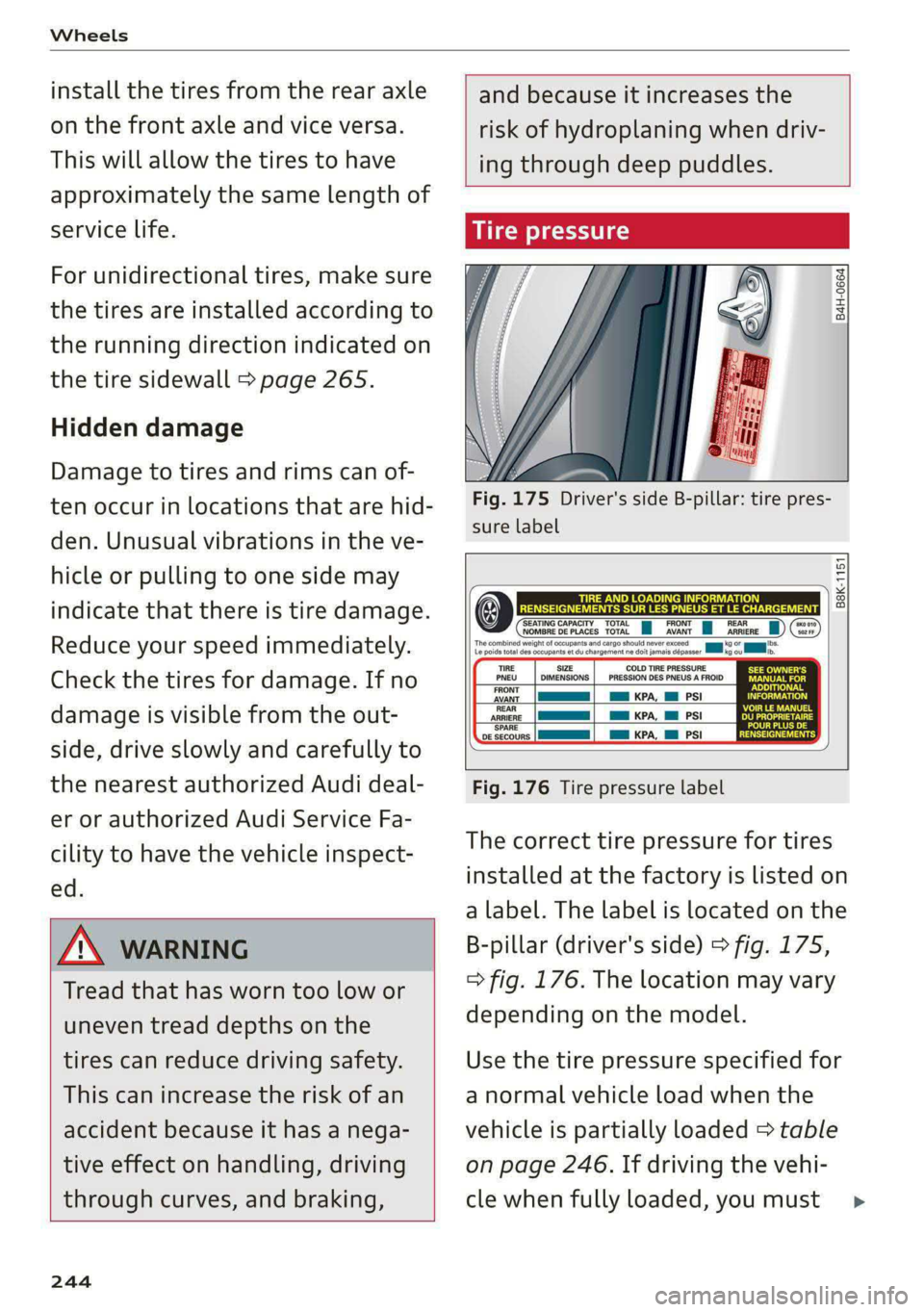

Wheels

install the tires from the rear axle
on the front axle and vice versa.
This will allow the tires to have
approximately the same length of
service life.
For unidirectional tires, make sure
the tires are installed according to
the running direction indicated on
the tire sidewall > page 265.
Hidden damage
Damage to tires and rims can of-
ten occur in locations that are hid-
den. Unusual vibrations in the ve-
hicle or pulling to one side may
indicate that there is tire damage.
Reduce your speed immediately.
Check the tires for damage. If no
damage is visible from the out-
side, drive slowly and carefully to
the nearest authorized Audi deal-
er or authorized Audi Service Fa-
cility to have the vehicle inspect-
ed.

Z\ WARNING
Tread that has worn too low or
uneven tread depths on the
tires can reduce driving safety.
This can increase the risk of an
accident because it has a nega-
tive effect on handling, driving
through curves, and braking,

244

and because it increases the
risk of hydroplaning when driv-
ing through deep puddles.


Tire pressure


B4H-0664
Driver's side B-pillar: tire pres- Fig. 175
sure label


B8K-1151
‘SEATING CAPACITY TOTAL JOMBRE DE PLACES TOTAL FRONT, AVANT TEAR
ae
7s or ns
size COLD TIRE PRESSURE
DIMENSIONS | _ PRESSION DES PNEUS A FROID
a KPA, Ml PSI
a KPA, Ml PSI
Ha KPA, MM PSI
PNEU
FRONT
AVANT
REAR
ARRIERE
‘SPARE
DE SECOURS






Fig. 176 Tire pressure label
The correct tire pressure for tires
installed at the factory is listed on
a label. The label is located on the
B-pillar (driver's side) > fig. 175,
> fig. 176. The location may vary
depending on the model.
Use the tire pressure specified for
a normal vehicle load when the
vehicle is partially loaded > table
on page 246. If driving the vehi-
cle when fully loaded, you must >
