AUDI A5 2021 Owners Manual

8W7012721BB
Sitting correctly and safely

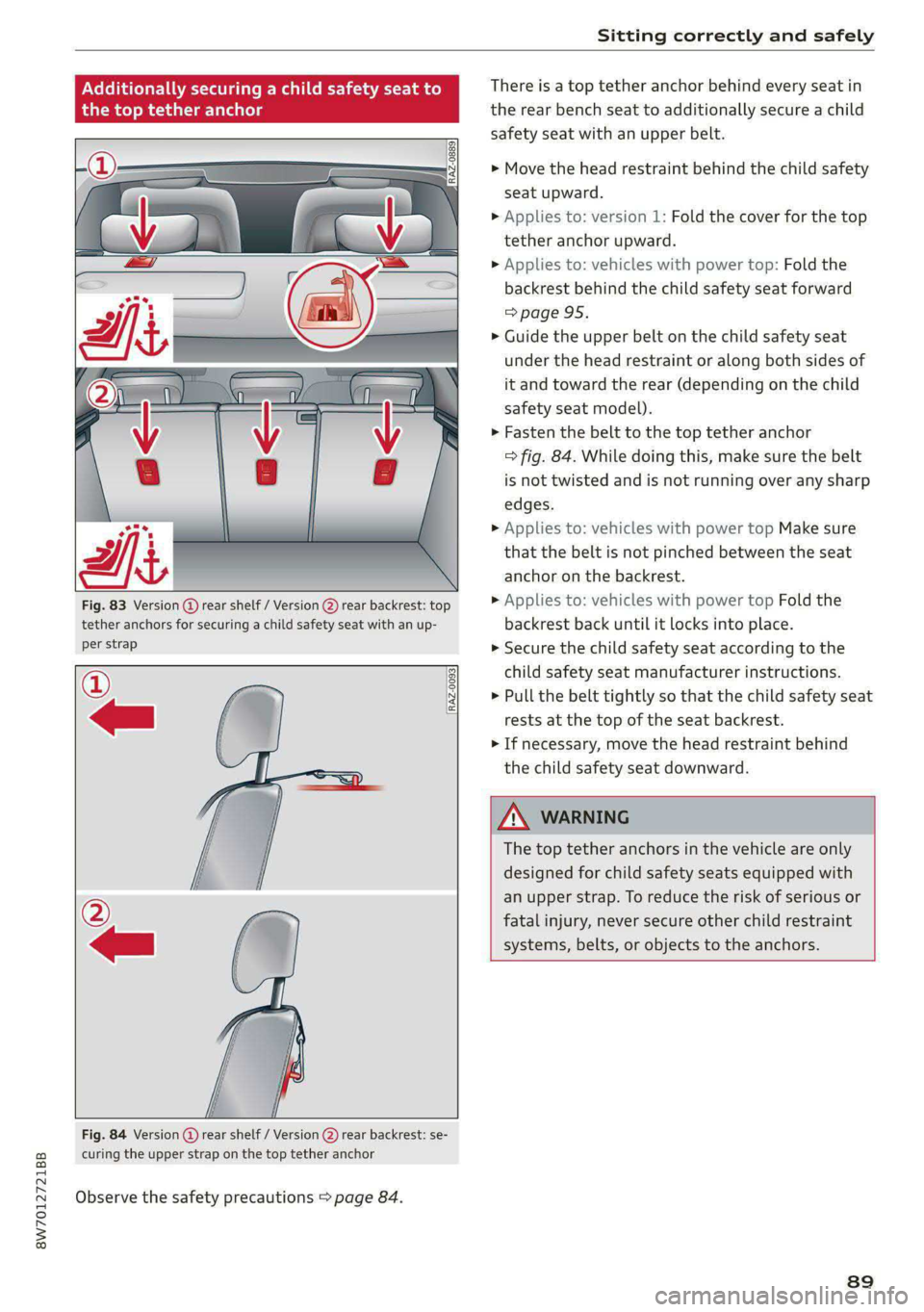

Fig. 83 Version @) rear shelf / Version @) rear backrest: top
tether anchors for securing a child safety seat with an up-
per strap



RAZ-0093


Fig. 84 Version @ rear shelf / Version @) rear backrest: se-
curing the upper strap on the top tether anchor
Observe the safety precautions > page 84.
There is a top tether anchor behind every seat in
the rear bench seat to additionally secure a child
safety seat with an upper belt.
> Move the head restraint behind the child safety
seat upward.
>» Applies to: version 1: Fold the cover for the top
tether anchor upward.
> Applies to: vehicles with power top: Fold the
backrest behind the child safety seat forward
=> page 95.
> Guide the upper belt on the child safety seat
under the head restraint or along both sides of
it and toward the rear (depending on the child
safety seat model).
> Fasten the belt to the top tether anchor
=> fig. 84. While doing this, make sure the belt
is not twisted and is not running over any sharp
edges.
> Applies to: vehicles with power top Make sure
that the belt is not pinched between the seat
anchor on the backrest.
> Applies to: vehicles with power top Fold the
backrest back until it locks into place.
>» Secure the child safety seat according to the
child safety seat manufacturer instructions.
> Pull the belt tightly so that the child safety seat
rests at the top of the seat backrest.
> If necessary, move the head restraint behind
the child safety seat downward.


The top tether anchors in the vehicle are only
designed for child safety seats equipped with
an upper strap. To reduce the risk of serious or
fatal injury, never secure other child restraint
systems, belts, or objects to the anchors.

89

Sitting correctly and safely

Securing unused safety belts o
Ke ¥
bench seat

N\A
wl me el SSOS*«sTS
c= Ll!
Fig. 85 Rear bench seat: securing unused safety belts


If a child safety seat is used on the rear bench
seat, the child must not be able to reach any
safety belts that are not being used. Secure safe-
ty belts that are within reach of the child.
> If you secure a child safety seat to the LATCH
anchors, fasten the safety belt on the seat
where the child safety seat is installed using
the seat's safety belt latch.
> Applies to: Sportback: If you secure a child
safety seat on one of the outer seats, fasten the
safety belt for the center seat in its latch.
> Activate the belt retractor lock on the fastened
safety belts. To do this, pull the upper belt out
completely and then allow it to retract. You will
hear a clicking sound while the belt is retract-
ing. It will not be possible to pull the safety
belt out any farther.
> Make sure the fastened safety belt does not
block access to the LATCH anchors. Otherwise,
it may not be possible to secure the child safety
seat to the LATCH anchors correctly.


A child in a child safety seat could play with
the unused safety belts and then become en-
tangled in them, which increases the risk of
fatal injury. Always secure unused safety belts
so that they are not within reach of children in
child safety seats.

90

8W7012721BB
Storage and convenience

Storage and convenience
Power sources
When the ignition is switched on, you may be
able to use multiple power sources for external
devices, depending on the vehicle equipment.
12 volt sockets
You can connect electrical accessories to the 12
volt sockets. The power usage from the sockets
must not exceed a total of 120 watts. Do not
connect multiple devices to the sockets in the ve-
hicle at the same time.
The 12 volt sockets are labeled with the 12V
symbol. They are located in the front center con-
sole, in the rear* and on the side trim panel in the
luggage compartment*.
USB ports
Applies to: vehicles with USB port
You can charge mobile devices using the USB
ports. The USB ports are labeled with the «<> or
[4 symbol or CHARGE ONLY.


ZA WARNING
—To reduce the risk of fatal injury, store all
connected devices securely when driving so
that they do not move around inside the ve-
hicle when braking or in the event of an acci-
dent.
— Incorrect usage can lead to serious injuries
or burns. To reduce the risk of injuries, never
leave children unattended in the vehicle
with the vehicle key.

@) Note
— Read the operating manuals for the con-
nected devices.
—To reduce the risk of damage to the vehicle
electrical system, never attempt to charge
the vehicle battery by connecting accesso-
ries that provide power to the power sour-
ces.
— Do not connect any device whose network
class (voltage) does not match the network
class designed for the socket.
— Disconnect the connectors from the power
sources carefully to reduce the risk of dam-
aging them.
G) Tips
Do not connect any other devices to the sock-
ets when using the compressor* provided by
the factory > page 274. The power consump-
tion in the sockets may be temporarily ex-
ceeded when using the compressor*.
Cup holders
Applies to: vehicles with cup holders
= e
= s 8

Fig. 86 Rear center armrest*: cup holders
Depending on vehicle equipment, your vehicle
may have cup holders in the front center console,
in the center of the rear bench seat, or in the rear
center armrest as well as on the right and left
side in the rear.
Cup holders in the rear center armrest*
> Fold the center armrest* downward.
> To open the cup holders, pull the top cover on
the cup holders forward > fig. 86.
> To close the cup holder, fold the cover back un-
til it clicks into place.

ZA\ WARNING
— Do not put any hot beverages in the cup
holder while the vehicle is moving. Hot bev-
erages could spill, which increases the risk
of injury.
— Do not use any breakable beverage contain-
ers (for example, made out of glass or por-
celain). You could be injured by them in the
event of an accident. >


91

Storage and convenience

@) Note
Beverage containers in the cup holders should
always
have a lid. Otherwise, the liquid inside
could spill and cause damage to vehicle
equipment.
Storage and
compartments
Storage area behind the rear head
eel)
Applies to: vehicles with storage area behind the rear head re-
straints
The storage area can be used to carry light pieces
of clothing.

ZA WARNING
The storage compartment must not be used
to transport heavy objects, hard objects, or
animals. Such objects endanger vehicle occu-
pants and increase the risk of injury during
sudden driving or braking maneuvers or in an
accident.
@) Note
Make sure that the heating grid strips for the
rear window defogger are not damaged by
abrasive objects.
@ Tips
To ensure the ventilation functions correctly,
the ventilation slots between the rear window
and the storage area must not be covered.
Additional storage options
Depending on vehicle equipment, there are a va-
riety of storage areas, compartments, and retain-
ers, such as the glove compartment, for safely
storing and securing objects.

Z\ WARNING
—To reduce the risk of injury, make sure all
storage compartments are always closed
while driving.
— Loose objects can be thrown around the ve-
hicle interior during sudden driving or brak-

92

ing maneuvers, which increases the risk of
an accident. Store objects securely while
driving.
— Only use the storage compartments in the
door trim panels to store small objects that
will not stick out of the compartment and
impair the function of the side airbags.
— Due to strength reasons, only secure objects
up to 11 lbs (5 kg) with the straps* in the
luggage compartment. Heavier objects are
not adequately secured. There is risk of per-
sonal injury.
— Only lightweight clothing should be hung
from the garment hooks in the vehicle. Do
not use clothes hangers to hang clothing.
The pockets of the clothing must not con-
tain any heavy, breakable, or sharp-edged
objects. This could impair the effectiveness
of the side curtain airbags.
— Make sure your view toward the rear is not
blocked, for example by hanging clothing or
objects in the vehicle.

Luggage compartment
General information
All pieces of luggage or objects must be securely
fastened in the luggage compartment. Note the
following to maintain good vehicle handling:
> Distribute the load evenly in the luggage com-
partment.
> Stow heavy luggage as far forward in the lug-
gage compartment as possible.
> Use non-elastic cords attached to the tie-downs
to secure objects.

ZA\ WARNING
— Applies to: vehicles with luggage compart-
ment cover: The luggage compartment cov-
er is not a surface for storing objects. Ob-
jects placed on the cover increase the risk of
injury to all vehicle occupants during sudden
driving or braking maneuvers or in the event
of an accident.

8W7012721BB
Storage and convenience



— Applies to: vehicles with luggage compart-
ment cover: The luggage compartment cov-
er must always be securely fastened when in
use to reduce the risk of an accident.
— Loose objects can be thrown around the ve-
hicle interior during sudden driving or brak-
ing maneuvers, which increases the risk of
an accident. Always stow objects securely in
the luggage compartment and secure them
at the tie-downs. Use straps suitable for
heavy objects.
— If pieces of luggage or objects are secured
to the tie-downs with unsuitable or dam-
aged straps, this can increase the risk of in-
jury during braking maneuvers or accidents.
— When transporting heavy objects, the vehi-
cle characteristics will change due to the
shift in the center of gravity, which increases
the risk of an accident. You may need to
adapt your driving style and speed to the
current conditions.
— The cargo net* is only strong enough to se-
cure light objects. Heavy objects are not ade-
quately secured. Attempting to secure heavy
objects increases the risk of injury.
— Never exceed the permitted axle and load
and vehicle weight > page 300.
— Never secure a child safety seat to the tie-
downs.
— Never leave your vehicle unattended, espe-
cially if the luggage compartment lid is
open. Children could enter the luggage com-
partment and close the luggage compart-
ment lid from the inside. This creates the
risk of fatal injury, since the children would
be locked in and may not be able to escape
by themselves.
— Do not allow children to play in or on the ve-
hicle. Close and lock the luggage compart-
ment lid as well as all other doors when you
leave the vehicle.
— Never transport passengers in the luggage
compartment. Every passenger must be cor-
rectly secured with the safety belts in the
vehicle > page 75.
— Be careful when releasing the backrest and
folding
it forward. To reduce the risk of be-

ing pinched, pay attention and check when
folding backrests forward.
— The backrest must be securely latched so
objects cannot slide forward out of the lug-
gage compartment during sudden braking.
— The backrest must be latched securely to en-
sure that the safety belt is protecting the
center seating position.
— Always pull forward on the backrest to make
sure it is check if it is correctly locked in
place.


() Note
—To reduce the risk of damage, move the rear
head restraints down > page 74 before fold-
ing the rear backrests forward.
— When folding the backrest forward, make
sure the outer safety belts are in the belt
guide recess so that they do not get pinched
in the backrest lock and damaged. Other ob-
jects should be removed from the rear
bench seat to protect the backrest from
damage.
—To reduce the risk of damaging the front
seats, make sure there is enough space be-
tween the front seat and the rear seat
equipment when folding the center backrest
forward.
— If you move the front seat back when the
rear seat backrest is folded forward, you
could damage the head restraints on the
rear seat.
— Make sure that the heating grid strips for
the rear window defogger are not damaged
by abrasive objects.
@) Tips
— The tire pressure must be adapted to the
load > page 254.
— You can purchase straps at specialty stores.
93

Storage and convenience


Luggage compartment c


Applies to: vehicles with luggage compartment cover
B8W-0198

W\\ E= i!
Fig. 87 Luggage compartment: luggage compartment lid
cover

Fig. 88 Luggage compartment: cover behind the rear
bench seat
Observe the safety precautions > page 92.
Removing and installing the luggage
compartment lid cover
> To remove the cover, turn the knob to a hori-
zontal position.
> Pull the cover out of the retainers in the direc-
tion of the arrow & fig. 87.
> To install the cover, slide it forward on the re-
tainers until they engage.
> Turn the knob to a vertical position.
Removing and installing the cover behind
the rear bench seat
> To remove the cover, pull it in the direction of
the arrow > fig. 88.
> Pull the cover upward to release.
> To install the cover, insert the left and right
sides of the cover into the mounts on the side
trim panel.
> Slide the cover forward until it locks into place.
94


oO) D R 4
0 oO
Fig. 89 Outer backrest: release lever, securing knob, and
lock*
B8W-0118

Fig. 90 Center backrest: folding in* the center backrest
Depending on the vehicle equipment, it may be
possible to fold the backrests forward separately
or together.
Observe the safety precautions > page 92.
Folding the outer* rear backrests forward
and backward
> Pull the release lever (
arrow and fold the backrest forward.
> Fold the backrest back up again until it locks in-
to place and the red marking (@) is no longer
visible.


Folding the center rear backrest forward and
backward
Applies to: Sportback
) and fold the

> Pull on the upper release lever (
backrest forward 2
> Fold the backrest backward until it locks into
place.

8W7012721BB

Storage and convenience

Applies to: vehicles with lockable backrests in the rear and a
lockable pass-through.
To prevent access to the luggage compartment
from the vehicle interior, the backrest can be
locked with the mechanical key © when it is
latched in place and the pass-through can be
locked = page 95. You can only enlarge the lug-
gage compartment if the backrest is not locked.
Increasing the size of the cargo area from

inside the luggage compar nt
Applies to: vehicles with release lever in the luggage compart-
ment

w Ss
8
Ss o a
i a

Applies to: Coupe:
Fig. 91 Luggage compartment: release lever
BEW-0265|

Applies to: Cabriolet:
Fig. 92 Luggage compartment: release lever
Depending on the vehicle equipment, it may be
possible to fold the backrests forward separately
or together.
Observe the safety precautions > page 92.
> Applies to: Coupe:To fold the left/right backrest
forward, pull the left/right lever @/@)
=> fig. 91 in the direction of the arrow. To fold
the center backrest* forward, pull the smaller
release lever (3).
> Applies to: Cabriolet: To fold the backrest for-
ward, pull the release lever > fig. 92 in the di-
rection of the arrow.
> To set up the backrest again, fold it back until it
locks or the red marking (8) > page 94, fig. 89
is no longer visible.
Applies to: vehicles with pass-through

Fig. 93 Center backrest: pass-through release
Observe the safety precautions > page 92.
> To release the pass-through, turn the lock on
the backrest > fig. 93.
> Fold the center backrest forward > page 94.
G) Tips
The pass-through can be locked and unlocked
from within the luggage compartment. This
prevents any access to the luggage compart-
ment from the vehicle interior.
95

Storage and convenience

downs and luggage com

Fig. 95 Luggage compartment: luggage compartment net*
stretched out
Observe the safety precautions > page 92.
Tie-downs
There are tie-downs (@ in the luggage compart-
ment to secure pieces of luggage and objects.
» Use the tie-downs to secure the cargo.
Cargo net
Applies to: vehicles with cargo net
Use the cargo net (2) to secure lighter objects in
the luggage compartment
> Fold the clip for the tie-downs upward.
> Attach the hooks for the cargo net to the tie-
downs.
96


Roof rack
General information
Applies to: vehicles with roof rack mount
rr + a 2 a
oO
Applies to: Coupe
Fig. 96 Roof: mounting points

B8Ww-0244

Applies to: Sportback
Fig. 97 Roof: mounting points
If luggage or cargo is to be carried on the roof,
you must observe the following:
— These roof racks are the basis for a complete
roof rack system. Only roof racks that are suita-
ble for your vehicle may be used. Audi recom-
mends roof racks and attachments from the
Audi Genuine Accessories program.
— Make sure the roof rack is mounted on the vehi-
cle only at the specified locations.
— Note the permitted axle load, permitted total
weight, and permitted roof load of your vehicle
=> page 300. The roof load is the total of the
weight of the roof rack, the attachments and
the cargo you are carrying. However, you must
also note the permitted load of the carrier sys-
tem being used.


— Follow the installation instructions provided
with the roof rack system. If you do not

8W7012721BB
Storage and convenience


secure the roof rack system and objects on
the roof correctly, they could come loose
from the vehicle and cause an accident.
— The risk of an accident increases when using
a roof rack system, because it changes the
driving characteristics by shifting the center
of gravity and/or the increasing the surface
area exposed to wind. You may need to
adapt your driving style and speed to the


current conditions.

Make sure that the luggage compartment lid
and the panoramic glass roof* do not come in-
to contact with objects on the roof when they
are open.
Energy usage will increase because of the in-
creased wind resistance. Remove the roof rack
when you are no longer using it.
97

Warm and cold

Warm and cold
Climate control system
Your vehicle has a deluxe automatic climate con-
trol system with 3 zones where the temperature,
air distribution, and air supply can be set sepa-
rately on the left front side, the right front side,
and in the rear.
The climate control system warms, cools, dehu-
midifies, and filters the air in the vehicle interior.
It is the most effective when the windows and
Panoramic glass roof* or power top* are closed.
If there is a build-up of heat inside the vehicle,
ventilation can help to speed up the cooling proc-
ess.
The automatic climate control system automati-
cally maintains a temperature once it has been
set. In all heating mode functions except defrost,
the blower only switches to a higher speed once
the coolant has reached a certain temperature.
Pollutant filter
The pollutant filter removes pollutants such as
dust and pollen from the air.

Z\ WARNING
— You should not use the recirculation mode
for an extended period of time, because no
fresh air is drawn in and the windows can
fog when cooling mode is switched off. This
increases the risk of an accident.
— Individuals with reduced sensitivity to pain
or temperature could develop burns when

98


using the seat heating* function. To reduce
the risk of injury, these individuals should
not use seat heating”.

C) Note
To reduce the risk of damage to the seat heat-
ing* elements, do not kneel on the seats or
place heavy pressure on one area of the seat.
@) For the sake of the environment
Energy can be saved by switching off the A/C
mode.
Gi) Tips
—To prevent interference with the heating or
cooling output and to prevent the windows
from fogging over, the air intake in front of
the windshield must be free of ice, snow,
and leaves.
— Condensation from the cooling system can
drip and form a puddle of water under the
vehicle. This is normal and does not mean
there is a leak.
— The energy management system may tem-
porarily switch off certain functions, such as
the seat heating” or rear window defogger.
These systems are available again as soon as
the energy supply has been restored.
— If the front passenger's seat heating* is
turned on, it will not turn on again automat-
ically if more than 10 minutes have passed
between switching the ignition off and on
again.
