Warm and cold
Applie s to vehi cles : w ith del uxe automat ic cl imate contro l p lu s
Setting the temperature
The temperature can be set separately for the driver's
side and front passenger's side.
Fig. 100 Temperature
setti ng regula tor
- Rotate the regulator=> fig. 100 to the left to reduce the
temperature, or to the right to increase the temperature.
The selected temperature appears on the climate control display.
When the MMI d isplay is turned on, the temperature setting appears
for a few seconds on the screen. •
Appli es to veh icles : wi th d elux e a utomatic clim ate contro l p lu s
Fan OO
The automa6cally preset fan speed can be reduced or
increased .
-Pressthelst?]button =>fig .101.
Fig. 101 Fan button
and regulator
- Rotate the regulator to set the desired fan speed (air
volume).
The climate control system automatically regulates fan speed based
on the interior temperature . You can adjust the volume of air
produced by the fan to your own requirements.
When the MMI display is turned on, the fan speed setting appears for a few seconds on the screen.
[ i ] Tips
• It is possible that the fan speed may change automatically. This
occurs to ensure that the desired temperature set ting is reached as
quickly as possible.
• T he fan speed cannot be regulated separate ly for the driver and
front passenger. •

Applies to vehicles : w ith deluxe automatic cl ima te contro l p lus
Recirculation mode (~ I
The recirculation mode prevents polluted outside air
from entering the vehicle interior.
Turning on recirculation mode
- Press the [o'b] => & button.
Turning off recirculation mode
-Press the~ button again, or
- press the
[AUTO] button.
In recirculation mode, air is drawn from the vehicle interior, filtered
and recirculated . We recommend selecting recirculation mode under
th e following conditions:
When driving through a tunnel or in a traffic jam so that exhaust
fumes and odors cannot enter the vehicle interior.
& WARNING
You should not use the recirculation mode for an extended period
since no fresh air is drawn in. With the air-conditioning switched
off, the windows can fog up, which increases the risk of an
accident! •
Con tro ls a nd e quip ­
m en t Vehicle
OP-eration
Warm and cold
Applies to vehicles : w ith deluxe a utomatic climate control plus
Air distribution [~ ]
The automatically preset air distribution can be changed.
M
!!!"!111--t !
~~-ill
Fig. 102 Air distribu ­
tion button and regu­
lator
- Press the [~I button => fig. 102.
- Rotate the regulator to the desired setting.
You can adjust the air distribution so that air flows from specific
vents. In position
-0-air flows only to the windows, in position(§], it
flows to the driver or passenger, and in position
-0-it flows to the
footwell. There are additional combinations available to adjust air
distribution as needed .
To regulate air distribution automatically, switch to
!AUTO J.
When the MMI display is turned on, the a ir distribution setting
appears for a few seconds on the screen. •
Applies to veh icles: w ith deluxe automa tic clim ate control p lus
Defrost [®]
The windshield and side windows are defrosted or cleared
of condensation as quickly as possible.
-Press the [®j button to turn on the defroster.
Vehicle care Do-it-yourselt service iTechnical data

llffl!IL-_W.:..:...:: a:.:.r..:. m.:..:...:: a:.:.n..:. d.:::.... c.:. o .:...: l..:.d ;__ ______________________________________________ _
- Press the [@I button again, or press th e [AUT O I button to
tur n it off .
Temperatu re is cont rolled a utomat ic a lly. The max imum amount of
air f lows ma inly from the vents below the windsh ie ld.
Pressing the
I@ ] button switches off reci rculation mode. •
Applies to vehicles: w ith deluxe automatic climate control plus

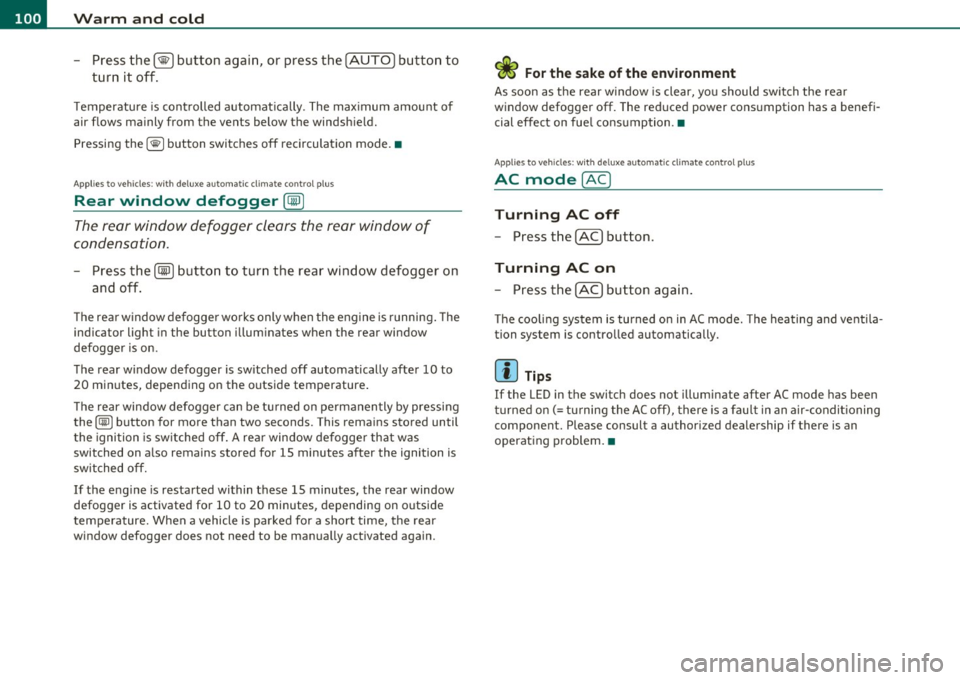

Rear window defogger [GiP ]
The rear win dow defogger clears the rear window of
condensation.
- Press th e [llW] button to turn t he rea r window defogger on
and off.
Th e re ar window defogge r wo rks only w hen the engine is running. The
indicator light in the button i llum inates when the rear window
defogger is on.
T he rear w indow defogger is sw itched off automatically after 10 to
20 min utes, depending o n the outsi de temperature .
T he rear win dow defogger can be tu rned on permanen tly by pressing
the
ICiW] button for more than two seconds. This rema ins stored until
t he igni tion is sw itched off. A re ar window defogger that was
switched on also remains stored for 15 minutes after the ignition is
switched off.
If the e ng ine is restarted within these 15 minutes, the rear window
defogger is activated for 10 to 20 minutes, depending on outside
t emperature. When a vehicle is par ked fo r a short time, the rear
window defogger does not need to be man ua lly activated again.
W For the sake of the environment
As soon as t he rear w indow is clear, yo u should switch the rear
window defogger off. The reduced power cons umption has a benefi­
c ial effect on fue l co nsu mption. •
Applies to veh icles: with deluxe automatic cl ima te cont rol plus
AC mode [AC]
Turning AC off
- Press t he !AC ] button.
Turning AC on
-Press th e !AC] butto n aga in .
T he coo ling system is tu rned on in AC mode. The heating and ve ntil a ­
tion system is contro lled automatically.
[ i ] Tips
If the LED in the switch does not illum inate after AC mode has been
t urne d on (= tu rning the AC o ff), there is a fau lt in an a ir -condit ioning
component. Please consult a authorized dealership if there is an
operat ing p roblem. •

_________________________________________________ W_ a_ r_m _ a_ n_d_ c_ o_ ld _ ___._
App lies to veh icles : with delux e auto matic clim ate contro l p lus
Air vents
Air distribution determines the air flow from the indi­
vidual vents .
Fig. 103 Instrument panel: Locat ion of air vents
Vents @and @
-Rotate the thumbwheel located next to the outlet to open
or close it.
- To adjust the direction of the airflow from the outlet,
move the tab in the center of the outlet in the desired
direction . The direction of the air delivered from the vents
can be adjusted horizontally and vertically.
The air outlets are actuated e ither automatically or manually
depending on the operating mode selected. Heated or unheated
fresh air or cooled air flows from vents(!) through @.
Con tro ls a nd e quip ­
m en t Vehicle
OP-eration
(I) Tips
If the climate control is running in cooling mode, air flows main ly
from ve nts @ and @. To ach ieve adequate cooling, you should never
close these vents completely .•
App lies to vehicles : wit h delu xe aut omatic clim ate co ntro l pl us
Rear air vents
The rear air vents are located in the center console.
Rotate the thumbwheel to open and close the vents .
- To adjust the direction of the airflow from the outlet,
move the tab in the center of the outlet in the desired
direction . The direction of the air delivered from the vents
can be adjusted horizontally and vertically.
The air vents are actuated e ither automatically or manua lly
depending on the operating mode selected . Heated or unheated
fresh a ir, or cooled a ir flows from the vents .
The air ven ts to he at the re ar fo otwell are l ocat ed under the front
seats .
(I) Tips
If the climate control is operating in cooling mode , air flows pr imarily
from the vents in the center console . To achieve adequate cooling,
you should never close these vents comp letely. •
Vehicle care Do-it-yourselt service iTechnical data

1111....__w __ a _r_ m __ a_n_ d_ c_ o _ l_d _______________________________________________ _
Applies to veh icles : wi th d eluxe automat ic clim ate cont rol pl us
Economical use of the climate control
system
Economical use of the climate control system helps save
fuel.
When the climate control system is working in cooling mode,
engine performance is reduced and fuel consumption is
affected. To keep the time the climate control system is on as
short as possible, you should do the following:
- To save fuel, turn off cooling mode by pressing the AC
button (indicator light goes out).
- In addition, if you open the window while driving, turn off
cooling mode by pressing the AC button (indicator light
goes out).
- If the vehicle is extremely hot due to the heat of the sun,
briefly open doors and windows.
~ For the sake of the environment
When you save fuel, you reduce emissions from the vehicle. •
Applies to vehicles: with deluxe automatic climate cont rol plus
Deluxe automatic climate control plus -
basic settings
The basic climate control settings can be adjusted in the
radio or MM!*.
-Select: Function button (CAR]> Climate control switch.
Automatic recirculation
An air quality sensor detects increased concentrations of pollutants
in the outside air and automatically switches to recirculation mode. We recommend that you always keep automatic
recirculation ON to
prevent polluted outside air from entering the vehicle interior.
If the
air quality sensor located in the climate control system detects
polluted outside air, the sensor decides whether the air pollution can
be reduced by the factory-installed pollutant filter or whether it is
necessary to switch to recirculation. With heavy concentrations of
pollutants, the climate control system is switched automatically to
recirculation mode and the supply of outside air is blocked. As soon
as the concentration of pollutants in the outside air drops, fresh air is
supplied to the vehicle interior again.
In the event that the windows fog up during automatic recirculation,
press the
l@I button immediately.
Under certain operating conditions, automatic recirculation is
switched off automatically. When outside temperatures are below
about 50
°F ( + 10 °(), automatic recirculation is limited to
30 seconds. When outside temperatures are below about 30
°F (-
1 °C), automatic recirculation is limited to 15 seconds .
Synchronization
After Synchronization is set to on, all of the subsequent climate
control settings (except for seat heating*) for the driver are trans­
ferred to the front passenger .
Synchronization is canceled when settings are adjusted on the front
passenger's side .•

-Fuses and bulbs ..._ __________________________________________ _
Fuse Location, Instrument Panel left
Fig. 2 45 F use panel
lay out
Some o f the eq uipmen t items lis ted are op tiona l o r only a vailable on
certain mode l configurations .
Note that the following table is a ccurate at the time of going t o
press and is subject to change. In the event of discrepanc ies , the
label on the inside of the cover always take s pr eceden ce.
The powe r seats are pro te cted by circuit brea kers , which automa ti­
cally reset after a few seconds a fter the ov erload has been remed ied.
No. Consumer
Fuse panel (black)
1 Dynamic steering
2 Not used
3 Homelink
4 Lane Assist
5 Climate control
6 R ight head light range adjustment
7 Left headlight range adjustment
8 Vehicl e elect ric al sys tem co ntrol mo dule 1
9 Adaptive Cruise Control 5
5
10
5
5
5
5
5
No . Consumer Amps
10 Shift gate 5
1 1 Heate r washer fluid no zzles 5
1 2 Climate con trol
5
13 Cell phone prep 5
14 Airbag 5
15 Terminal 15 25
16 Terminal 15 engine
40
Fuse panel (brown)
1 Automatic dimm ing in terior rearv iew mir ror
5
2 Not used
3 Gaso line fuel pump 25
4 Auxiliary water pump 3.2L FSI 5
5 Left seat heati
ng with/witho ut seat heating
15/30
6 Electronic Stabiliza tion Program 10
7 Horn 25
8 Left door window regulator motor
30
9 Wiper motor 30
10 Electronic Stabilization Program 25
11 Driver side doo
r co ntro l modu le
15
12 Rain and light sensor 5
Fuse panel (red)
1 Not used
2 N ot u sed
3 Lumbar support
10
4 Dynamic steering
35

______________________________________________ F _u_s _e_ s_ a_ n_ d _ b _u_l_b _ s _ ___.ffl'I
No. Consumer Amps
5 Not used
6 Veh
icle electrical system control mod ule 1 35
7 Vehicle electrical system control module 1 20
8 Vehicle electrical system control modu le 1
30
9 Left rear window regulator motor 7,5
10 Veh icle electrical system co ntrol mod ule 1
30
Right rear window regulator motor 7,5
1 2 Convenience e lec tro nics 5
Fuse Location, Instrument Panel right
Fig. 24 6 Fus e p anel
lay out
Some of the equ ipment items l isted are optio nal or only avai lab le on
certain mode l configurations.
Note that the following table is a ccurate at the time of going to
p re ss and is sub ject to change. In the ev ent of discr epancie s, the
label on the in side of the co ver alwa ys takes pre cedence.
T he power seats are p rote cted by cir cuit breaker s, which a utomat i­
cally reset after a few seconds after the over load has been remedied.
•
Vehicle OP-eration
No. Consumer Amps
Fuse panel (black )
1 Not used
2 Not used
3 Not used
4 Not used
5 Steering column switch module
s
6 Electronic Stabilization Program 5
7 Terminal 15 diagnostic connecto
r 5
8 Gateway (Databus diagnostic interface) 5
9 Not used
1 0 Not used
11 Not used
12 Not used
Fuse panel (brown)
1 C D-/DVD player 5
2 Audi drive select switch module 5
3 MMI/Radio
5/20
4 Instrument cluster 5
5
Gateway (instrument cluster control module) 5
6 Ignition lock 5
7 Rotary light switch
5
8 Climate control system blower 40
9 S teering column lock
5
Vehicle care Do-it-yourself service iTechnical data

.,.,___F_ u_ s_e _ s_ a_n_d _b_u _ l_ b_s _______________________________________________ _
No. Consumer Amps
10 Climate control 10
11 Terminal 30 diagnostic connector 10
12 Steering column switch module 5
Fuse Location, Luggage Compartment
right
Fig. 247 Fuse panel
layout
Read numbers of the fuses in the luggage compartment starting
from inside.
No. Consumer
Fuse panel B (black)
1 Power top control module
2 Trailer control module
3 Trailer control module
4 Trailer control module
5 Electromechanical parking brake
6 Electronic damping control
7 Electromechanical parking brake
Amps
10
15
20
20 5
15
30
•
No. Consumer
8 Vehicle electrical system control module 2
9 quattro Sport
10 Vehicle electrical system control module 2
11 Vehicle electrical system control module
12 Terminal 30
Fuse panel C (brown)
1
2
3
4
Luggage compartment lid control module, vehi­
cle electrical system control module
Right front seat heating
DCDC converter path 1
DCDC converter path 2
5 Not used
6 Right upper cabin heating
7 Electromechanical parking brake
8 Rear seat heating
9 Passenger side door control module
10 Left upper cabin heating
11 Passenger side door control module
12 Not used
Fuse panel D (red)
1 Rear center console outlet
2 Front center console outlet
3 Luggage compartment outlet
4 Cigarette lighter
5 V6FSI
Amps
30
35
30
20 5
30 15
40
40
30
30
30
30
30 15
15
15
15
15 5

___________________________________________ A_ l::.. p _h _a_ b_ e_t _ic _a_ l_ in_ d _ e_x __ _
Auto Lock .. .. ... ..... ... ... ... .. .. .. 41
Auto Safety Hotline ... ... ... . .. ..... 185
Auto-Check Control .. ..... ... .... ... .. 26
Automatic belt retractor .......... ... 195
Automatic car wash See Washing ......... .... .. .... . 261
Automatic climate control . . . . . . . . . 88, 9S
Automatic driving light control ......... 62
Automatic power top ..... .. .. .. .... .. SO
Automatic Shift Lock (ASL) ... .. .. 150, 158
Automatic transmission 6-speed automatic transmission ... . 148
Automatic Shift Lock (ASL) .... 150, 158
Driving ...... ...... .. .. .. .. .. .. . 148
Dynamic shift program ... .... .. ... 151
Emergency release ............. .. . 154
Emergency release for selector lever
(mu ltitron ic®) ............... .. . 161
Fail-safe mode .............. 153, 161
Kick-down ...................... 151
Manual shift program ............. 152
multitronic ® ..................... 155
Selector lever ........... .. .. 149, 157
Shift buttons ....... .. .. .... 153, 160
Steering wheel with tiptronic ® . 153, 160
Automatic wipe/wash system .......... 69
Average speed .. ....... .... .. .. .. .. .. 22
Avoid damaging the vehicle .. .. .. .. .. . 251
Controls and equip­
ment Safety first
B
Battery
... .. ... ... ................. 291
Charging . .. .. .. .... .. .. ... ... .. . 293
Important warnings when work ing on the
battery ..... ........... ...... .. 292
Jump starting . ........... ........ 333
Low ... .. .. .. .... .... .. ......... 247
Replacing the battery .. .. .. .... ... 294
State of charge ..... .. ... ...... .. 247
Winter operation ..... ..... ....... 291
Working on the battery .... .... .... 292
Battery voltage .. ........... ...... .. . 34
Before driving .. ... .... .. .. .. .. ..... 177
Belt positioner .. .. .... .. ... ... ..... 194
Blended gasoline ................ ... 27 4
Body cavity sealing . ................. 267
Booster seats ... .. ...... .. ......... 230
Brake assist ..................... ... 245
Brake booster . ........ ... .......... 244
Brake fluid
Changing the brake fluid ........... 290
Checking the brake fluid level ..... .. 290
Reservoir .. .. .. .... .... ......... 290
What is the correct brake fluid level? . 290
What should I do if the brake fluid warning light comes on? . ... ... .......... 290
Brake system .. .. .. ..... .... ........ 290
Anti-lock brake system . .. .......... 16
Brake fluid ... .... ............... 290
Brake fluid specifications for refill and
replacement ................... 290
Brake light defective ....... .... ... . 34 Brake pads
.. .. .... ..... .... .... . 251
Electromechanical parking brake .... 110
General information .............. 243
How does moisture or road salt affect the
brakes? ... .... .............. .. 243
Malfunction .............. .... .. .. 28
Warning/indicator lights ....... .. .. 17
Worn brake pads symbol ........... 33
Braking guard
See Audi braking guard ............ 129
Break-in period ... .. .. .............. 250
Brake pads .. ...... ........... .. . 251
Tir es ... .. .. ................. .. . 250
Bulbs ................ .. .... .... .. . 331
C
California Proposition 65 Warning .. ... 281
Battery specific .................. 293
Capacities ......................... 342
Car care .. .... .............. ...... . 260
Interior ............ .. .. .. .. .. .. . 268
Plastic and vinyl .... ............. . 264
Weatherstrips ............ .. .. .. . 266
Care of exterior ... .... .. . .. .. .. .. .. . 260
Cargo area
See Loading the luggage compartment ..
183
Catalytic converter .. ..... ........... 251
Certification ......... .............. 346
Changing a flat tire .. ................ 320
Changing a wheel ...... ...... .... .. . 320
Changing engine oil ... .. .. ......... . 285
Vehicle operation Vehicle care Do-it-yourself service Technical data

Alphabetical index -________________ f!:VII
Electronic immobilizer ..... .. .. .. . 346
Homel ink® un iversal remote control . 346
Remote control key .......... ..... 346
Tire pressure monitoring system . .. . 346
Defective light bulb warning ... ... . .. .. 34
Defrost ing the windows . . . . . . . . . . . 92, 99
Deluxe automatic climate control ....... 88
A/C mode ............. ... ........ 93
Air distribution .. .. .. .......... ... 92
Air vents .. .. ... .......... .... .. .. 93
Automatic mode .... .. .. .. .. .... .. 90
Controls .. .. ................. .. .. 89
Defrost ...... ...... .. .. .. .. .... .. 92
Description ........ ....... .. .. .. .. 88
Economical use ................... 94
Fan . ... .................... ..... 91
Rear window defogger ......... .. .. 92
Recirculation mode ................ 91
Temperature ..................... 91
Turning on and off ............ .... . 90
Deluxe automatic climate control plus ... 95
A/C mode ......... ..... .... .... . 100
Air distribution . ... ............... 99
Air vents .. ............. .. .... .. . 101
Air vents (rear) . ............... .. . 101
Automatic mode .... .. .. .. .. .... .. 97
Automatic recirculation ........... . 102
Basic settings ............... ..... 102
Controls .. .. .. .. .. ...... .. .. ... .. 96
Defrost .......................... 99
Description ....................... 95
Economical use .................. 102
Fan .. .. .................... ..... 98
Front seat heating ............ .... 103
Controls and equip­
ment Safety first
Rear window defogger
... .. .. .. .. . 100
Recirculation mode ............... . 99
Synchronization ..... .. .. ......... 102
Temperature ..................... 98
Turning on and off . .... ........... . 97
Determining correct load limit ... .. .. .. 305
Digital clock ..... ............. .. .. .. . 10
Digital compass ............... ... ... 75
Digital speedometer ... ............... 20
Dimensions ... .. ................... 341
Doors Emergency locking .............. .. 46
Driver informat ion system .......... ... 18
Defective light bulb warning ......... 34
Digital speedometer ....... ... .. .. . 20
Driver information messages ........ 26
Open door or rear lid warn ing ........ 20
Outside temperature display ........ 19
Sound system display .............. 19
Driver seat
See Seating position .............. 178
Drive r's seat memory
Act ivat ing remote control key .... .. . 81
Driving lights ........................ 62
Driving messages ........... .. ... .... 26
Dr iving safely . .. .... .... .. ... ...... 176
Driving through water ... .. . ... .. .. . . 251
Dr iving time .. .. .... ............. ... 22
Duplicate key ........................ 3 7
Dust filter . . . . . . . . . . . . . . . . . . . . . . 88, 95
Dynamic shift program .. ............. 159
Dynamic stee ring . . . . . . . . . . . . . . . . 13, 32
E
Easy entry function .......... ......... 79
Electrica l seat adjustment
See Seat adjustment .. ..... .. .. .. .. 78
Electromechanical parking brake
Emergency braking ............ .. . 112
Ma lfunction ..................... 112
Operation ....................... 110
Parking ............ .. .. .. .... ... 111
Releasing and closing ............. 110
Starting assist ...... ... ... .... ... 111
Starting from rest ... .. .... .. . ... . 111
Starting off with a trailer ....... .. . 112
Warning/indicator lights ... .. .. .. .. 16
Electronic differential lock (EDL) How the system works ........... . 242
Warning/indicator lights . .. .. .. .. .. 16
Electronic immobilizer . . . . . . . . . . . . 11, 40
Electron ic power control
(EPC) warning/indicator light ........ 13
Electronic stabilization program (ESP)
How the system works ............ 240
Warning/indica tor lights ... .... .. .. 14
Emergency braking . ... .............. 112
Emergency flasher .......... ......... 66
Warning/indicator lights .... ...... . 15
Emergency key ... .. .. ............... 3 7
Starting engine ................... 40
Emergency locking of the doors .. .. ..... 46
Emergency operation
Luggage compartment lid ....... ... 47
Power top .... .................... 56
Vehicle operation Vehicle care Do-it-yourself service Technical data
