ESP AUDI A5 CABRIOLET 2011 Owners Manual

___ T_ ir_e_ s_ a_ n_d _ w_ h_ e _ e_l_ s _________________________________________________ _

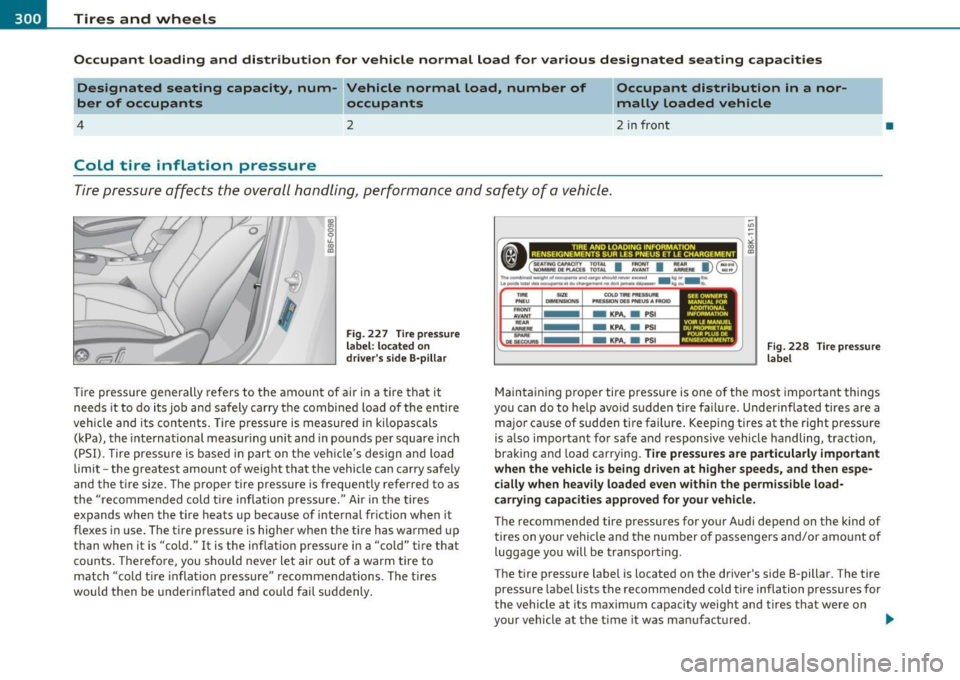

Occ up ant loading and distribution for vehi cle normal load for various d esignated seating capacit ies
Designated seating capacity, num- Vehicle normal load , number of Occupant distribution in a nor­
mally loaded vehicle
ber of occupants occupants
4 2 2 in front
Cold tire inflation pressure
Tire pressure affects the overall handling, performance and safety of a vehicle .
Fig. 227 Tire pre ssure
la bel: loc ate d on
d river 's si de B ·pillar
Tire pressure generally refers to the amount of air in a t ire that it
needs it to do its job and safely carry the combined load of the entire
vehicle and its contents . Tire pressure is measured in kilopascals
(kPa), the inte rnational measur ing un it and in pounds per square i nch
(PSI). Tire press ure is based in part on t he vehicle 's design and load
limit -the greatest amount of weight tha t the vehicle can carry safe ly
and the t ire si ze. The proper tire pressure is frequently referred to as
the "recommended cold t ire inflation pressure. " Air in t he tires
expands when the tire heats up because of internal friction when it
flexes in use . The tire p ress ure is highe r when the t ire has wa rmed up
than when it is "cold." It is the inflation pressure in a "cold" tire that c o unts . Therefo re, you should never let air ou t of a wa rm tire to
match "cold tire inflation pressure " recommendations . The t ires
wou ld then be underin flated and could fail suddenly .
SIZf COlD fflE PRESSUAf DIME NSION'S MfSSK)N DE$ l"NEV$ A fFIOiD
- KPA,. PSI
- KPA,. PSI
- KPA,. PSI
Fig. 2 28 Tir e pre ssure
label
Maintaining proper tire pressure is one of the most important things
you can do to he lp avoid sudden tire failure . Underinflated tires are a
ma jo r cause of sudden tire failure . Keep ing t ires at the right pressure
is a lso important fo r safe and responsive vehicle handling, t ract ion,
braking and load carrying.
Tire p ressures are particularl y important
when the vehicle i s being driven at higher speed s, and then e spe ­
cially when heavily loaded even with in the permissible load­
carrying capacitie s approved for your v ehicle .
The recommended tire pressures for your Audi depend on the kind o f
t ires on you r vehicle and the number o f passengers and/or amo unt of
luggage you will be transport ing .
The tire pressure label is located on the driver 's side 8-pillar . T he tire
pressure labe l lists the recommended cold t ire inflation p ressures for
the vehicle at its maximum capacity weig ht and tires that were on
•
your vehicle at the time it was m anufactured. .,

__________________________________________________ T_i_ r _e _s_ a_ n_ d_ w_ h_e_ e _ l_s __ _

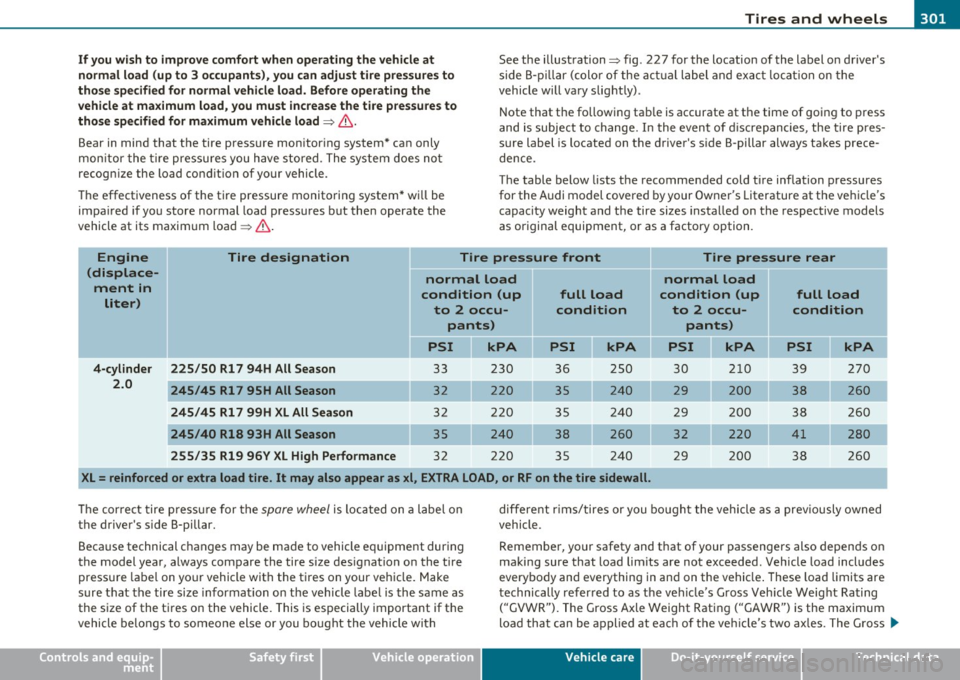

If you wish to improve comfort when operating the vehicle at
normal load (up to 3 o ccupant s), you can adjust tire pres sures to
those specified for normal vehicle load . Before operating the
vehicle at maximum lo ad, you must increase the tire p res sures to
those specified for maximum vehicle load=>& .
Bear in mind that the tire press ure monitor ing system* can only
mon itor the t ire pressu re s you h ave sto red . T he sys tem does no t
recogn ize the load cond it ion of your vehicle.
Th e effectiveness of the ti re pressure monitoring system* wi ll be
impa ired if you store normal load pressu res but then operate the
vehicle at its maxim um loa d=> & . See the
illustration=> fig. 227 for the location of the label on driver's
side B- pillar (colo r of the act ual la bel and ex act l ocation on the
vehicle will vary slig htly).
N ote that the fo llow ing tab le is accurate at the time of going to press
and is subjec t to change. I n the even t of discrepancies , the tire pres­
sure label is located on the driver 's side B-pillar always takes prece­
dence .
T he table below lists the recommended cold t ire inflation pressures
for the Audi model covered by your Owne r's Literature at t he ve hicle's
capac ity weight and the tire sizes insta lled on the respective models
as original equipment, or as a factory option .
Engine Tire designation Tire pressure front Tire pressure rear
(displace- normal load normal load
ment in
liter) condition (up
full load condition (up
full load
to 2 occu- condition to 2 occu- condition pants) pants)
kPA PSI PSI kPA PSI kPA
4-cylinder 225/50 Rl 7 94H All Season
33 230
36 250
30 2
10 39 270
2.0 245/45
Rl 7 95H All Season 32 220 35 240
29 200 38 260
245/45
Rl 7 99H XL All Season 32 22 0 35 240 2 9 200 3 8 260
245 /40 R18 93H All Sea son 35 240 38 260 32 220 41 280
255/35 R19 96V
XL High Performance 32 220 35 240
29 200 38 260
XL= reinforced or extra load tire . It may also appear as xl , EXTRA LOAD, or RF on the tire sidewall .
The correct tire p ress ure for t he spare wheel is loca ted on a labe l o n
the driver 's s ide B-pillar.
Beca use technical c hanges may be made to vehicle equipment dur ing
the model year, always compare the tire size des ignation on the t ire
pressu re labe l on yo ur vehicle with the t ires on your vehicle. Make
sure that the tire size informat ion on t he v ehicle labe l is the same as
the size of the t ires o n the vehicle. This is especially important if the
vehicle belo ngs to so meone else or you bo ug ht the vehicle with
Safety first
differe nt r im s/ tires or you bo ugh t the vehicle as a prev iously owned
vehicle.
Remember, yo ur safety and t hat of your passengers also depends o n
making sure that load limits are not exceeded. Vehicle load includes
everybody and everything in an d on the vehi cle. These load limits are
t e chnically refer red to as the veh icle's G ross Veh icle Weig ht Rating
("GVW R"). The Gross Axle Weight Rati ng ("GAWR") is the maximum
load tha t can be applied at ea ch of the ve hicle's two ax les . T he G ross ..
Vehicle care Technical data

________________________________________________ T_i_r _e _s _ a_n _ d_ w_ h_ e _ e_l_s __ _

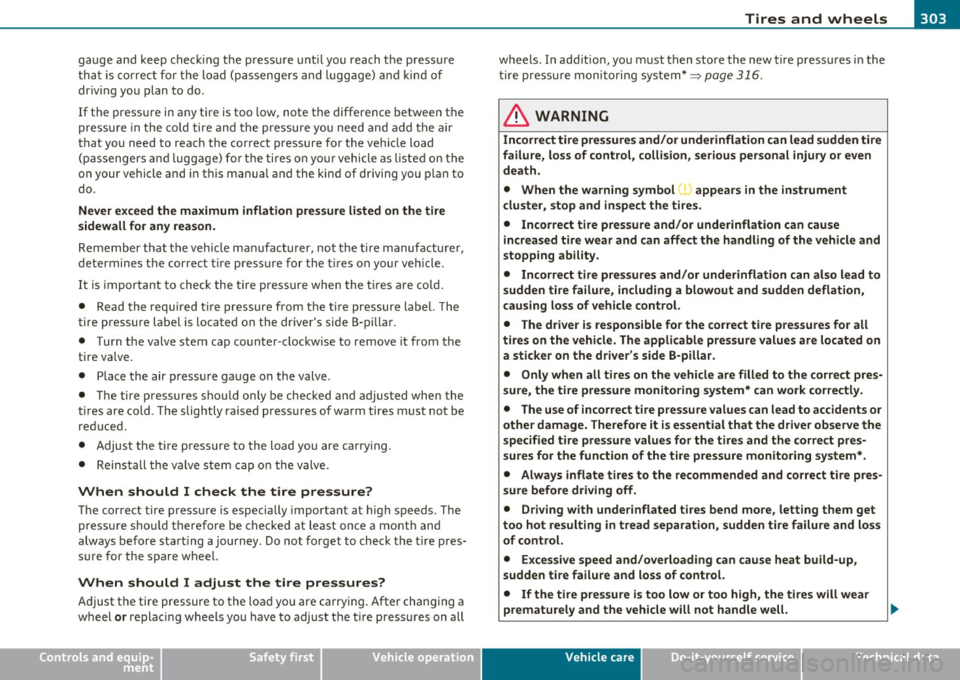

gauge a nd keep chec king the press ure until you reach t he press ure
th at i s cor rect fo r t he lo ad ( pass en ge rs and l uggage) and kind of
dr iving you plan to do .
If the press ure i n any t ire is too low, note the difference betwee n th e
pressu re in t he cold tire a nd the pressure you need and add the air
that you need to reach the correct pressure for t he ve hicle load
( pass enge rs and lugg age) f or th e tires on yo ur vehicle as l ist ed on t he
on your vehicle and in this manua l and the kind of driving you p lan to
do.
Never exceed the maximum inflation pressure listed on the tire
sidewall for any reason.
Remember that the ve hicle m anufac tur er, no t the tire manufa cture r,
determines t he correct tire press ure for the t ires on your veh icle.
It is important to check the tire pressure when the t ires a re co ld .
• Read the requ ired t ire pr essure from t he t ire pr essure lab el. T he
tire pressure labe l is located on the dr ive r's side B-p illar.
• Turn t he valve stem cap co unter-clockw is e t o remove it from the
tire valve.
• Place th e air press ure gauge on the valve .
• Th e tire p res su res sho uld on ly be che cked and adju sted whe n the
tires are cold . The slightly raised press ures of warm tires must not be
re duc ed .
• Adjust the tire press ure to the load you are carry ing.
• Re install the valve s tem cap o n the valve.
When should I check the tire pressure?
Th e correct tir e press ure is especially import ant a t hi gh s peeds. The
pressu re s ho ul d t herefore be chec ke d at least once a mont h and
a lways before sta rt ing a jou rney. Do not fo rget to check the tire pres­
sure for the spare w heel.
When should I adjust the tire pressures?
Adjust t he tire pressure to the loa d you are ca rry ing . After ch ang ing a
w hee l
or replac ing wheels yo u have to adjus t th e t ire press ures on all
Safety first
wheels . In add itio n, you m ust t hen store the new tire pressu res in the
tir e press ure m oni torin g sy stem* =>
page 316.
& WARNING
Incorrect tire pressures and/or underinflation can lead sudden tire
failure, loss of control, collision , serious personal injury or even
death.
• When the warning symbol appears in the instrument
cluster, stop and inspect the tires .
• Incorrect tire pressure and/or underinflation can cause
increa sed tire wear and can affect the handling of the vehicle and
stopping ability.
• Incorrect tire pressures and /or underinflation can also lead to
sudden tire failure, including a blowout and sudden deflation ,
causing loss of vehicle control.
• The driver is responsible for the correct tire pressures for all
tires on the vehicle. The applicable pressure values are located on
a sticker on the driver's side B·pillar.
• Only when all tires on the vehicle are filled to the correct pres­
sure , the ti re pressure monitoring system* can work correctly.
• The use of incorrect tire pressure values can lead to accidents or
other damage. Therefore it is essential that the driver observe the
specified tire pressure values for the tires and the correct pres­
sures for the function of the tire pressure monitoring system*.
• Always inflate tires to the recommended and correct tire pres­
sure before driving off.
• Driving with underinflated tires bend more, letting them get
too hot resulting in tread separation, sudden tire failure and loss
of control.
• Excessive speed and/overloading can cause heat build-up,
sudden tire failure and loss of control.
• If the tire pressure is too low or too high, the tires will wear
prematurely and the vehicle will not handle well.
Vehicle care Technical data

________________________________________________ T_ i_ re _ s_ a_ n_d_ w_ h_ e_ e_l _s _ ....... JIII
Unbalanced wh eels must be rebalanced to avoid e xcessive w ear o n
st eeri ng, sus pens ion and tires. A w heel must a lso be re balan ced
w hen a new tire is installed.
Incorrect wheel alignment
Incorrect whee l alignm ent can ca use excessive ti re wea r, impairing
th e safe ty o f the vehicle. If tir es show excessive we ar, ha ve the w heel
alignment checked by a n authorized A udi dealer or qualif ied wo rk ­
s hop .
All wheel drive
Vehicle s wi th qu att ro ® mus t alw ay s ha ve tires of the sa m e siz e,
construct ion a nd tread type. For details see~
page 246.
& WARNING
Sudden tire failure can lead to loss of control , a crash and serious
personal injury!
• Never drive a vehicle when the tread on any tire is worn down
to the wear indicators.
• Worn tires are a safety hazard, they do not grip well on wet
roads and increase your risk of "hydroplaning " and loss of control.
• Always keep chemicals that can cause tire damage, such as
grease, oil, gasoline and brake fluid away from tires.
• Tires age even if they are not being used and can fail suddenly,
especially at high speeds. Tires that are more than 6 years old can
only be used in an emergency and then with special care and at
lower speeds.
• Never mount used tires on your vehicle if you are not sure of
their "previous history ." Old used tires may have been damaged
even though the damage cannot be seen that can lead to sudden
tire failure and loss of vehicle control. •
Vehicle OP-eration
New tires and replacing tires and wheels
New tires and w heel s hav e to b e brok en in .
Fig. 231 Tire specificat ion codes on the sidewall of a tire
No.
©
®
®
©
©
©
Description
Passenger car tire (where app licable)
Nom inal width of ti re in mil lim eters
Ratio of hei9ht to width (aspect ratio)
Radial
jj Rim diameter code
L oa d index and speed rating
Vehicle care Do-it-yourselt service iTechnical data

-~_T_ i_ re _ s_ a_n _ d_ w_ h _e_ e_ ls _________________________________________________ _
& WARNING (conti nu ed )
• Alway s use tire s, rim s and wheel bolts that meet the specifica­
tions of original factory-installed tires or other combinat ions that
have been specifically approved by the vehicle manufacturer .
• Tires age even if they are not being used and can fail suddenly,
especially at high speed s. Tires that are more than 6 years old can
only be used in an emergency and then with special care and at
lower speeds.
• Never mount used tir es on your vehicle if you are not sure of
their "previous history. " Old used t ires m ay have been damaged
even though the damage cannot be seen that can lead to sudden
tire failure and loss of vehicle control.
• All four wheels must be fitted with radial tires of the same
type , size (rolling circumference) and the same tread pattern .
Driving with different tire s reduces vehicle handling and can lead
to a loss of control.
• If the spare tire is not the same as the tires that are mounted
on the vehicle - for example w ith winter tires - only use the spare
tire for a short period of time and drive with extra care. Refit the
normal road wheel as soon as safely possible.
• Never drive fa ster than the maximum speed for which the tires
on your vehicle are rated because ti re s that are driven faster than
their rated speed can fail suddenly.
• Overloading tire s cause heat build-up, sudden tire failure,
including a blowout and sudden deflation and loss of control.
• Temperature grades apply to tires that are properl y inflated
and not over or underinflated.
• For technical reasons it is not always possible to u se wheels
from other veh icles- in some cases not even wheels from the same
vehicle model.
• If you install wheel tr im discs on the vehicle wheels , make sure
that the air flow to the brakes i s not blocked . Reduced airflow to
the brakes can them to overheat, increasing stopping distances
and cau sing a collision.
& W ARNING (continued )
• Run flat ti res may only be used on vehicles that were equipped
with them at the factory. The vehicle must have a chassi s designed
fo r run flat tires and a factory-installed tire pressure monitoring
system* that indicates a loss of tire pressure. Incorrect use of run
flat tires can lead to vehicle damage o r accidents. Check with an
authorized Audi dealer or tire speciali st to see if your vehicle can
be equipped w ith run flat tires . If run flat t ires are used , they must
be installed on all four wheels. Mixing tire types is not permitted.
0 Note
• F or tech nical reasons, it is no t gene rally poss ible to use the wheel
r ims from other vehicles . This ca n hold t rue for w heels of the same
veh icle type .
• If the spare tire is different from the tires th at you have mou nted
on yo ur vehi cle (fo r ex am ple w inte r tir es o r wide profile tires), then
use the spa re t ire for a short period of time on ly and d rive with extra
care . Replace t he f lat tire w ith the tire matching the others on your
veh icle as soon as possible.
• N ever dr ive witho ut the valve s te m c ap. The valves coul d get
damaged .
'£> For the sake of the environment
Dispose of old t ires in accordance with the loca l req uirements.
(]] Tips
Tires with t he ident ification "AO" have been specially matched with
your Audi. We recommend us ing only these ti res beca use they meet
t he highest standa rds rega rding saf ety and dr iv ing c ha racteristics
when used correct ly. You r autho rized Audi dealer w ill gladly provide
you with more info rmation. •

Tires and wheels Ill
----------------

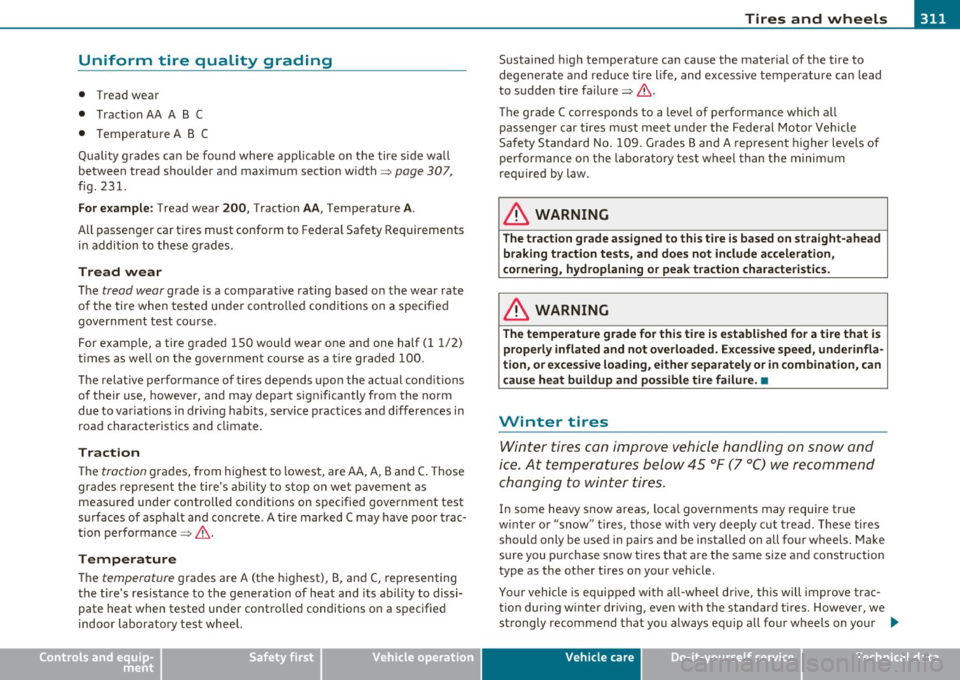

Uniform tire quality grading
• Tread wea r
• Tr act io n AA A B C
• T empera ture A B C
Quali ty g rades c an be fou nd where ap plica ble on t he tire side wa ll
between tread shou lde r and max imum section widt h=>
page 307,
fig. 231.
For example: Tread wear 200 , Tract ion AA , Temp era ture A .
All passenger car tires must conform to Federa l Safety Requirements
in addi tion to these g ra d es.
Tread wear
The tr ead wear grade is a comp arati ve ra ting based o n the wear rat e
o f the tire when teste d un der co ntro ll ed conditions on a specifie d
governme nt test co urse.
For examp le, a tire graded
1 50 would wear one and one half (1 1/2)
ti mes a s well on t he governmen t course as a tire graded 10 0 .
Th e relat ive performa nce of tires d epends u pon t he ac tual cond it io ns
o f their use, however, an d m ay de pa rt sig nifi cantly from the norm
due to var iat io ns in d riv in g ha bits, se rvice prac tices and differences in
road characterist ics and climate .
Traction
The trac tion gra des, from highes t to lowest, are AA, A, Band C. Those
grades represent the t ire's ab ility to s top o n wet pav ement as
measu red under contro lled condit ions on s pecified government test
surfaces of asphal t and conc re te . A tire marked C may have poo r trac­
tion performance =>& .
Temperature
The temperature grades are A (t he hi ghest), B, a nd C, rep resenting
t he t ire's resistanc e to the generat io n of he at and its ab ility to dissi­
pate heat when teste d un der contro lled conditions o n a s pecifie d
indoor laboratory t est wh eel.
Safety first
S ustai ned high temperat ure ca n cause the material of the tire to
degener ate a nd re du ce tire li fe, and exces sive tem per at ure c an lead
to sudde n tire failu re=> &.
T he grade C corresponds to a leve l of perfo rmance which a ll
p assenger c ar tires m ust meet under the Federal Motor Veh icle
Safety Stan dard No. 1 09. Grades Band A represent higher levels of
perfor man ce on t he laborat ory tes t w heel th an t he m ini mu m
req uir ed by law.
& WARNING
The traction grade assigned to this tire is based on straight-ahead
braking traction tests, and does not include acceleration,
cornering, hydroplaning or peak traction characteristics.
& WARNING
The temperature grade for this tire is established for a tire that is
properly inflated and not overloaded . Excessive speed, underinfla­
tion , or excessive loading , either separately or in combination, can
cause heat buildup and possible tire failure. •
Winter tires
Winter tires can improve veh icle h andlin g on s now and
i c e. At t emper atures belo w 45 °F (7 °C) we re com mend
c h anging to winter tires.
In some heavy snow areas, loca l gover nments may require true
wi nte r or "s n ow" t ires, th ose wi th very dee ply cut t read . Th ese tire s
should only be used in pairs and be i nstalled on all four wheels . Mak e
s u re you purchase snow tires tha t are the same si ze and constr uction
t ype as the other t ires on your ve hicle .
Yo ur vehicle is equi pped with a ll-w heel d rive, this will improve trac­
t ion dur ing w inter dr iv ing, even wit h th e standar d tir es. However, we
st rongly recommend that you a lways eq uip a ll four w heels on you r .,_
Vehicle care Technical data

___ T_ ir_e_ s _ a_ n _ d_ w_ h_e_ e_ ls _______________________________________________ _

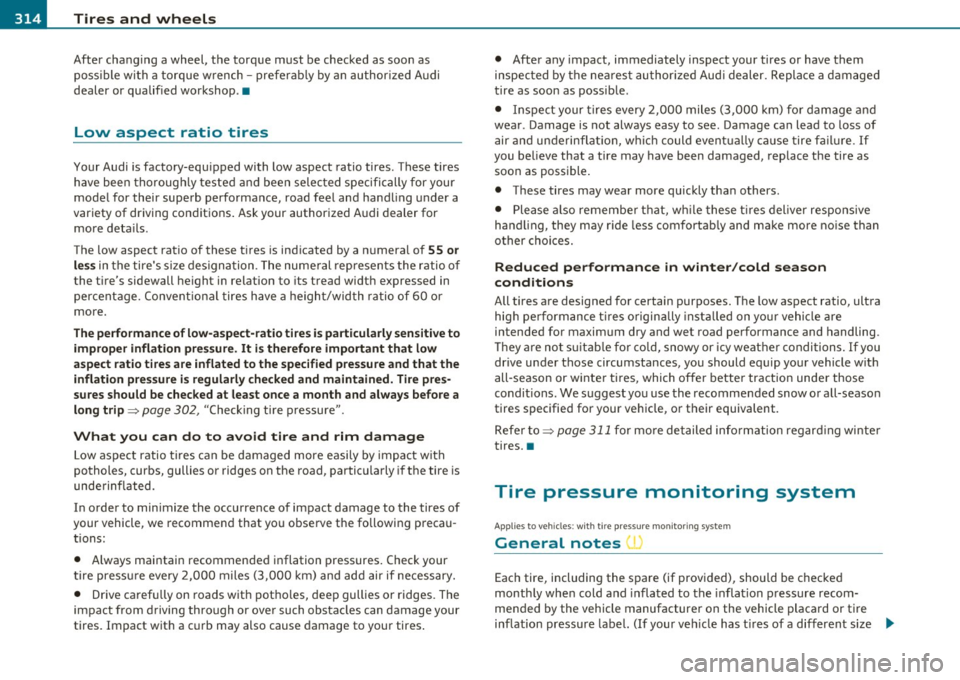

After changing a wheel, the torque must be checked as soon as
possible with a torque wrench -preferably by an authorized Audi
dealer or qualified workshop. •
Low aspect ratio tires
Your Audi is factory-equipped with low aspect ratio tires. These tires
have been thoroughly tested and been selected specifically for your
model for their superb performance, road feel and handling under a
variety of driving conditions. Ask your authorized Audi dealer for
more details.
The low aspect ratio of these tires is indicated by a numeral of
55 or
less
in the tire's size designation. The numeral represents the ratio of
the tire's sidewall height in relation to its tread width expressed in
percentage. Conventional tires have a height/width ratio of 60 or
more.
The performance of low-aspect-ratio tires is particularly sensitive to
improper inflation pressure. It is therefore important that low
aspect ratio tires are inflated to the specified pressure and that the
inflation pressure is regularly checked and maintained. Tire pres­
sures should be checked at least once a month and always before a
long trip=>
page 302, "Checking tire pressure" .
What you can do to avoid tire and rim damage
Low aspect ratio tires can be damaged more easily by impact with
potholes, curbs, gullies or ridges on the road, particularly if the tire is
underinflated.
In order to minimize the occurrence of impact damage to the tires of
your vehicle, we recommend that you observe the following precau­
tions:
• Always maintain recommended inflation pressures. Check your
tire pressure every 2,000 miles (3,000 km) and add air if necessary.
• Drive carefully on roads with potholes, deep gullies or ridges. The
impact from driving through or over such obstacles can damage your
tires. Impact with a curb may also cause damage to your tires. •
After any impact, immediately inspect your tires or have them
inspected by the nearest authorized Audi dealer. Replace a damaged
tire as soon as possible.
• Inspect your tires every 2,000 miles (3,000 km) for damage and
wear . Damage is not always easy to see. Damage can lead to loss of
air and underinflation, which could eventually cause tire failure. If
you believe that a tire may have been damaged, replace the tire as
soon as possible.
• These tires may wear more quickly than others.
• Please also remember that, while these tires deliver responsive
handling, they may ride less comfortably and make more noise than
other choices.
Reduced performance in winter/cold season
conditions
All tires are designed for certain purposes. The low aspect ratio, ultra
high performance tires originally installed on your vehicle are
intended for maximum dry and wet road performance and handling.
They are not suitable for cold, snowy or icy weather conditions. If you
drive under those circumstances, you should equip your vehicle with
all-season or winter tires, which offer better traction under those
conditions. We suggest you use the recommended snow or all-season
tires specified for your vehicle, or their equivalent.
Refer to=>
page 311 for more detailed information regarding winter
tires. •
Tire pressure monitoring system
Applies to veh icles: w ith tire pressure monitoring system
General notes '
Each tire, including the spare (if provided), should be checked
monthly when cold and inflated to the inflation pressure recom­
mended by the vehicle manufacturer on the vehicle placard or tire
inflation pressure label. (If your vehicle has tires of a different size .,

Tires and wheels Ill _______________ _____.
than the size indicated on the vehicle placard or tire inflation pressure
label , you sho uld determine the proper tire infla tion pressure fo r
those tires.)
As an added safety feature, your vehicle has been equipped with a tire pressu re monitoring sys tem (TPMS) that illuminates a low tire pres ­
sure telltale when one o r more of your t ires is s ignificantly under­
inflated. Accord ingly, when the low tire pressure tellta le illumi nates,
you should stop and check your tires as soon as possib le, and inflate
them to the proper p ress ure. D riving on a sign ificantly under-inflated
tire causes the tire to overheat and can lead to tire fa ilure . Under­
inflation also reduces f uel efficiency and tire tread life, and may
affect the vehicle's handling and stopping ability .
Please note that the TPMS is not a substitute for proper tire mainte­
nance, and it is the d river's responsibility to mainta in correct tire
pressure, even if under-inflation has not reached the level to trigger
ill umination of the TPMS low tire press ure te lltale.
Your vehicle has also been equipped w ith a TPMS malfunction indi­
cato r to indica te when the system is not operating properly . The
TP MS ma lf u nction indicator is combined with the low tire p ress ure
telltale. When the system detects a malfunct ion, the telltale will
fl ash for approximate ly one minute and then rema in continuously
illuminated. This sequence will continue upon subsequent vehicle
sta rt-ups as long as the malfunction exists.
When the ma lfunction indicator is illum inated, the system may not
be able to de tect or signa l low ti re pressure as intended . TPMS
ma lfunctions may occur fo r a var iety of reaso ns, includ ing the instal­
lation of replacement o r alternate tires or wheels on the vehi cle that
prevent the T PMS from functioning properly . Always check the TPMS
ma lfunction tellta le after replacing one or more tires or whee ls on
yo ur vehicle to ensure that the replacement o r alte rnate t ires and
wheels allow the TPMS to continue to funct ion proper ly .•
Vehicle OP-eration
App lies to vehicles : wi th t ire p ressu re mon it ori ng system
Tire pressure indicator appears
The tire pressure indicator in the instrument cluster
informs you if the tire pressure is too low or if there is a
system malfunction.
M
"'
j
Fi g. 23 2 Dis pl ay:
un der infl ation
wa rning
Fi g. 23 3 Dis play :
Sys tem malfun ction
Us ing the ABS sensors, the tire pressure monitor ing system compares
the t ire tread c ircumference and vibration characteristics of the ind i­
vidual tires .
If the pressure decreases in one or more tires, this is indi -
cated in the instrument cl uster with a warning symbol and a
message ~ fig. 232 . The d river message in the display goes o ut after
5 seconds . The driver message can be displayed again by p ressing the
!SET ] button. If only one tire is affected, the display will indicate its
posit ion. ._
Vehicle care Do-it-yourselt service iTechnical data

IIIIL-_T.:..:..: ir:....:e~ s=---= a~ n:..:..: d:......: w..:....:.. h:....:e~ e= ls=--------------------------------------------------
The tire pressure monitor ing must be reset via rad io or MMI* each
t ime t he press ures are adjusted (e.g. w hen sw itching be tween p artial
and full load pressure) o r after changing or replac ing a tire on yo ur
vehicle => page
316. You ca n find t he recommen ded tire pressures
for your veh icle on the labe l on driver's s ide B-pilla r => page
300.
Tire tread circ umference and vibrat ion characteristics can change and
c a u se a tir e pressure war ning if:
• the t ire pressure in one or more tires is too low,
• t he tire ha s structur al dam age,
• the tire press ure was changed, wheels rotated or rep laced but the
TPM S was no t reset=> page
316.
Warning symbols
1..1' Loss of press ure in at least one tire=> &. Check the tire or tires
and replace or repair if necessary. The indicator light (• in the instru­
me nt cluste r a lso illuminates=> page
12. Check/correct the p res­
sures o f all four tires and reset TPMS via rad io or MMI *.
rr :; (T ire Pressu re M on itor ing System) Tire pres sure! System
malfunction.
If T ,.;> appears after switching the ignition on or w hile
dr iv ing => page
315, fig. 23 3 and the indica to r lig ht 'in th e instr u­
me nt clus ter b links for approx ima tely one m inute and the n stays on,
there is a system ma lf u nct io n. See your authorized Audi dealer as
soon as poss ible.
& WARNING
• If the tir e pres sure indicator appears in the instrument cluster
display, one or more of your tires i s significantly under-inflated.
Reduce your speed immediately and avoid any hard steering or
braking maneuvers. Stop as soon a s possible and check the tires
and their pressures . Inflate the tire pressure to the proper pres­
sure as indicated on the vehicle 's tire pressure label=>
page 300.
Driving on a significantly under -inflated tire causes the tire to
overheat and can lead to tire failure. Under -inflation also is likely
to impair the vehicle's handling and stopping ability.
& WARNING (co ntinued )
• The driver is re sponsible for maintaining the correct tire pres­
sures . You must check the tire pres sures regularly .
• Under certain conditions (such as a sporty driving style , winter
conditions or unpaved roads) , the pressure monitor indicator may
be delayed.
• Ask your authorized Audi dealer if run-flat tires may be used on
your vehicle . Your vehicle registration becomes invalid if you u se
the se tires when not permitted. Damage to your vehicle or acci­
dents could also result.
[ i ] Tips
• T he tire pressure monito ring system stops working when there is
an ES P/ABS malf u nctio n.
• Using snow cha ins may res ult in a system ma lf u n ct ion .
• The tire pressure mon itor ing system on your Au di was calibrated
using t ires with the "AO" or "RO " id ent ificat ion . We re comme nd
using these tires. •
Applies to vehicles: with tire p ressure monito ring sys tem
Reset tire pressure monitoring system
I f the tire pressure is adjus ted, wheels are rotated or
changed, th e TPfvf S must b e re set via radio or fv1fv1 I*.
- Turn on the ign it ion .
- Sele ct: Fu nct ion bu tton
[C AR]> Tire pressure monitoring
> Store now.
[ i ] Tips
Before resett ing the TPMS, the current pressures of all four t ires
mus t co rrespo nd to the specifie d val ues. A djust the tire pre ssure and
~

-Fuses and bulbs Pf":I..._ ______________ _
No. Consumer
11 Rear seat hea ting
1 2 T ermin al 15 con trol modules
Fuse panel © (black)
3 D SP am plifi er, radio
4 MMI
5 Radio/navigation/cell phone prep
6 Rearvie w camer a
7 cell phone p rep
Bulbs
Replacing bulbs
Amps
5
5
30
7,5
5
5
5
F or your safety, we recomm end that you have your autho ­
riz ed Audi dealer replace any bulbs for you .
It is becoming increasing ly mo re and more d ifficult to replace vehicle
light bulbs since in many cases, other parts of the car must f irst be
removed before yo u are ab le to get to the bu lb. This app lies especially
to the light bulbs in the front of your car which you can only reac h
t hrough the eng ine comp artment.
Sheet metal and bu lb holders can have sharp edges that can cause
serious c uts, parts must be correctly taken apart and then properly
put back together to he lp prevent breakage of parts and long term
damage from water t hat can enter housings that have not been prop­
erly resea led.
For your safety, we recommend that you have your authorized Audi
dealer replace a ny bu lbs for yo u, since yo ur dealer has the proper
too ls, t he cor rect bu lbs and the expertise.
Gas discharge lamps (Xenon lights)*:
•
Due to the high electrical voltage, have the bulbs replaced by a qua l­
ified techn ici an . Hea dligh ts w ith Xenon light are i dent ified by t he
hig h voltage sticker.
& WARNING
Changing Xenon lamps without the necessa ry equipment can
c aus e seriou s personal injury.
• Bulbs are pressurized and can e xplode when being changed.
Potential risk of injury!
• On veh icle s equipped with gas discharge bulbs (Xenon light)*
life-threatening injuries can result from improper handling of the
high- voltage portions of such lamps!
• Only your authorized Audi dealer or a qualified workshop
should change the bulbs in gas discharge lamps. There are parts
with sharp edges on th e openings and on the bulb holder s that can
cause serious cuts. If you are uncertain about what to do , have the
work performed by an authorized Audi dealer or other qualified
workshop . Serious personal injury m ay result from improperly
performed work.
[ i ] Tips
• If yo u still p refer to rep lace the l igh t bul bs yourself, be aw are t hat
the engine compartment is a hazardous area to work in~
page 272,
"En gine compartment" ~& .
• It is best to ask your authorized Audi dealer whenever you want to
c h ange a bulb. •
