AUDI A5 CABRIOLET 2011 Owners Manual

____________________________________________________ T _r_a _n_ s_m _ i_s _s_ i_ o _ n _ ___._
when the driver presses the brake pedal on a downhill gradient . This
makes use of the braking effect of the engine w ithout the need to
shift down manually .
If you are driving in hills and mounta ins, the transmission will contin­
uously adjust the gear ratio to the road grade. If you press the brake
pedal when driving downhill, the transmission will downshift auto­
matically. This increases the brak ing effect of the engine.
If the cru ise control is on when you are traveling downhill, the trans­
mission will automatica lly select a lower gear ratio in order to main­
tain the set vehicle speed. Th is will cause the engi ne speed to
increase. •
Applies to vehi cles : wit h mul tit ro nic ® Co nt in uous ly Variabl e Tra ns missi on (CVT )

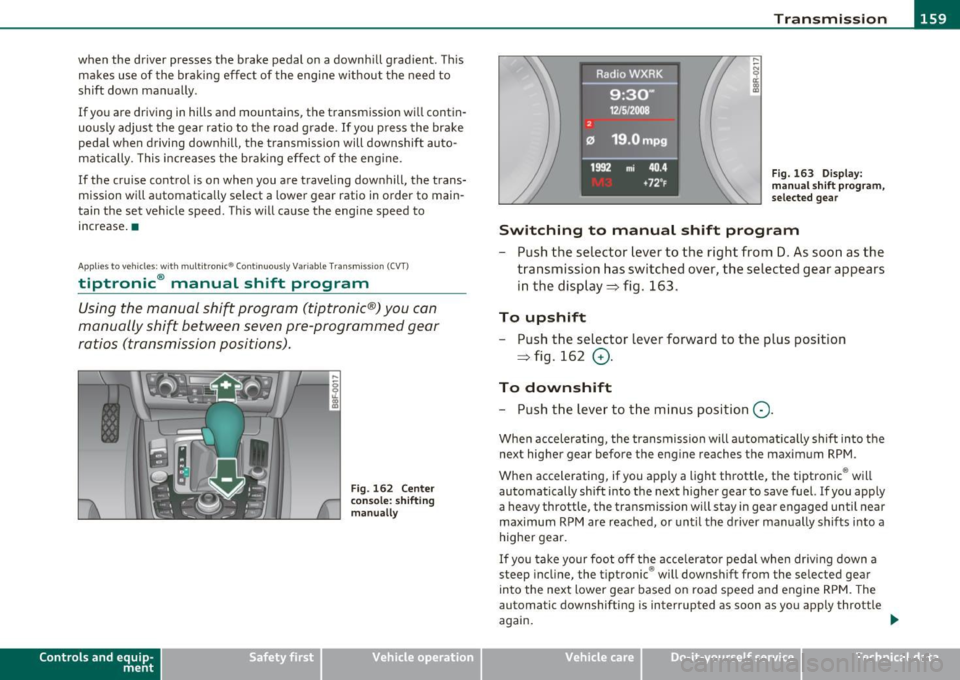

tiptronic ® manual shift program
Using the manual shi~ program (tiptronic®) you can
manually shift between seven pre-programmed gear
ratios (transmission positions) .
Contro ls a nd e quip ­
m en t
Fig. 162 Center
console: shifting
manually
Vehicle OP-eration
Fig. 163 Di splay:
man ual shift program,
selected gear
Switching to manual shift program
- Push the selector lever to the right from D. As soon as the
transmission has switched over, the selected gear appears
in the display ~ fig . 163.
To upshift
- Push the selector lever forward to the plus position
~ fig . 162
0 -
To downshift
- Push the lev er to the minus position Q.
When accelerating, the transmission will automatically shift into the
next higher gear before the engine reaches the maximum RPM .
When accelerating, if you apply a light throttle, the tiptronic ® will
automatically shift into the next higher gear to save fuel. If you apply
a heavy throttle, the transmiss ion wi ll stay in gear engaged until near
maximum RPM are reached, or until the driver manually shifts into a
higher gear.
If you take your foot off the accelerator pedal when dr iv ing down a
steep incline, the tiptronic ® will downshift from the selected gear
into the next lower gear based on road speed and engine RPM. The
automatic downshifting is interrupted as soon as you apply throttle
again.
Vehicle care Do-it-yourselt service iTechnical data

ffl..__T_ r_a _ n_ s_m_ i _s_ s_ io_ n _____________________________________________________ _
(I) Tips
• When you sh ift into the next lower gea r, the engine will downshift
only wh en th ere i s no poss ib ility o f ov er-revv ing.
• When the kick -down comes on, the transm is sion wi ll shift down to
a low er gear dep ending on v ehicl e and engine sp eeds.
• The tiptron ic ® is inoperat ive when the transm ission is in the fa il­
saf e mode .•
Ap plies to ve hic les : w it h mu ltitronic ® Continu ous ly Var ia bl e Tra nsm issi on ( CVT)

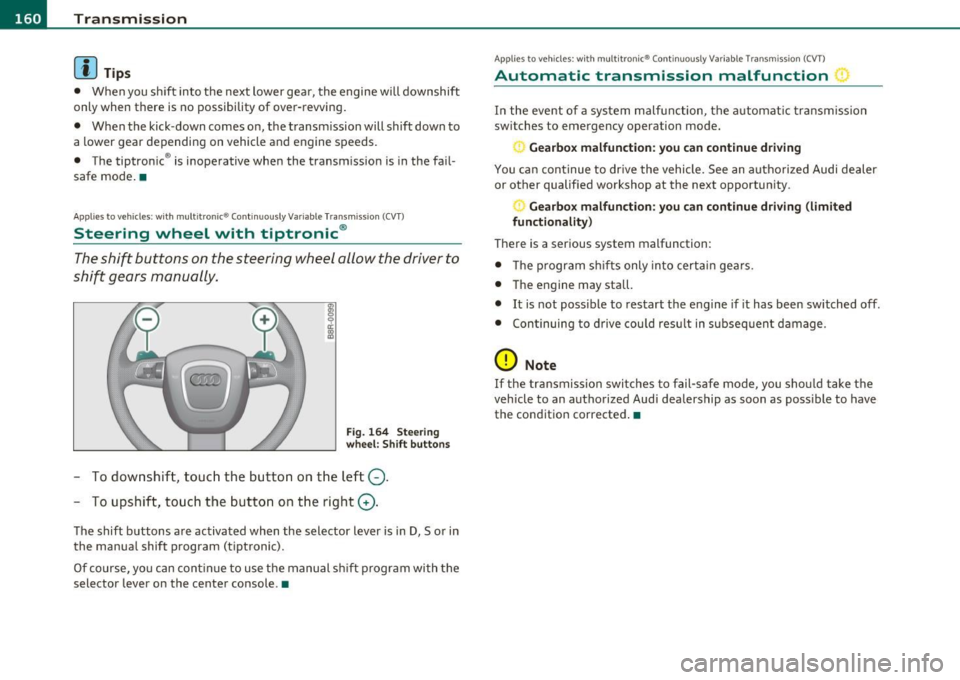

Steering wheel with tiptronic ®
The shift buttons on the steering wheel allow the driver to
shift gears manually.
F ig . 1 64 Steeri ng
whe el: Shift butt ons
- To downshift, touc h the bu tton on the l eft Q.
- To upshift, to uch th e button on t he right G).
The shift buttons a re activated when the se lector lever is in D, So r in
the manua l shift prog ram (tiptron ic).
Of co urse, yo u can con tinue to use t he manual sh if t progr am with t he
selector lever on the center console .•
App lies to veh icles : w ith multitron ic® Conti nuous ly Var ia bl e Transm ission (CVT)
Automatic transmission malfunction :)
In the event of a system malfunction, the automatic tra nsm iss ion
swi tches to emergency opera tion mode .
Gearbox malfunction: you can continue driving
You ca n con tinue to dr ive the vehicle . See an autho rized Audi dealer
o r othe r qualif ied workshop at the next opportunity .
Gearbox malfunction : you can continue dr iving (limited
functionality)
There is a serious system malfunction:
• T he program sh if ts only into certa in ge ars .
• T he engine may sta ll.
• It is not poss ible to restart the engine if it has been switched off.
• Con tinuing to d rive cou ld res ult in subseq uen t damage .
0 Note
If the tra nsmission switc hes to fail-safe mode , you sho uld take t he
vehicle to an authorized Aud i dealership as soon as poss ible to have
the cond ition corr ecte d.•

____________________________________________________ T _r_a _n_ s_m _ i_s _s_ i_ o _ n_---J_
Applies to vehicles : with mult itron ic® Continuous ly Variab le Transm ission (CVT)

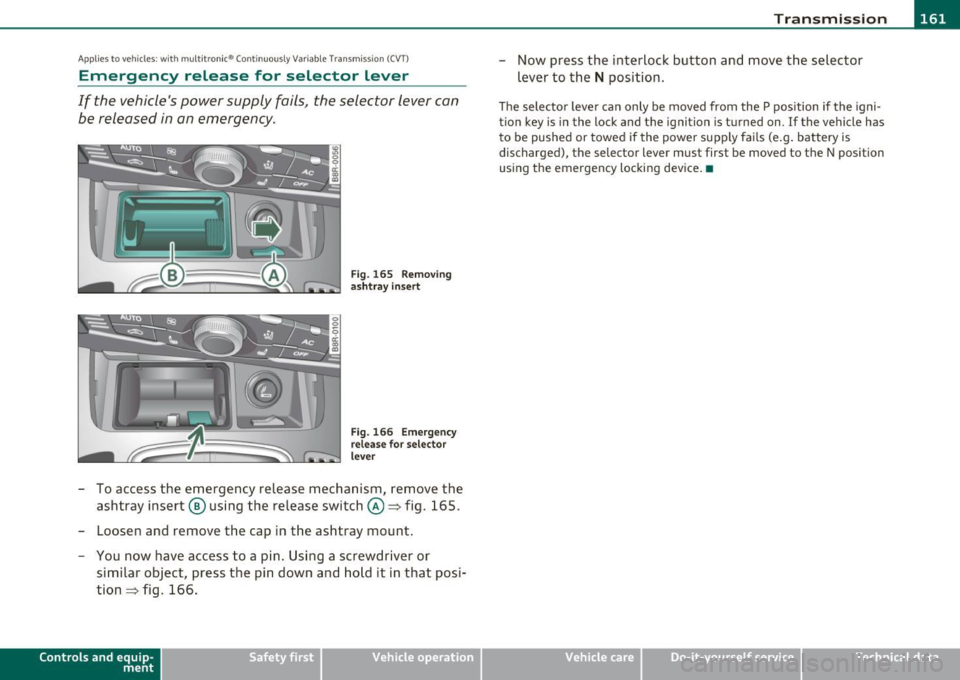

Emergency release for selector lever
If the vehicle 's power supply fails, the selector lever can
be released in an emergency.
Fig . 165 Removing
ashtray insert
Fig. 166 Emergency
release for selector
lever
- To access the emergency release mechanism, remove the
ashtray insert @ using the release switch@~ fig. 165.
- Loosen and remove the cap in the ashtray mount.
- You now have access to a pin. Using a screwdriver or
similar object, press the pin down and hold it in that posi­
tion~ fig. 166.
Contro ls a nd e quip ­
m en t Vehicle
OP-eration
-Now press the interlock button and move the selector
lever to the
N position.
The selector lever can only be moved from the P position if the igni­
tion key is in the lock and the ignition is turned on. If the vehicle has
to be pushed or towed if the power supply fails (e.g. battery is
discharged) , the selector lever must first be moved to the N position
using the emergency locking device. •
Vehicle care Do-it-yourselt service iTechnical data

1111...._ __ P_a _ r_ k_ a_ s_ s_is _ t ____________________________________________________ _
Park assist
Applies to veh icles: w ith pa rk ing sys te m
Parking system
Different park assist systems may be used for parking or
maneuvering , depending on the vehicle's features .
Parking system (rear)*:
For the parking system, the acoustic park assist system is installed in
the rear of the vehicle=>
page 162.
The rear pa rk ing assist system uses ultrasonic sensors to determine
the distance of the vehicle from a detected obstacle. There are a tota l
o f f our sensors located on the rear bumper (two in the m iddle and
two on the sides) .
Parking system (rear, with rear-view cam era)*:
For the parking system (rear, with rear-view camera) , the rear
acoust ic park assist sys tem is integra ted in the rear of the vehicle and
the rear-v iew camera is integrated in the rear lid=>
page 166.
The parking system (rear, with rear-view camera) uses ultrasonic
sensors to determine the d istance of the vehicle from a detected
obstacle. There are a total of four sensors located on the rear bumper
(two in the m iddle a nd two on the sides). •
Parking system (rear)
Appli es to ve hicl es: w ith park ing syste m (rear )
Rear acoustic park assist
The rear acoustic park assist warns you of obstacles or
objects behind your car .
Description
The rear acoust ic par king assist sys tem determines the d ista nce of
the vehicle from an obstacle using ultrason ic sensors . There are 4
sensors in the rear bumper .
T he range at which the sensors start to measure is
about :
To the side
Center rear
Act ivation 2
ft (0.60 m)
5
.2 ft (1.60 m)
Aco ust ic parking assist is act ivated automatically when
re ver se gear
is engaged . A b rief tone confirms that the system is activated .
Warning tones
Distance warning is given by chimes wh ich are generated by the rear
signa l generator . The vo lume and the pitch of the chimes can be
adjusted in the radio or i n the MM!*=>
page 163 .
Reversing
Distance warning when reversing starts when an obstacle is detected
in the range o f the pa rking assist system. As the d istance decreases,
the time interval between the audible tones becomes shorter .
When the distance is less than 1ft (0.30 m), the tone becomes
c ont inuous. At this point you should stop back ing up.

______________________________________________________ P_a _ r_ k_ a_ s_s _i _ s _t __ _
Please note that low objects already signaled by a warning can disap­
pear from the system's detection range and will not continue to be
signaled.
If the distance to an obstacle remains the same, the vo lume of the
distance warning is gradually reduced after about 4 seconds.
Approaching another obstacle will result in the distance warning
sounding at the normal volume again.
Malfunctions in the system
If a warning tone is aud ible for about five seconds when you turn on
the ignition , there is a malfunction in the system. Have the problem
corrected by your authorized Audi dealer.
Keep the sensors in the rear bumper clean and free from ice so that
the acoustic park assist system can function properly.
& WARNING
• Sensors have dead spaces in which objects cannot be detected.
Be especially alert for small children and animals, since they are
not always detected by the sensors.
• The Acoustic Parking System is not a substitute for the driver's
own caution and alertness. Ultimate respon sibility always
remains with the driver during parking and similar maneuvers.
Always watch where you are driving.
• You should always adjust the volume and frequency of the
chimes so that you can easily hear the acoustic distance warning
even if the radio is playing, the air-conditioner blower is on High
or there is a high level of outside noise .
- Check the settings whenever anyone else has driven the
vehicle before you.
0 Note
• Remember that low obstacles for which a warning has already
been issued may "dive" below the system 's sensing zone if the veh icle
is be ing backed up closer . In this case, the warning sound shutting off
Controls and equip ­
ment Safety first
does not ind
icate that you have cleared the obstacle . Instead, impact
is immin ent.
• Objects such as trai ler hitches, chains, narrow posts or fences
covered by a thin layer of paint may not always be detec ted by the
system . They can still damage your vehicle w ithout warning .
lI] Tips
Keep the sensors in the rear bumper clean and free of snow and ice so
that the aco ustic parking assist system can function properly.•
Applies to ve hicle s: wit h pa rkin g system (re ar)
Adjusting the chimes
The volume and the pitch (frequency) of the chimes can
be adjusted in the radio or in the /11/111*.
Rear volume adjustment
-Select: [CAR]> Parking system .
- Select Rear volume if you want to change the volume of
the rear signal generator.
Rear frequency adjustment
- Select: [CAR]> Parking system.
- Select Rear frequency when you want to change the
frequency of the rear audible signal generator.
When adjusting the volume and frequency, the new sett ing will
sound for approx. 2 seconds from each audib le signal generator. The
vol ume and frequency settings are automatically stored and assigned
to the master key with remote control. .,_
Vehicle care Technical data

llffl..__P_ a_r_ k_ a_ s_ s_ is_t ____________________________________________________ _
& WARNING
• You should always adjust the volume and frequ ency of the
chime s so that you can easily hear the a cou stic di stan ce warning
ev en if the radio i s playing , th e air-conditioner blower is on High
or there i s a high level of outside noise .
- Check the setting s whenever anyone else ha s driven the
v ehicle before you. •
Parking system (rear , with rear­
view camera)
App lies to vehicles : with park ing system (rea r) an d rear -v iew camera
Introduction
0 110
9
"' 110 m
Fig . 167 Parking
mo de 1 : rev er se
par king
Fi g. 168 P arking
mode 2: parallel
par kin g
Vehicles wit h the park ing system are equ ipped with a rear-v iew
camera
in add ition to the aco ustic and v is u al parking system .
You can choose between two modes to ass ist yo u wit h pa rking . For
example, you can use "parking model" when par king in a parking
spa ce o r garage ~ fig. 16 7. When you wan t to park parallel to the
edge of the street, select "pa rking mode 2"
~ fig. 168.
& WARNING
• The rear-view camera has blind spot s, in which objects cannot
be detected. Be especially c areful t o check for small children and
animals before backing up . Small child ren and animals will not
alway s be dete cted by the sensor s. •

______________________________________________________ P_a _ r_ k_ a_ s _ s_is _ t _ __.fflll
A ppli es to veh icl es: wi th park ing s yst em (r ear ) and re ar-view camera
General Information
®
Sensors in the bumper
Fig . 169 Covered area
(!) and uncovered area
@ of the rear-view
camera
Fig. 170 Trunk lid:
location of the rear­
view camera
Sensors are located in the front and rear bumpers. If these detect an
obstacle, audible and visual signals warn you. The range at which the
sensors begin to measure is approximately:
To the side
Center rear
2 ft (0.60 m)
5.2 ft (1.60 m)
The closer you get to the obstacle, the shorter the interval between
the audible signals. A continuous tone sounds when the obstacle is
Con tro ls a nd e quip ·
m en t Vehicle
OP-eration
less than approximately 1 foot (0.30 meters) away . Do not continue
driving farther.
If the distance to an obstacle stays the same, the volume of the
distance signal chime is gradually reduced after about
4 seconds
(does not affect the continuous signal tone). Approaching another
obstacle will cause the distance signal to sound again at the normal
volume.
Rearview camera coverage area
The MMI display shows the area covered by the rearview
camera ::> fig.
169 (D. Objects that are not in the area covered@ are
not shown on the MMI display.
We recommend that you practice parking with the rear-view camera
in a traffic-free location or parking lot to become familiar with the
system, the orientation lines, and their function. When doing this,
there should be good light and weather conditions.
In the MMI display, objects or vehicles appear closer or further away
if:
• you are driving in reverse gear from a level surface onto an incline,
or a downward slope,
• you are driving in reverse gear toward protruding objects ,
• the vehicle is carrying too much load in the rear.
The accuracy of the orientation lines and blue surfaces diminishes if:
• the rear-view camera does not provide a reliable image, for
example, in poor visibility conditions or if the lens is dirty,
• the image on the screen is not visible due to sun glare and reflec ­
tion.
Caring for the rear-view camera lens
The rear-view camera is located above the rear license plate bracket.
For the parking assist to operate, the lens=> fig . 170 must be kept
clean:
• Dampen the lens with a household alcohol-based glass cleaner,
and clean the lens with a dry cloth=>
0. .,
Vehicle care Do-it-yourselt service iTechnical data

lffll.__ __ P_a _ r_ k_ a_ s_ s_is _ t ____________________________________________________ _
• Remove snow with a hand brush and ice preferab ly w ith a de- ic ing
spray =:>0.
& WARNING
• The parking aid cannot repla ce the driv er' s att ention. The
d river alone is re spons ible for parking and sim ilar driving maneu­
ver s.
• Alwa ys keep your e yes on the vehicle 's sur round ings, us ing the
rear -view mirror as well.
• Do not allow yourself t o be d istr acted fr om tr affic by the r ear·
vi ew cam era pictur es.
• If the posit ion and the installati on ang le of th e came ra ha s
changed, for ex ample, after a rear en d collision, do not continue
to us e the system for s afe ty reaso ns. Hav e it che cked b y a qualified
deale rship .
0 Not e
• Low obstacles a lready s ignaled by a wa rning can disappear from
the system's detection range as they are approached and will not
cont inue to be s ignaled. Objects such as barrie r cha ins, trailer draw
bars, thin painted vertical poles or fences may not be detected by the
system, posing risk of damage .
• Never use warm or hot water to remove snow or ice from the rear­
view came ra lens - dange r of crack format io n on the lens!
• When cleaning the lens, never use products that are abrasive.•
Applies to vehic les: with pa rk ing syst em (rear) and rear-v iew camera
Switching on /off
The rearview camera switches on automatically together
with the acoustic and optical park assist when you put the
vehicle in reverse.
Activation
- Put the vehicle in reverse gear, the acoustic parking
system with rear-view camera is activated automatically .
Activation of the acoustic parking system is confirmed by
a brief acknowledgement sound .
Switching between the rearview camera and
optical display
-Press the Graphic control button~ page 167, fig. 171 ®
to see the optical display .
- Press the
Rear view control button to see the rearv iew
camera image.
Deactivation
-Take the vehic le out of reverse gear . The acoust ic parking
system is immed iate ly deactiva ted, and the rear-view
camera picture is deactivated automatically after a period
of about 15 seconds , or
- Switch the ignition off, the entire acoustic pa rkin g system
is automatica lly deactivated .
The rear-view came ra will dea ct ivate au tomatically when yo u shift
into a forward gear and drive faster than about 9 mph (15 km/h).
T he de lay in deactivating the camera provides an uninterrupted view
beh ind the vehicle espec ially when maneuver ing in tight park ing
spaces and prevents the picture from tu rning off the every time you
shift out of reve rse .
~

___________________________________________________ P_ a_ r_k _ a _ s_s _ i_s _t _ __.fflll
If the warning message appears in the display but not the rear-view
camera picture, read and confi rm the warn ing message . The aco ustic
distance signal is always act ive.
If you press a function button on the MMI control console, the rear ­
view camera picture disappears. The rear-view camera picture reap­
pears the next time you park .
Further information on the wa rning message and the MMI contro l
console can be found in the MMI instruct io n booklet.
(I] Tips
• The rear-view camera picture is ava ilable as soon as the MMI
Display or the MMI is .switched on, or the start-up phase is completed.
• Keep the sensors in the rear bumper and the rear-view camera lens
clean and free of snow and ice, so that the parking system can work
properly . Please follow the additional notes on=>
page 170. •
App lies to veh icles : w ith parking system (r ear) and rear-view camera
Reverse Parking
Parking mode 1 can be used when parking in a garage or
parking space.
Con tro ls a nd e quip ­
m en t
Fig. 17 1 MMI D ispla y:
Aim ing at a par king
sp ot
Vehicle OP-eration
Fig.172 MMI D ispl ay:
A lig ning the vehicl e
-Switch th e MMI on and select the reverse gea r.
- Turn the steering wheel until the orange orientation lines
(D appear in the parking spot=> fig. 171. Use the mark­
ings @to help you es timate the distance from an
obstacle. Each marking co rres ponds to 3 ft (1 m). The
blue area repr esen ts an ext ension of the vehicle 's outline
by approximately 16 ft (S m) to the rear .
- While driving in reverse gear, adjust the steering wheel
angle to fit the parking space wi th the aid of the orange
orienta tion lines=>
0. ® marks th e re ar bumper . You
should sto p driving in reverse as soon as and no later than
when the red orientation line © abuts an object=> &!
& WARNING
• The re ar- vie w came ra doe s not sh ow th e entire are a behind the
veh icl e=>
pag e 165, fig. 169. Watch out espe ciall y for small chil ­
dr en and anim als. Th e rear-view cam era cannot alwa ys dete ct
th em, posing ri sk of an a ccident!
• Plea se note that objec ts not tou ching th e ground can appear to
be furthe r awa y than the y reall y are ( for e xample , th e bump er of
a p arked vehi cle, a trailer hitch , or the rear of a truck ). In thi s ca se, .,_
Vehicle care Do-it-yourselt service iTechnical data

ffl Park assist .._ _____________________________________ _
& WARNING (continued)
you should not use the help lines to help with parking, which
poses danger of an accident!
0 Note
• Low obstacles already signaled by a warning can disappear from
the system's detection range as they are approached and will not
continue to be signaled. Objects such as barrier chains, trailer draw
bars, thin painted vertical poles or fences may not be detected by the
system, posing risk of damage.
• In the MMI display, the direction of travel of the vehicle rear is
represented depending on the steering wheel angle. The vehicle front
swings out more than the vehicle rear . Maintain plenty of distance
from an obstacle so that your outside mirror or a corner of your
vehicle does not collide with any obstacles -danger of accident! •
Applies to vehicles: w ith park ing system (rea r) and rear-view camera

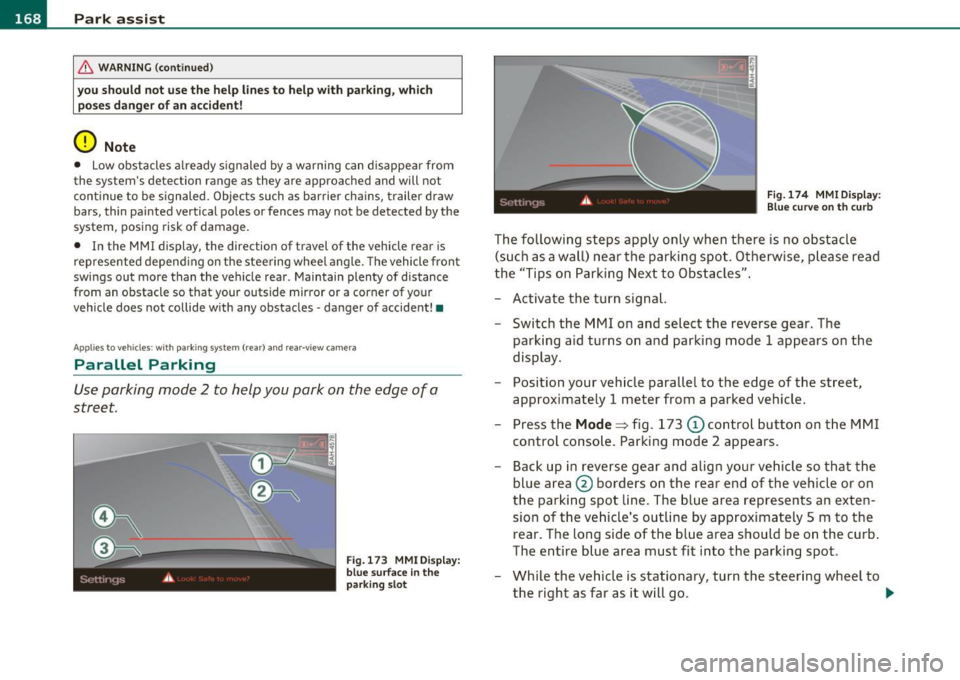

Parallel Parking
Use parking mode 2 to help you park on the edge of a
street.
Fig.173 MMI Display:
blue surface In the
parking slot Fig.174 MMIDisplay:
Blue
curve on th curb
The following steps apply only when there is no obstacle
(such as a wall) near the parking spot. Otherwise, please read
the "Tips on Parking Next to Obstacles".
- Activate the turn signal.
- Switch the MMI on and select the reverse gear. The
parking aid turns on and parking mode 1 appears on the
display.
- Position your vehicle parallel to the edge of the street,
approximately 1 meter from a parked vehicle.
- Press the
Mode => fig. 173 © control button on the MMI
control console. Parking mode 2 appears.
- Back up in reverse gear and align your vehicle so that the
blue area
0 borders on the rear end of the vehicle or on
the parking spot line. The blue area represents an exten­
sion of the vehicle's outline by approximately 5 m to the rear. The long side of the blue area should be on the curb.
The entire blue area must fit into the parking spot.
- While the vehicle is stationary, turn the steering wheel to
the right as far as it will go.
~
