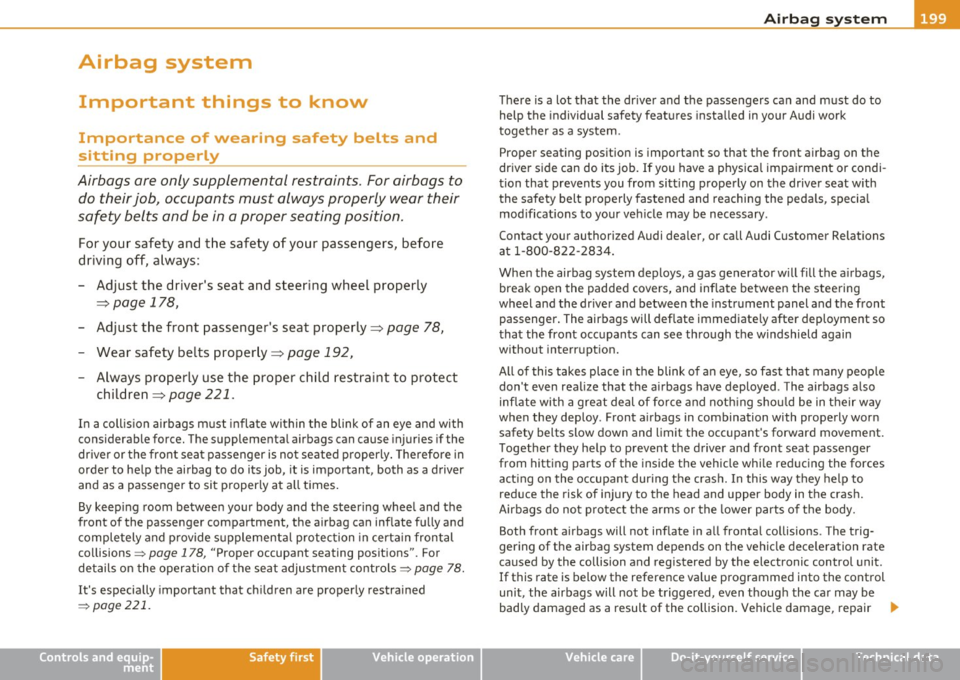

Airbag system
Important things to know
Importance of wearing safety belts and
sitting properly
Airbags are only supplemental restraints. For airbags to
do their job, occupants must always properly wear their
safety belts and be in a proper seating position.
For your safety and the safety of your passengers, before
driving off, always:
- Adjust the driver's seat and steering wheel properly
=>
page 178,
- Adjust the front passenger's seat properly=> page 78,
-Wear safety belts properly=> page 192,
-Always properly use the proper child restraint to protect
children=>
page 221.
In a collision airbags must inflate within the blink of an eye and with
considerable force. The supplemental airbags can cause injuries if the
driver or the front seat passenger is not seated properly. Therefore in
order to help the airbag to do its job, it is important, both as a driver
and as a passenger to sit properly at all times.
By keeping room between your body and the steering wheel and the
front of the passenger compartment, the airbag can inflate fully and
completely and provide supplemental protection in certain frontal
collisions =:,
page 178, "Proper occupant seating positions" . For
details on the operation of the seat adjustment controls=>
page 78.
It's especially important that children are properly restrained
=:,
page 221.
Controls and equip­ ment Safety first Vehicle operation
There
is a lot that the driver and the passengers can and must do to
help the individual safety features installed in your Audi work
together as a system .
Proper seating position is important so that the front airbag on the
driver side can do its job. If you have a physical impairment or condi­
tion that prevents you from sitting properly on the driver seat with
the safety belt properly fastened and reaching the pedals, special
modifications to your vehicle may be necessary .
Contact your authorized Audi dealer, or call Audi Customer Relations
at 1-800-822-2834.
When the airbag system deploys, a gas generator will fill the airbags, break open the padded covers, and inflate between the steering
wheel and the driver and between the instrument panel and the front
passenger. The airbags will deflate immediately after deployment so
that the front occupants can see through the windshield again
without interruption.
All of this takes place in the blink of an eye, so fast that many people
don 't even realize that the airbags have deployed . The airbags also
inflate with a great deal of force and nothing should be in their way
when they deploy . Front airbags in combination with properly worn
safety belts slow down and limit the occupant's forward movement.
Together they help to prevent the driver and front seat passenger
from hitting parts of the inside the vehicle while reducing the forces
acting on the occupant during the crash. In this way they help to
reduce the risk of injury to the head and upper body in the crash.
Airbags do not protect the arms or the lower parts of the body.
Both front airbags will not inflate in all frontal collisions . The trig­
gering of the airbag system depends on the vehicle deceleration rate
caused by the collision and registered by the electronic control unit.
If this rate is below the reference value programmed into the control
unit , the airbags will not be triggered, even though the car may be
badly damaged as a result of the collision. Vehicle damage , repair .._
Vehicle care Do-it-yourself service Technical data

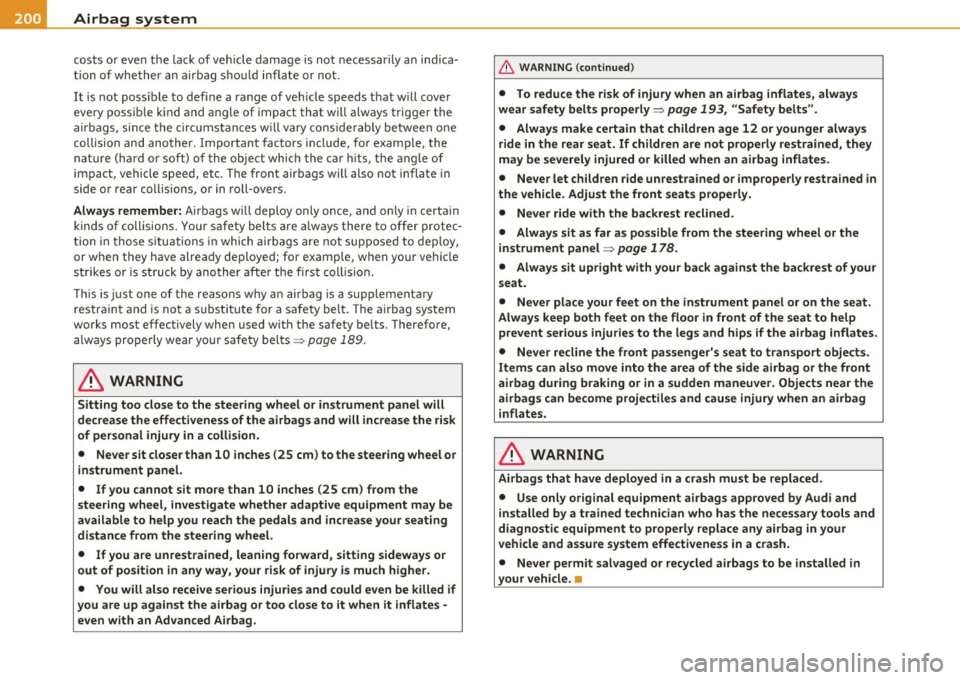

........ _A_ i_rb _ a_,g,:;._ s_, y'- s_ t_e _m ________________________________________________ _
costs o r ev en t he lack of v ehicle da mage is no t necessar ily an ind ica ­
t ion of whe the r an a irbag should inflat e or not.
It is not poss ible to defi ne a r ange of v ehicle speeds t hat w ill cove r
every possible k ind and a ngle of impact that will a lways t rigger t he
a ir bags, sin ce the c ircum stanc es will vary consider ably be twee n one
co llision and another. Important factors incl ude, fo r exam ple, the
n at ure (h ard or s oft) of th e obje ct whi ch the c ar hits , the ang le of
impact, vehicle speed, etc. The front airbags will also not inflate in
s ide o r rear coll isions , or in roll-ove rs.
Always remember: Airbags w ill deploy only once, an d on ly in certa in
kinds of co llisio ns. Your safety be lts are a lways there to offer protec­
t ion in those s ituatio ns in which airbags ar e no t sup pose d to d eploy,
or w hen they have alrea dy de ploye d; for examp le, when your ve hicl e
st rikes or is st ruc k by ano ther afte r the first collis io n.
T hi s is just one of the reasons w hy an airbag is a s upplementa ry
restra in t a nd is no t a su bst itute for a safe ty bel t. The air bag sy stem
works most effectively when used with the safety be lts. Therefore,
always p rope rly wear y ou r safety belts => page 189 .
& WARNING
Sitting too close to the steering wheel or instrument panel will
decrease the effectiveness of the airbags and will increase the risk
of personal injury in a collision.
• Never sit closer than 10 inches (25 cm) to the steering wheel or
instrument panel.
• If you cannot sit more than 10 inches (25 cm) from the
steering wheel, investigate whether adaptive equipment may be
available to help you reach the pedals and increase your seating
distance from the steering wheel.
• If you are unrestrained, leaning forward, sitting sideways or
out of position in any way , your risk of injury is much higher.
• You will also receive serious injuries and could even be killed if
you are up against the airbag or too close to it when it inflates - even with an Advanced Airbag.
& WARNING (co ntinued )
• To reduce the risk of injury when an airbag inflates, always
wear safety belts properly=>
page 193, "Safety belts ".
• Always make certain that children age 12 or younger always
ride in the rear seat. If children are not properly restrained, they
may be severely injured or killed when an airbag infl ates .
• Never let children ride unrestrained or improperly restrained in
the vehicle. Adjust the front seats properly.
• Never ride with the backrest reclined.
• Always sit as far as possible from the steering wheel or the
instrument panel =>
page 178.
• Always sit upright with your back against the backrest of your
seat.
• Never place your feet on the instrument panel or on the seat.
Always keep both feet on the floor in front of the seat to help
prevent seriou s injuries to the legs and hips if the airbag inflates.
• Never recline the front passenger's seat to transport objects .
Items can also move into the area of the side airbag or the front
airbag during braking or in a sudden maneuver. Objects near the
airbags can become projectiles and cause injury when an airbag inflates .
& WARNING
Airbags that have deployed in a crash must be replaced .
• Use only original equipment airbags approved by Audi and
installed by a trained technician who has the neces sary tools and
diagnostic equipment to properly replace any airbag in your
vehicle and assure system effectiveness in a crash.
• Never permit salvaged or recycled a irbags to be installed in
your vehicle. •

_________________________________________________ A_ ir_ b_ a_,,g :;..__ s-=y '"- s_ t_ e_ m __ _
Child restraints on the front seat - some
important things to know
- Be su re to re ad t he i mpo rt a nt i nfo rmation a nd head the
WA RNINGS fo r i mporta nt details about chil dre n and
Advanced Airbags ~
page 221.
Even t hough your ve hicle is eq uipped with an Advanced Airbag
System, ma ke ce rtain that a ll chi ld ren, especia lly those 12 years an d
younger, always r ide in the back seat prope rly rest rained fo r th eir age
and si ze. The airbag on the passenger side makes the front seat a
po tentially da ngerous place fo r a child to r ide. The fro nt seat is not
the safest place for a ch ild in a forward-facing child safety seat. It can
be a very dange rous place fo r an i nfan t or a child in a rearward-fac ing
seat.
Th e Advanced Ai rbag System in your vehicle has been cer tified to
comply with the Req uirements of Uni ted States Federa l Motor
Vehicle Safety Standard 208 as applicable at the time your veh icle
was ma nufact ured .
The Standard requires the front airbag on the passenger side to be tu rne d off ("s uppressed") if a c hild up to abou t one ye ar of age
restra ined in o ne of the rear -facing or forward -fac ing infant
restra ints listed in Fed era l Moto r Vehicle Safety Standard 208 with
whic h the Advanced Airbag System in yo ur vehicle was cert ified has
been installed on the front passenger seat. For a listing of the ch ild
restra in ts that were used to certify compliance with the US Saf ety
Standard =>
page 223.
The PASSENGER AIR BAG OFF ligh t in th e in st rume nt p anel t ells you
when the front Advanced A irbag on the passenger side has been
tur ned off by the ele ct ronic con trol uni t.
Each time you t urn on the ignition, t he
PASSENGER AIR BAG OFF
light will come on for a few seconds and:
• will stay on if th e front passenger se at is no t oc cupie d,
Controls and equip­
ment Safety first
Vehicle operation
• will stay on if there is a small ch ild or child restra int on the front
p assenge r se at,
• will go off if the front passenger seat is occup ied by an adult as
reg iste red by t he weight -sens ing mat =>
page 210, "M oni tor ing t he
Advanced Airbag System" .
T he
PASSENGER AIR BAG OFF light comes o n when t he control unit
de tects a total weight on t he front passenger seat that req uires the
front airbag to be t urned off .
If th e total weight o n the front passenger seat is more than th at of a
typical 1 year-o ld child but less than the weight of a small adult, the
fr on t a ir bag on the passenge r si de c an deploy (t he
PASSENGER AIR
BAG OFF
light does not come on) . If the PASSENGER AIR BAG OFF
light does not come on, the front airbag on the passenger side has
not been turned off by the electronic co ntrol unit and can deploy if
the control unit senses an impact t hat meets the conditions stored in
its memory.
For example, the airbag may deploy if:
• a small child that is heavier than a typical 1 year -old child is on the
front passenger seat (rega rd less of whether the chi ld is in one of the
child safety seats listed =>
page 223), or
• a child who has outgrown child restraints is on the front passenger
sea t.
If the fro nt passenger a irbag is tur ned off, the
PASSENGER AIR BAG
OFF
lig ht comes on in the instr ument cluster an d stays on.
Th e fron t airbag on t he pa sse nger side may
not de ploy ( the
PASSENGER AIR BAG OFF li ght does not illum inate and stay lit) even
if a small a dult or teenager, o r a passenger who is no t sitti ng upright
with their back against a non-reclined backrest w ith the ir feet on the
vehicle floor in front of the seat is on the front passenger seat
=>
page 178, " P roper seat ing pos itio n for the dr iver".
If the front passenger ai rbag dep loys, the Federal Standard requires
t he a irbag to mee t the "low risk" deployme nt cr iter ia to reduce the
risk of inj ury through interaction with the a irbag. "Low r isk" deploy­
me nt o ccurs in those cras hes t hat tak e pla ce a t lower decelerat io ns as
I),
Vehicle care Do-it-yourself service Technical data

___ A_ i_r _b _a _, g,:;._ s_, y._ s _ t_e _m ________________________________________________ _
defined in the elect ronic contro l unit~ page 211, "PASSE NGER AIR
BA G OFF l ight ".

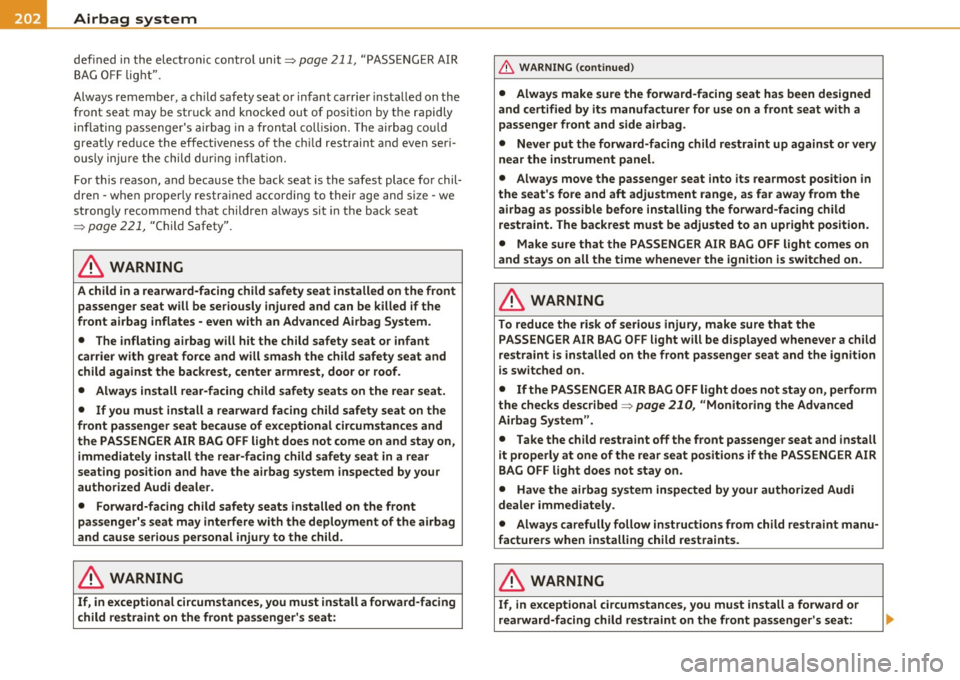

Always r emembe r, a c hild safety seat o r infa nt ca rr ie r i nsta lled on th e
fro nt seat may be struc k and k noc ke d out of position by t he ra pidly
i nflat ing pass enge r's air ba g in a fr ontal c oll ision. Th e airba g could
g reat ly re duce the effectiveness o f th e ch ild restraint an d even seri­
ousl y injur e th e child d uring inf lation .
For this r easo n, and b eca use the back seat is th e sa fest plac e for chil­
dre n -whe n pro per ly restra ined acc ordin g to their age and size -we
s tr ong ly r ecommen d that childr en a lways sit in the back s eat
~ pa ge 22 1, "Child S afety".
& WARNING
A child in a rearward -facing child safety seat installed on the front
passenger seat will be seriously injured and can be killed if the
front airbag inflates - even with an Advanced Airbag System.
• The inflating airbag will hit the child safety seat or infant
carrier with great force and will smash the child safety seat and
child against the backrest, center armrest, door or roof .
• Always install rear-facing child safety seats on the rear seat.
• If you must install a rearward facing child safety seat on the
front passenger seat because of exceptional circumstances and
the PASSENGER AIR BAG OFF light does not come on and stay on,
immediately install the rear-facing child safety seat in a rear
seating position and have the airbag system inspected by your
authorized Audi dealer.
• Forward-facing child safety seats installed on the front
passenger's seat may interfere with the deployment of the airbag
and cause serious personal injury to the child.
& WARNING
If , in exceptional circumstances , you must install a forward-facing
child restraint on the front passenger's seat:
& WARNING (continued)
• Always make sure the forward-facing seat has been designed
and certified by its manufacturer for use on a front seat with a
passenger front and side airbag.
• Never put the forward-facing child restraint up against or very
near the instrument panel.
• Always move the passenger seat into its rearmost position in
the seat's fore and aft adjustment range, as far away from the
airbag as possible before installing the forward-facing child
restraint. The backrest must be adjusted to an upright position.
• Make sure that the PASSENGER AIR BAG OFF light comes on
and stays on all the time whenever the ignition is switched on.
& WARNING
To reduce the risk of serious injury, make sure that the PASSENGER AIR BAG OFF light will be displayed whenever a child
restraint is installed on the front passenger seat and the ignition
is switched on .
• If the PASSENGER AIR BAG OFF light does not stay on, perform
the checks described~
page 210, "Monitoring the Advanced
Airbag System ".
• Take the child restraint off the front passenger seat and install
it properly at one of the rear seat positions if the PASSENGER AIR
BAG OFF light does not stay on .
• Have the airbag system inspected by your authorized Audi
dealer immediately.
• Always carefully follow instructions from child restraint manu­
facturers when installing child restraints.
& WARNING
If , in exceptional circumstances , you must install a forward or
rearward-facing child restraint on the front passenger 's seat:

& WARNIN G (con tinued )
• Imprope r in stall ation of child re straints can redu ce their effec·
tiveness or even prevent them from providing any protection.
• An improperl y installed child re straint c an interfere with the
airbag a s it deploy s and seriously injure or even kill the child - even
with an Advanced Airbag Sy stem.
• Always carefully follow the manufacturer 's instruct ions
provided with the child safety seat or carrier.
• Ne ver place additional items on the seat that can increase the
total weight regi stered by the weight-sen sing mat and can cause
injury in a crash .•
Front airbags
Description of front airbags
T he airbag system can p rovide supplemental protection
to properly r estrained front se at oc cupants .
Safety first
Fig . 19 6 Locatio n of
drive r airb ag : in
s tee ring whee l
Vehicle OP-eration
Airbag system
Fig. 19 7 Locati on of
fr on t pass enge r's
a ir bag: in the instru ­
me nt pa nel
Yo ur vehicle is equi pped with an "Advanced A irbag Syst em" in compli ·
ance with United States Fe dera l Moto r Vehicle Safety Sta ndard
(FMVSS) 2 08 as a pplicable at t he time your vehi cle was manufac­
t u red . The system senses the position of the front seats and controls
front a irbag infl ation w ith a va lv e , dep ending on th e distanc e
between the respective seat and the stee ring wheel or instrument
pane l. The safe ty belts fo r the seats have "prete ns ione rs" t hat he lp to
take slack out of the belt system. The p retensioners are also activated
by the elec tron ic control u nit for the air bag sys tem.
T he front s afe ty belts also have load limiters to help red uce the forces
applied to the body in a cras h.
Th e airbag for the driver is in the stee ring whee l hub::::> fig. 196 and
the ai rbag for the front passenger is in the inst rument panel
::::> fig. 19 7. T he ge neral lo cat io n of the air bags is m ark e d "A IRBAG".
Th ere is a lot you need to know about the a irbags in your vehicle. We
urge yo u to read the det ailed in forma tion abou t air bags, sa fety be lts
and child safety in this and the other chap ters tha t make u p the
owner's literature. Please be sure to heed the WARNINGS -they are
e xtremely importa nt f or your safety and the saf ety of your pas se n­
gers, especially infants and sma ll ch ildren.
& WARNING
Never rely on airbags alone for protection.
Vehicle care Do-it-yourselt service iTechnical data

111,___A_ i_rb _ a_,g=-- s_, y:;.. s_ t_e _m ________________________________________________ _
& WARNING (conti nued)
• Even when they deploy, airbags provide only supplemental
protection.
• Airbag work most effectivel y when used with properly worn
safety belts .
• Therefore, always wear your safety belts and make sure that
everybody in your vehicle is properly restrained.
& WARNING
A person on the front passenger seat , especially infants and small
c hildren, will receive serious injuries and can even be killed by
being too close to the a irbag when it inflates .
• Although the Advanced Airbag System in your vehicle is
designed to turn off the front passenger airbag if an infant or a
small child i s on the front pa ssenger seat, nobody can absolutely
guarantee that deployment under these spec ial conditions is
impos sible in all conceivable situations that may happen during
the useful life of your vehicle .
• The Advanced Airbag System can deploy in a ccordance with the
" low risk" option under the U.S . Federal Standard if a child that is
heavier than the typical one-year old child is on the front
passenger seat and the other conditions for airbag deployment
are met.
• Accident statistics have shown that children are generally safer
in the rear seat area than in the front seating po sition .
• For their own safety , all children , especially 12 years and
younger, should alway s ride in the back properly re strained for
the ir age and size. •
Advanced front airbag system
Your vehicle is equipped with a front Advanced A irbag System in
comp li a nce wi th Unit ed State s F edera l Motor Vehicle Sa fety Sta ndar d
208 as applicable at t he time your veh icle was manufactured.
Th e front A dvanced A irbag System s upplements the safety belts to
prov ide addit ional p rotect ion fo r the driver's a nd front passenger's
hea ds and uppe r bodies in fronta l crashes . The airbags inflate only in
fronta l impa cts when the vehicle dece leration is high enoug h.
T he front Advanced Airbag System for the front seat occupants is not
a subs titu te for your s afe ty be lts. R athe r, it is part o f the ove rall occu­
pant restra int system in your ve hicle. Always remember t hat the
airbag sys tem ca n on ly hel p to protect you, if yo u are sitting upr igh t,
wearing your safety be lt and wear ing it prope rly . T his is why you and
your passengers must always be p roperly restra ined, not just beca use
t he law requires you to be .
The Advanced A irbag System in your veh icle has been cert ified to
meet the " low r isk " req uirem ents fo r 3 a nd 6 year-old childre n on the
passenger s ide and very small adu lts on the driver s ide. T he low r isk
dep loyme nt crite ria are in tende d to hel p r educe t he ris k of injury
throug h interaction with the front airbag that can occur, for example,
by being too close to the steering wheel and instr ume nt pane l whe n
t he airbag i nflates.
In addit ion, the system has been cert ified to comply with t he
"supp ression" requirements of the Safety Stand ard, to turn off the
front airbag for infants 12 mont hs old and younger who are
res trained on the fron t passenger sea t in child re strai nts th at ar e
listed in the Standard~
page 223, "Child restraints and Advanced
Air bags".
" Sup pression" requ ires the front a irbag on the passenger side to be
turned off if:
• a chi ld up to about one year o f age is restra ined on the fron t
passenge r seat in one of t he rear-faci ng or forward-facing infant
res train ts lis ted in F eder al Motor Vehicle S afety Stand ard 208 wit h
w hich the Advanced A irbag System in yo ur vehicle was ce rtified . Fo r a .,_

_________________________________________________ A_ ir_ b_ a_,,g :;..__ s-=y '"- s_ t_ e_ m __ _
listing of the child restraints that were used to certify your vehicle's
compliance with the US Safety Standard ~
page 22 3,
• weight less than a threshold level sto red in the contro l unit is
de tected o n the front p assenge r seat.
When a person is detected on t he front passenger seat, weigh ing
more tha n the tota l we ight of a child that is about 1 year old
restra ined in one of the rear-facing or forward-fac ing infant
restraints (listed in Federal Motor Ve hicle Safety Standard
208 with
w hich t he Advan ced Ai rbag System in your veh icle was cert ified), the
front airbag on the passenger s ide may or may not dep loy.
T he
PASSENGER AIR BAG OFF ligh t comes on when the elect ronic
control u nit detects a tota l weig ht on the front passenger seat that
req uires the front airbag to be turned off . If the
PASSENGER AIR
BAG OF F
light does not come on, the front airbag on the passenger
side has not been turned off by the control unit and can deploy if the
cont rol un it senses an impact that meets the conditions stored in its
memory.
If the tota l we ight on the fro nt passenger sea t is more than th at of a
typical
1 year-o ld, but less than the weight of a small adult, the front
airbag on the passenger side may dep loy (the
PASSENGER AIR BAG
OFF
light does not come on) .
For example, the airb ag may deploy if:
• a small child that is heav ie r than a typical 1 year-old child is on the
front passenger seat (regard less of whether the ch ild is in one of the
child safety seats listed ~
page 223),
• a child who has outgrown child restra ints is on the front passenger
sea t.
If the front passenger a irbag is turned off, the
PASSENGER AIR BAG
OFF
light in the center of the instr ument panel will come on and stay
on .
The front airbag on the passenger side may
not dep loy (the
PASSENGER AIR BAG OFF li ght does not i llumi nate and s tay lit) if:
• a small adult or teenager is on the front passenger seat
Controls and equip­
ment Safety first Vehicle operation
•
a passenger w ho is not sitt ing uprig ht with their back against a
non-recline d backrest wi th t he ir feet on the veh icle floor in fro nt o f
the seat is o n the fro nt passenger seat.
If the front passenger airbag dep loys, the Federa l Standard requires
t he a irbag to mee t the " low ris k" deployment c riter ia to help reduce
the risk of injury through interaction with the a irbag. "Low risk"
dep loyment oc curs in those c rashes that ta ke p lace at lowe r de cele r­
ations as defined in the electronic contro l unit.~
page 210
Alw ays remember: Even tho ugh your vehicle is eq uipped with
Advanced A irbags, the safest place for children is properly restrained
on the back seat. Please be sure to read the important information in
the sections t hat follow and be su re to heed all of the WAR NINGS.
& WARNING
To reduc e the ri sk of injury w hen an airbag inflate s, alwa ys w ear
safet y belt s properly .
• If you are unrestrained, leaning forward , sitting sidewa ys or
out of po sition in any way , your ri sk of injury i s much high er.
• You will also recei ve serious injurie s and could even be killed if
you are up again st the airbag or too close to it wh en it inflates -
e ven with an Ad vanced Airbag ~
page 199.
& WARNING
A child in a rearward-facing child safety seat installed on the front
pa ssenger seat will be seriou sly injured and can be killed if the
front a irbag inflates · even with an Advanced Airbag System .
• Although the Ad vanced Airb ag System in your v ehicle is
designed to turn off the front airbag when a rearward-facing child
re straint has been installed on the front pas senger seat , nobody
c an absolut ely guarantee th at deployment is impo ssible in all
c onceivable situation s that may happen during the u seful life of
your vehicle. _,.
Vehicle care Do-it-yourself service Technical data

ffl..,___A_ i_rb _ a_,g,:;._ s_, y'- s_ t_e _m ________________________________________________ _
& WARNING (conti nued)
• The inflating ai rbag will hit the child safety seat or infant
carrier with gr eat force and will sma sh the child safety seat and
c hild again st the backrest , center armrest , door , or roof.
• Alway s install rearward-facing child restraints in the back seat.
• If you must install a rearward facing child safety seat on the
front passenger seat because of e xceptional circumstances and
the PASSENGER AIR BAG OFF light does not come on and stay on ,
immediately install the rear-facing child safety seat in a rear
s eating po sition and have the airbag system inspected by your
authorized Audi dealer .
& WARNING
If, in except ional circumstances, you must install a forward-facing
child restraint on the front pas senger' s seat:
• Always make sure the forward-fac ing se at has been designed
and certified by its manufacturer for u se on a front seat with a
passenger front and side airbag.
• Never put the forward -facing child restraint up against or very
near the instrument panel.
• Alway s move the passenger seat into it s rearmost position
in
the seat 's fore and aft adjustment range, as far away from the
airbag a s possible, before in stalling the forward -facing child
restraint. The back rest must be adjusted to an upright position.
• Make sure that the PASSENGER AIR BAG OFF light comes on
and stays on all the t ime whenever the ignition is switched on .•
Advanced Airbag System components
Th e front passenger seat in your veh icle has a lot of very important
parts of t he A dvanced A irbag System in it. These parts incl ude t he
we ight-sens ing mat, sensors, wiring, brackets, and more. The func- tion of the system
in the front passenger seat is checked by the elec­
t ronic c ontro l unit w hen the ignitio n is o n. The contr ol unit mon itors
t he Advanced Airbag System and tu rns the airbag indicato r light o n
w hen a malfunction in t he system components is detected. The func­
t ion of the a irbag indicator light is descr ibed in greater deta il below .
Because the front passenge r seat co nta ins impo rtant parts of t he
Adva nced Ai rbag System, you must ta ke care to p reve nt i t from be ing
damaged. Damage to the seat may p revent the A dvanced A irbag for
t he fro nt passenge r se at from do ing its job in a crash.
The front Advanced Airbag System consists of the
following:
• Cras h sensors in the front of t he vehicle that measu re vehicle
a cc ele ration/de ce le ra tion to provi de i nfo rm ation to the Advanced
Airbag System about the severity of the crash .
• An e lec tron ic contro l unit, w it h i ntegrated crash sensors fo r front
and side impacts. The contro l unit "dec ides" w het her to fire the front
a irbag s based o n the inform ation receive d fro m t he c rash se nso rs.
The contro l unit also "decides" whether the safety be lt pretens ioners
shoul d be activ at ed .
• An Advanced Air bag with gas generator and control va lve for the
dr ive r in side t he steering wheel hub.
• An Advanced Air bag with gas generator and control va lve inside
t he inst rument pa ne l for the fron t passenge r.
• A weight-sensi ng mat unde r th e up ho ls tery pad ding of the front
passenger s eat cushion that measures the tota l we igh t on the seat .
Th e informat io n registered is sent continuous ly to the elect ronic
con trol unit to regulate deployment of t he front Advanced A irbag o n
the passenger side.
• An airbag mon itoring system a nd ind icator light in the ins trument
cl uster => page
210 .
• A senso r in each front seat reg isters the distance between the
res pective sea t and t he steeri ng whee l o r i nst rument p ane l. T he
info rmation reg iste red is sent co ntin uously to the e lectronic con trol
uni t to reg ulate dep loyment of the front Advanced Air bags . ..,

_______________________________________________ A_ ir_ b_ a_,,,g ~ s,,._y _s _t_ e _ m ___ lJ'II
• The PASSENGER AIR BAG OFF light comes on and stays on in the
c en ter o f the inst ru me nt pane l=>
page 211, fig. 199 a nd t ells you
when the front Advanced A irbag on t he passe nger side has been
t u rne d off.
• A sensor below the safety belt latch for the front seat passenger
t o meas ure t he tension on t he s afety be lt. T he tension on the s afety
belt and the we ight registe red by the weight-sensing mat help t he
cont rol unit " deci de" whether the front a irbag for the front
passenge r seat should be tur ned off o r not=>
page 201, "C hild
restraints on the front seat -some important things to know".
• A se nso r in the safety bel t latch for the driver a nd fo r the front
seat passenge r that senses whether that safety belt is latched or not
and transmits this information to t he e lec tron ic control un it .
& WARNING
Damage to the front passenger seat can prevent the front airbag
from working properl y.
• Improper repair or disassembly of the front passenger and
driver seat will prevent the Advanced Airbag System from func­
tioning properly.
• Repairs to the front pa ssenger seat must be performed by qual­
ified and properly trained workshop personnel.
• Never remove the front passenger or driver seat from the
vehicle.
• Never remove the upholstery from the front passenger seat .
• Never disassemble or remove parts from the seat or disconnect
wires from it .
• Never carry sharp objects in your pockets or place them on the
seat . If the weight-sensing mat in the passenger seat is punctured
it cannot work properly.
• Never carry th ings on your lap or carry objects on the passenger
seat. Such items can in crease the weight registered by the weight­
sensing mat and send the wrong information to the airbag control
unit.
Controls and equip­ ment Safety first Vehicle operation
& WARNING
(co ntinued )
• Never store item s under the front passenger seat . Parts of the
Advanced Airbag Sy stem under the passenger seat could be
damaged , preventing them and the airb ag system from working
properly .
• Never place seat covers or replacement upholstery that have
not been specifically approved by Audi on the front seats .
• Seat cover s can prevent the Advanced Airbag System from
recognizing child re straints or occupants on the front passenger
seat and prevent the side airbag in the seat backrest from
deploying properly .
• Never u se cushions, pillow s, blankets or similar items on the
front passenger seat. The additional padding will prevent the
weight-sensing mat in the seat from ac curately registering the
child restraint or person on the seat and prevent the Advanced
Ai rbag System from functioning properly .
• If you must use a child restraint on the front passenger seat
and the child restraint manufacturer's instructions require the use
of a towel, foam cushion or something else to properly position
the child restraint, make certain that the PASSENGER AIR BAG
OFF light comes on and stays on whenever the ch ild restraint is
installed on the front passenger seat.
• If the PASSENGER AIR BAG OFF light does not come on and
stay on, immediately install child restraint in a rear seating posi­
tion and have the airbag system inspected by your authorized Audi dealer. •
How the Advanced Airbag System
components work together
Th e fron t Adva nced A irbag System and t he side air bags supp lemen t
t he p ro tec tion offered by the front three- po int safety belts with
pretens ioners and load limiters and t he adjusta ble head restra ints to
help reduce the risk of injury in a w ide rang e of acc iden t and crash ..,.
Vehicle care Do-it-yourself service Technical data

___ A_ ir_b_ a --= ge....- s.:y _s_ t_ e_ m ________________________________________________ _
situat ions . Be sure to read the important i nformat ion about safety
a nd hee d the WAR NIN GS i n t his ch apte r.
Deployment of the Advanced A irbag System and the act ivat ion of the
safety belt pretensioners depend on the deceleration measured by
t he crash senso rs an d regis tered by the e lectroni c con trol u nit. The
amount of inflation of the front airbags can a lso be adapted to the
front seat pos it ion, depending on t he d istance be tween the respec ­
tive front seat and the steering wheel or instrument panel as reg is­
t ere d by sensors in the seats. Crash seve rity depends on speed and
deceleration as well as the mass and stiffness of the vehicle or object
involved in the crash .
On the passenger side, rega rd less of safety be lt use, the a irbag will
be t urned off if the we ight on the passenger seat is less tha n the
amount prog rammed in the e lec tronic contro l uni t. The fro nt airbag
on the passenger side will a lso be turned off if one of the chi ld safety
sea ts tha t has been cert ified under Federa l Mo to r Vehicle Safety
Standard 208 has been recognized on the seat . The
PASSENGER AIR
BAG OFF
lig ht comes on and stays on to tell you w hen the fron t
Advanced Airbag on the passenger side has been turned off
=> page 201, "C hild restraints o n the front sea t - some impo rtant
things to know ".
& WARNING
To reduce the risk of inju ry when an a irbag inflates, always wear
safety belt s properly.
• If you are un rest rained, leaning forward, sitting sideways or
out of posit ion in any way , your risk of injury is much higher .
• You will also receive serious injuries and could even be killed if
you are up again st the airbag or too clo se t o it wh en it inflates ·
even with an Advanced Airbag=>
page 199. •
More important things to know about front
airbags
Fi g. 1 98 I nfl ate d
front a irb ags
Safety belts are important to he lp keep front seat occupants in the
pro per seated pos ition so that a irbags can unfold prope rly and
prov ide supp lemental protect ion in a frontal collision.
Th e front airbags are designed to provide add itio na l protec tion for
the c hest and face of the driver and the front sea t passenge r when:
• safety belts are worn properly ,
• t he seats have been posit ioned so that the occupant is prope rly
seated as far as possible from the airbag,
• and the head restraints have been properly adjusted .
Because air bags inflate in the b link of a n eye w it h great force, things
you have on your lap o r have place d on the seat cou ld become
dangerous projectiles, and be pushed into you if the a irbag inf lates .
When a n airbag dep loys, fine dust is released. This is normal and is
not caused by a fire in the vehicle. This dust is made up mostly of a
powder used to l ubricate the ai rbags as they deploy.
It could irritate
skin .
I t is important to remember that while the supp lemental airbag
system is desig ned to reduce the li ke lihood of serious injur ies, other
injuries, for example swelling , b ruising and m inor abras ions, can also
happen when airbags infl ate. Airbags do not p rotect the arms or the ..,_
