ffl..,___A_ i_rb _ a_,g,:;._ s_, y'- s_ t_e _m ________________________________________________ _
& WARNING (conti nued)
• The inflating ai rbag will hit the child safety seat or infant
carrier with gr eat force and will sma sh the child safety seat and
c hild again st the backrest , center armrest , door , or roof.
• Alway s install rearward-facing child restraints in the back seat.
• If you must install a rearward facing child safety seat on the
front passenger seat because of e xceptional circumstances and
the PASSENGER AIR BAG OFF light does not come on and stay on ,
immediately install the rear-facing child safety seat in a rear
s eating po sition and have the airbag system inspected by your
authorized Audi dealer .
& WARNING
If, in except ional circumstances, you must install a forward-facing
child restraint on the front pas senger' s seat:
• Always make sure the forward-fac ing se at has been designed
and certified by its manufacturer for u se on a front seat with a
passenger front and side airbag.
• Never put the forward -facing child restraint up against or very
near the instrument panel.
• Alway s move the passenger seat into it s rearmost position
in
the seat 's fore and aft adjustment range, as far away from the
airbag a s possible, before in stalling the forward -facing child
restraint. The back rest must be adjusted to an upright position.
• Make sure that the PASSENGER AIR BAG OFF light comes on
and stays on all the t ime whenever the ignition is switched on .•
Advanced Airbag System components
Th e front passenger seat in your veh icle has a lot of very important
parts of t he A dvanced A irbag System in it. These parts incl ude t he
we ight-sens ing mat, sensors, wiring, brackets, and more. The func- tion of the system
in the front passenger seat is checked by the elec­
t ronic c ontro l unit w hen the ignitio n is o n. The contr ol unit mon itors
t he Advanced Airbag System and tu rns the airbag indicato r light o n
w hen a malfunction in t he system components is detected. The func­
t ion of the a irbag indicator light is descr ibed in greater deta il below .
Because the front passenge r seat co nta ins impo rtant parts of t he
Adva nced Ai rbag System, you must ta ke care to p reve nt i t from be ing
damaged. Damage to the seat may p revent the A dvanced A irbag for
t he fro nt passenge r se at from do ing its job in a crash.
The front Advanced Airbag System consists of the
following:
• Cras h sensors in the front of t he vehicle that measu re vehicle
a cc ele ration/de ce le ra tion to provi de i nfo rm ation to the Advanced
Airbag System about the severity of the crash .
• An e lec tron ic contro l unit, w it h i ntegrated crash sensors fo r front
and side impacts. The contro l unit "dec ides" w het her to fire the front
a irbag s based o n the inform ation receive d fro m t he c rash se nso rs.
The contro l unit also "decides" whether the safety be lt pretens ioners
shoul d be activ at ed .
• An Advanced Air bag with gas generator and control va lve for the
dr ive r in side t he steering wheel hub.
• An Advanced Air bag with gas generator and control va lve inside
t he inst rument pa ne l for the fron t passenge r.
• A weight-sensi ng mat unde r th e up ho ls tery pad ding of the front
passenger s eat cushion that measures the tota l we igh t on the seat .
Th e informat io n registered is sent continuous ly to the elect ronic
con trol unit to regulate deployment of t he front Advanced A irbag o n
the passenger side.
• An airbag mon itoring system a nd ind icator light in the ins trument
cl uster => page
210 .
• A senso r in each front seat reg isters the distance between the
res pective sea t and t he steeri ng whee l o r i nst rument p ane l. T he
info rmation reg iste red is sent co ntin uously to the e lectronic con trol
uni t to reg ulate dep loyment of the front Advanced Air bags . ..,

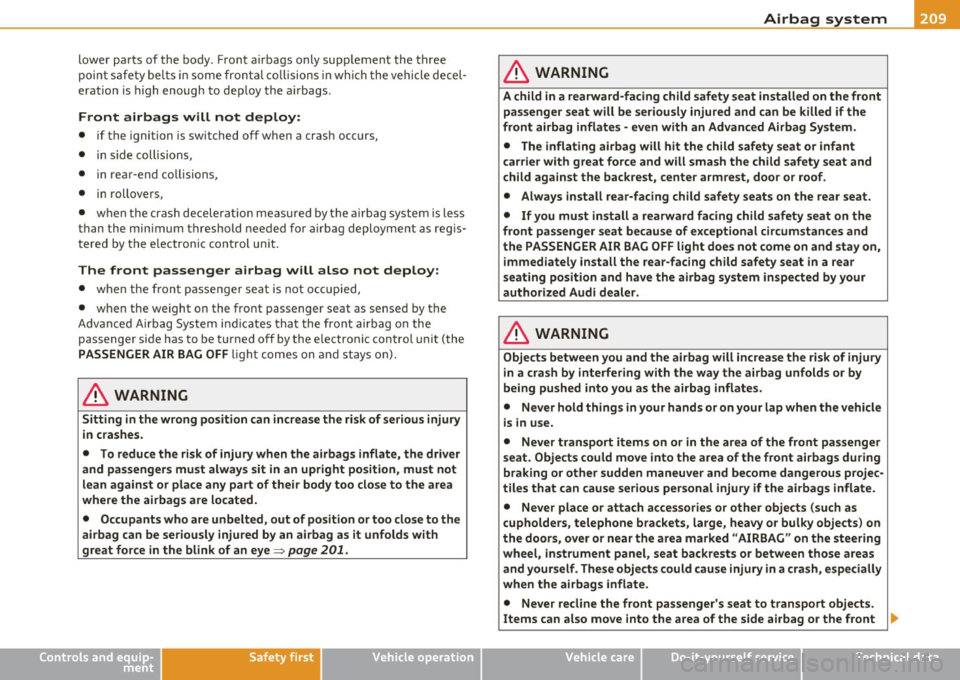

Airbag system --------------------------------------------- -=---=----
lowe r pa rts of the body . Front a irbags only supp lemen t th e t hree
po int saf ety b elt s in som e frontal col lisions in which t he vehicl e decel­
erat io n is high en ough to d ep loy the a irbags.
Front airbags will not deploy:
• if the ignition is switched off w hen a cras h occ urs ,
• in side co llisions,
• in re ar- end collisions,
• in rollove rs,
• when t he cra sh d ecelera tion m easur ed by the airbag sys te m is le ss
than the min imum threshold needed fo r airbag deployme nt as reg is­
t ere d by t he e lectr onic c ontrol u nit.
The front passenger airbag will also not deploy:
• when t he fro nt p ass eng er s eat i s not o ccupi ed,
• when the weight on the front passenge r seat as sense d by the
A dvanc ed Airba g Sy stem indicat es that t he front a irbag o n the
passenge r s id e has to be turned off by the e lectro nic con trol unit (the
PASSENGER AIR BAG OFF lig ht c om es on an d sta ys on).
& WARNING
Sitting in the wrong position can increase the risk of serious injury
in crashes.
• To reduce the risk of injury when the airbags inflate, the driver
and passengers must always sit in an upright position , must not
lean against or place any part of their body too close to the area
where the airbags are located.
• Occupants who are unbelted, out of position or too close to the
airbag can be seriously injured by an airbag as it unfolds with
great force in the blink of an eye=>
page 201.
Controls and equip­
ment Safety first Vehicle operation
& WARNING
A child in a rearward-facing child safety seat installed on the front
passenger seat will be seriously injured and can be killed if the
front airbag inflates - even with an Advanced Airbag System.
• The inflating airbag will hit the child safety seat or infant
carrier with great force and will smash the child safety seat and
child against the backrest, center armrest, door or roof.
• Always install rear-facing child safety seats on the rear seat.
• If you must install a rearward facing child safety seat on the
front passenger seat because of exceptional circumstances and
the PASSENGER AIR BAG OFF light does not come on and stay on,
immediately install the rear-facing child safety seat in a rear
seating position and have the airbag system inspected by your
authorized Audi dealer.
& WARNING
Objects between you and the airbag will increase the risk of injury
in a cra sh by interfering with the way the airbag unfolds or by
being pushed into you as the airbag inflates.
• Never hold things in your hands or on your lap when the vehicle
is in use.
• Never transport items on or in the area of the front passenger
seat. Objects could move into the area of the front airbags during
braking or other sudden maneuver and become dangerous projec­
tiles that can cause serious personal injury if the airbags inflate .
• Never place or attach accessories or other objects (such as
cupholders, telephone brackets, large , heavy or bulky objects) on
the doors, over or near the area marked "AIRBAG " on the steering
wheel , instrument panel, seat backrests or between those areas
and yourself. These objects could cause injury in a crash, especially
when the airbags inflate .
• Never recline the front passenger's seat to transport objects .
Items can also move into the area of the side airbag or the front
IIJ,,
Vehicle care Do-it-yourself service Technical data

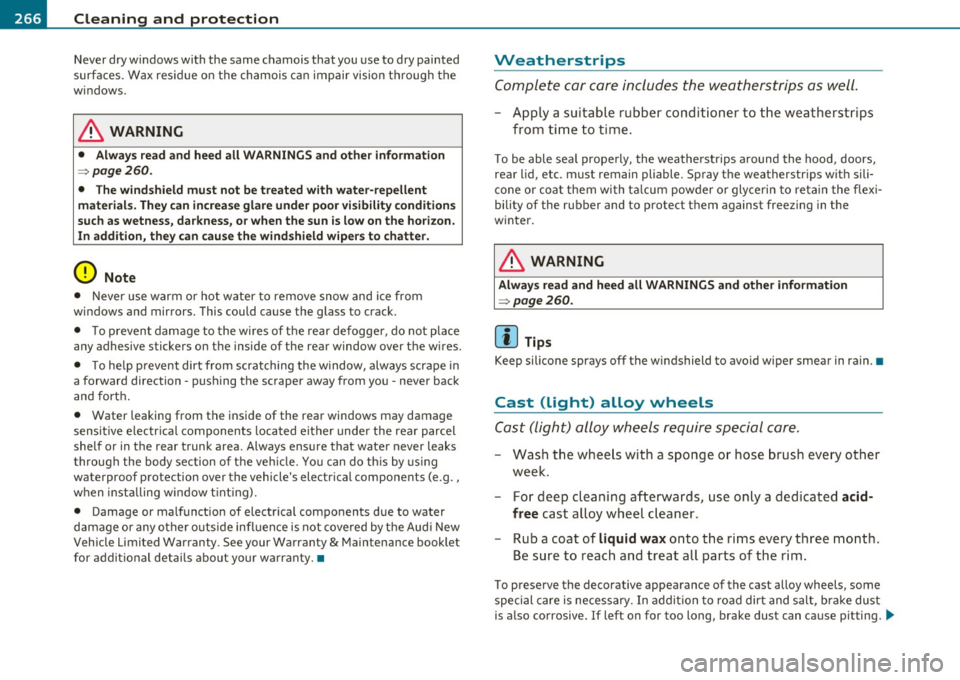

-~_C_ le_ a_n_ i_ n_ g=- a_ n_d___. p_ ro_ t_e _c_ t_ i_o _n ___________________________________________ _
Never dry windows with the same chamois that you use to dry painted
surfaces. W ax res idue o n the chamois can impair vision t hrough the
w indows .
& WARNING
• Always read and heed all WARNINGS and other information
=> page 260 .
• The windshield must not be treated with water-repellent
materials. They can increa se glare under poor vi sibility condition s
such as wetness, darkness, o r when the sun is low on the horizon.
In addition, they can cause the wind shield wipers to chatter .
0 Note
• Never use warm or hot water to rem ove snow and ice from
w indows and mirrors . This cou ld cause the glass to crack.
• T o preven t dam age to the wi re s of t he rear defogge r, d o not p lace
any adhesive stickers on the inside of the rear window over the w ires .
• T o help p revent dirt from scr atching the w indow, always scr ape in
a forward direction - pushing t he scraper away from yo u - never back
and fort h.
• Water leaking from the ins ide of the rear windows may damage
sen siti ve e lectr ica l components loc ated ei ther unde r the rea r parce l
shelf or in the rear trunk area. Always ens ure that water never leaks
t hrough the body section o f th e veh icle. Yo u can do th is by usin g
waterproof protection over the vehicle 's electrical components (e.g.,
w hen installing w indow t int ing).
• Damage or ma lfunct ion of elect rical components due to water
damage or any other outs ide infl uen ce is not cove red by t he Aud i New
Vehicle Limited Warranty. See your Warranty
& M aintenance booklet
for addit io nal detai ls about your wa rranty. •
Weatherstrips
Complete car c are include s the weatherstrips as well .
- Apply a suitable rubb er condit ioner to t he weatherst rips
from ti me to ti me.
T o be able se al prope rly, the weathe rst rips a round the hood, doors,
rear lid, etc. must remain pliable . Spray the weatherstr ips w ith sili­
c one or coa t them wi th ta lcum powder o r gly cerin to reta in the flex i­
bility of the rubber and to protect them against freezing in the
w inte r.
& WARNING
Always read and heed all WARNINGS and other information
=> page 260 .
[I) Tips
Keep silicone sprays off the w indshield to avo id wiper smear in rain. •
Cast (light} alloy wheels
Cast (light) alloy wheels require special care .
- Wash the whe els with a sp ong e or h ose b rush every o th er
w ee k.
- For deep cleaning afterwa rds, use only a ded icate d
acid­
free cast alloy wheel c leaner.
- Rub a coat of
liquid wax onto t he rims every three mo nth .
Be sure to reach and treat all parts o f the rim.
To preserve the decorative appearance of the cast alloy wheels, some
special care is necessary. In addi tion t o ro ad dirt and sal t, br ake dust
is a lso corrosive. If left on for too long, brake dust can cause pitting . ..,_
