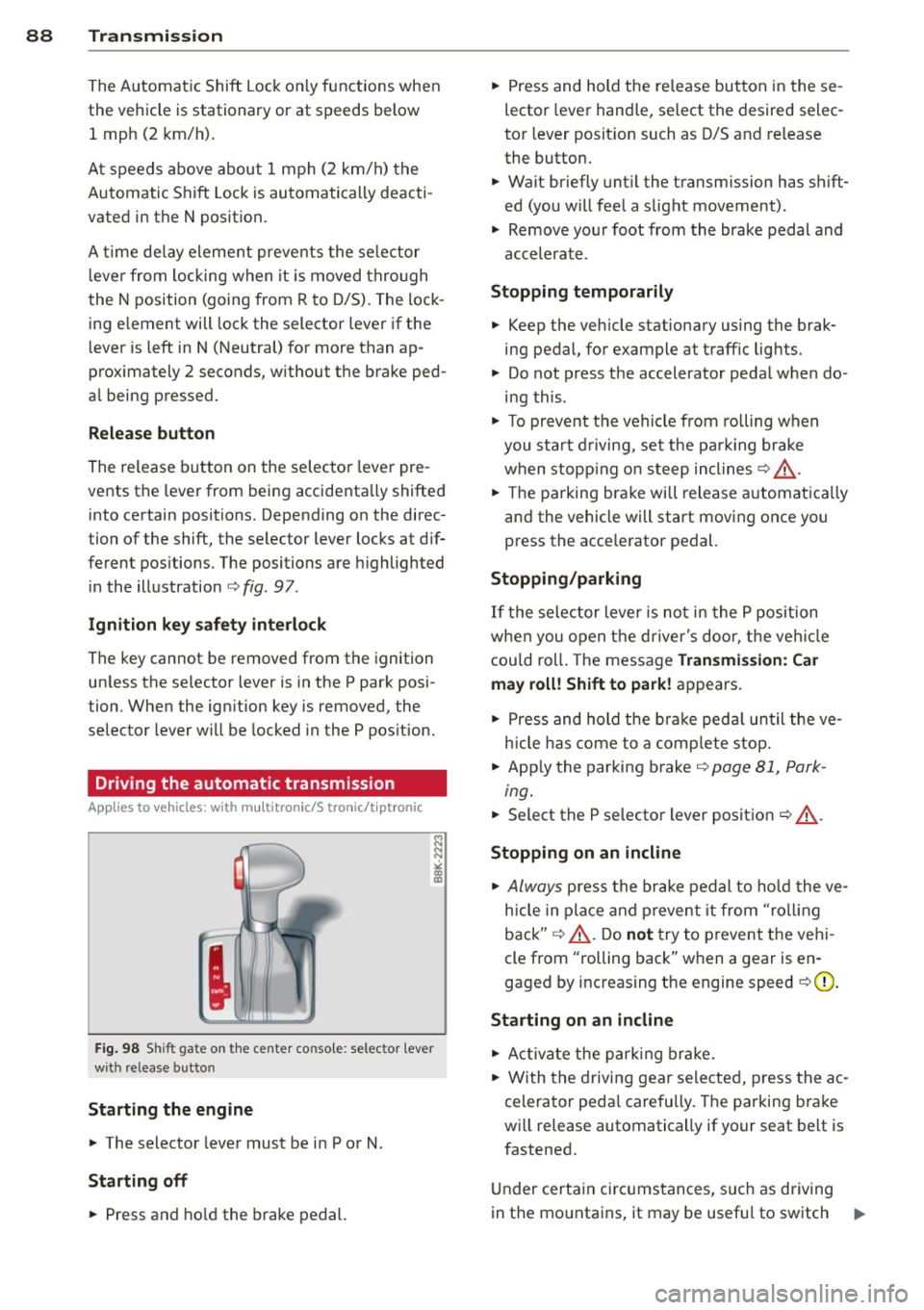

88 Transmi ssion
The Automatic Shift Lock only functions when
the vehicle is stationary or at speeds below
1 mph (2 km/h).
A t speeds above about 1 mph (2 km/h) the
Automatic Shift Lock is automatically deacti ­
vated in the N position .
A time delay element prevents the se lector
l ever from locking when it is moved through
the N position (going from R to D/S). The lock­
ing e lement will lock the selector lever if the
l ever is left in N (Neutral) for more than ap­
prox imately 2 seconds, w ithout the brake ped­
a l being pressed.
Relea se button
The release button on the selector lever pre ­
vents the lever from being accidenta lly shifted
into certain positions. Depending on the direc­
tion of the shift, the selector lever locks at d if­
ferent positions. The positions are h ighlighted
i n the illustration
c> fig. 97.
Ignition key safety int erlock
The key cannot be removed from the ignition
un less the se lector lever is in the P park posi­
tion. When the ign ition key is removed, the
selector lever will be locked in the P pos ition.
Driving the automatic transmission
App lies to vehicles: with m ultitron ic/S tronic/t iptronic
Fig. 98 Shift gate on the center conso le: selector lever
with release button
Starting the engine
,. The selector lever must be in P or N.
St arting off
,. Press and ho ld the brake pedal. ,.
Press and hold the re lease button in these ­
lector lever hand le, select the desired selec ­
tor lever posit ion such as D/S and release
the button.
,. Wait briefly unt il the transmission has shift­
ed (you w ill fee l a slight movement).
,. Remove your foot from the brake pedal and
accelerate .
Stopping temporarily
,. Keep the veh icle stationary using the brak­
ing pedal, for example at traffic lights.
,. Do not press the accelerator peda l when do­
ing this .
,. To prevent the veh icle from rolling when
you sta rt d riving, se t the park ing brake
when stopp ing on s teep inclines
c> ,&. .
,. The parking bra ke will release a utomat ica lly
and the vehicle will start moving once you press the acce lerator pedal.
Stopping /parking
If the selector lever is not in the P position
whe n you open t he d river's door, t he veh icle
cou ld roll . The message
Transmis sion: Car
may roll! Shift to park !
appears.
,. Press and hold the bra ke peda l un til the ve ­
h icle has come to a comp lete stop.
,. App ly the parking brake
c> page 81, Park -
ing.
,. Select the P se lector lever position c> ,&. .
Stopping on an incline
,. Always press the brake pedal to ho ld the ve­
hicle in place and p reven t it from "ro lling
back"
c> ,&. . Do not try to p revent the veh i­
cle from "rolling back" when a gear is en­
gaged by increasing t he engine speed
c> (D .
Starting on an incline
,. Ac tiva te the park ing brake.
,. With the driving gear selected, press the ac ­
celerator peda l carefully. The parking bra ke
will release automatically if your seat belt is
fastened.
U nder certa in circ umstances, such as driving
in the mo unta ins, it may be usef ul to sw itch ..,.

when there is no possibility of over-rev­
ving the engine.
- When the kick-down comes on, the
transmission will shift down to a lower
gear, depending on vehicle and engine
speeds.
- Tiptronic is inoperative when the trans­
mission is in the fail-safe mode.
Kick-down
App lies to vehicles: with multit ro ni c/S tronic/t ipt ronic
Kick-down enables maximum acceleration .
Applies to veh icle s with a multitronic ®
transmi ssion
When you dep ress the accelerato r pedal be ­
yond the resistance point, the transmission downshifts into a lower gear ratio depending
on the vehicle speed and engine speed. As
long as the accelerator peda l is depressed, the
engine speed is automat ically regulated for
maximum acceleration.
Appli es t o ve hicles with a S t ronic ®-/ ,
ti ptron ic transmi ssi on
When you depress the accelerator pedal be­
yond the resistance po int, the automat ic
transmission downshifts into a lower gear, de­ pending on vehicle speed and engine speed .
The upshift into the next higher gea r takes
p lace once the maxim um spec ified eng ine
speed is reached .
A WARNING
Please note that the drive wheels can spin
if kick-down is used on a smooth slippery
road -there is a risk of skidding.
Launch Control Program
App lies to vehicles: with S tro nic
The Launch Control Program provides the
best acceleration possible when starting from
a stop.
Requirement: The engine must be at operat ­
ing temperature and the steering wheel must
not be turned.
Tran sm iss ion 9 1
"" Press the I~ OFF ! button ¢ page 181 while
the engine is running. The
fl indicator light
illum inates in the instrument cl uster and
Traction control (A SR): Off. Warning! Re­
stricted stability appears in the driver infor­
mation system display .
"" Move the selector lever to the D/S pos it io n
or select the dynamic driv ing mode in drive
select* ¢
page 108.
"" Press t he brake pedal s trongly wi th you r left
foot and ho ld it down for at leas t 1 second .
... At the same time, press the accelerator
peda l down comp lete ly with your right foot
until the eng ine reaches and maintains a
high RPM.
"" Remove your foot from the brake pedal
w ith in S seconds ¢.& .
A WARNING
-Always adapt your dr iving to the traffic
f low.
- Only use the Launch Cont ro l Program
when road and t raff ic conditions a llow it
a nd other drivers w ill not be endangered
or annoye d by your dr iving and the vehi ­
cle's acceleration.
- Ple ase no te th at the d riving wheels can
spin and the vehicle can break away
when ASR is switched off, especially
when the road is s lippery.
- Once you have accelerated, you sho uld
switch the ASR back on by pressing the
I ~ OFFI button.
(D Tips
- T he transmission temperature m ay in ­
crease s ignificantly after using the
La unch Control P rogram . If that hap­
pens, the prog ram may not be availab le
for a few m inutes. It will be ava ilable
again after a cool-down per iod.
- When accelerating using the La unch
Contro l program, a ll vehicle parts are
subject to heavy loads. Th is can result in
increased wear .

Homelink®
Universal remote
control
Description
Applies to vehicles: with Home link
The HomeLink universal remote control con
be programmed with the remo te control for
devices that ore already present.
With Home Link, you can control devices such
as the garage door, secu rity systems, ho use
lights , etc. comfortably from the inside of you
veh icle .
H omelink makes it poss ible for you to rep lace
t hree different remote controls from dev ices
in your home with one un ive rsal remo te. Th is
featu re works for most garage door and exte­
rior door motor signals. Programming the in­
d ividual remote control for your remote con ­
trol takes p lace near the center of the radiator
grille. There is a control module attached at
this location .
A one-t ime programm ing of the sensor must
be performed before you are able to use sys­
tems with Homelink. If the system does not activate after performing the one-t ime pro­
gramming, check whether the system uses a rolling code
¢ page 120 for veh ides without
the MMI*.
& WARNING
-
-Never use the Homelink ® transmi tter
with any garage door opener that does have not the sa fety stop and reverse fea ­
ture as requ ired by federa l safety stand­
ards. Th is includes any garage door open­
er mode l manufactured before April 1,
1982.
- A garage door opener which cannot de­
tect an object, signaling the door to stop
and reverse does not meet current feder­
al safety standards . Us ing
a garage door
opener without these features increases
r isk of serious inj ury or death.
Homelink ® 11 7
-For safety reasons never re lease the
parking brake or start the eng ine while
anyone is standing in front of the vehicle .
- A garage door or an estate gate may
sometimes be set in motion when the
Homelink ® remote control is being pro­
grammed. If the device is repeatedly ac­
tivated, th is can overstrain motor and
damage its e lectrical compon ents -an
overheated mo to r i s
a fire hazard!
- To avo id possib le injuries or property
damage, please always make abso lutely
certa in that no person s or objects are lo­
cated in the range of motion of any
equ ipment being operated .
(0 Tips
-If you would like more information on
Homelink ®, where to purchase the
Home link ® compatib le products, or
would like to purchase the Homelink ®
Home Lighting Package, please ca ll toll­
free: l-800-355-3515.
- For Declaration of Compliance to United
States FCC and Industry Canada reg ula­
tions ¢
page 2 72.
- For security reasons, we recommend that
you clear the programmed b uttons be­
fore selling the veh icle.
Operation
App lies to vehicles : with Homeli nk
Fig . 1 29 Head li ner: controls
Req uirement : The buttons must be program-
med
c!) page 118 or ¢ page 119. ..,_

Programming the transmitter (version
B)
Applies to vehicles: with Horne link
Fig. 131 D istance between t he rad ia tor grill e and t he
hand transmitte r
Programming: phase 1 on the control unit
1. Sw itch on the ig nit io n (d o n ot start the
e ngine ).
2. P ress and hold bot h of the outer Home­
Link buttons
r=> fig. 129 until the LED @
turns off complete ly (about
20 seconds).
This procedure clea rs the standard c odes
that were set at the factory and does
not
n eed to be repeated aga in to program the
other b uttons.
3. Briefly press the Homelink button that
you would like to prog ram .
4 . Wai t until the LED@ beg ins to blink
q ui ckly. The Home Lin k modu le wi ll now
remai n in learning mode for
5 minutes .
5. Now stand in front of your vehicle with
the original hand transmitter for the ga­ rage door opener o r for the device that
you would like to allocate to the Home­
Link button.
Programming: pha se 2 on the radiator
grille
6 . Hold the o rig inal hand transmitter some­
what towa rds the center o f you r vehicle 's
radiato r gr ille r=>
fig. 131.
7. Now activate (p ress) t he hand transmit ­
ter.
8 . Pay a ttention to the t urn sign als for yo ur
vehicle when activating the ha nd trans­
mitter . If t he emergency flashers b link
three times, the programming was suc­
cessful. If the emergency flasher only
bli nks one time, the 5 minute t ime limit
Homelink ® 119
for the adaptat ion has expired or the pro ­
gram ming was unsuccessful. Repeat the
programming from step 3 on the controls
o r se lect another distance from the radia­
tor grille.
9. If the garage door or other devices sti ll
fail to be activated w it h the Homelink
control buttons after p rogramming is
comple ted, it is possib le tha t these sys­
tems might be wor king with a roll ing code
ins tead of the normal fixed code .
A Roll­
ing code programming must be per ­
formed
r=> page 120 .
Program the rema ining tw o b uttons a ccord ing
to the instructions mentioned above . Beg in
similar ly w ith the 3rd step if the program ­
m ing connection was successful for t he first
button .
Remote con trol units fo r garage door opene rs
in Canada are set to stop transmitting radio
frequency signa ls after two seconds . This time
may not be suffic ient for the Homelink sys­
tem to learn the radio frequency signa l. Per­
form all other steps as described above.
Erasing the buttons
.,. Switch o n the ignition (do not start the en­
gi ne).
.,. Press and hold both of the outer buttons
until the LED @tu rns off completely (about
20 seconds) to erase all of the buttons si­
m ultaneously .
.,. Programmed buttons cannot be erased ind i­
vidua lly. Reprogram the buttons if necessa­
ry .
Reprogramming the buttons
.,. Switch on the ignition (do not start the en­
gine) .
.,. To reprogram an individua l butto n, press
and hold the button unt il the L ED@ starts
to f lash quickly (after abo ut ten seconds) .
Release t he bu tton imme dia tely. The Home­
L ink module will now remain in learning
mo de for 5 minutes.
.,. Continue with step 5.

276 Index
Changing a wheel
Changing engine oil
Chassis 249
218
Undercoating .............. .. .... . 201
Checking Eng ine coolant leve l ...... ... .. .... . 219
Checking tire pressure ....... ..... .. . 233
Child restraints Danger of using child restraints in the
front seat . . . . . . . . . . . . . . . . . . . . . . . . 141
Where can I get add itional information
about child restraints and their use? . . 178
Child restraint system anchors ... .. .. . 175
Ch ild safety .. ............. .. .. .. .. . 161
Convertible locking retractor . ..... ... 17 1
Important safety instructions for using
child safety seats ................. . 164
Important things to know when driving
with children .............. .. .... . 161
Installing a child restraint using the
L ATCH system ......... .... ... .. .. . 177
Lower anchorages ............ .. ... 176
Mounting and releasing the anchorage
hook .. .... ... .......... .. .. .. .. . 177
Ch ild safety seats . ..... .... .. .. .... . 167
Booster seats ............. ... .. ... 169
Convertible ch ild seats . . . . . . . . . . . . . 168
Conve rtible locking retractor .. .. .. .. . 171
Danger of using child restra ints in the
front seat .... ............. ...... . 141
How do I properly install a child safety
seat in my vehicle? ................. 164
Infant seats .............. ... .. .. . 167
Installing . . . . . . . . . . . . . . . . . . . . . . . . 171
LATCH system ............ .. .. .. .. . 177
Safety instructions .. ...... .. .. .. .. . 164
Unused safety belts on the rear seat .. 166
Cigarette lighter . . . . . . . . . . . . . . . . . . . . . 66
C leaning
A lcantara® (synthe tic suede) .. .. .. .. . 204
E ngine compartment ............ .. . 205
Exhaust tail pipes ........... .. .... . 201
Fabrics and fabric coverings . ..... .. . 202
Instrument panel ........... .. .... . 202
Interior .. ............... .. .. .... . 201
Leather .... .......... ...... ... .. . 204
Matte finish pa int ......... ... .. ... 197
MMI disp lay/controls .. .... .. .. .. .. . 201 Plastic
and vinyl . . . . . . . . . . . . . . . . . . . 199
Plastic parts ..... ................ . 202
Safety be lts ... .. ................ . 205
Trim strips .... .. ............. .... 199
Cleaning and protection .......... .... 194
Climate controls ... ..... ........... .. 70
Climate control system Automatic recircu lation ......... .... . 73
Supplementary heater ........ .. .. .. . 73
synchroni zing . . . . . . . . . . . . . . . . . . . . . . 73
Clock ..... ..... .. .. .............. .. 12
Closing Power windows .. ............. .. .. . 39
Closing/opening at the lock cylinder ................ .. 36
by remote control . . . . . . . . . . . . . . . . . . 34
with the centra l locking switch ........ 35
with the conven ience key ........ .... . 35
Cold tire inflation pressure ........ .... 231
Coming home . . . . . . . . . . . . . . . . . . . . . . . 53
Compact spare tire . ................ . 248
also refer to Spare tire . ...... ... .. .. 248
Compass in the mirror ........... .... . 59
Compliance ... .. .. .. .............. . 272
Consumer Information . . . . . . . . . . 129, 269
Contacting NHTSA ................. . 129
Convenience key
Indicator lights .. ... .......... .. .. . 79
Starting engine (S TART ENGINE STOP
button) ....... .. .. .............. .. 78
Stopping the engine (START ENGINE
STOP button) . . . . . . . . . . . . . . . . . . . . . . 79
Switching on ignition ........... .... . 78
unlocking/locking ... ... .... ... .. .. . 35
Convenience opening/closing ....... .. . 40
Convertib le child safety seats ......... 168
Convertible locking retractor Activating ..... .. ............. .... 173
Deactivating . .. .. ..... ........... . 173
Using to secure a child safety seat 1.71, 173
Coolant system . ... ................ . 219
Cooling mode (automat ic climate control) 71
Cooling System Expansion tank . .. ................ . 219
Cornering light . . . . . . . . . . . . . . . . . . . . . . 52

284 Index
Sound system display . . . . . . . . . . . . . . . . . 24
Sources of information about child re-
straints and their use ......... .. .... . 178
Spare tire .. ................. .. .... . 248
Speedometer . . . . . . . . . . . . . . . . . . . . . . . 12
Speed rating letter code ...... ..... .. . 239
Speed warn ing system ...... .. .. .... .. 82
Sport different ial ........ .. .. .. .. .. . 107
I ndicator lamp . . . . . . . . . . . . . . . . . . . . . 22
START ENGINE STOP button (convenience
key) ...... .. ................ ... ... . 79
STAR T ENGIN E ST OP button (Convenience
key) .. .. .. .. ............. .. .. .. ... . 78
Starting from rest .............. .... .. 81
Starting off with a tra iler .... .. .. .. .. . . 82
Starting the engine . . . . . . . . . . . . . . 75, 78
Steer ing
L ack ing the steer ing . . . . . . . . . . . . . . . . 7 5
also refer to Electro-mechanical power
assist ..... ................ ..... . 183
Steering wheel
Adjusting steering column ... .. .. .. . . 75
I ndicator light . . . . . . . . . . . . . . . . 18, 183
Steps for determining correct load limit . 236
Stopp ing the engine . . . . . . . . . . . . . . 77, 79
Storage ... .... ........... .... .... .. 66
S tronic . .. ................. .. .... .. 86
Selector lever . . . . . . . . . . . . . . . . . . . . . . 86
S tron ic transmission
Emergency release . . . . . . . . . . . . . . . . . . 92
Launch Control Program ... .. .. .... .. 91
Sun visors .... ............ .. .. .. .. .. 57
Symbols
refer to Warni ng/ind icator lights .. .. . . 13
T
Tachometer . . . . . . . . . . . . . . . . . . . . . . . . . 11
Technical modifications .............. 272
The first 1,000 miles (1,500 km) and after-
wards ... .. ... ............ .. .. .. .. . 187
Tie-downs . . . . . . . . . . . . . . . . . . . . . 68, 128
tiptronic . . . . . . . . . . . . . . . . . . . . . . . . . . . 86
Automatic Shift Lock (ASL) . . . . . . . . . . . 87
Driving .. .. ................ ..... .. 88
Emergency mode . . . . . . . . . . . . . . . . . . . 92 Manual
shift program ............ .. . 90
Se lector lever . . . . . . . . . . . . . . . . . . . . . . 86
T ire pressure .... .. ............. .... 233
Tire pressure monitoring system Loss of air pressure . .. ...... ... .. .. 246
Malfunction ... .. ..... ........... . 246
Resetting tire pressures ............ . 247
Tires ....... .... .. ................. 227
Low aspect ratio tires . . . . . . . . . . . . . . . 244
Service life .... .. ... .......... .... 237
Speed rating letter code ...... ... ... 239
Tire manufacturing date ...... ... ... 239
T ire pressure monitoring system . .. .. 245
T ire specifications .. ........... .. .. 239
T read depth ... .. ............. .... 237
Uniform tire quality grading ......... 241
Winter tires ..... ................ . 242
T ires and vehicle load limits ..... .. .. .. 235
Tires and wheels Checking tire pressure .......... .... 233
Cold tire inflation pressure .......... 231
Dimens ions .. .. .. ....... ...... .. .. 238
Genera l notes .. .. .... ...... ... .. .. 227
Glossary of tire and loading terminolo-
gy ....... .. .. .. .. ... ............ 228
New tires and wheels .............. . 238
Replacing ..... .. ............. .... 239
Snow chains ..... ................ . 243
Tires and veh icle load limits ..... .... 235
Wheel bolts . . . . . . . . . . . . . . . . . . . . . . 244
Win ter tires ..... ............. .... 242
Tire service life .... ................ . 23 7
Tool kit ....... ... ................ . 248
Torn or frayed safety belts ........ .... 135
T o uch -up pa int .. .. ... .......... .. .. 199
Towing Front eyelet ... .. ....... ...... .. .. 262
Rear eyelet .. .. .. ............. .. .. 262
T ow t ruck procedures ............. .. 261
TPMS Tire pressure monitoring system ..... 246
T railer towing ..... ................ . 191
Operating instructions .......... .... 191
Technical requirements . . . . . . . . 191, 192
Tips .. .... .... .. ............. .... 193
