forwar d as dange ro us m iss iles into the
passenge r compartment.
- Never attac h a c hild safety seat tet her
st rap to a tie-d own .

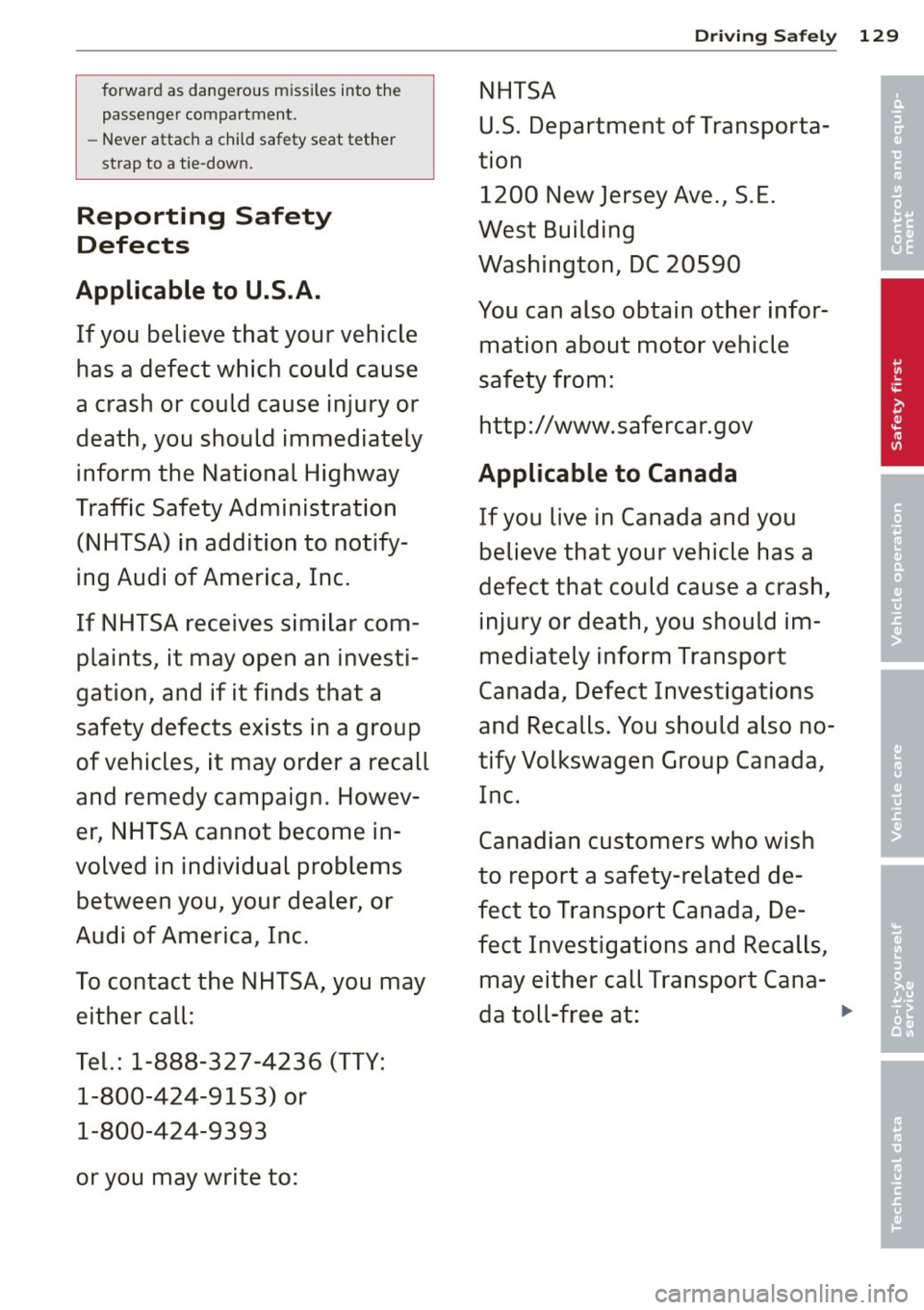

Reporting Safety
Defects
Applicable to U.S.A.
If you believe that your vehicle
has a defect which could cause
a crash or could cause injury or
death, you should immediately
inform the National Highway
Traffic Safety Administration (NHTSA) in addition to notify­
ing Audi of America, Inc.
If NHTSA receive s similar com­
plaints, it may open an inve sti­
gation, and if it finds that a
s afety defects exis ts in a group
of vehicle s, it may order a recall
and remedy campaign. Howev­
er , NHTSA cannot become in­
volved in individual problems between you, your dealer, or
Audi of America , Inc.
To contact the NHTSA , you may
either call:
Tel.: 1-888-327-4236 (TTY: 1-800-424-9153) or
1-800-424-9 3 9 3
or you may write to:
Driving Safely 129
NHTSA
U .S. Department of Transporta­
tion 1200 New Jersey Ave ., S .E.
We st Building
Wa shington, DC 20590
You can also obtain other infor­ mation about motor vehicle
safety from:
http://www.safercar.gov
Applicable to Canada
If you live in Canada and you believe that your vehicle has a
defe ct that could cau se a crash ,
injury or death , you should im ­
mediately inform Transport
Canada, Defect In vestigation s
and Recall s. You should also no­
tify Volkswagen Group Canada,
In c.
Canadian customers who wish
to report a safety-related de­
fect to Transport Canada, De­
fect Investigations and Recalls ,
may either call Transport Cana-
da toll-free at: ""'
•
•
'

130 Driving Safely
Tel.: 1-800-333-0510 or
Tel.: 1-819-994-3328 (Ottawa region and from other coun­
tries)
TTY for hearing impaired: Tel.:
1-888-675-6863
or contact Transport Canada by
mail at:
Transport Canada Motor Vehicle Safety Investiga­
tions Laboratory 80 Noel Street
Gatineau, QC
J8Z 0Al
For additional road safety infor­
mation, please visit the Road
Safety website at:
http:/ /www.tc .gc.ca/eng/
roadsafety/menu. htm
Active rollover
protection system
Function
The rollover protection system helps protect
vehicle occupants in the event of a rollover.
l '1
I j 1 !
I i I
Fig. 135 Rear seats: Rollbar deplo yment ra nge
Fig. 136 Rear seats: rollbar deploye d
; 0 ii. II) ID
The active rollover protection system consists
of:
- two rollbars
- the safety belts with belt tensioners
- the windshield frame
- the rollover sensors
The act ive rollover protection system provides
additional safety in the event of a rollover.
Within milliseconds, sensors deploy two roll­
bars located behind the headrests in the rear
seats r:!)fig.
136.
The rollbars, reinforced windshield frame and
belt tensioners help protect front and rear
passengers in the
event of a rollover.
The rollover protection system functions
when the power top is both open and closed.
A WARNING
Do not use the area behind the rear seat
headrests
I:!) fig. 135 as a storage area.
This is the area where the rollbars deploy.
If the rollover protection system is trig­
gered, objects placed there can be propel­
led through the vehicle and make it more
difficult for the rollbars to deploy. This in­
creases the risk for serious or life-threat ­
ening injuries.
When is rollover protection deployed?
Rollover protection deploys in a collision or
rollover.
-
Depending on the collision, sensors through­
out the vehicle and the control module trigger
t he rollover system to deploy.
ll>-

For safety reasons, rollover protection a lso de­
p loys during front, side and rear collisions
above a certa in level of severity.

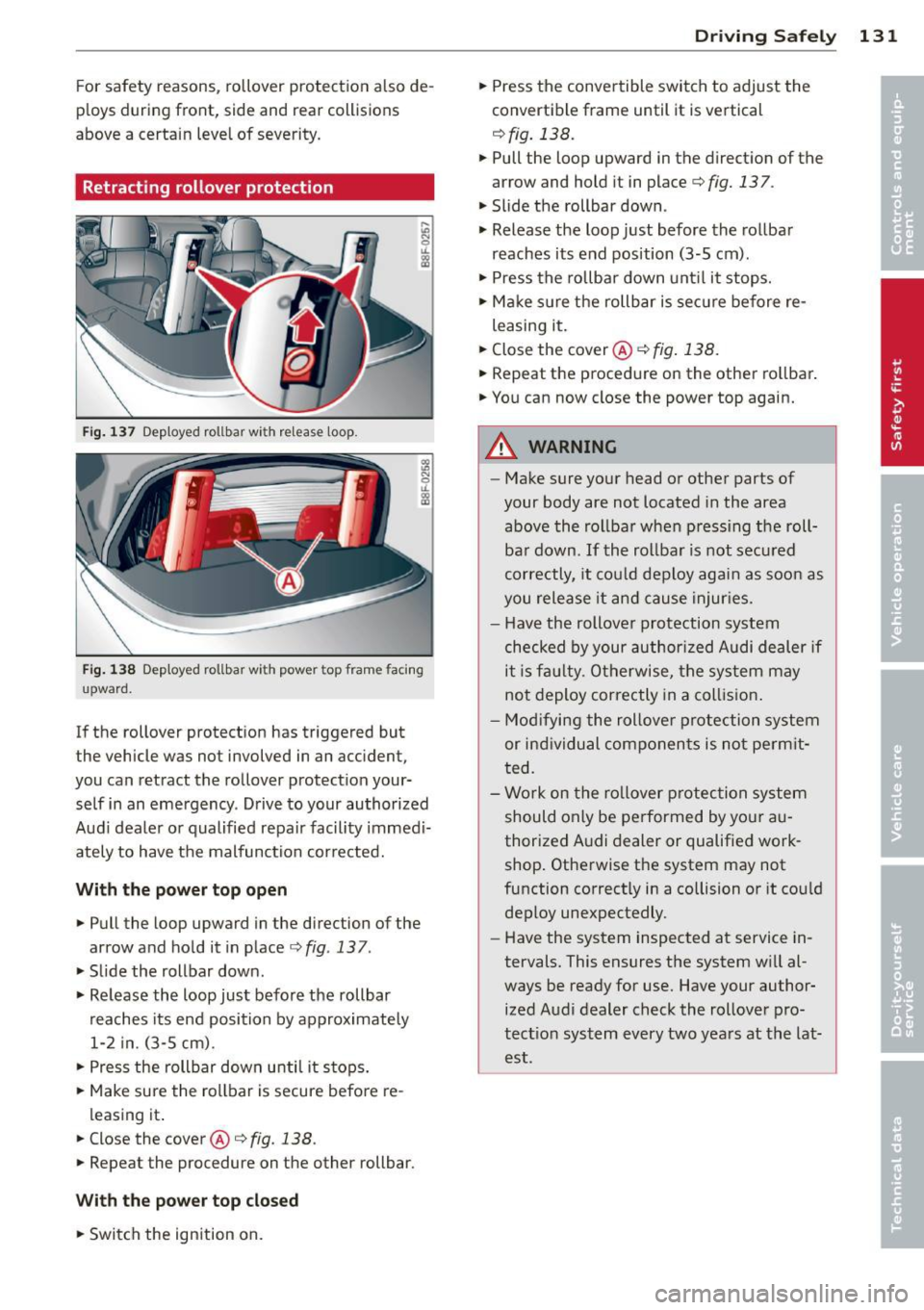

Retracting rollover protection
Fig . 137 Dep loyed rollbar with release loop.
Fig. 138 Deployed rollba r w ith power top frame facing
upward.
If the rollover protection has triggered but
the vehicle was not involved in an accident,
you can retract the rollover protection your­
self in an emergency . Drive to your authorized
Aud i dealer or qualified repa ir facility immedi­
ately to have the malfunction corrected.
With the p ower top open
• Pull the loop upward in the direction of the
arrow and hold it in p lace
c;, fig . 13 7.
• Slide the rollbar down .
• Re lease the loop just before the rollbar
reaches its end position by approximately 1-2 in. (3-5 cm).
• Press the rollbar down until it stops.
• Make sure the rollbar is secure before re-
leasing it.
• Close the cover@c::,
fig. 138 .
• Repeat the procedure on the other rollbar.
With th e power top clo sed
• Switch the ignition on.
Drivin g Sa fely 131
• Press the convertible switch to adjust the
convertible frame until it is vertical
r::!) fig. 138.
• Pull the loop upward in the direction of the
arrow and hold it in place
c::, fig. 137 .
• Slide the rollbar down .
• Release the loop just before the rollbar
reaches its end position (3-5 cm) .
• Press the rollbar down unt il it stops.
• Make s ure the rollbar is sec ure before re-
leasing it.
• Close the cover @
r::!) fig. 138.
• Repeat the procedure on the other ro llbar.
• You can now close the power top again.
A WARNING
-Make sure your head or other parts of
your body are not located in the area
above the rollbar when p ress ing the roll­
bar down.
If the rollbar is not secu red
correctly, it cou ld deploy again as soon as
you release it and cause injur ies.
- Have the rollover protection system
checked by your author ized Audi dealer if
it is fa ulty. Otherwise, the system may
not deploy correctly in a col lision .
- Mod ifying the rollove r protection system
or ind ividual components is not perm it­
ted.
- Wo rk on the ro llover p rotection system
should only be performed by yo ur au­
thorized Audi dealer or qualified work­
shop . Otherwise the system may not
function correctly in a co llision or it cou ld
dep loy unexpectedly.
- Have the system inspected at service in­
tervals. This ensures the system w ill al­
ways be ready for use. Have your author­
ized Audi dealer check the rollover pro­
tect ion system every two yea rs at the lat­
est.

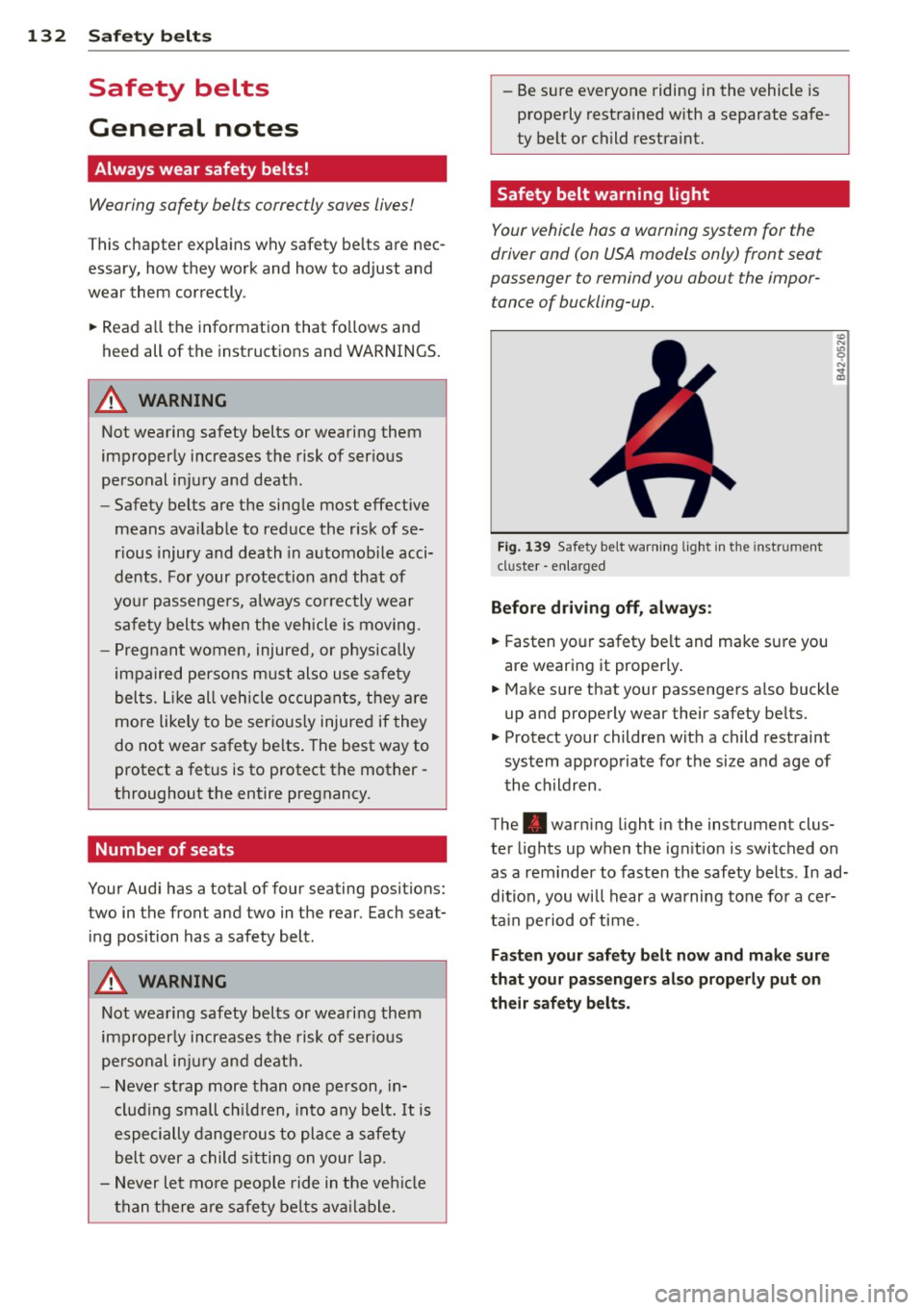

13 2 Safety belts
Safety belts
General notes
Always wear safety belts!
Wearing safety belts correctly saves lives!
This chapter explains why safety be lts are nec ­
essary, how they work and how to adjust and
wear them correctly .
.. Read a ll the information that fo llows and
heed all of the instructions and WARNINGS.
A WARNING
Not wearing safety belts or wearing them
improperly increases the risk of ser ious
personal in jury and death .
- Safety belts are the sing le most effective
means avai lab le to reduce the risk of se­
r ious injury and dea th in a utomob ile acci­
dents. For your protection and that of
yo ur passenge rs, always co rrectly wear
safety belts when the vehicle is moving.
- Pregnant women, injured, or physically
im paired perso ns m ust also use safety
belts. Lik e all veh icle occup ants, they are
more like ly to be ser iously injured if they
do not wea r safety be lts . The best way to
protect a fetus is to protect the mother -
throughout the entire pregnancy.
Number of seats
Your Audi has a total of four seating positions: two in the front and two in the rear. Each seat­
ing position has a safety belt .
A WARNING
Not wearing safety belts or weari ng them
improp erly increases th e risk of ser ious
pe rsonal i njury and deat h.
- Never st rap more than one pe rson, in­
cl uding small ch ild ren, into any belt.
It is
e speci ally dange rous to pla ce a safety
belt over a child s itting on yo ur lap.
- N ever le t mo re people ride in the ve hicl e
than there are s afe ty be lts avail able. -
Be s ure everyone riding in the vehicle is
properly restrained w ith a separate safe ­
ty belt or child restra int.
Safety belt warning light
Your vehicle hos o warning system for the
driver and (on USA models only) front seat
passenger to remind you about the impor­
tance of buckling-up .
F ig. 139 Safety belt warni ng lig ht in the instrument
cluster -en larged
Before driv ing off, always :
.. Fasten yo ur safety belt and make sure you
are wearing it properly .
.. Make sure that your passengers also buck le
up and properly wear their safety be lts.
.. Protect your children wit h a child restraint
system approp riate fo r the size and age of
t he children.
The . war ning light i n the instrument clus­
ter lights up when the ig nition is switched on
as a rem inder to fasten the safety belts. In ad­
dition, you will hear a warning tone fo r a cer­
ta in pe riod of time.
Fasten your safety belt now and make sure
that your pa ssenger s also prope rly put on
their safety belts.

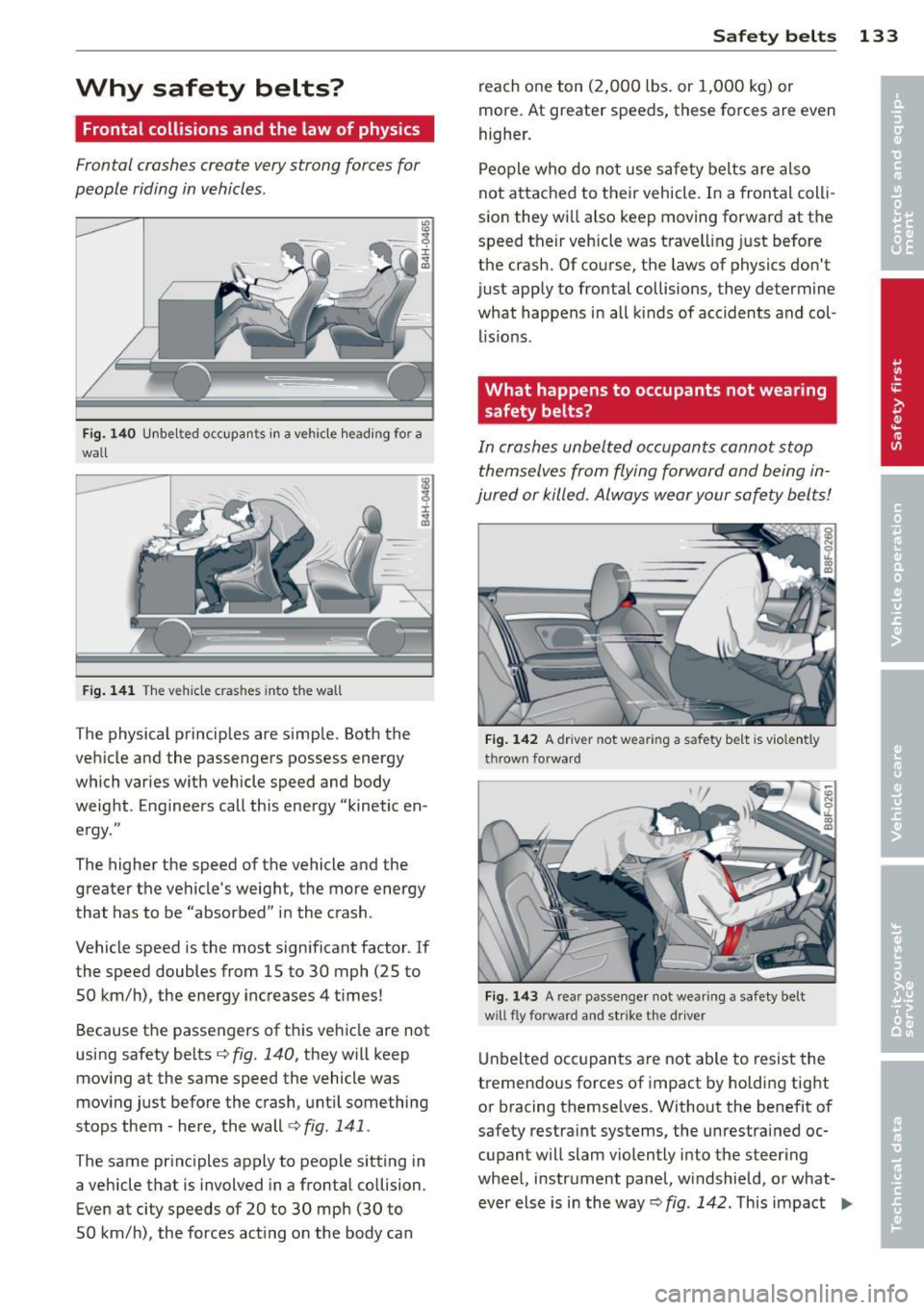

Why safety belts?
Frontal collisions and the law of physics
Frontal crashes create very strong forces for
people riding in vehicles .
Fig. 140 U nbe lted occupa nts in a ve hicle hea ding for a
wall
F ig. 141 T he ve hicle c ras hes into t he wall
The physical principles are simp le. Both the
ve hicle and the passengers possess energy
which varies w ith vehicle speed and body
weight . Enginee rs call this energy "kinetic en ­
e rgy ."
The higher the speed of the vehicle and the greater the vehicle 's weight, the more energy
that has to be "absorbed" i n the crash .
Vehicle speed is the most sign ificant factor . If
the speed doubles from 15 to 30 mph (25 to
50 km/h) , the energy inc reases 4 t imes !
Because t he passengers of t his ve hicle are not
using safety belts
c:> fig . 140, they w ill keep
moving at the same speed the vehicle was
mov ing just before the crash, unt il something
stops them -here, the wall
c:> fig . 141 .
The same pr inc iples apply to peop le sitting in
a vehicle that is involved in a frontal co llision .
Even at city speeds of 20 to 30 mph (30 to
50 km/h) , the forces act ing on the body can
Safety belts 133
reach one ton (2,000 lbs . or 1,000 kg) or
more . At greater speeds, these forces are
even
higher .
People who do not use sa fe ty belts are also
not attached to their vehicle. In a frontal coll i­
sio n they wi ll also keep moving forward at the
speed their veh icle was t ravell ing just before
the crash. Of co urse, the laws of physics don't
just app ly to frontal collisions, they determine
what happens in all kinds of acc idents and col ­
lis ions .
What happens to occupants not wearing
safety belts?
In crashes unbelt ed o ccupants cannot stop
themselves from flying forward and being in­
jured or killed. Always wear your safety belts!
Fi g. 142 A dr ive r n ot wea ring a safety be lt is vi olently
throw n fo rwa rd
F ig . 14 3 A rear passenger no t wea ring a safety belt
w ill
fly forwa rd and strike the dr ive r
Unbelted occ upants a re not able to resist the
tremendous forces of impact by holding tight
or bracing themselves . Without the benefit of
safety restra int systems, the unrestrained oc­
cupant will slam violently into the steer ing
whee l, instrument pane l, w indshield, o r what ­
ever else is in the way c:> fig . 142. This impact IJll-

134 Safety belts
with the vehicle interior has all the energy
they had just before the crash.
Never rely on airbags alone for protection.
Even when they deploy, airbags provide only
additional protection. Airbags are not sup­
posed to deploy in all kinds of accidents. Al­
though your Audi is equipped with airbags, all
vehicle occupants, including the driver, must
wear safety belts correctly in order to mini­
mize the risk of severe injury or death in a
crash.
Remember too, that airbags will deploy only
once and that your safety belts are always
there to offer protection in those accidents in
which airbags are not supposed to deploy or when they have already deployed . Unbelted
occupants can also be thrown out of the vehi­
cle where even more severe or fatal injuries
can occur.
It is also important for the rear passengers to
wear safety belts correctly. Unbelted passen­
gers in the rear seats endanger not only them­
selves but also the driver and other passen­
gers~
fig. 143. In a frontal collision they will
be thrown forward violently, where they can
hit and injure the driver and/or front seat pas­
senger.
Safety belts protect
People think it's possible to use the hands to
brace the body in a minor collision. It's simply
not true!
Fig. 144 Driver is correctly restra ined in a sudden brak·
ing maneuve r
Safety belts used properly can make a big dif­
ference . Safety belts help to keep passengers
in their seats, gradually reduce energy levels applied to the body in an accident, and help
prevent
the uncon trolled movement that can
ca use serious injuries. In addition, safety belts
reduce the danger of being thrown out of the
vehicle .
Safety belts attach passengers to the car and
give them the benefit of being slowed down
more gently or "softly" through the "give" in
the safety belts, crush zones and other safety
features engineered into today's vehicles. By
"abso rbing" the kinetic energy over a longer
period of time, the safety belts make the
forces on the body more "tolerable " and less
likely to cause injury .
Although these examples are based on a fron­
tal collision, safety belts can also substantial­ ly reduce the risk of injury in other kinds of
crashes. So, whether you're on a long trip or
just going to the corner store, always buckle
up and make sure others do, too. Accident sta­
tistics show that vehicle occupants properly
wearing safety belts have a lower risk of being
injured and a much better chance of surviving
an accident. Properly using safety belts also
greatly increases the ability of the supplemen ­
tal airbags to do their job in a collision. For
this reason, wearing a safety belt is legally re­
quired in most countries including much of
the United States and Canada .
Although your Audi is equipped with airbags,
you still have to wear the safety belts provid­
ed. Front airbags, for example, are activated
only in some frontal collisions. The front air­
bags are not activated in all frontal collisions,
in side and rear collisions, in roll overs or in
cases where there is not eno ugh deceleration
through impact to the front of the vehicle.
The same goes for the other airbag systems in
your Audi. So, always wear your safety belt
and make sure everybody in your vehicle is
properly restrained!

Important safety instructions about
safety belts
Safety belts must always be correctly posi­
tioned across the strongest bones of your
body.
~ Always wear safety belts as illustrated and
described in this chapter.
~ Make sure that your safety belts are always
ready for use and are not damaged.
A WARNING
Not wearing safety belts or wearing them
improperly increases the risk of serious
personal injury and death. Safety belts can
work only when used correctly.
- Always fasten your safety be lts correctly
before driving off and make sure all pas­
sengers are correctly restrained.
- For maximum protection, safety belts must always be positioned properly on
the body .
- Never strap more than one person, in­
cluding small children, into any belt.
- Never place a safety belt over a child sit­ ting on your lap.
- Always keep feet in the footwell in front
of the seat while the vehicle is being d riv­
en .
- Never let any person ride with their feet
on the instrument panel or sticking out
the window or on the seat.
- Never remove a safety belt while the ve­
hicle is moving. Doing so will increase
your risk of be ing injured or killed.
- Never wear belts twisted.
- Never wear belts over rigid or breakable
objects in or on your clothing, such as
eye glasses, pens, keys, etc., as these may cause injury.
- Never allow safety belts to become dam­
aged by being caught in door or seat
hardware .
- Do not wear the shoulder part of the belt
under your arm or otherwise out of posi ­
tion . Safety belts
135
- Several layers of heavy clothing may in­
terfere with correct positioning of belts and reduce the overall effectiveness of
the system .
- Always keep belt buckles free of anything
that may prevent the buckle from latch­
ing securely .
- Never use comfort clips or devices that
create slack in the shoulder belt . Howev­
er, special clips may be requ ired for the
proper use of some child restraint sys­
tems .
- Torn or frayed safety belts can tear, and
damaged belt hardware can break in an
accident. Inspect belts regularly.
If web­
bing , bindings, buckles, or retractors are
damaged, have belts replaced by an au­
thorized Audi dealer.
- Safety belts that have been worn and
loaded in an accident must be replaced
with the correct replacement safety belt
by an authorized Audi dealer. Replace­
ment may be necessary even if damage
cannot be clearly seen. Anchorages that
were loaded must also be inspected.
- Never remove, modify, disassemble, or
try to repair the safety belts you rs elf .
- Always keep the belts clean. Dirty belts
may not work properly and can impair
the function of the inertia reel¢
ta­
ble Cleaning interior on page 197 .
Safety belts
Belt positioner
The driver and front passenger seats are
equipped with belt positioners.
Fig. 145 Drive r's se at: B elt pos itio ner

136 Safet y belt s
The front seats are equipped with belt posi­
tioners so it is easier to fasten the safety
be lts . T he belt positioners automatically ex­
tend when the door closes and the ignition
switches on
¢ fig . 145.
The belt positioner returns to its starting posi­
tion again when
- the tongue in the belt latch engages or the
belt was not fastened within 60 seconds .
- yo u sw itch the igni tion off .
- you open the doo r.
&_ WARNING
- Only yo ur autho rized Aud i dea le r shou ld
wor k on the sys tem or remove and insta l­
ling system com ponents when per form ­
ing other work .
- T he be lt positione rs could cause injury or
damage if they p inch peop le or objects
when extending or retracting .
Fastening safety belts
Safety first -everybody buckle up!
Fig. 146 Belt buckle a nd tong ue o n th e dr iver's seat
To prov ide maximum protection, sa fety belts
must always be posit ioned correctly on the
wearer's body .
.. Adjust the front seat and head restra int
properly ¢
page 60, Seats and storage .
.. Make sure the seatback of the rear seat
bench is in an upright pos ition and securely
latched in place before using the belt¢,& .
.. Hold the belt by the tongue and pull it even-
ly across the chest and pelvis
c:::> &, .
.. Insert the tongue into the correct buck le of
your seat unti l you hear it latch securely
c:::> fig . 146.
.. Pull on the belt to make sure that it is se-
curely latched in the buckle.
Automatic safety belt r etractors
Every safety belt is equipped with an a utomat ­
ic be lt retractor on t he shou lder belt. This fea­
ture locks the belt when the be lt is pulled out
fast, during hard braking and in an accide nt.
The belt may a lso lock when you drive up or
down a steep h ill or through a sha rp curve.
D uring normal driv ing the be lt lets you move
freely .
Safety belt pretensioners
The safety belts are equipped with a belt pre­
tensioner that he lps to tighten the safety belt
and remove slack when t he pretensioner is ac ­
t ivated . T he function of the pretensione r is
monitored by a war ning light
c:::> page 20.
Switchable locking feature
Every safety belt except the one on the driver
seat is equipped with a sw itchable lock ing fea­
ture that
must be used when the safety be lt is
u sed to attach a c hild safety s eat. Be sure to
read the important information abou t this
feature
c:::> page 171.
&_ WARNING
I mp roperly posit ioned s afety be lts c an
cause ser ious injury in an accident
c:::> page 137, Safety belt position .
-Safety belts offer opt imum protection
only when the seat back is u pright and
be lts are proper ly posit ioned o n the
body.
-
- Never attach t he safety belt to the buck­
le for another seat. Attaching the belt to
the wrong buckle will reduce safety be lt
effectiveness and can cause serious per ­
sonal injury .
- A passenger who is not proper ly restrain-
ed can be seriously injured by the safety ..,.

belt itself when it moves from the stron­
ger parts of the body into critical areas
like the abdomen.
- Always lock the convertible locking re­
tractor when you are securing a child safety seat in the vehicle ¢
page 173.
Safety belt position
Correct belt position is the key to getting
maximum protection from safety belts .
Fig. 147 Safety belt pos it io n
"' ,-. 0 ± Standard features on your vehicle help you ad­
just the position of the safety belt to match your body size .
- height -adjustable front seats.
A WARNING
Improperly positioned safety belts can
cause serious personal injury in an acci­
dent .
- The shoulder belt should lie as close to
the center of the collar bone as possible
and should fit well on the body. Hold the
belt above the latch tongue and pull it
evenly across the chest so that it sits as
low as possible on the pelvis and there is
no pressure on the abdomen. The belt
should always fit snugly
¢ fig. 147. Pull
on the belt to tighten if necessary.
- The lap belt portion of the safety belt
must be positioned as Low as possible
across pelvis and never over the abdo­
men. Make sure the belt lies flat and
snug
¢ fig . 147 . Pull on the belt to tight­
en if necessary.
Safety belts 13 7
-A loose-fitting safety belt can cause seri­
ous injuries by shifting its position on
your body from the strong bones to more
vulnerable, soft tissue and cause serious injury.
- Always read and heed all WARNINGS and
other important information
¢page 135.
Pregnant women must also be correctly
restrained
The best way to protect the fetus is to make
sure that expectant mothers always wear
safety belts correctly -throughout the preg­
nancy.
Fig. 148 Safety bel t position during pregnancy
To provide maximum protect ion, safety belts
must always be positioned correctly on the
wearer's body¢
page 13 7.
.,. Adjust the front seat and head restraint cor­
rectly
¢ page 60, Seats and storage.
.,. Make sure the seatback of the rear seat
bench is in an upright position and securely
latched in place before using the belt .
.,. Hold the belt by the tongue and pull it even­
ly across the chest and pelvis~
fig. 148,
¢ _& .
.,. Insert the tongue into the correct buckle of
your seat until you hear it latch securely
¢page 136, fig. 146 .
.,. Pull on the belt to make sure that it is se­
curely latched in the buckle.

138 Safet y belt s
A WARNING
Improperly positioned safety belts can
cause serious personal injury in an acci ­
dent .
- Expectant mothers must always wear the
lap portion of the safety belt as low as
poss ible across the pelv is and be low the
rounding of the abdome n.
- Always read and heed all WARNINGS and
other important information
Q &. in Fas­
tening safety belts on page 136.
Unfastening safety belts
Unbuckle the safety belt with the red release
button only after the vehicle has stopped .

'lJJ
Fig. 149 Relea sing the to ngue from t he buckle
.. Push the red re lease but ton on the buck le
Q fig. 149 . The belt tongue wi ll spring out
of the buckle
Q .&_ .
.. Let the belt wind up on the retractor as you
guide the belt tongue to its stowed position.
A WARNING
Never unfasten safety belt while the veh i­
cle is moving. Doing so will increase your
r isk of being injured or killed .
Improperly worn safety belts
Incorrectly positioned safety belts can cause
severe injuries .
Wearing safety belts improperly can cause se­
rious injury or death. Safety belts can only
work when they are correctly positioned on the body . Improper seating positions reduce
the effectiveness of safety belts and wi ll
even
increase the risk of injury and death by mov­
ing the safety be lt to critica l areas of the
body. Improper seating positions also in­
crease the r isk of serious injury and death
when an airbag deploys and strikes an occu­ pant who is not in the correct seating posi­
t ion. A driver is responsible for the safety of
all veh icle occupants and especially for chil­
dren. Therefore:
.,. Never perm it anyone to assume an incorrect
sitt ing pos ition in the vehicle while traveling
Q A .
A WARNING
Improperly worn safety be lts inc rease the
risk of ser ious persona l inju ry and death
whenever a vehicle is being used.
- Always ma ke sure that all vehi cle o cc u ­
pants are correctly restra ined and stay in
a correct seating position whenever the
vehicle is being used.
- A lways read and heed all WARNINGS and
other important information
Q page 135.
Safety belt preten-
• s1oners
How safety belt pretensioners work
In front, side and rear-end collisions above a
particular severity, safety belts are tensioned
automatically.
The safety belts are equipped with safety belt
pretensioners. The system is activated by sen­
sors in front, s ide and rear-end collisions of
great severity. This tightens the belt and takes
up belt slack
Q .&. in Service and disposal of
safety belt pretensioner on page 139.
Taking
up the slack he lps to reduce fo rward occupant
movement during a collision .
(D Note
Never let the belt remain over a rear seat­
back that has been fo lded forward.
