will no longer shift at a ll. The engine may stall.
Drive to your authorized Audi dealer or qualified
repair facility immediately to have the malfunc ­
tion corrected.
rm l;j Transmission malfunction: No reverse
You can continue driving
S tronic transmission: There is a system malfunc­
tion in the transmission. The transmission is
switching to emergency mode. This mode only
shifts into certain gears or will no longer shift at
all. The engine may stall. You cannot engage the
reverse gear. Drive to your authorized Audi dea ler
or qualified repair facility immediately to have
the ma lfunction corrected .
rm Transmission malfunction: Stop vehicle and
shift to park.
Do not continue driving. Select the P se lector lev­
er position and see your authorized Audi dealer
or qualified repair facility for assistance.
([) Note
If the transmission switches to emergency
mode, you shou ld take the vehicle to an au­
thorized Audi dealersh ip as soon as possible
to have the condit ion corrected.
Selector lever emergency release
Applies to vehicles: with multitronic/5 tronic/tiptronic
If the vehicle's power supply foils, the selector
lever can be released in an emergency.
Fig . 101 Front center console: Removing the ashtray insert
Automatic transmission
Fig. 102 Selector lever emergency release
"'To access the emergency release mechanism,
remove the ashtray insert @ using the release
sw itch @ c:::>fig.
101.
"' Loosen and remove the cap in the ashtray
mount.
"' You now have access to a pin. Using a screwdriv­
er or similar object, press the pin down and
hold it in that position
c:::>fig . 102.
"' Now press the re lease button and move these-
lector lever to the N position .
The selector lever can only be moved from the P
position if the key is in the lock and the ignition is
switched on . If the power supply fails (for exam­
ple, the battery is discharged) and the vehicle
must be pushed or towed, move the selector lev­
er to the N position first using the emergency re­
lease.
89

Audi adapt ive cru ise control and brak ing gu ard
Audi adaptive cruise
control and braking
guard
Introduction
App lies to veh icles: w ith Audi adaptive cruise co ntrol
The adaptive cruise control system assists the
d river by regu lating veh icle speed and he lp ing to
maintain a set distance to the vehicle ahead,
within the limits of the system. If the system de­
tects a moving vehicle up ahead, adaptive cruise control can brake and then accelerate your vehi ­
cle. This helps to make driving more comfortable
on long highway stretches.
The braking guard system can warn you about an impending collision and initiate brak ing maneu­
vers
c> page 96.
Adapt ive cruise control and braking guard have
technical limitations that you must know, so p lease read this section carefully, understand
how the system works and use them properly at
all times.
General information
General information
A pp lies to veh icles: w ith Audi adaptive cruise control
Fig. 103 Fro nt of the vehicle: Position of radar sensor
The area that contains the radar sensor
c::> fig. 103 must never be covered by stickers or
other objects or obstructed with dirt, insects,
snow or ice that w ill interfere with the adaptive
cru ise control system and braking guard. Fo r i n­
formation on cleaning, refer to
c::> page 184. The
same appl ies for any modifications made in the
front area.
90
The function of the adaptive cruise contro l sys­
tem and braking guard is limited under some
cond it ions:
- Objects can on ly be detected when they are
within sensor range
,=;, page 92, fig. 106.
- T he system has a limi ted ability to detect ob­
jects that are a short d istance ahead, off to the
side of your vehicle or moving into your lane.
- Some k inds of veh icles are hard to detect; for
example motorcycles, vehicles with high
ground clearance or overhanging toads may be
detected when it is too late or they may not be
detected at all.
- When driving through curves
c::> page 91 .
- Stationary objects c::> page 91.
& WARNING
-Always pay attention to traffic when adaptive
cruise control is switched on and braking
guard is active. As the driver, you are still re ­
sponsible for starting and for maintaining
speed and distance to other objects. Braking
guard is used to assist you . The driver must
a lways take action to avo id a collis ion. The
driver is always responsible for braking at the
correct t ime.
- I mprope r use of adaptive cru ise con tro l can
cause collisions, o ther accidents and serious
personal injury.
- Never let the comfort and conven ience that
adapt ive cr uise control and brak ing guard
offer distrac t you from the need to be alert
to traffic cond it ions and the need to remain
in fu ll control of your vehicle at all times,
- Always remember that the adaptive cruise
contro l and brak ing guard have limits - they
will not slow the vehicle down or maintain
the set distance when you dr ive towards an
obstacle or something on or near the road
that is not moving, such as vehicles stopped in a traff ic jam, a stalled or disab led vehicle.
If registered by the radar sensor, vehicles or
obstacles that are not moving can trigge r a
co llision warning and if confirmed by the
video camera, a n acute collision warning.
IJI,-

Audi adapt ive crui se cont rol and bra king gu ard
- For safety reasons, do not use adaptive
cruise control when driving on roads with
many curves, when the road surface is in
poor condit ion and/or in bad weather (such
as ice, fog, gravel, heavy rain and hydroplan­
ing) . Us ing the system under these condi­
tions co uld resu lt in a collision.
- Switch adaptive cruise control off tempora­
rily when driving in turning lanes, on ex­
pressway exits or in construction zones. This
prevents the vehicle from acce lerating to
the set speed when in these situations.
- T he adapt ive cruise con trol system w ill not
brake by itself if you put your foot on the ac­
celerator pedal. Do ing so can override the
speed and distance regulation.
- When approaching stationary objects such
as stopped traffic, adaptive cruise control
will not respond and braking guard will have
limited function .
- The adaptive cruise control system and brak­
ing guard do not react to people, anima ls,
objects cross ing the road or oncoming ob­
jects.
- The function of the radar sensor can be af­
fected by reflective objects such as guard
rails, the entrance to a tunnel, heavy rain or
ice.
- Never follow a ve hicle so closely that you
cannot stop your vehicle safely. The adap­
t ive cr uise control cannot s low or brake the
vehicle safely when you fo llow another veh i­
cl e too close ly. Always remembe r that the
au tom atic b ra ki ng function cannot bring the
vehicle to a su dden or emergency stop un­
der these conditions.
- T o prevent unin tended operation, always
swit ch ACC
off when i t is not be ing used .
(D Note
The sensor can be disp laced by impacts o r
damage to the bumper, whee l housing and
underbody. That could affect the adaptive
cru ise cont ro l system and braking guard. Have
M
6 your authorized A udi dealer or authorized
~ Aud i Service Faci lity check their function.
rl I.O
"' N
"' rl
In curves
Applies to vehicles: wit h Audi adapt ive cr uise contro l
Fig. 104 Example : driv ing into a curve
When driving into a curve c:> fig. 104 and out of a
curve, the adaptive cruise control may react to a
vehicle in the next lane and apply the brakes. You
can override or prevent the braking by press ing
t h e accelerator peda l briefly .
Stationary objects
Applies to vehicles: wit h Audi adaptive cruise control
Fig . 105 Example: object changing lanes and stationary
object
T he adaptive cruise control system only reacts to
objects that are moving or that the system has
already detected as moving. For example, if a ve­
hicle @, which has already been detected by the
adaptive cruise control, turns or changes lanes
and another stationary veh icle @ is located in
front of that ve hicle, the system will not react to
t h e stat ionary vehicle.
91

Audi adaptive cruise control and braking guard
Audi adaptive cruise
control
De script ion
Applies to veh icles: with Audi adaptive cruise co ntrol
F ig. 106 Detect ion range
What can Audi adaptive cruise control do?
The adaptive cruise control works in conjunction
with a radar sensor instal led in the front of the
vehicle
¢ page 90, fig. 103, which is subject to
designated system limits¢
page 92. Stationary
objects are disregarded.
On open roads w ith no traff ic, adaptive cruise
control works like a regula r cruise control system.
The stored speed is mainta ined . When approach­
ing a moving vehicle detected up ahead, the
adaptive cruise control system automatically
slows down to match that vehicle's spe ed and
then maintains the distance that the d river previ ­
ously stored. A s soon as the system does not de­
t ec t a vehicle up ahead, adap tive cruise control
accelerates back up to the stored speed .
Which functions can be controlled?
When you switch adaptive cruise control on, you
can set the current speed as the "control speed"
¢ page 92 , Swit ch ing on and off.
When driving, you can stop cruise control
¢
pag e 94 or change the speed ¢ page 93 at
any time.
You can a lso set the distance to the object ahead
and set the adaptive cr uise control driving pro­
gram
¢ page 94.
92
Switch ing on and off
Applies to vehicles: with A udi adaptive cruise contro l
Fig. 107 Selector le ve r: switc hin g o n/off
Fig. 108 I ns trume nt cl ust er: Au di ada ptive cruise control
You can set any speed between 20 mph and 95
mph (30 and 150 km/h).
Indicator lamps and messages in the instrument cluster display inform you about the current sys­
tem status and settings.
Switching Audi adaptive cruise control on
.. Pull the lever toward you into position (D
¢ fig. 107 . ACC standby appears in the instru ­
ment cluster display .
Setting the speed and activating regulation
.. To set the current speed, press the ISET I button
¢
page 11, fig. 4. The set speed is shown in the ..,.

M N
ci LL co
rl I.O
"' N
"' rl
Audi adapt ive crui se cont rol and bra king gu ard
tachometer @and is also shown briefly in the
display @c:>
fig. 108.
Swit ching Audi adapti ve c ru is e contr ol off
~ Push the lever away from you into position @
unt il it clicks into place. The message
AC C off
appea rs .
@ Indicator lights
II -Adaptive cru ise control is switched on. No
vehicles are detected up ahead . The stored speed
i s ma inta ined.
• -A moving vehicle is detected up ahead . The
adapt ive cruise control system regulates the
speed and distance to the moving vehicle ahead
and accelerates/brakes automatically .
• -When automatic braking is not able to keep
enough d istance to a prev iously detected mov ing
vehicle up ahead, you must take control and
brake ¢
page 95, Request for driver interven­
tion.
© Displa y
If adaptive cruise control is not shown in the d is­
play, you can call it up with the !RESE TI button
¢page 23.
Based on the symbo ls in the d isplay, you can de­
termine if the system is ma inta ining a distance to
the vehicle ahead and what that distance is .
N o v ehicl e -No vehicle ahead was detected.
Wh it e v ehi cle -A vehicle ahead was detected .
Red v ehicl e -Prompt for the d river to take action
¢page 95.
Both arrows on the scale © indicate the distance
to the veh icle ahead. No arrow appears when the
vehi cle is on an open road and there is no object
ahead .
If an object is detected ahead, the arrow
moves on the scale.
The green zone on the scale shows the stored dis­
tance . For informa tion on chang ing the stored
d ista nce, refe r to¢
page 94 . If the distance se­
l ected is too close or may soon become too close,
the arrows move into the red zone on the scale .
A WARNING
Improper use of the adaptive cruise control
can cause collisions, other accidents and se ri­
ous personal injuries.
- Pressing the !SET ! button when driving at
speeds below 20 mph (30 km/h), w ill auto­
matica lly accelerate the vehicle to 20 mph
(30 km/h), which is the mi nimum speed
that can be set.
a) Tips
- If you switch the ignit ion or the adaptive
cruise control off, the set speed is erased
from the system memo ry.
- The electronic stab ilizat ion cont rol (ESC)
and the anti-slip-reg ulat ion (ASR) are a uto­
matically turned on when the adaptive
cruise contro l is turned on. Both systems
cannot be turned off if the adaptive c ruise
control is turned on .
Changing the speed
Applies to vehicles: wit h Aud i adapt ive cru ise control
0
f
•
0
Fig . 109 Selector lever: chang ing the speed
~ To increase o r reduce the speed in increments,
tap the lever up or down.
~ To increase o r reduce the speed q uickly, hold
the lever up or down until the red LED @ reach­
es the des ired speed ¢
page 92, fig . 108.
Following any changes, the new stored speed wi ll
be displayed briefly in the display @¢
page 92,
fig . 108 .
93

Audi adaptive cruise control and braking guard
Interrupting cruise control
Applies to veh icles: w ith Audi adaptive cruise co ntrol
Fig. 110 Selector leve r
Requirement : adaptive cruise control must be
switched on
¢ fig . llO (i).
Overriding cruise control
• To accelerate manually, press the acce lerator
pedal. The message
ACC override appears .
• To resume adaptive cruise control, remove your
foot from the gas pedal. The system returns
again to the speed that was saved before.
• You can save a new speed at any time by press·
ing the
ISETI button r:::;, page 11, fig. 4.
Canceling cruise control while driving
• Move the lever into position @. The message
ACC standby appears . Or
• press the brake pedal.
• To resume the stored speed, move the lever in­
to position
@ .
,& WARNING
Never resume the stored speed if the speed is
too high for prevailing road, traffic or weather
conditions.
94
Setting the distance
App lies to vehicles: wit h Audi adapt ive cru ise contro l
Fig. 111 Selector lever: setting the d istance
• Tap the switch to display the current set dis­
tance
¢ fig . 111 .
• To increase or reduce the distance by incre·
ments, tap the switch again to the left or right.
The distance between the two veh icles will
change in the instrument cluster display .
When approach ing a mov ing vehicle up ahead,
the adapt ive cruise control system brakes to
match that object's speed and then mainta ins
the stored distance. If the vehicle ahead acceler­
ates, adaptive cruise contro l will also accelerate
up to the stored speed.
The higher the speed, the greater the distance in
yards (meters)
r:::;, A . The Distance 3 setting is
recommended.
The distances prov ided are specified va lues . De ­
pending on the driving situation and the how the
vehicle ahead is driving, the actua l dis tance may
be more or less than these target distances.
The var ious symbols for the time increments ap­
pear briefly in the information line@r:::;,
page 92,
fig. 108 when you change the settings .
o;:'.'.:>_o;:'.'.:> ___ Distance 1: This setting corresponds
to a distance of 92 feet/28 meters when travel·
i ng at 62 mph (100 km/h), or a time i nterva l of 1
second.
o;:'.'.:> __ o;:'.'.:> __ Distance 2: This setting corresponds
to a distance of 118 feet/36 meters when travel ­
i ng at 62 mph (100 km/h), or a time i nterva l of
1.3 seconds.

M N
ci LL co
rl I.O
"' N
"' rl
Audi adapt ive crui se cont rol and bra king gu ard
~ -- -~ -Di sta nce 3: This setting corresponds
to a distance of 164 feet/SO meters when trave l­
ing at 62 mph (100 km/h), or a t ime interval of
1.8 seconds.
~ -- --~ Dista nc e 4: This setting corresponds
to a distance of 210 feet/64 meters when trave l­
ing at 62 mph (100 km/h), or a t ime interval of
2 .3 seconds.
A WARNING
Following other vehicles too closely increases
the risk of collisions and ser ious personal in ­
jury.
- Setting short distances to the traffic ahead
reduces the time and distance available to
br ing your vehicle to a safe stop and makes
it even mo re necessary to pay close atten­
tion to traffic.
- Always obey applicable traffic laws, use
good judgment, and select a safe following
distance for the traffic, road and weather
condit ions.
¢j) Tips
- Di stance
3 is set automatically each time
you switch t he ignition on.
- Your standa rd settings are automatically
stored and assigned to the remote contro l
k ey being used.
Setting the driving program
Applies to vehicles: with Audi adaptive cruise control
D epending on the se lected dr iv ing program and
distance, driving behavior when accelerating will
vary from dynamic to comfortab le .
Setting th e driving program for v ehicl es
without Audi d rive s elect*
~ In the radio/MMI*, select: !CAR !function but­
ton >
Adapti ve c ru is e control > D riv ing prog. >
comfo rt, stand ard or d y namic . Or
~ Select : !CAR I function button> Ca r sy ste m s*
co ntrol button > D river ass ist > Adap tive cru ise
cont ro l
> Dr iving progr am * > Comfort, Stand­
ard
or D ynamic . Setting the driving mode for vehicles w
ith
Audi dri ve select*
Refer to ¢ page 104.
(D Tips
Your settings are automatical ly stored and as ­
signed to the remote control key being used.
Request for driver intervention
Applies to vehicles: with Audi adaptive cruise control
Fig . 1 12 Instr ume nt cluster: reques t fo r dr ive r inte rven ­
t ion
In certa in situations, the system will prompt you
to ta ke act ion. This cou ld happen, fo r example , if
braking by the adaptive c ruise control system is
not enough to maintain enough distance to the
vehicle ahead.
T he instrument cluster w ill warn you abou t the
dange r
~fig. 112:
-A red vehicle is p ictured in the display .
- The text
DISTANCE! appears in the status bar .
- The red indicator light . blinks .
- In addition, a warning tone sounds .
95

Audi adaptive cruise control and braking guard
Audi braking guard
Description
Applies to veh icles: w ith Audi adaptive cruise co ntrol
Fig. 113 Instrument cluster : approach warn ing
Braking guard uses a radar sensor. It also func­
tions within the limits of the system when adap­
tive cruise control is switched off.
What can Audi braking guard do?
When detected in time, the system can assess
situations when a vehicle ahead brakes suddenly
or if your own vehicle is traveling at a high speed
and approaching a vehicle up ahead that is mov­
ing more slowly . Braking guard does not react if it
cannot detect the situation .
The system advises you of various situations:
- The
distance warning is given if you are too
close to the vehicle ahead for a long time. If the
vehicle ahead brakes sharply, you will not be
able to avoid a collision. The indicator light.
in the display comes on .
- The
approach warning is given when a detected
vehicle up ahead in your lane is moving much
more slowly than you are or if it brakes sharply .
When this warning is given, it may only be pos­
s ib le to avoid a collision by swerving or braking
sharply. The indicator light . and indicato r in
the display will wa rn you about the danger
¢ fig. 113 . You will also hear an acoustic signa l.
If you do not react fast enough or do not react at
all to the situation, Braking guard will intervene
by braking and the message
braking guard inter­
vention
will appear.
ll Thi s is not available in so me c oun tries.
96
- If a co llision is imminent, the system wi ll first
provide an
acute warning by br iefly and sharply
app ly in g the brakes.
- If you do not react to the acute warning, brak­
ing guard can brake within the limits of the sys­
tem. This reduces the vehicle speed in the event
of a collision.
- At speeds under 20 mph (30 km/h), the system
can initiate a complete deceleration shortly be­
fore a collisionl l_
-If the braking guard senses that you are not
braking hard enough when a collision is immi­
nent, it can increase the braking force.
Which functions can be controlled?
You can switch braking guard and the distance/
approach warning on or off in the radio or MMI
¢page
97, Settings in the radio/MM!.
A WARNING
Lack of attent ion can cause collisions, other
accidents and ser ious personal injuries. The
braking guard is an assist system and cannot
prevent a coll is ion by itself. The dr iver must
always intervene. The driver is always respon­
sib le for braking at the correct time.
- Always pay close attent ion to traffic, even
when the braking guard is switched on. Be
ready to intervene and be ready to take com­
plete control whenever necessary. Always
keep the safe and legal distance between
your vehicle and vehicles up ahead.
- Braking guard works within limits and will
not respond outside the system limits, for
examp le when approaching a stopped vehi­
cle or stationary obstacle (end of a traffic
jam or vehicle that has broken down in traf­
fic).
- Always remember that the radar sensor for
the braking guard works only w ith in defined
detection and range limits that may prevent
the proper detection of other vehicles.
- The radar sensor's function and range can
be reduced by rain, snow and heavy spray.
Moving vehicles up ahead may not be
-

M N
ci u.. co ,...., \!) 1.1"1
N 1.1"1 ,....,
Audi adaptive cruise control and braking guard
promptly detected or may not be detected
at all.
- Reflective surfaces including crash barriers
or tunnel entrances may impair the function
of the radar sensor.
(D Tips
- You can cancel the braking that is initiated by the system by braking yourself, by accel­
erating noticeably or by swerving.
- Braking guard error messages
Q page 97.
- Keep in mind that braking guard can brake
unexpectedly. Always secure any cargo or
objects that you are transporting to reduce
the risk of damage or injury.
Settings in the radio /MMI
App lies to vehicles: with Audi adaptive cruise co ntrol
... Select : I CARI function button > Car systems*
control button > Driver assist> Audi braking
guard .
Or
... Select :
~I C-A-R~I function button > Audi braking
guard.
System -
Switch Audi braking guard On and Off.
When you switch the ignition on, the message
Audi braking guard off appears if the system is
switched off.
Early warning -The distance and approach warn ­
ings in the display can be switched
On/Off.
(D Tips
-Your settings are automatically stored and
assigned to the remote control key being
used at the times the settings are made.
- If you restrict or switch off the ESC, the
braking guard also switches itself off
¢ page 171.
- Switch braking guard off when you are load­
ing the vehicle onto a vehicle carrier, train,
ship or other type of transportation . This
can prevent undesired warnings from the
braking guard system.
Messages
Applies to vehicles: wi th Aud i adap tive c ruise control
Braking guard: Off
This driver message appears if the system is
turned off via the radio/MMI*. Otherwise, if the
system is turned off, the information appears ev­
ery time shortly after the start of the trip.
The driver message also appears if the system is
not available due to a malfunction or if the ESC is
not switched on
¢ page 171. If this is the case,
the system will not provide warnings about a possible collision.
Braking guard: Activated
This driver message appears if sharp brake pres­
sure was applied due to an acute warning .
•••
Three white dots appear if a setting cannot be se­
lected with the operating lever. For example, this
happens if you want to raise/lower the speed
even though there was no previously saved
speed .
ACC: Sensor blocked
This message appears if the sensor view is ob­
structed, for example by leaves, snow, heavy
spray or dirt. Clean the sensor~
page 90,
fig. 103.
ACC: not available
The driver message appears if there is a malfunc­
tion. The adaptive cruise control turns off. A
chime sounds as a reminder. Have the system
checked by an authorized Audi dealer or author­
ized Audi Service Facility.
ACC: unavailable
The driver message appears if, for example, the
brake temperature is too high. The adaptive
cruise control is temporarily unavailable . A chime
sounds as a reminder.
Shift lever position!
The driver message appears if the selector lever
is shifted to the N position. The adaptive cruise
control is not available while in this position. .,..
97

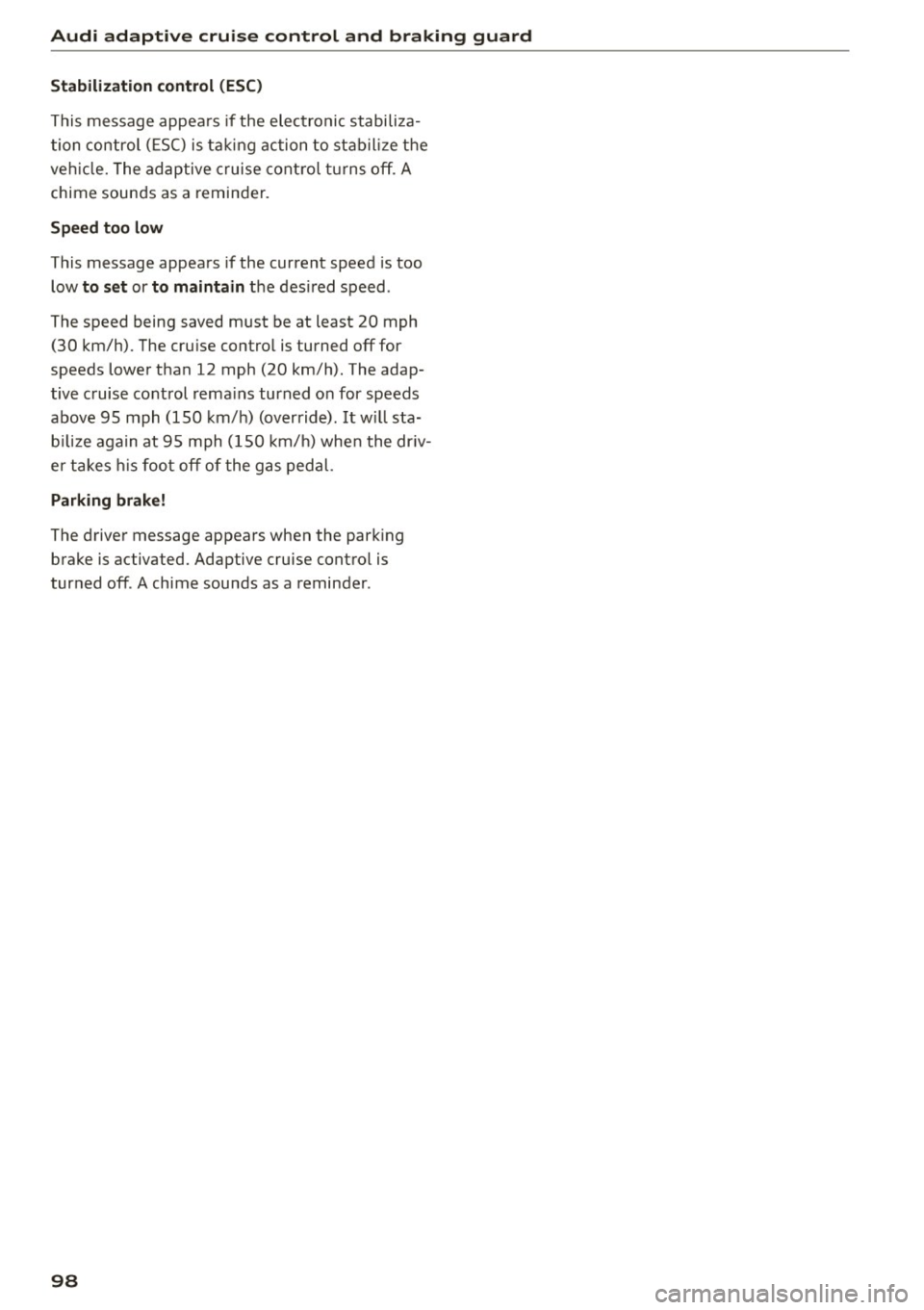

Audi adaptive cruise control and braking guard
Stabilization control (ESC)
T his message appea rs if the electroni c stabili za­
t ion con trol ( ESC) is taki ng act io n to s tab iliz e th e
ve hicl e. The adap tive cruise cont ro l tur ns off. A
chime soun ds as a remin der.
Speed too low
This message appea rs if the current speed is too
low
to set or to maintain th e des ired s peed .
The speed being saved must be at least 20 mph (30 km/h). The cru ise cont ro l is turned off for
speeds lowe r th an 12 mph (20 km/h). The adap­
tive c ruise co ntrol rema ins tur ned o n for speeds
above 95 mph (150 km/ h) (override). It w ill sta­
b iliz e aga in at 9 5 mph ( 150 k m/h) whe n the dr iv­
e r tak es his foo t off of the g as peda l.
Parking brake!
The drive r message appea rs when the park ing
b rake is activated. Adaptive cru ise cont ro l is
tur ned off . A chime sounds as a reminde r.
98
