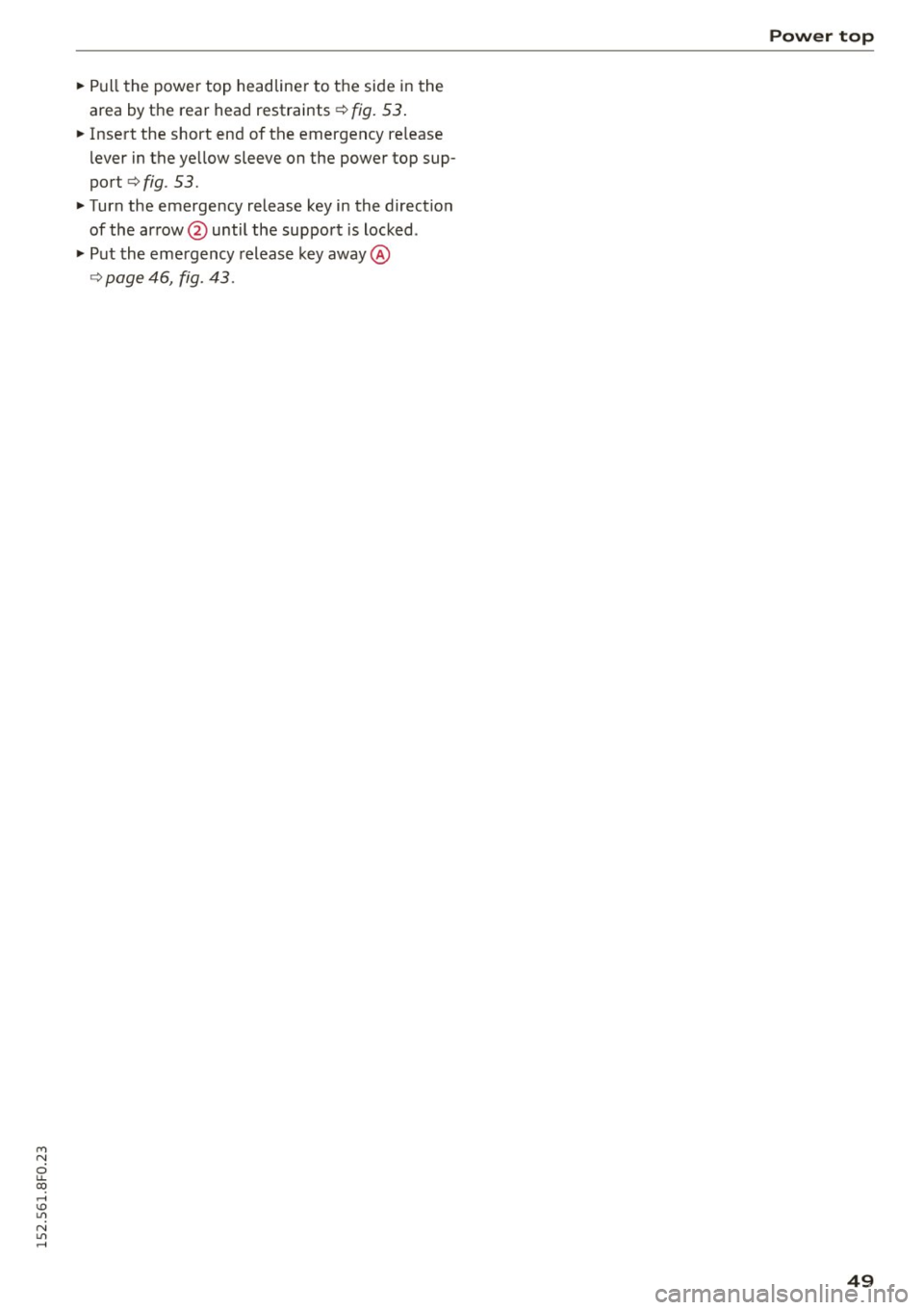

Page 51 of 268
M N
ci u.. co ,...., \!) 1.1'1
N 1.1'1 ,....,
~ Pull the power top headliner to the side in the
area by the rear head restraints¢
fig. 53.
~ Insert the short end of the emergency re lease
lever in the ye llow sleeve on the power top sup
port
¢ fig . 53.
~ Turn the emergency release key in the direction
of the arrow @until the support is locked .
~ Put the emergency release key away @
¢ page 46, fig. 43.
Power top
49
Page 52 of 268
Lights and Vi sion
Lights and Vision
Exterior Lighting
Switching the lights on and off
Fig. 54 Inst rume nt pane l: headl ig h t co ntrol switc h
Light switch ·'t/-·
Tu rn the switch ¢ fig. 54 to the co rr e spond ing
position . Whe n the lights a re switched on, the
:oo,
symbo l turns on.
0 -The lights are off or the daytime runn ing
lights are on:
- USA models : The daytime running lights are ac
tivated when the light switch ¢
fig. 54 is in the
0 position or the AUTO position (only in day
li ght conditions). The daytime running lights
funct io n can be turned on and off in the radio
o r MM I* men u
Exterior lighting ¢ page 51,
c:?,& .
-Canada model s: T he daytime r unni ng lights are
activated when the lig ht switch
C?fig. 54 is in
t h e
O pos it ion, 300, position or the AUTO posi
tion (only in daylight conditions) . The daytime
runn ing lights function cannot be turned off
¢ ,A .
AUTO* -Au tomatic headlights swi tch on and off
depending on brightness, for examp le in twilight,
during rain or in tu nnels ¢
A.
:oo , -Side marker lights
fO -Low beam headlights
Fog lights /rear fog light(s )*
Press the appropriate button c:? fig. 54:
}0 -Fog lights
O* -Rea r fog light(s)
50
adaptive light*
When switched on, adap tive ligh t ad ap ts to
curves in the road depending on the vehicle
speed and the steering ang le. This provides bet
ter light ing through the curve. The system oper
ates at speeds between approximately 6 mph
(10 km/h) and 68 mph (110 km/h).
Static cornering light* (vehicles with adaptive
li ght) -the corne ring light switches on at speeds
up to approximate ly 25 mph (40 km/h) when a
certain steering wheel angle is reached or when a
turn s ignal is act ivated . T he area to the side of
the ve hicle is illuminated better when turning .
The adaptive light and the cornering light only
funct io n when the switc h is in the AUTO position
(automat ic head lights*) .
A WARNING
- Daytime r unning lights and a utomat ic head
lights* are only intended to as sist the driver .
T h ey do not re lieve the driver of his respon
sibility to c heck t he hea dlights and to tur n
t hem on m anually ac co rding to the cur rent
light and visibili ty conditions. Fo r exam ple,
fog cannot be detected by the light sen
sors*. So a lways sw itch on the headlights
l[D
under these weather conditi ons and when
driving in the dark.
- Crashes can happen when y ou cannot see
the road ahead and when you cannot be
seen by ot her moto rists. Always tu rn on the
headlights so that yo u ca n see ahead a nd so
that othe rs can see yo ur ca r from the back.
- Please obey all laws when usi ng the lighting
sys tems described here.
(D Note
The rear fog lights* should on ly be turned on
i n accordance w ith traffic regulat ion, as t he
lights are br ight for follow ing traffic.
{!) Tips
- The light sensor* for headlight control is lo
cated in the rear v iew mirror mount. Yo u
should the refore not app ly any st ickers to
Page 53 of 268
M N
ci LL co
rl I.O
"' N
"' rl
the windshield in this a rea in order to
prevent malfunctions or failures .
- Some exterior lighting functions can be ad
ju ste d~
pa ge 51 .
-When yo u remove your key from the igni tion
while the vehi cle's ligh ts are turned o n, a
buzzer sounds as long as t he driver 's door is
open.
- In coo l o r dam p weather, t he inside of the
h eadlights, turn sig nals and tail lights can
fog over d ue to the temperature difference
between the inside and outs ide. They will
clea r shortly after switching them on. T his
does not affect t he service li fe of the light
i ng.
- In the event of a light sensor malfunction,
the driver is not ified in the instr ume nt clus
te r display~
page 21.
Turn signals and high beam lever
The lever operates the turn signals, the high
b eams and the headlight flasher.
Fi g. 55 Tu rn signa l and high beam lever
Turn signals ¢ Q
g N
0
~ CD
The turn signals activate when you move the lev
er into a turn s ignal position when the ignition is
switched on.
@ -righ t tur n signal
@ -left turn signa l
The turn s ignal b links three times if you just tap
the lever.
High beams and headlight flasher
[0
M ove the lever to the corresponding position:
@ -high beams o n
Lights and Vis ion
@ -high beams off or headlight flasher
T he ind icator light
II in t he inst rument cl uste r
tu rns on.
Notes on these features
- The
turn signals on ly wor k w ith the ign ition
tur ned on. The indicator ligh ts . or
II in the
instr um ent clus ter also b link.
-After you have tu rned a corner, the turn s ignal
sw itches off automatically.
- The
high beam works on ly when the headlights
are on . T he indicator light
II in the instrument
cluste r illuminates whe n the high beams a re
on.
- The
headlight flash er works o nly as long as yo u
hold the leve r - even if there are no lights
sw itched on . The indica to r li ght
II in the in
s trumen t cluste r ill umin ates when you use t he
head light flasher.
,&. WARNING
D o not use t he h igh beam or hea dlight flashe r
i f you know that these could blind oncoming
traffic.
Adjusting exterior lighting
The func tions are selected in the radio or MMI* .
.,. Select: !CAR I func tion b utton > Exterior light
ing .
Or
.,. Sele ct: !~C_A _R~ I function b utton > Car systems *
contro l butto n > Vehicle settings > Exterior
lighting .
Coming home (light when leaving car )*,
Leaving home (light when unlocking car)*
The
coming home f u nction illuminates the area
aro und t he vehicle when the ignition is switched
off and the driver's door is opened. Depend ing on
vehicle equipment, the function can be switched o n and off o r the length of t ime t he lig hts rema in
on* can be adjusted .
The
leaving home function illuminates t he area
around th e vehicle when unloc kin g it. This func-
t ion can be switched on and off. ""
51
Page 54 of 268
Lights and Vision
The coming home and leaving home functions
only operate when it is dark and the light switch
is in the AUTO position ¢
page 50, fig. 54.
Auto headlights*
When the light switch is in the AUTO¢ page 50
position, the switch-on point of the lights can be
changed in the automatic driving light function.
Daytime running lights
USA models:
You can switch the daytime running
lights
on and off.
Canada models:
The function cannot be turned
off. It is activated automatically each time the ig
nition is switched on.
Travel mode*
The headlight beam is asymmetrical. This pro
vides stronger illumination on the side of the
road on which you are driving. If you are driving
in a country that drives on the opposite side of
the road from your own country, this will cause
glare for oncoming drivers. To prevent glare:
- Travel mode must be selected in vehicles with
Xenon headlights* .
- In vehicles with halogen headlights, certain
areas of the headlight lenses must be covered
with waterproof adhesive covers that prevent light from passing through. For more informa
tion, please see your authorized Audi dealer or authorized repair facility.
When travel mode is activated, a display in
the driver information system indicates this
each time you switch the ignition on.
52
Emergency flashers
Fig. 56 Center console: emer gency flasher switch
The emergency flashers makes other motorists
aware that you or your vehicle are in an emergen
cy situation .
.. Press the switch ~¢
fig. 56 to t urn the emer-
gency flashers on or off.
When the emergency flashers are on, all four
turn signals blink at the same time. The turn sig
nal indicator lights
RB in the instrument clus
ter, as well as the light in the emergency flasher
switch
IA] blink likewise .
You can indicate a lane change or a turn when the
emergency flashers are switched on by using the
turn signal lever . The emergency flashers stop
temporarily .
The emergency flashers also work when the igni
tion is turned off.
The emergency flashers will turn on automatical
ly if you are in an accident where the airbag has
deployed.
@ Tips
You should turn on the emergency flashers
when:
-you are the last vehicle standing in a traffic
jam so that any other vehicles coming can see you, or when
- your vehicle has broken down or you are in
an emergency situation, or when
-your vehicle is being towed by a tow truck or
if you are towing another vehicle behind
you.
Page 55 of 268
M N
ci LL co
rl I.O
"' N
"' rl
Interior lighting
Front/rear interior lights
Fig. 57 Fr ont headliner : interio r ligh ting contro ls
F ig. 58 Rear headliner: rea r reading lig hts
@ Interior lights
Press the button @. The LED in the button illumi
nates.
If the LED i lluminates, the interior lighting is
controlled automatically.
@ Front/rear reading lights
To tu rn a reading light on/off, p ress the bu tton
[!] ~fig. Sl or~fig . 58.
Lights and Vis ion
Instrument illumination
The basic brightness of the illumination for the
instruments, the center console and the display
can be adjusted .
Fig . 59 Inst rume nt illumination
• Press the knob to re lease it .
.. Tu rn the knob toward"-" or "+" to reduce or in
crease the brightness.
• Press the knob again to return it to its original
position .
@ Tips
The instrument illum ination (for d ials and
needles) lights on when the ignition is sw itch
ed on and the vehicle lights are tur ned off. As
the daylig ht fades, the illum ination of the di
a ls likewise dims automatically and will go
out comple tely when the out side ligh t is very
l ow. Th is fe ature is meant to remind yo u to
swi tch on the headlights when ou tside light
cond itions become poor.
Vision
Adjusting the exterior mirrors
Fi g. 60 Drive r's door : knob for the exte rio r mirrors
Turn the knob to the desired posit ion:
53
Page 56 of 268
Lights and Vision
Q/P -Adjusting the left/right exterior mirror .
Move the knob in the des ired direction.
4ill -Heat ing the m irror g lass depending on the
outside temperature*.
.9 -Folding exterior mirrors* . In the Infotain
ment system, you can select if the mirrors fold in
automatically when you lock the vehicle
¢ page 34.
Front passenger's exterior mirror tilt
function*
To help you see the curb when backing into a
parking space, the surface of the mirror t ilts
slightly . Fo r this to happen, the knob must be in
the position for the front passenger 's outside
mirror.
You can adjust the tilted mirror su rface by turn
ing the knob in the des ired direction . When you
move out of reverse and into another gear, the
new mirror position is stored and assigned to the
key you are using.
The mirror goes back into its origina l position
once you drive forward faster than 9 mph (15 km/h) or turn the ignition off.
A WARNING
Curved mirror surfaces (convex or spherical*)
increase your field of view. Remember that
vehicles or other objects will appear smaller
and farther away than when seen in a flat mir
ror. If you use this mirror to estimate distan
ces of following vehicles when changing
lanes, you cou ld estimate incorrectly and
cause an accident.
(D Note
-If the mirror hous ing was moved by force
(for example, by running into an object
when maneuvering the vehi cle), the mirror
must be folded all the way in using the pow
er folding function. The mirror housing
must not be moved back into place by hand
because this would impair the function of
the mirror mechanism.
- If you wash the vehicle in an automatic car
wash, you must fold the exterior mirrors in
54 to reduce
the risk of damage to the mirrors.
Never fold power folding exterior mirrors*
by hand. Only fold them in and out using
the power controls.
(D Tips
-If the power adjusting function malfunc
tions, the g lass in both mirrors can be ad
justed by pressing on the edge of it by hand.
- The exterior mirror settings are stored with
the memory function* ¢
page 63.
Dimming the mirrors
Fig. 61 Auto mat ic dimmin g rearv iew mirro r•
Manual dimming rearview mirror
.,. Pull the lever on the bottom of the m irror back .
Automat ic dimming rearview mirror*
.,. Press the button@¢ fig. 61. The indicator
light @ turns on . The rearview and exter ior*
mirrors dim automatically when light shines on
them, for example from headlights on a vehicle
to the rear.
~ WARNING
Electro lyte fluid can leak from automatic dim
ming mirrors if the glass is broken. Electrolyte
fluid can irritate skin, eyes and respiratory system.
- Repeated or prolonged exposure to e lectro
lyte can cause irritation to the respiratory
system, especially among people with asth
ma or other resp iratory conditions . Get
fresh a ir immediately by leaving the vehicle
or, if that is not possible, open windows and
doors all the way.
~
Page 57 of 268
M N
ci LL co
rl I.O
"' N
"' rl
-If electrolyte gets into the eyes, flush them
thoroughly with large amounts of clean wa
ter for at least 15 minutes; medical atten
tion is recommended .
- If electrolyte contacts skin, flush affected
area with clean water for at least 15 mi nutes and then wash affected area with
soap and water; medical attention is recom
mended. Thoroughly wash affected clothing
and shoes before reuse.
-If swallowed and person is conscious, r inse
mouth with water for at least 15 minutes.
Do not induce vomit ing unless instructed to
do so by medical professional. Get medical
attention immediate ly .
(D Note
Liquid electrolyte leaking from broken mirror
glass will damage any plastic surfaces it
comes in contact with. Clean up spilled elec
trolyte immediate ly with clean water and a
sponge .
@ Tips
-Switch ing off the dimming function of the
i nside rear view mirror also deactivates the
automatic dimming function of the exterior
mirrors .
- Automatic dimming for the mirror only op
erates properly if the light striking the in
side mirror is not h indered by other objects.
- The automatic dimming mirrors do not dim
when the interior lighting is turned on or
the reverse gear is selected.
Sun visors
T.__~l
Fig. 62 Dr ive r"s side: su n visor
Lights and Vision
The sun visors for the driver and passenger can
be pulled out of their brackets in the center of
the vehicle and turned towards the doors@.
The mirror light switches on when the cover over
the vanity mirror @opens .
Windshield wipers
Switching the windshield wipers on
®
Fig. 63 Winds hield w iper leve r
Move the windshield wiper lever to the corre
sponding position:
@ -Windshield wiper off
(D-Interval mode . To extend/shorten the wiper
intervals, move the switch @to the left/right. In
vehicles with a ra in sensor* the wipers turn on in
the rain once the vehicle speed exceeds approxi mately 2 mph (4 km/h). The higher the sensitivi
ty of the rain sensor* is set (switch @to the
right), the earlier the windshield wipers react to
moisture on the windshield . In some models, you
can switch ra in sensor mode off and switch inter
mittent mode on in the MMI* . Select :
ICARI func
t ion button
> Car systems* control button > Driv
er assist> Rain sensor .
In intermittent mode,
you can adjust the interval time using the@
switch.
@ -Slow w iping
@ -Fast wip ing
@ -Single wipe
® -Clean the w indshield. To elim inate water
droplets, the windsh ield wiper performs one af
terwipe operation after several seconds while driving. You can switch this function off by mov -
ing the lever to posit ion ® within 10 seconds of ..,.
55
Page 58 of 268
Ligh ts a nd Vi sion
th e afterwipe operation. The afterwipe function
is reactivated the next time the ignition is switch
ed on.
Clean ing the headlights*. The headlight washer
system* operates only when the headlights are
on.
If you move the lever to pos ition @ , the
headlights are washed in intervals.
A WARNING
- The rain sensor is only intended to assist the
driver . T he driver is still responsible for
manually switching the wipers on according
to the v is ibility conditions .
- The w indshield may not be treated w ith wa
ter -repelling windsh ield coating agents . Un
favorable condit ions, such as wetness, dark
ness, low sun, can result in increased g lare.
Wiper b lade chatter is also possible.
- Properly functioning w indshield w iper
blades are required for a clear view and safe
dr iv ing ¢
page 56, Replacing windshield
wiper blades .
(D Note
-In the case of frost, check whether the
windsh ield wiper b lades are frozen to the
windsh ield. Sw itching on the windsh ield
wipers can damage the wiper blades!
- Prior to using a car wash, the winds hield
wiper system m ust be switched off (lever in
position @). T his helps to prevent uninten
tiona l switching on and damage to the
windshield wiper system .
@ Tips
-The windshield wipe rs are switched off
when the ignition is turned off. Activate the
windshield wipers after the ignition is
switched back on by moving the windsh ield
wiper lever to any pos it ion.
- Worn or dirty windshie ld w iper blades result
i n streaking. This can affect the rain sensor*
funct ion. Check your windshield wiper
blades regularly .
- The washer fluid nozzles of the windshield
washer system are heated at low tempera
tures when the ignit ion is on.
56
- W hen stopping temporarily, (e .g. at a traffic
light) the set speed of the windshield wipers
is automat ica lly reduced by one speed.
Cleaning windshield wiper blades
Clean the windshie ld w iper blades when they be
gin to leave streaks . Use a soft cloth and glass
cleaner to clean the windshield w iper blades .
.. Place the windshie ld wiper a rms in the service
position. Refer to ¢
page 56.
.. Lift the wiper arm away from the front window .
A WARNING
Dirty windshield wiper b lades can impair your
view. This can lead to accidents.
· Replacing windshield wiper blades
Fig. 64 Re mov ing w in d shi eld w iper blade
Wi per s ervice position /bla de replacement
posit ion
.. Switch the ignit ion off and move the windshield
w iper lever to position @¢
page 55, fig . 63.
T he windsh ie ld w ipers move into the service po
sition.
.. To bring the w ipers back into the origina l posi
tion, switch the ignition on and press the wind
shield w iper lever.
You can also tu rn the se rv ice position on or off in
t h e radio/M M!*:
.. Switch the windshie ld wipers off (position @
¢page 55, fig . 63) .
.. Select: !CAR ! function button > Windshield
wiper s
> Ser vice po sition > on /off . Or
Page 59 of 268
M N
ci LL co
rl I.O
"' N
"' rl
.. Select: ICARI function button> Car systems*
control button > Servicing & checks > Wiper
service position
> On/Off .
Removing the wiper blade
.. Lift the windshie ld wiper arm up from the wind
shield.
.. Press the locking knob
@¢fig . 64 on the wiper
blade. Hold the wiper b lade firm ly.
.. Remove the wiper blade in the direction of the
arrow .
Attaching the wiper blade
.. Install the new wiper blade in the retainer on
the wiper arm@ unti l you hear it click into
place on the wiper arm .
.. Place the wiper arm back on the windshie ld.
.. Turn the service pos ition off.
A WARNING
For your safety, you should replace the wiper
blades once or twice a year. See your author
ized Aud i dea ler for replacement blades.
(D Note
-The windshield wiper blades must only be
replaced when in the service position! Oth
erwise, you r isk damaging the paint on the
hood or the windshield wiper motor.
- You should not move your vehicle or press
the windshie ld w iper lever when the wiper
arms are folded away from the windshield .
The windshield wipers would move back in
to their original position and could damage
the hood and windshield.
- To he lp prevent damage to the wiper sys
tem, always loosen blades which are frozen
to the windshie ld before operating wipers .
- To he lp prevent damage to w iper blades, do
not use gasoline, kerosene, paint thinner, or
other solvents on or near the wiper blades.
- To he lp prevent damage to the wiper arms
or other components, do not attempt to
move the wipers by hand .
Lights and Vision
(D Tips
-Commercial hot waxes applied by automatic
car washes affect the how easily the glass
surface can be cleaned.
- You can also use the service position, for ex
ample, if you want to protect the windshield
from icing by using a cover .
Digital compass
Switching the compass on and off
Appl ies to veh icles : w ith dig it a l co mp ass
The compass direction is shown in the rearview
mirror.
Fig. 65 Rearv iew mirr or: Digita l compass act ivated
M
-
.. To switch the compass on or off, press and hold
the button @ unti l the compass d isplay in the
mirror¢
fig. 65 appears or disappears.
The digita l compass only works when the ignition
is on. The directions are indicated with abbrevia
tions: N (north), NE (northeast), E (east), SE
(southeast),
S (south), SW (southwest), W
(west), NW (northwest) .
@ Tips
To prevent inaccurate compass readings, do
not bring any remote controls, electrical devi
ces or metallic objects near the mirror .
57
Page 60 of 268
Lights and Vi sion
Adjusting the magnetic zone
Applies to vehicles: with digital compass
The magnetic zone must be adjusted correctly
for the compass to read accurately .
~
LIU ®
Fig . 6 6 No rth A meri ca: magnet ic deflection zo ne bo unda
ri es
"' Press a nd ho ld the button @~ fig. 66 until the
number of the magne tic zone ap pears in the
rearview mirror .
"' Press the butto n @ repeated ly to select the
correct magnetic zone . The selection mode
turns off after a few seconds.
Calibrating the compass
Applies to vehicles: w ith d ig ital compass
You must recalibrate the compass if it does not
display the correct direction.
"'Press and ho ld the bu tton @unt il a C appea rs
in the rearview mirror.
"' Drive in a circle at about 6 mph (10 km/h) until
a direct ion is displayed in the rearv iew m irror .
A WARNING
-To avoid endanger ing yo urself and othe r
dr ivers, calibrate the compass i n an area
whe re the re is no traffic.
58
- The digital compass is to be used as a direc
tional a id on ly. Even though you may want
to look at it wh ile you are dr iv ing, you must
still pay attent io n to traffic, road a nd weath
er cond itions as well as other poss ible haz
ar ds.
